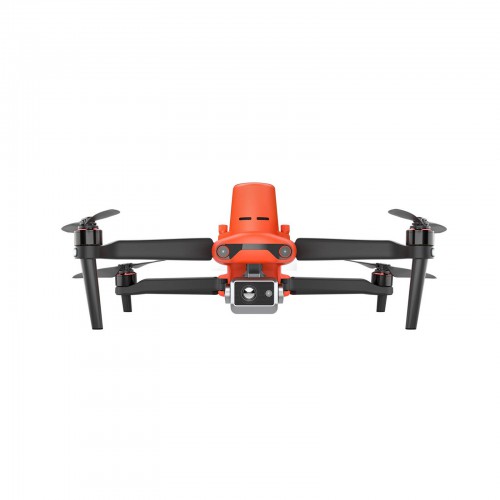

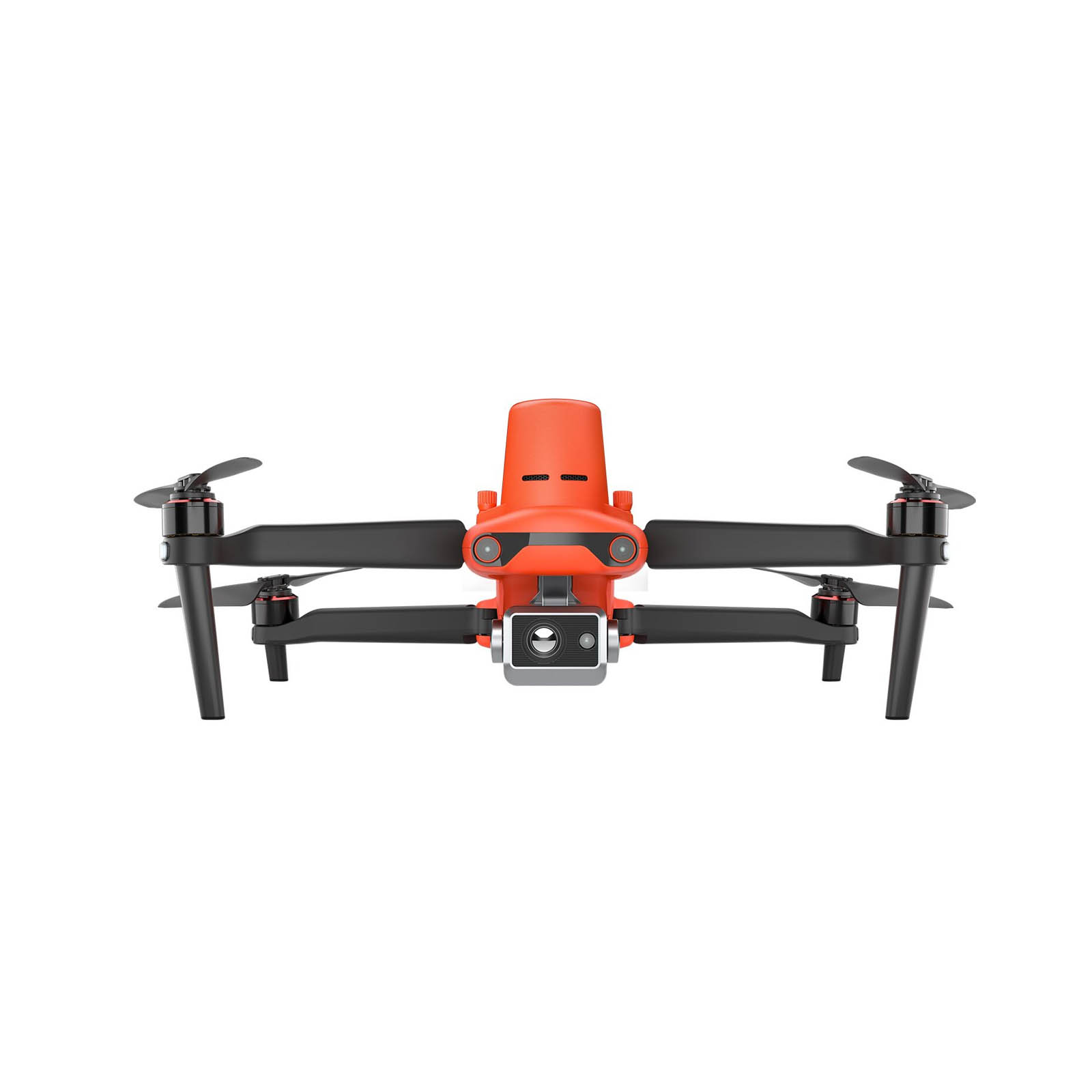

Autel EVO II Dual640T RTK 8K Drone Dual Cameras F/2.8-F11 36min Max Flight Time Thermal Imaging High Resolution High Precision



Autel EVO II Dual640T RTK V3 is safe and sturdy with Lv8 wind resistance, 38 minutes flight time, 15km transmission range, maximum 2000nit brightness, 4.5 operating hours and IP43 resistance. It has 1080P video stream, 12KM transmission range, three auto-switch bands and unrivaled accuracy and control.



Product Features:

Centimeter-Level Positioning
The EVO II RTK Series V3 integrates an entirely new RTK module for 2022, which provides real-time centimeter-level positioning data in three minutes and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports RTK base station and NTRIP RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.

RTK Horizontal Positioning
Accuracy: 1cm+1ppm

RTK Vertical Positioning
Accuracy: 1.5cm+1ppm

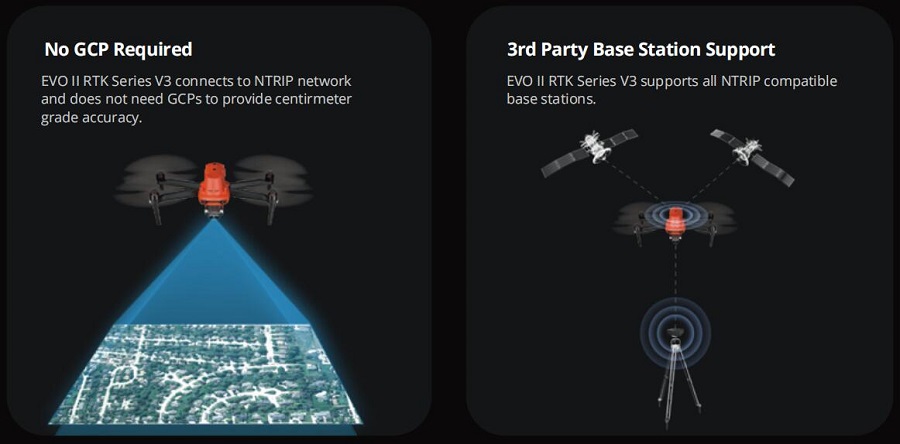

No GCP Required
EVO II RTK Series V3 connects to NTRIP network and does not need GCPs to provide centirmeter grade accuracy.

3rd Party Base Station Support
EVO II RTK Series V3 supports all NTRIP compatible base stations.

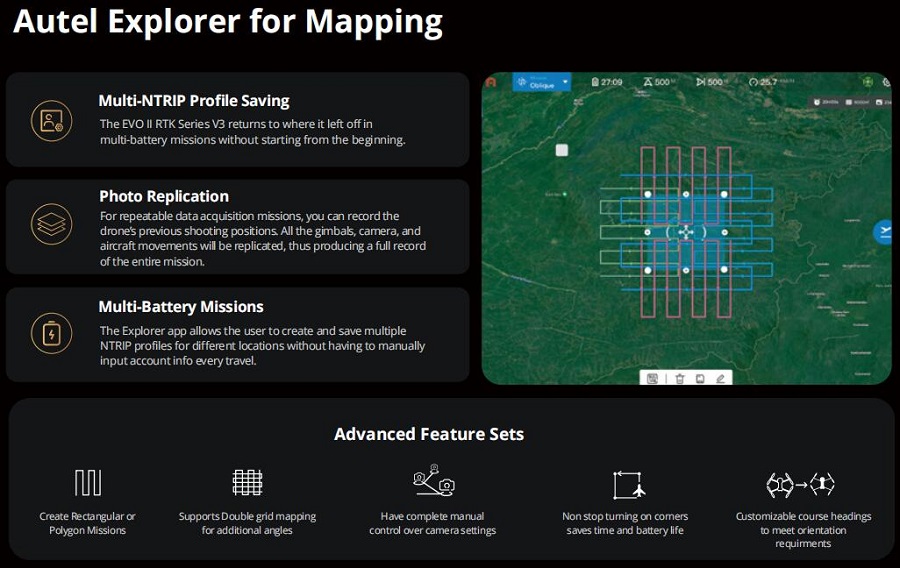

Autel Explorer for Mapping

Multi-NTRIP Profile Saving
The EVO II RTK Series V3 returns to where it left off in multi-battery missions without starting from the beginning.



Photo Replication
For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

Multi-Battery Missions
The Explorer app allows the user to create and save multiple NTRIP profiles for different locations without having to manually input account info every travel.

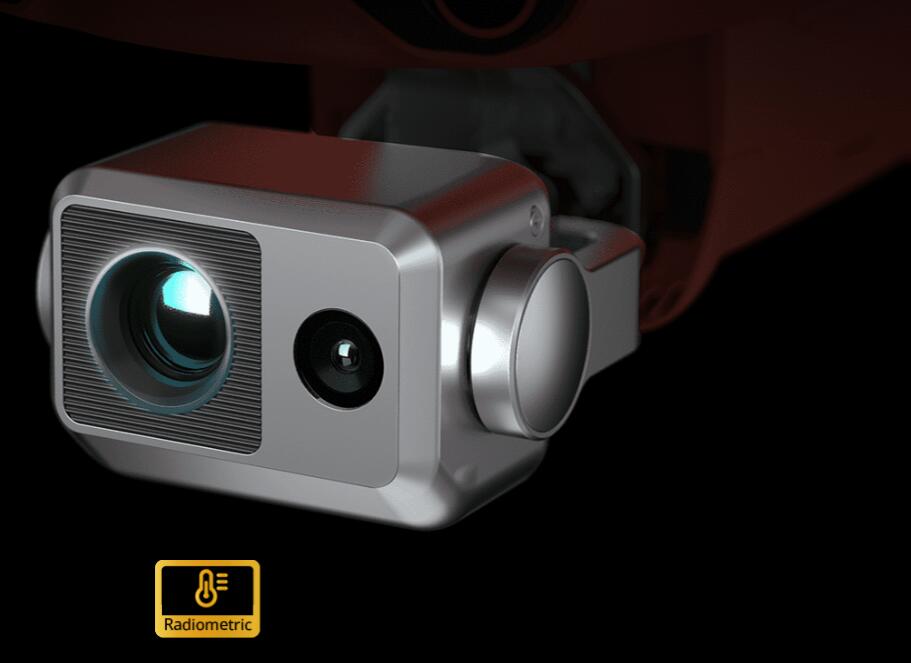

Dual Cameras, Accurate Temperature Measurement

The EVO II Dual 640T RTK V3 is equipped with a high-resolution thermal imaging camera and an all new Sony .8" 50 megapixel RYYB sensor.

Precise Temperature Measurement
The EVO II Dual 640T RTK V3 can accurately detect heat sources within a distance of 2-20 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.

Compact Design
The EVO II RTK Series V3 folds up for ease of transport and deployment.

Trouble Free Daily Workflows
The EVO II 640T V3 takes 45 seconds from launch to takeoff without fuss.


New Image Processing Algorithm
The V3 system uses a brand new image processing algorithm, making thermal imaging details sharper and more discernible than competition with the similar resolution and hardware.

30hz Refreshrate for Videogrammetry
The EVO II RTK Dual provides high refreshrates for accurate and detailed 3D thermal maps.



Zoom in for the Details
Zoom in on critical areas with EVO II RTK 16x digital zoom that supports 4x lossless zoom.

Multiple Color Palettes
White Hot / Cold and Hot / Rainbow / Enhanced Rainbow / Iron bow / Lava / Arctic / Searing / Gradation / Heat Detection

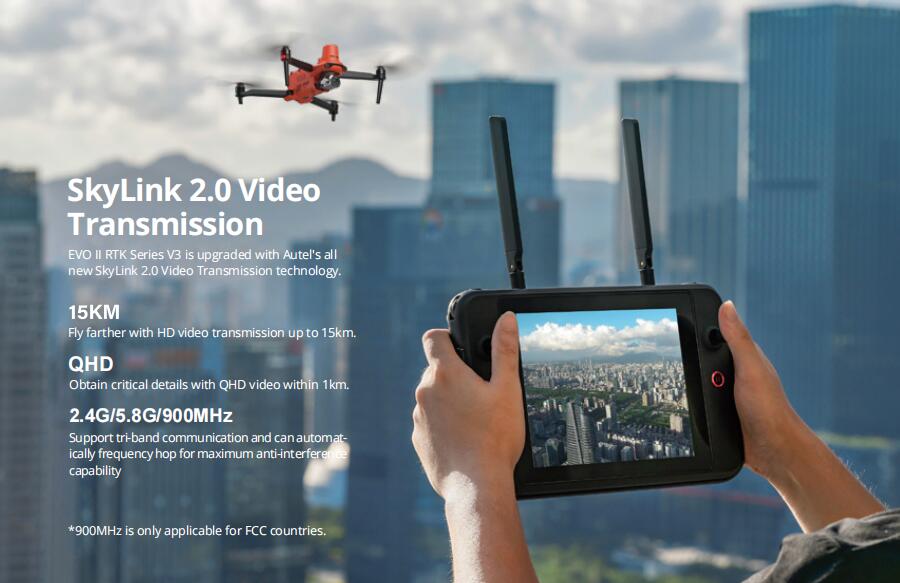

SkyLink 2.0 Video Transmission

EVO II RTK Series V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology.
15KM
Fly farther with HD video transmission up to 15KM.
QHD
Obtain critical details with QHD video within 1km.

2.4G/5.8G/900MHz
Support tri-band communication and can automatically frequency hop for maximum anti-interference capability

*900MHz is only applicable for FCC countries.



360° Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.

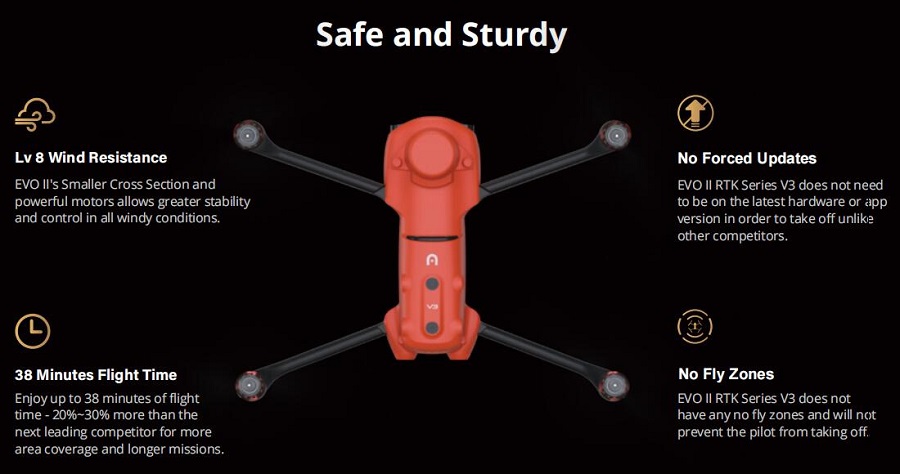

Lv 8 Wind Resistance
EVO II's Smaller Cross Section and powerful motors allows greater stability and control in all windy conditions.

No Forced Updates
EVO II RTK Series V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.

No Fly Zones

EVO II RTK Series V3 does not have any no fly zones and will not prevent the pilot from taking off.

38 Minutes Flight Time

Enjoy up to 38 minutes of flight time - 20%~30% more than the next leading competitor for more area coverage and longer missions

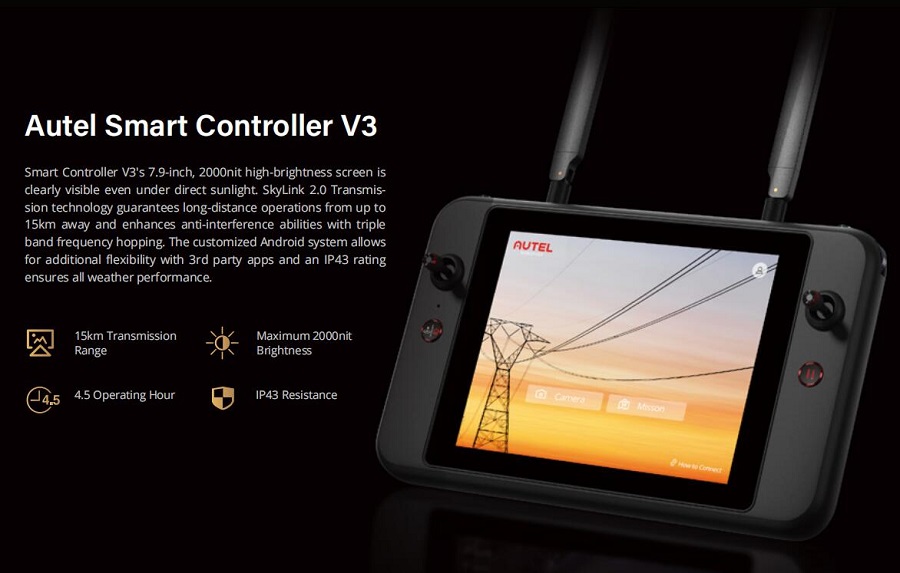

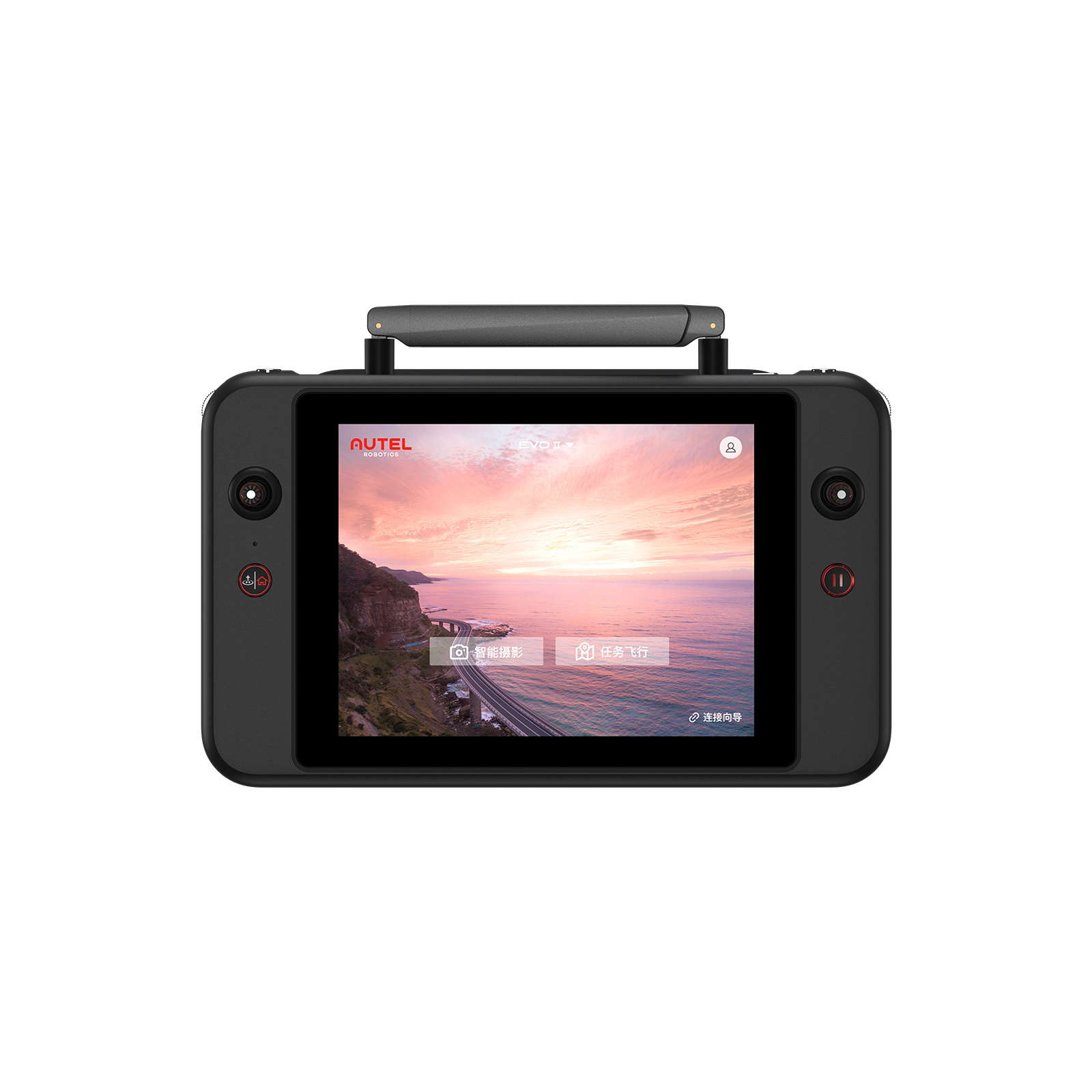

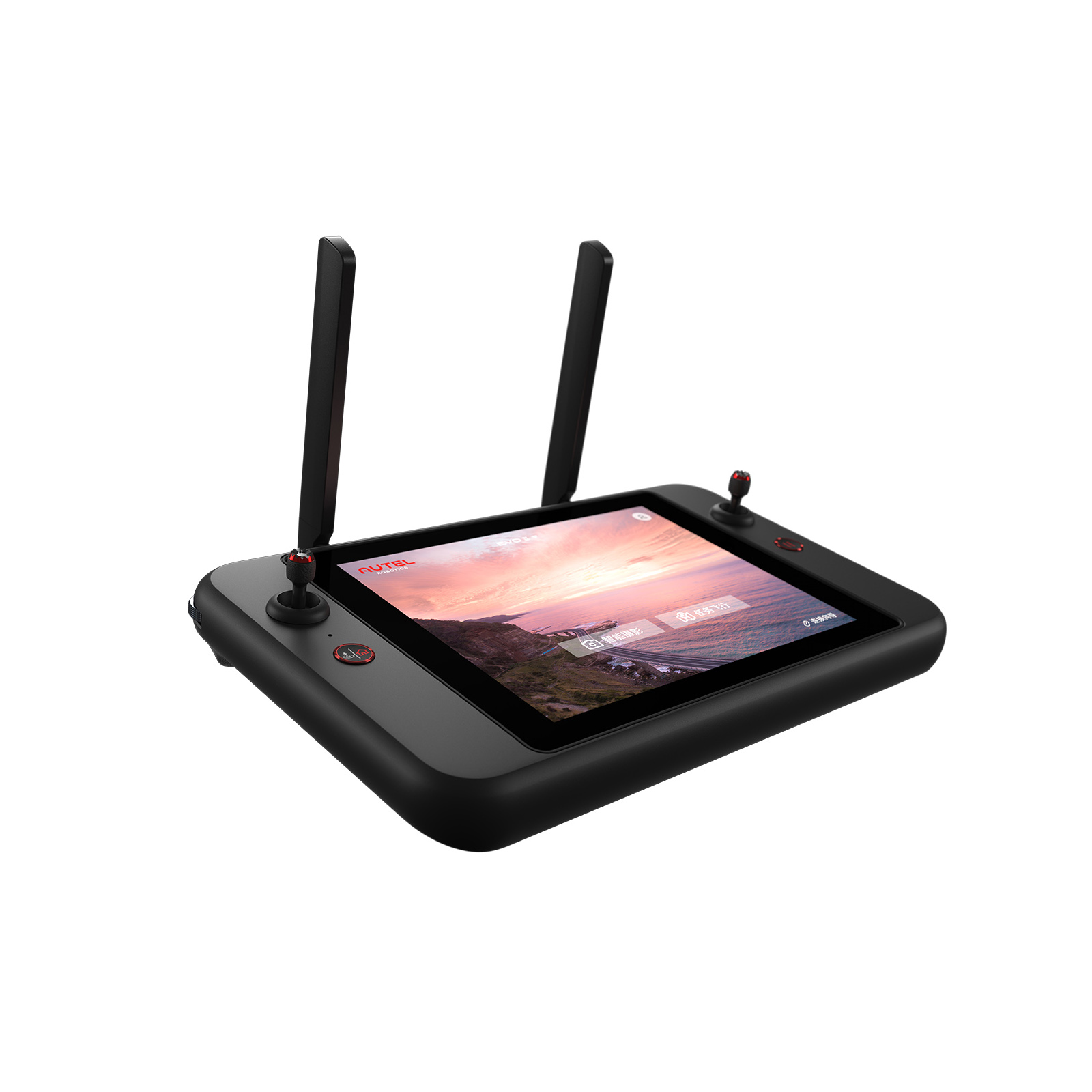

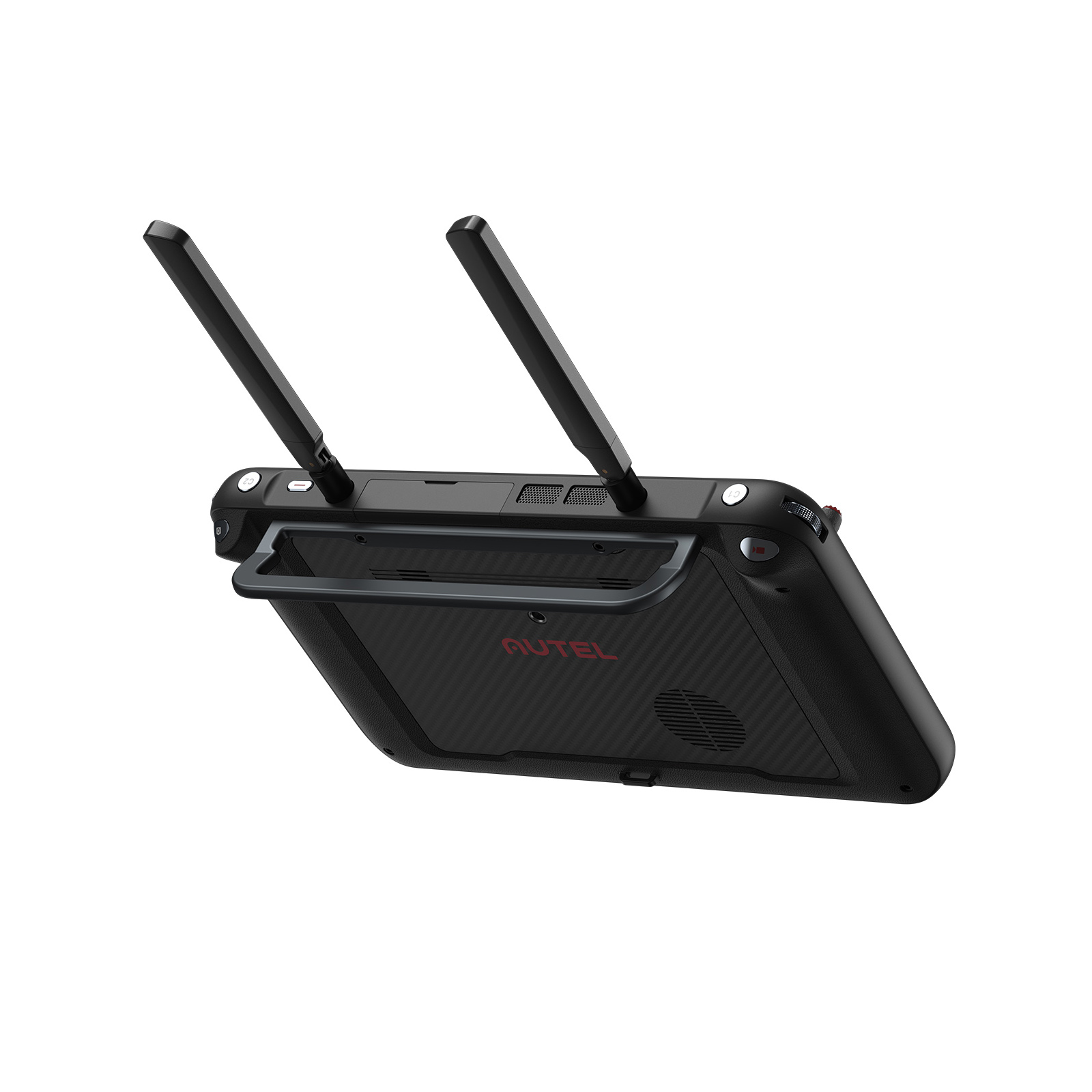

Autel Smart Controller V3

Smart Controller V3's 7.9-inch, 2000nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

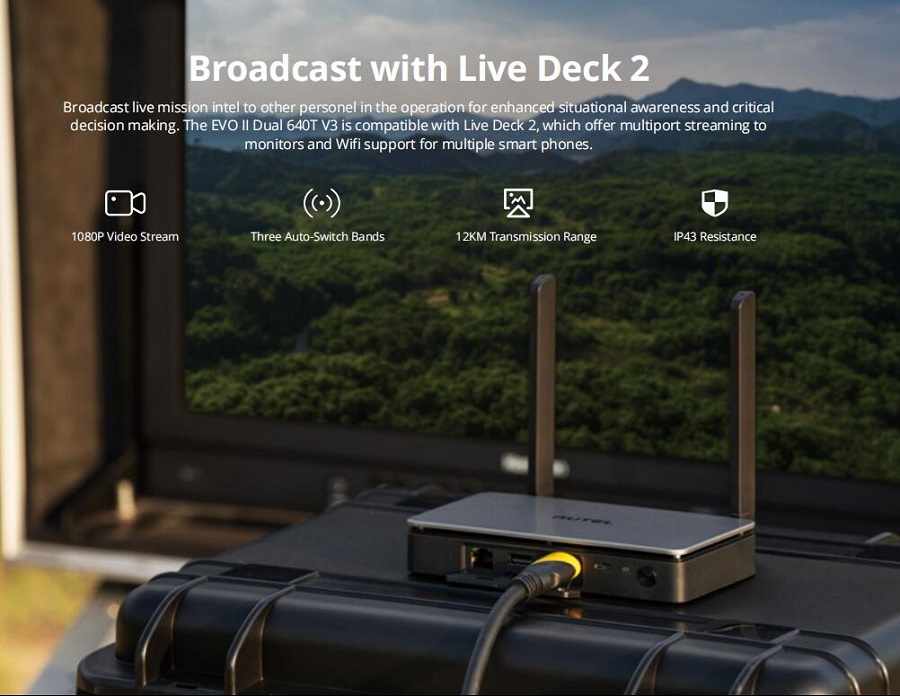

Broadcast with Live Deck 2

Broadcast live mission intel to other personel in the operation for enhanced situational awareness and critical decision making. The EVO II Dual 640T V3 is compatible with Live Deck 2, which offer multiport streaming to monitors and Wifi support for multiple smart phones.

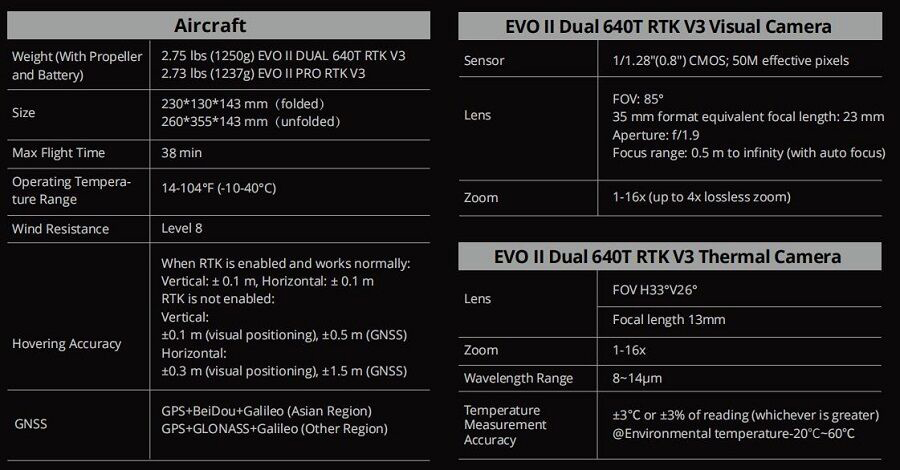

Product Specifications:


Aircraft
Weight (With Propeller and Battery)	2.75 lbs (1250g) EVO II DUAL 640T RTK V3                                                       2.73 lbs (1237g) EVO II PRO RTK V3
Size	230*130*143 mm（folded） 260*355*143 mm（unfolded）
Max Flight Time	38 min
Operating Temperature Range	14-104°F (-10-40°C)
Wind Resistance	Level 8
Hovering Accuracy	When RTK is enabled and works normally: Vertical: ± 0.1 m, Horizontal: ± 0.1 m RTK is not enabled: Vertical: ±0.1 m (visual positioning), ±0.5 m (GNSS) Horizontal: ±0.3 m (visual positioning), ±1.5 m (GNSS)
GNSS	GPS+BeiDou+Galileo (Asian Region) GPS+GLONASS+Galileo (Other Region)



EVO II Dual 640T RTK V3 Visual Camera
Sensor	1/1.28"(0.8") CMOS; 50M effective pixels
Lens	FOV: 85°  35 mm format equivalent focal length: 23 mm  Aperture: f/1.9  Focus range: 0.5 m to infinity (with auto focus)
Zoom	1-16x (up to 4x lossless zoom)
EVO II Dual 640T RTK V3 Thermal Camera
Lens	FOV H33°V26° Focal length 13mm
Zoom	1-16x
Wavelength Range	8~14μm
Temperature Measurement Accuracy	±3℃ or ±3% of reading (whichever is greater)@Environmental temperature-20℃~60℃



RC and Image Transmission
Max Transmission Distance (Unobstructed, Free of Interference)	FCC: 15km   CE: 8km
Display Screen	2048x1536 60fps
Operating Time	~2 hours (max. brightness) ~4 hours (50% brightness)
Charging Time	120 minutes
Internal Storage	ROM 128GB

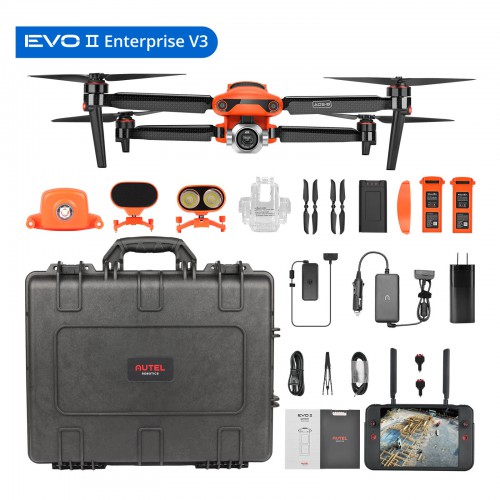

Package Includes:

1pc x  EVO II Dual640T RTK V3
