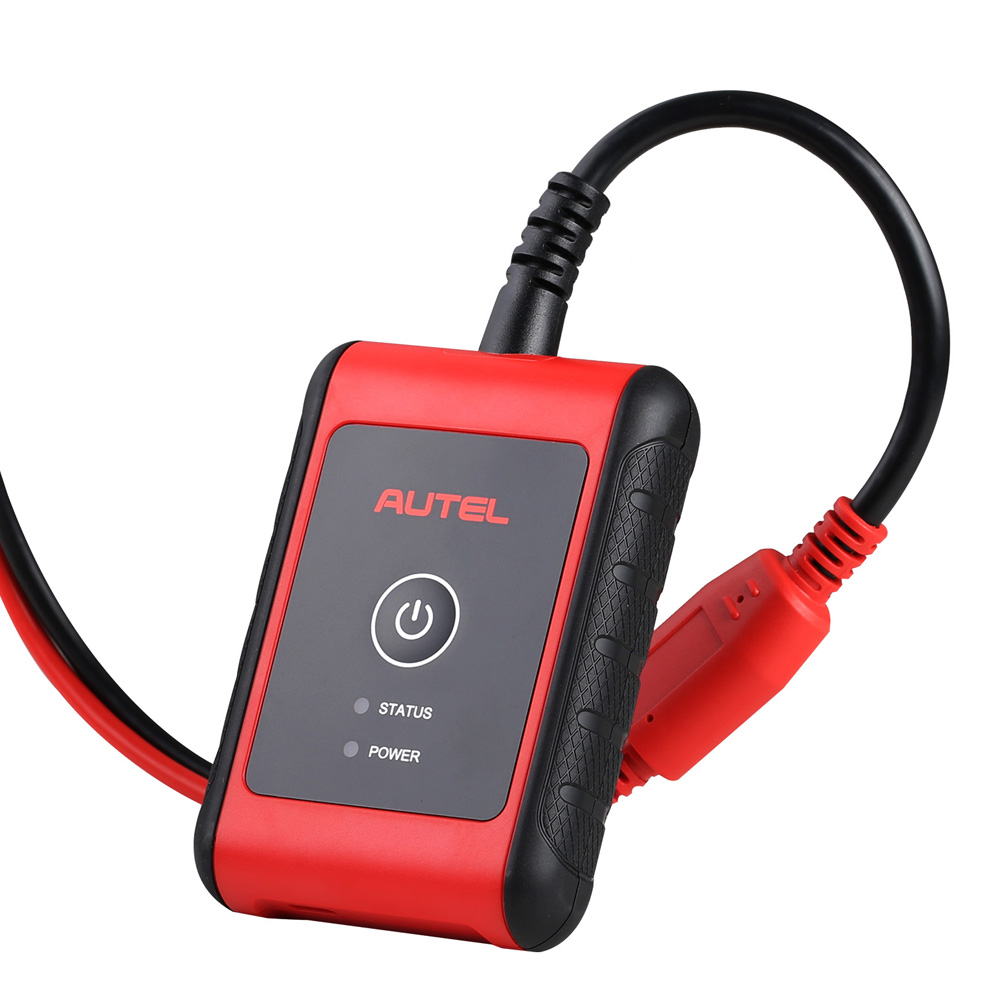

[US Ship] [Second-Handed] 90% New Autel MaxiBAS BT506 Battery and Electrical System Analysis Tester Used with Autel MaxiSys Supports iOS & Android

Product Description

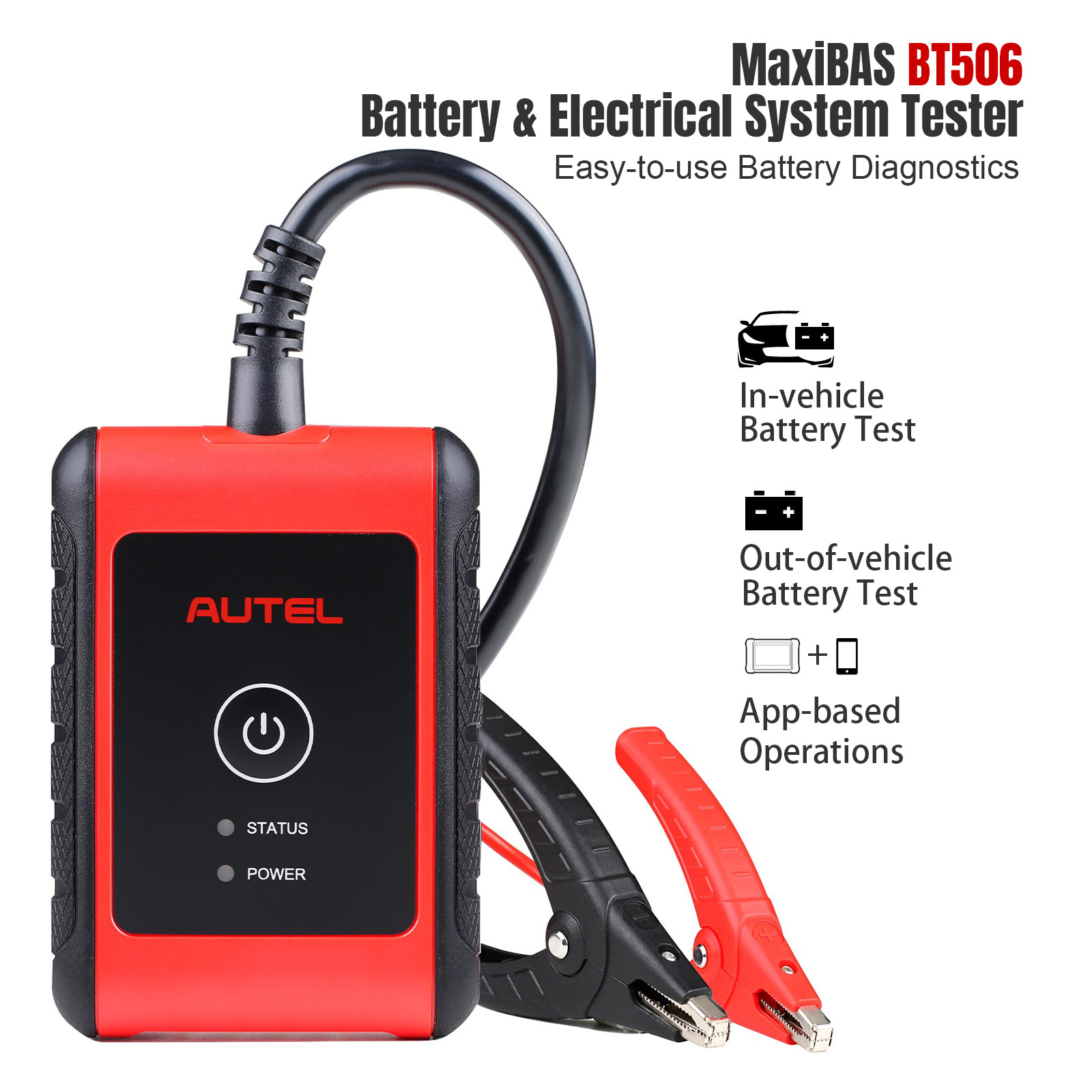

AUTEL MaxiBAS BT506 is a battery and electrical system analysis tool which enables technicians to view the health status of vehicle's battery and electrical system. It is not an average battery tester because it measures not only the state of charge but also the battery state of health including its capacity, its ability to maintain and store the energy. Using adaptive conductance (an advanced battery analysis method), AUTEL MaxiBAS BT506 can produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determine a battery’s true health.

Highlights

• Supports in-vehicle and out-of-vehicle testing of passenger vehicle batteries
• Test Flooded, AGM, AGM_Spiral, EFB and GEL Batteries
• Battery Health Report / Temperature Compensation / Cloud-based Service
• Battery Ratings: CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
• In-vehicle testing of Battery, Starter, Charging system voltage (not amps)
• Test 6- and 12-volt Batteries: 100 - 2000 CCA
• Test 12- and 24-volt Cranking/Charging Systems

Main Features of AUTEL MaxiBAS BT506

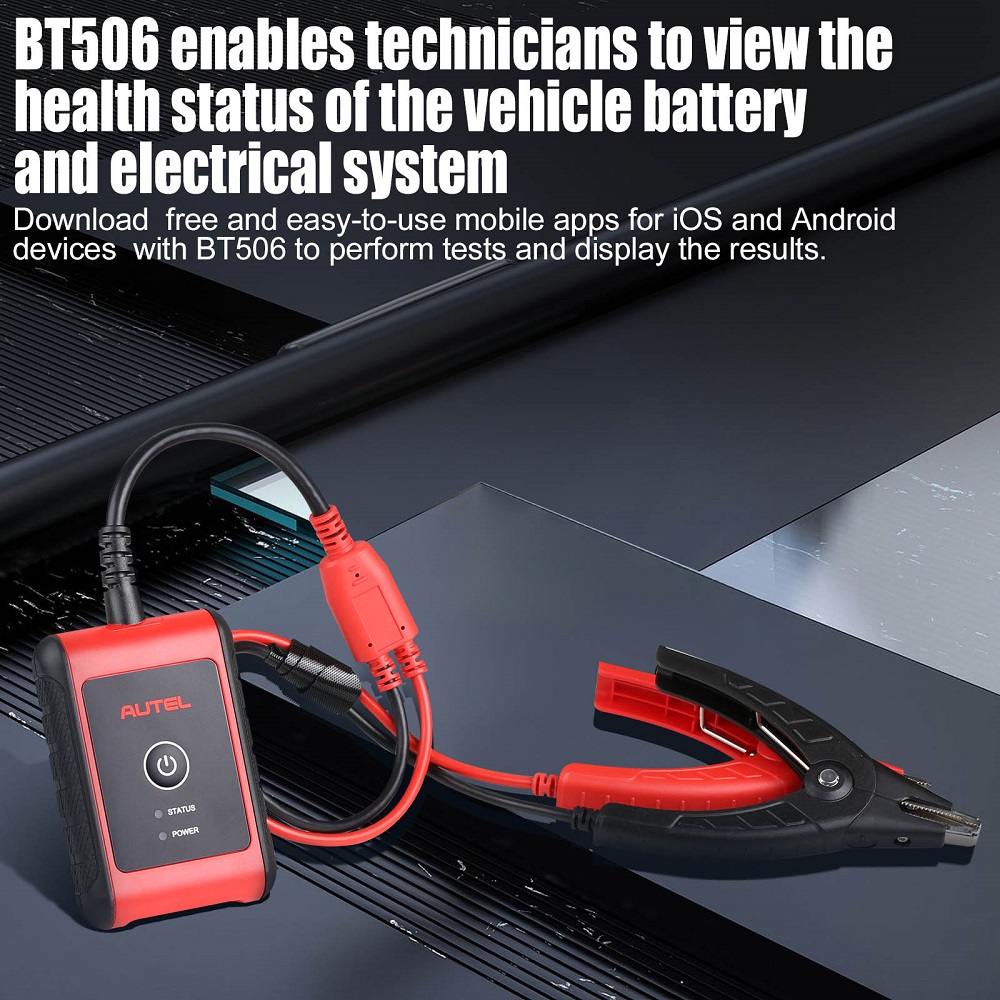

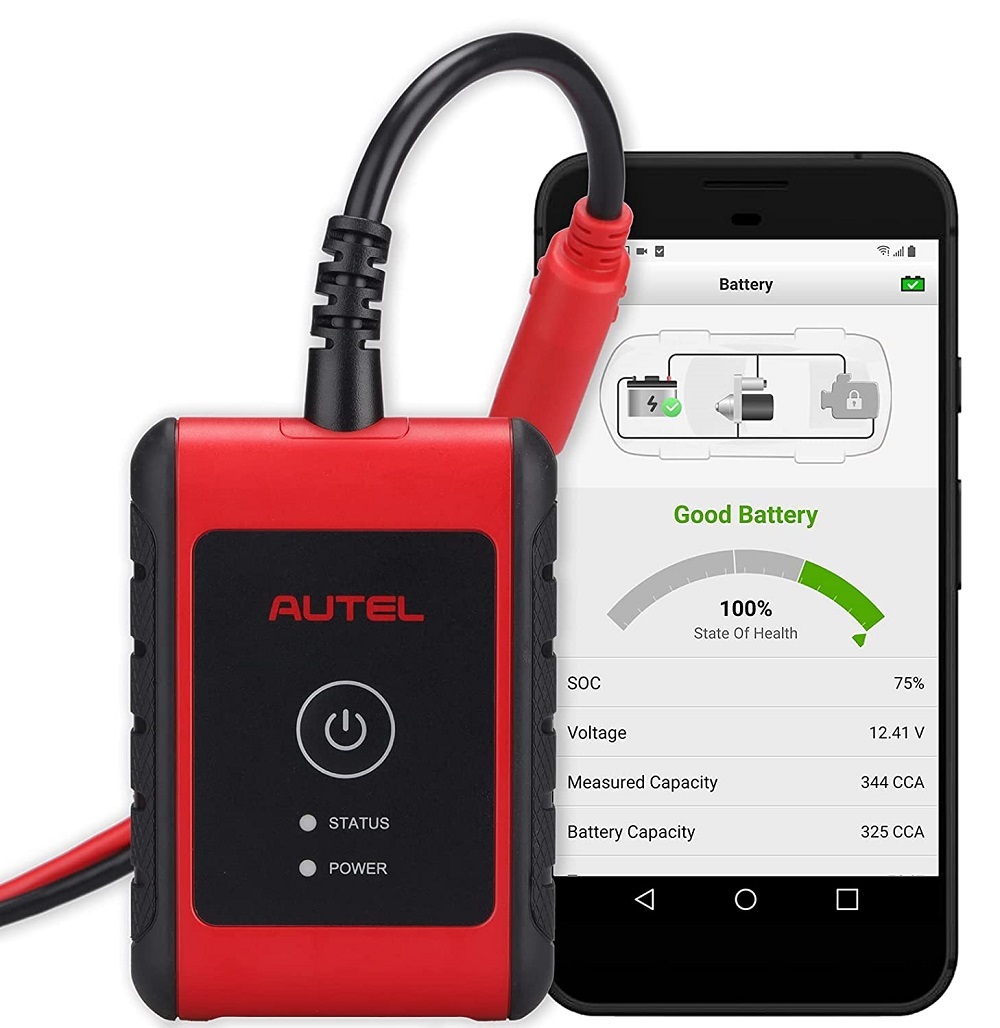

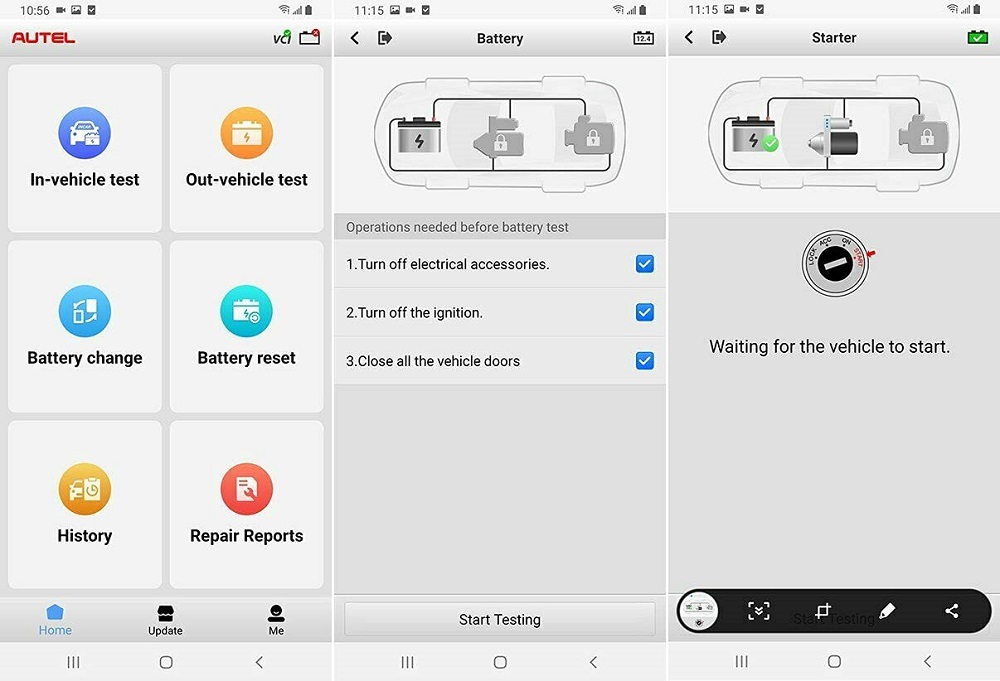

The BT506 is a new app-based battery analysis tool developed by Autel. Download the free and easy-to-use mobile app, available for iOS and Android devices, and use it with the BT506 to perform testing and display test results.

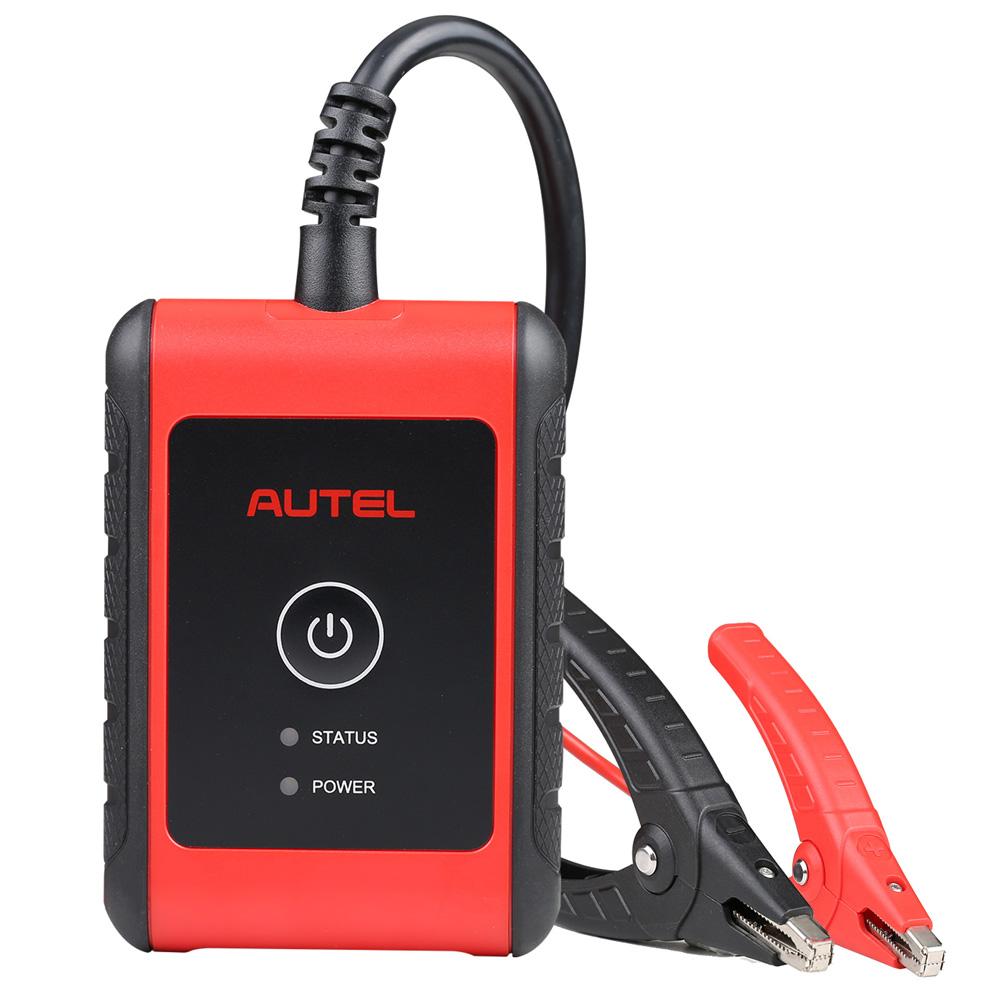

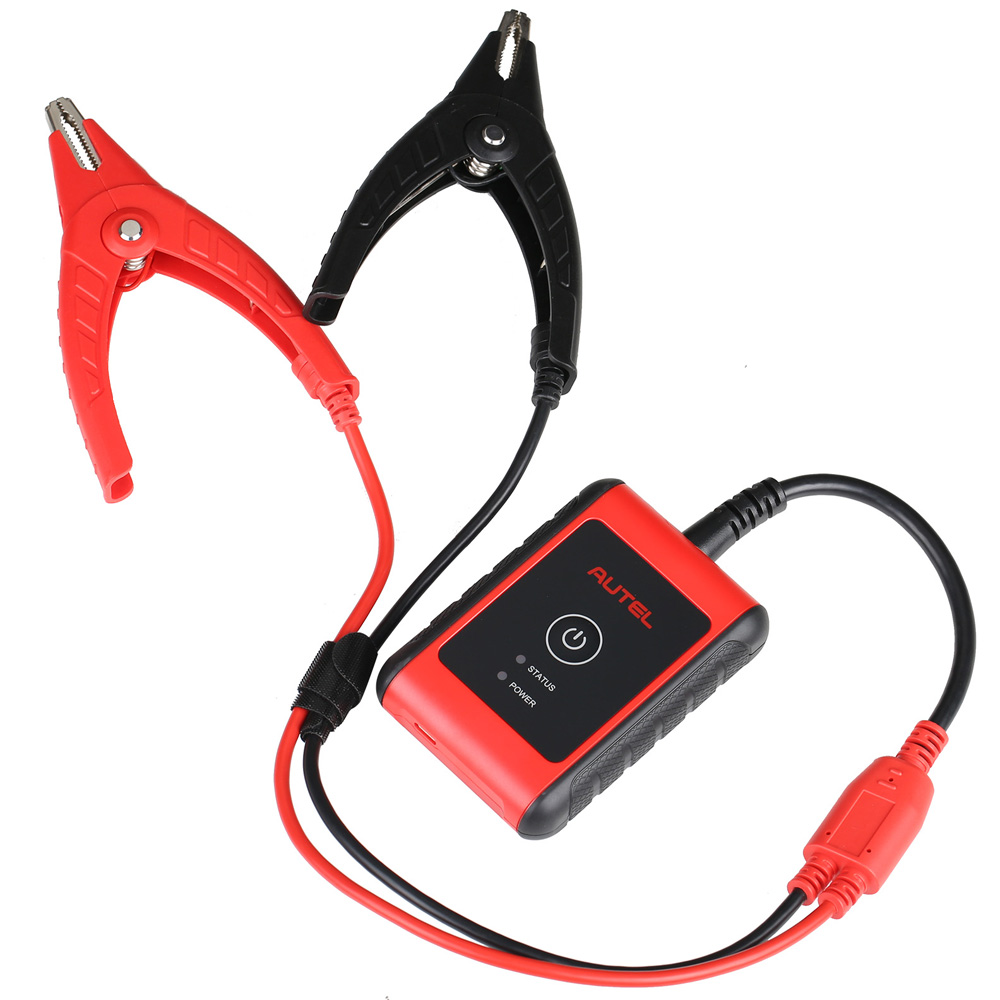

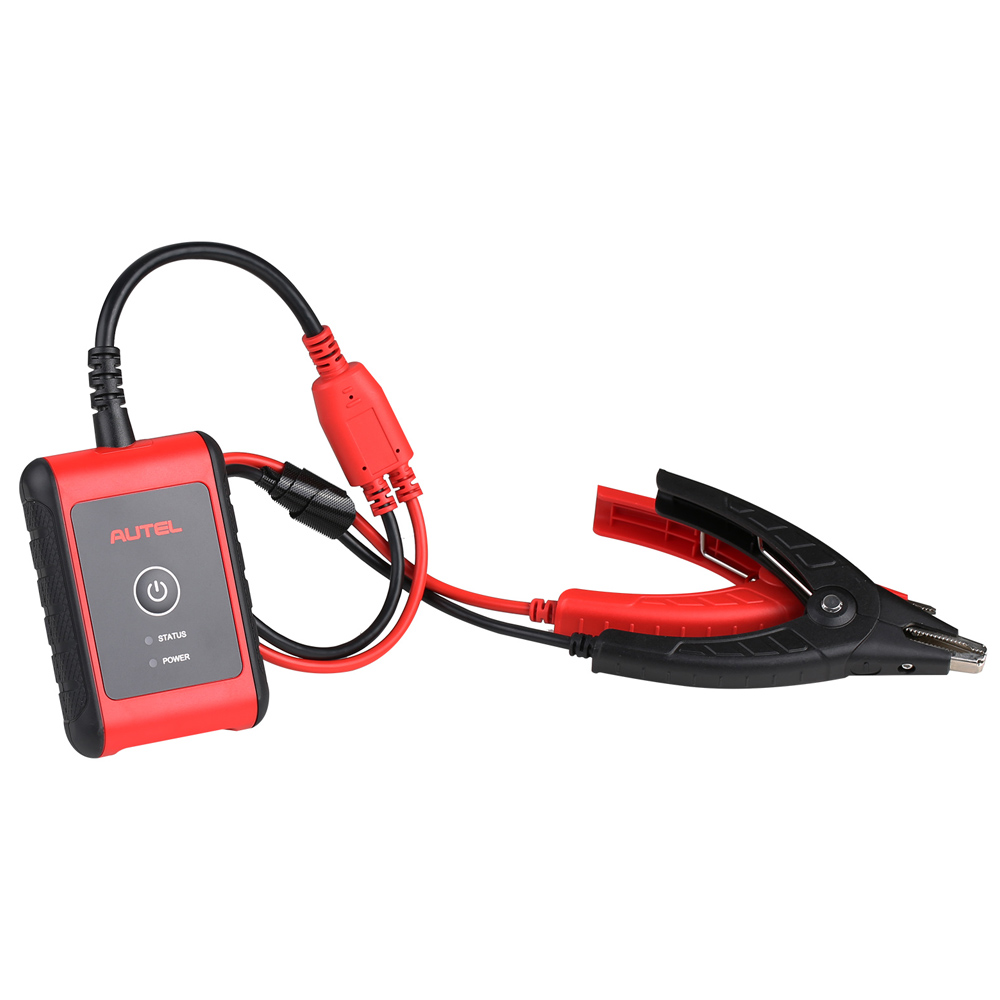

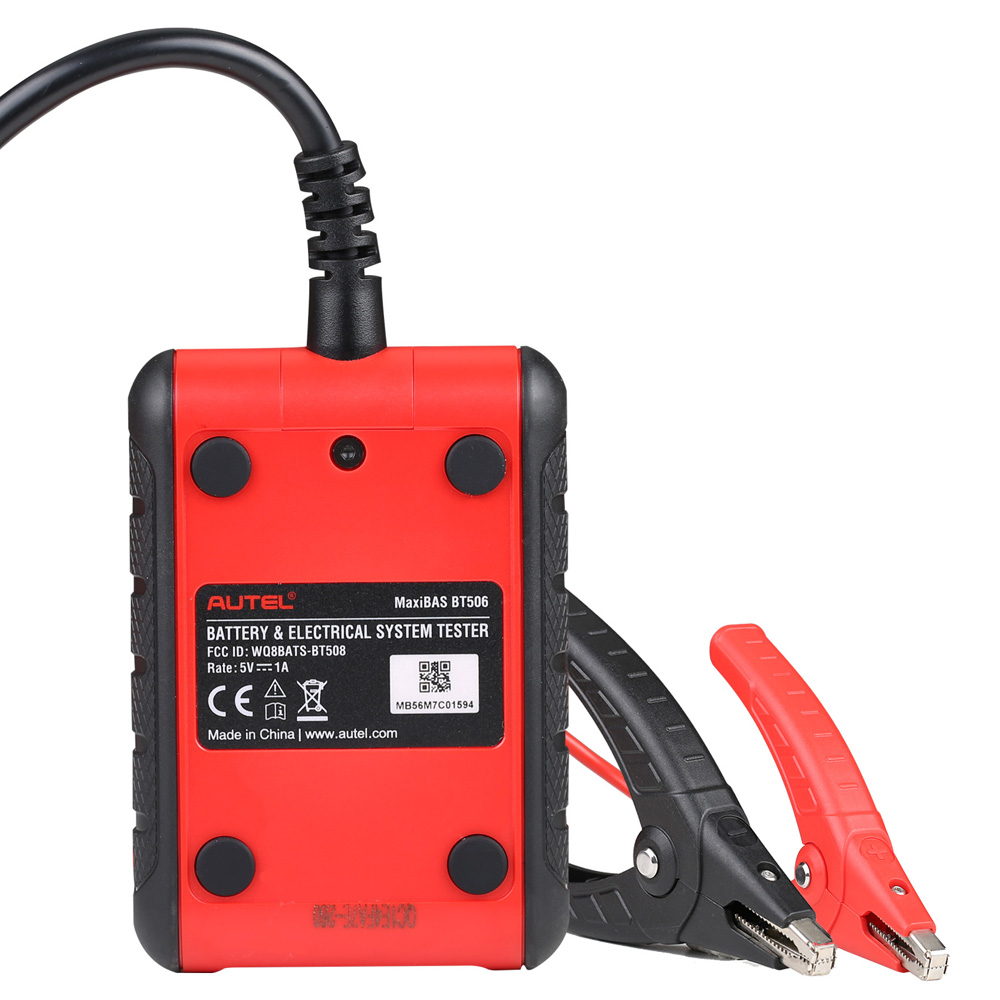

BT506 has positive and negative alligator clamps which are polarity protected, so even if you reverse the clamps and put the negative on the positive terminal, it is OK. In fact, the LED on the tester is color coded to alert the users of connection and testing status, so the testers will flash red to alert you that you have made the error.

The tester is bluetooth enabled and that's how it shares the test information with the app.

AUTEL MaxiBAS BT506 Specifications

Connectivity: USB 2.0, Type C and Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage: 5 V DC
Working Current: <   150 mA at 12 V DC
Internal Battery: N/A
CCA Range: 100   to 2000 A
Voltage Range: 6   to 36 V
Working Temperature: -10°to   50° C (14° to 122° F)
Storage Temperature: -20°   to 60° C (-4° to 140° F)
Dimension (L x W x H): 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight: 320g (0.7 lb.)

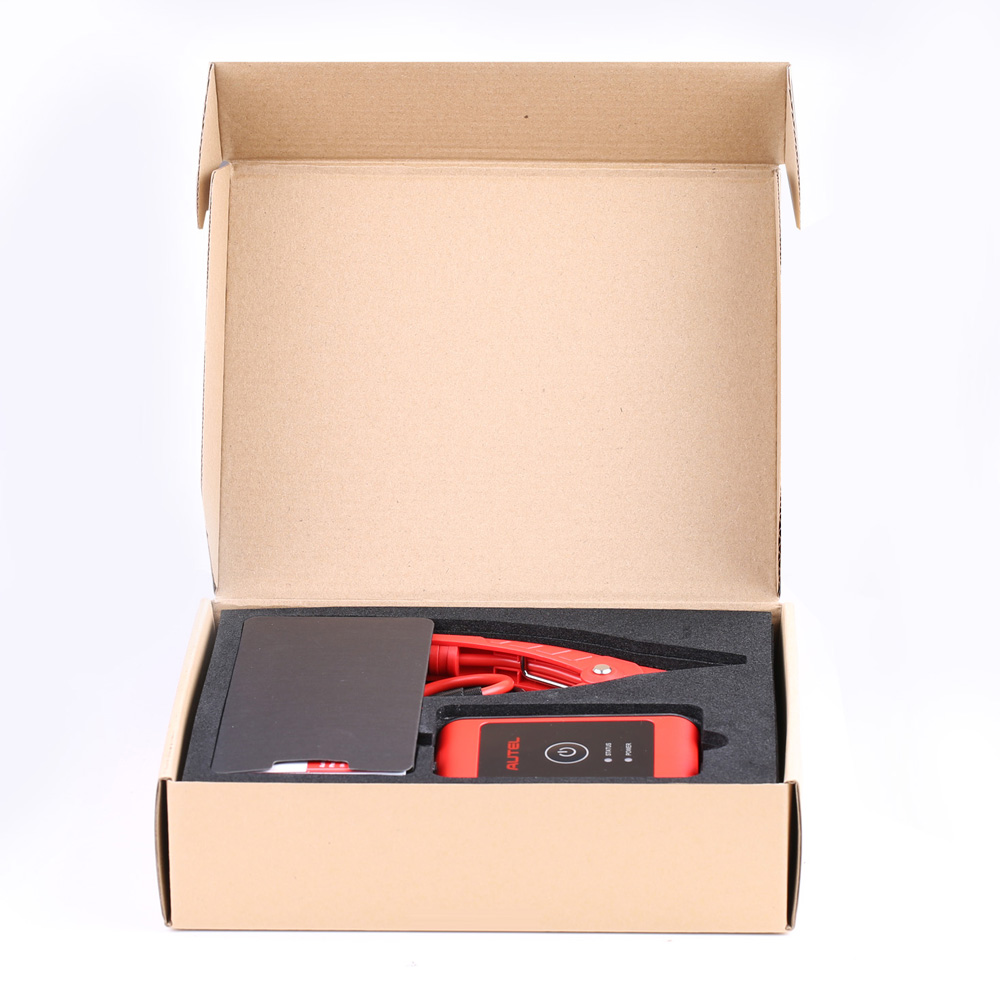

Packing List
1pc x  MaxiBAS BT506
1pc x  User Manual
