Autel MaxiCOM MK908 PRO II + MaxiVideo MV108S Automotive Bidirectional Diagnostic Scanner J2534 Reprogramming Tool Support VIN and Pre&Post Scan

Product Description

Autel MaxiCOM MK908 PRO II + MaxiVideo MV108S Automotive Bidirectional Diagnostic Scanner

AUTEL MK908P II Feature and Functions:

One-Stop Solution for All Pro-level Needs

1, One of the most automotive diagnostic tablets on earth, specially designed for mid-scale or large-scale workshops and vehicle repairing houses.
2,Online J2534 ECU Programming for BMW/Benz, same as Autel MaxiSys Elite.
3, Online ECU Coding for software modifications to a vehicle, allowing the use of functions not available in the car when it left the factory.
4, Guided Functions with simple step-by-step procedures for quick and accurate car diagnostics.
5, Supports Active Test to determine whether a specific subsystem or component in vehicles goes well.
6, Access to All OE-level systems and subsystems (ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.)
7, Supports 30+ Service Functions for various scheduled service and maintenance performances: Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, Airbag Reset, and growing.
8, Extensive vehicle coverage of 80+ American, European, and Asian makes and models.  Add Australian models for free !
9, Ultimate Configurations: lighting-fast hexa-core 1.3GHz + 1.7GHz processor; 2GB RAM; 10.1; 1920*1200 back-lit LED multi-touch display; internal 64GB solid-state drive; built-in 8MP camera with a flashlight and autofocus, massive battery capacity for continues 24+ hours’ using, etc.


User-Friendly Add-On Features:

1, Extendable Design: paired with MP408, MV108 to detect unseen details; with TS601 for comprehensive TPMS problems.
2, MaxiFix: vast database of repair and diagnostic tips along with proven filed fixes.
3, Fast Data Transfer (VCI): dual band 802.11n Wi-Fi technology and long range Blue-tooth for ultra-fast Wireless Communication.
4, AutoVin Technology: latest AutoVIN technology with advanced Auto-Scan functions to identify CAN-Enabled vehicles, in one touch.
5, Prints out recorded data anytime and anywhere with Wi-Fi technology.

A lot of Additional Features, like:

1, Work for Benz Online Programming (support new chassis e.g. 204, 212)
2, Work for BMW F Chassis Coding Backup, BMW F Chassis Coding & Individualisation (need OTG adapter and F chassis connector), BMW E Chassis Coding Backup, BMW E Chassis Coding Backup & Individualisation, BMW Online Programming (support most models including part of G chassis)
3, Work for  Audi Guided Functions, Audi Individualisation, Online Coding
4, Work for VW Guided Functions, VW Individualisation, VW Online Coding
5, Work for Skoda Guided Functions, TOYOTA Individualisation
6, Work for Porsche Coding, Porsche Online Coding, Porsche Guided Functions for DTCs (all models after 2011)
7, Complete TPMS Features (sensor program, activation etc.); Compatible with MaxiScope & MaxiVideo; WiFi / Cable / Bluetooth Connection Support


Advanced Programming and Coding Functions
Smart Programming, Work Easier & Safer

Autel ultimate diagnostic scanner MK908P can perform ECU Programming services that were previously “Dealership Only”, without the use of special and often very expensive factory tools.

1, To help Benz and BMW users replace the existing software / firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues.
2, Is fully complies with SAE J2534-1, supports many J2534-2 extensions, and upgradable for future use.
3, It supports BT and USB communications, and transmits vehicle data to the display screen with or without a physical connection.
4, Noted that connecting to an external battery charger is necessary for the successful operation.


Beneficial ECU Coding, Easy Money Maker

Autel diagnostic tablet MK908P can help you change preprogrammed options already existent in the software:

1, To perform the customer individual customization of the car such as setting alarms, doors locking, and outdoor lighting, etc., to improve vehicle performance, or stimulate high-end car functions;
2, To alter the configuration when a component is replaced, so the new actuators can be recognized by related vehicle systems;
3, To enable multiple car systems to recognize each other, and so the actuators can start to work.
4, Noted that the coding does NOT imply changing the car software.


Take Your Business to New Heights

Autel MK908P is a phenomenal diagnostic tablet that has everything one could need for modern automotive maintenance and alteration. Programming, scanning, and testing are all covered by its accompanying devices and software.

It’s an ideal choice for professional mechanics to perform many previous “dealers-only” diagnostic works on vehicles worldwide including:

ECU Coding:
For Toyota, Mitsubishi, Ford, Mazda, VW, Audi, Porsche, Skoda, Benz, BMW, Renault, and more.

Online Coding:
For VW, Audi, Porsche, Benz, BMW, Renault, and more.

Personalization:
For Toyota, Fiat, Chrysler, VW, Audi, Porsche, Benz, BMW, Peugeot, Citroen, Nissan, and more.

Guided Function:
For VW, Audi, Skoda, Porsche, and more.



More than 30 Maintenance Functions

Anti-Theft Matching (IMMO Keys)
This function enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car

Note: When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced

Gearbox Matching
This function needs to be executed so that the gearbox can automatically compensate according to the driving conditions, to achieve a more comfortable and ideal shift quality

Note: When the gearbox is disassembled or repaired, and there are shift delay or shock problems

Suspension Calibration
This function enables you to write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder, to more accurately control or correct cylinder injection quantity.

Note: After the ECU or injector is replaced

Injector Coding
This function enables you to write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder, to more accurately control or correct cylinder injection quantity.

Note: After the ECU or injector is replaced

Throttle Matching
This function enables you to make initial settings to throttle actuators and returns the “learned” values stored on ECU to the default state.
Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.

Oil Reset
This function enables you to reset the oil service lamp for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.



More Powerful Add-on Functions

Advanced AutoVIN
Autel scanner MK908P supports AutoVIN which can automatically pick the car’s information as make, model, and year of manufacture when you plug the scanner in.

You won’t need to enter that information manually unless the car is missing in the scanner’s database.

Wireless Diagnostics
The wireless connection makes this diagnostic tablet to be flexible, and very convenient to use in a busy garage.

As a result, you can work on vehicles but still perform other duties at the same time. Also, you don’t need to be physically in the car in order to diagnose it.

Graphic Live Data
Another highlight of this high-level diagnostic tool is its real-time error detection (Live Data), which means you’ll be notified of a problem as soon as it develops.

The incredible graphic live data can even be merged for easy and intuitive car diagnosis.

Cars Widely Covered
Professionals can use this car cutting-edge scanner with pleasure to deal with a fleet of 80+ US, European, and Asian makes and models.

Please be informed MK908P is compatible with almost all cars since 1996.



Autel MaxiCOM MK908P Support Vehicle Models List:

Chrysler, Dodge, Ford, GM, Jeep, Abarth, Alfa, Citroen, Fiat, Lancia, Opel, Peugeot, Porsche, Renault, Saab, Vauxhall, Volvo, Aston Martin, Audi, Bentley, Benz, Sprinter, BMW, Bugatti, Ferrari, Jaguar, Lamborghini, Land Rover, Maserati, Maybach, Mini, Rolls-Royce, Seat, Skoda, Smart, VW, VW CV, Dacia, Ford EU, LT3, Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, Ssang Yong, Subaru, Suzuki, Toyota, Isuzu, Mahindra, Perodua, Proton, TATA, HINO,UD, Fuso


Autel MaxiCOM MK908 Support Protocols:

ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle speed, Low speed, and Singlewide CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN


Differences Among Autel MK908P, MaxiSYS Elite, MaxiSYS MS908P, MaxiSYS MS908




Autel MaxiCOM MK908P Specifications:

Operating System    AndroidTM 4.4.2, KitKat
Processor    Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory    2GB RAM & 64GB On-board Memory
Display    10.1-inch LED screen with 1920x1200 resolution
Connectivity    Wi-Fi (802.11 a/b/g/n/ac)USB: 2.0BT v.2.1 + EDRSD Card (Support up to 32GB)HDMI
Camera (rear)    8.0 Megapixel, AF with Flashlight
Sensors    Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output    MicrophoneDual Speakers3-Band 3.5 mm stereo/standard headset jack
Input Voltage    12 V (9-24 V)
Power Consumption    6.5 W
Operating Temp.   0 to 50°C (32 to 122°F)
Storage Temp    -20 to 60°C (-4 to 140°F)
Housing    Strong plastic housing with protective rubber boot
Dimensions (WxHxD)    312mm(12.28")x208mm(8.18")x36mm(1.41")
Weight    NW: 1.48kg (3.26 lb)
Protocols    ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Low-speed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

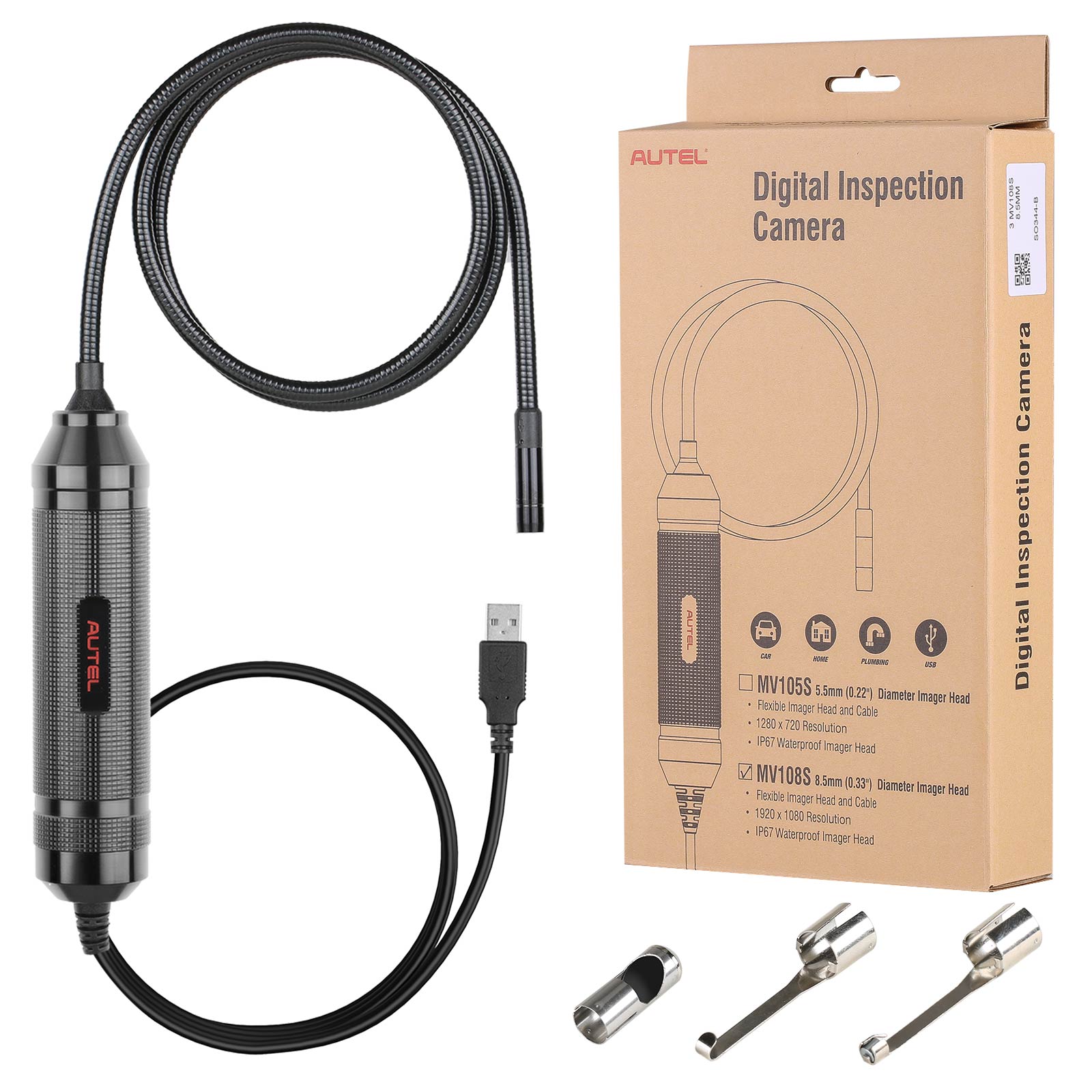

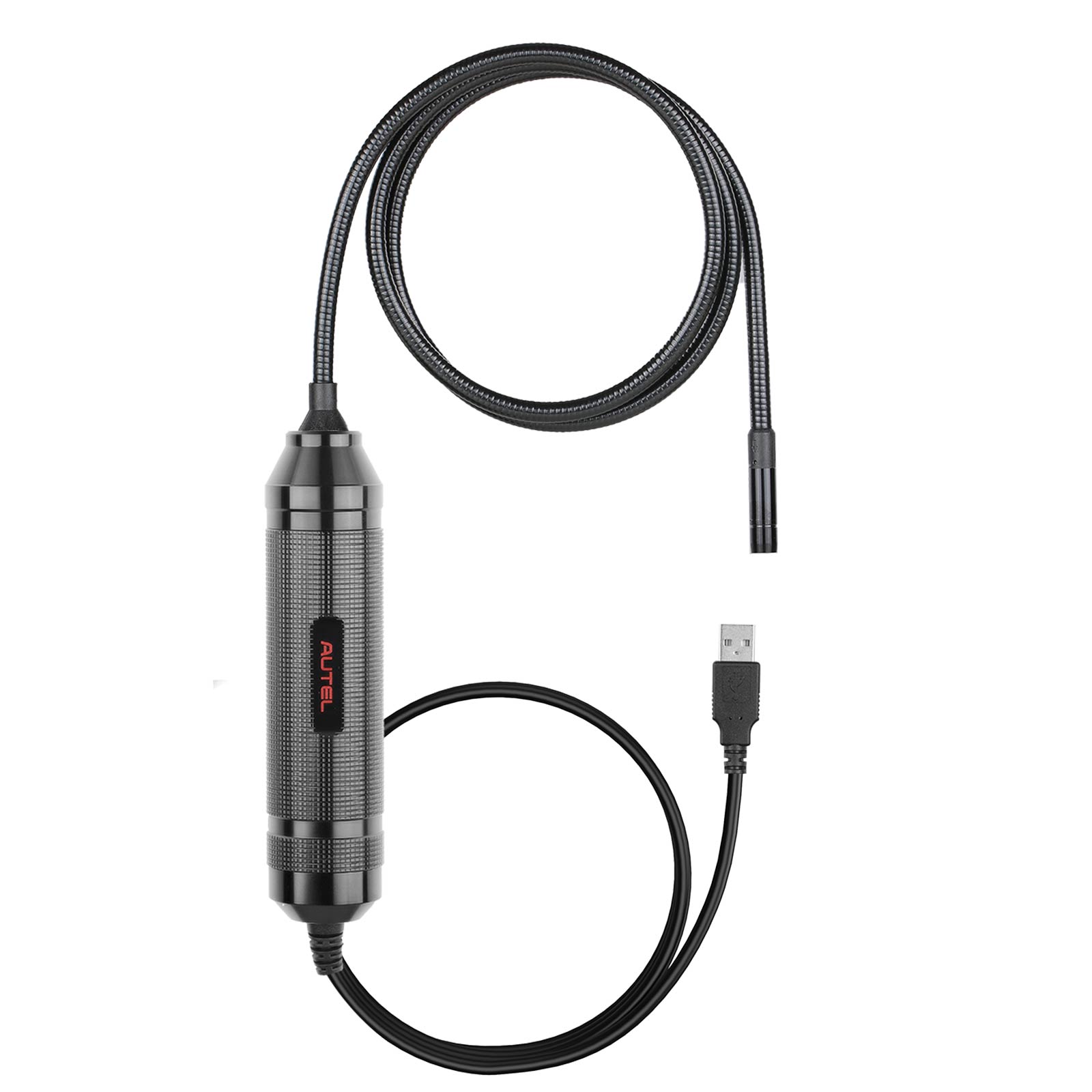

The MaxiVideo MV108S digital inspection camera is designed to work with MaxiSys series products(except MaxiSys 906) or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

Product Features:

White LED lights to illuminate the inspection areas.
Small diameter allows it to be used in the tight spaces.
Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
Powerful and perfect for inspecting most spark plug holes.
Super bright LED and high resolution provide crystal clear images.

Product Comparison Between MV108S and MV108:


Product Models	/	MV108S	MV108
Basic Hardware	Imager head	8.5mm	8.5mm
	Depth of field	3-8cm	2-6cm
	Field angle	81°	70°
	The length of Imager Head Cable	1m	1m
	Pixel	2000,000	300,000
	Flash	Yes	Yes
	Connection method	USB2.0	USB2.0
	Assembly method	The imager head cable is irremovable.	The imager head cable is removable.
	Imager Head Cable waterproof level	IP67	IP67
	Working temperature	-10°C to 70°C	-10°C to 70°C
	Storage temperature	-10°C to 70°C	-10°C to 70°C
Accessories	Reflector	Yes	Yes
	Hook	Yes	Yes



Product Specifications:


Imager Head Distance	8.5 mm
Camera	2 MP
Resolution	1920 x 1080
Depth of Field	3 cm to 8 cm (1.18” to 3.15”)
LED Beads	8 pcs
Imager Head Cable Length	1 m (39.37")
Waterproof Level (Imager Head)	IP67
Operating Temp.	-10 °C to 70 °C (14 °F to 158 °F )
Storage Temp.	-10 °C to 70 °C (14 °F to 158 °F )

Autel MaxiCOM MK908P II Package including:

1pc x main unit,
1pc x clamp cable,
1pc x mini USB cable,
1pc x MaxiFlash Elite,
1pc x auxiliary power outlet adapter,
1pc x quick reference guide,
1pc x main cable,
2pcs x spare fuse(6*30mm),
1pc x packing list,
1pc x usb cable,
1pc x Ethernet serial cable,
1pc x soft cloth,
1pc x 12V AC/DC adapter,
1pc x USB to Ethernet adapter,
1pc x Carrying Case(504*360*133mm)
1pc x BMW Ethernet cable(For series coding&programming)
1pc x MaxiVideo MV108S
1pc x Magnet
1pc x Mirror
