US/UK/EU Ship No Tax 2024 Autel MaxiIM IM508S Plus XP400 Pro Advanced Key Programmer Same IMMO Functions as Autel IM608 II/ IM608 PRO II

Product Description

Autel MaxiIM IM508S Advanced IMMO and Key Programming Tool with XP400 PRO

Autel IM508S is compatible with Autel XP400 Pro Key Programmer. When connected to XP400 Pro, Autel IM508S would have the same IMMO key programming functions as Autel IM608 Pro/ IM608 II to further extends its capability to support IMMO functions for BMW CAS4 Key Learning and programming functions like IMMO ECU Read & Write, MC9S12 Encryption Chip Read & Write, IC Card Read & Write, for Mercedes Infrared Key Read & Write, Remote Frequency Detect and it will support PC connection.

Note: MaxiIM IM508S is specifically designed for legal automotive repairs. This requires users to have legitimate access to the vehicle, either by legally having the vehicle key, or having the vehicle owner's permission using the key.

Highlights:

1. Global Version without IP Blocking Problem
2. One Years Free Update Online. After 1 Years, Autel IM508S Software Subscription Cost 350USD per year
3. Mutli-Language Supported: Default Language is English, Can Be Changed Language to German, Swidish, Italian, Portuguese, French, etc.
4. With XP400 Pro, You Can Release More IMMO Functions for Your Autel IM508S, Make It Works on IMMO Functions as IM608 PRO/ IM608 II/ IM608 PRO II

Newly Added Features on Autel IM508S/ IM508 II:

* For Fiat:
1. Adds Key Learning (Bypass PIN)Function for Argo (2017-2020), Cronos (2017-2020),Toro (2016-2020),Mobi (2016-2019) and New Fiorino (2008-2019)[Globallnitial Launch]
2. Adds Key Learning for Blade Key Function for Awventura (2014-2018). [GlobalInitial Launch]
3. Adds Key Learning for Blade Key Function for 500x (2018-2020), Eaea (2018-2020) and Tipo(2018-2020)

* For BMW:
1. Supports New Software Version (swfl_00002419_085_010_080) for KeyLearning Function for FEM/BDC Immobilizer System.[Global Initial Launch]
2. Adds 196 Software Versions,Supporting Read ISN (OBD Mode) Function forB48/B58 Engine.[Global Initial Launch]

Supported Automotive Protocols

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

EEPROM Read/Write Supported Types

ATMEL
For AT24C01, AT24C02, AT24C04, AT24C08, AT24C16, AT24C32, AT24C64, AT24C128, AT24C256, AT24C512, AT24C1024, AT24C128_1.8 AT24C256_1.8, AT24C512_1.8, AT24C01A, AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256 AT25512, AT25010_1.8, AT25020_1.8, AT25080_1.8, AT25320_1.8, AT25640_1.8, AT25128_1.8, AT25256_1.8, AT59C11, AT59C22 AT93C46A, AT59C13, AT93C46, AT93C46R, AT93C56, AT93C57, AT93C66, AT93C76, AT93C86

For CATALYST
CAT25C01, CAT25C02, CAT25C04, CAT25C08, CAT25C16, CAT25C32, CAT25C64, CAT25C128, CAT25C256

For FAIRCHILD
NM24C16U, NM24C16UT, NM24C17U, NM24C17UT, FM93CS46T

For MICROCHIP
85C72, 85C82, 85C92, 25xx080, 25xx160, 25xx320, 25xx640, 25xx040_TSSOP, 25xx320_TSSOP, 25xx640_TSSOP, 93C06, 25xx040 93C46X, 93C46A, 93C46, 93C46AX, 93C46BX_93C46CX, 93C56A, 93C56, 93C66A, 93C66, 93C76A, 93C76, 93C86A, 93C86

For NXP
PCF8582C, PCF8594C, PCF8598C

For NATIONAL
NM93C13, NM93C14, NM93CS06, NM93C14TM8, NM93CS46, NM93CS56, NM93CS66

For OKI
MSM16911

For SONY
CXK1011, CXK1012, CXK1013

For Seiko
S_24S45, S_24H30, S_24H30_SOP8, S_24H45, S_24H45_SOP8, S_24S30

For ST
M24C01, M24C02, M24C04, M24C08, M24C16, M24C32, M24C64, ST24x01/ ST25x01, ST24x02/ST25x02, ST24x04/ST25x04, ST24x08/ST25x08, ST24x16, ST25x16, AT25040_1.8, AT25160_1.8, M95010, M95020, M95160, M95040, M95080, M35080, M95320, M95640, M95256, M95128, M95512, M93C46, M93C56, M93C66, M93C76, M93C86, M93S46, M93S56, M93S66

TOSHIBA
TC89101, TC89102, TC89121, TC89122

For TMC
TMC93LC46, TMC93LC56, TMC93LC57, TMC93LC66, TMC93LC86

For XICOR
X5043, X5045, X25043, X25045, X24C44

For 9S12 Read/Write Supported Types
FREESCALE
MC9S12DG128


Functions:

1. Advanced Key Programming:

Autel MaxiIM IM508 Car Key Programming Tool comes with comprehensive IMMO functions, including: Read PIN/CS(All Key Lost), key generation, key learning, remote learning on various makes like, Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU reset/Adaptation/Refresh/Coding, IMMO Data Backup/Restore.
* When connected to XP400Pro key programmer, IM508 will be able to support Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learning.
* When it's connected to Autel XP400, IM508 Key Programming Scan Tool can further extend its programming capability to the top level Autel has yet to offer to cover IMMO ECU Read & Write, MC9S12 Encryption Chip Read & Write, IC Card Read & Write, Mercedes Infrared Key Read & Write, Remote Frequency Detect and it will support PC connection.

Smart Mode & Expert Mode

IM508 comes with comprehensive IMMO functions that provides Smart Mode and Expert Mode to guide both professional technicians and home mechanics performing IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, All Key Lost and etc.

* Smart Mode:
Guided and automated key learning for home mechanics.(accesses to a function menu where each function is configured as a smart guide system)

* Expert Mode:
Advanced key learning for professionals (accesses to a function menu where each function is separated from each other)


2. EEPROM/MCU Read & Write:

EEPROM and MCU are the anti-theft chips that store the anti-theft data of the vehicles. Autel IM508 key programming tool can read EEPROM/MCU data or write the anti-theft data to the EEPROM/MCU. EEPROM/MCU Read & EEPROM/ MCU Write are only available for the high-end key programming tools.

1) VW/Audi—Pioneering Smart Mode & Advanced Mode
* Pioneering Smart Mode & Super Mode—Auto detect IMMO types & read IMMO data, auto select Key Learning process.
* VAG 4th Gen. CAN IMMO via OBD—Convenient and fast to get the data in 3 minutes.
* Add MQB Blade & All Key Lost via OBD—Convenient and fast to get the data in 3 minutes.

2) BMW—Pioneering Smart Mode
* FEM/BDC IMMO system--Pioneering smart mode automatically saves data and prevents car being locked.
* FEM/BDC IMMO system-- ECU programming and fixing.
* New B48/B58 Engine – Read ISN via OBD (Chassis F)
* Supports Read/Write ISN for most engines when used with G-BOX.

3) Volvo – Semi-Smart Key All Key Lost via OBD
* OBD Connection
* Prevent car being locked, and resume learning after the learning process is interrupted

4) Ford/Mazda – All-Model Key Learning (Bypass PIN code)
* Add Key/All Key Lost via OBD
* Bypass PIN code

5) Chrysler – Key Learning (Bypass PIN code)
* Add Key/ All Key Lost via OBD
* Bypass PIN code

3. Full System Diagnostics:

Autel MaxiIM IM508 Advanced Automotive Key Programming Tool can access and perform OE-Level diagnosis on ALL available vehicle modules including but not limited to PCM, ECM, EPS, PDM, BCM, TPM, SCCM and etc and covers all major systems like ABS, SRS, Engine, Transmission, Brake System and etc

Read Codes – Displays detailed information of DTC records, including manufacturer-specific codes, pending codes, permanent codes
Clear Codes – Clear codes, reset monitors and turn off warning lights
Live Data – Retrieves and displays live data and parameters, including misfire, engine rpm, transmission fluid temperature and etc.
Freeze Frame – Retrieve the parameters when recording the DTC for better diagnosis.
ECU Information – provides the retrieved ECU information in detail.
Auto Scan – starts auto scanning for all the available systems on the vehicle.
Control Units – displays a selection menu of all available control units of the test vehicle.

Top 10 Reasons to Get Autel XP400 Pro:

1. Includes 1-Year Warranty
2. 2000+ MCU component types
3. 440+ EEPROM component types
4. 40+ Engine ECU component types
5. Compatible with IM508 and IM608
6. Free Software Updates for Life of Tool
7. 180+ Immobilizer ECU component types
8. 170+ types Odometer component reading functions
9. Expanded EEPROM functions for more component access
10. Supports Key Renewal on 11 Key Types with Additional Adapters - IMKPA, Key Programming Accessories Kit

Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro.




Why You Need XP400 Pro?

1. Expanded EEPROM functions for more component access
2. 170+ types Odometer component reading functions
3. 180+ Immobilizer ECU component types
4. 40+ Engine ECU component types
5. 2000+ MCU component types
6. 440+ EEPROM component types
7. Compatible with IM508 and IM608
8. Includes 1-Year Warranty
9. Free Software Updates for Life of Tool


ADVANCED KEY PROGRAMMING VEHICLE COVERAGE when combined with XP400PRO:

Benz
* One-tap Key Programming via OBD
* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost

BMW
* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
* Add Key/All Key Lost

Volkswagen/ Audi
* One-tap Online Programming
* Add Key/All Key Lost Via OBD for 2013 - 2020 Models

GM
* Read IMMO Password, Add Key/ All Key Lost up to 2020

Ford
* Add Key/All Key Lost (No PIN Needed) up to 2020

Mazda
* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
* Read IMMO Password, Add Key/All Key Lost up to 2020

Renault
* Add Key/All Key Lost (No PIN Needed) up to 2020

LandRover/Jaguar
*Add Key/All Key Lost up to 2019

Volvo
* Semi-smart Key Learning via OBD up to 2018
* Smart/Blade/Fobik Key Learning via Dump


Powerful IMMO Functions:

1. Auto Detect Make/ Model/ Year/ System
2. Read PIN (All Key Lost)
3. Key Learning
4. IMMO ECU Reset/Adaption
5. IMMO ECU Refresh/Coding
6. Remote Learning
7. AUDI Q5/ A4/A5 2015-2017 Key Learning
8. VW MQB Key Learning
9. BMW FEM/BDC Key Learning and Adaption
10. BMW CAS4 Key Learning and Adaption
11. Mercedes Key Learning
12. 2015-2018 Land Rover & Jaguar write key via dump
13. Volvo Smart Key Learning/ knob-style smart key



Advanced Programming Functions:

1. EEPROM Read/Write
2. MCU Read/Write
3. Key Programming
4. Mercedes Key Read/Write
5. Remote Frequency Detect

Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro (please check the below illustration).





XP400Pro Adds Support for Following Chips:

EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906(Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW (renew key)-->> NEC-->> V51 and V5 chip read/write/erase

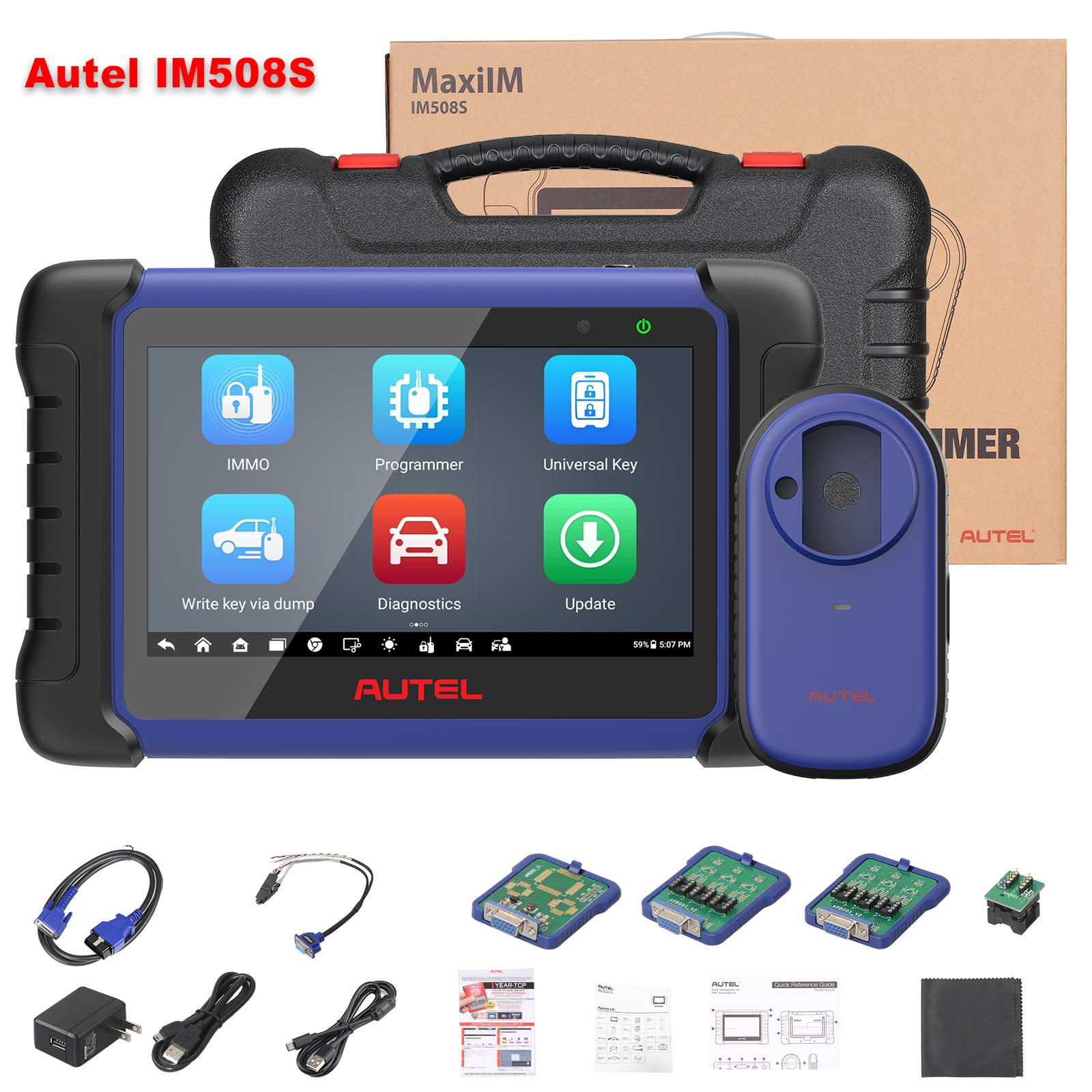

Package List:

1set x Autel MaxiIM IM508S
1 x XP400 Pro Main Unite
1 x APB129 – EEPROM Adapter
1 x APA002 – EEPROM Socket
1 x APB125 – Mercedes Infrared Collector
1 x APB103 – MCU_PLCC52 Adapter
1 x APB104 – MCU_FQFP64 Adapter
1 x APB105 – MCU_FQFP80 Adapter
1 x APB106 – MCU_FQFP112 Adapter
1 x APB107 – MCU_FQFP144 Adapter
1 x APB108 – MCU_FQFP176 Adapter
1 x APB109 – MCU_FQFP32 Adapter
1 x APB110 – MCU_FQFP48 Adapter
1 x APB111 – MCU_SO28 Adapter
1 x APA101 – Spare Signal Cable
1 x APC101 – USB Cable (Standard USB –Type B USB)
1 x APA103 – EEPROM Clamp
1 x APA107 – ECU Cable
1 x APA108 – MCU Cable
1 x APA109 – MC9S12 Cable
