[2 Years Free Update] 2025 Autel MaxiIM IM608 PRO II (IM608S II) Automotive All-In-One Key Programming Tool Support All Key Lost

Product Description

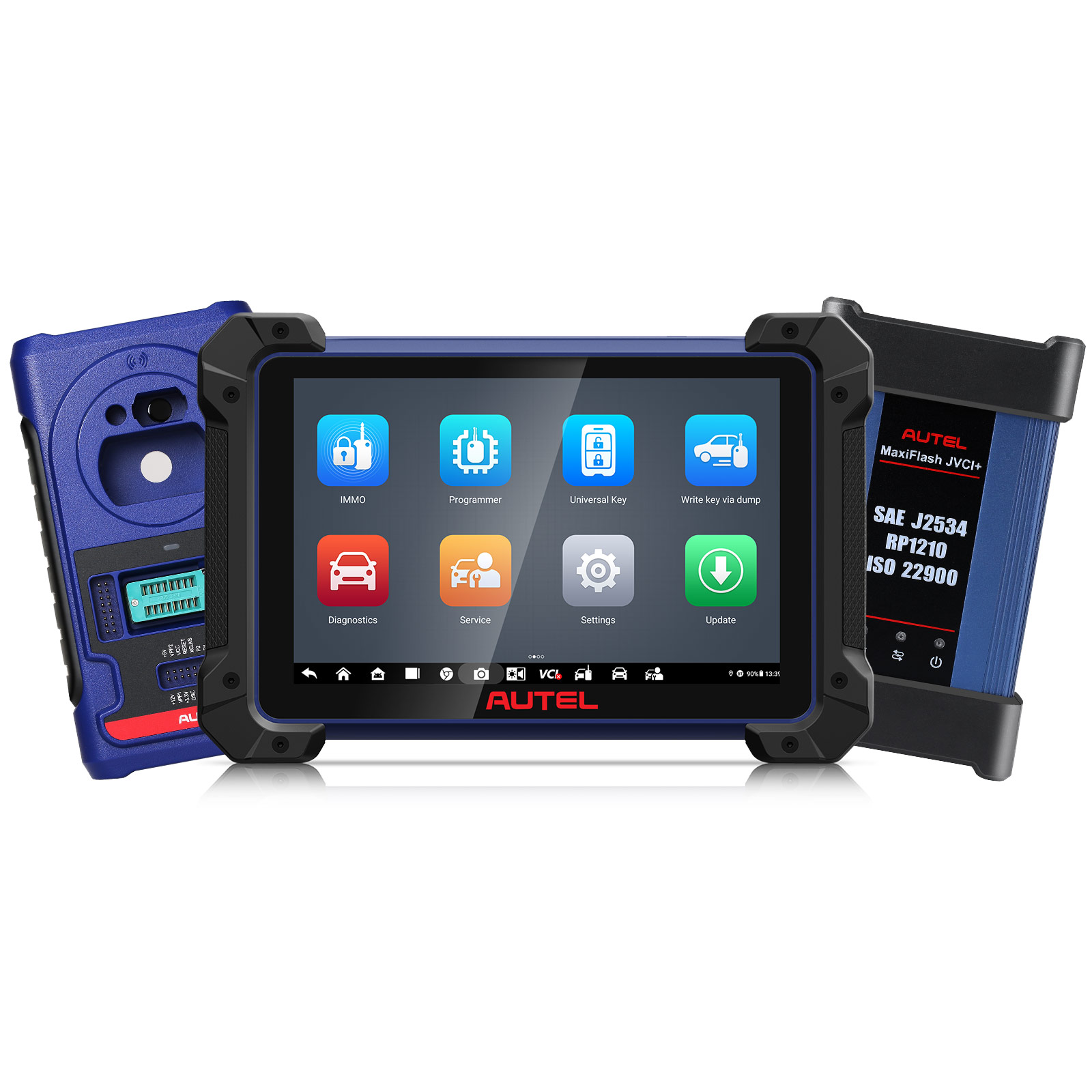

[2 Years Free Update] Autel MaxiIM IM608 PRO II (IM608S II) Automotive All-In-One Key Programming Tool

Promotion: Use coupon code: Autel to get 5% off.

Autel IM608 PRO II (IM608S II) is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

Note: MaxiIM IM608ProⅡ/IM608SⅡ/IM608Ⅱ is specifically designed for legal automotive repairs. This requires users to have legitimate access to the vehicle, either by legally having the vehicle key, or having the vehicle owner's permission using the key.

Highlights:

1. IM608S II = IM608 PRO II
2. No Area Restrictions, You Can Used It All Around the World without Limitation
3. 2 Years Free Update Online (After expired, IM608 II Software Subscription Cost 600USD/ Year)
4. Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration
5. Smart Mode and Expert Mode Solution In One Tool to Easy Operation, Works for 85% Cars In the Wordwide, Include BMW, BENZ, VW, AUDI etc
6. Support Multi-Language: Both Diagnose Software and IMMO Software Support Multi-Language. (Default Language is English, Can Be Changed Language to German, Swidish, Italian, Portuguese, French, etc.)
7. Works for 85% Cars In The Wordwide, Include BMW, BENZ, VW, AUDI etc. make your work simple and easier, Best Choice for Locksmith and Workshop
8. Extended to Work with Autel MV108/ MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly

What's The Difference Between IM608 RPO II and IM608/ IM608 PRO?

1. IM608 II/ IM608 Pro II Has Improved Firmware, Android 10, Larger RAM, ROM, with New JVCI+ VCI.
2. Supports CAN Protocol Read and Write Without a Password
3. Add Bulit-in DoIP and CAN FD Protocol (Don't Need Converter)
4. Support Remote Expert Function



Features:

1. IMMO ECU reset/ adaptation, refresh coding
2. Transpronder read/ write, EEPROM/ MCU read/write
3. Android Operating System for fast boot-up and multitasking
4. Expert Mode for advanced key learning
5. Powerful combination of key programming/ all system diagnostics/ advanced maintenance services
6. Smart Mode for guided and automated key learning
7. Read PIN/ CS (all key lost) , key generation, key learning, remote learning
8. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
9. Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn


Functions:

1. IMMO Functions

Auto Detect Make/Model/Year/System
Read PIN (All Key Lost)
Key Learning
IMMO ECU Reset/Adaption
IMMO ECU Refresh/Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Key Learning
VW MQB Key Learning
BMW FEM/BDC Key Learning and Adaption
BMW CAS4 Key Learning and Adaption
Mercedes Key Learning
2015-2018 Land Rover & Jaguar write key via dump
Volvo Smart Key Learning/knob-style smart key

In comparison with its predecessor IM608/ IM508, the Advanced IMMO & Key Programming scan tool IM608 Pro is upgraded with the following new abilities:

EEPROM - added 60 chip types, now supports 445 types
MCU– added 32 chip types, now supports 2067 types
Odometer – added 162 chip types, support 171 types
Engine ECU – added 1 chip type, now supports 41 chip types
Immobilizer ECU – added 3 chip types, now supports 181 chip types, Key unlock – supports 11 key types
BMW EWS3 key learning , Mercedes-Benz W209 EIZ read/write/erase
OEM Mercedes-Benz NEC key learning

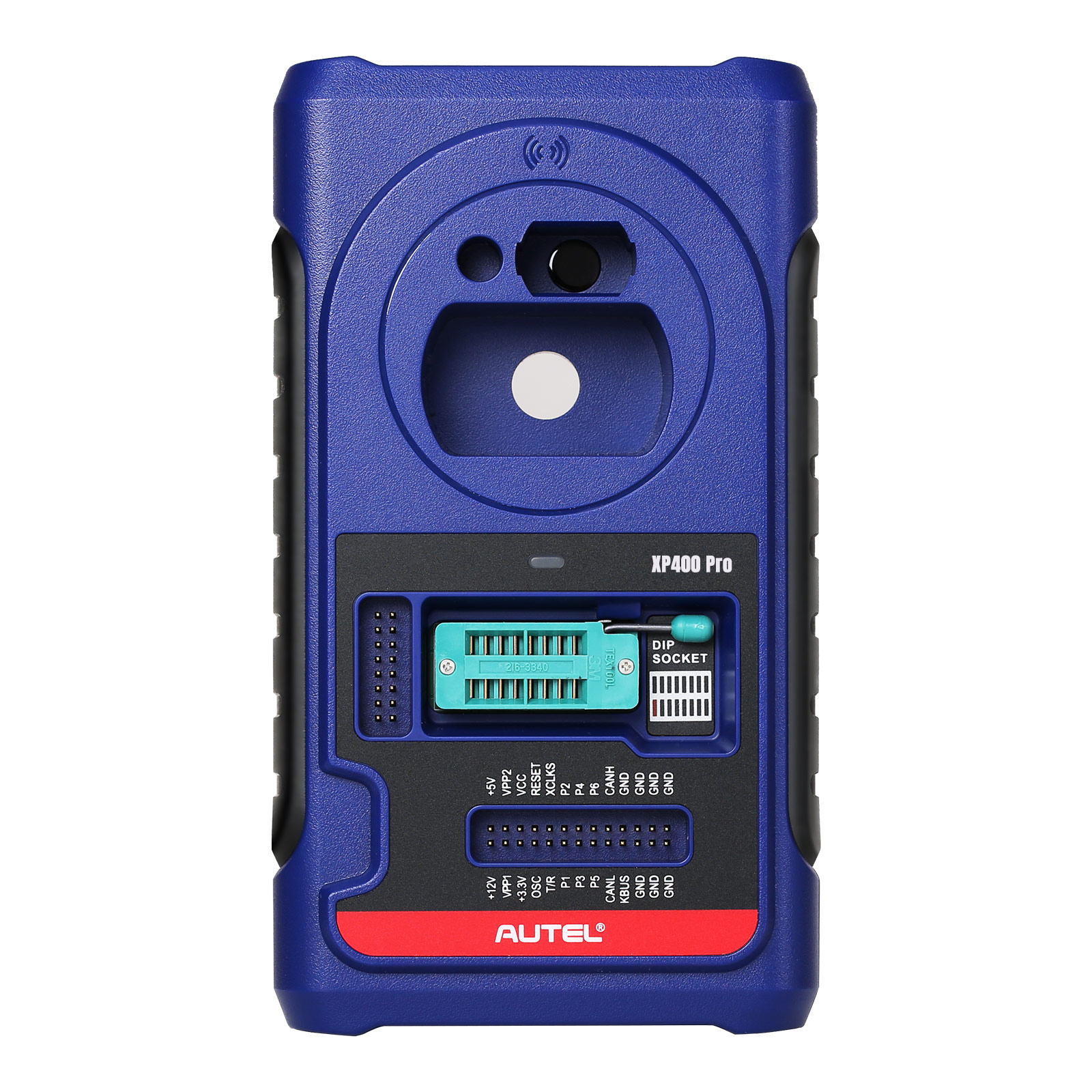

2. The XP400 Pro has been extended IMMO functionalities on BMW, BENZ and Audi etc., designed to work with IM508, IM608, IM608 Pro to perform various IMMO Key programmings, key chip programming functions, MCU writing and reading,etc. Auto Detect Make, Model, Year, System. Read PIN (All Key Lost), Key Learning, IMMO ECU Reset/Adaption, IMMO ECU Refresh/Coding, Remote Learning

For AU-DI Q5/ A4/A5 2015-2017 Key Learning
For VW MQB Key Learning
For BM-W FEM/ BDC Key Learning and Adaption
For BM-W CAS4 Key Learning and Adaption
For Mercedes Key Learning
For 2015-2018 Land Ro-ver & Jag-uar write key via dump
For Volvo Smart Key Learning/ knob-style smart key, etc.

1) XP400Pro Adds Support for Following Chips:

EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

2) XP400 Pro Adds Support for Following Adaptor Board:

APB113 PCF79XXadaptor board
APB114 EWS3 adaptor board
APB115 NEC Adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXXadaptor board
APB120 TMS370adaptor board
APB121 AM29FXXX Adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board



3. OE-Level Diagnostics

Simply accessing the diagnostic modes via AutoVin or Control Unit, and you' re able to perform diagnosis over all the systems on the vehicle' s ECU in order to locate fault systems and retrieve DTCs.

1) ECU Coding – Match Component and Flash Hidden Functions
IM608Pro can do ECU Coding the lower-grade IM508 can’t do. It enables you to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts just like MS908. It also has personalized settings. Using this setting feature, you can disable annoying functions and unlock the hidden functions of the scanner by setting parameters to control the sound, lights, windows, doors, etc. on the car.

2) Active Test – Diagnose the Real Cause of the Troubles
This function allows the diagnostic tablet to command an actuator, such as a relay or solenoid, to see whether it’s actually performing its task. It can be used to see if all the warning lights are still functioning, if all solenoids are still working, if all the car functions are still up to par (e.g. interval of windshield wipers), etc. Use the bi-directional control to identify and trace the exact faulty part on your vehicle, and send commands to do some other advanced maintenance and service functions.



4. Advanced Service Functions

* Oil Reset: Reset service mileage & service intervals after engine oil is changed.
* EPB Service: Resetting brakes after disc or pad replacement and etc.
* SAS Calibration: Clear SAS fault memory and reset the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
* DPF Regeneration: Performs DPF Regeneration to clear the blockage through continuous burning of the particulate matter captured in the DPF filter and turn off DPF light.
* ABS/SRS Services: Perform various active/functional tests to check ABS and SRS (Airbag) systems like ABS Brake Bleeding, Pump Motor Test and checking Module Information and etc.
* ABS Bleeding: Autel scanner allows you to check the operating conditions of the Antilock Braking System, such as Automated Bleeding, ABS Brake Bleeding enables technicians and home mechanics to bleed air out of the ABS module and saves you time and money.
etc



Autel MaxiIM Tools Comparision Sheet


Item	Autel IM608 PRO II/ IM608 II/ IM608S II	Autel IM608 PRO/ IM608	Autel IM508	Autel KM100
Hardware	Touch screen tablet & programmer	Touch screen tablet & programmer	Touch screen tablet & programmer	Touch screen handset
VCI	√ (Bluetooth connection)	√ (Bluetooth  connection)	√ (wire connection)	√ (Bluetooth connection)
Automatic scan	√	√	√	√
Immo scan	√	√	√	√
Immo function	Support program keys by OBD/on-bench/boot, immo part replacement	Support program keys by OBD/on-bench/boot, immo part replacement	Support program keys by OBD/on-bench/boot, immo part replacement	Support program keys by OBD
Diagnostic function	Medium diagnosis, BMW & Benz immo programming	Medium diagnosis, BMW & Benz immo programming	Basic diagnosis	×
Remote expert	√ (coming soon)	×	×	×
Processor	Qualcomm SDM660 Octa-core	Samsung Exynos T5260 6-Core	Rockchip RK3188 Quad core	PX30 4x ARM Cortex-A35
System	Android 10.0	Android 4.4.2, KitKat	Android 4.4.4	Android 9.0
RAM	4G	2G	1G	2G
ROM	128G	64G	32G(64G after 2021)	64G
Screen	10.1inches,  1920*1200	10.1inches,  1920*1200	7inches, 1024*600	5.5inches, 1280*700
WiFi	√	√	√	√
Bluetooth	V5.0+BR/EDR	V2.1+EDR	×	√
USB	USB 2.0 (2 USB host type A, 1 USB mini device)	USB 2.0 (2 USB host type A, 1 USB mini device)	USB 2.0 (1 USB host type A, 1 USB mini device)	×
HDMI	HDMI 2.0	HDMI 1.4A	×	×
SD Card	√ (support up to 64G)	√ (support up to 32G)	√ (support up to 32G)	×
Headphone jack	√	√	×	×
Microphone	1MIC	1MIC	×	×
Loudspeaker	2	2	×	×
GPS	√	×	×	×
Light sensation	√	√	×	×
Buttons	1 power button	1 power button	1 power button	×
Battery	3.8V, 15000mAh	3.8V, 15000mAh	3.7V, 5000mAh	4950mAh
Camera	Rear 16 megapixel, AF with flashlight	Rear 8 megapixel, AF with flashlight	×	×
Lower computer	JVCI+	JVCI	All-in-one	×
Programmer	XP400 PRO	XP400 PRO	XP200	V200
Connection	Bluetooth/USB	Bluetooth/USB	All-in-one	Bluetooth
Read & write EEPROM	√	√	√	×
Read & write MCU	√	√	√ (less coverage)	×
Read & write ECU	√	√	√ (less coverage)	×
Read & write immo module	√	√	√ (less coverage)	×
Read & write instrument/ airbag module	√	√	√ (less coverage)	×
Key identify	√	√	√ (less coverage)	√
Read by eeprom	√	√	×	×
Refresh key	√	√	√ (need XP400 PRO)	√
Detect frequency	√	√	√ (need XP400 PRO)	√
Generate transponder	√ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO)	√ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO)	√ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO)	√
Transponder simulation	√ (need APB112)	√ (need APB112)	√ (need APB112)	√
Detect ignition coil	√ (need APB112)	√ (need APB112)	×	√
Auto VIN	√	√	√	×
Read & clear fault codes	√	√	√	×
Live data	√	√	√	×
Freeze frame	√	√	√	×
Read ECU info	√	√	√	×
Action test	√	√	√	×
Services	√	√	√	×
Special function	√	√	√	×
Online coding	√	√	×	×
Offline coding	√	√	×	×
Hidden features	√	√	×	×
Guidance	√	√	×	×
Online programming	√ (support partial Benz, BMW models)	√ (IM608Pro supports partial Benz, BMW models)	×	×
Report manage	√	√	√	×
Other functions	Scan VIN, scan license, remote desk. D-PDU, RP1210, DoIP, CANFD diagnostic standard	Remote desk, D-PDU, RP1210 diagnostic standard (DoIP/CANFD need adapter)	Remote desk, CANFD diagnostic standard(need adapter)	×
Inspection camera	√ (MV105/ MV108)	√ (MV105/ MV108)	√ (MV105/ MV108)	×

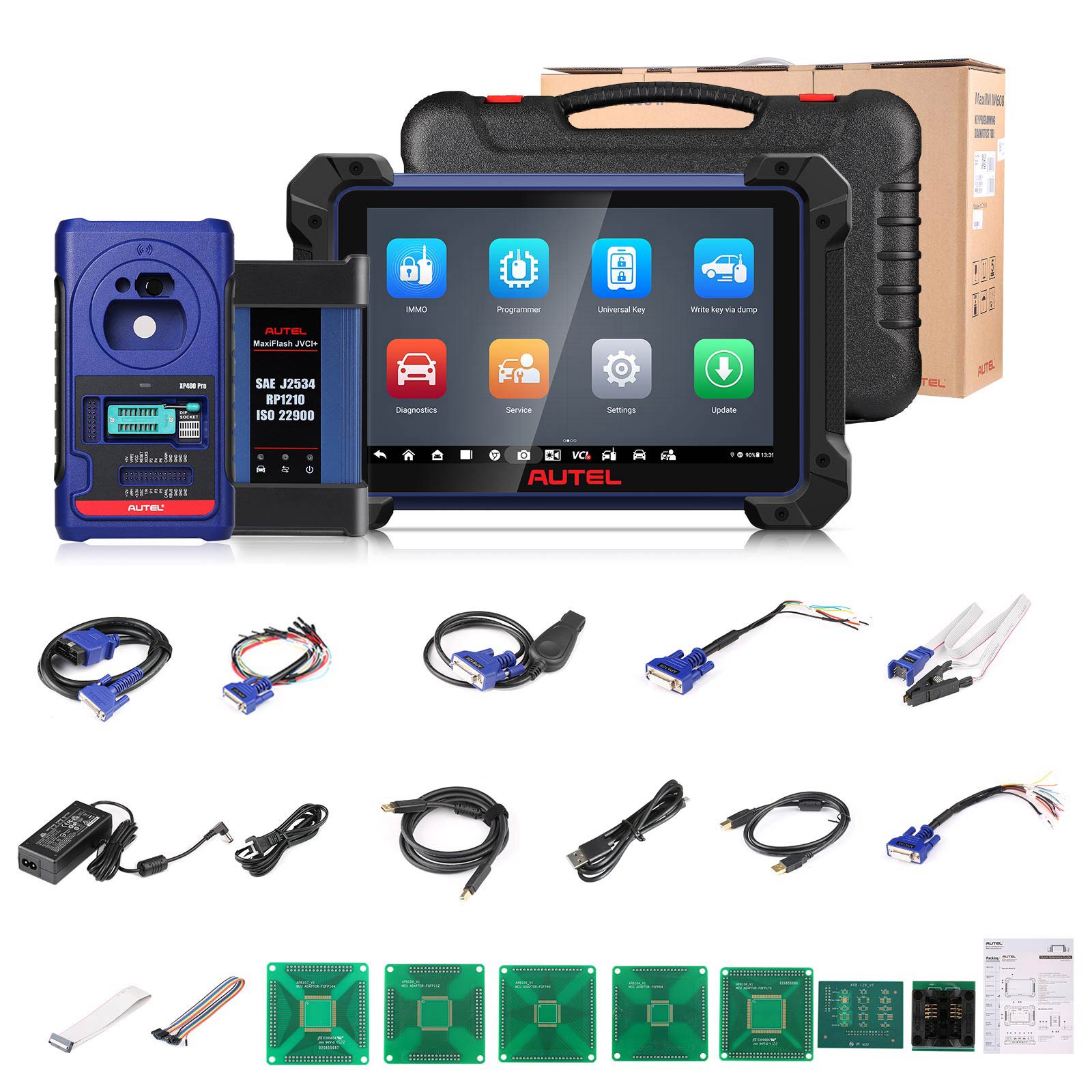

Package List:

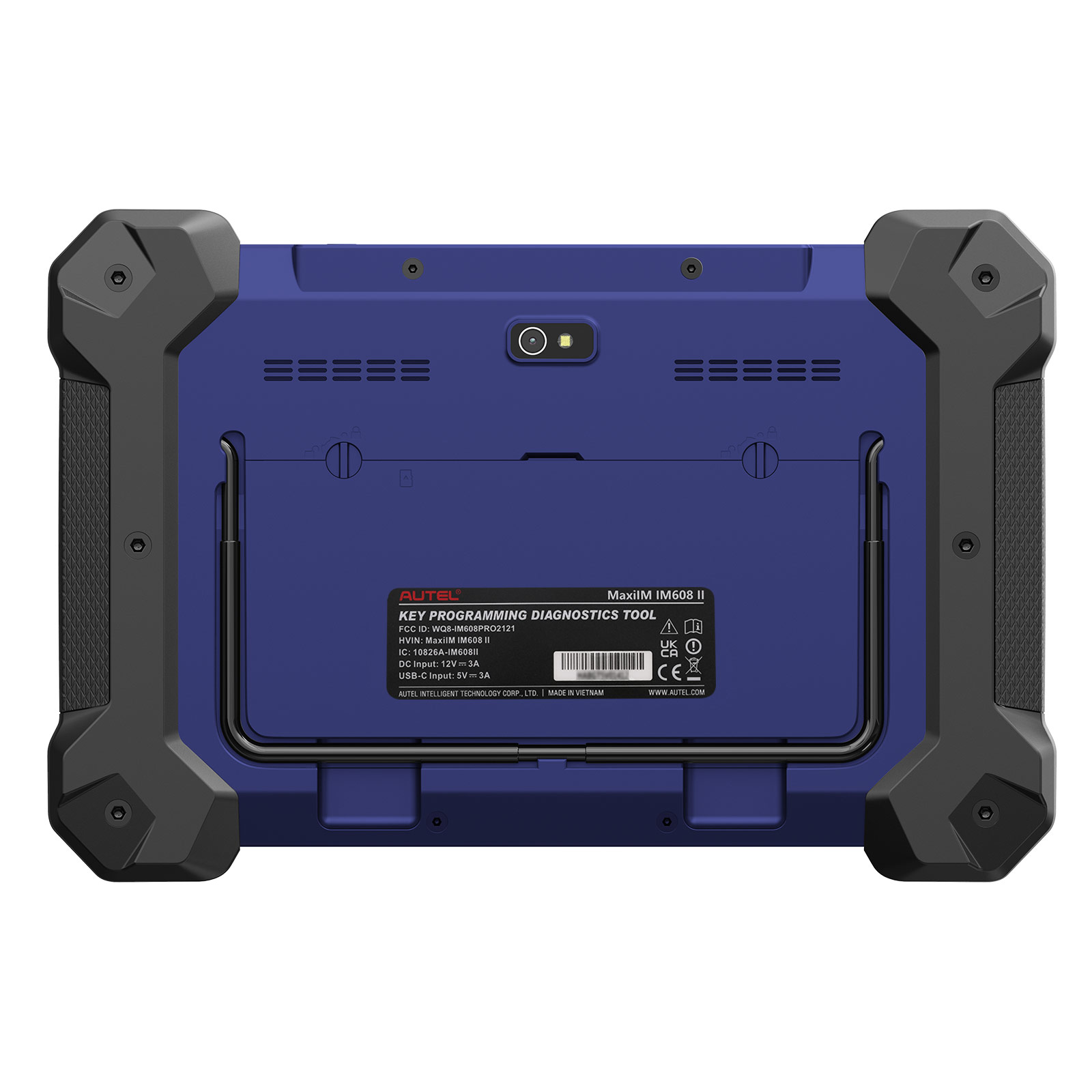

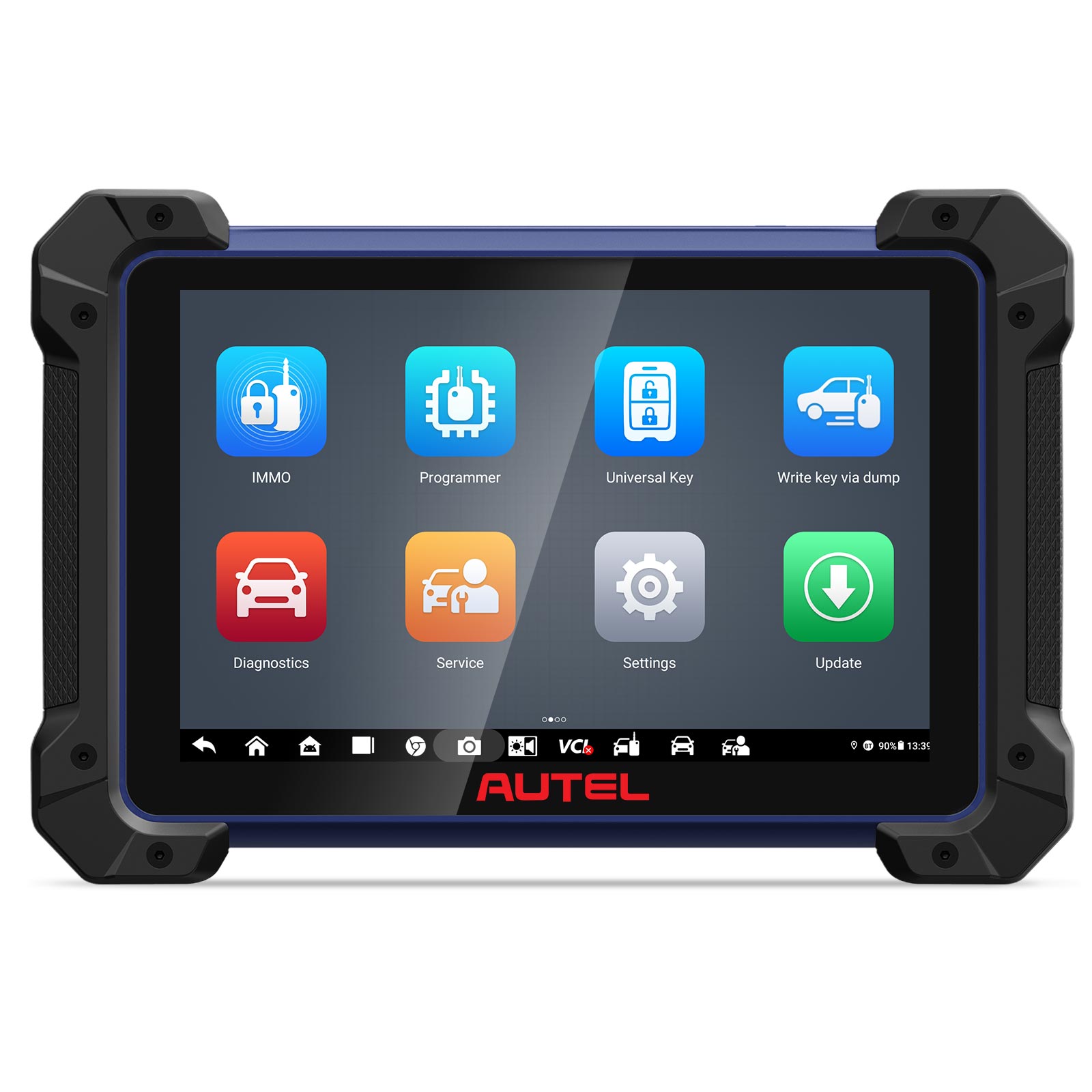

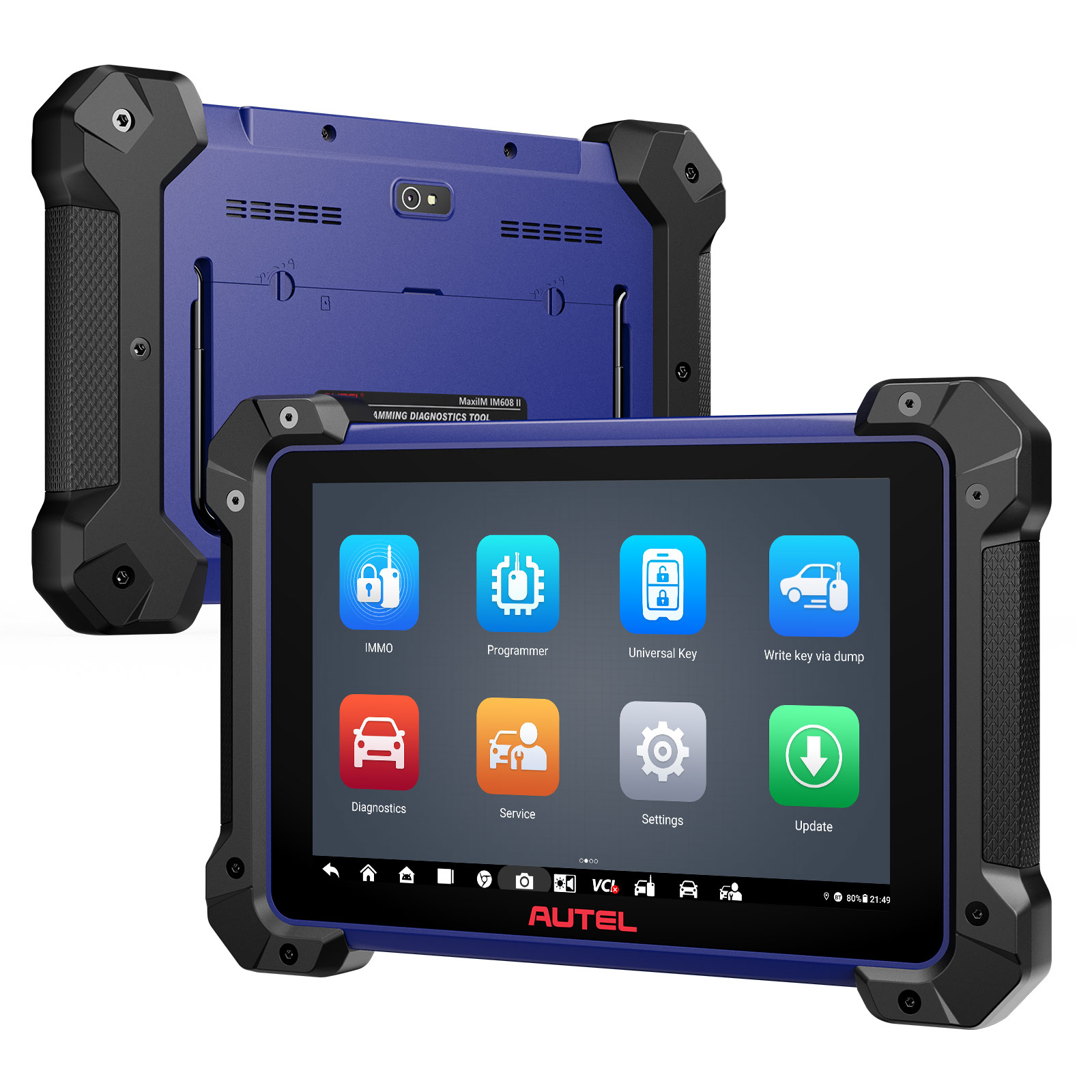

1pc x IM608 II Tablet
2pcs x OTOFIX Smart Key Watches
1pc x XP400 Pro Key Programmer

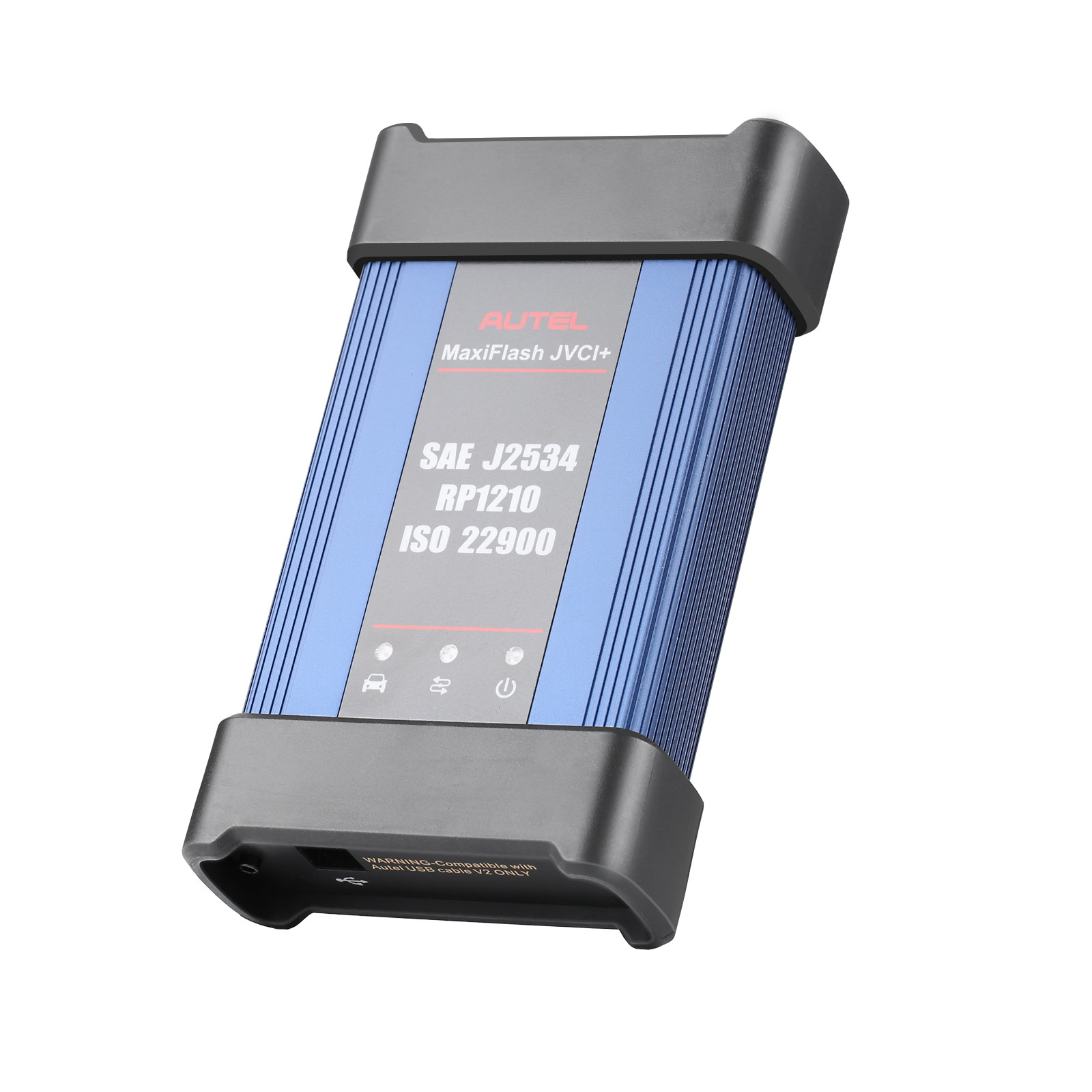

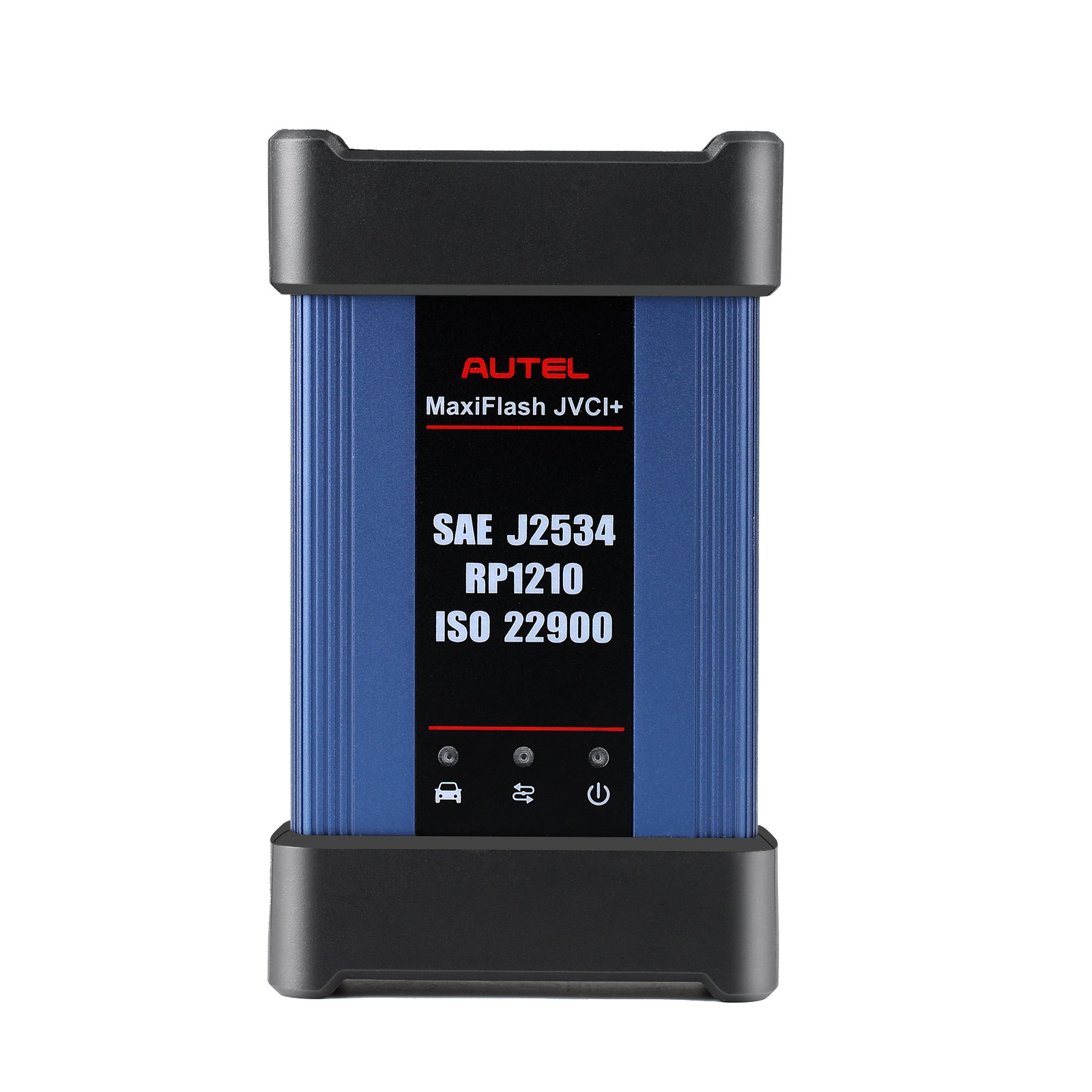

1pc x JVCI+ ECU Reprogrammer
1pc x Carry Case
1pc x Main Cable
1pc x USB Cable (2m)
1pc x Connect Cable
1pc x Mini USB Cable
1pc x AC/DC Adapter (12V)
1pc x AAC001
1pc x APC101 (USB Cable)
1pc x APB129 (EEPROM Adapter)
1pc x APB125 (Mercedes Infrared Collector)
1pc x APB104 (MCU_FQFP64)
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB109
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Signal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Clamp)
1pc x APA108 (MCU Clamp)
1pc x APA109 (MC9S12 Clamp)
1pc x USB to Ethernet Adapter
1pc x Packing list
1pc x Quick reference guide
