2023 Autel MaxiPRO MP808BT Pro Scan Tool ECU Coding for Unlock Hidden, Bi-Directional Control, VAG Guided OE All System Upgrade of MS906 MP808

Product Description

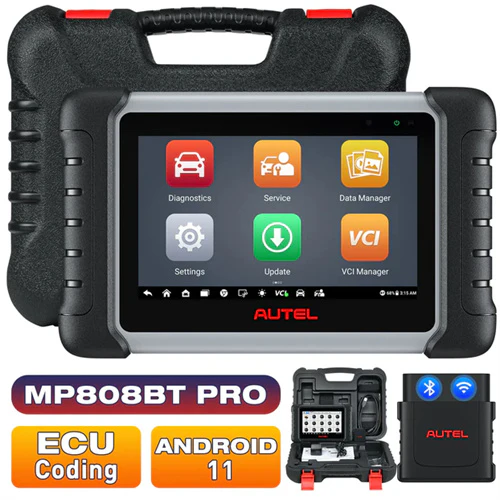

Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with Unlock Hidden Functions

Autel MaxiPRO MP808BT Pro scan tool is Autel's flagship automotive diagnostic tool,100% Original, ECU coding for refresh hidden features, VAG guided, BT communication range up to 10m, 31 + service functions, bi-directional control, extensive coverage of OE-level diagnostics, a fast quad-core processor, and offers maximum convenience and efficiency for your diagnosis and analysis.

Highlights:

1. One Years Free Update Online, After One Year, MP808BT PRO Update Service Cost 400USD/ Year
2. Comes With Full Set Non-Standard OBD Adapters to Work on More Vehicle.
3. 64GB On-Noard Memory for Better Performance
4. Android 11 Operating System for Fast Boot-Up and Multitasking
5. With Latest Configuration, It Has Achieved a Giant Leap in Vehicle Coverage and Diagnostic Service.
6. Multi-Language Supported: English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian. (After you get the package, just tell us your SN of MP808BT to activate the language you need)



New Added Functions - Expand Your Business

1. VAG Guided Functions (Same As MK906BT/MS906BT): The guidance function means that it will prompt the steps of the operation or remind the preparation actions that need to be done. Guided Functions is compatible with Audi/ VW/ Skoda/ Jetta etc.
2. Refresh Hidden (Same As MS906 Pro/ MK906 Pro): Refresh means release or restart, and we need to personalize the settings through this function. You can adjust the settings already in the system according to your needs such as turning off the seat belt reminder light. Compatible with Audi/ VW/ Skoda/ Jetta etc.
3. Add-on Compatible Tool
* With with MV108/ MV105: Giving view to crowded and narrow areas inside the car that are hard to check
* Work with Autel BT506, Expanded systems diagnostic to battery systems: Equipped with battery tester BT506, MP808BT Pro can be upgraded to a special battery tester scan tool. You can perform complete battery system detection, such as battery reset, in/out vehicle battery diagnosis, etc.




Why Choose Autel MP808BT Over Other Diagnostic Tools?

Among the diagnostic tools with bidirectional control of Autel MP808 and MK808 series, the ranking in terms of bidirectional control function: MP808BT Pro > MP808BT > MP808TS > MP808 > MK808BT > MK808.



• Same Functions as MS906 But Save Money: Autel MP808BT Pro has the same functions as Autel MS906 but cheaper 220 bucks, Upgraded version of MP808BT/ MP808/ MP808K/ DS808/ DS808K.
• VAG Guided: This feature simplifies complex functions such as ECU Coding. You can follow the interface prompts of the device to complete matching, calibration, and DTC troubleshooting.
• Refresh Hidden Functions: Turn on or off settings already in the vehicle to improve the car’s performance and your driving experience. U~nlock hidden features are compatible with Audi/VW/ Skoda/Jetta etc.
• Full Bi-directional Control/ Active Tests: Bi-directional Control (Same as MaxiSys MS906) to perform the active tests, such as Fuel Pump On/Off, A/C Clutch On/Off, Evaporated Emissions Leak Test, Injector Tests, Fuel Injector Balance, etc.
• 31+ (Still growing) Service Functions: Oil Reset, EPB, ABS Bleeding, BMS, K~ey Fob Programming, Throttle Relearn, SAS, EEPROM Adapter, Injector Coding, Tyre Pressure Reset, Gearbox Match, Headlight, Air Suspension, Window Initialization, Seat Configurations, Airbag Repair, Cylinder, Disable Transportation, Crankshaft Resync, etc
• Wireless Diagnostic: Compared to scanners that only support wired diagnostics, Autel MP808BT Pro supports wireless diagnostic distances up to 10M. You are not be confined to the steering wheel or around the seat anymore.
• A K~ey to Access On-board Systems: ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System...
• With More 11pcs Adapters: For Honda-3, BMW-20, Fiat-3, PSA-2, GM/Daewoo-12, Chrysler-16, Nissan-14,Kia-20, Benz-38, VW/Audi-2+2, Mitsubishi/Hyundai-12+16
• Battery Test Functions: Autel MP808BT automotive scan tool can work with Autel BT506 batteries Tester to analyze in-vehicle and out-of-vehicle batteries’ health.
• Can Work with MV105/MV108: From Now, Autel MP808BT can work with Autel MV105/ MV108 digital inspection camera to evaluate and diagnose automotive or house problems.
• Autel Cloud Service: This function enhances data centralization and improves work efficiency, it makes it easier to share reports directly to clients via email/SMS/QR code.

Features:

All Systems/All Service 7-inch touchscreen wireless tablet
Compatible with U.S., Asian and European vehicles, 1996 and newer.
Read and Erase Codes on all available vehicle systems.
View Freeze Data and View and Graph Live Data.
AutoVIN technology for rapid vehicle identification
Exceptional OE-Level system coverage for all electronic systems
Cloud-based report management for easy viewing and sharing
Powerful Cortex-A55 processor (1.8 GHz) processor
7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
64GB On-board Memory for better performance
Android 11 Operating System for fast boot-up and multitasking
Ergonomic design with rubberized outer protection and a rugged internal housing to withstand everyday shop use.
Shop Management application designed to maintain customer information and vehicle history data.

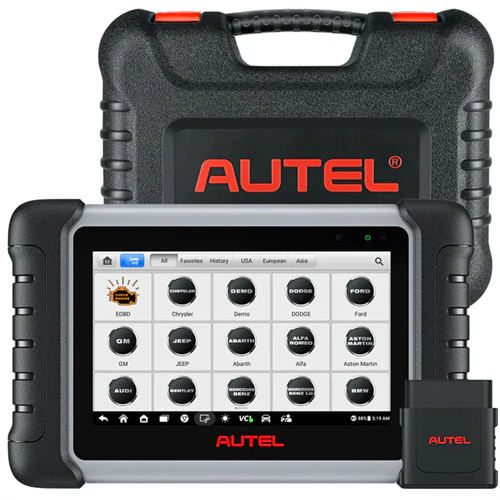

Wide Vehicle Coverage

Autel MP808BT diagnostic scanner tool comes with unparalleled vehicle coverage of more than 80 American, Asian and European vehicle makes, with full set Non-Standard OBD adapters, it can support more vehicle than normal scanner.

Protocols Supported:

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6


Functions:

1. Full System Diagnostics

MP808BT Pro performs complete capabilities for all systems, not only includes 4systems diagnoses but all the other systems including Body, Chassis, Powertrain, Communication and more. You can get all the functions to fix your repair work more quickly with MP808.

1) Read hard codes on various systems. You are able to know the meaning of the trouble codes and figure out what's wrong with your systems.
2) Erase different DTCs easily after the problem has been carried out. Do remind that the check engine light will be turned off when you cleared the codes.
3) Retrieve live data to make sure all the systems run normally. The parameter item can be displayed in different forms, such as text, waveform graph, digital and more.
4) Active test is to test output elements. You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status


2. ECU Coding for Unlock Hidden Functions

Autel Updates in MaxiPRO MP808BT Pro has been added with the with Advanced ECU Coding functions. Tap Update icon to update the device' s system and vehicle software to newest to get the ECU Coding functions. More functions related to ECU are now available in MP808BT Pro, for instance:

* Unlock Hidden Functions: works on Audi, VW, Skoda etc.
* Offline Coding: works on Chrysler, Bentley, Bugatti, Lamborghini, LT3, Seat, Man_LD, Peugeot, Citroen, Opel, Vauxhall, Porsche, Mitsubishi and etc.
* Online Coding: works on Peugeot, Citroen, DS_EU etc.
* VAG Guided Functions: works on Audi, VW, Skoda etc.
Note: ECU Coding only works on very few cars, do send the 17 digit VIN to check compatibility before you order.


3. VAG Guide Functions

With step-by-step guides, you can follow instructions to complete the vehicle repair quickly and efficiently, speed up repairing, win more business for professional technicians.

4. Battery Test Function

Battery Test function is a battery and electrical system analysis function that uses adaptive conductance, an advanced battery analysis method to produce a more accurate examination of the battery's cold cranking ability and reserve capacity, which is vital to determining a battery's true health. It enables technicians to view the health status of the vehicle's battery and electrical system. Together with the BT506, this application can complete battery & starting and charging system tests and display the test results.

Battery Test function includes In Vehicle Test and Out of Vehicle Test Function.

* In-vehicle Test is used for testing batteries that are installed in a vehicle. An in-vehicle test includes battery test, starter test, and generator test. These tests help determine the health status of the battery, the starter, and the generator, respectively.
* Out-vehicle Test is used to test the condition of batteries that are not connected to a vehicle. This function aims to check the health status of the battery only.
Note: You need MaxiBAS BT506 to perform the battery test function (Need purchasing separately)

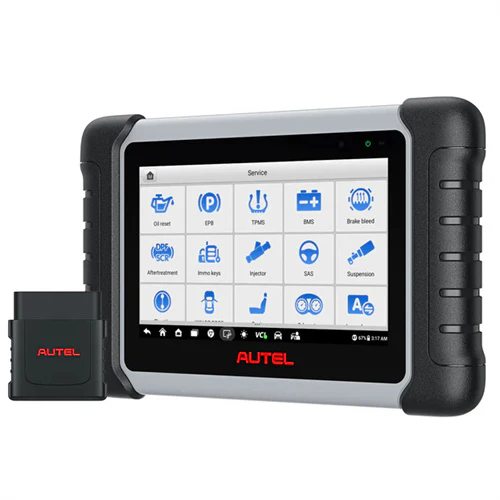

5. Special Functions:


Autel MP808BT comes with 31+ comprehensive service & special functions which is simple solutions for complex problems.

Oil Reset: Turn off the oil light, and reset the service mileage.

EPB : For the maintenance of electronic braking system’s safety and efficiency.

SAS : Reset the position of the steering for safe driving.

BMS: Reset the monitoring unit of the car battery after replacing battery or battery monitoring sensors.

D-P-F Regeneration: Specially works for Diesel Particulate Filter system with D-P-F regeneration, D-P-F component replacement teach-in and D-P-F teach-in after replacing the engine control unit.

ABS Bleed: Cycling the ABS system to bleed the air out of the ABS system before traditional bleeding.

Injector Coding: Coding the new injector after replacement.

IMMO Keys: Add new keys, key learning.

Throttle Adaptation: Adjusts the throttle position for controlling the volume of intake air.

Headlight Matching: initialize the adaptive headlight system.

Still growing......

NOTE: All service & Special functions are NOT universally compatible. Please send VIN number and the functions you need to us to check compatibility.

Specification:


Operating System	Android 11
Processor	Cortex-A55 quad-core processor (1.8GHz)
Memory	4GB RAM & 64GB On-board Memory
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Wi-Fi (802.11a/b/g/n/ac) USB 2.0，Mini USB 2.0 Wireless BT V2.1+EDR HDMI Type A SD Card (Support up to 64GB)
Sensors	Light sensor for brightness auto adjust
Audio Input/Output	Input: N/A Output: Beep
Power and Battery	3.7 V/5000mAh lithium-polymer battery Charges via 5 VDC power supply
Input Voltage	5 V/1.5 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

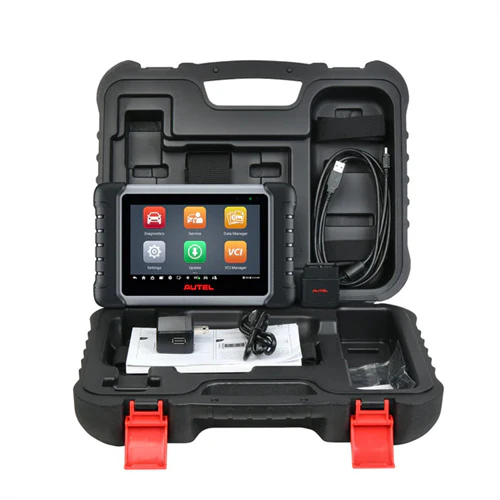

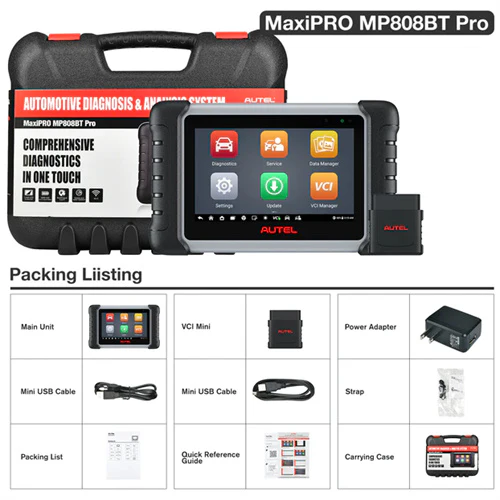

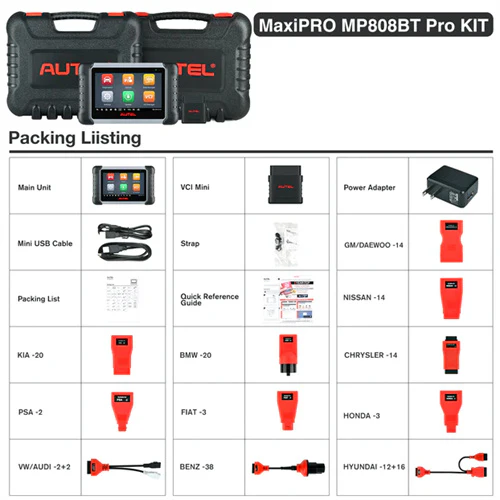

Package List:

1x MaxiPro MP808BT PRO
1x Power Adapter
1x Mini USB Cable
1x Main Cable
1x User Manual
1x Quick Reference Guide
1x Adapter for Benz-14 (for EU Version)
1x Adapter for Chrysler-16 (for US Version)
1x Adapter for BMW-20
1x Adapter for Kia-20
1x Adapter for Nissan-14
1x Adapter for GM/Daewoo-12
1x Adapter for Honda-3
1x Adapter for VW/AUDI-2+2
1x Adapter for Mitsubishi/Hyundai-12+16
