US/UK/EU Ship No Tax Autel MaxiSys MS908S Pro II Upgraded Diagnostic Scan Tool ECU Programming/ Coding, Active Tests, Full Systems, FCA Autoauth

Product Description

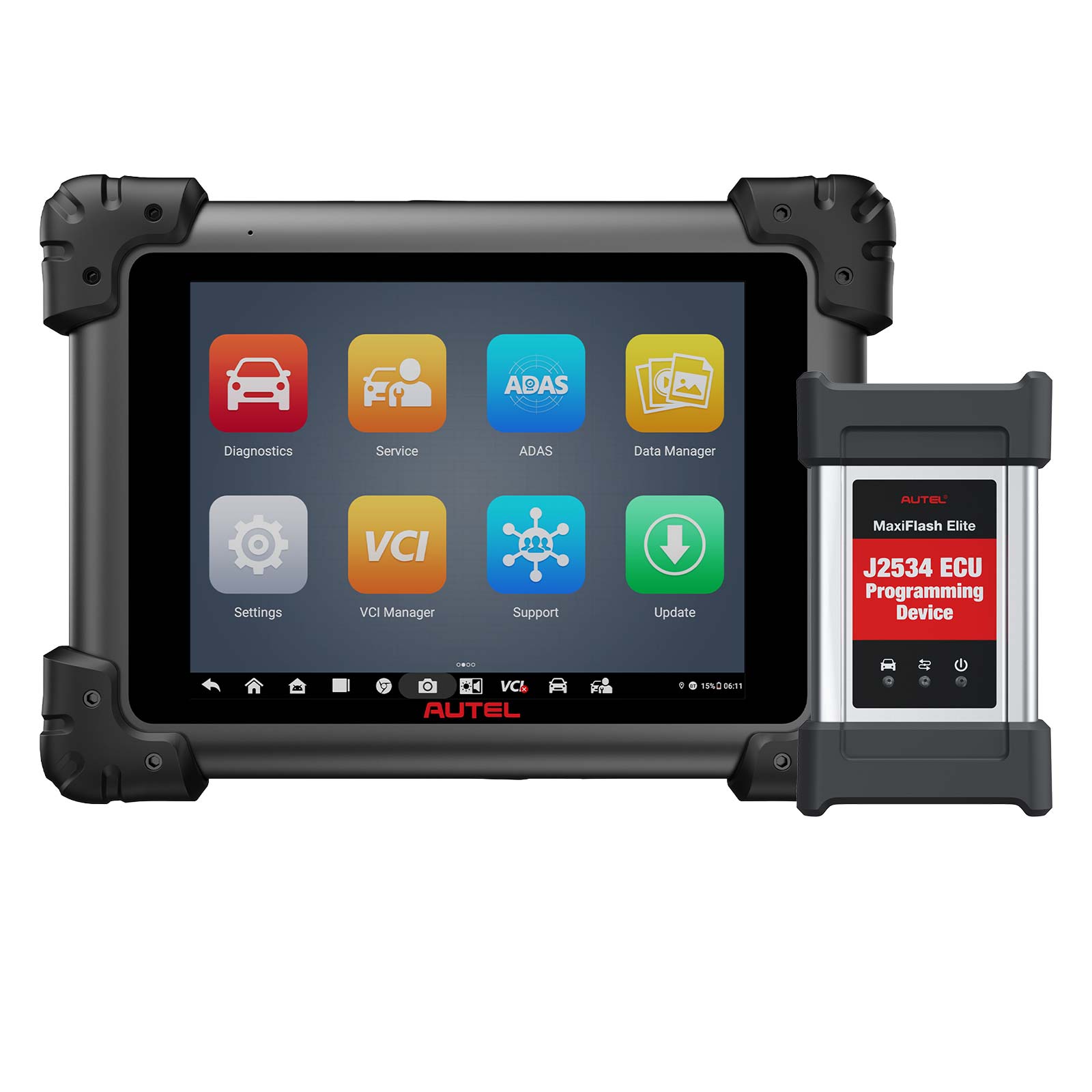

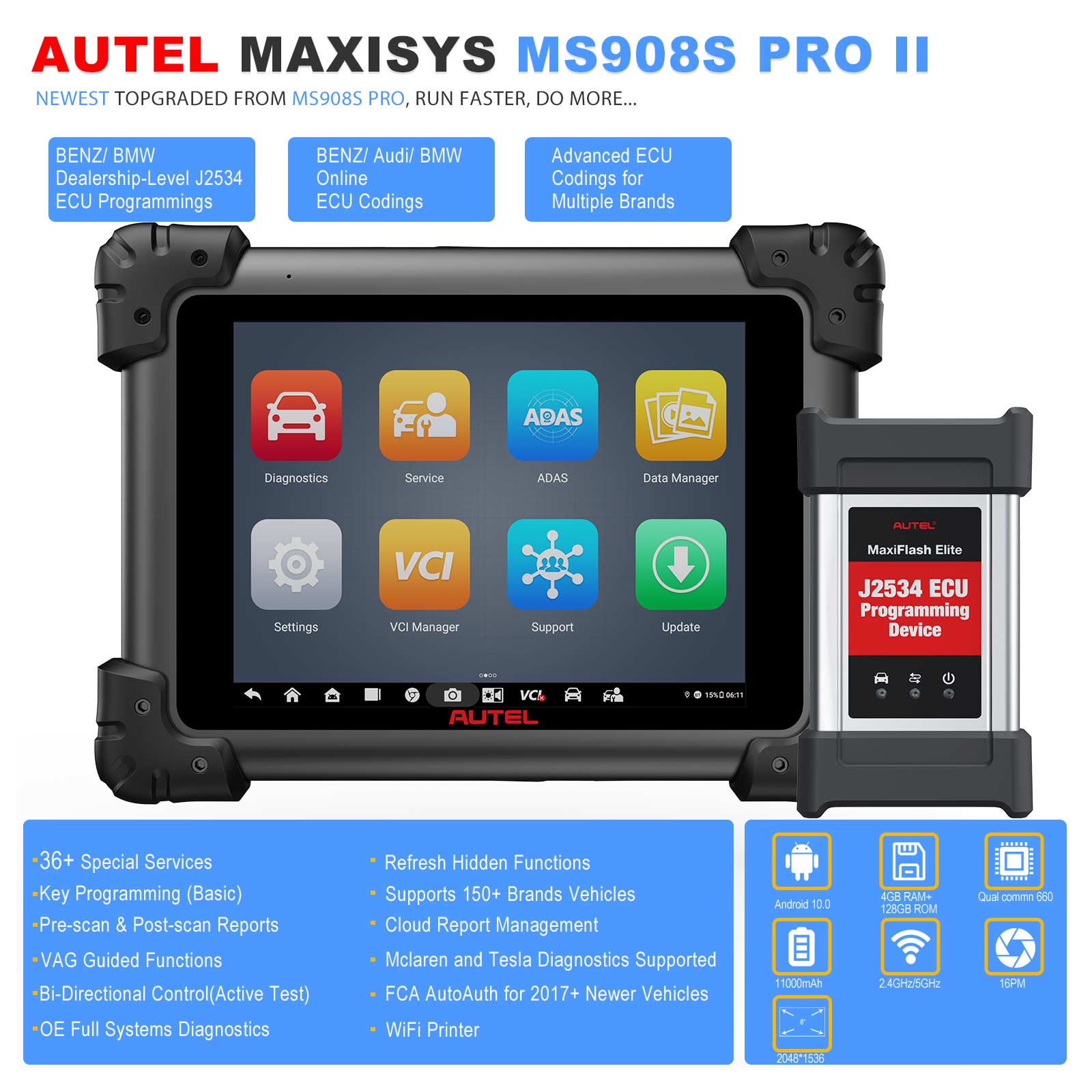

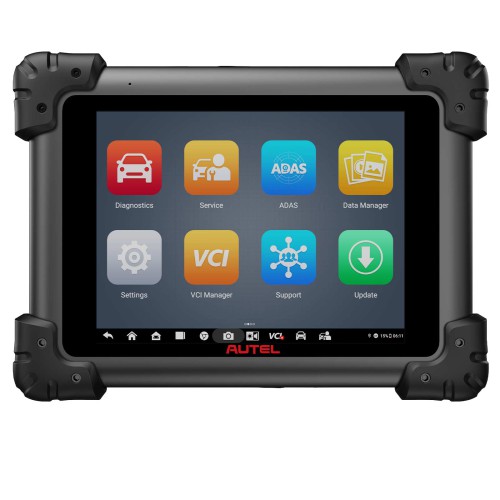

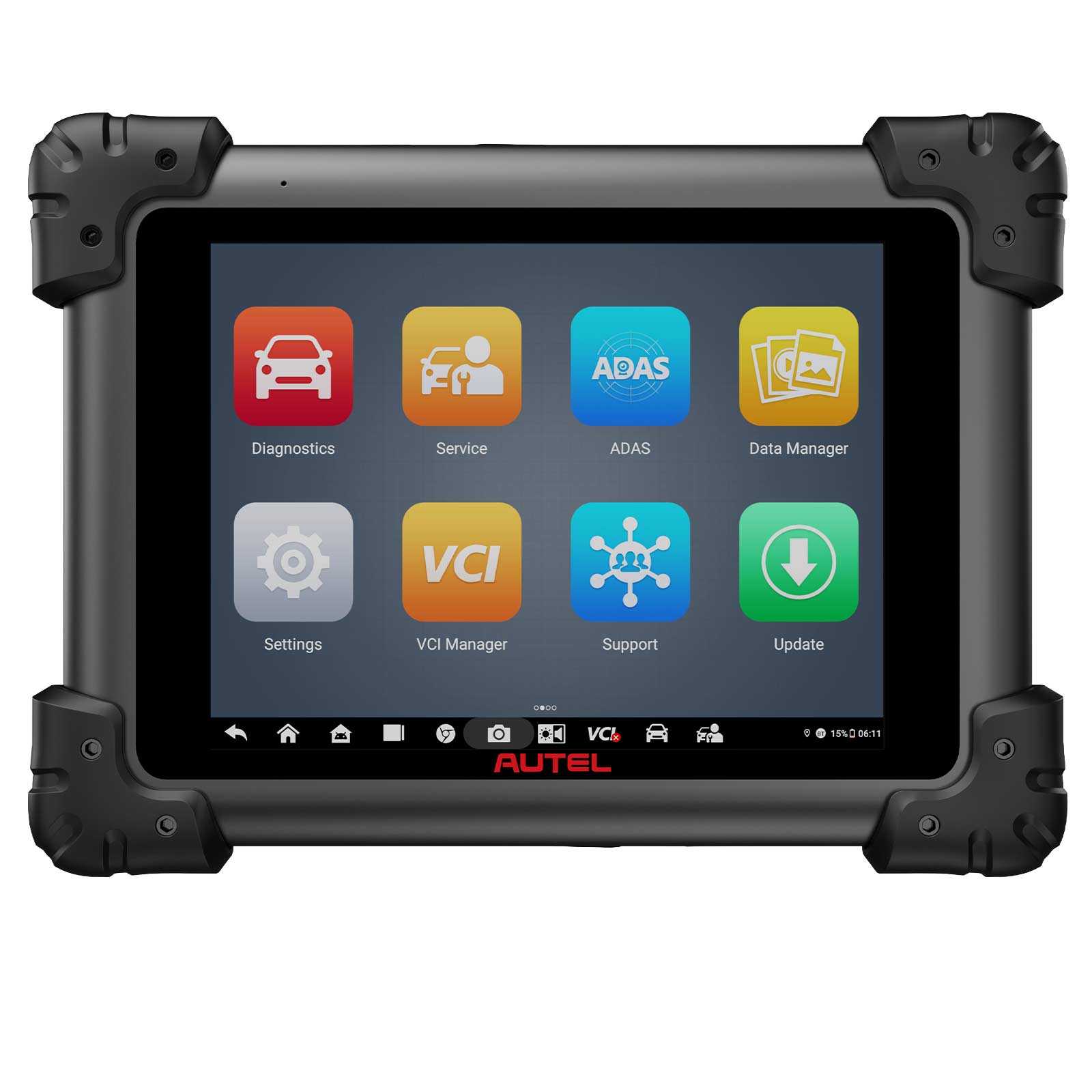

Autel MaxiSys MS908S Pro II

Autel MaxiSYS MS908S Pro II is a 9.7-inch touchscreen advanced diagnostic tablet powered by an Octa-core processor with 128GB of storage memory running on Android 10.  Includes Bluetooth-enabled MaxiFlash VCI/ J2534 pass thru programming device. The MS908S Pro II can read/erase codes on all available systems, perform bi-directional active tests, view freeze frame data, view and graph live data, and perform adaptations and coding on U.S., Asian and European vehicles, 1996 and newer.

Product Features:

Qualcomm 660 Octa-core processor (2.2GHz Quad-core A73 + 1.8 GHz Quad-core A53)

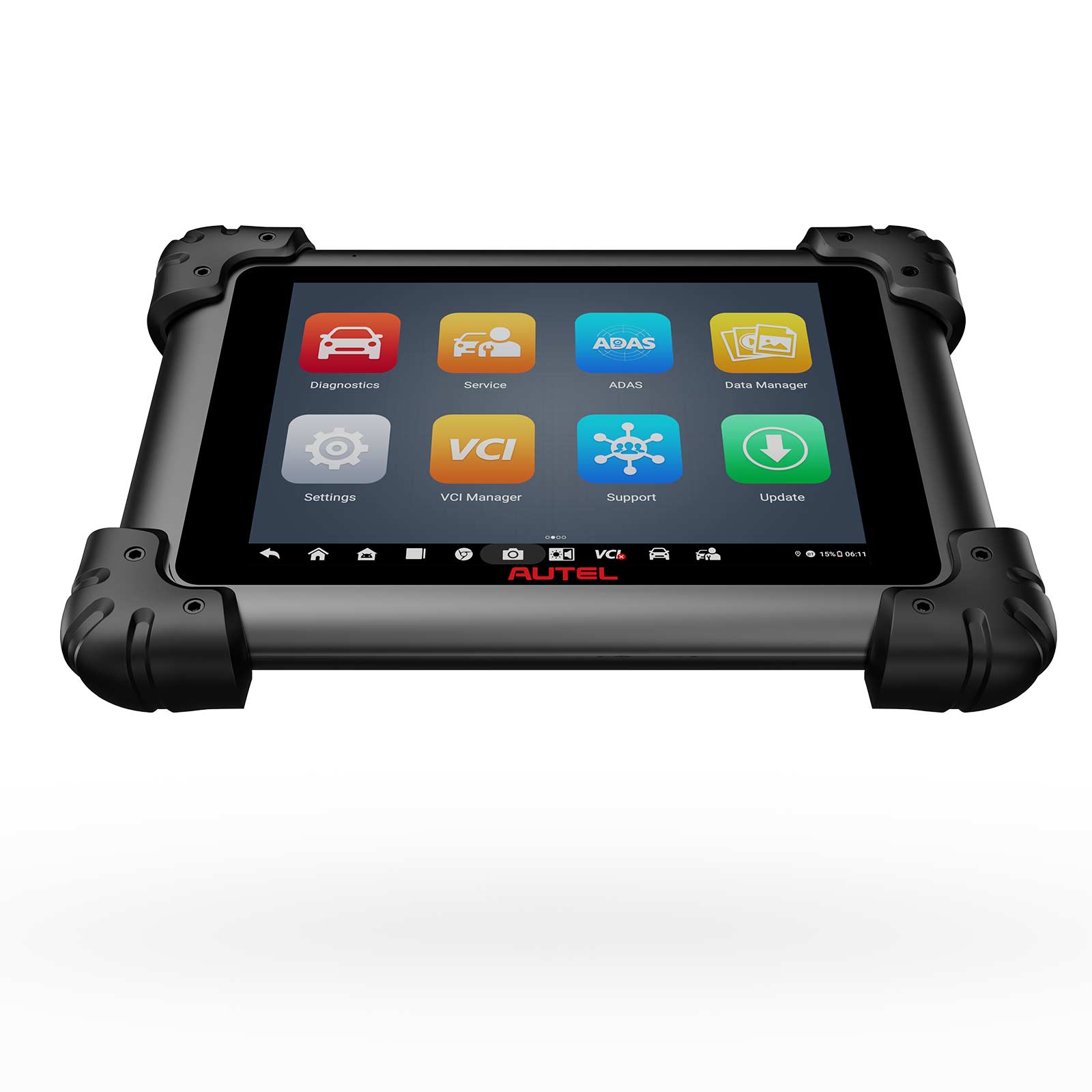

9.7-inch touchscreen Wi-Fi tablet
Bluetooth-enabled VCI/J2534 pass thru programming device with wireless range up to 70 meters
Rechargeable lithium battery delivers 7.5 hours of continuous performance on a single charge
Comprehensive Service Menu for direct access to most commonly performed service tasks
128G storage memory for maintaining of all needed brand diagnostics software
Android 10.0 operating system
Extensive vehicle coverage Comprehensive Service Menu for direct access to most commonly performed service tasks
Read/Erase Codes on all available systems
Perform bi-directional active tests
Perform adaptations and coding
View freeze frame data and view and graph systems live data
1-year free update

Note: The default language is English, if you need other languages(Spanish, German, Italian, French), you need to apply for activation separately.

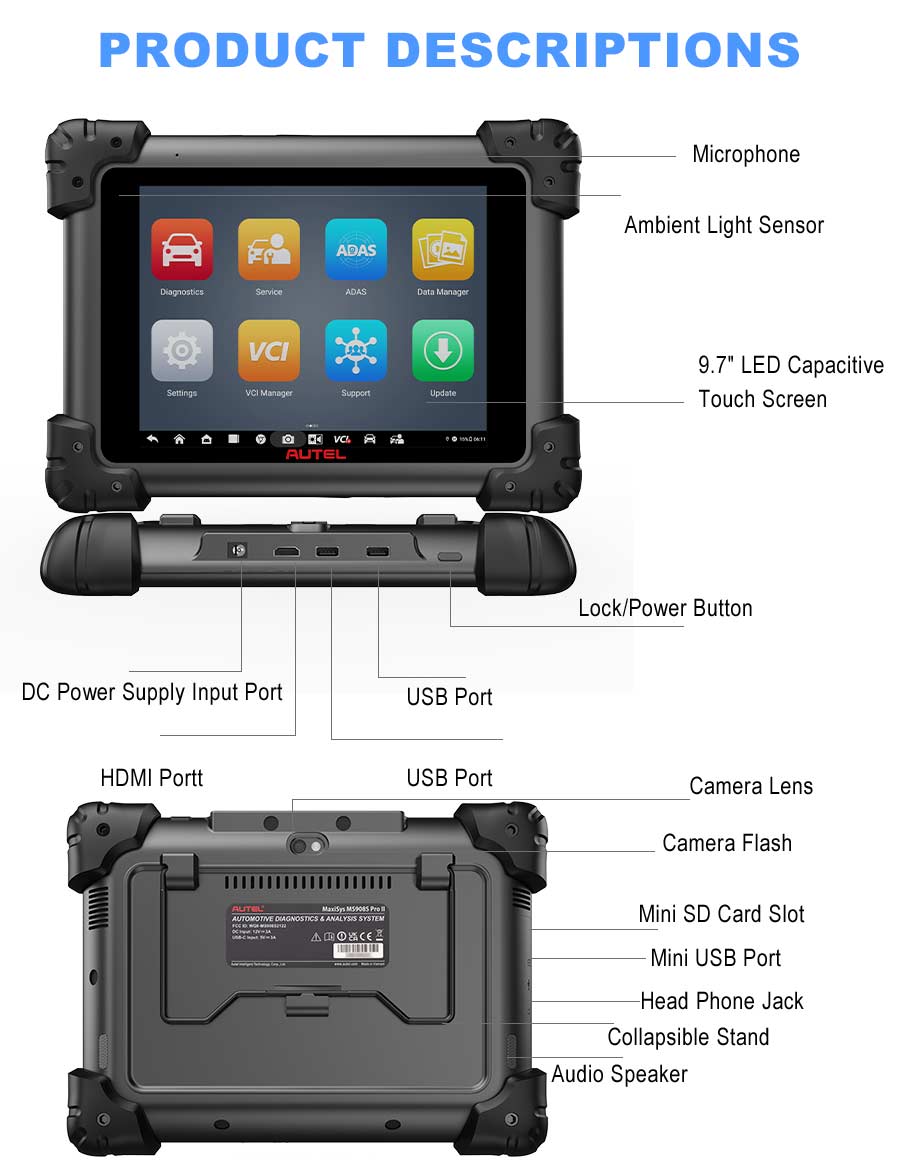

Product Specifications:


Operating System	Android™ 7.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 +   1.8GHz Quad-core A53)
Memory	4GB RAM &128GB On-board Memory
Display	9.7 inch LED capacitive touch screen with 2048x1536 resolution
Connectivity	Wi-Fi (802.11 a/b/g/n/ac) USB   2.0 (2 USB TYPE-A ports and a Mini USB port) BT V5.0 + BR/EDR SD Card (Support up to 64GB) HDMI
Camera(rear)	16 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and   45°C
Input Voltage	12V (9-24 V)
Power Consumption	6.5W
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions(WXHXD)	300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight	NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)
Protocols	ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code,   SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed,   Middlespeed, Lowspeed   and Singlewire CAN,GM UART, UART Echo Byte Protocol, Honda Diag-H   Protocol, TP 2.0, TP 1.6, SAE J1939,SAE J1708, Fault-Tolerant CAN

Product Comparison:


	MaxiSys MS908S Pro II	MaxiSys MS908S II	MaxiSys MS906TS	MaxiSys MS906BT	MaxiSys MS906
All Systems DTC Scan	√	√	√	√	√
Service   Function	√	√	√	√	√
Bi-Directional   Control	√	√	√	√	√
Auto   VIN Technology	√	√	√	√	√
ECU   Coding	√	√	√	√	×
ECU   Programming	√	×	×	×	×
MaxiFix   Cloud-Based Info System	√	√	√	√	√
Data   Manager	√	√	√	√	√
Shop   Manager	√	√	√	√	√
Remote   Support	√	√	√	√	√
Pre-scan   Report & Post-scan Report	North America Only	North America Only	√	North America Only	North America Only
Print   Feature	√	√	√	√	√
Multi-language   Support	√	√	√	√	√
Domestic/Asian/European Coverage(1996-Present)	√	√	√	√	√
Display   Size	9.7"	9.7"	8"	8"	8"
Wireless   VCI	MaxiFlash Elite	Wireless Diagnostic Interface	MaxiVCI V100	MaxiVCI V100	×
Battery   Life	11000 mAh 3.7 V	11000 mAh 3.7 V	10000 mAh 3.7 V	10000 mAh 3.7 V	5000 mAh   3.7 V
Memory Storage	128GB	128GB	32GB	32GB	32GB
Connector   Kit	√	√	√	√	√
TPMS	×	×	√	×	×
Oscilloscope	√	√	√	√	×
Inspection   Camera	√	√	√	√	×
ADAS	√	√	×	√	√

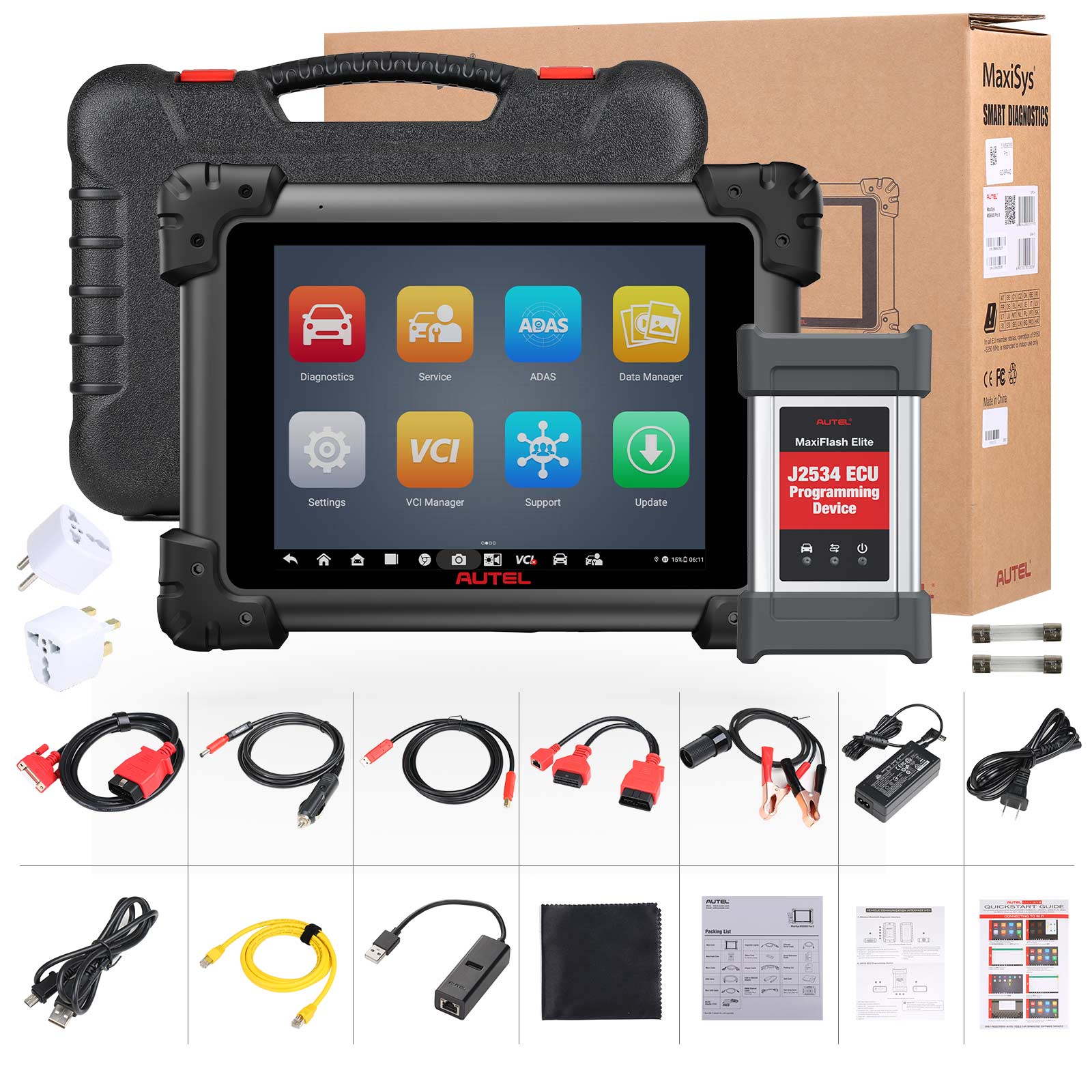

Package Includes:

1pc x Autel MaxiSYS MS908S Pro II Tablet
1pc x Main Cable — 1.5 m in length
1pc x Standard 2.0 USB Cable
1pc x Mini USB Cable
1pc x AC/DC External Power Adapter
1pc x Auxiliary Power Outlet Adapter
1pc x Ethernet Serial Cable
2pcs x Spare Fuse
1pc x Clamp Cable
1pc x USB to Ethernet Adapter
1pc x For B-M-W Ethernet Cable
