[US Ship] AUTEL MaxiSYS MS919 Support ECU Coding & Programming with Dynamic Topology Module Mapping

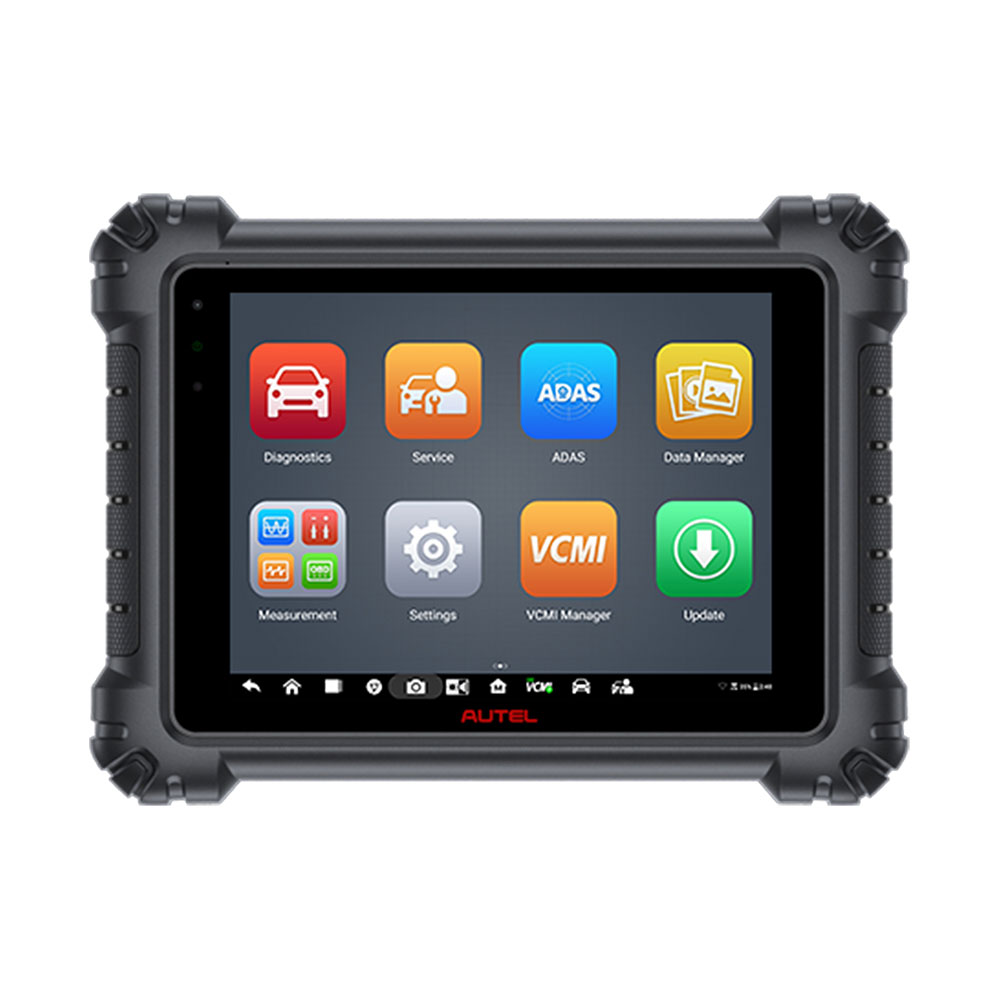

Autel MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor,128GB memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and Can BUS tester. The MS919 features dynamic topology module mapping for supported vehicles, and Oscilloscope preset guides and tests and waveform library. The MS919 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.





Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar.

Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming.

Automatic system and software updates with real-time push message notifications via internet.

Interactive data logging sessions enable direct contact with Autel support for first-hand troubleshooting of diagnostic bugs and error.

One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.

Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.



Product Comparison Between MS919 and Ultra EV


	Model	MS919	Ultra EV
hardware	Connection	Bluetooth MaxiFlash VCMI	Bluetooth MaxiFlash VCMI
	Screen	9.7inch touchscreen	12.9inch touchscreen
	Battery	15,000mAh	18,000mAh
	Processor	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core
	Memory	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM
	Camera	16MP rear/16MP front	16MP rear/5MP front
	Docking Station	×	Included
	EVDiag Box	×	Included
software	Operating System	Android 10.0	Android 7.0
	Service Resets	36 service features	36 service features
	OBDII Test Modes	All 10 test modes	All 10 test modes
	System Diagnostics	Access all modules in all systems	Access all modules in all systems
	Battery Pack Diagnostics	×	SOC and SOH analysis
	High-voltage System Diagnostics	×	Diagrams of high-voltage system block
	Component Activations	Bi-directional control	Bi-directional control
	Cloud Services	Remote programming & Report storage	Remote programming & Report storage
	Topology Module Mapping	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles
	Diesel PM	Reset  diesel emissions Light&medium duty vehicles	Reset  diesel emissions Light&medium duty vehicles
	Oscilloscope	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester

Product Specifications:



Operating System: Android 7.0 / Android 10.0

Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) / Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

Memory: 4GB RAM & 128GB On-board Memory

Display: 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen

Connectivity: Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) /BT V5.0 + BR /EDR /GPS /USB 2.0 (2 USB TYPE-A ports and a Mini USB port) /HDMI 2.0 /SD Card (Support up to 256GB)

Camera: Rear: 16 Megapixel, Autofocus with Flashlight  Front: 16 Megapixel

Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output: Microphone/ Dual Speakers/ 3-Band 3.5 mm stereo/ standard headset jack

Power and Battery: 15000mAh 3.8V lithium-polymer battery, Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage: 12V/3A Adapter

Operating Temperature:  0 to 50°C (32 to 122°F)

Storage Temperature: -20 to 60°C (-4 to 140°F)

Dimensions (WxHxD): 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")

Weight: 1.66kg (3.66lb.)

Protocols: CANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

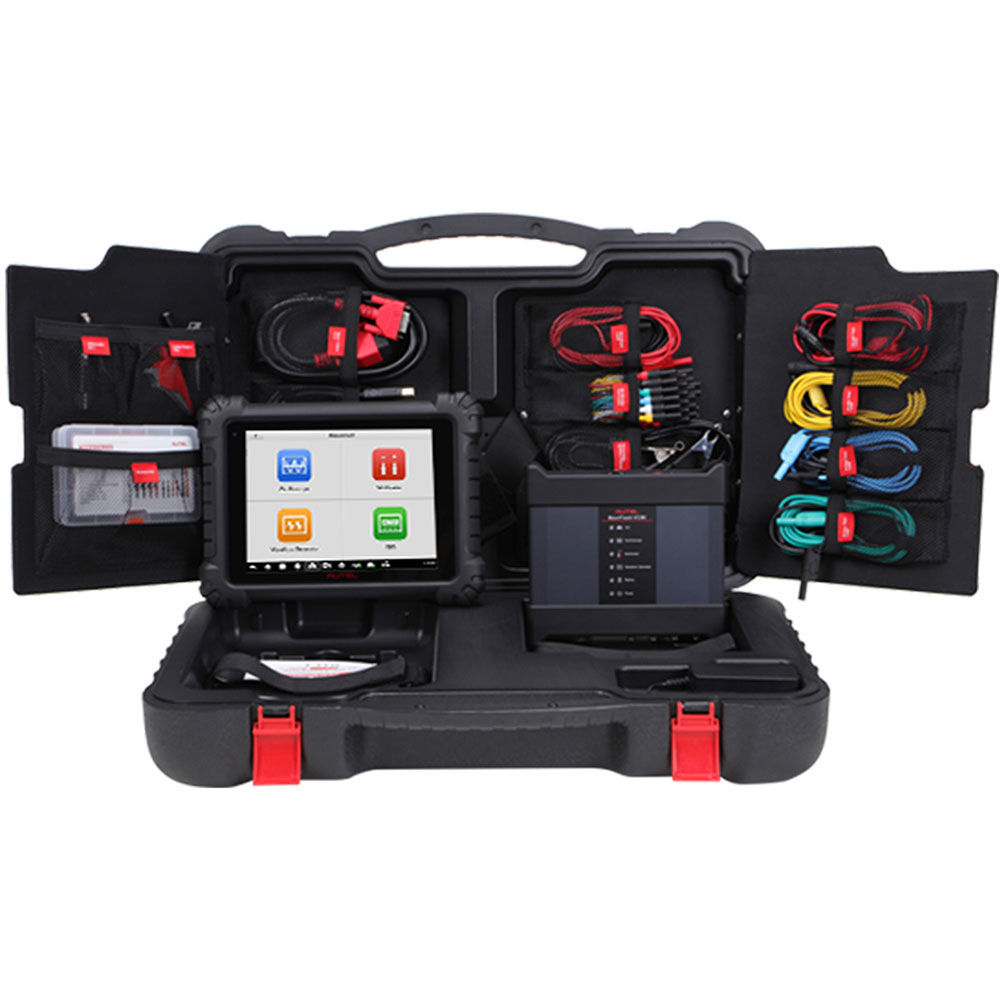

1pc x main unit

1pc x MaxiFlash VCMI

1pc x main cable V2.0

1pc x USB 2.0 Cable V2

1pc x AC/DC Adapter(12V)

1pc x cigarette Lighter

2pcs x light fuse 6*30mm

1pc x clipper cable

4pcs x scope test lead

2pcs x multimeter test lead

2pcs x secondary ignition pickup

2pcs x attenuator 20:1

4*6pcs x breakout lead

1*2pcs x multimeter probe

2*2pcs x flexible back-pinning probe

1*5pcs x back-pinning probe red/green/blue/yellow/black

2pcs x back-pinning Probe Screw

20pcs x back-pinning probe replacement needle

2*2pcs x small crocodile clip

1*2pcs x large dolphin clip

1pc x quick reference guide

1pc x packing list

1pc x soft cloth

1pc x tool box

1pc x carrying case
