US/UK/EU Ship No Tax [US Ship Only] Original Autel Maxisys Ultra Intelligent Automotive Full Systems Diagnostic Tool With MaxiFlash VCMI Get Free Maxisys MSOAK

Product Description

Autel Scanner MaxiSys Ultra Intelligent Diagnostic Scan Tool Plus Autel MaxiSys MSOAK Oscilloscope

As the Autel most ambitious diagnostics tablet, MaxiSys Ultra is designed to maximize technician intelligence. It features with a 12.9-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan. As the top-end diagnostic scanner in 2021, Autel MaxiSys Ultra is equipped with all funtions that you may need to be a professional mechanic:



• Updated version of MK908P/MS908P/Elite/MS909/MS919; All-in-one comprehensive scanner for large repair workshops;
• D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols are supported; Wider vehicle coverage for 99.99% makes in the market;
• 5-in-1 VCMI with functions of VCI, oscilloscope, waveform generator, multimeter, and CAN BUS tester;
• Advanced Programming and Coding, ECU upgrading & downgrading, ECU module matching & replacement, etc.
• 36+ service functions to fix all car-related problems, no need to turn to other scan tool or gurus;
• One-stop Intelligent Diagnosis based on DTCs, helping you have a clear picture of vehicle status; the Ultra features the TSB, repair tips, DTC analysis, etc. For each fault code, Ultra performs in-depth analysis and gives the OE data and processing suggestions.
• OE-level Topology Module Tree, helping you veiwing the vehicle's crux much more intuitively;
• Split-screen multi-application navigation with super fast running speed, greatly improving your work efficiency;
• 10+ highly advanced functions: Active Test/Guided Functions/Personalization/Modification/ etc.;
• Multiple repair guidance: Technical Service Bulletin (TSB), DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases;



Intelligent Diagnostics, One-Stop Solution for DTCs

Intelligent Diagnostics provides smart shortcuts for technicians to get information directly related to the fault code, rather than that isn’t relevant, helping technicians repair detected faults efficiently, making repair work 200% easier than ever.

One-Stop Solution to Guide Customers to Solve the Faults Step by Step

• Vehicle System and Detected DTC: displays the name of the vehicle system(s) and the detected DTC(s)
• Technical Service Bulletin (OEM Info): contains DTC-related recalls, TSB, and OEM campaigns.
• DTC Analysis: provides repair assistance information related to the fault code.
• Repair Assist: intelligently prioritizes DTCs and leads the user to the proper repair.
• Repair Tips: step by step guidance to efficiently to solve multiple faults
• Component Measurement: provides detailed information and instructional guides on using the oscilloscope to test components for faults.
• Relevant Case: offers relevant fault-clearing cases for reference.
• Compatible with: BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Mercedes-Benz, VW, etc.



AUTEL MAXISYS ULTRA

30+ Maintenance Functions Greatly Improve Work Efficiency



• 20 Commonly Used Reset Functions for Fast Maintenance or Repairs:



Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.



• 10+ Advanced Functions for Different Vehicle Models:



Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.



• Oil Reset, to reset the oil service lamp for the engine oil life system; EPB Reset, to reset the brake pad after replacing the brake pad.
• ABS Bleeding, to perform various bi-directional tests of Anti-lock Braking System;
• Injector Coding, to write the new code to the ECU after replacement of injector.
• Suspension Calibration, to adjust the height of the body; SAS Calibration, to calibrate the steering angle after replacement.
• BMS Reset, to perform a resetting operation on the monitoring unit of the vehicle battery.

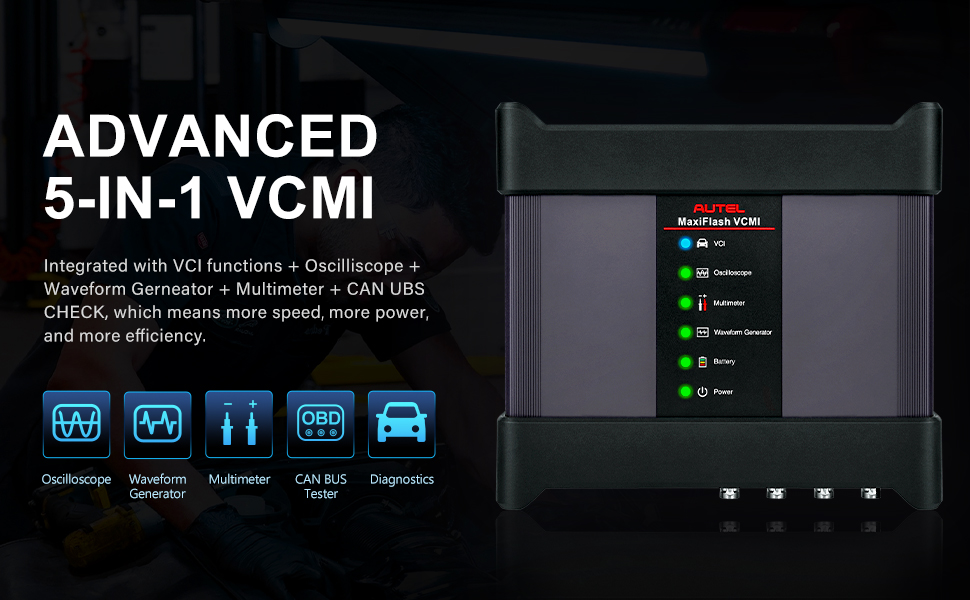

5-in-1 VCMI, Diagnose & Program Vehicles More Efficiently



• 5-in-1: Except working as a diagnostic tool, it also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
• More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/SAE J2534/RP1210), Ultra can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.



Advanced ECU Programming & Coding As we all know, it has now became more and more necessary to perform programming & coding services in the aftermarket than ever. e.g., replacing a module, replacing the existing software or firmware in the ECUs, fixing software-controlled drivability issues and emission issues, etc. There are two general types of programming operations:   Coding--also known as Teach-in Program, or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts. Programming --downloads the latest version of software from the online server database through Internet access (this procedure is done automatically when the tablet is connected to the Internet, so there is no need to check for software updates yourself), and reprograms the newest version into the vehicle's ECU.	Top-Level Configuration, Faster than Autel Elite/MS909/MS919 Equipped with a 12.9" touchscreen, Android 7.0 OS, an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), and 56GB built-in memory, Autel MaxiSys Ultra can rapidly perform every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming, much faster than Autel MS Elite. All power the new split-screen multi-application navigation to provide diagnostic guidance, test components, and confirm repairs.	Bi-Directional Control (Active Test) Accurately figure out whether a specific system, component, or a subsystem in vehicles goes well and locate the problem by interactively operating and testing the vehicle’s related actuators; Compatible with most vehicle models on the market.



	Autel Ultra	Autel MS919	Autel MS909	Autel MS908S Pro	Autel Elite
PROCESSOR	2.3GHz+1.7GHz OCTA-CORE	2.3GHz+1.7GHz OCTA-CORE	2.3GHz+1.7GHz OCTA-CORE	1.3GHz+1.7GHz HEXA-CORE	1.8GHz QUAD-CORE
MEMORY/RAM	256GB SSD/4GB RAM	128GB SSD/4GB RAM	128GB SSD/4GB RAM	64GB SSD/2GB RAM	64GB SSD/2GB RAM
BATTERY	18,000 mAh 8 hours continuous operation	15,000 mAh 8 hours continuous operation	15,000 mAh 8 hours continuous operation	11,000 mAh	13,600 mAh
CAMERA	5MP & 16MP Front and Rear	5MP & 16MP Front and Rear	5MP & 16MP Front and Rear	8MP	8MP
ADVANCED VCMI 5-IN-1 DEVICE	VCI, Oscilloscope, Waveform Generator, Multimeter, CAN BUS Tester	VCI, Oscilloscope, Waveform Generator, Multimeter, CAN BUS Tester	NO	NO	NO
REPAIR ASSIST	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	NO	NO
TOPOLOGY MODULE MAPPING	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	NO	NO
RELEVANT CASES	DTC troubleshooting & Repair tips video library	DTC troubleshooting	DTC troubleshooting	NO	NO
BI-DIRECTIONAL CONTROL	✓	✓	✓	✓	✓
SPLIT SCREEN DISPLAY	View Multiple Functions at once	NO	NO	NO	NO

Specifications:


Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	* WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) * BT v.2.1 + EDR * GPS * USB 2.0 (Two USB HOST Type A, one USB mini device) * HDMI 2.0 * SD Card (Support up to 256GB)
Camera	* Rear: 16 Megapixel, Autofocus with Flashlight * Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	* Microphone * Dual Speakers * 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	* 18000mAh 3.8 V lithium-polymer battery * Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)



Autel MSOAK Oscilloscope Accessory Kit Work with the MaxiFlash VCMI

The MSOAK, compatible with the MaxiFlash VCMI included with the MSUltra and MS919, and the MP408 4-channel oscilloscope (sold separately), includes the 65A AC/DC Current Clamp, 650A AC/DC Current Clamp, Coil On Plug Probe, HT Extension Lead (2pcs) and Battery Clip (2pcs), within a blow-molded carrying case. To enable screen reader support, press Ctrl+Alt+Z To learn about keyboard shortcuts, press Ctrl+slash

Features:

1. Work with the MaxiFlash VCMI Included with Autel Ultra, MS919 and MP408
2. Support 65A/650A AC/DC Clamp HT Extension Lead Battery Clip with Carrying Case
3. Includes 65A AC/DC Current Clamp, 650A AC/DC Current Clamp
4. Includes Coil On Plug Probe, HT Extension Lead (2pcs) and Battery Clip (2pcs)
5. With Blow-Molded Carrying Case



The Coil On Plug Probe

It can catch the ignition waveform of automobile engine easily. The ignition waveform is a window, through which we can see what happened in the engine combustion chambers. It can be used with normal oscilloscope. Special anti-interference design, high accuracy of measurement. With highlight LED, can be arbitrary curved. Use it to check: ignition plug status; fuel injector; leakproofness of air cylinder; oil pollution; carbon deposition; storage battery.

65A AC/DC CURRENT CLAMP & 650A AC/DC CURRENT CLAMP

When measuring AC or DC with the current clamp, you can connect it with a multimeter or an oscilloscope to directly read the current value without physical contact with the conductor. The current clamp measures a maximum current of 65A with a frequency up to 20 KHz. It works with jaws that open to allow clamping around an electrical conductor. And the 650A AC/DC current clamp measures a maximum current of 650A with a frequency up to 400 KHz.

Package List:

1set x Autel Maxisys Ultra
