Automobile Smoke Leak Detector SL200, Air Mode, Smoke Mode, Quick Diagnosis, Test Leak in Vehicle Pipe Systems

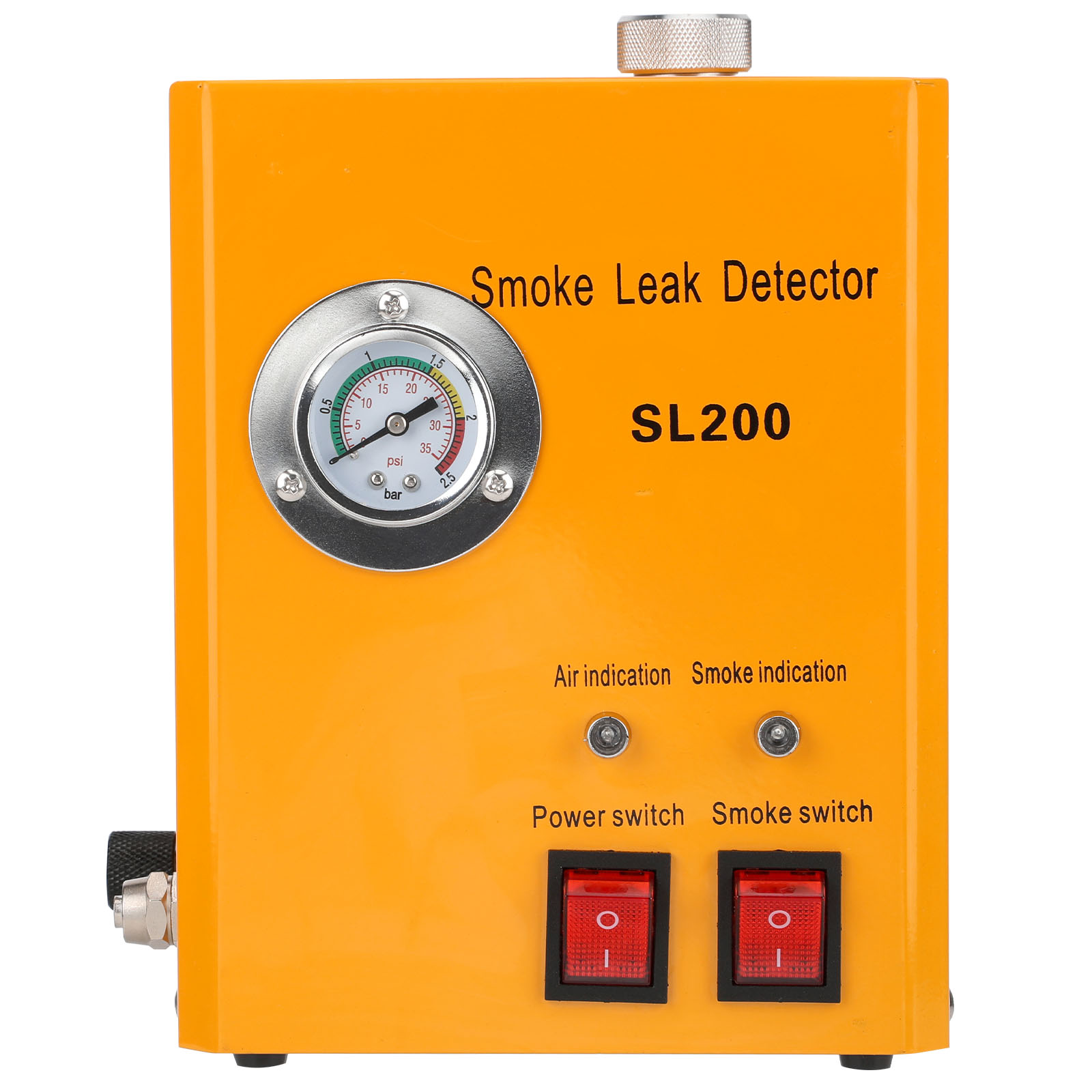

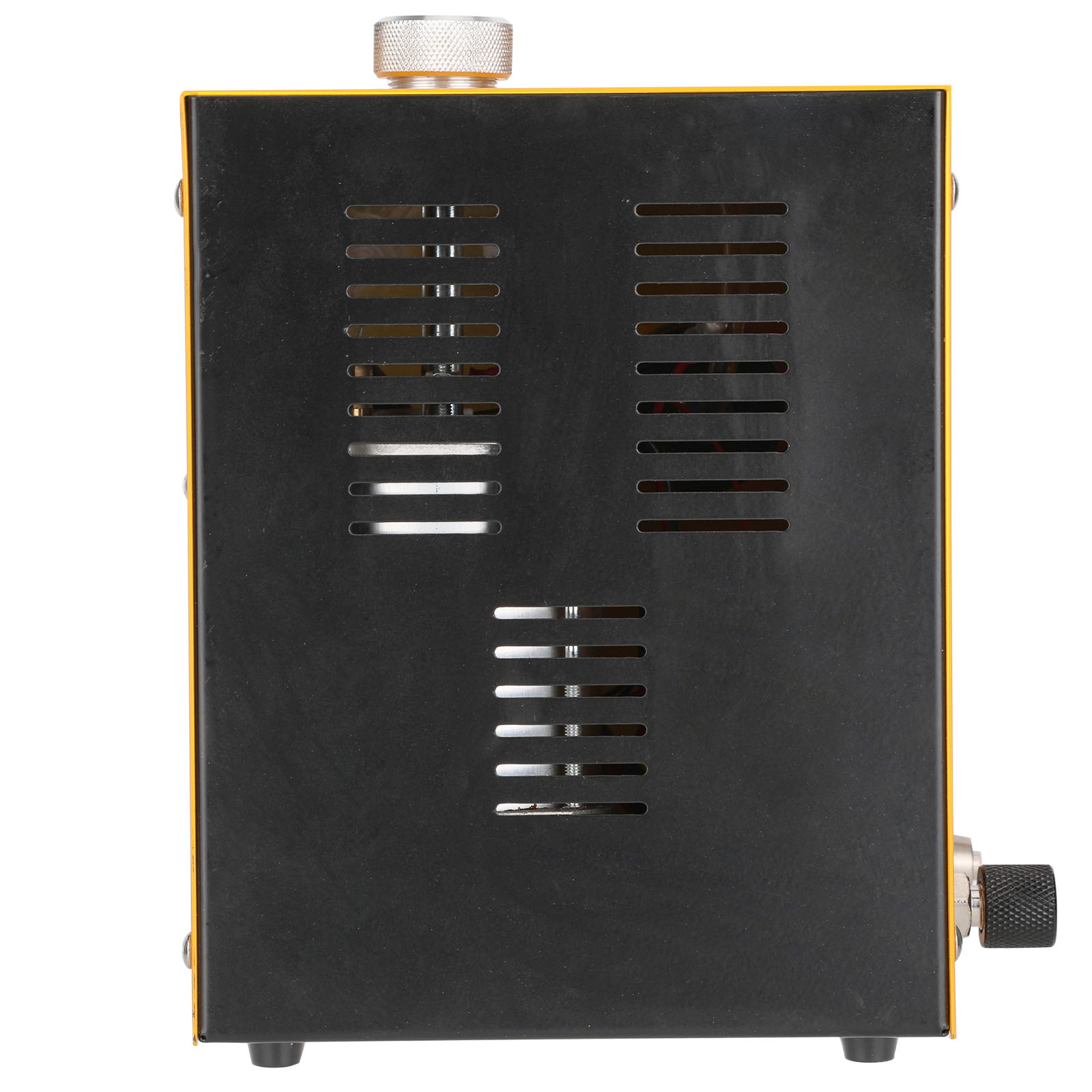

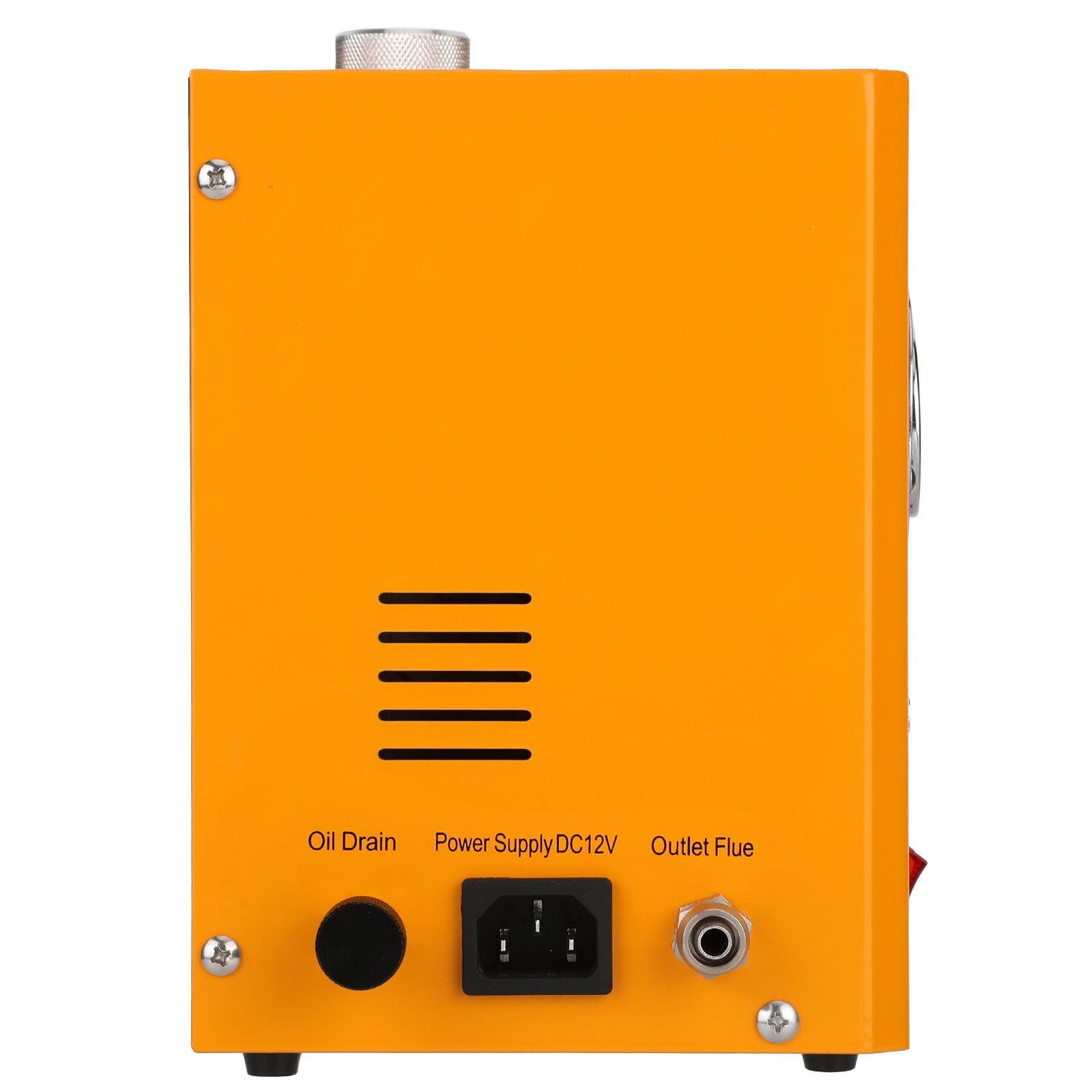

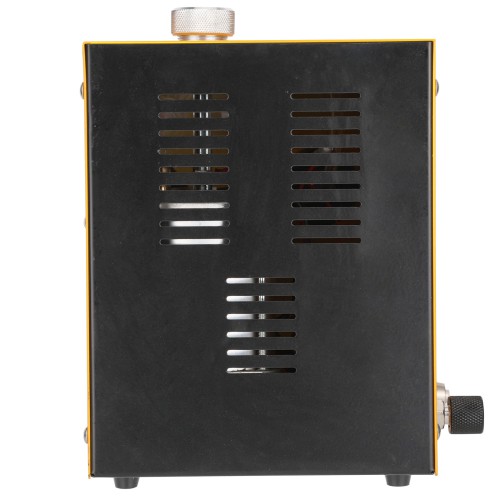

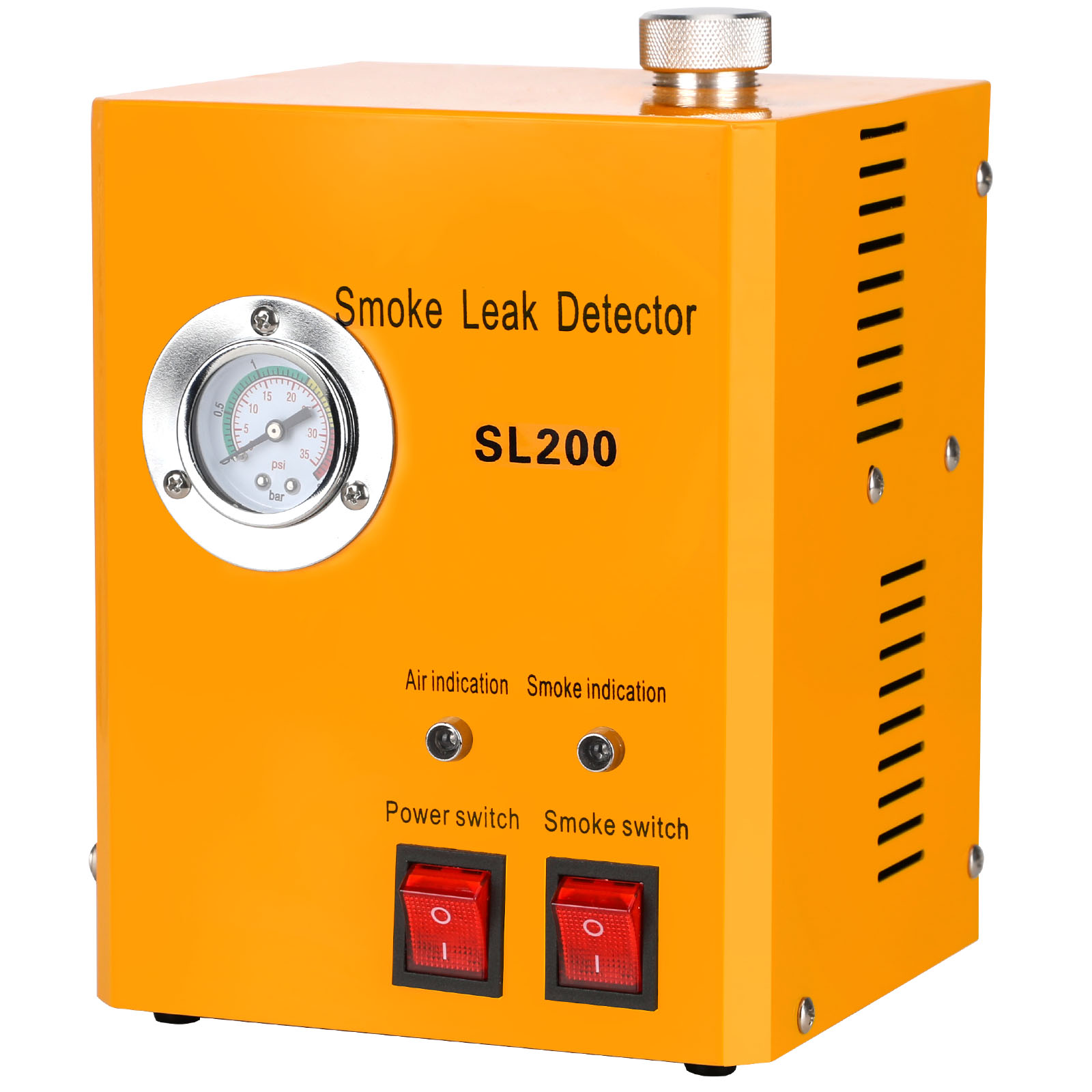

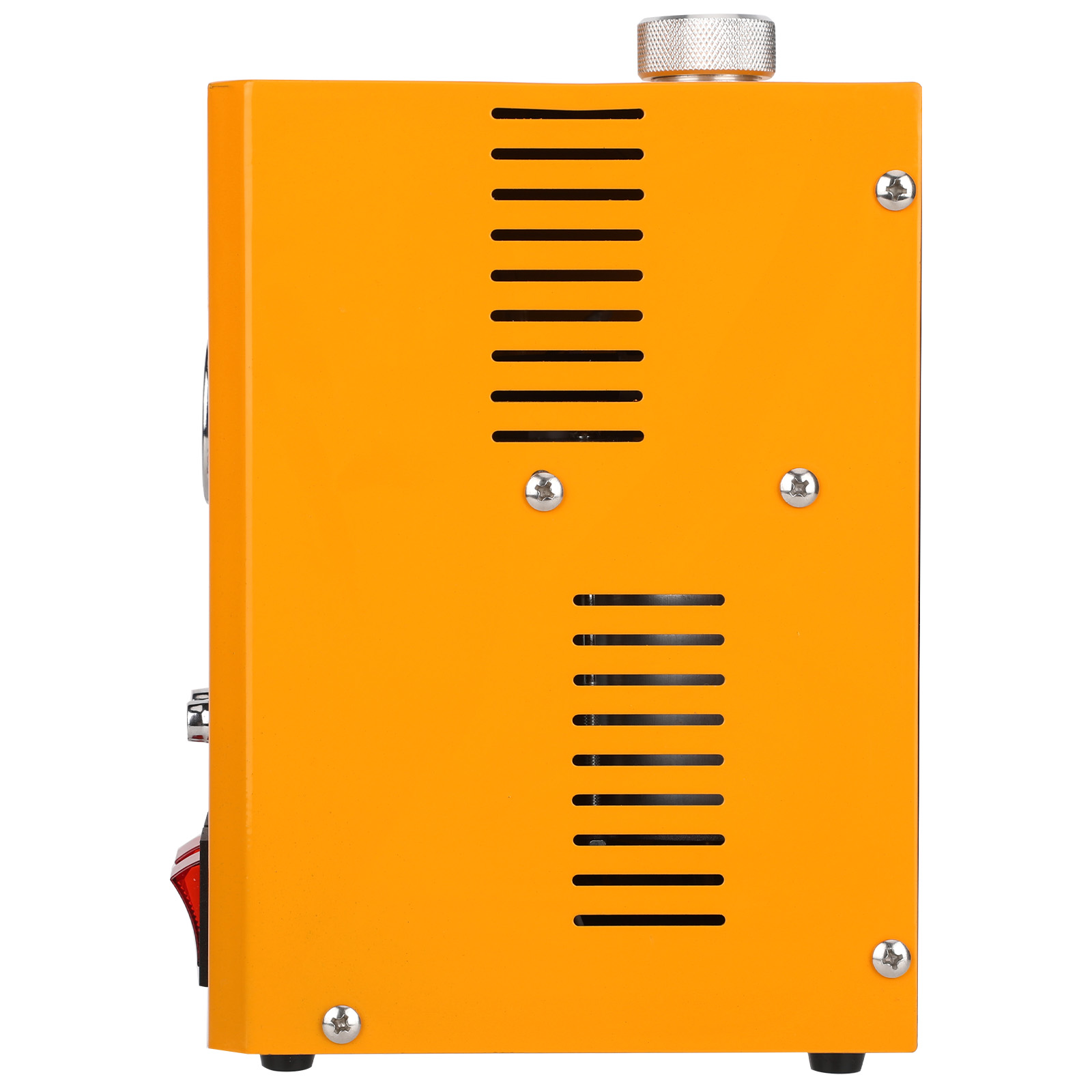

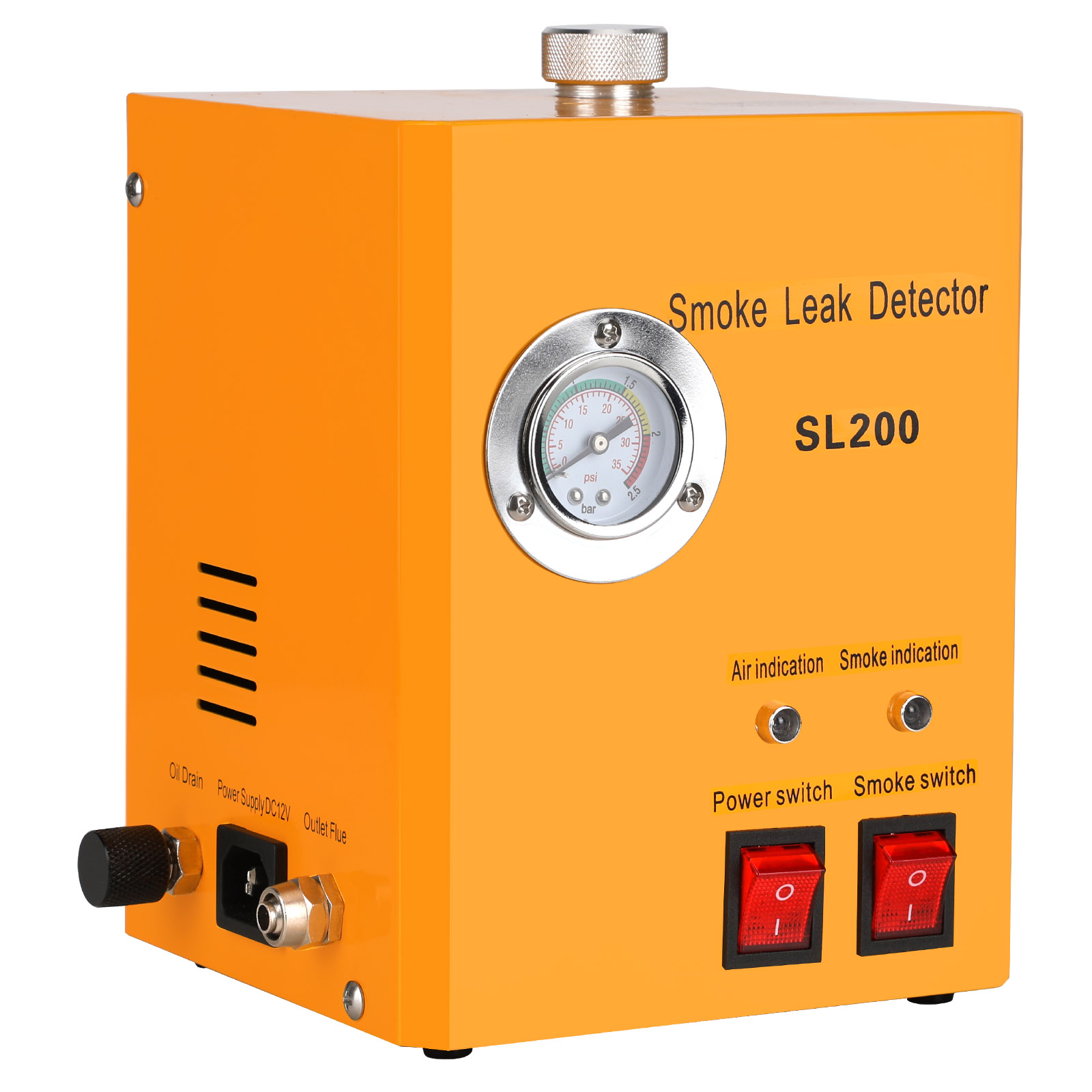

Automobile Smoke Leak Detector SL200



Product Features:



Small and portable, sized to fit in a toolbox.

Built in air compressor for diagnosis and maintenance at any time.

Flow control adjustment can detect a 0.25mm leakage hole.

Compact and lightweight design.



Product Functions:



Leak detection of automotive pipeline systems

Automatic establishment of test pressure

Automatic establishment of smoke volume

Test pressure regulation

Air mode, smoke mode, quick diagnosis

Dedicated test adapter



Product Specifications:



Input voltage: DC 12V

Output pressure≤15Psi

Output flow rate: 1-6(L/min)



Operation Method:



1. Open the engine hood and hang the testing equipement on the front hood of the engine.

2. Open the access port of the system that needs to be tested and seamlessly connect the dedicated tesing connector to the system being tested, if there are multiple open outlets in the inspected system, please plug them with corresponding rubber plugs.

3. Connect the conical quick connector on the smoke outlet pipe of the testing equipment to the special connector of the tested body.

4. Connect the testing equipment with a DC 12V battery: red with positive electrode and black with negative electrode. Do not connect in the opposite way.

5. When the battery is correctly charged, the flue gas pump will start working and flow out air.

6. Turn on the front power switch of the detection equipment, and the detection equipment will input smoke into the inside of the tested body at a speed of 6L/min. After the pipeline is filled with smoke, the leakage point will leak smoke outward.

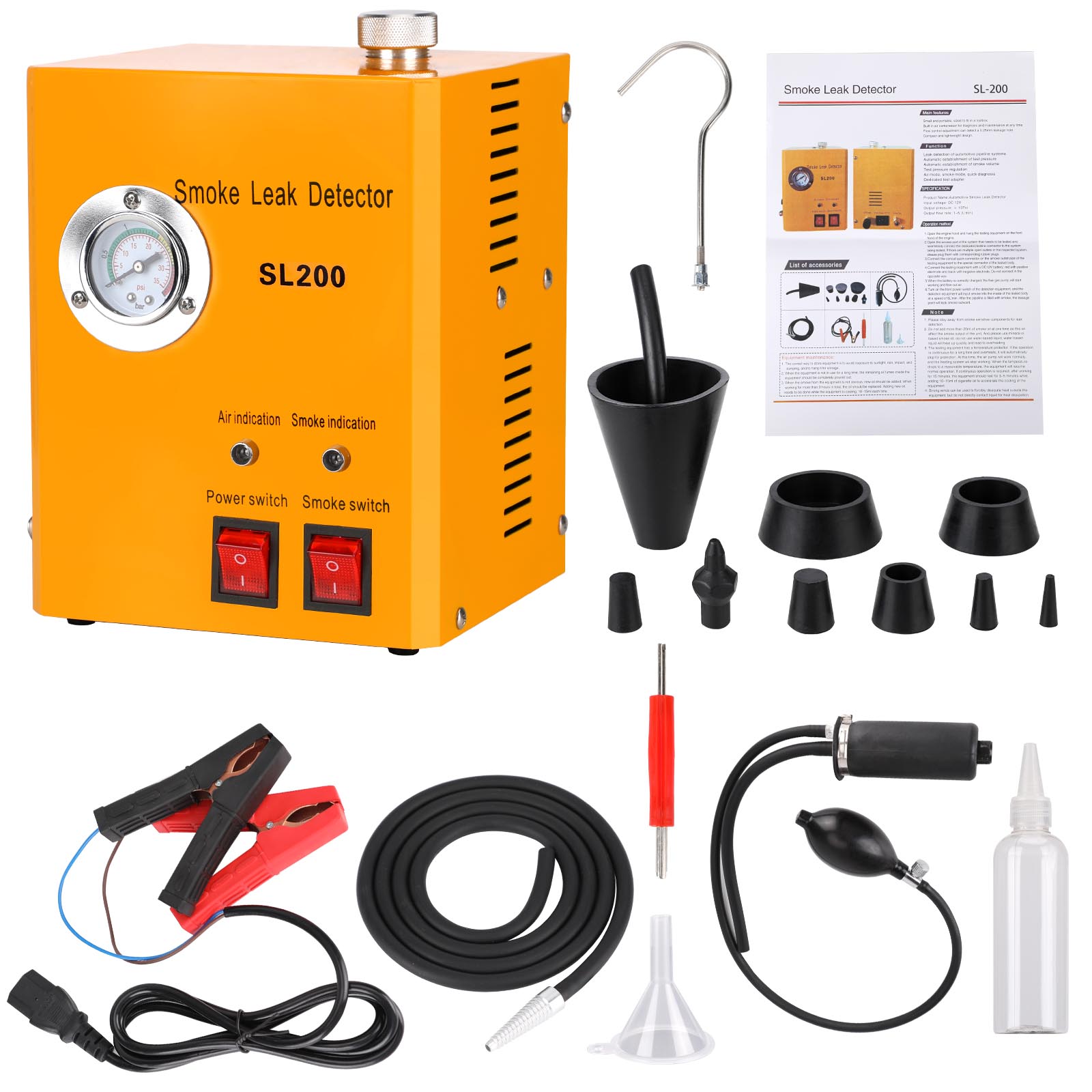

Package includes:



1pc x Main Unit

1pc x Standard Cone Adapter

1pc x Funnel

1pc x Replacement Rubber

1pc x Intake Bladder

1pc x Smoke Hose

1pc x Power Cord Clamp

1pc x EVAP Valve Removal Tool

1pc x EVAP Service Port Adapter

1pc x Test Oil Refill Bottle(oil not included)

8pcs x Rubber Plugs.
