DIAGXT T80 Universal Oscilloscope & Automotive Oscilloscope, Store, Parse, Modify, Send CAN Bus Data, Beginner-friendly with 4G Memory
Item No. SO823
In Stock.
Latest price: €837.84Buy Now: €792.79
5% off
Shipping:
Free Shipping
Express Shipping ServiceEstimated delivery time: 5-7 working days.See details »
Weight:
3.9KG
Package:
45cm*33cm*12cm
( Inch: 17.72*12.99*4.72 )
Returns:
Return for refund within 7 days,buyer pays return shipping. Read details?
Product Description

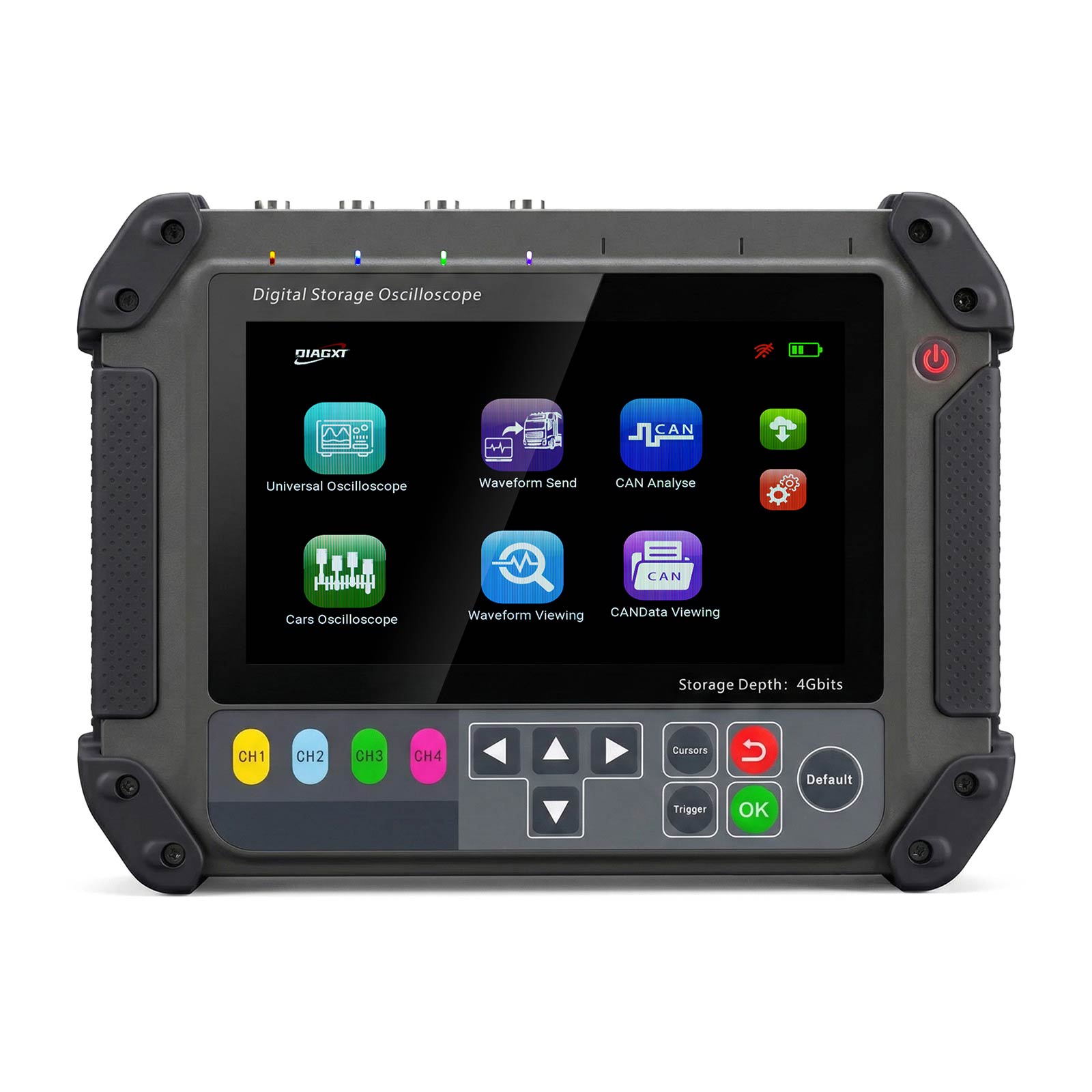

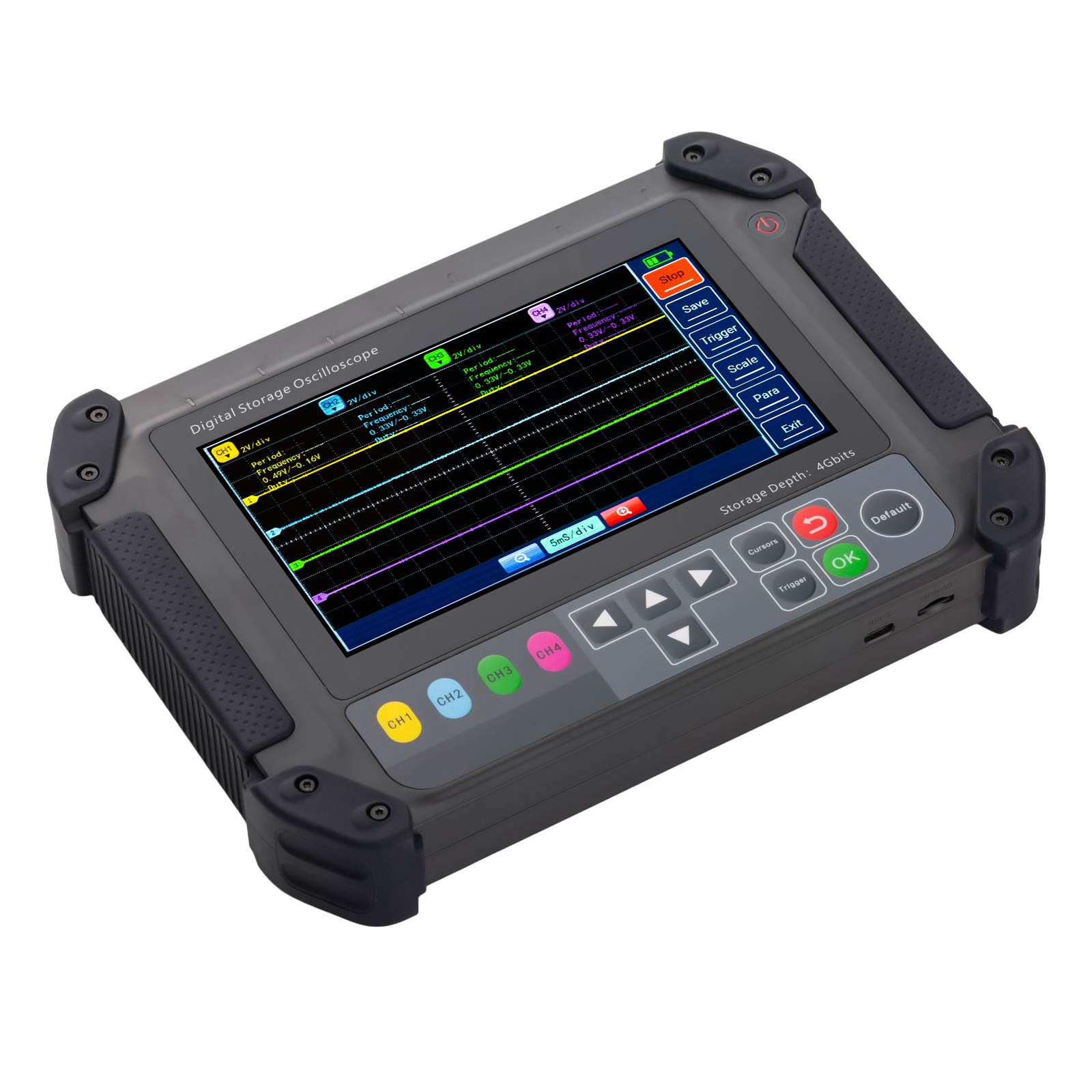

DIAGXT T80 is a user-friendly 4-channel automotive oscilloscope designed for fast learning and easy operation. With touch control, 4GB storage, CAN analysis, waveform decoding, and built-in database, it enables accurate signal diagnosis anytime, anywhere.

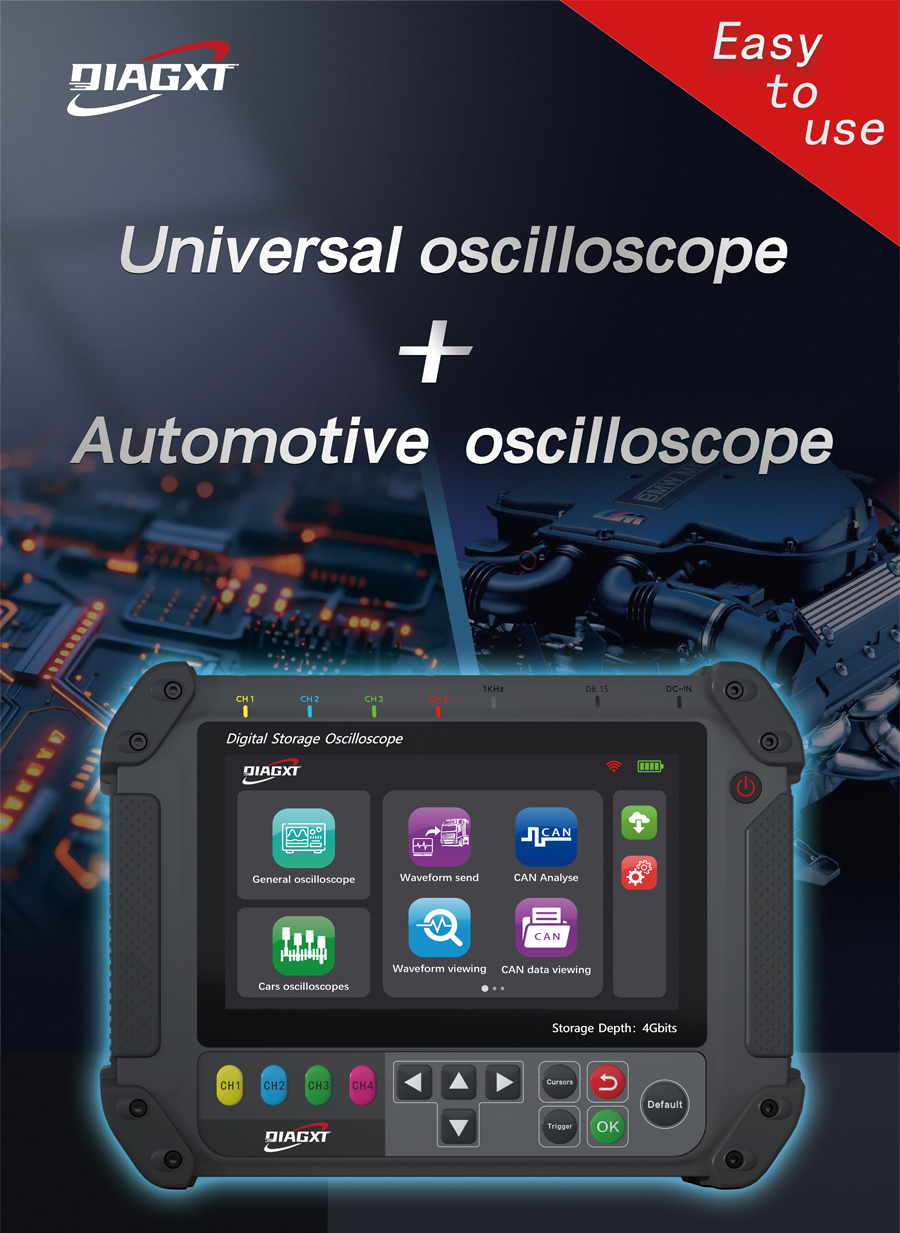

DIAGXT T80 Universal Oscilloscope & Automotive OscilloscopeGiven the fact that many auto repair personnel struggle to operate complex oscilloscopes, DIAGXT has designed the device DIAGXT T80 to suit repair personnel, making it more convenient, quicker, and easier to learn. It's been dubbed the "Oscilloscope You Can Learn in Short Time."
Product Features:
1. The operation is simple, and 3 minutes of training for zero-based customers is sufficient. Using the acquired waveform data, the instrument makes the cost of learning extremely low.
2. The number of channels is large, and more types of data can be collected at one time, which is convenient for comprehensive analysis of signals.
3. High storage depth allows for continuous high sampling rates, enabling long-term data collection against car ignition signals and other signals with a high sampling rate and a long time span for accurate acquisition and analysis.
4. 3 screens of data are collected and displayed simultaneously, allowing for the viewing of longer continuous time waveforms, making it more convenient to locate faults. It's even more convenient to use.
5. Supports waveform raw data saving and viewing, and supports decoding based on waveform data.

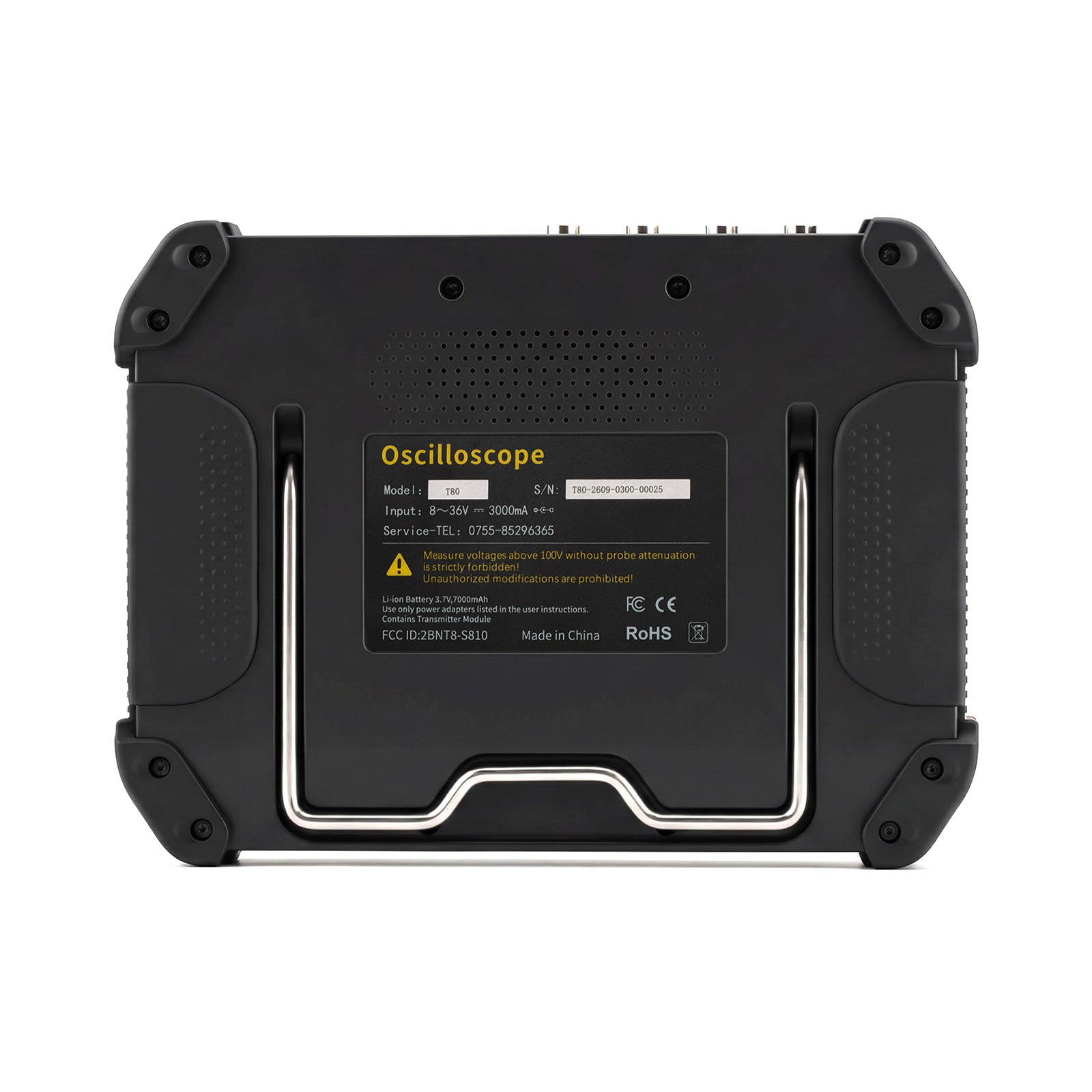

6. The power mode is flexible, the charging speed is fast, and it can be adapted to more use cases. The hinge is adjustable, and the fixed bracket design allows for easy placement of the instrument, such as for benchtop oscilloscope use. At the same time, it has a large-capacity rechargeable battery, making it convenient to carry around for use.
7.There is a multimeter with a basic function. With it, you catch the waveform of interest. Hold the screen multi-touch, operate and zoom in like a mobile phone, zoom out the moving waveform.
Product Highlights:
Standard Database
CAN Analysis
Product Functions:
Product Highlights:
Up to 4G Storage
Temporarily store up to 4G of data for users to query.
Standard Database
Provide users with 400 standard timing waveforms for diesel engines.
CAN Analysis
View CAN bus waveform, can store, mordify and send CAN data.
Single channel sampling rate of 200M, storage of 4G
Convenient and efficient car oscilloscope
CAN bus data storage, parsing, modification and sending
Send timing waveform
Complete manufacturer waveform library data.
Product Advantages:
1. Adopts the handheld design. It is more portable and not limited by 220V power supply. At the same time, compared with the PC version, it is not limited by laptops;
2. Adopts touch operation. It is convenient for waveform adjustment; and easy to use with physical buttons；
3. With a memory of up to 4G. It can temporarily store waveform of more than ten minutes in the memory and can be viewed repeatedly at will. Ordinary oscilloscopes only have the information of the current screen;
4. Adds an "Options" menu, which presets the amplitude and time base based on the characteristics of each vehicle component. To measure, users simply click the corresponding sensor name, eliminating the complex setup process and making it more suitable for new beginner;
5. Features a save function. Complete waveform can be permanently saved to an SD card for easy future reference. Furthermore, data, not images, is saved. This can also be viewed on a PC. The waveform can also be exported;

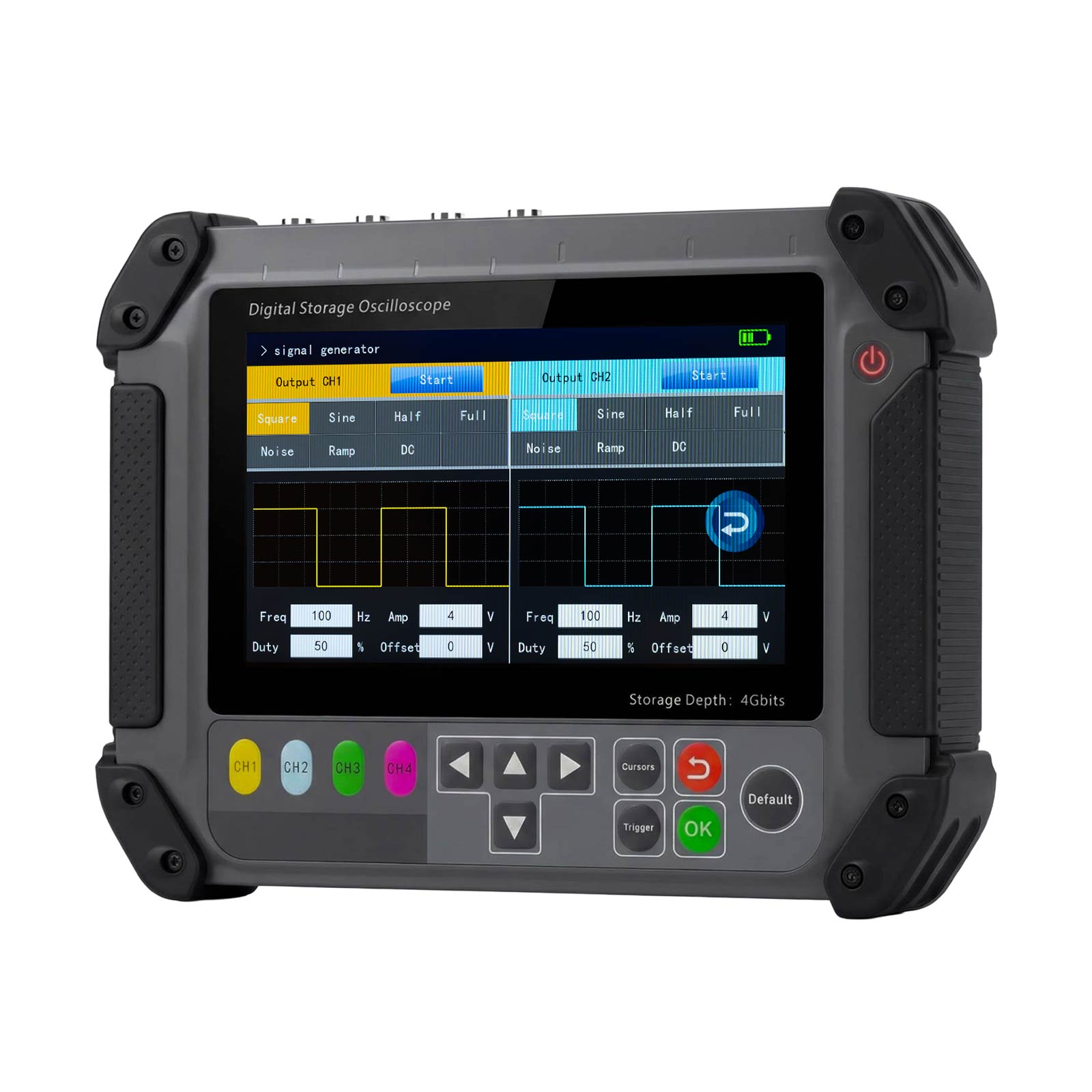

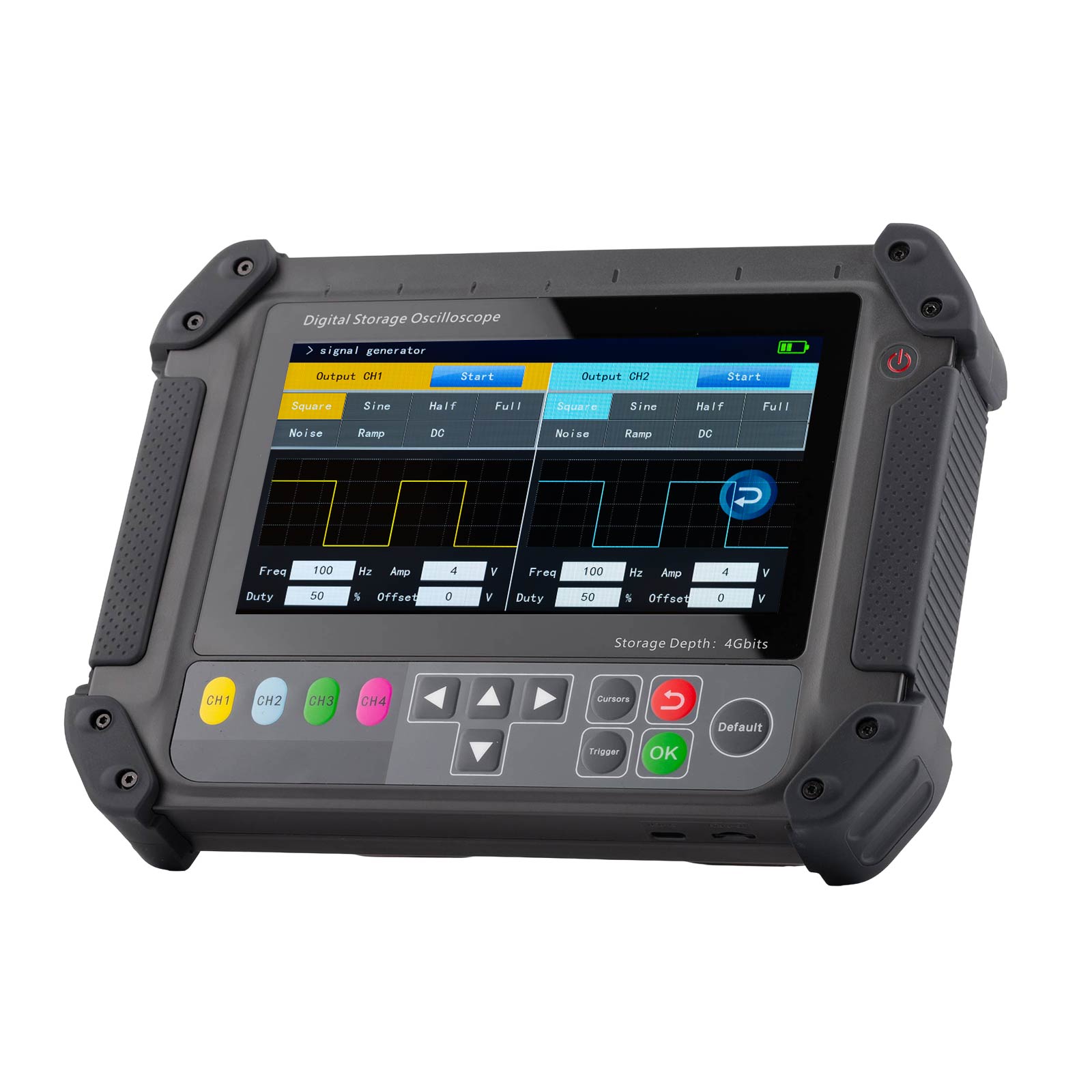

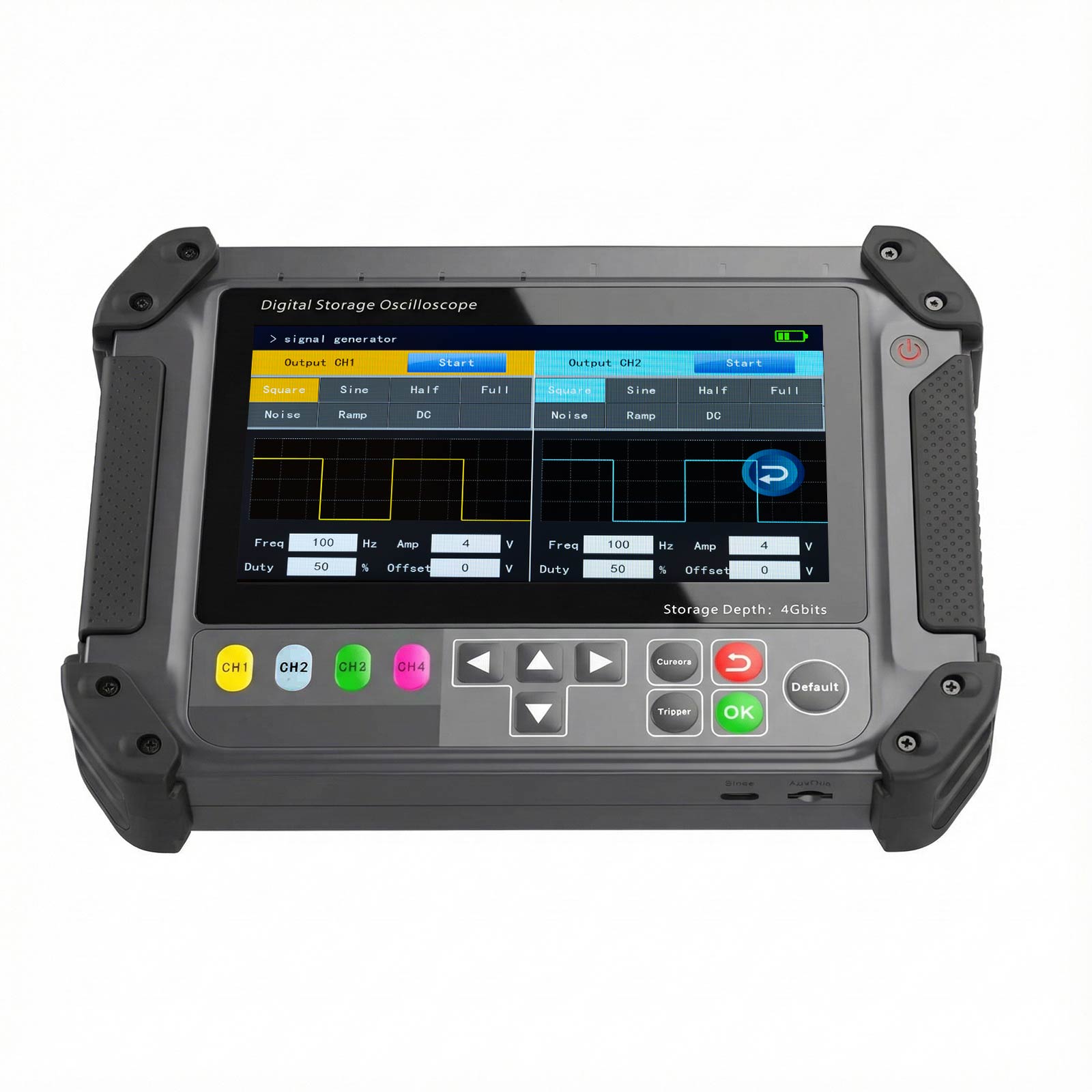

6. With a waveform transmission function. It can send the correct timing signal to the vehicle ECU. This is convenient for checking timing errors. For example, if a vehicle fails to start and maintenance personnel suspect a timing signal failure, this function can be used to send the correct waveform to the ECU. If the injectors, spark plugs, etc. are activated at this time, it means that there is indeed a problem with the vehicle's original signal;
7. Send data from the manufactures’ waveform library, or send self-collected waveform. If our waveform library does not have the corresponding waveform, the user can collect waveform from the same model vehicle as a database;
8. With the vehicle CAN bus analysis function; it can collect, analyze, modify, save and send CAN bus data, which is a function that other oscilloscopes also do not have;

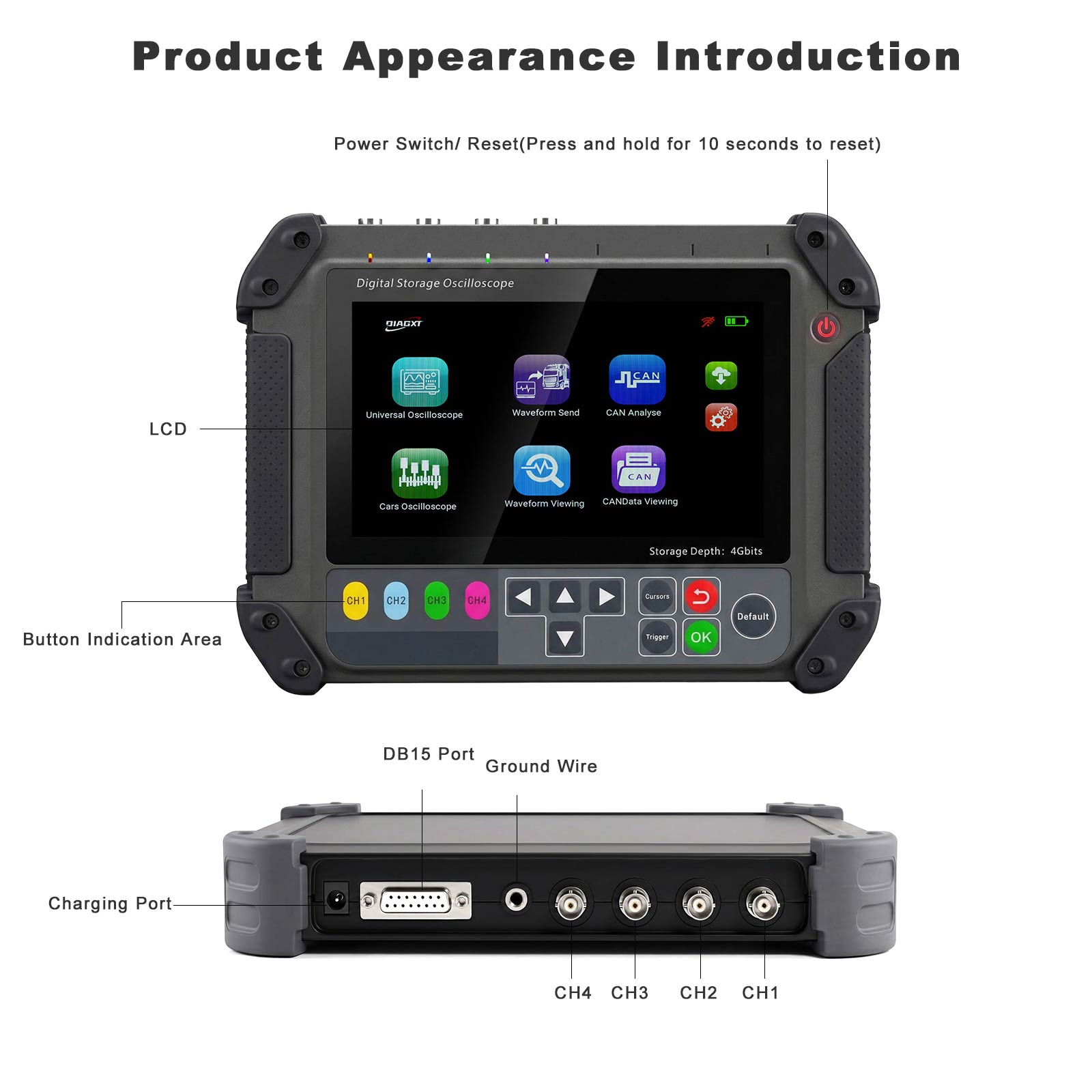

9. Equipped with more convenient interfaces and adapters to collect signal acquisition.
Product Functions:
Number Of Channels: 4
Trigger Types: Ascending edge, descending edge, bilateral edge
Waveform Data Decoding: CAN, UART, SPI
Raw Data Is Saved And Viewed：Support
CAN Bus Data Parsing (Support Protocol-Based Parsing): Support
CAN Bus Data Saving: Support
CAN Bus Data Editing: Support
CAN Bus Data Sending: Support
Product Specifications:
Sampling Rate: Single Channel 1G sps
Bandwidth: 100 M
Storage: 4 GB
ADC: 10 Bits
Screen Size: 7 Inches
Display Resolution: 1024*600
Scroll Mode: Support
Touchscreen Operation: Support
Key Operation: Support
Multi-Touch: Support
Update Method: WIFI
Battery: The continuous working time is about 1.5 hours when fully charged.
Product Size: 23*17*3.5 cm
Product Weight: 1.2KG

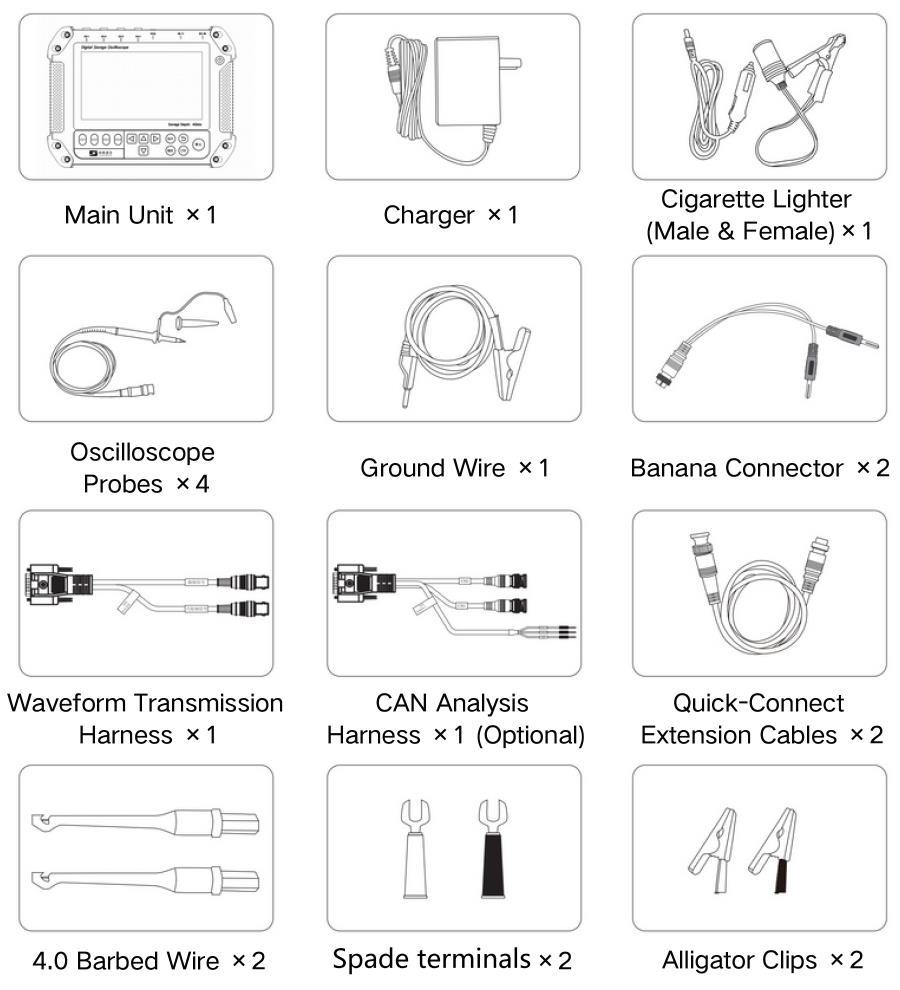

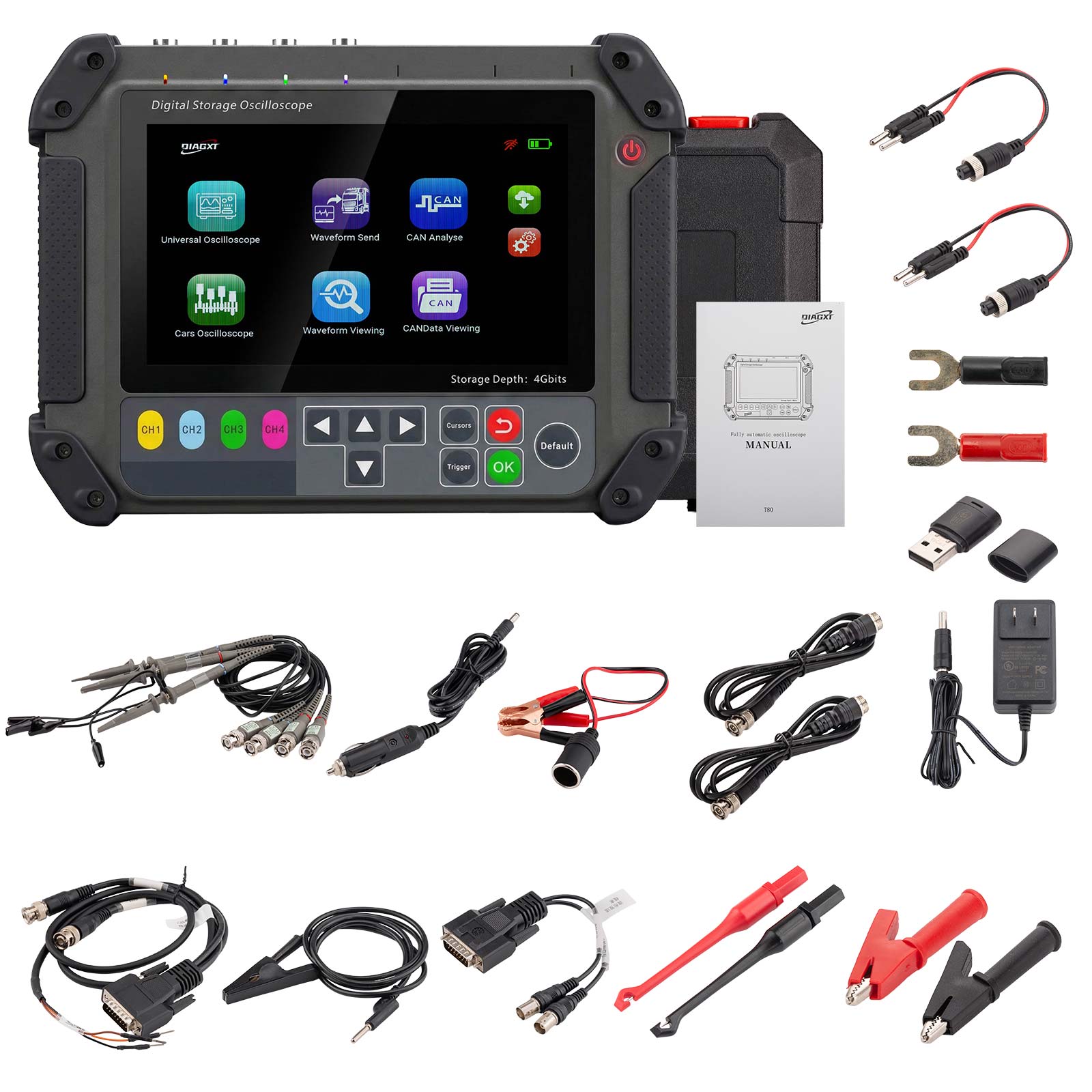

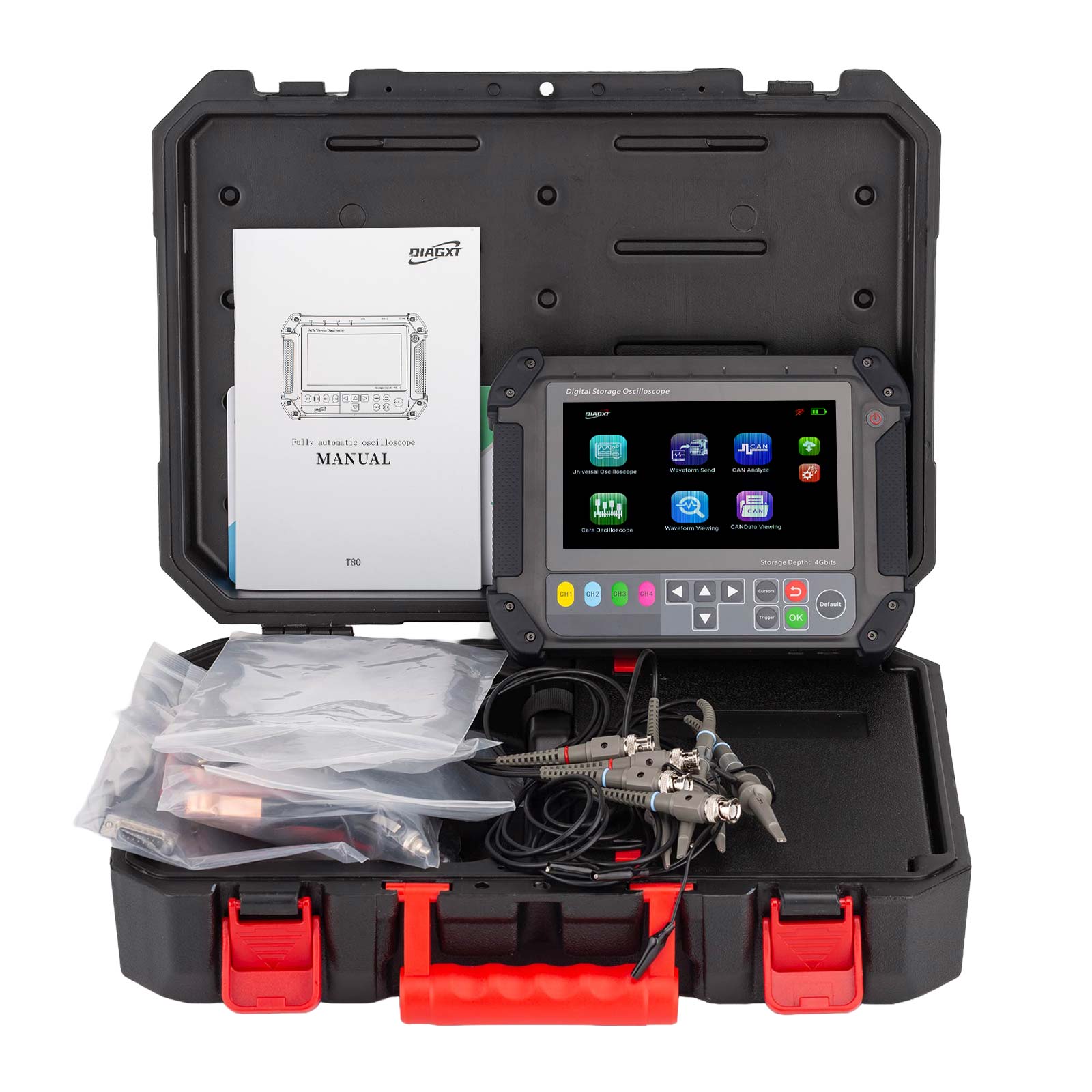

Package includes:
1pc x Main Unit
1pc x Charger
1pc x Male Cigarette Lighter
1pc x Female Cigarette Lighter
4pcs x Oscilloscope Probes
1pc x Ground Wire
2pcs x Banana Connectors
1pc x Waveform Transmission Harness
2pcs x Quick-connect extension cables
2pcs x 4.0 Barbed Wires
2pcs x Spade terminals
2pcs x Aligator clips
1pc x USB drive
1pc x Main Unit
1pc x Charger
1pc x Male Cigarette Lighter
1pc x Female Cigarette Lighter
4pcs x Oscilloscope Probes
1pc x Ground Wire
2pcs x Banana Connectors
1pc x Waveform Transmission Harness
2pcs x Quick-connect extension cables
2pcs x 4.0 Barbed Wires
2pcs x Spade terminals
2pcs x Aligator clips
1pc x USB drive
