EoneBoss HK001 Key Master Host Only for Hyundai & Kia Smart Key Initialization and Cloning

EoneBoss HK001 Key Master for Hyundai & Kia Smart Key Initialization and Cloning

Standard refurbishing for Hyundai/Kia locked keys typically requires a full data reset, which overwrites original data and compromises stability.

EoneBoss HK001 provides a breakthrough solution:

Core Functions

Generate Same Part Number Smart Key：
By identifying the original vehicle's smart key part number (95440-),and then using an original or third-party key to write it in, the key can be initialized as a brand new smart key based on the part number, which allows for vehicle access and matching.

Smart Key Copy ：
By identifying a smart key with the 95440 part number,and then using an original or third- party key to write it in. No programming matching is required; the key can be used directly.

Used Smart Key Unlock：
Unlock the identified 95440 smart key to a factory-new (virgin) state, making it ready for programming and matching.

Customized Service：
Customers with specific needs (such as research and development, production, etc.) are welcome to contact sales@eoneboss.com.

Note: NCF29AG is not supported yet. Some third-party keys may have incorrect button functions.

Operation Modes

• Connection Board Mode: Supports soldering operations for wider compatibility.
• Adapter Mode: Solder-free, plug-and-play operation for maximum efficiency.

Operating Instructions

App Download:
Scan the QR code on the right to download and install the EoneBoss APP.

Connecting HK001:
· Press and hold the Power Button for 2 seconds to turn on the device (one beep).
· Enable your phone's Bluetooth.
· Navigate to the corresponding function interface in the App and follow the instructions.

Hardware Description



Status Light Indicators:
Green: Device function indicator light.
Red: Device is currently charging.
Blue: Device Bluetooth indicator light.

Button Functions:
· Power On/Off: Press and hold for 2s (one beep).
· Forced Power Off: Press and hold for 5s (No beep).

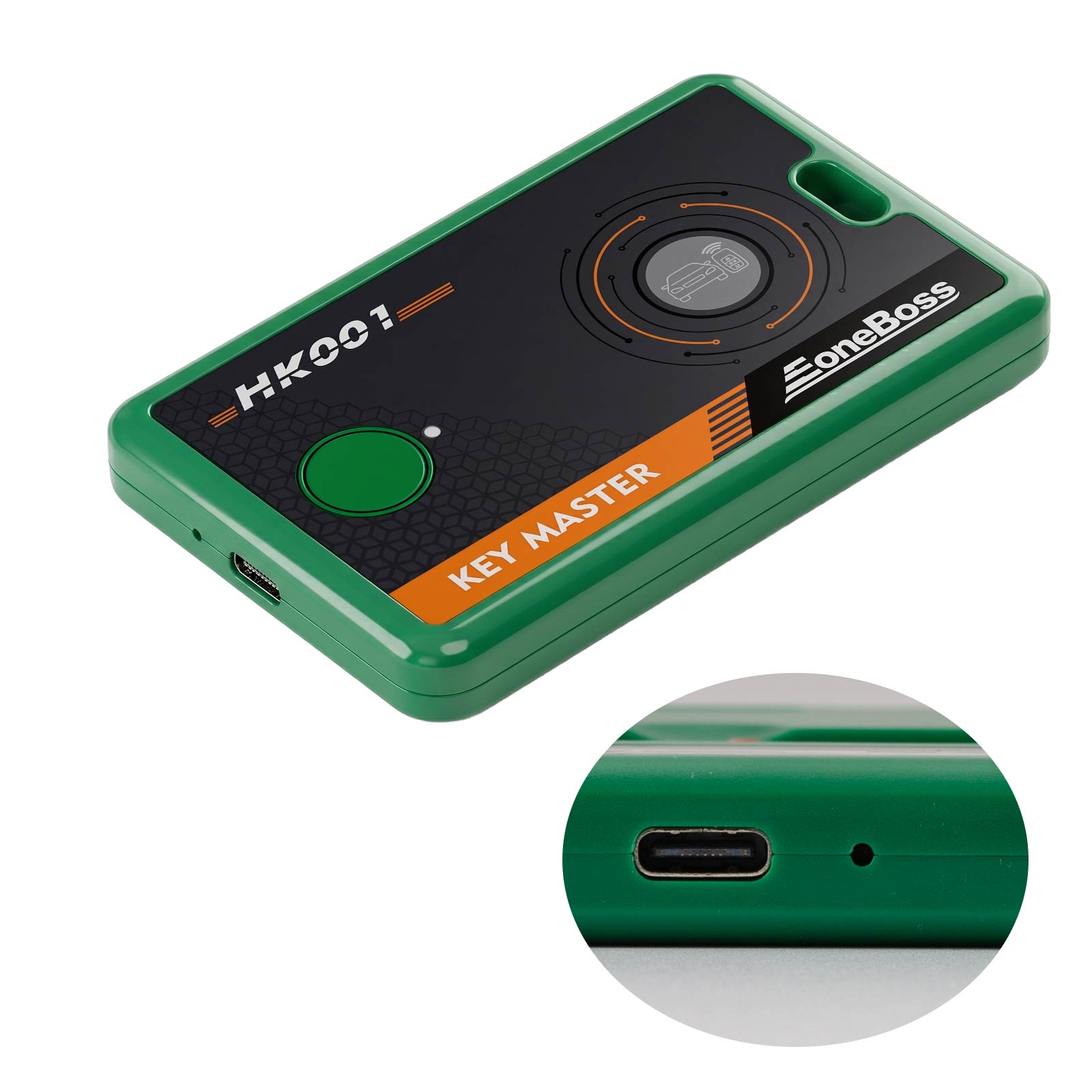

Type-C Charging Interface:

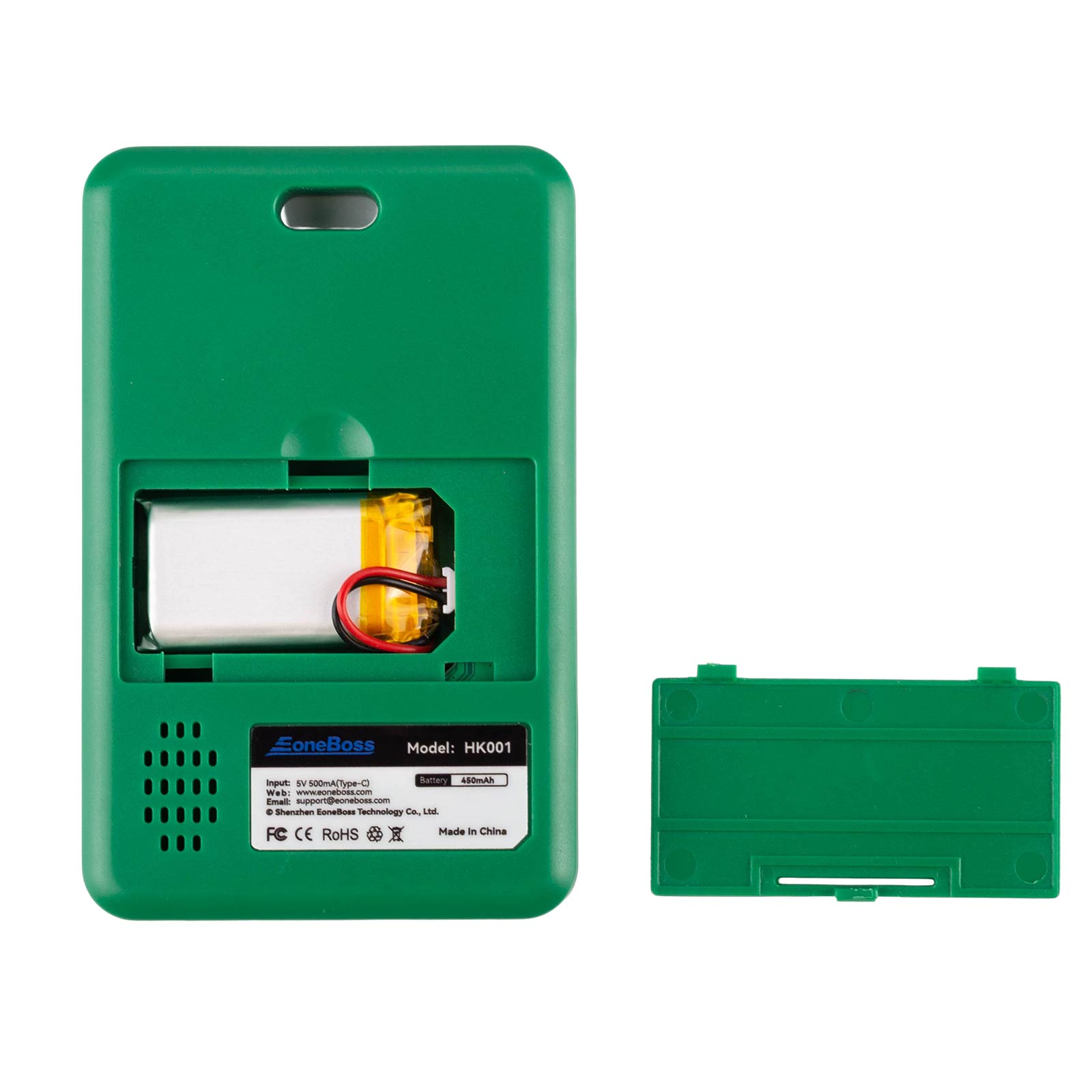

Built-in 3.7V 450mAh battery; supports simultaneous charging and use (with Connection Board). External power is prioritized.

Power Options:
Compatible with phone chargers, computers, power banks, and standard adapters.

Low Battery Warning:
Beeps every 2 seconds when battery is low until automatic power off. Please recharge in time.

Optional Accessories
Optional Adapters (sold separately).





Parameter	Specification
Appearance Dimensions	97x62x12.5mm
Material	ABS Eco-friendly Material
Input Interface	Type-C
Core Chip	RISC-V
Battery Capacity	3.7V, 450mAh
Bluetooth	Single-mode BLE 5.0
Wireless Frequency Band	2.4GHz
Input Voltage	5V 500mA
RF Transceiver	High Receiver Sensitivity (-94dBm@BLE)
Transmit Power	Maximum up to +7.5dBm
Operating Temperature	-10°C ~ 50°C
Storage Temperature	-20°C ~ 70°C

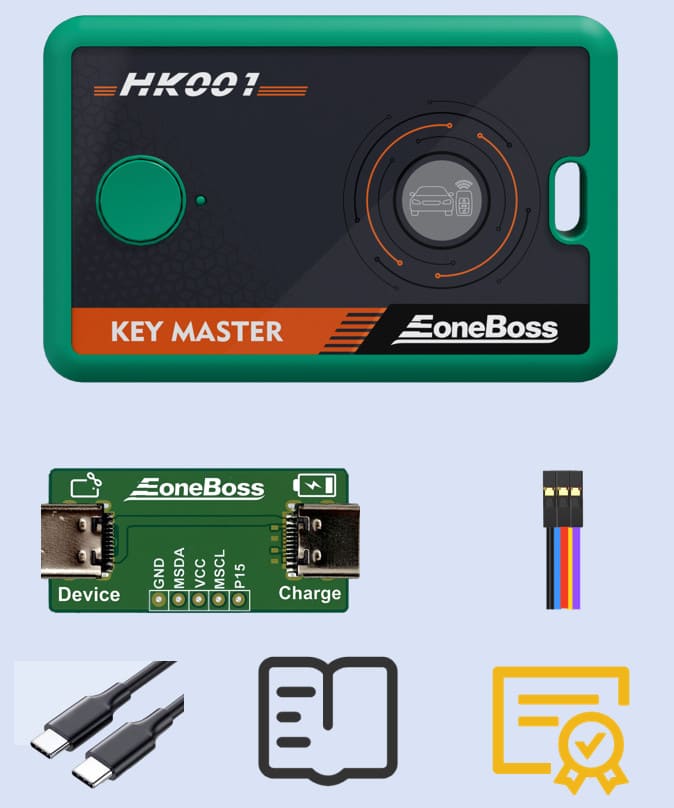

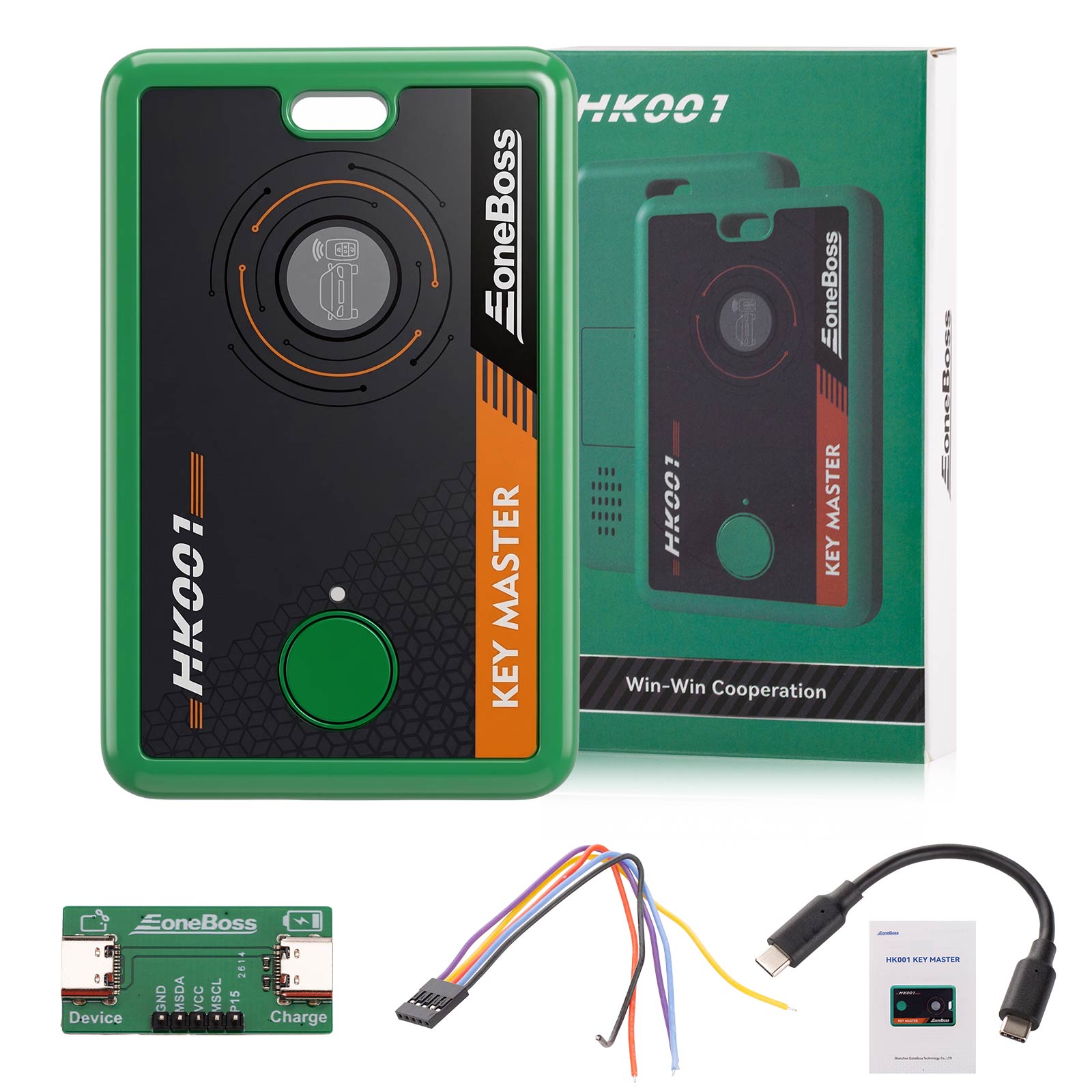

Package Includes：

1pc x main unit
1pc x ribbon cable
1pc x adapter board
1pc x type-C USB cable
