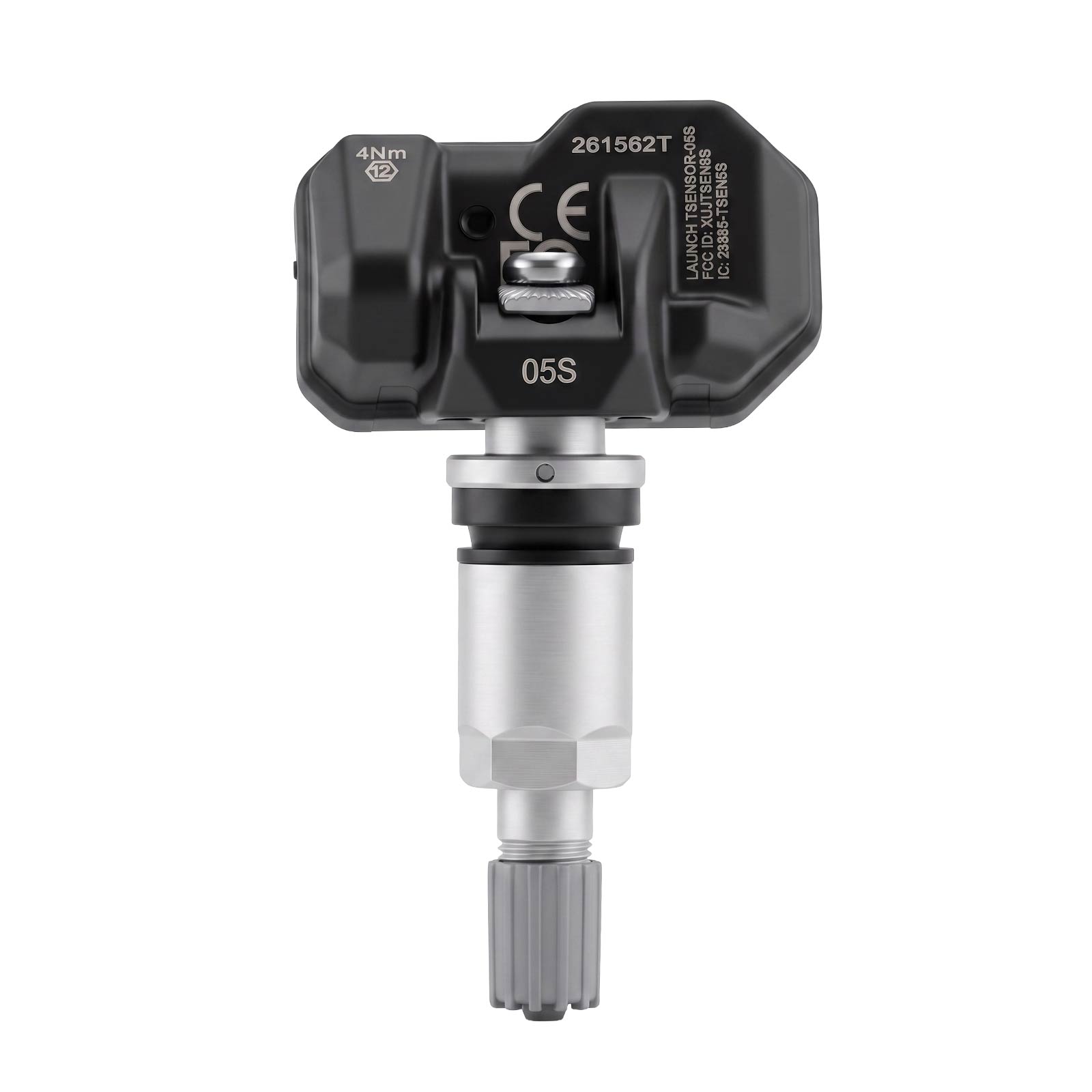

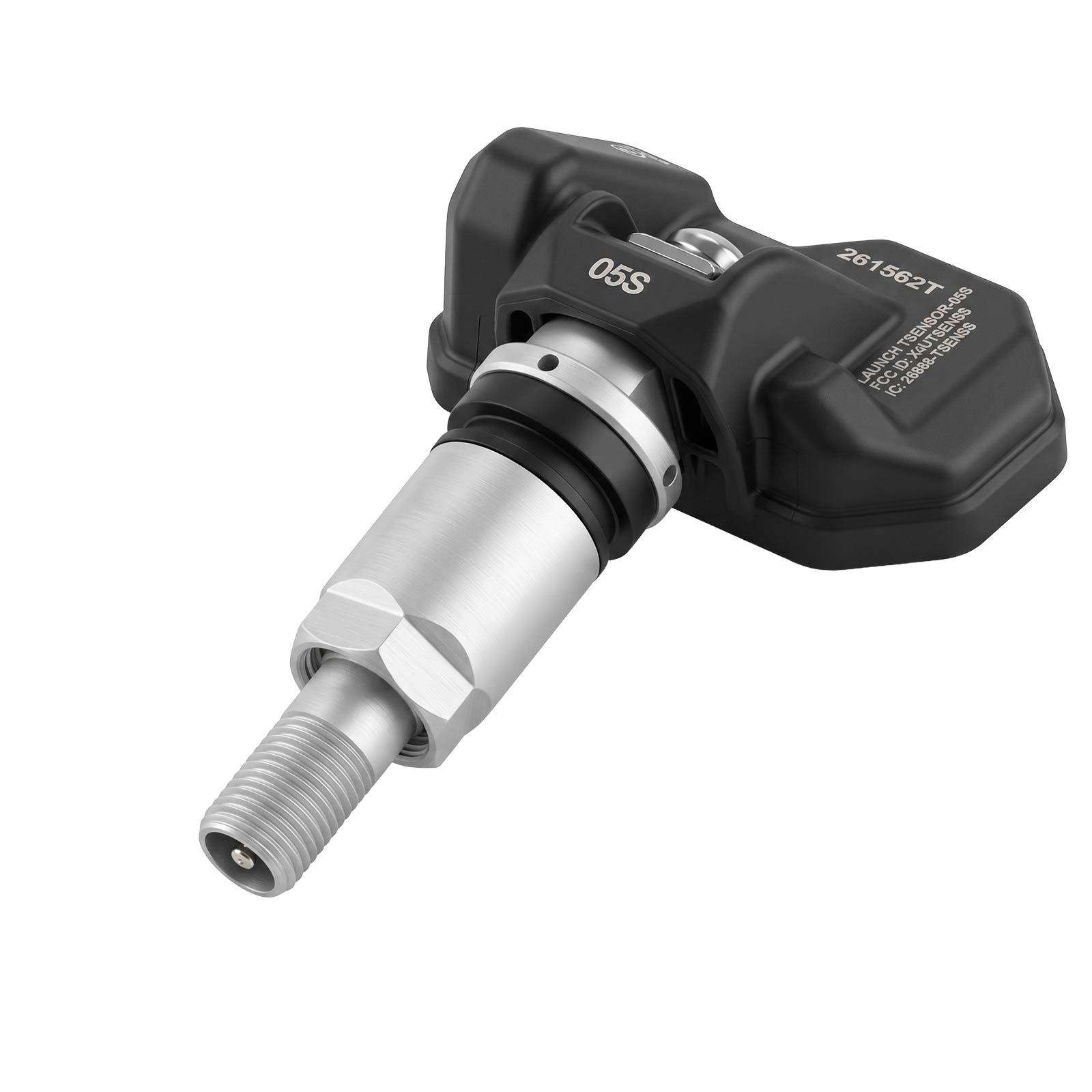

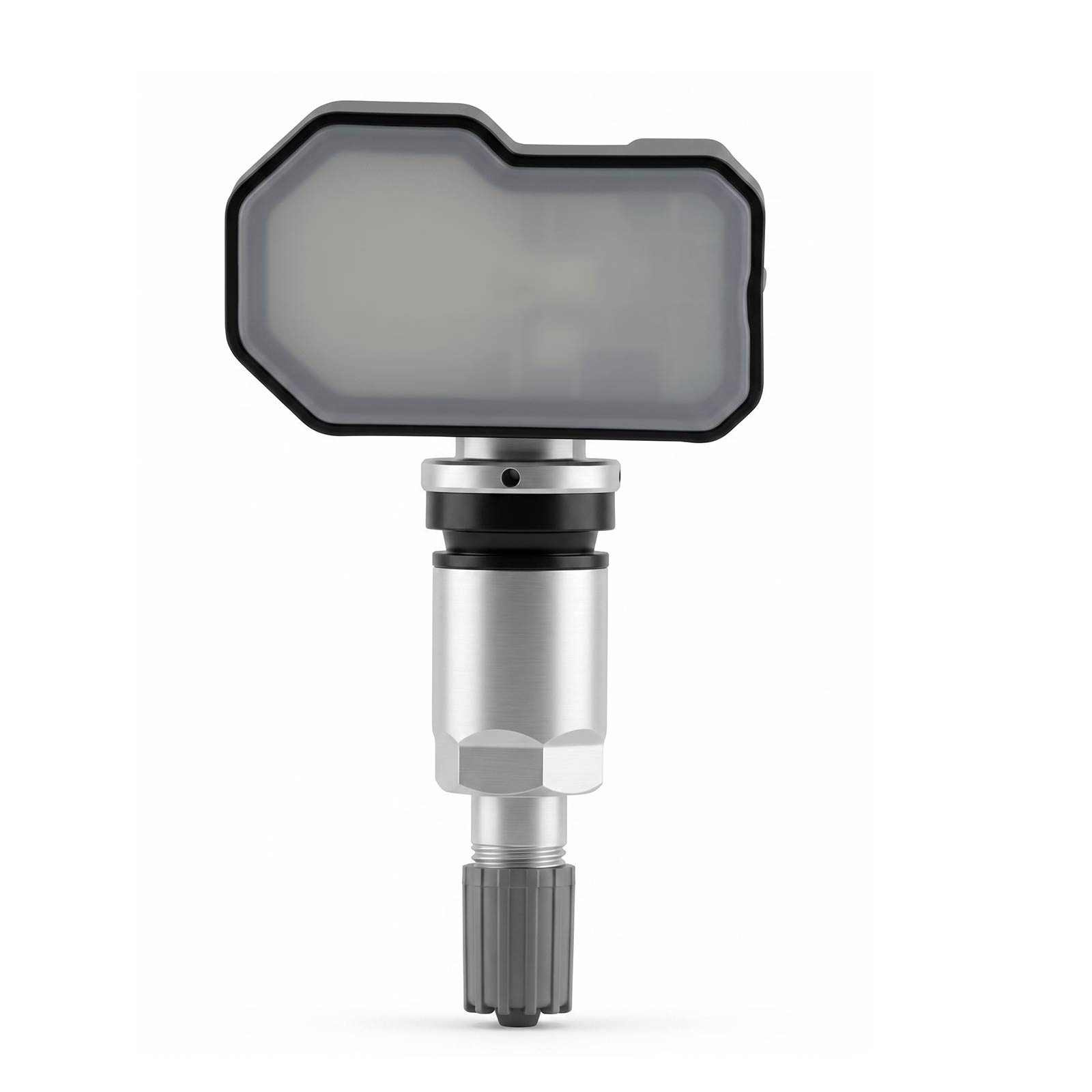

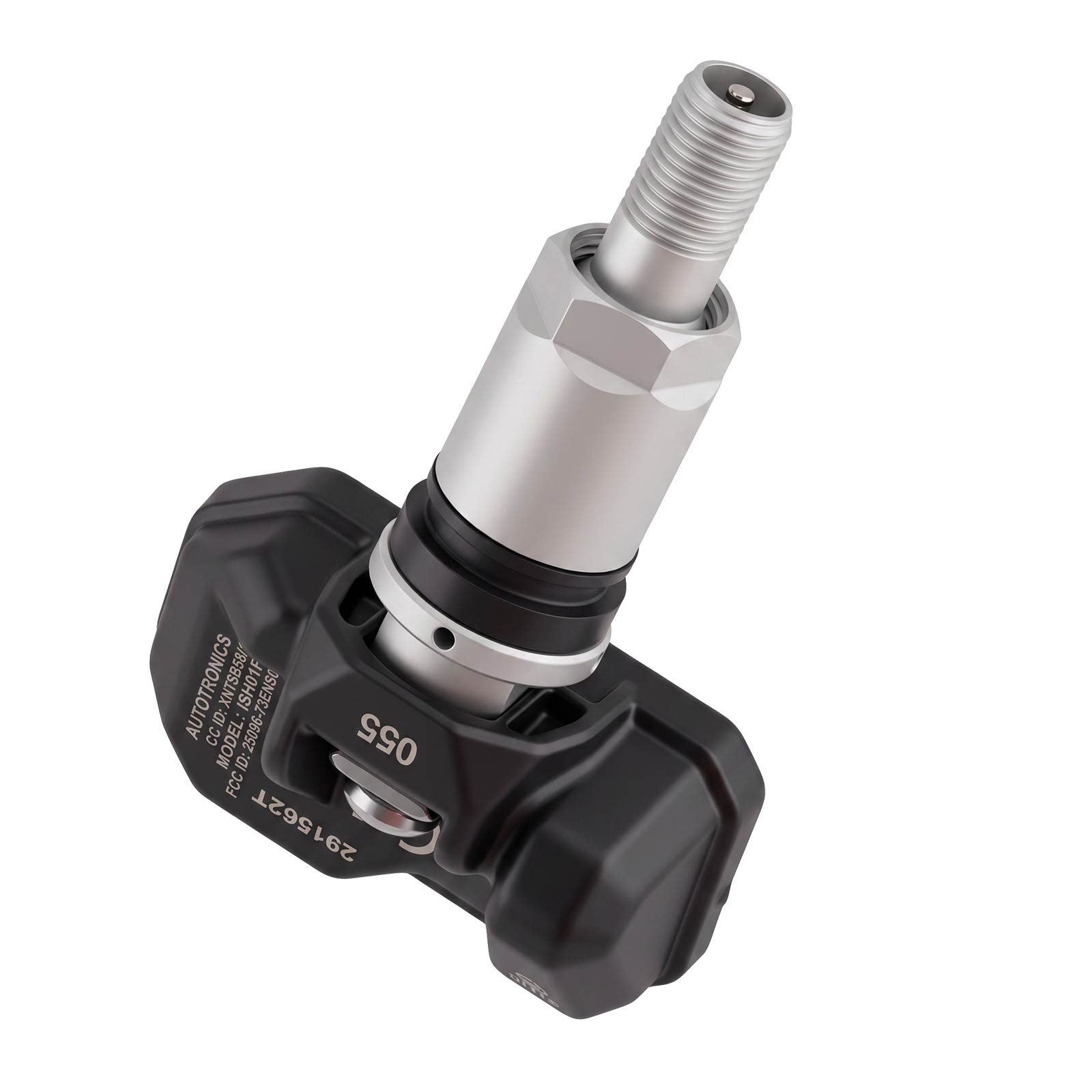

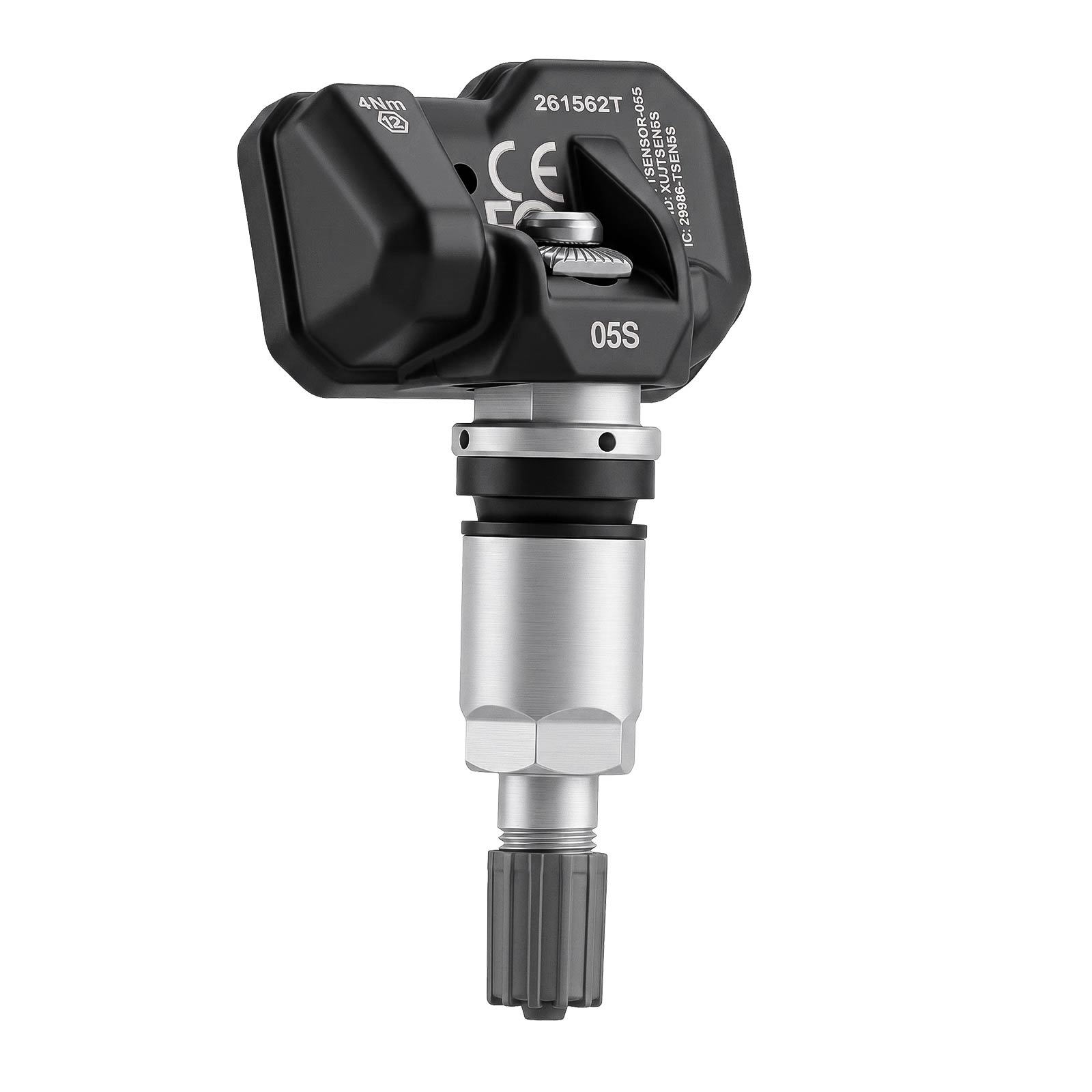

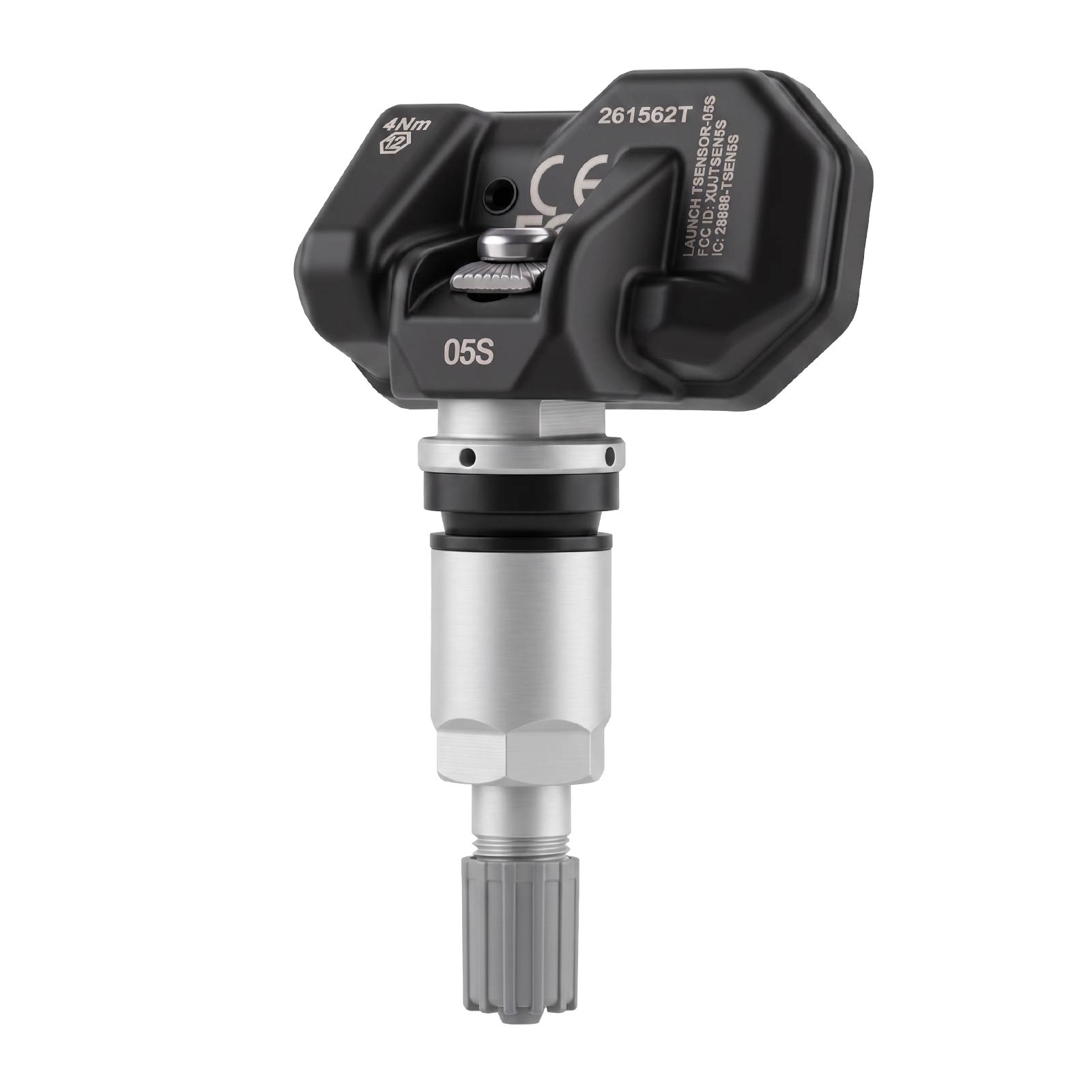

LAUNCH TSENSOR-05S RF TPMS Sensor (Overseas Configuration with Adjustable Angle Sandblasted Silver Aluminum)

Product Description

LAUNCH TSENSOR-05S RF TPMS Sensor (Overseas Configuration with Adjustable Angle Sandblasted Silver Aluminum)

Development Background:

Using the second-generation SNP739D81CLE chip from SENASIC, this RF tire pressure sensor is suitable for passenger cars and can replace 98% of original sensors on the market. For the Creader TPMS 5011 V2 model, the TPMS software needs to be upgraded to version V10.54, and the CRT5011E client needs to be upgraded to version V1.50. The use of the second-generation SENASIC SNP739D81CLE mainly addresses the poor LF (low frequency) adaptation issues of the first-generation sensors in several vehicle models, thereby improving sensor compatibility with more vehicle models.

Product Features:

• Dual-frequency integrated design, compatible with 98% of vehicles on the market.
• Capable of replacing all original equipment (OE) tire pressure sensors, accurately replicating factory sensor data.
• Performance comparable to OE standards (supports both 315MHz and 433MHz dual frequencies), supports unlimited reprogramming, and features a non-invasive installation design for enhanced durability and convenience.
• High-precision valve core effectively prevents air leaks, ensuring robustness, durability, and stable functionality.
• Optimized RF antenna for exceptional signal transmission.
• Aluminum alloy sandblasted silver valve stem supports 30-degree angle adjustment.

Product Comparison among LAUNCH TSENSOR Series


Model	LAUNCH TSENSOR-03	LAUNCH TSENSOR-05	LAUNCH TSENSOR-05S	LAUNCH TSENSOR-05N	LAUNCH TSENSOR-B
Chip Type	SNP739D01CLE	SNP739D01CLE	SNP739D81CLE	NXP NTM88H135T1	SNP74601CLE (Bluetooth sensor)
Programming time	45S/per sensor	45S/per sensor	25S/per sensor	8S/per sensor	No need to program
Number of sensors programmed simultaneously	Currently only 1 sensor	Currently only 1 sensor	4 sensors (Requires upgrading the APP main program to version V1.50)	8 sensors (Requires upgrading the APP main program to version V1.25)	No need to program

Product Specifications:

Battery Life: 4-5 years / 100,000 km
Battery Capacity: 345 mAh
Operating Temperature: -40℃ ~ 125℃
Storage Temperature: -40℃ ~ 125℃
Operating Humidity: ≤ 90%
Transmission Power: 5-8 dBm
Operating Frequency: 433 MHz / 315 MHz
Pressure Monitoring Range: 0-800 kPa (1 bar = 100 kPa = 0.1 MPa)
Pressure Reading Accuracy: ±10 kPa
Temperature Reading Accuracy: ±5℃
Acceleration (G) Sensor Reading Accuracy: ±15%
Dimensions: Approx. 72*51*27 mm
Weight: < 35 g
Protection Rating: IP67

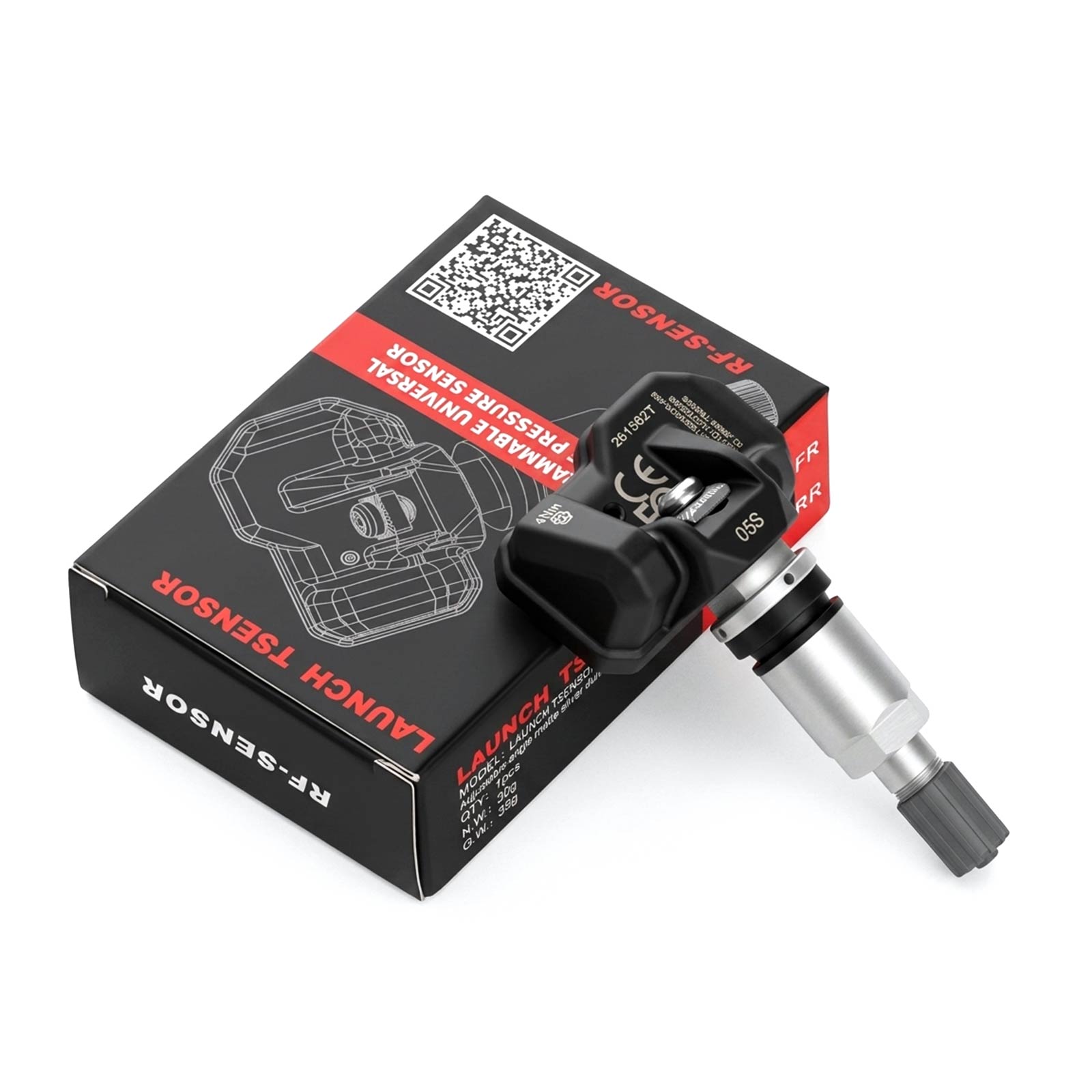

Package includes:

1pc x  LAUNCH TSENSOR-05S RF TPMS Sensor (Overseas Configuration with Adjustable Angle Sandblasted Silver Aluminum)
