[Single Module] OBDSTAR DC706 ECM TCM BODY BCM Cloning Programming Tool for Car and Motorcycle by OBD or Bench



OBDSTAR DC706 ECU tool, with 1-year free upgrade, is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.



Product Function:

ECU Clone/ All by OBD or Bench
ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
ECM clone for motorcycles(Bosch, Delphi, EFI...)
Supported ECU Manufacturers:

ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo

Supported Brands:

Car
ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA

Motorcycle:

APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA

Advanced Functions:

1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 200+ ECM types(Partial functions require P003 adapter.)
3. Support dozens of TCM types
4. Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
5. Support VW DQXXX (TCM) calibrate mileage
6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
10. Support automatic identification
11. Strong help data files
12. All by OBD or Bench mode

More functions are in developing...


Product Specifications:


Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	3700mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	7.0 inch
LCD resolution	1024*600
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃~55℃ (14℉~131℉)
Storage temperature	-20℃~70℃ (-4℉~158℉)
Weight	About 1.3kg
Dimension	243mm*148mm*36mm


Function Display:

1) Main Page/Brand Supported



2)ECM Clone for Cars








3)ECM Clone for Motorcycles

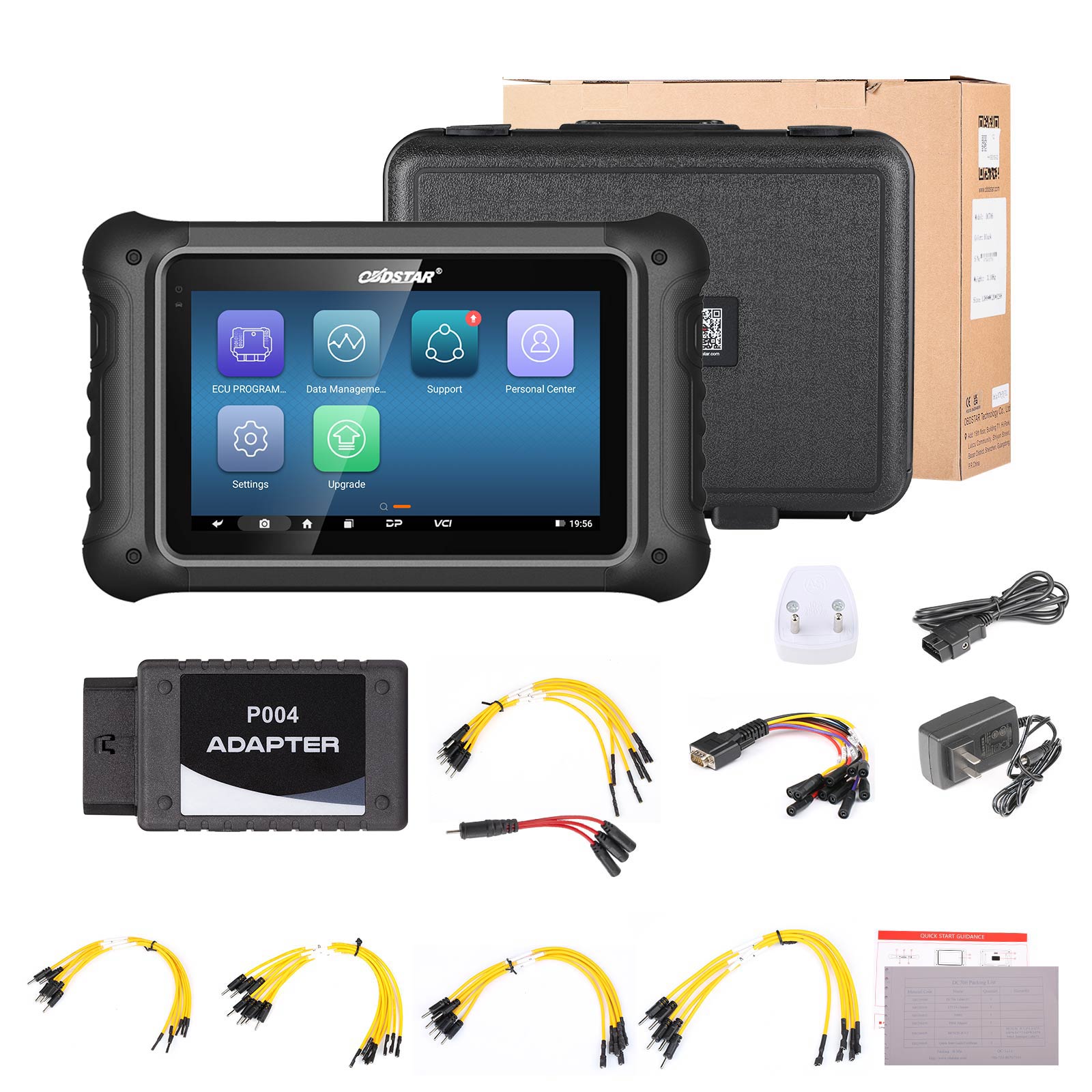

Package Includes:

1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
