OBDSTAR ECU Master ECU Flasher Configuration A for Passenger and EV Car TCM ECM BCM BMS VCU + OBDSTAR MQB All Keys Lost RH850/V850 Adapter

Product Description

OBDSTAR ECU Master ECU Flasher Configuration A for Passenger and EV Car TCM ECM BCM BMS VCU +  OBDSTAR MQB All Keys Lost RH850/V850 Adapter

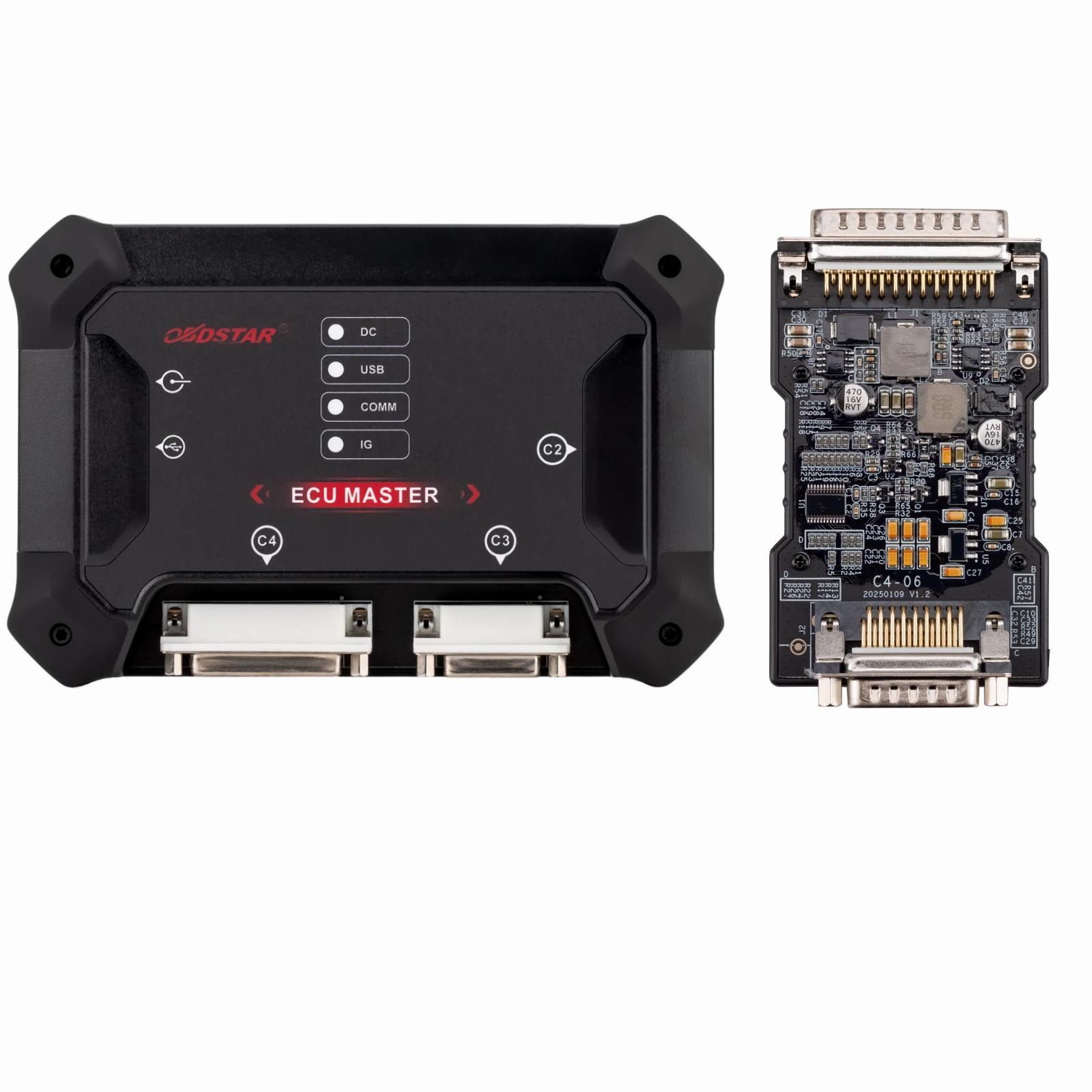

This is the bundle package includes OBDSTAR ECU Master ECU Flasher Configuration A + OBDSTAR MQB All Keys Lost RH850/V850 Adapter

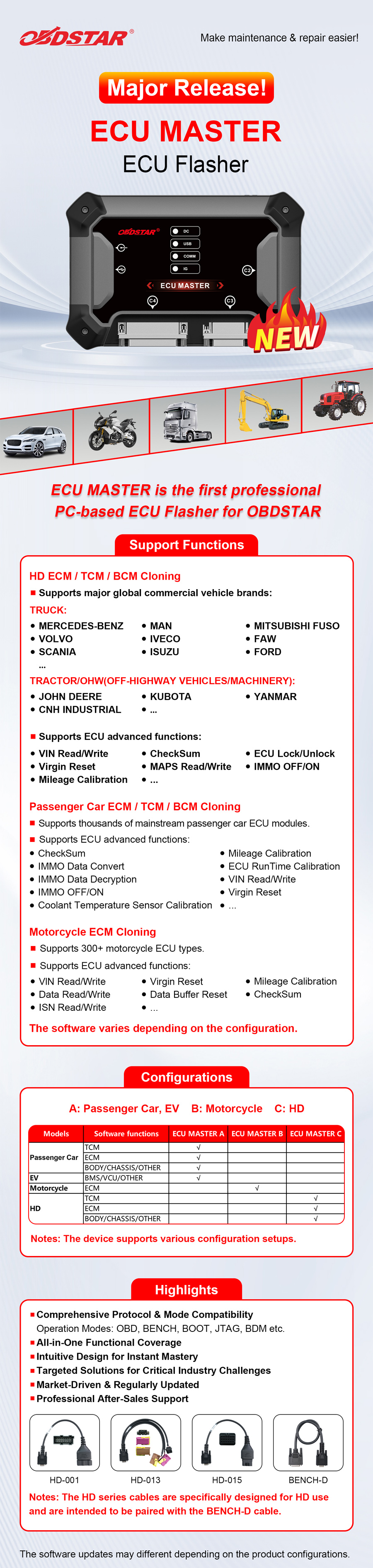

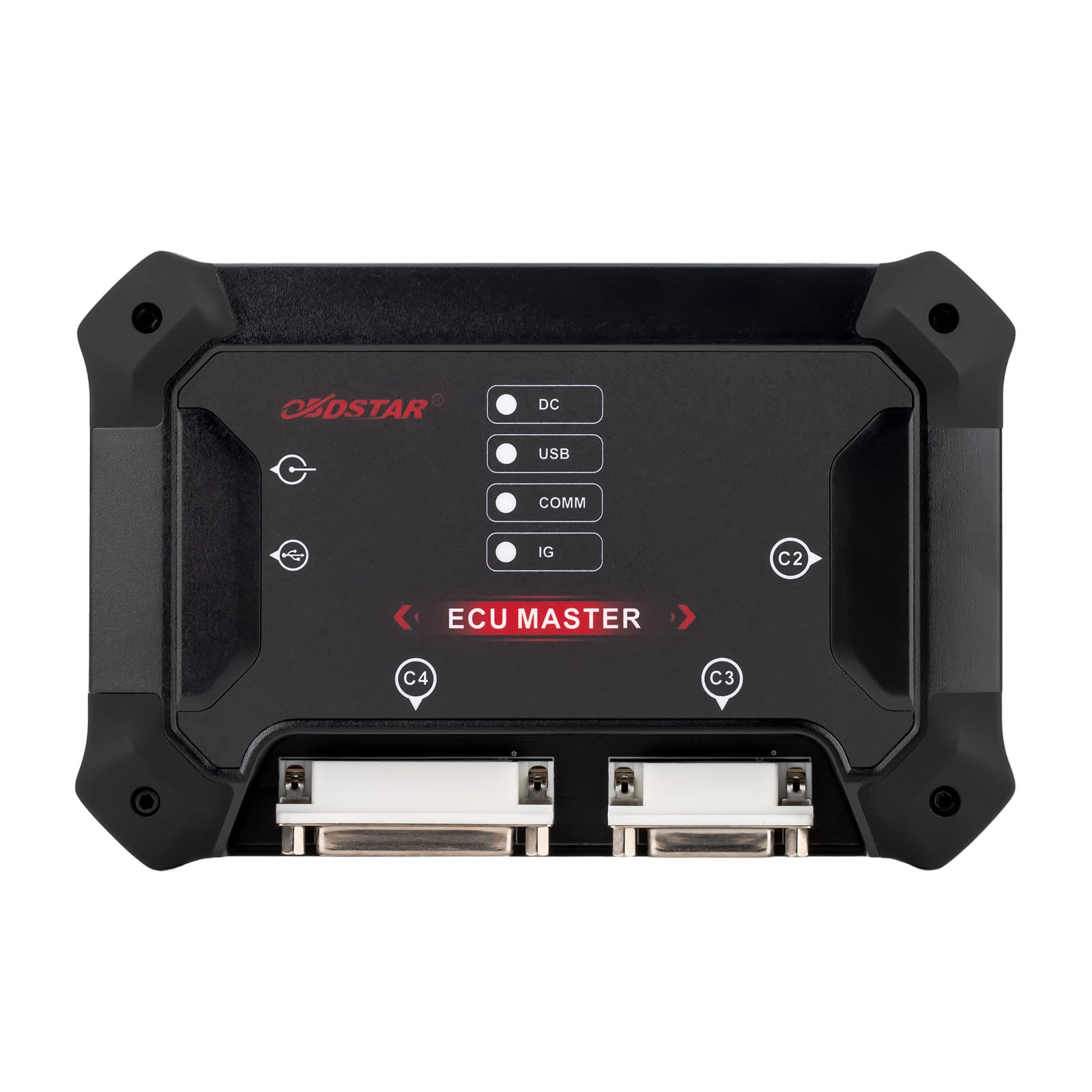

OBDSTAR ECU MASTER A Configuration is the first professional PC-based ECU Flasher for OBDSTAR and supports Passenger Car, EV (ECM/TCM/BCM) clone functions. It is compatible with ECUs from major global brands, provides precise maintenance for popular units, and is equipped with anti-misoperation reminders, allowing even beginners to get started quickly!

Difference between OBDSTAR DC706 and OBDSTAR ECU Master A Configuration
Replace OBDSTAR DC706, Built-in P003+, MP001,CAN FD and RH850/V850 adapters, no need to buy them seperately.

Passenger Car ECM / TCM / BCM Cloning:

• Support Reading and Writing ECU units of thousands of car models:
• BOSCH MED/EDC17 series, CONTINENTAL SIMOS series, GPEC series, DELPHI series, DSG TCM units, MB FBS4 series units etc.

Supports ECU advanced functions:

• CheckSum,
• IMMO Data Convert
• IMMO Data Decryption
• IMMO OFF/ON
• Coolant Temperature Sensor Calibration
• Mileage Calibration
• ECU RunTime Calibration
• VlN Read/Write
• Virgin Reset etc.

Support Passenger Car Coverage:

1.Support MERCEDES-BENZ FBS3, FBS4 TCMs VlN Read/Write function via BENCH, Reset Virgin, Personalization (Data Transfer).
2.Support AISIN SH7058, SH7055, D70F4019, R7F701204 series TCMs ECU Cloning function.
3.Support BMW 8HP GEN3 TC275/TC277 TCMs ECU Cloning function via BENCH mode.
4.Support JAGUAR/LAND ROVER 8HP GEN3 TC275, 9HP50 TC275 TCMs ECU cloning, VIN Read/Write functions via BENCH mode.
5.Support HYUNDAI/KAI CANFD KEFICO CPSCU1.11.3 TC233 SBW(ETCM) ECU Cloning function.
6.Support FORD MG1/MD1 GEN2 CANFD type ECUs R/W via OBD/BENCH mode, covering after 2020 locking types(MD1CP061, MD1CS025, MD1CS027, MG1CS036, MG1CS040, MG1CS060, MG1CS055).
7.Support VW SIMOS series, ME17 series, EDC17 series INT eeprom (Data Transfer)(ECU Cloning).
8.Support MAGNETI MARELLI 11GB, 11GC, 11GDB, 11GF, 11MP series ECU Cloning function via BENCH mode.
9.Support BMS/VCU ECU Cloing function via BENCH mode：
GEELY VCU BOSCH VC1-UP008.0 TC275TP
GEELY VCU BOSCH VC1-UP008.1 TC387QP
GREATWALL VCU BOSCH VC1-UP008.1 TC387QP
SAIC VCU BOSCH VCUP8.2 SPC574K
BYD YANGWANG VCU BOSCH VCU8.5
AUDI/VOLKSWAGEN/SEAT/SKODA BMS BOSCH INVCON3.3 TC275TP
AUDI/VOLKSWAGEN/SEAT/SKODA/GEELY BMS BOSCH INVCON2.3 TC1797
10.Support CHINA DELPHI MT series flash/eeprom R/W, VIN Read/Write functions.
11.Support FIAT/ALFA ROMEO/FERRARI MB91F526 BSI ECU Cloning function and IMMO Data Decryption(BCM250X、BCM952/BCM949...).

Features:

1. Comprehensive Protocol & Mode Compatibility
Support Read/ Write via OBD, BENCH, BOOT, JTAG, BDM and other modes, focus on safe open-free ECU operation, compatible with various ECUs for all vehicle models.

2. All-in-One Functional Coverage
Compatible with ECUs from all major global brands, supporting full-process operations including ECM/TCM/BCM Read/Write and CS, Reset Virgin, immobilizer decryption and matching, VIN modification, and mileage correction—a one-stop solution for all daily repair needs.

3. Intuitive Design for Instant Mastery
User-friendly interface with a clear menu structure and complete documentation,equips with anti-misoperation reminders, even beginners can get started quickly.

4. Targeted Solutions for Critical Industry Challenges
Precise maintenance for popular car modules: Non-Destructive BCM Cloning for FORD/VOLVO, IMMO Programming for VW/AUDI, DSG TCM Programming & Calibration, and used units adaptation for MB FBS4.

5. Market-Driven & Regularly Updated
Keeping pace with automotive electronics repair trends, we deliver monthly updates with continuous feature improvements, ensuring tools and functions meet the latest repair and diagnostics needs.

6. Professional After-Sales Support
Our senior technical team, with direct manufacturer expertise, provides fast troubleshooting, expert guidance, and complete solutions to ensure smooth and efficient repair operations.

OBDSTAR Upcoming Breakthrough Upgrade

Read/Write & Unlock encrypted MD1 MG1 ECUsV
Bosch MD1CP032 (BMW B57)TC299
Bosch MG1CS024(BMW B48/B58)TC298
Bosch MG1CS201(BMW B48/B58)TC298
Bosch MD1CS069(FCA)TC299
Bosch MD1CP006(Ford)TC298
Bosch MD1CS089 (ISUZU etc.)TC299 (Only for ECU
MASTER C)

More Models Coming Soon...


Specifications:

Operation system	Windows 10 or above
CPU	STM32H723, STM32F407
Working Voltage	DC14V
Working temperature	-10℃~55℃（14℉~131℉）
Storage temperature	-20℃~70℃（-4℉~158℉）
Weight	About 0.7kg
Dimension	176mm*115mm*31.7mm
Warranty	1-year hardware warranty; software updates start from the date of manufacture (duration TBD)

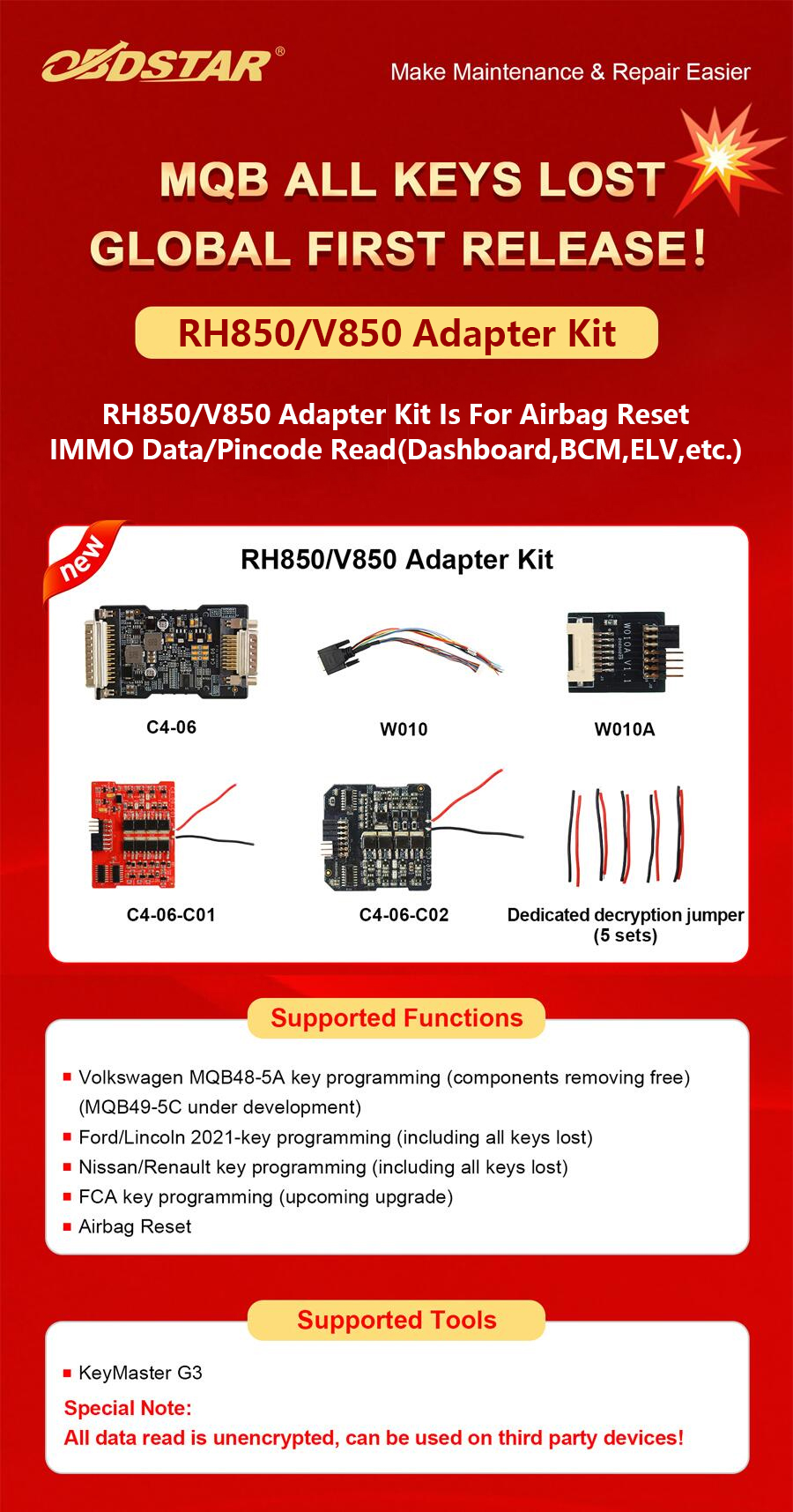

RH850/V850 adapter full kit is for airbag reset, immo data/pincode read (Dashboard, BCM, ELV, etc.). And all data read is unencrypted, can be used on third party devices!


Features:

• Supports VAG MQB 5A key programming (without removing components. With built-in MQB calculator. No need to buy Sync data for All keys lost. Requires to buy MQB collector together)
• Supports Ford/Lincoln 2021- BCM RH850 key programming (including all keys lost)
• Supports Nissan Renault HFM RH850 key programming (including all keys lost)
• Supports FCA key programming (coming soon)
• Airbag Reset
• Unlock encrypted MD1 MG1 ECUs in boot mode

Unlock encrypted MD1 MG1 ECU (requires C4-06 adapter) [July 2026]
Read/Write & Unlock

• Bosch MD1CP032 (BMW B57) TC299
• Bosch MG1CS024 (BMW B48/B58) TC298
• Bosch MG1CS201 (BMW B48/B58) TC298
• Bosch MD1CS069 (FCA) TC299
• Bosch MD1CP006 (Ford) TC298
• Bosch MD1CS089 (ISUZU etc.) TC299 (Only for ECU MASTER C)

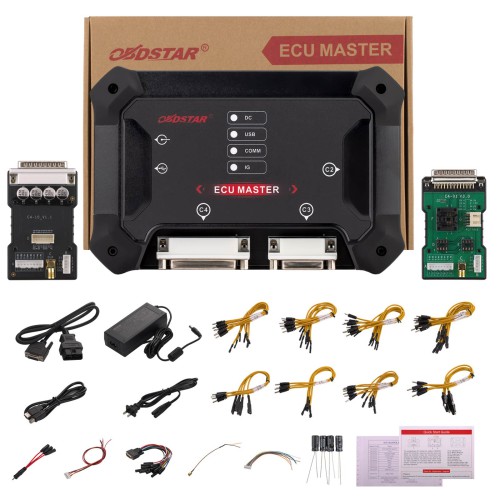

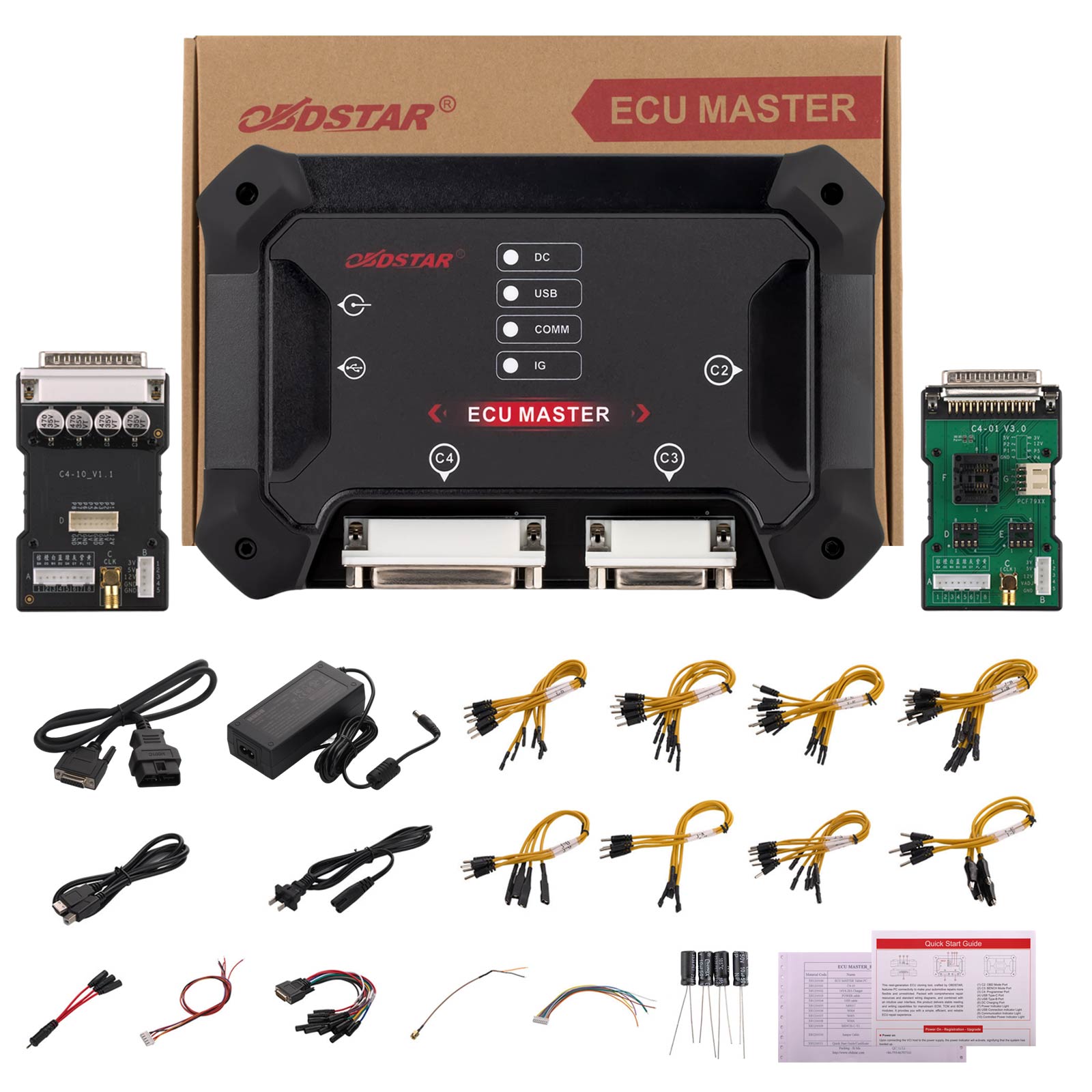

Package List:

1pc x ECU MASTER host
1pc x C4-10
1pc x C4-01
1pc x Charger(14V 4.28A)
1pc x Power cable
1pc x USB cable
1pc x 3-in-1 jumper cable
4pcs x J-A jumper
9pcs x J-B jumper
7pcs x J-C jumper
8pcs x J-D jumper
8pcs x J-E jumper
4pcs x J-F jumper
6pcs x J-N jumper
4pcs x J-O jumper
1pc x M001C
1pc x W004
1pc x W005
1pc x W006
1pc x BENCH-C-V1
4pcs x capacitance

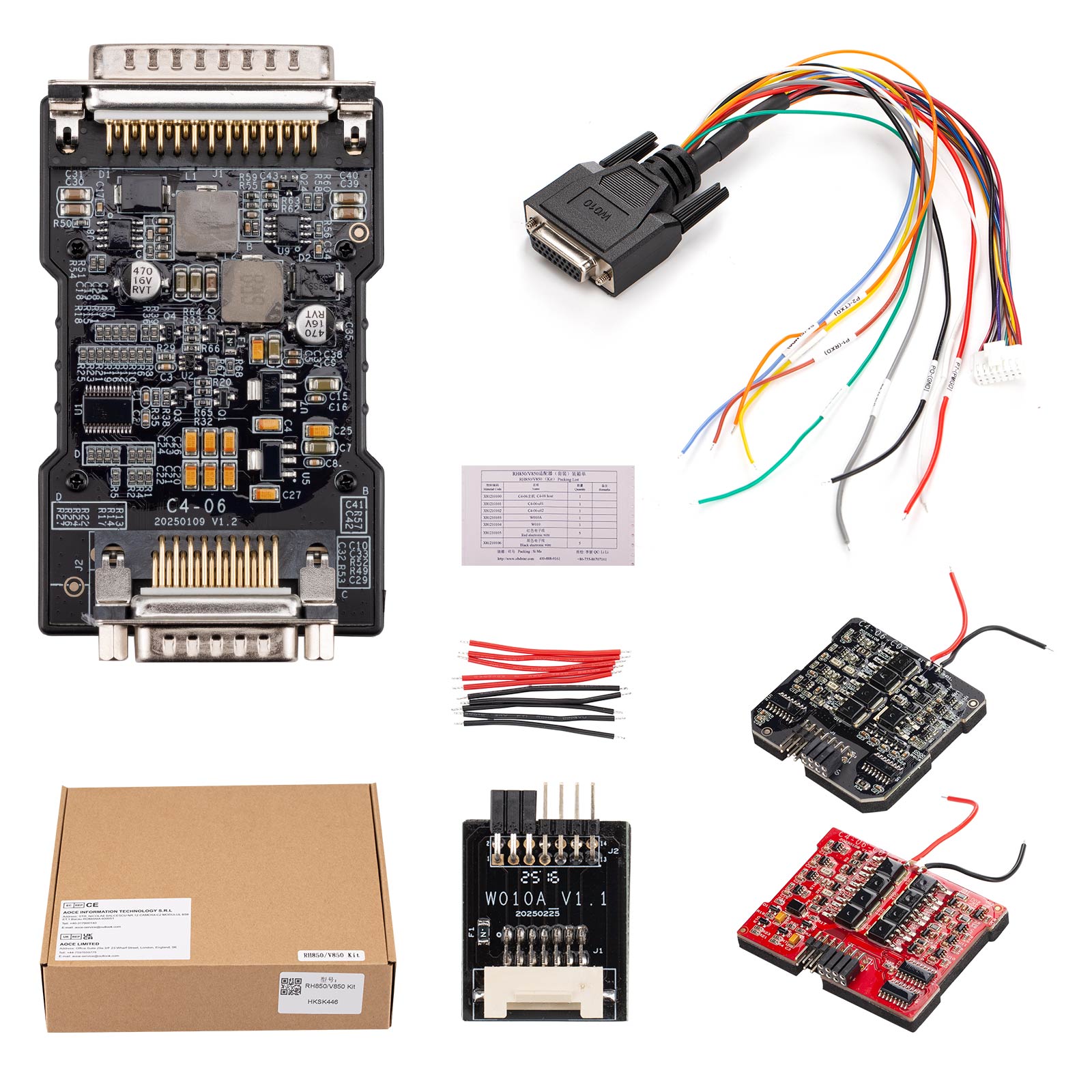

Package List:

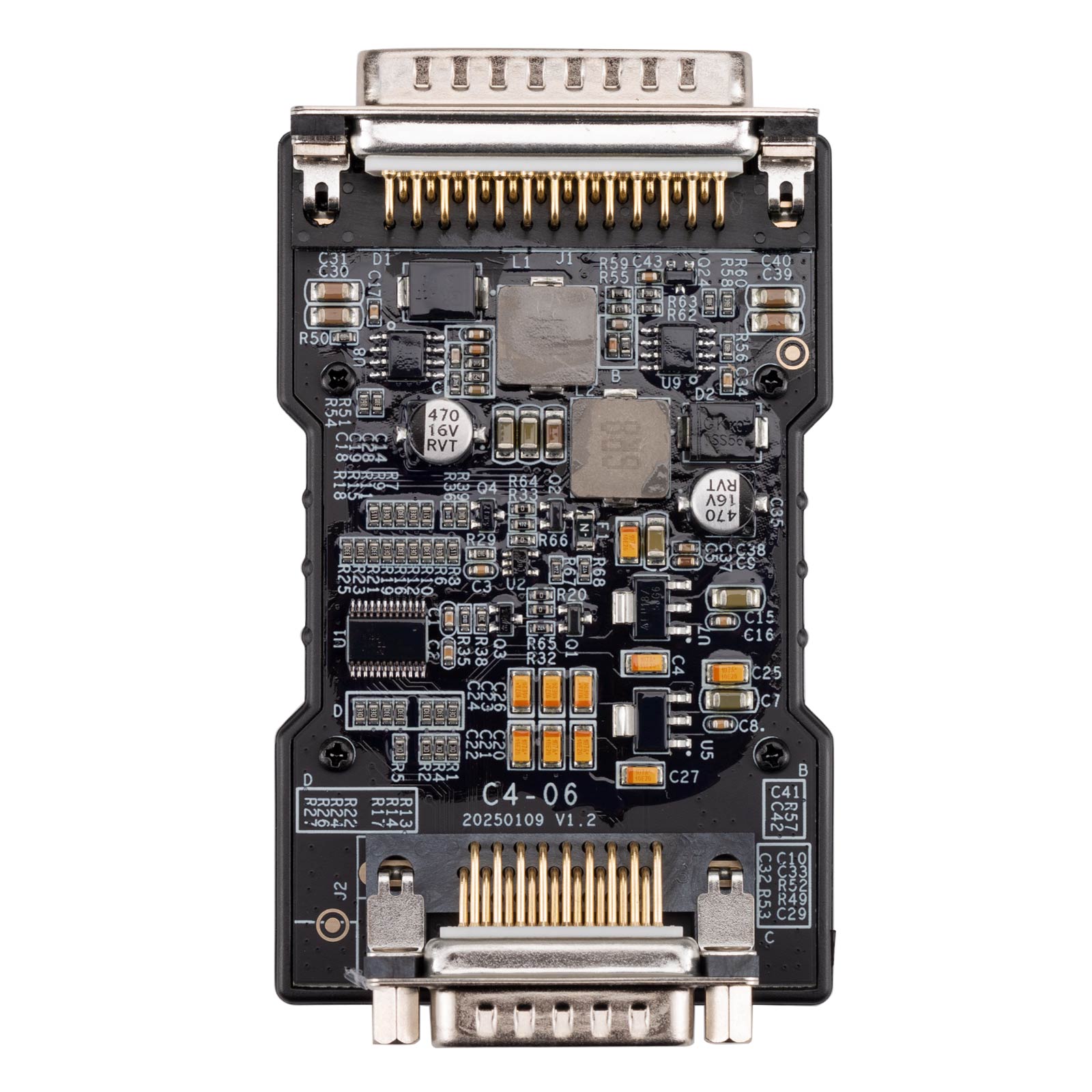

1. C4-06
2. W010
3. W010A
4. C4-06-C01
5. C4-06-C02
6. Dedicated decryption jumper (5 sets)
