OBDSTAR ISCAN PRO CUMMINS (MARINE) Diagnostic Tool DC24V Input Supports Special Functions

Product Description

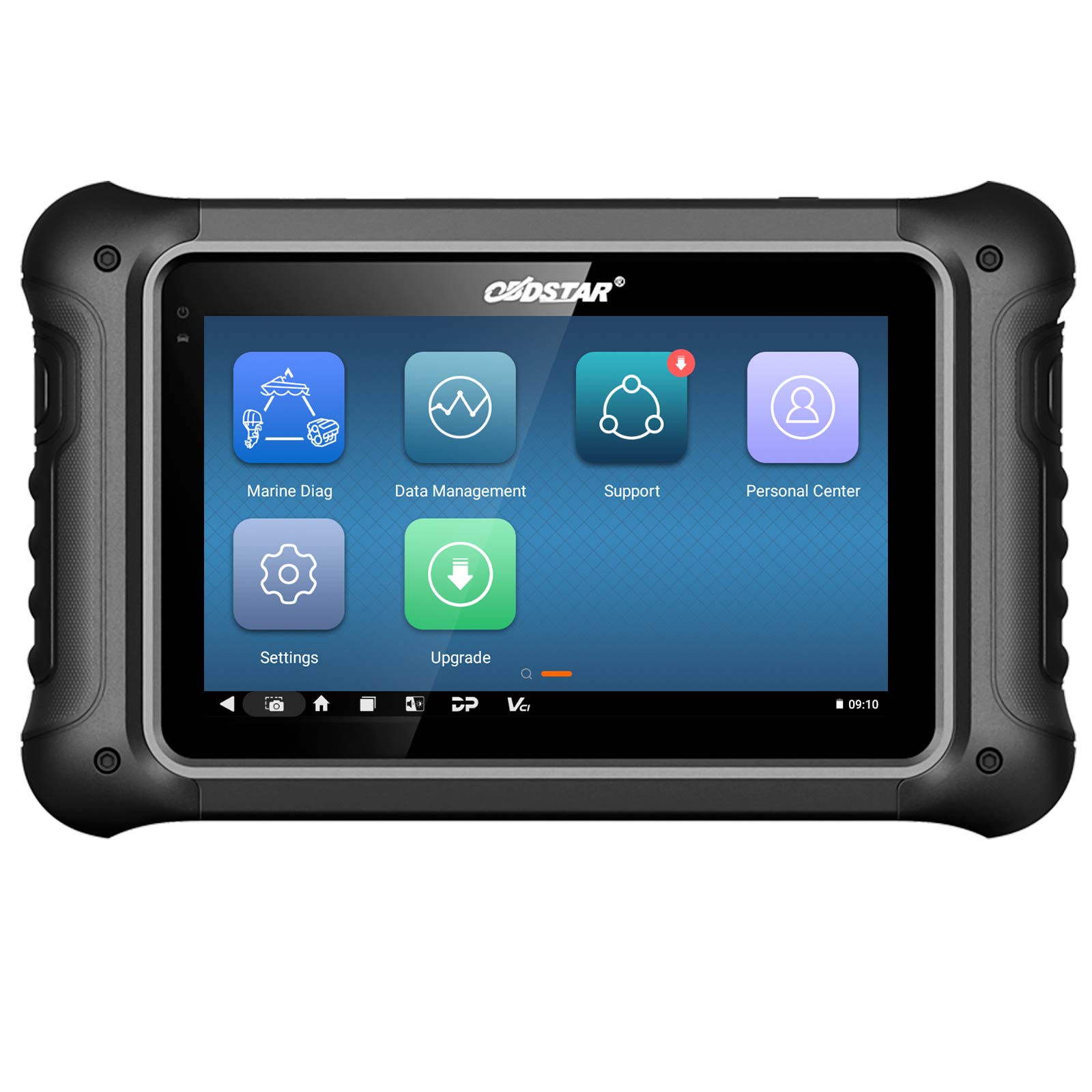

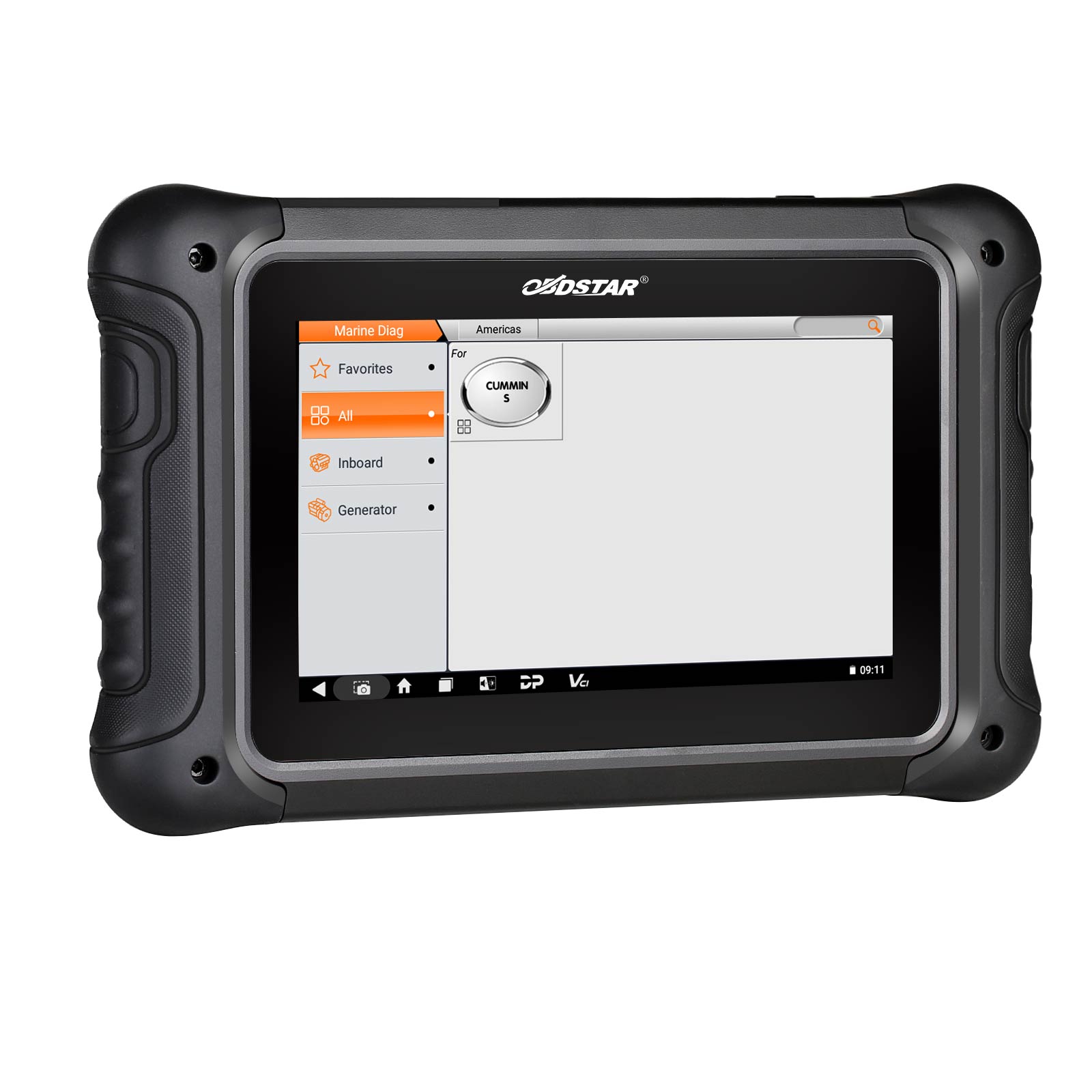

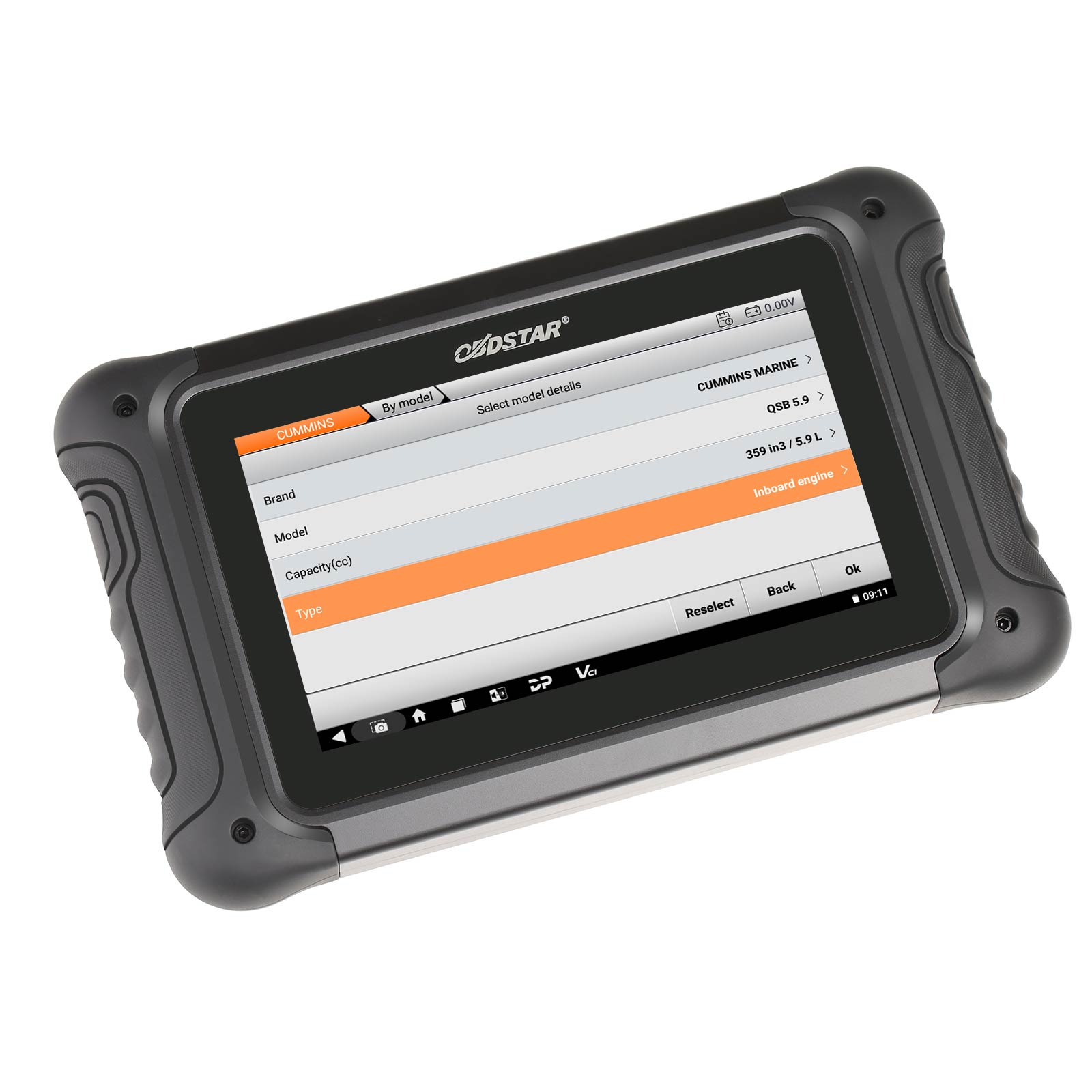

OBDSTAR ISCAN PRO CUMMINS Marine Diagnostic Tool

ISCAN PRO CUMMINS (MARINE) is a portable tablet which has super performance and industrial appearance design specialized for CUMMINS. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 7.0-inch capacitive touch screen, brings customer professional diagnosis experience.

ISCAN PRO CUMMINS Marine Features:

1. Android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
8. 2 Years Free Update

Advanced Function:

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with ISCAN PRO to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;
3. Support Idle Speed Adaption System, Max Vehicle Speed, Power Take-Off (PTO) Option, Accelerator Option, ENG brake control, Idle Speed Control, Max Vehicle Speed (OEM), Vehicle Speed Sensor Anti-Tampering (Enable/Disable), Information: Write VIN, Information: Write Vehicle or Device Year, Information: Write Manufacturer, Information: Write Vehicle Model, Reset Oil Service, Injector Coding, Max Vehicle Speed(Customer), Gear down protection and other special functions.
4. Support DC24V input.

Diagnostic support series

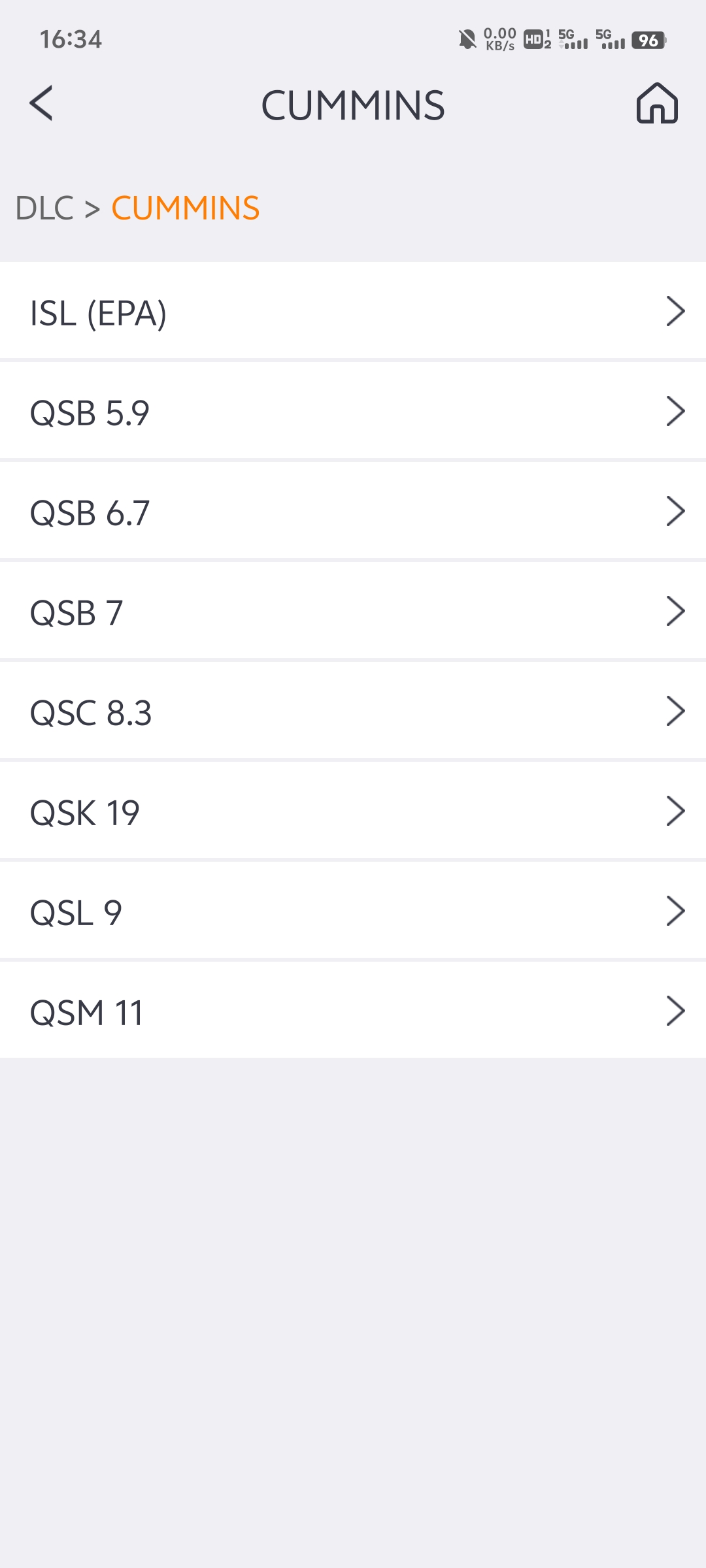

Support ISL (EPA), QSB 5.9, QSB 6.7, QSB 7, QSC 8.3, QSK 19, QSL 9, QSM 11 and other models.

Specifications:


Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	3700mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	7.0 inch
LCD resolution	1024*600
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃~55℃ (14℉~131℉)
Storage temperature	-20℃~70℃ (-4℉~158℉)
Weight	About 0.766kg
Dimension	243mm*148mm*36mm



Function Display-(From OBDSTAR Mobile App)

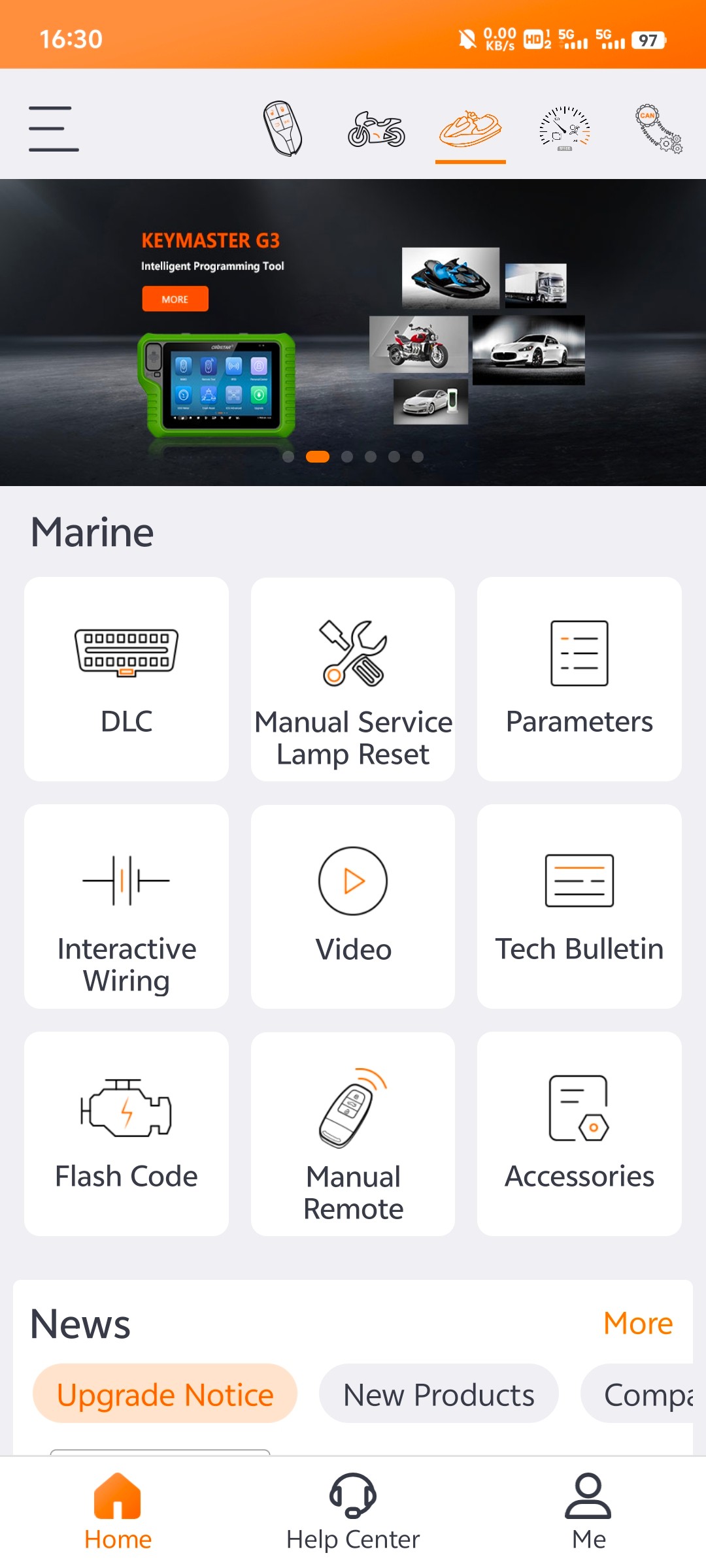

1) Main Page

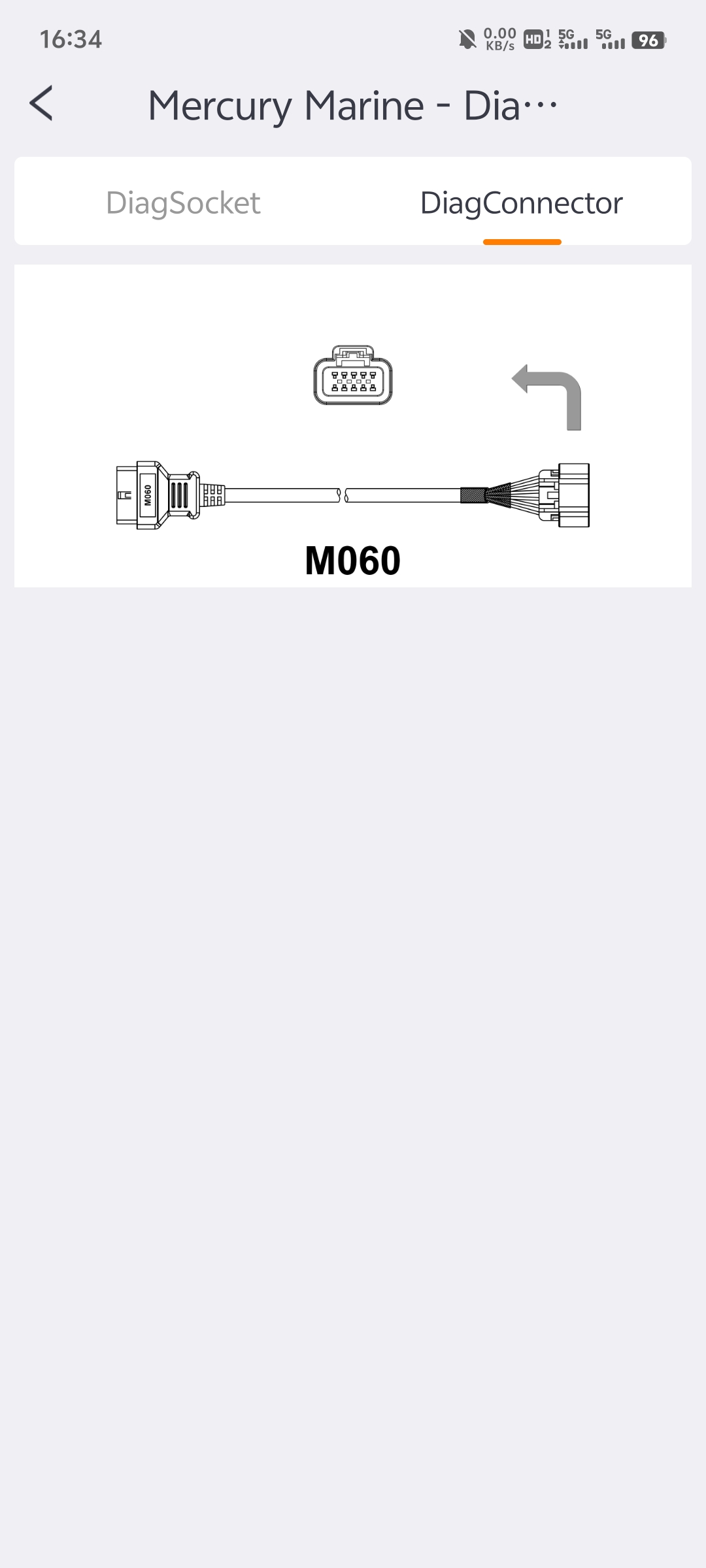

2) Diag Socket/Diag Connector Location



Function Display-(From ISCAN PRO)

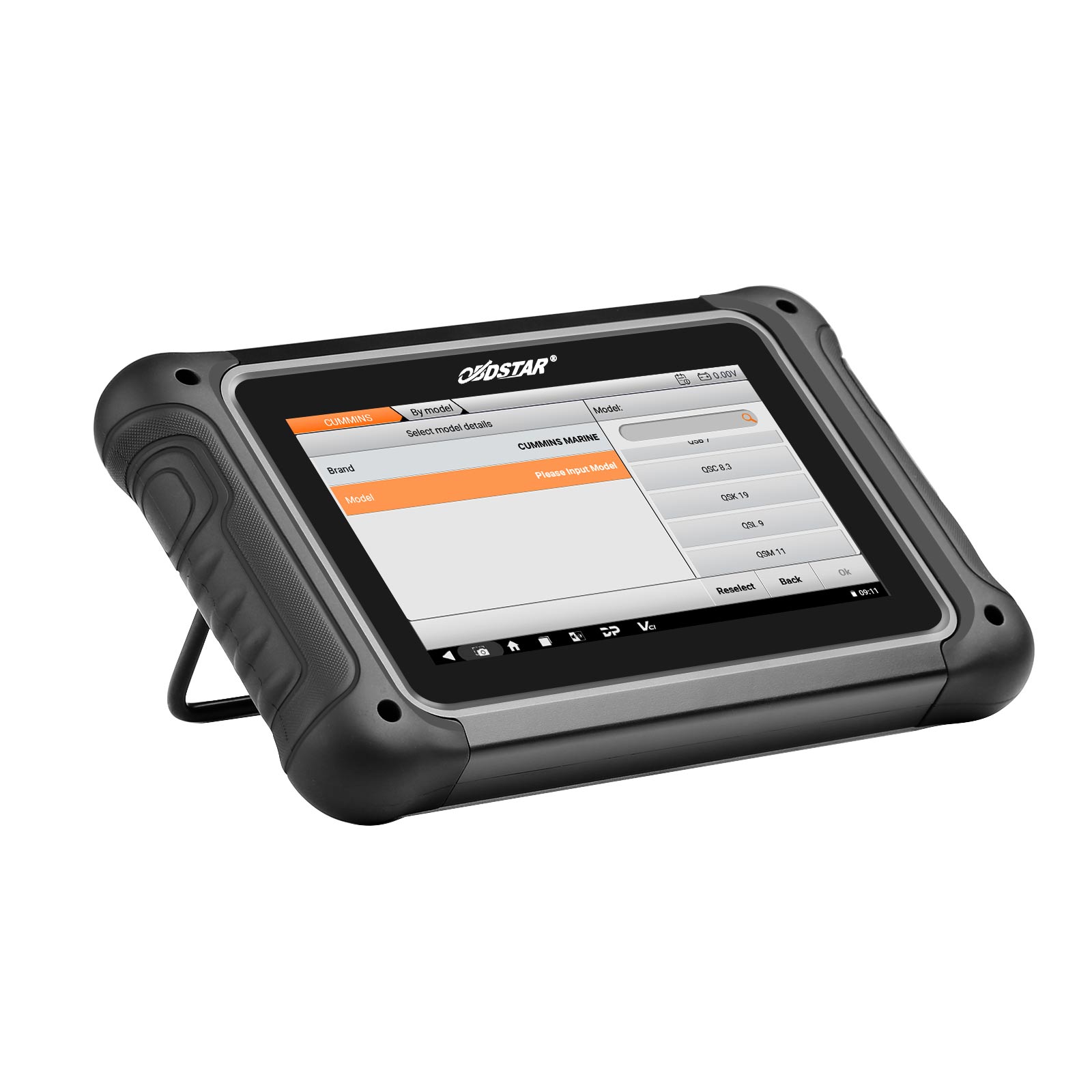

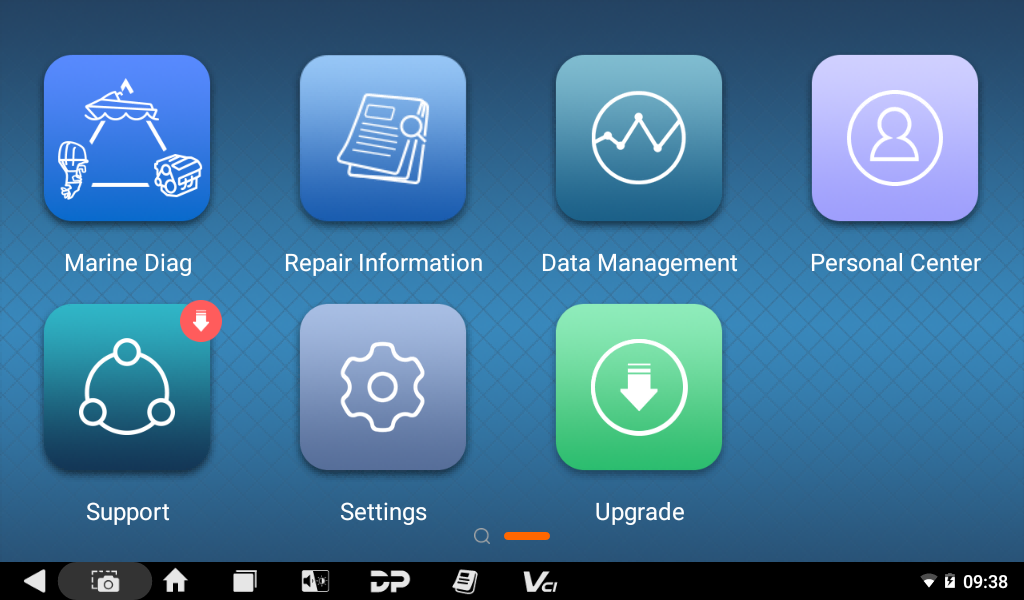

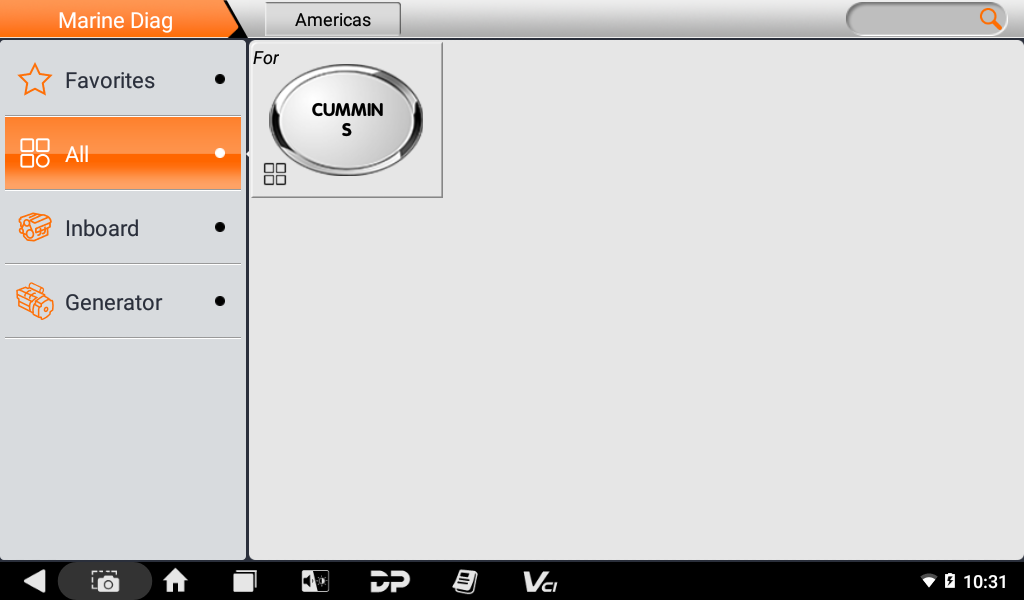

1) Main Page/Brand Supported

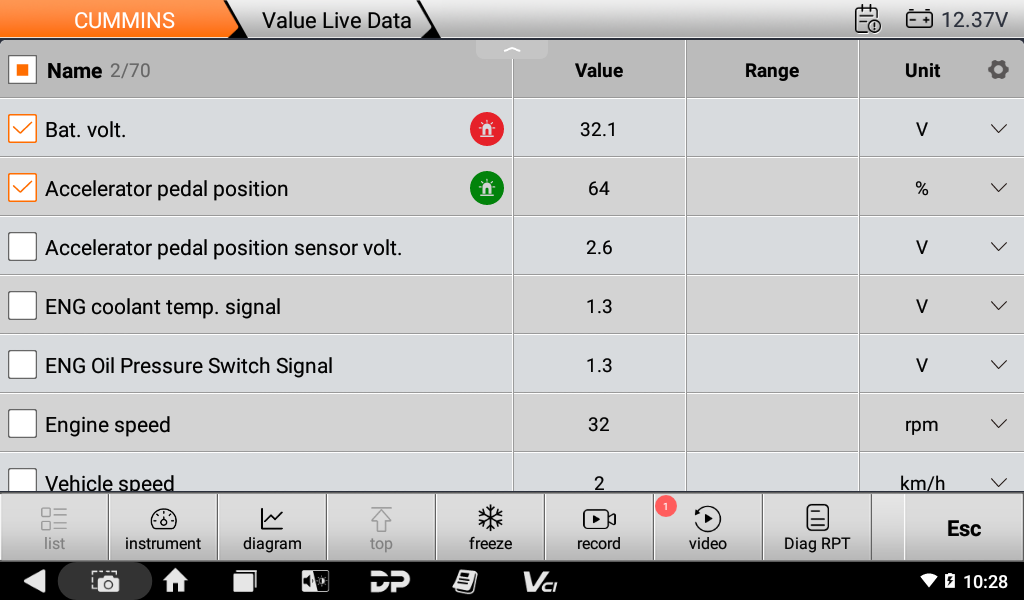

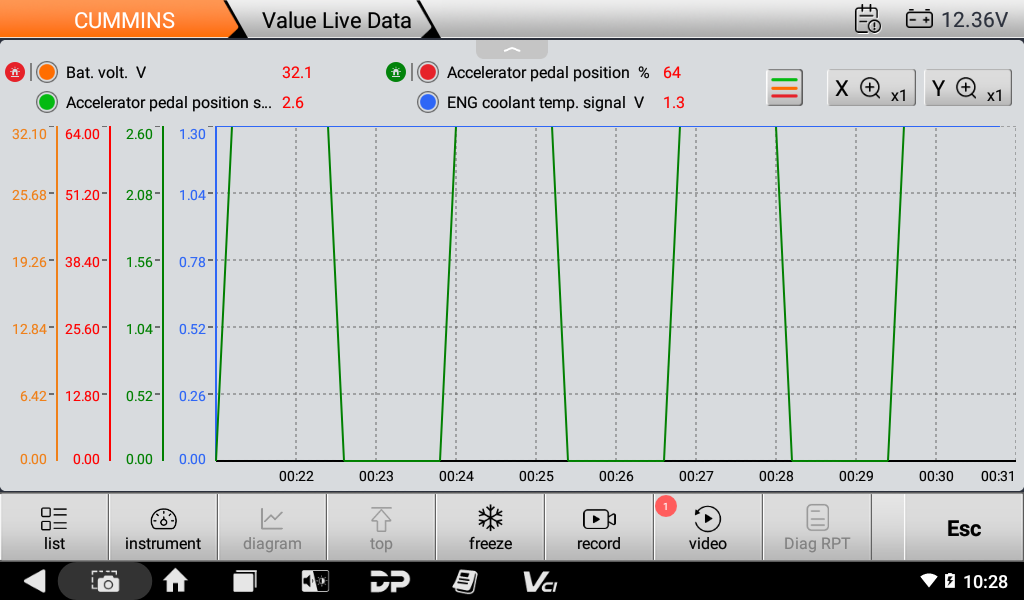

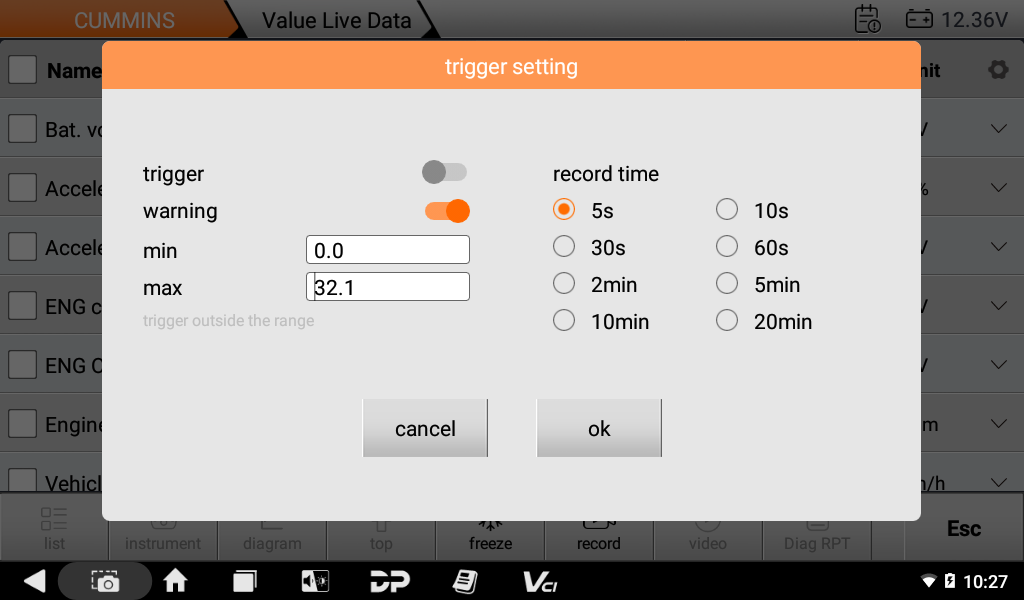

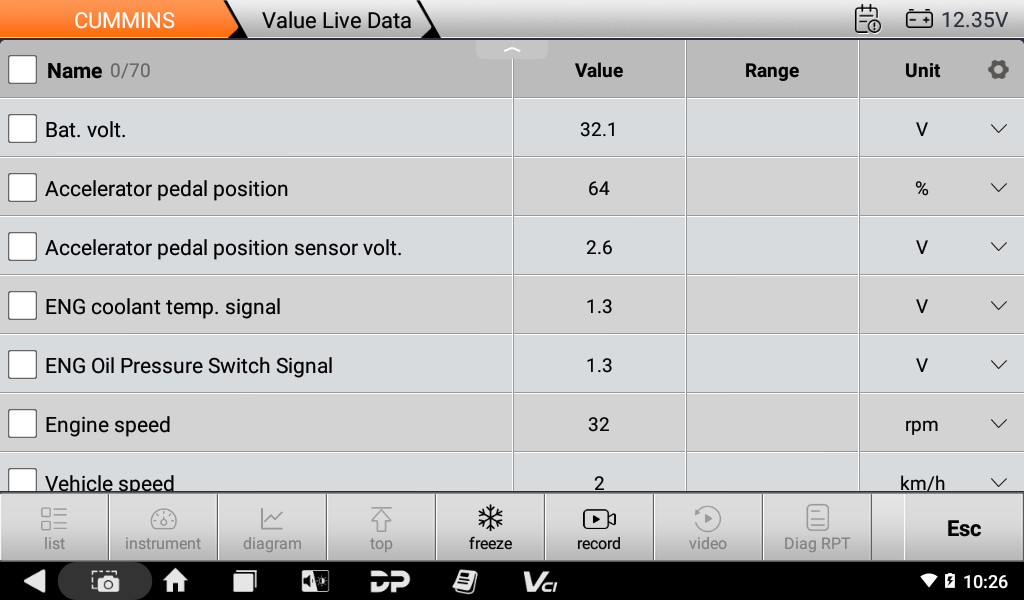

2) Data Flow Text/Waveform Diagram

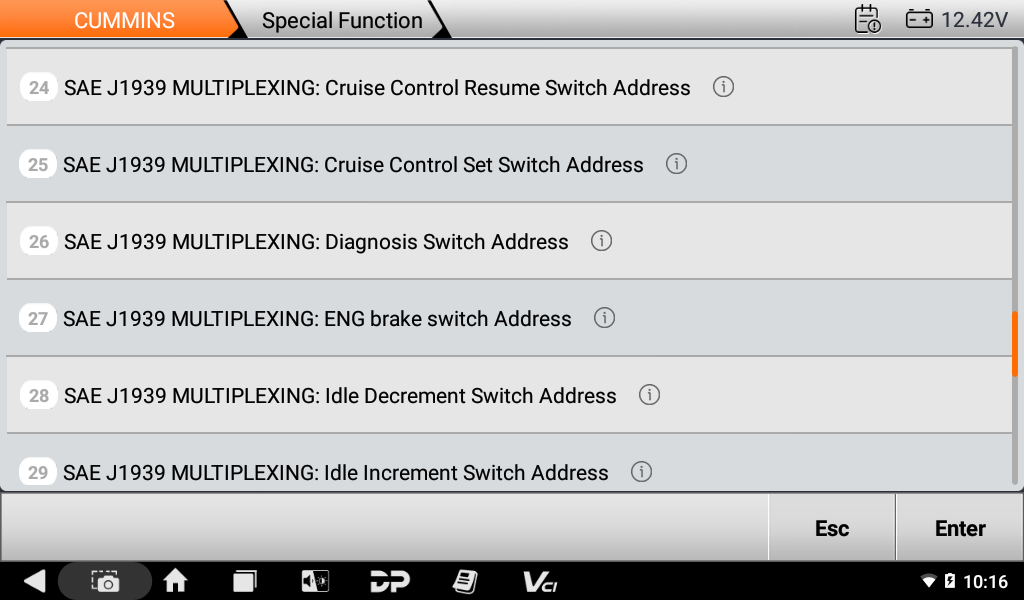

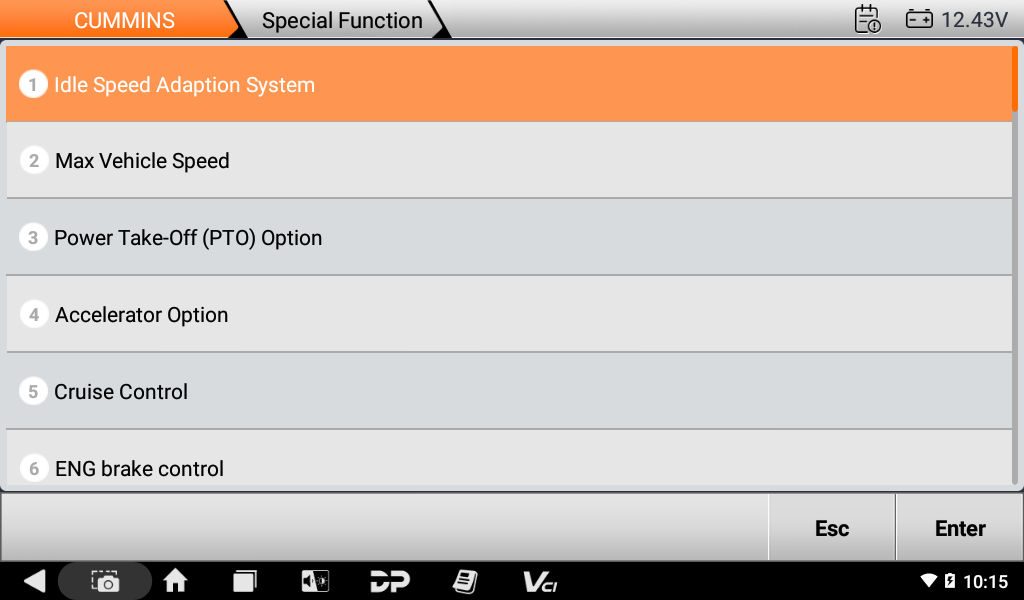

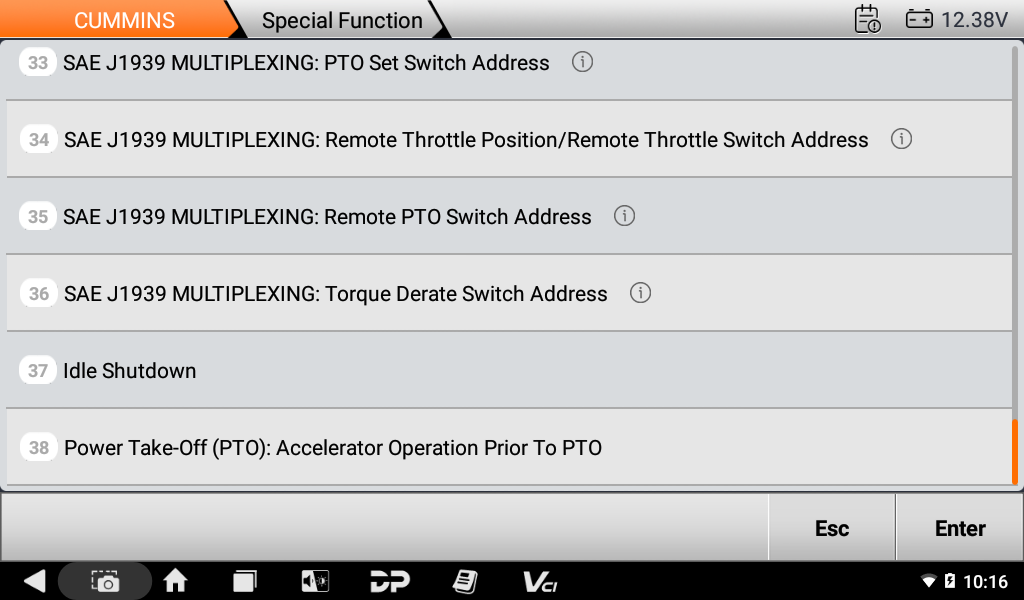

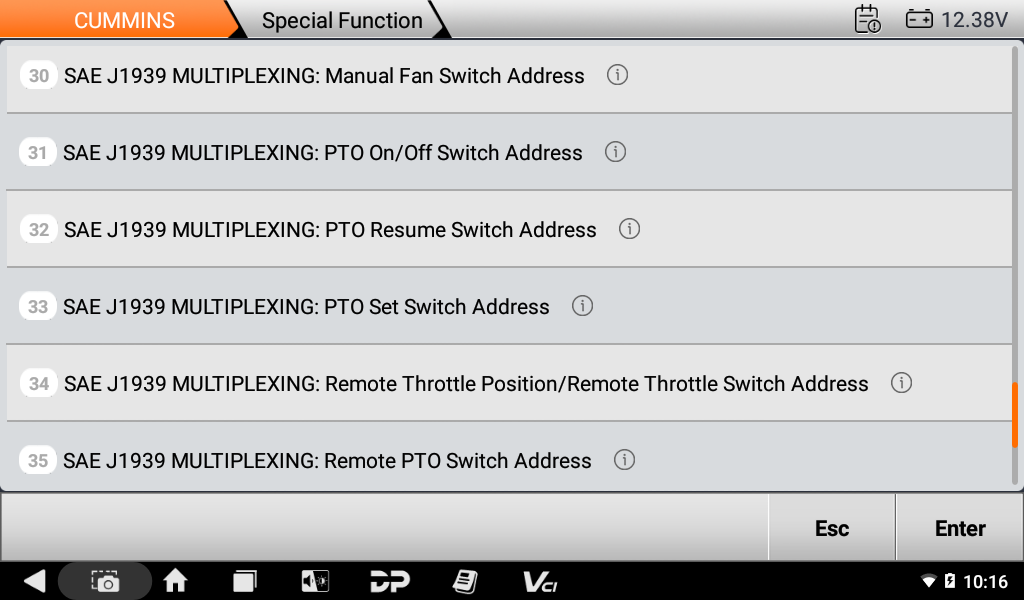

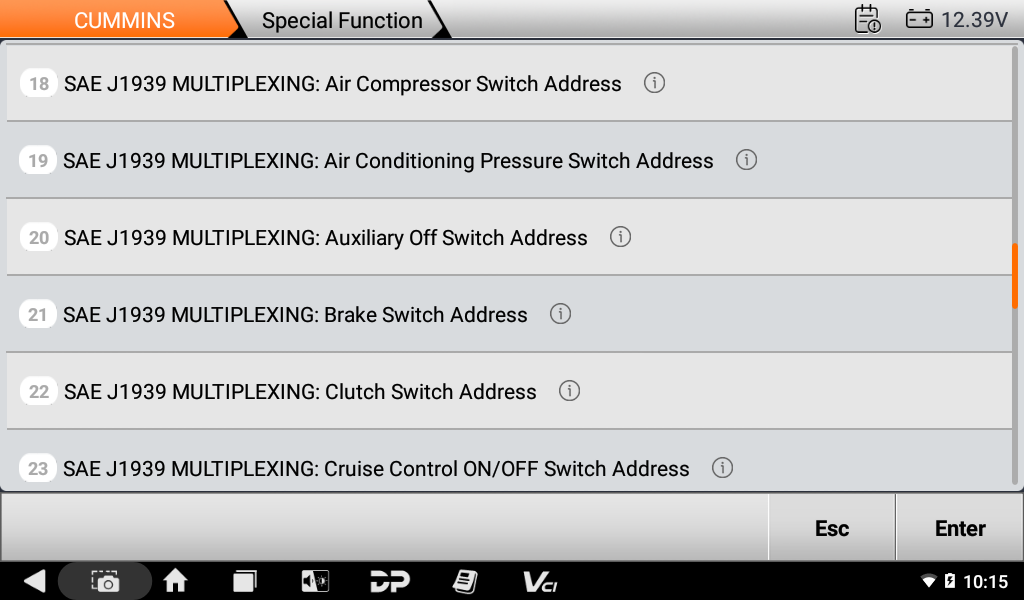

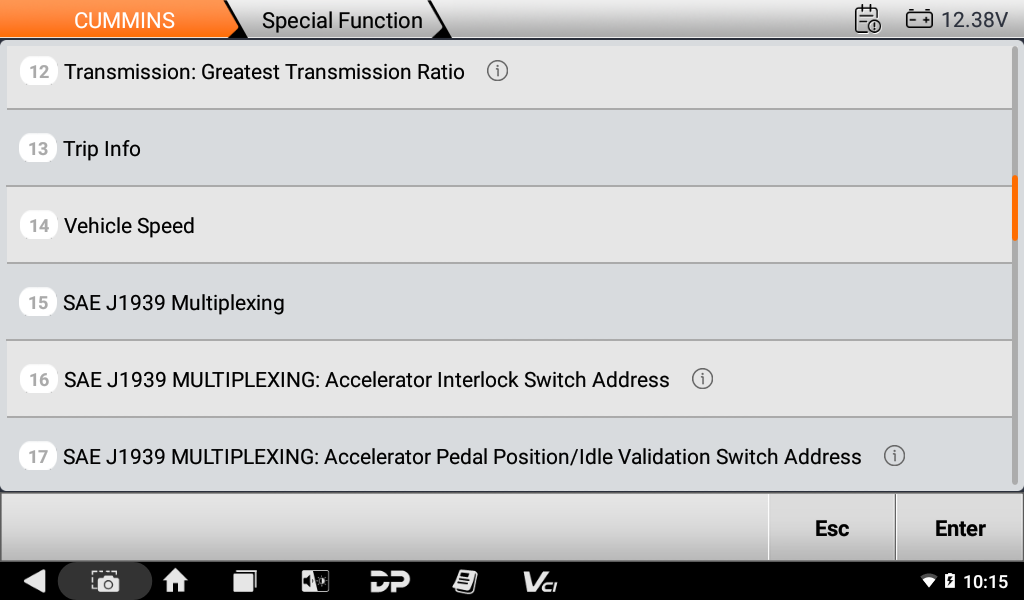

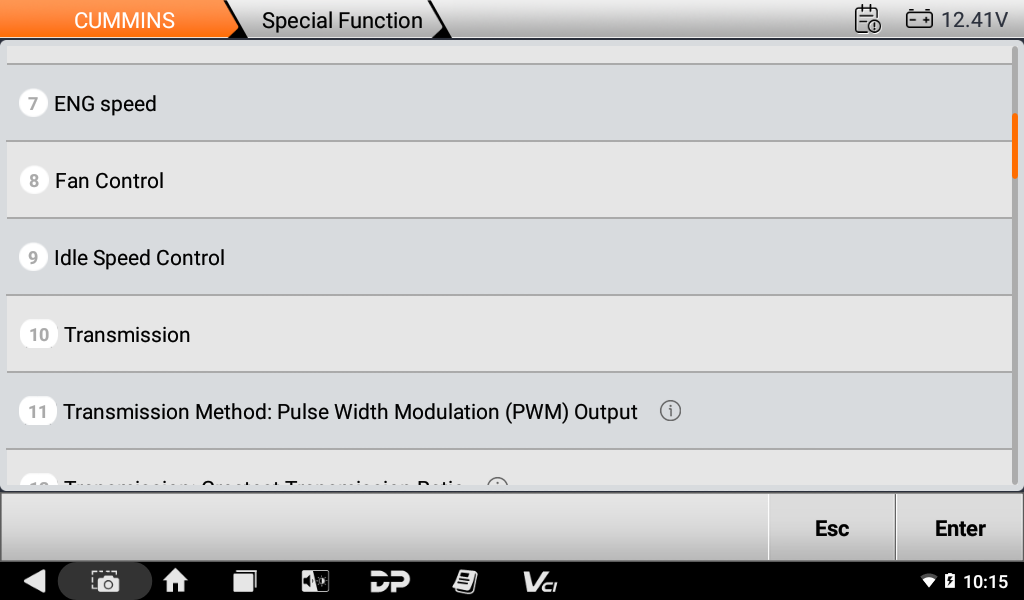

3) Special Functions

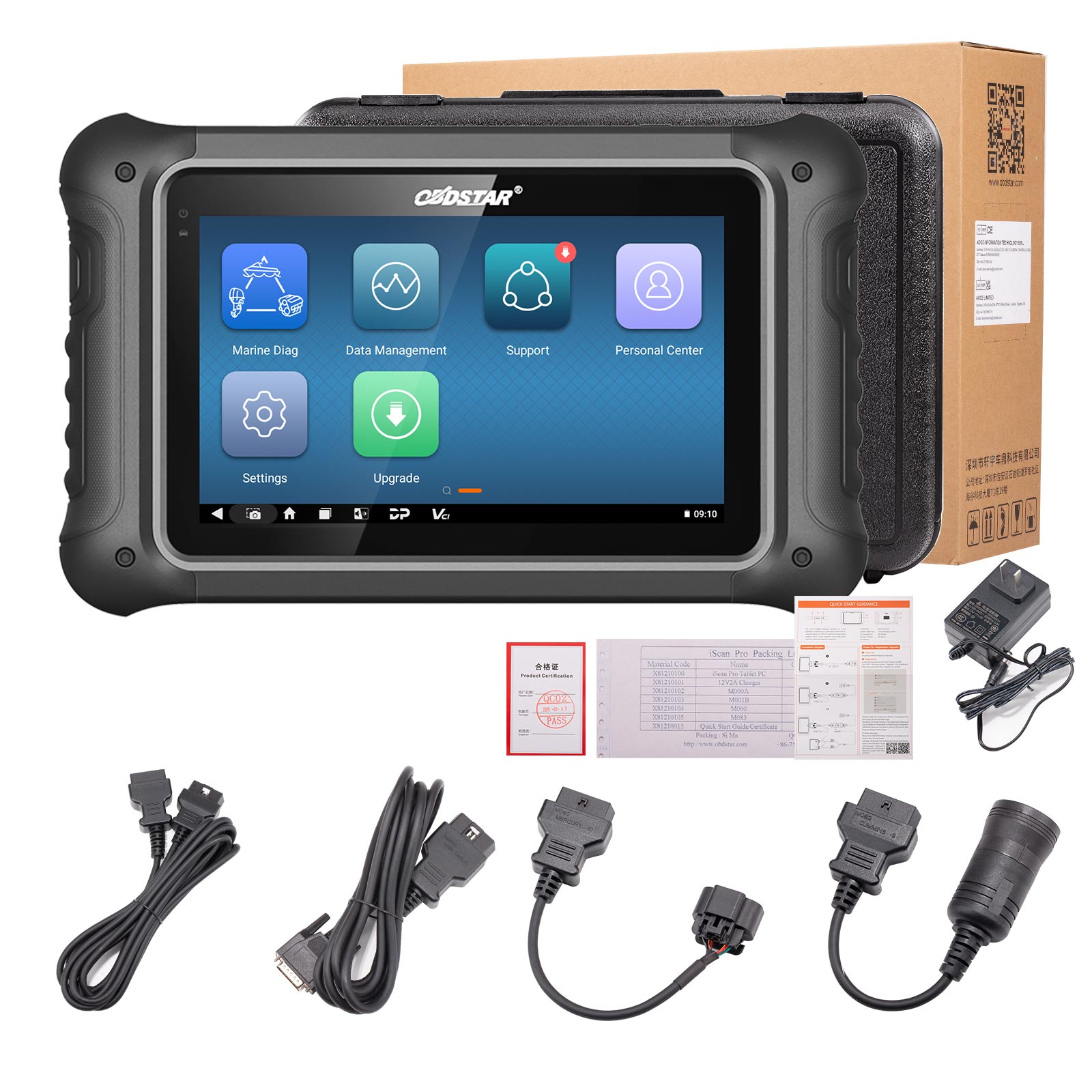

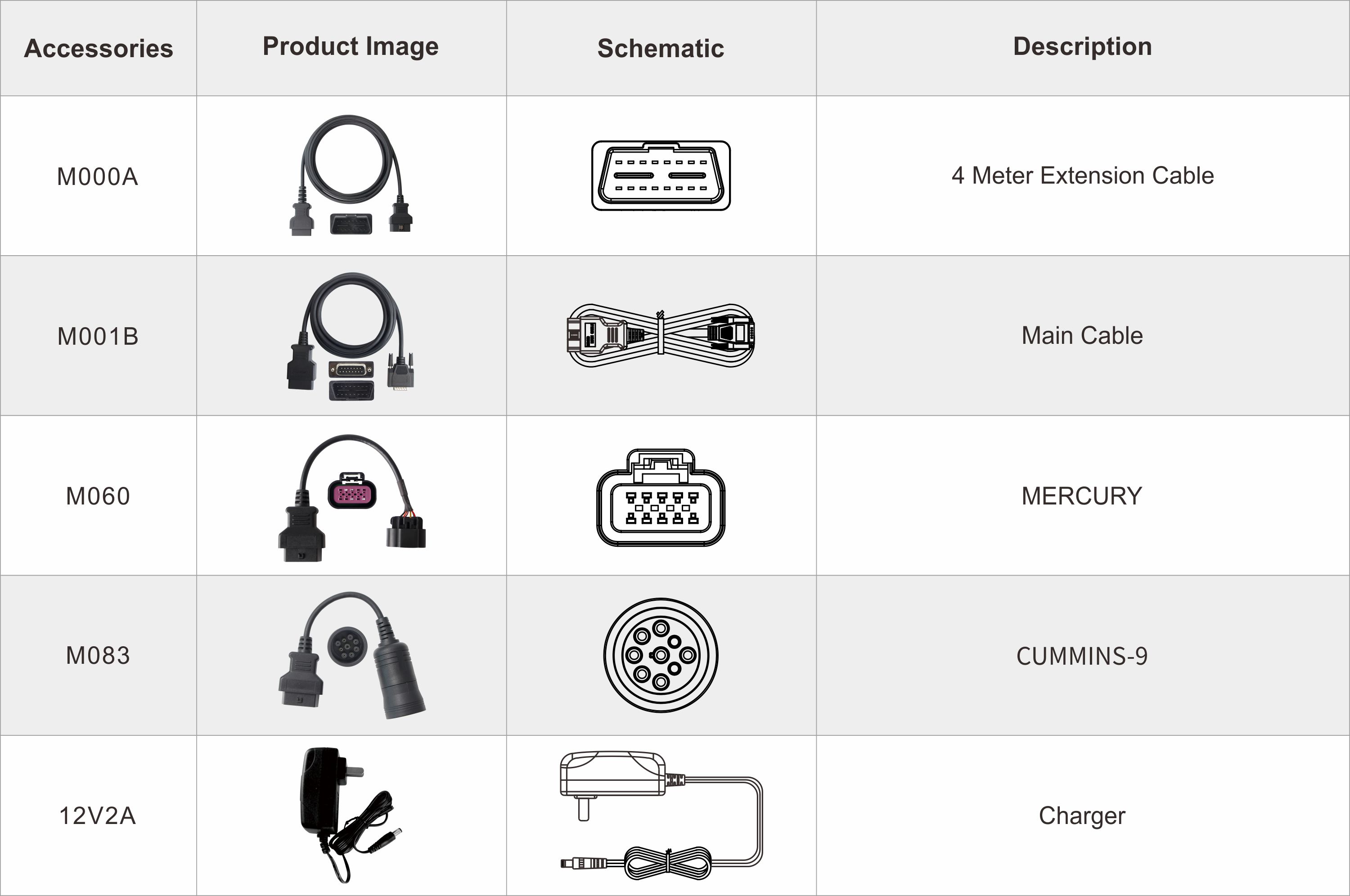

Accessories:

1pc x iScan Pro Tablet PC
1pc x 12V2A Charger
1pc x M000A Cable
1pc x M001B Cable
1pc x M060 Cable
1pc x M083 Cable
1pc x Quick Start Guide
1pc x Certificate
