OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

Brand: OBDSTAR Item No. SP365 In Stock. History 13 sold.

Buy Now: US$549.00
6 Motorcycle Scanner: OBDSTAR MS50 OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool
Shipping:
Express Shipping ServiceEstimated delivery time: 5-7 working days.See details »
Weight:
4.3KG
Package:
44.8cm*13.2cm*34cm ( Inch: 17.64*5.2*13.39 )
Returns:
Return for refund within 7 days,buyer pays return shipping. Read details?

Product Description

MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;

OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool


OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent  motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;

OBDSTAR MS50 Features:

1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support  most of the Asia and Europe models;
9.OBDSTAR MS50 Supported car list.

OBDSTAR MS50 Advanced Function:

1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;

2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

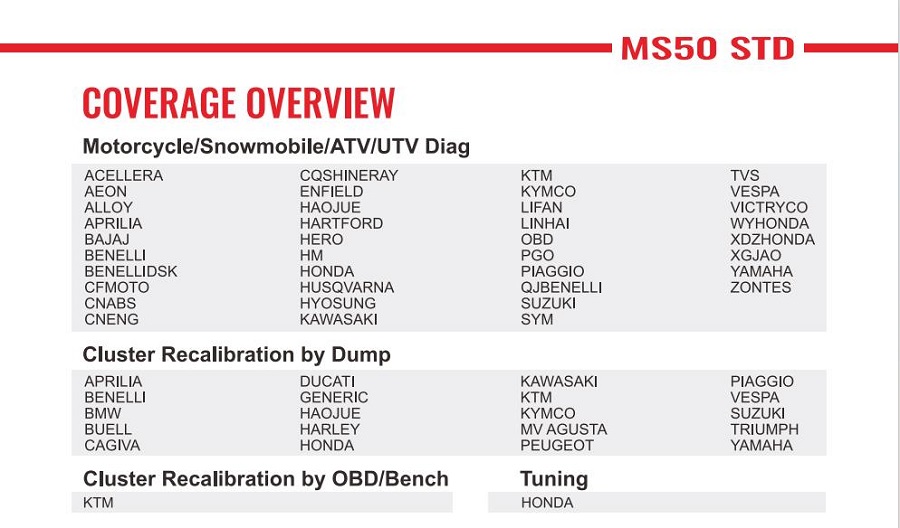

Motorcycle/Snowmobile/ATV/UTV Support Car Series:

Asia:
Honda、Kawasaki、Kymco、Suzuki、SYM、Yamaha、PGO、Hardford、AEON;

Europe:
Benelli、KTM、Piaggio、Vespa

More functions under developing...
Different configurations include different software. For details, please contact OBDSTAR.

Function Display:

1) Main Page/Brand Supported

2) Help Data/Technical Bulletin/Fault Guidance

3)Supported System List/ Manual Service Function

4) Manual maintenance reset

5) Diag socket/Diag Connector Location

6) Data Flow Text/ Waveform Diagram/Instrument Diagram

7)Special Function-Benelli

8) Special Function-KTM

9) Special Function-Piaggio

10) Special Function-Vespa

OBDSTAR MS50 Latest Update Information:

MS50 BAJAJ [V30.00] UPGRADE on Mar 30th, 2021:


Brand Model Year System
BAJAJ Ninja 650R 2006-2011 ENG
2012- ENG
Ninja 300 2013- ENG
Pulsar 200 NS 2014- ENG
ABS
Pulsar 200 NS ENG
ABS
Pulsar FF 200 ENG
ABS
Pulsar RS 200 ENG
ABS
Pulsar 150 2014-2016 ENG
Dominar 400 2016- ENG
ABS
Pulsar LS 2017- ENG
Pulsar NS160 ENG
ABS

MS50 ENFIELD[V30.00] UPGRADE on Mar 30th, 2021

Brand Model Year System
ENFIELD Interceptor 2018- ENG
ABS
Continental GT ENG
ABS
2014-2017 ENG
Bullet 500 EFI 2009- ABS
ENG
BUullet Electra ABS
ENG
Classic ENG
Himalayan 2016- ABS
ENG

Product Parameters

Operation System: Android 5.1.1
CPU: Exynos4418  Dual Core ARM Cortex A9
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card:  32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD:5.0 inch
LCD resolution: 800*600
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature:  -20℃~55℃(14℉~131℉)
Storage temperature:  -20℃~70℃(-4℉~158℉)
Weight:  700g(Main Unit)
Dimension: 140mm*89mm*18mm

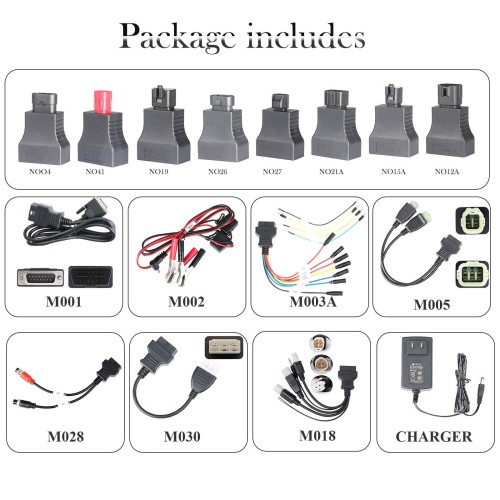

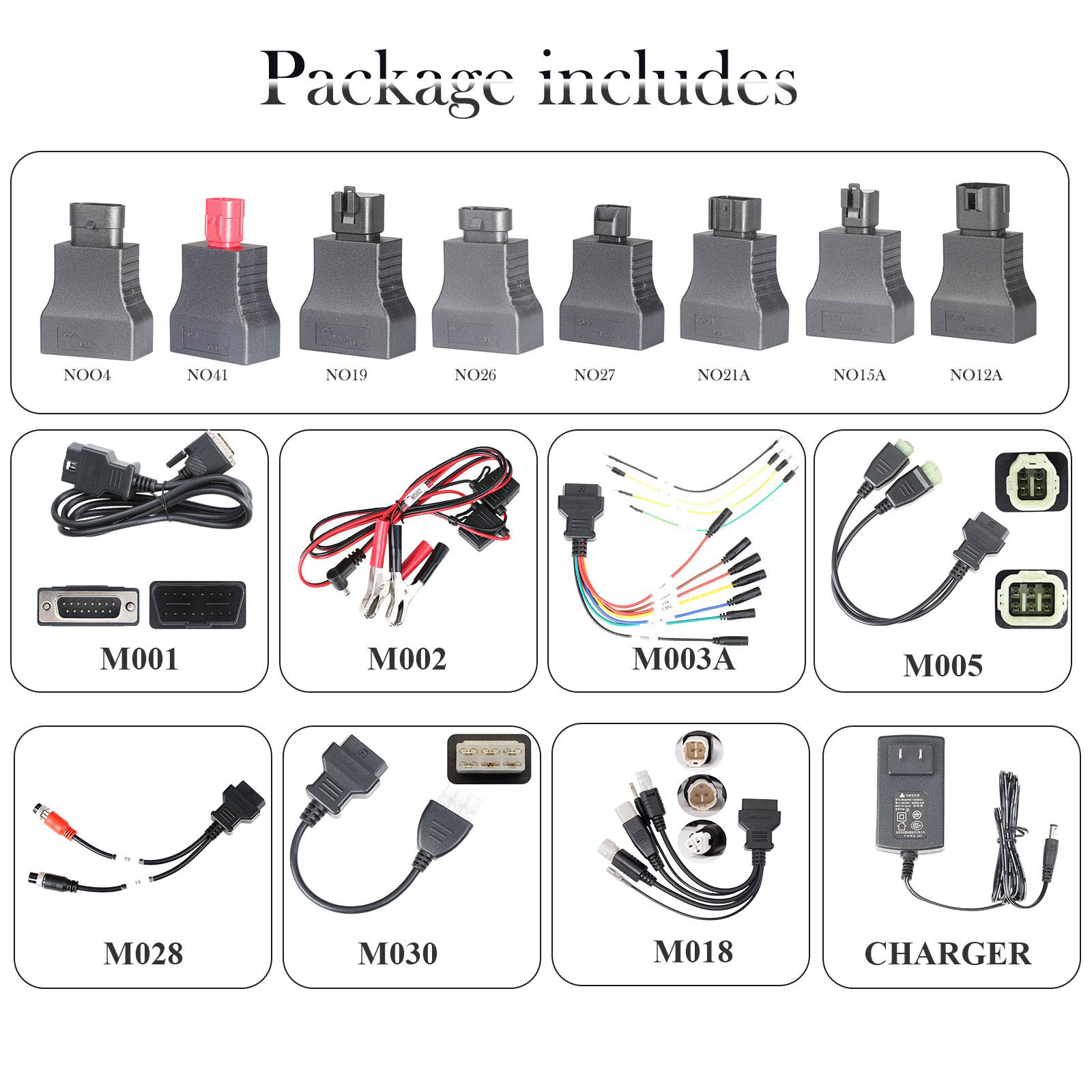

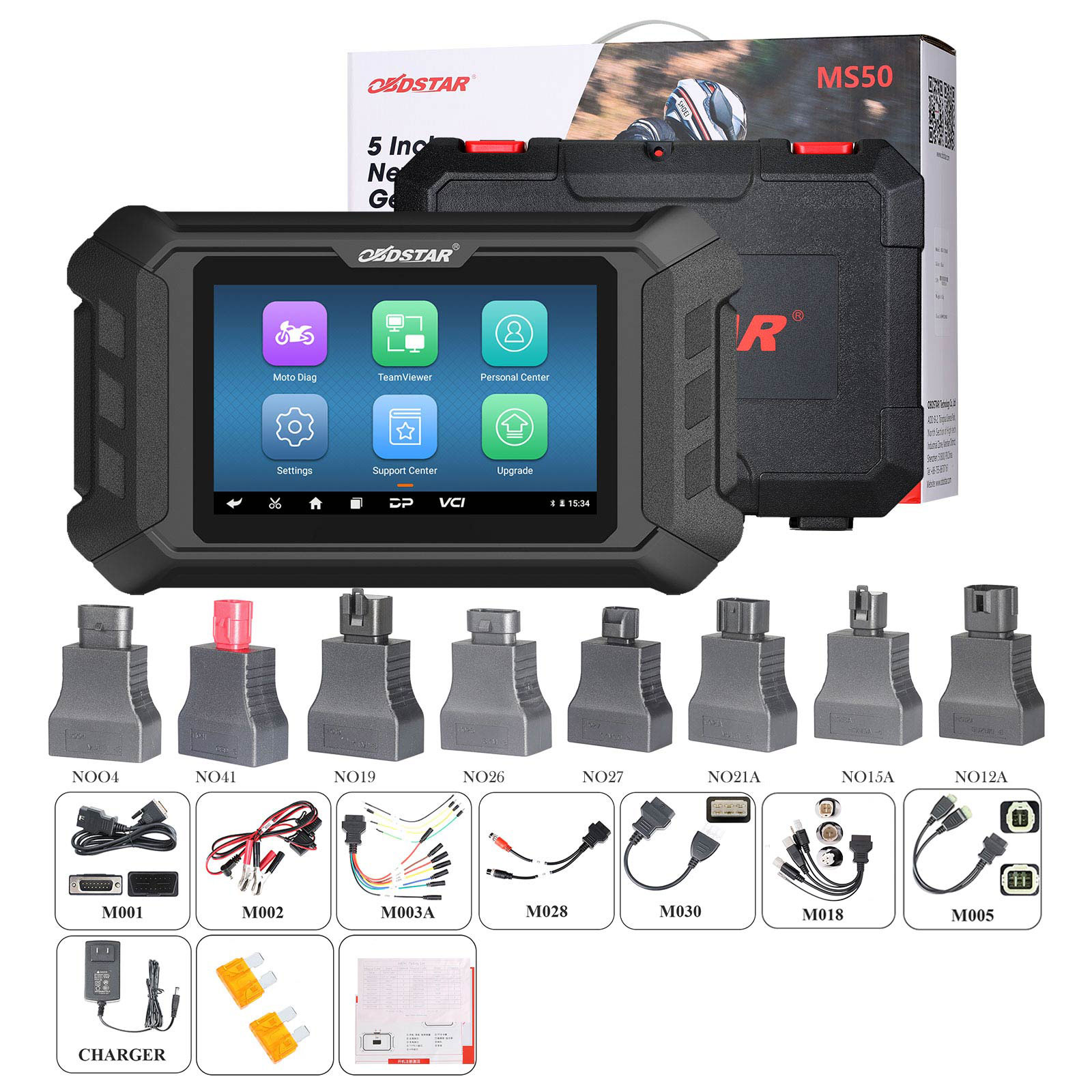

Package Includes:

1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi-functional Jumper
1pc x M005 KAWASAKI
1pc x M018 YAMAHA
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x 12V2A CHARGER
1pc x NOO4 Adapter
1pc x NO41 Adapter
1pc x NO19 Adapter
1pc x NO26 Adapter
1pc x NO27 Adapter
1pc x NO12 Adapter
1pc x NO15A Adapter
1pc x NO21A Adapter
foxflash
