[US Ship] [Second-Handed] 90% New OBDSTAR X300 Classic G3/KEY MASTER G3 A1+A2 Key Programmer Built-in CAN FD DoIP Supports Car, E-Car, HD, Motorcycle

Product Description

OBDSTAR X300 Classic G3 (KEY MASTER G3) Key Programmer with MP001 and P004



OBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, Jet Ski, etc. A good helper for an automotive locksmith master.

OBDSTAR X300 Classic G3 User Manual
OBDSTAR X300 Classic G3 coverage (vehicle list)

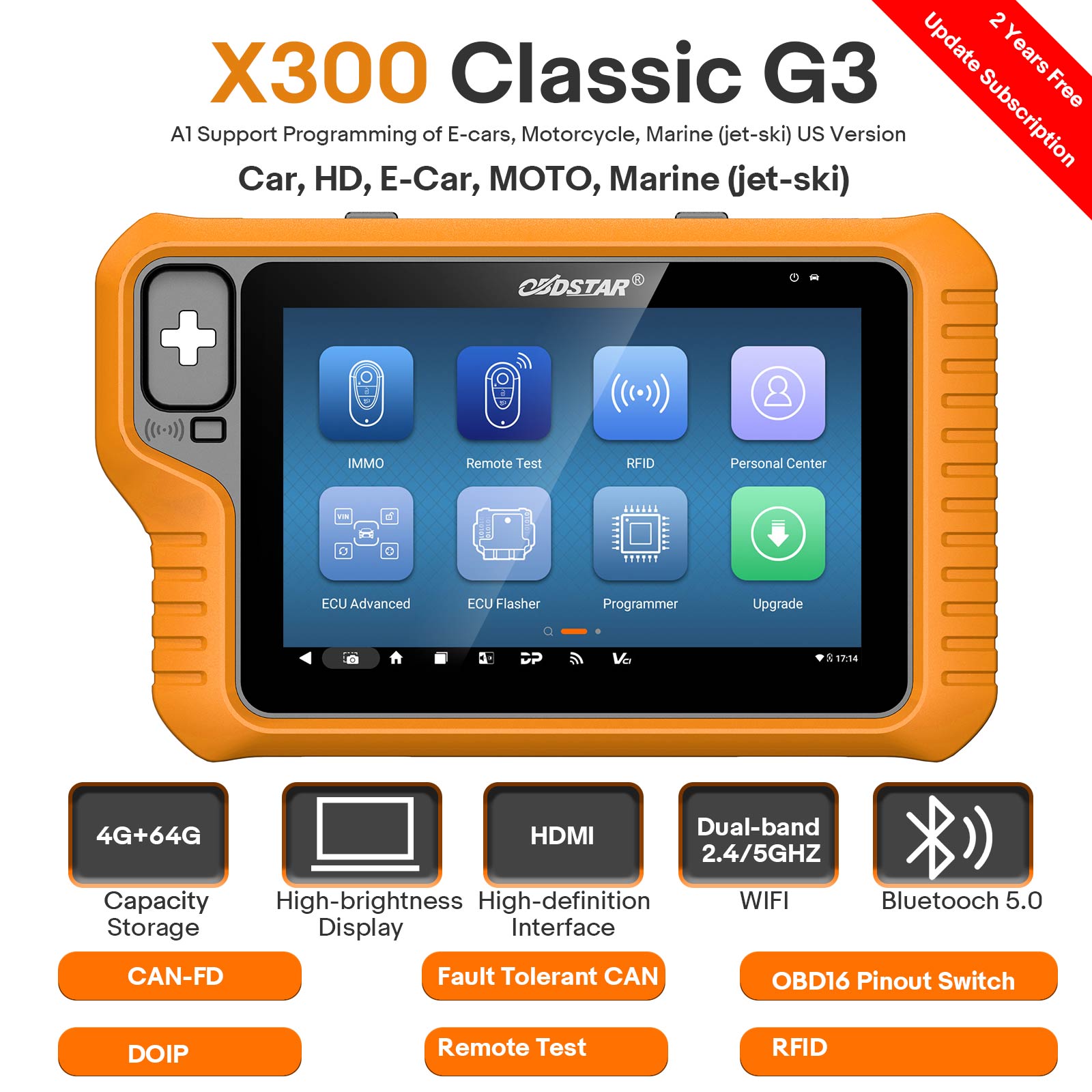

X300 Classic G3 Features:

•  2 years free update. Software subscription $249 per year before update expired, after update expired, the update cost is USD249+USD249/12*expired month(6 months at most)
• Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
• RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor, Battery 9000mAh
• Support WIFI/Bluetooth Dual-band 2.4/5GHZ
• Language: ONLY English, can't change to other language.
• Paid Software Service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn your G3 to a powerful all in one tool. With ECU Cloning license, G3 will work as same as DC706.

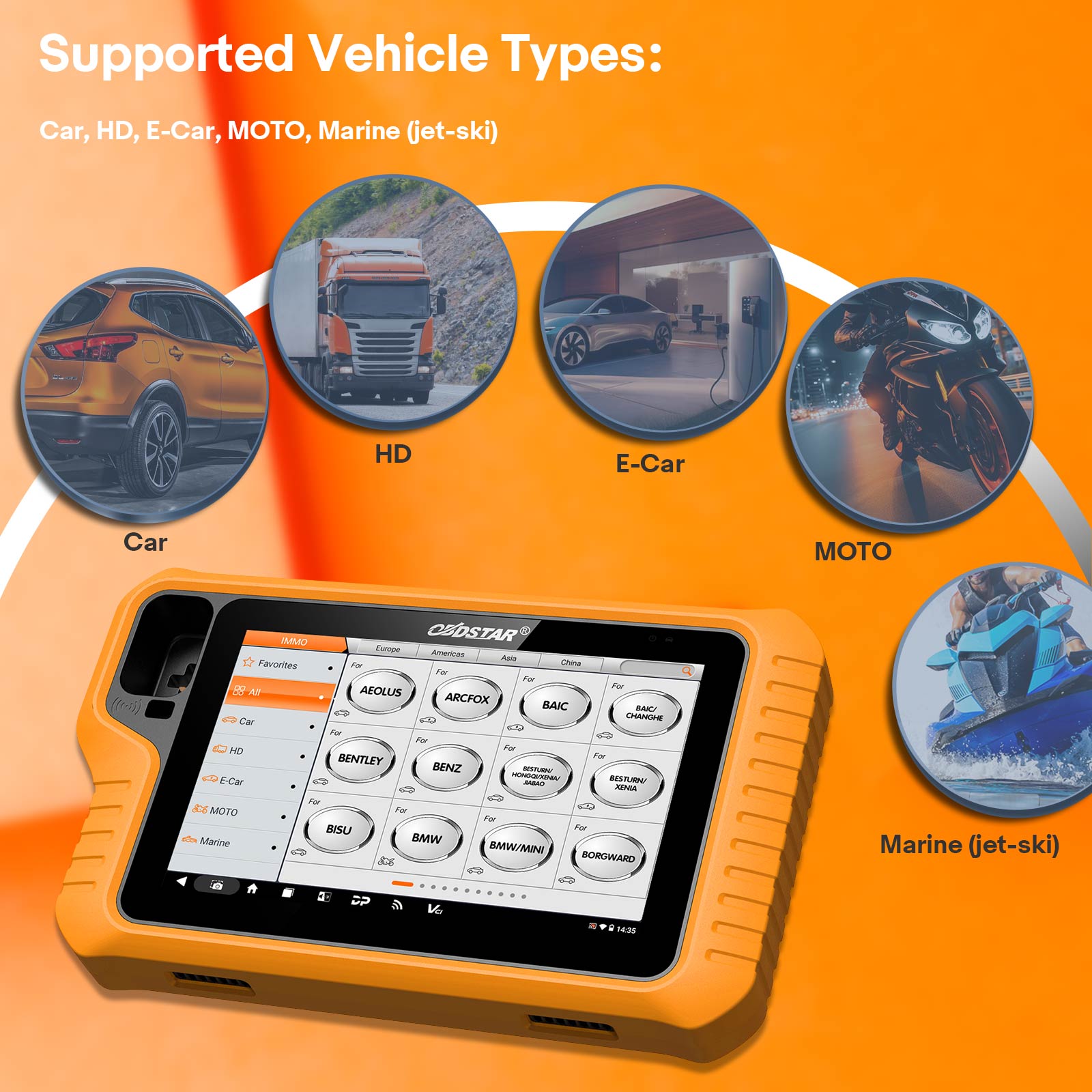

• Supported vehicles: Car, HD, E-Car, MOTO, Marine (jet-ski)
• Comes with MP001 (replace P003/P003+ adapter) and P004 adapters in default
• 2 Free Gifts: Key SIM emulator and Motorcycle cables set (M034, M037, M040, M041, M042, M043, M053, M054)

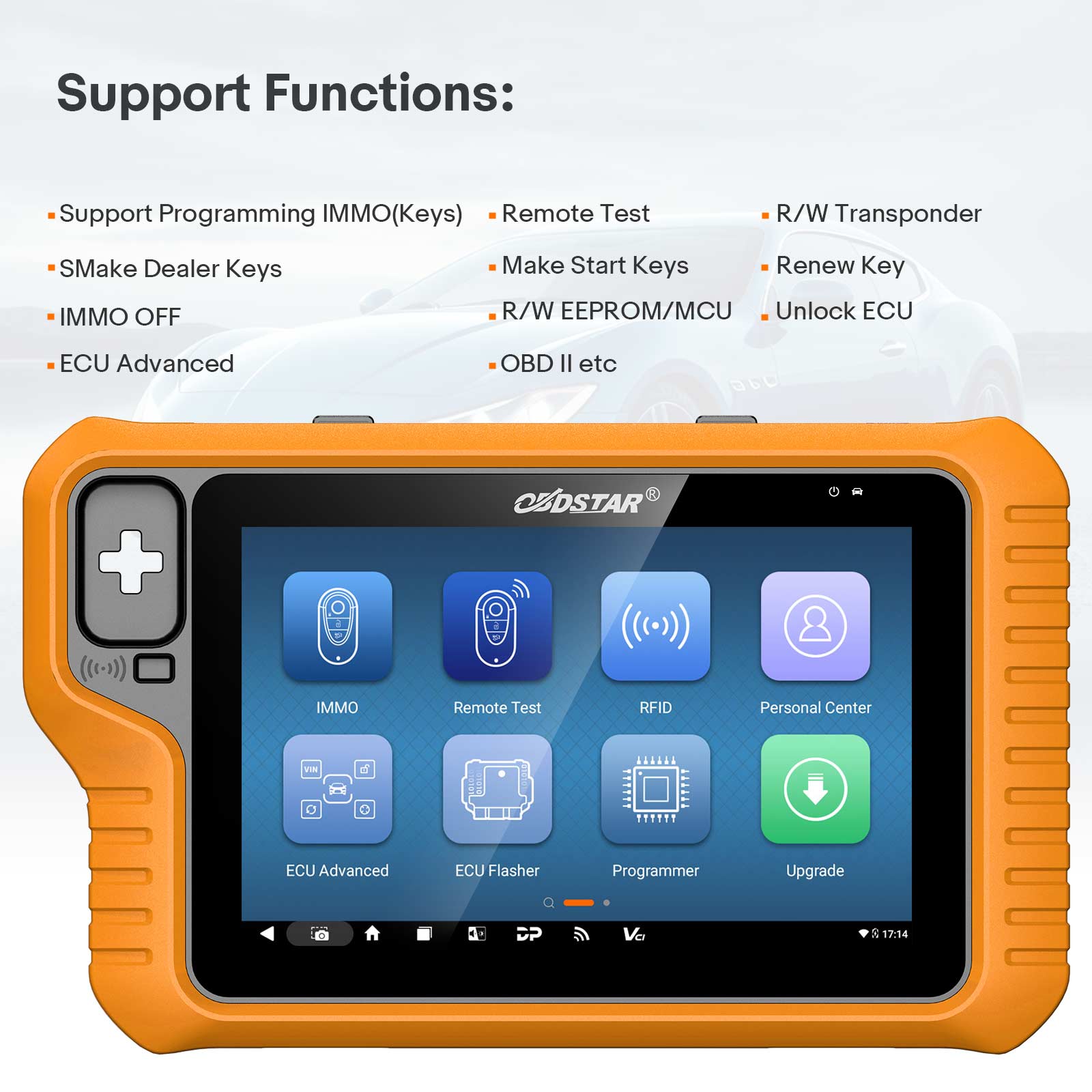

X300 Classic G3 Functions:

Programming IMMO(Keys),
Remote Test,
R/W Transponder,
Make Dealer Keys,
Make Start Keys,
Renew Key,
IMMO OFF,
R/W EEPROM/MCU,
Unlock ECU,
ECU Advanced,
OBD II etc.
Mileage correction (Pay to open license)
ECU/TCU Cloning (Pay to open license)
Airbag reset (Pay to open license)
Test platform (Pay to open license)

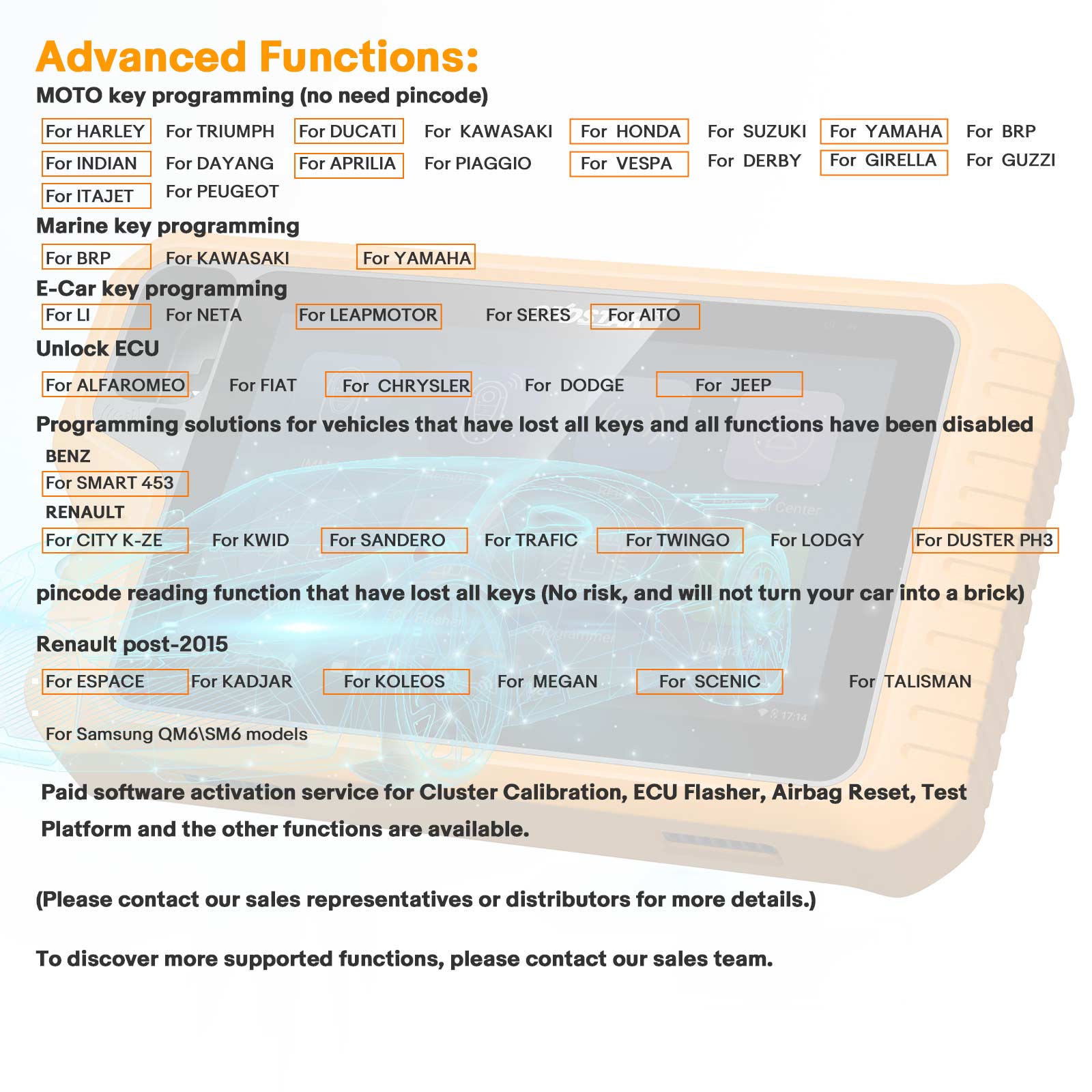

Advanced Functions:

1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;

2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;

3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;

4. Support unlock ECU function for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;

5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;

6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;

7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.

What is the difference between OBDSTAR X300 Classic G3 (Key Master G3) and OBDSTAR X300 DP plus?

Check the table comparison below:

Item	OBDSTAR X300 Classic G3	OBDSTAR X300 DP Plus
Operating system	Android 11	Android 5.1.1
OTA	Yes	No
Screen recording	Yes	–
Wireless screen casting	Yes	–
CPU	Dual-core Cortex-A72 + Quad-core Cortex- A53	Exynos4418 qual core ARM cortex A9
Battery	9000mAh	3700mAh
Storage capacity	4G+64GB	1G+32GB
LCD	8.0 inch fully laminated sunlight readable screen	8.0 inch
Camera	800w pixels rear camera, auto focus	500w pixels rear camera
Bluetooth	Bluetooth 5.0	–

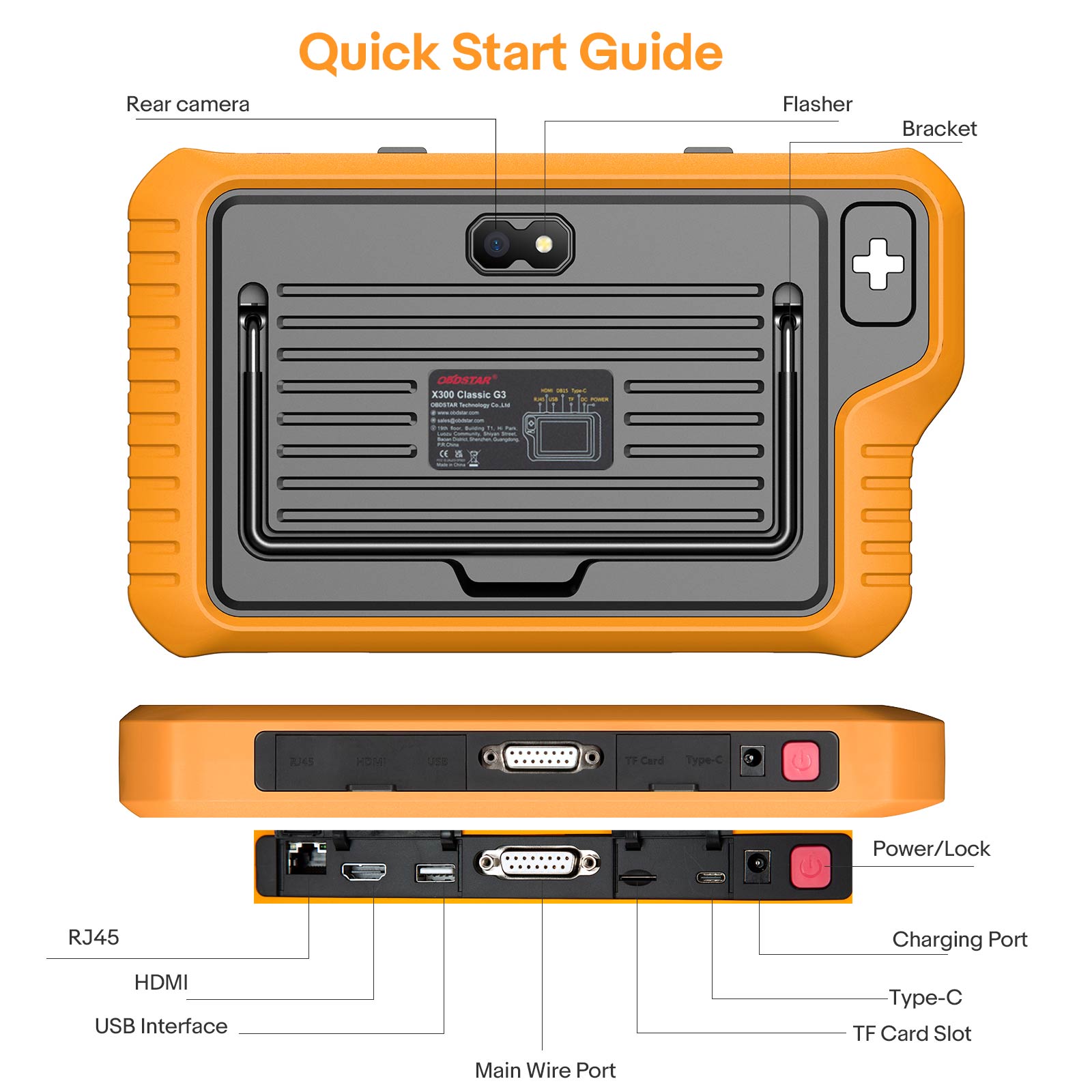

External interfaces	RJ-45	–
	HDMI	–
	Type-A, Type C	Type-A, Type C
WiFi	Dual-brand 2.4G.5GHZ	2.4G
VCI	STM32H723	STM32F407
	CAN FD built-in	Require CAN FD adapter
	DoIP built-in	x
	Fault tolerant CAN built-in	x
	All other common protocol types	All other common protocol types
RFID	Built-in	Require P001
Remote test	Built-in	Require RT100
Renault converter	Built-in	Require Renault converter
Keysim	Comes with Key SIM as free gift	Purchase separately
MP001	Comes with MP001 in default	Purchase separately
P004	Comes with P004 in default	Purchase separately
Car Immobilizer	Yes	Yes
Commercial Vehicles Immobilizer	Yes	No
Electric car Immobilizer	Yes	No
Motorcycle Immobilizer	Yes	Part of
Marine (jet-ski) Immobilizer	Yes	No
Unlock ECU	Yes, Unlock ECU for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others	No
ECU Flasher	Yes, for some brands	Yes, for some brands
ECU Cloning (DC706 function)	Optional license	No
Odometer correction	Optional license	Yes, some
Airbag reset	Optional license	Optional license
Test platform feature	Optional license	No
Update	2 years free update	2 years free update



In Sum:

1. X300 Classic G3 has built-in CAN FD, DoIP, RFID and Renault converters. Don't need to purchase extra CAN FD, RFID, Renault converters.
2. The new X300 Classic G3 comes as an immobilizer tool. You can add mileage correction, airbag reset, ECU cloning (DC706 functions) and test platform license to the device. Turn the device into a all-in-one tool.
3. X300 Classic G3 has a new system, larger storage, bigger battery, BT 5.0 and more advanced hardware configuration.

X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of X300 DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.



Function Display

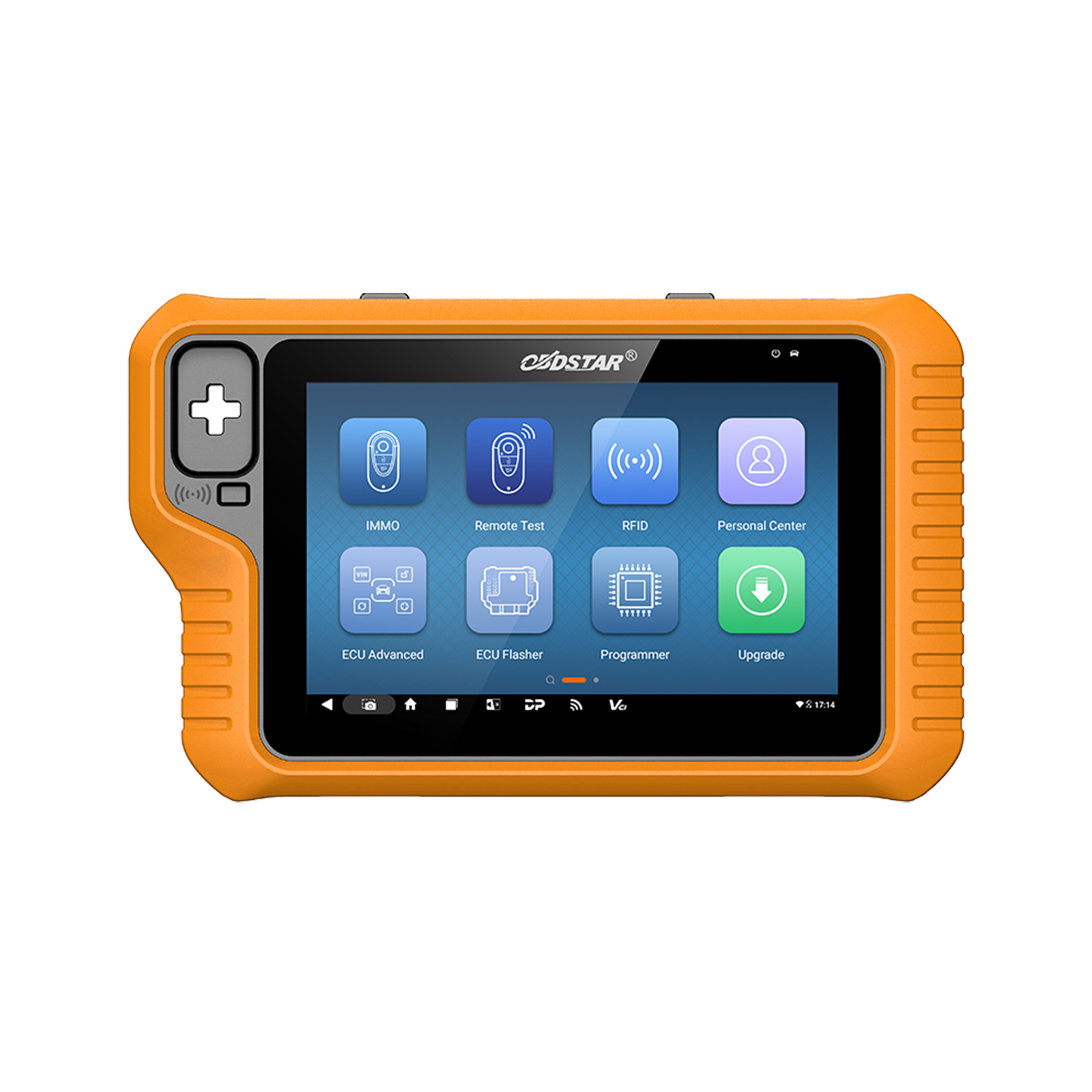

1) Main Page

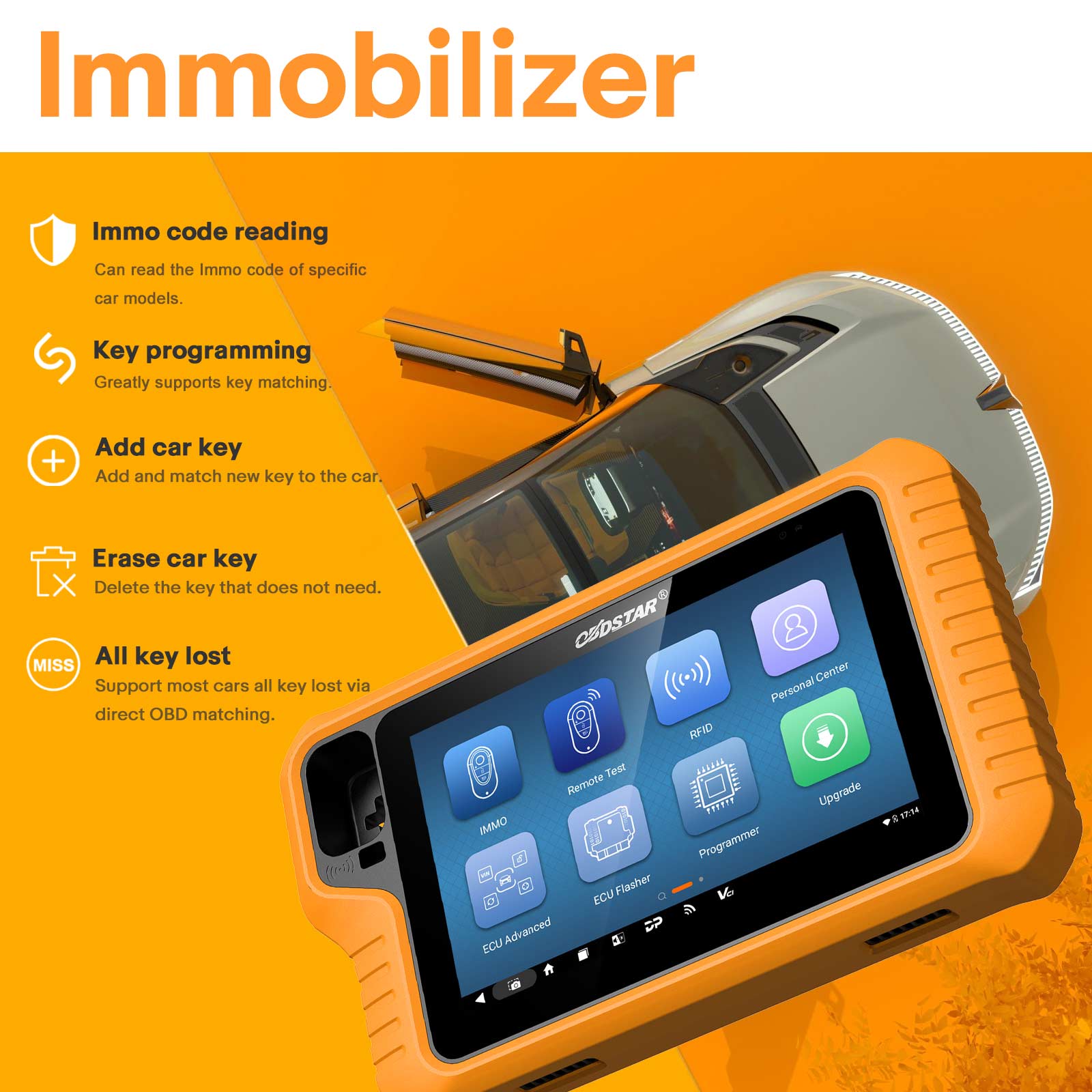

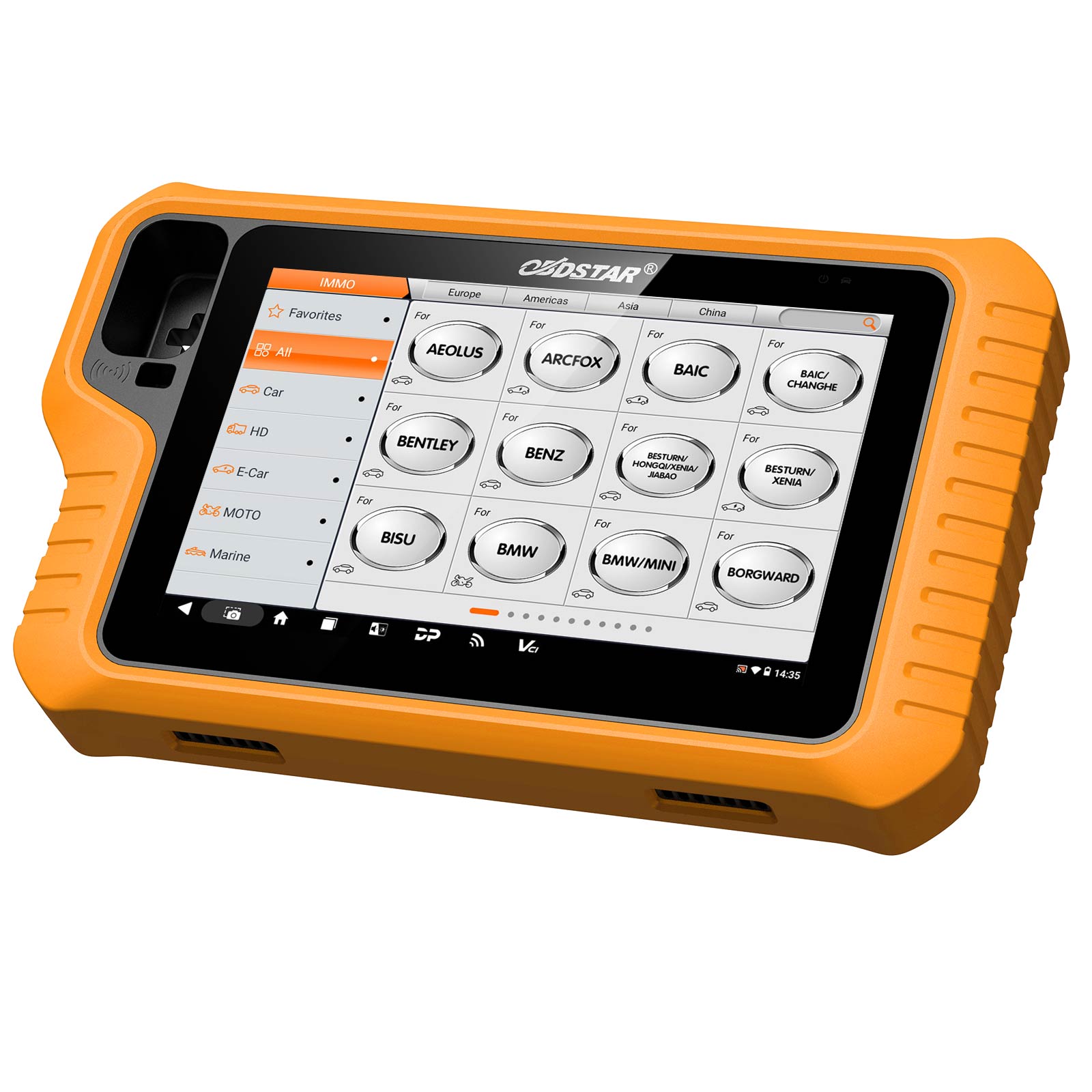

2) IMMO



3) Remote Test



4) RFID



5) ECU Advanced



6) ECU Flasher

Update:

OBDSTAR
MOTO IMMO SOFTWARE
MAJOR UPGRADE

BMW 【Version: V40.10】

1. Add below functions for BLADE 4D Chip Type:

• ECU Info.
• Key Information
• ISN/SK Reading
• Program Keys
• Erase Keys
• Program X_EWS

2. Add below functions for PROXIMITY 8A Chip Type:

• ECU Info.
• Key Information
• ISN/SK Reading
• Program Keys
• Erase Keys
• Program X_SLZ

3. Optimized software.

Supported Tools

MOTOMASTER, MS80, MS70, MS50, ISCAN BMW, KEYMASTER G3

The software updates may different depending on the product configurations.


Highlights Added：

Add BENZ DSM(FBS4) C207/C292/W166/W212/W218/W447 3 part numbers(A0002703252/A0002703352/A0002703452) the following functions support:

ECU Info.;
Read Data(Backup);
Reset Virgin;
IMMO Data Synchro;
Write VIN;
Write Data.

Add BENZ DSM222(FBS4) C217/W205/W222/W907/W910 3 part numbers(A0002704252/A0002704452/A0002704652) the following functions support:

ECU Info.;
Read Data(Backup);
Reset Virgin;
IMMO Data Synchro;
Write VIN;
Write Data(Recover).

BCM Version: V30.02

1. Add immocoil data initialization function for below models:
TIANJIN FAW VITA V5 PIC16F688
TIANJIN FAW N5 MC9S12G48
TIANJIN FAW N7 MC9S12G48
2. Optimized software.

FAQ

Q: Can the X300 Classic G3 be equipped with Airbag Reset, Cluster Recalibration, ECU Flasher and other functions?
A: Yes, need to buy the authorization.


Q: I would like to have the list of supported models & features of this tool, where can I get it?
A: You can download the coverage of the tool from the "Function Manual" on the product page of our official website, and we usually synchronize the update at the end of each month.


Q: Is X300 Classic G3 compatible with all the functions of X300 DP PLUS?
A: No, KEY MASTER G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of KEY MASTER DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.


Q: Can I use the accessories of an old product I have previously purchased?
A: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:

1. P002 adapter, P003 adapter, key Sim adapter;
2. CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;
3. NISSAN-40 BCM cable, NISSAN/ RENAULT 16+32 cable;
4. FCA 12+8 cable;
5. TOYOTA 8A cable, FORD all key lost cable.


Q: What is ECU Unlock function of X300 Classic G3?
A: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.

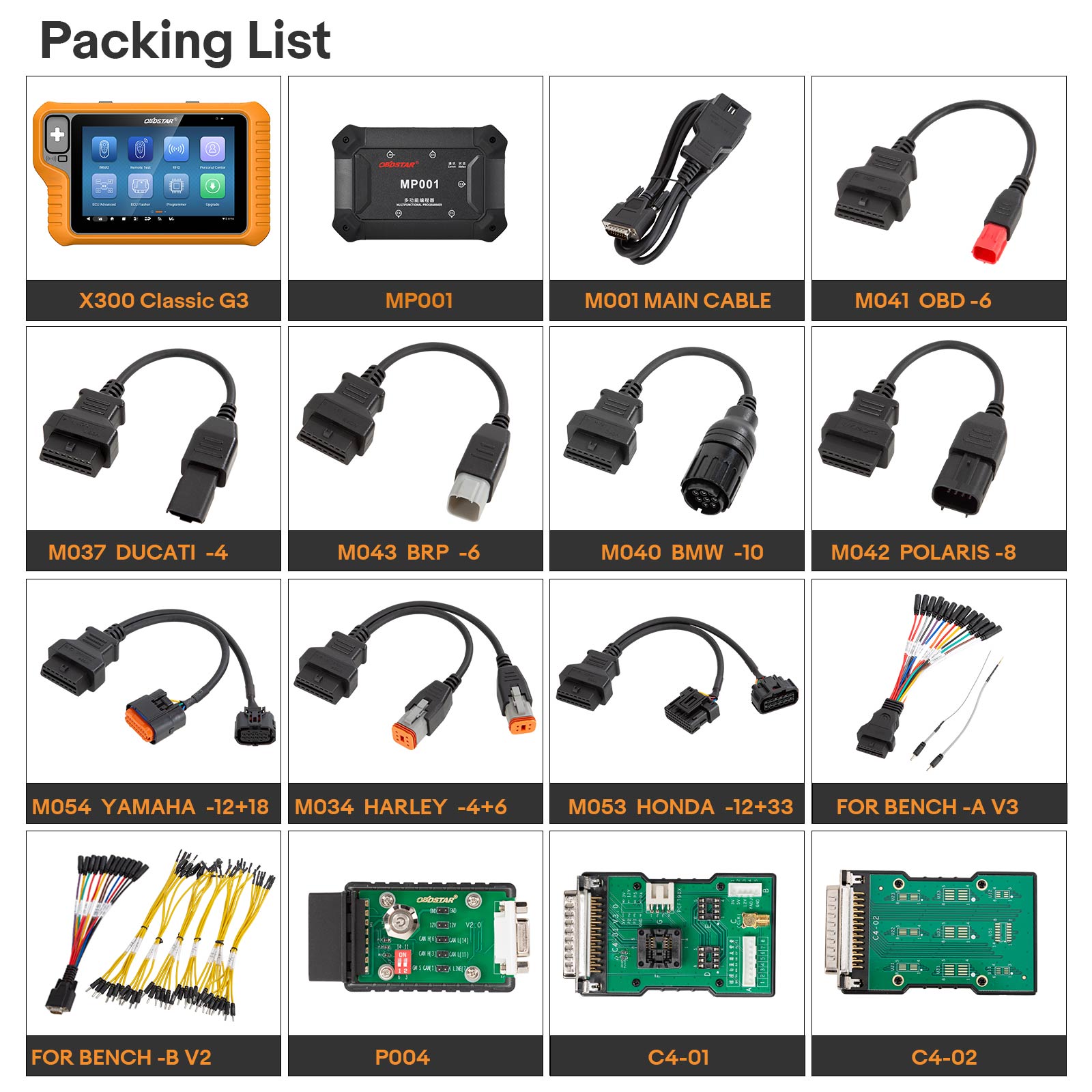

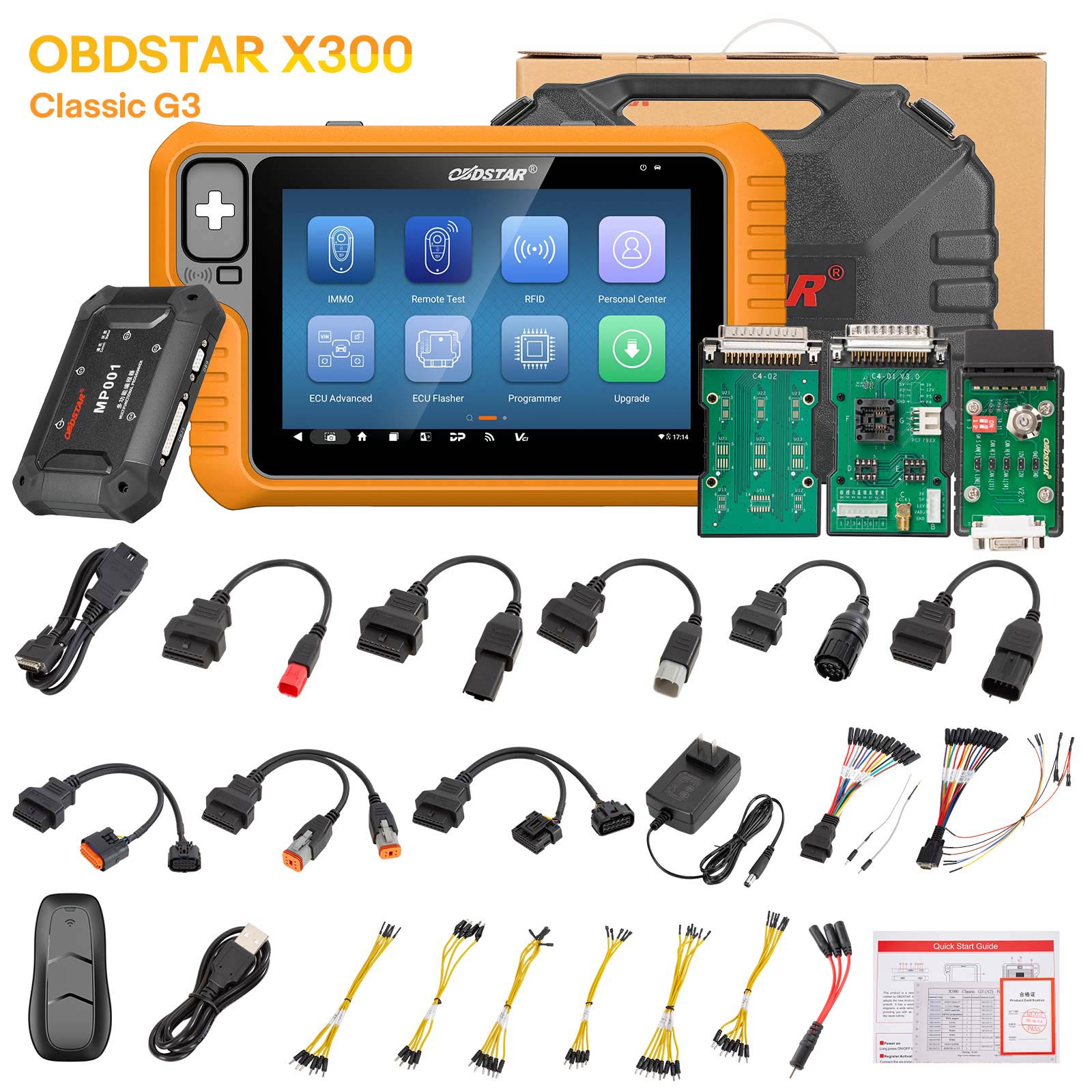

Package Includes:


1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x 3-in-1 jumper
1pc x BENCH-B V2 ECU Cloning BENCH harness

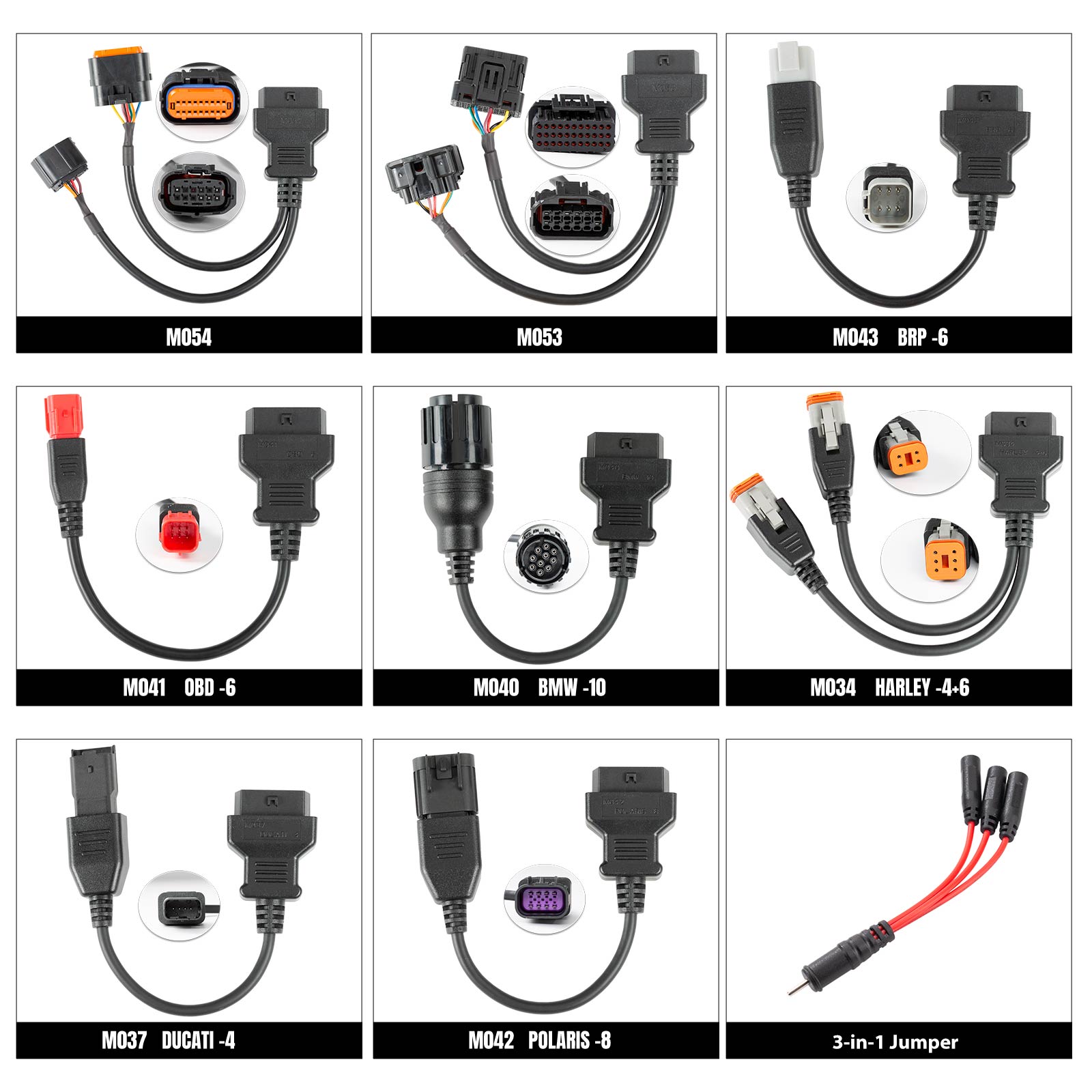

Free Gift Kits
A1
1pc x KeySlim + USB to Type-C Cable
A2
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA
