THINKCAR TKEY101 with Super Chip Car Key Programmer Immobilizer Matching Tool Lifetime Free Update

THINKCAR TKEY101 with Super Chip Car Key Programmer Immobilizer Matching Tool Lifetime Free Update

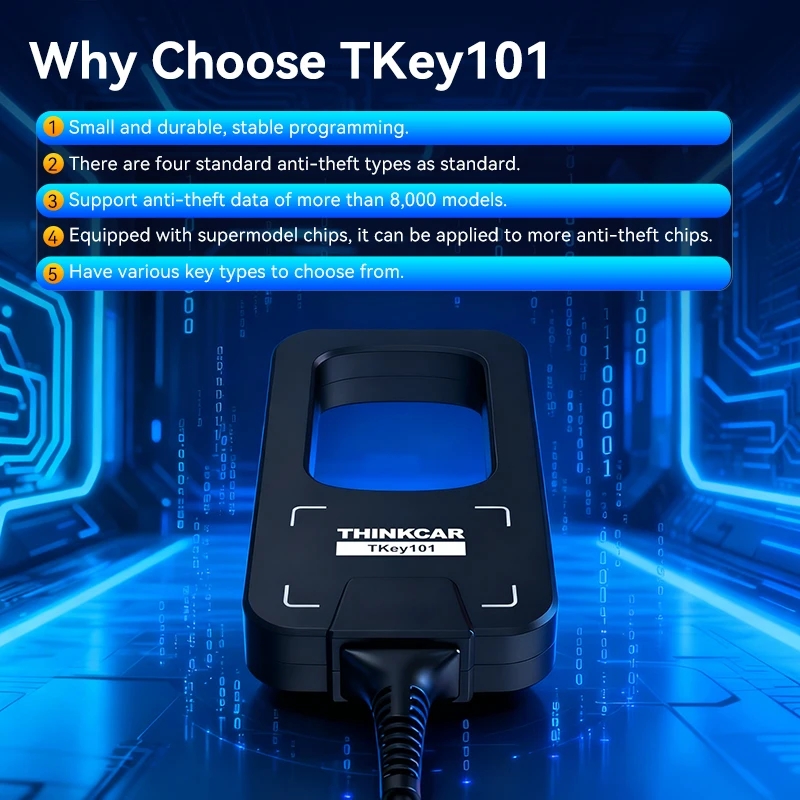

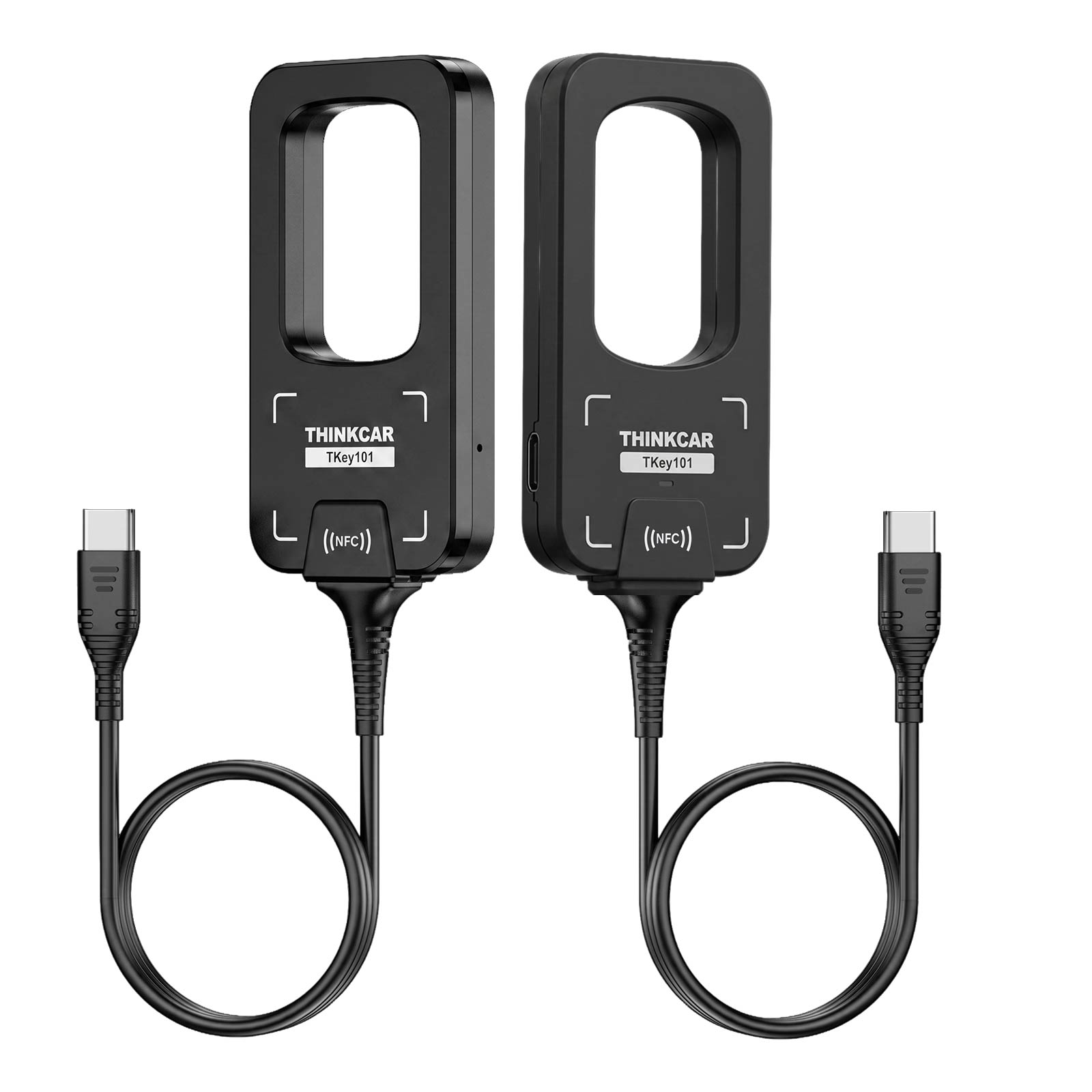

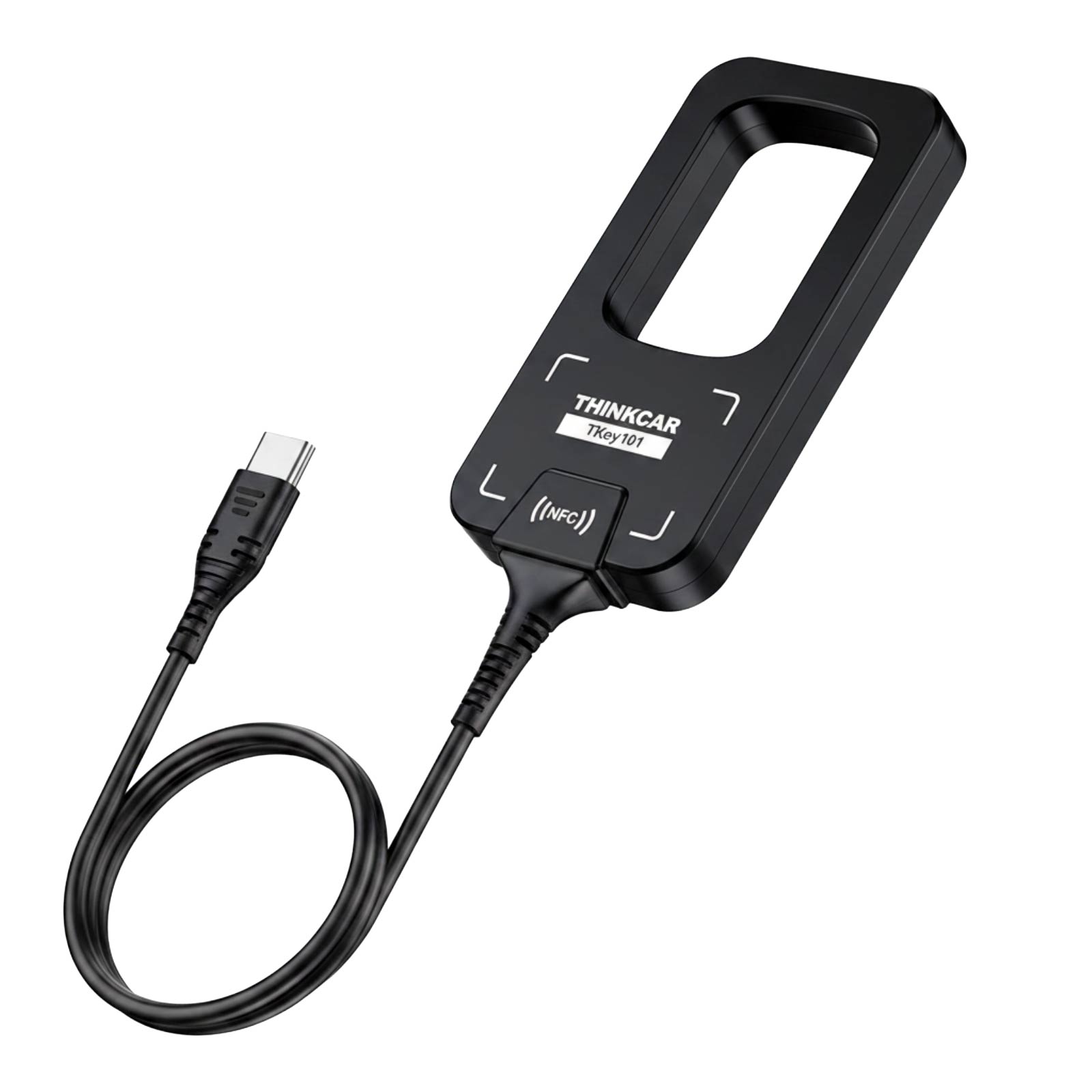

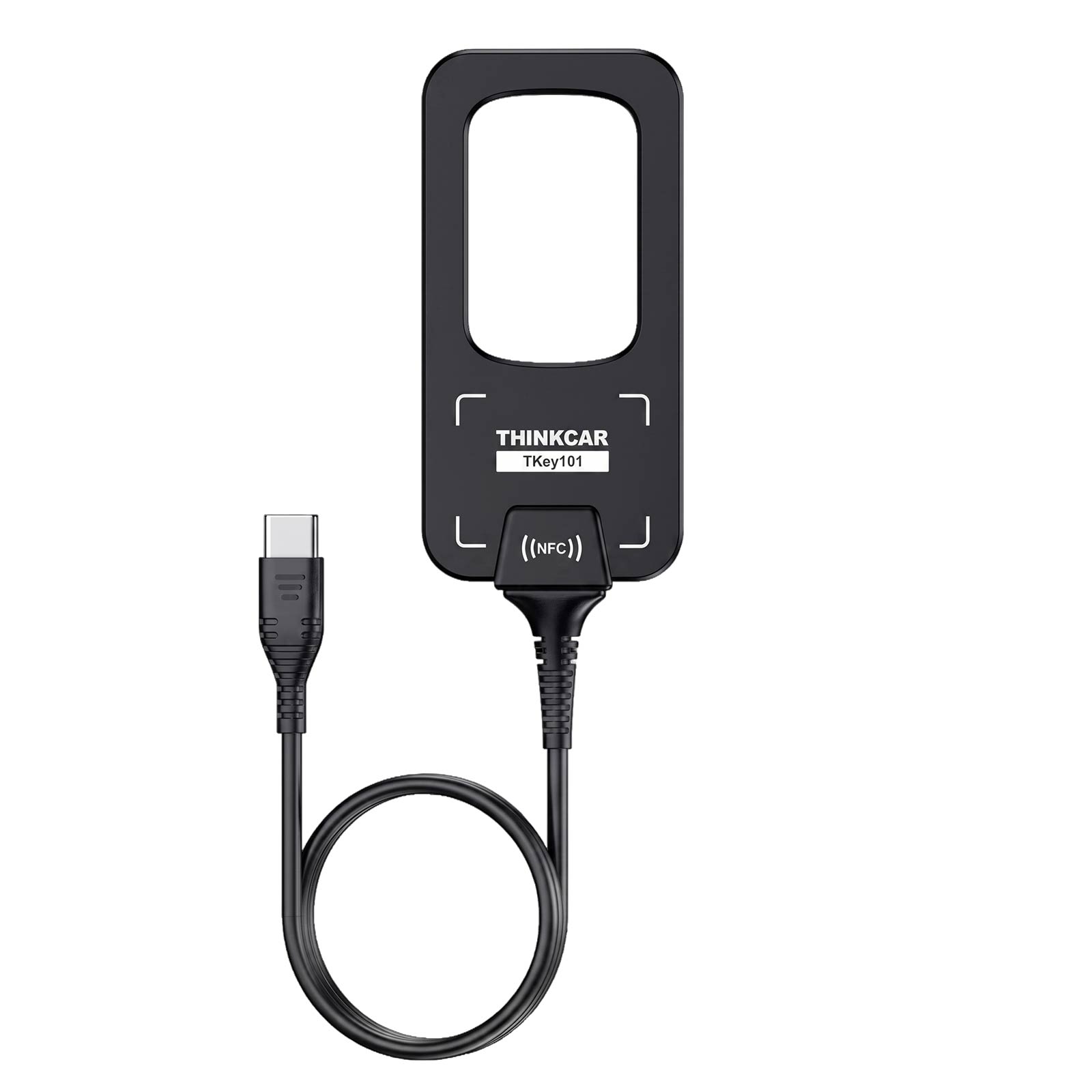

THINKCAR TKey101 is a car key programmer. It can recognize car keys and generate remote control options that can be programmed into the car. It's a comprehensive automotive key programmer that combines anti-theft reading, writing, programming, and matching functions into a single integrated solution. It can be used to recognize car keys and can also be used with key blanks to generate dedicated keys that can be used for remote unlocking of cars.

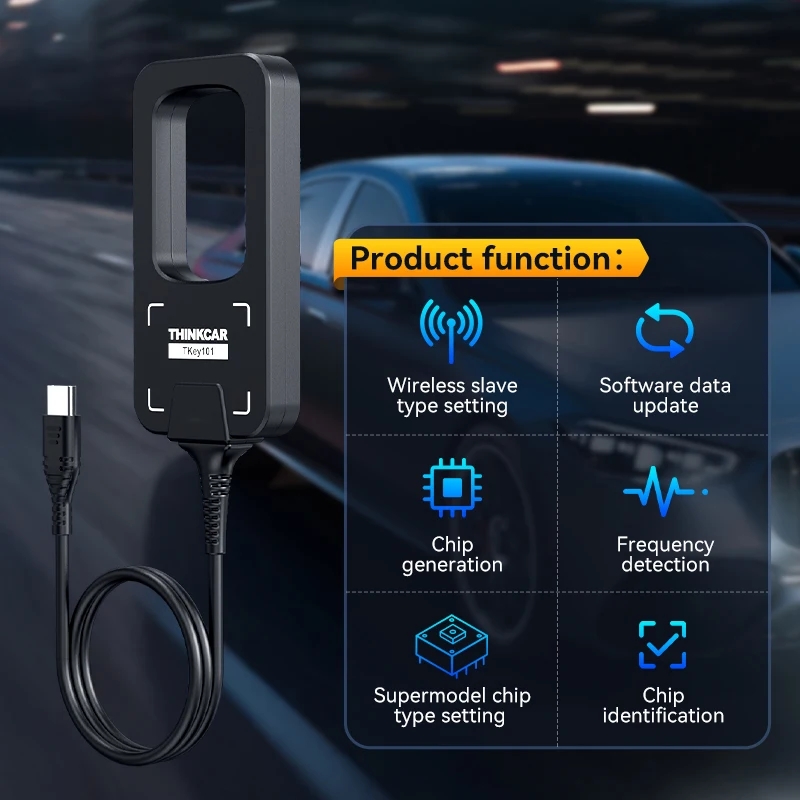

• Remote Generation
• Chip identify and Chip generation
• Frequency Detection
• Ignition coil detection
• Super chip type setting: Put the super chip into the device coil , select the option to set the super chip to the corresponding chip type, as well as reset the super chip to a blank 46 chip.

Note:

1. Different cars require different keys.Customer can check the remote type by using "Remote function-->Detect remote"
2. Attention: Only the TK type remote does not require batteries to be installed during the remote generation process, other remote type require 3-volt batteries to be installed during the remote generation process, and do not move the device or remote during the remote generation process, as this may result in the failure of the remote generation.
3 . Batteries are not included in the package; users need to purchase CR2032 button batteries separately.

Work with: THINKCAR THINKSCAN 689BT/MUCAR 892BT/MUCAR VO8/THINKSCAN 689

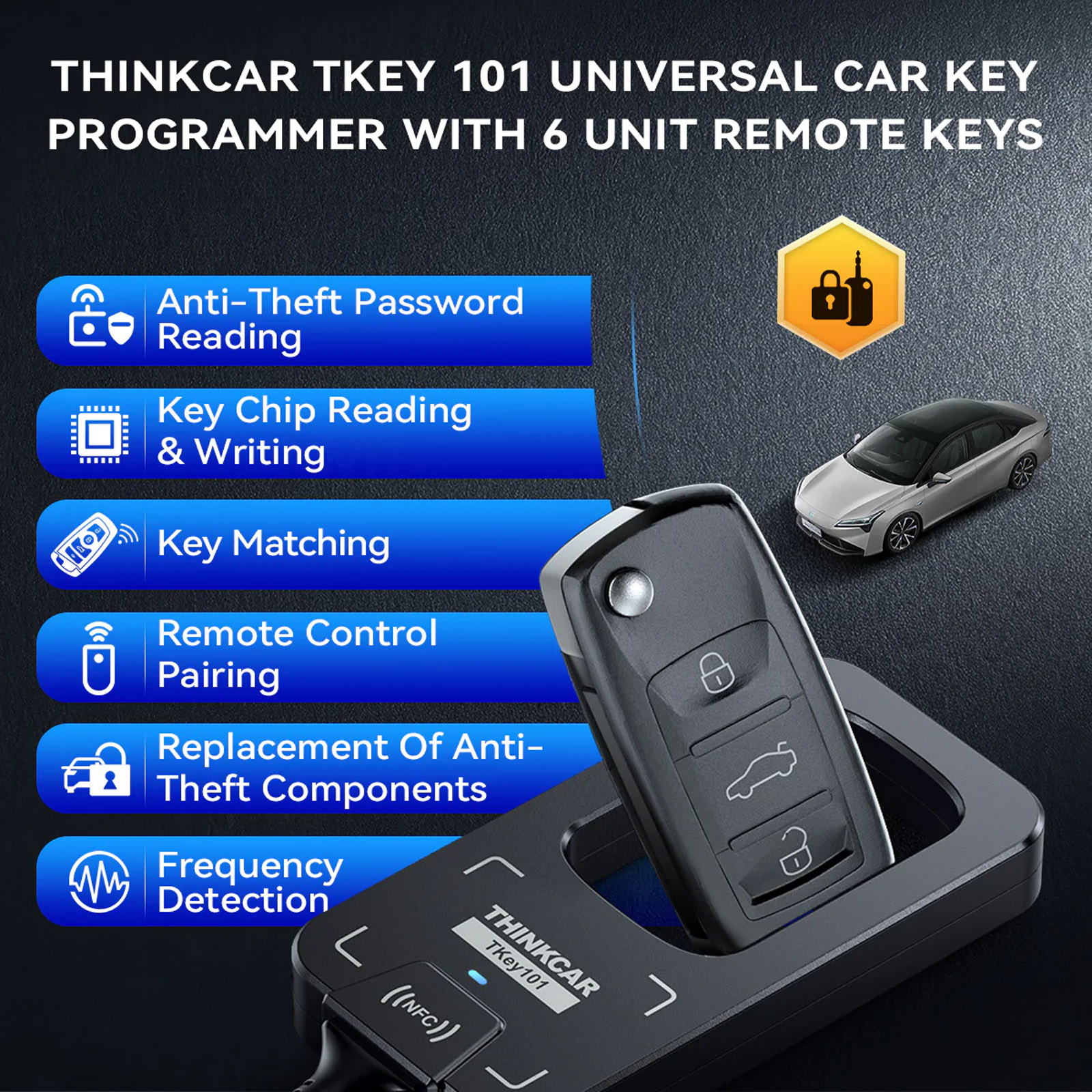

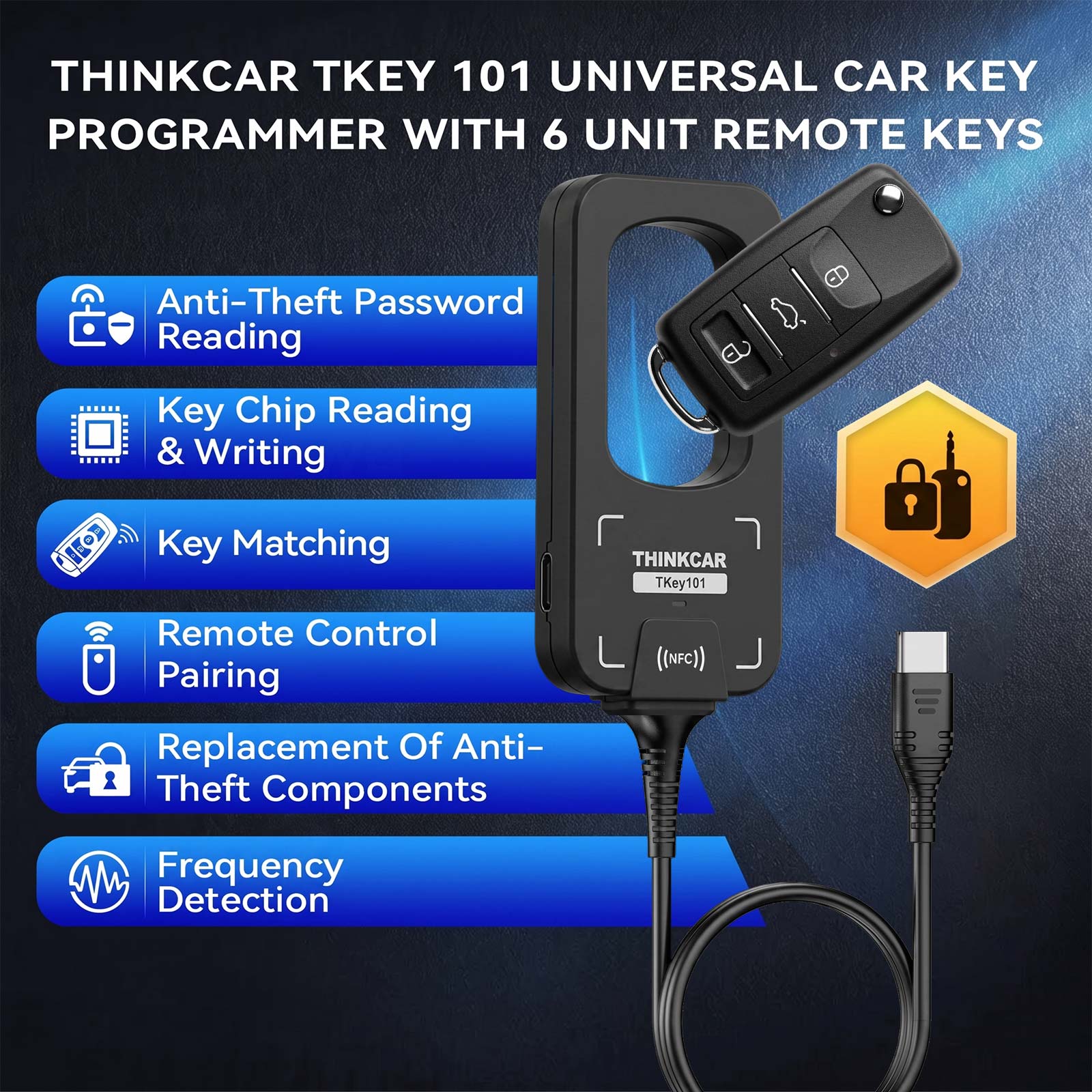

Main Key Functions


• Universal Key Programmer: TKey 101 has versatile functionality for various scenarios as following-
• Lost Key Assistance: Effortlessly addresses situations where keys are lost.
• Key Generation: Capable of generating new keys as needed.
• Key Matching: Facilitates seamless matching of keys to the vehicle.
• Anti-theft Component Replacement: Streamlined process for replacing anti-theft components.
• Key Chip Reading and writing: Each car model supports different key type, please refers to the instructions to find the corresponding key to flash when runing the key programming procedure in the THINKCAR tools.

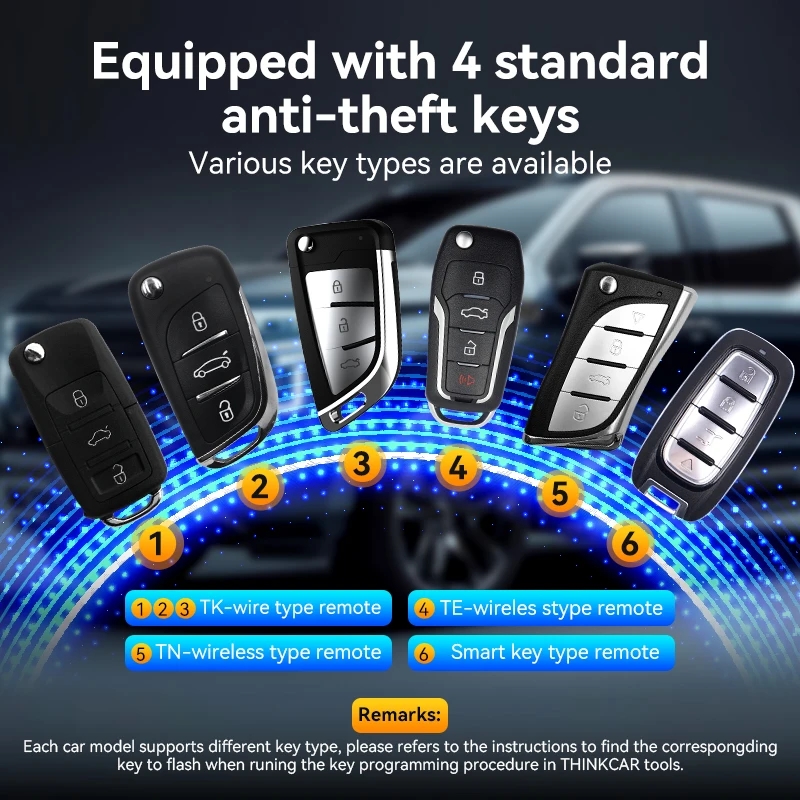

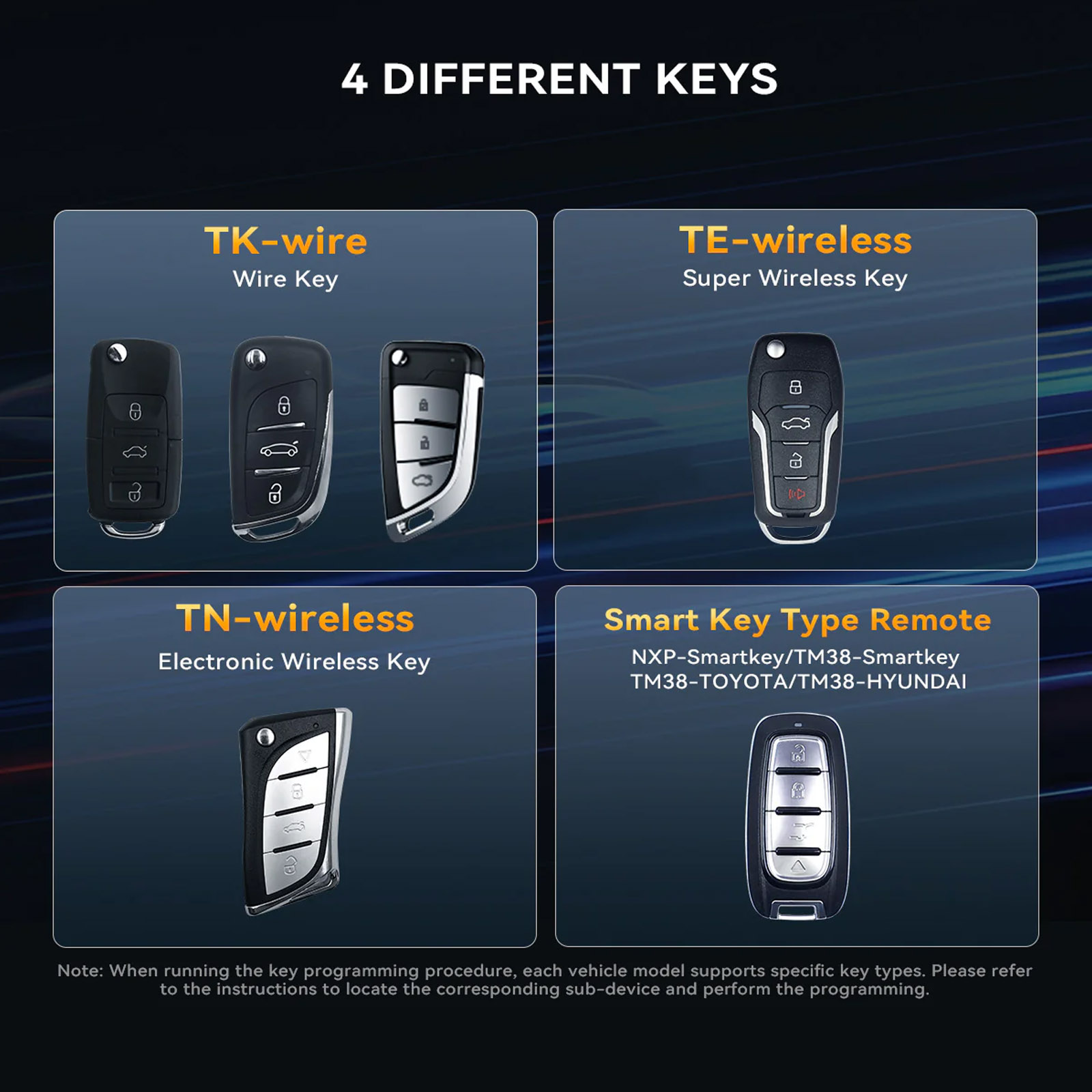

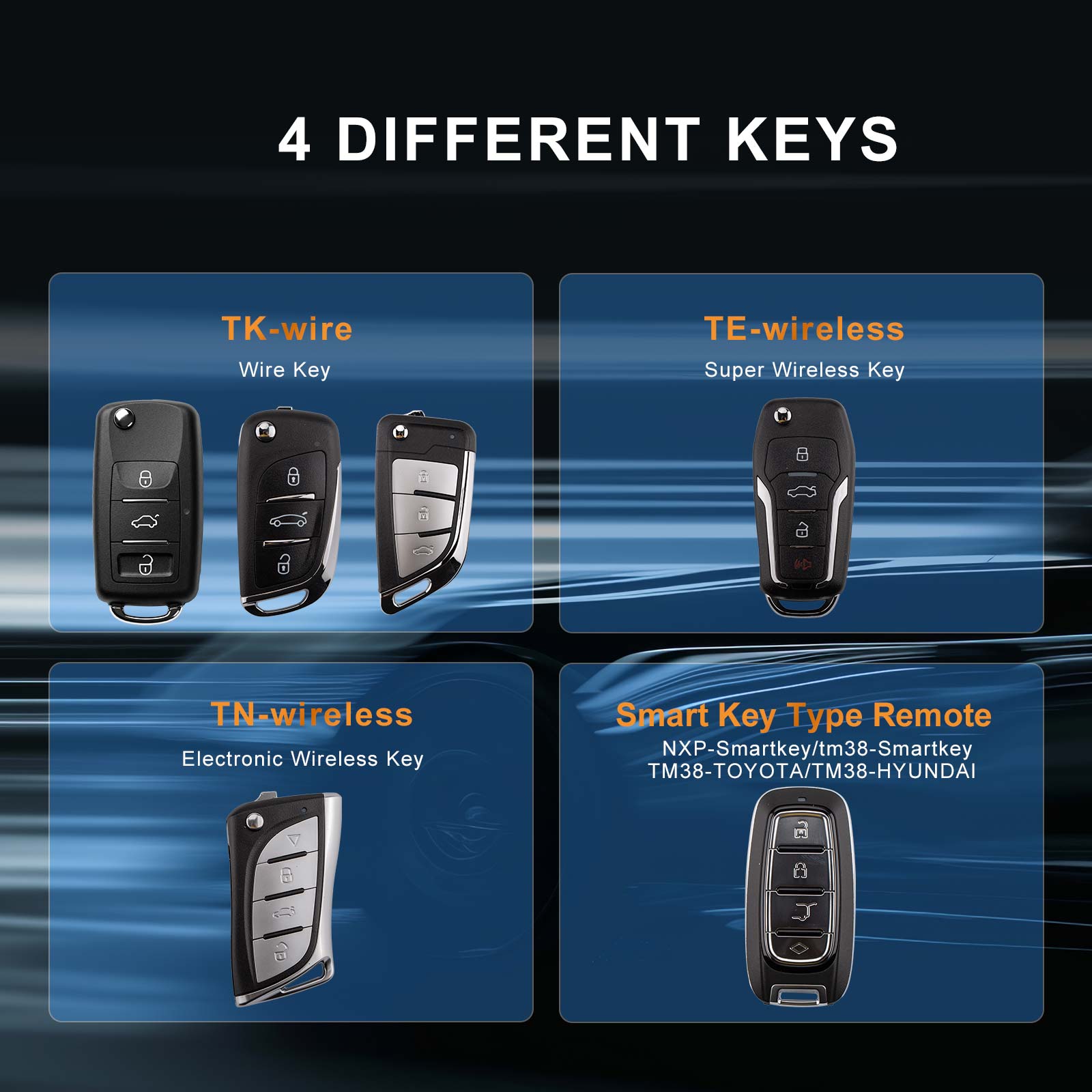

4 Different Keys

TK-wire: A single socket on the circuit board. The battery needs to be removed to program the key.
TE-wireless: A circuit board with a long inductor. A battery needs to be installed to program the key.
TN-wireless: A circuit board with a long inductor. A battery needs to be installed to program the key.
Smart key: Most keys have a concealed key cover or no key fob; a battery is required to generate power.

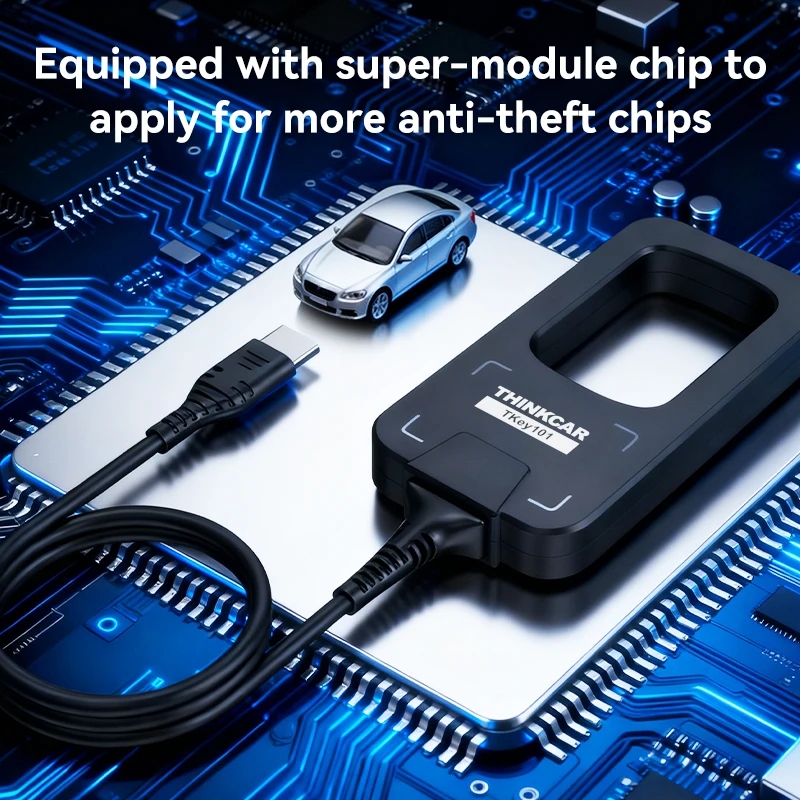

Equipped with Super-module Chip to Apply for More Anti-theft Chips

Super chip type setting: Put the super chip into the device coil , select the option to set the  super chip to the corresponding chip type, as well as reset the super chip to a blank 46 chip.

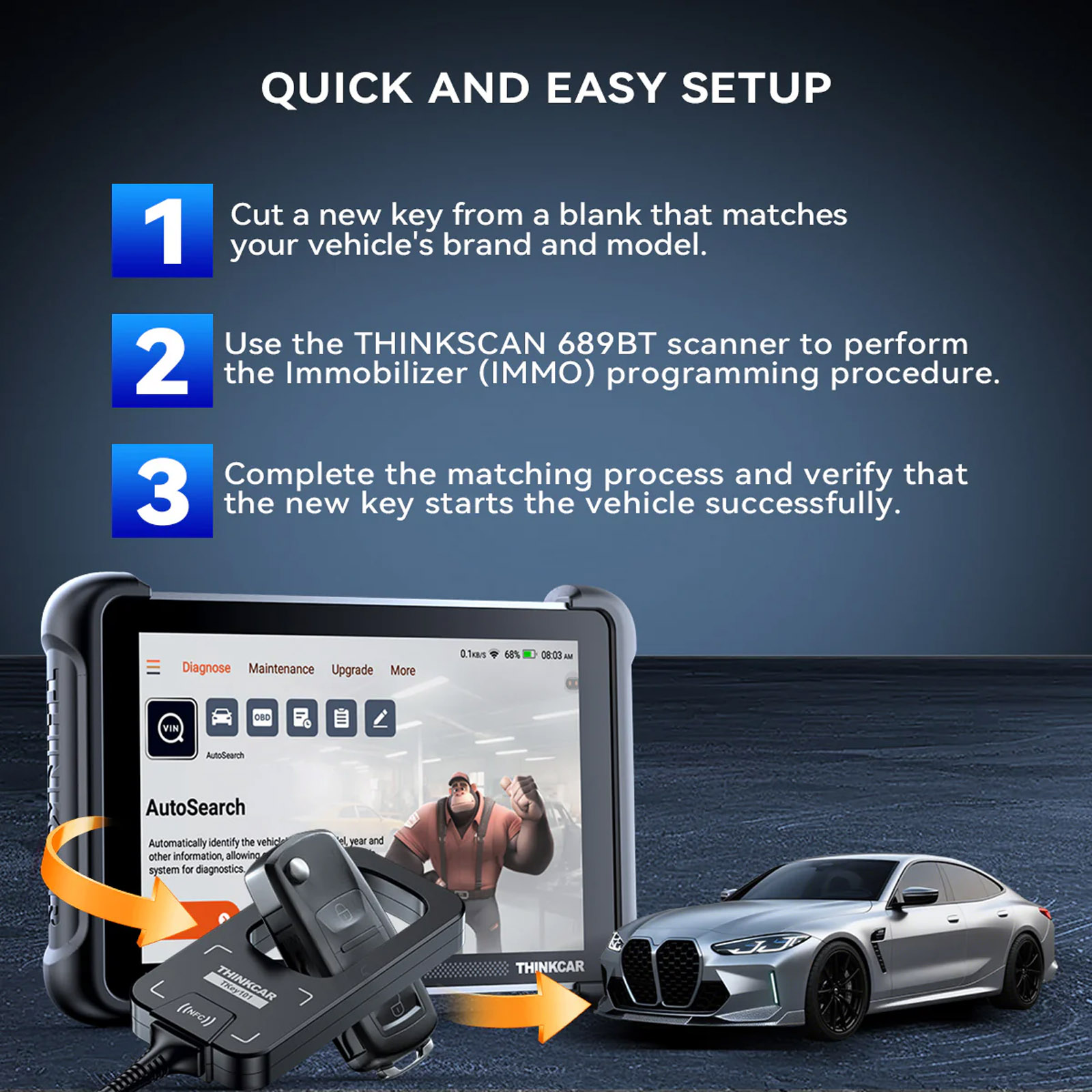

How to Work with THINKSCAN 689BT

Step 1: Select "Module"

Step 2: Select "Key Programmer"

Installation Operations

Step 1: Open the dust cover

Step 2:Type-C Plug to Type-A USB Plug

Step 3:Type-A USB Plug in Tablet

Remote function:

Detect remote, partial information about the remote can be detected (cannot be used to confirm the generated program)

1. Remote failure detection: Sudden failure of the remote in normal use requires the use of this function under the guidance of a technician

2. Smart key clone: Put the programmed smart key into the coil to read the data, then put a new smart key that needs to be generated with the same remote options into the coil to write the data, the new smart key will have all the functions of the programmed smart key and the programmed smart key will no longer work, (This feature is used to exchange a programmed smart key for a new smart key without reprogramming, can't be used to add a key or clone a key, and does not support MQB and vw48 smart key exchanges.

3.for Toyota TM38 smart key Settings: Used to change Toyota TM38 smart key frequency, key button and signal strength, no need to program key again after writing (only support to change the TM38 smart key, do not support the option of BA,4A,do not support to change the original key)

4. Smart key customization: This function is used to change the key position of smart key and smart key remote sensitivity by placing the smart key into the coil to read and change the values and write them back when all changes are complete, no reprogramming is required after the write back.

5. for Toyota smart key unlocking: Support 40, 80 bit original Toyota smart key unlocking, need to install the battery before unlocking, during the unlocking process, the LED light of the key blinks, and prompts the unlocking success that is complete, otherwise retry.

Search: Search for make, model, and chip type

Entering the corresponding brand model or chip type will give you the corresponding remote and chip result options.

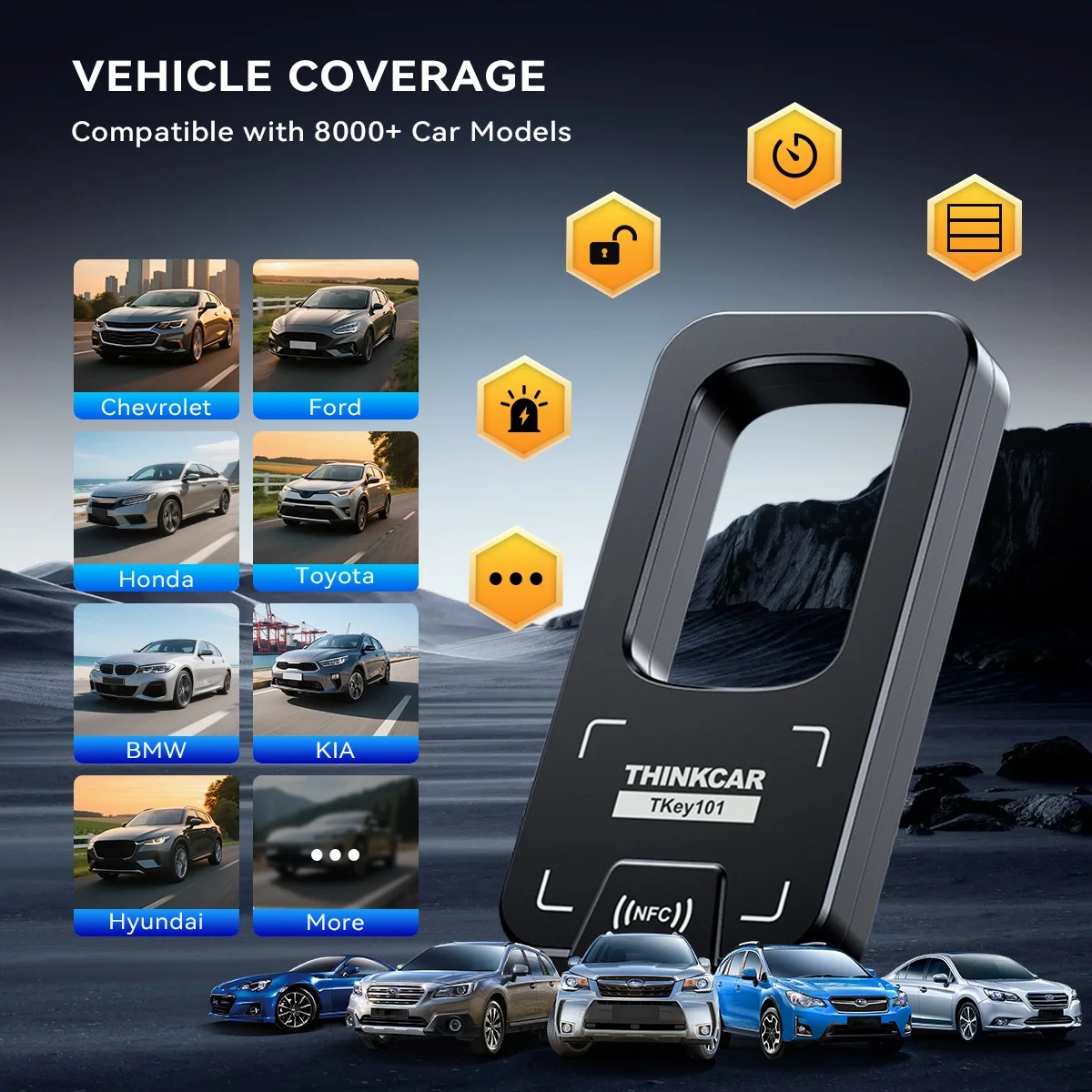

Wide Coverage, Support 1000+Car Models

for Chevrolet, Ford, Honda, Toyota, Kia, Mercedes-Benz,Hyundai,Opel,Land Rover, for Jaguar,Volvo,Skoda,Volkswagen,Kia,Subaru,Renault,Honda,Citroen,Fiat,Chrysler,Seat,Peugeot,Porsche,Changan,BMW,Mitsubishi,Lada,Audi,GM,Suzuki,Ford,Great Wall,Toyota,Nissan,Sprinter

Note: Not all cars compatible, welcome to send your car VIN# to us to check compatibility first.

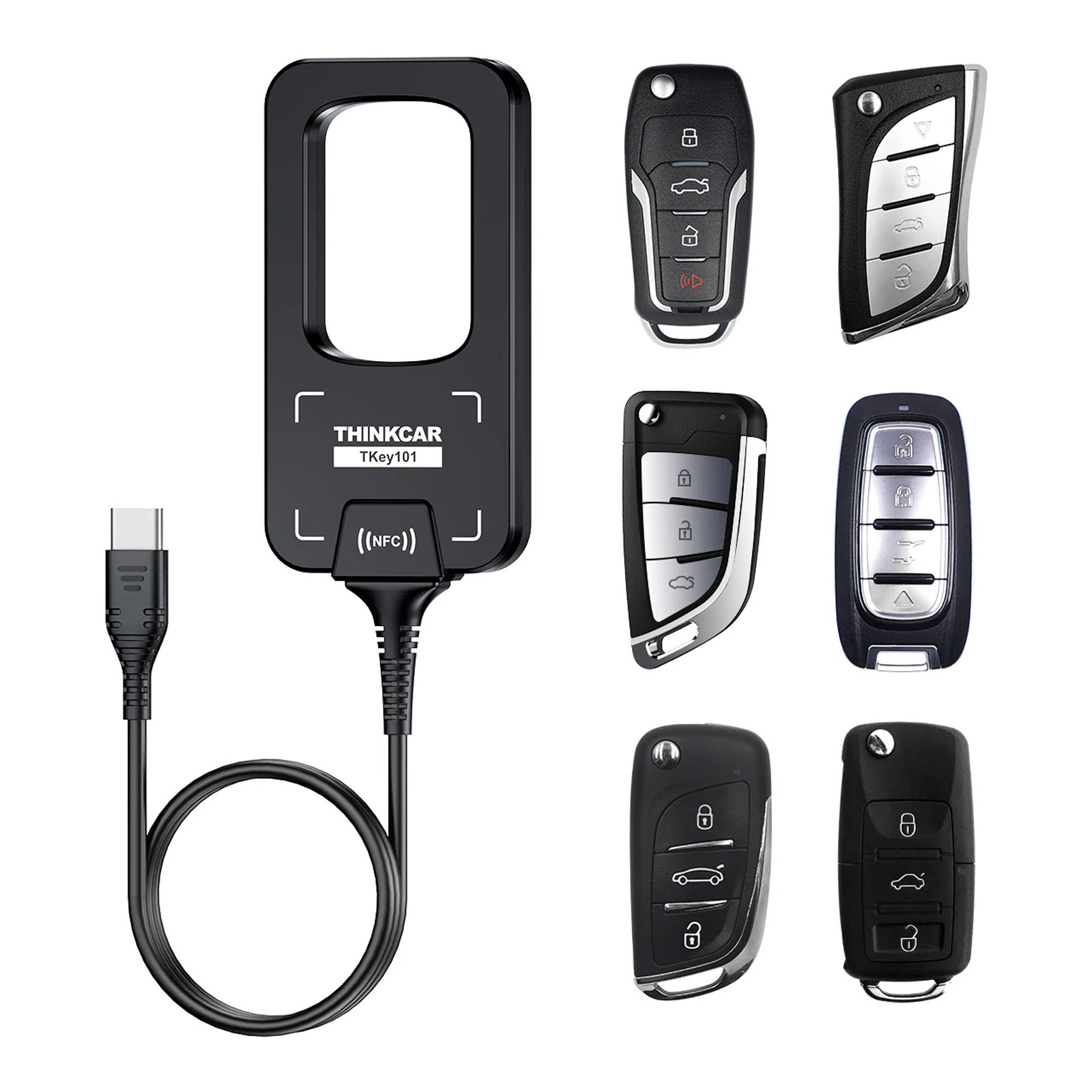

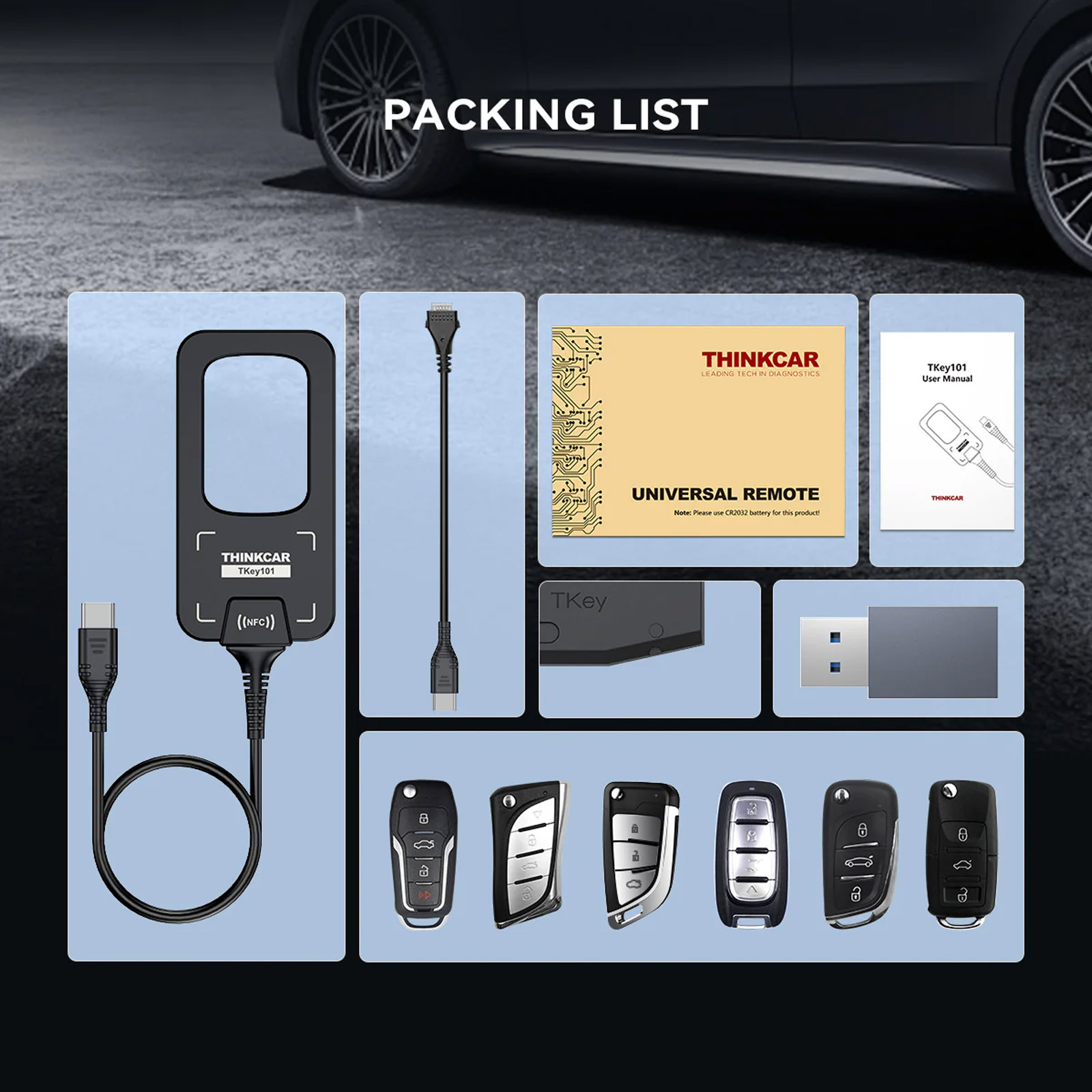

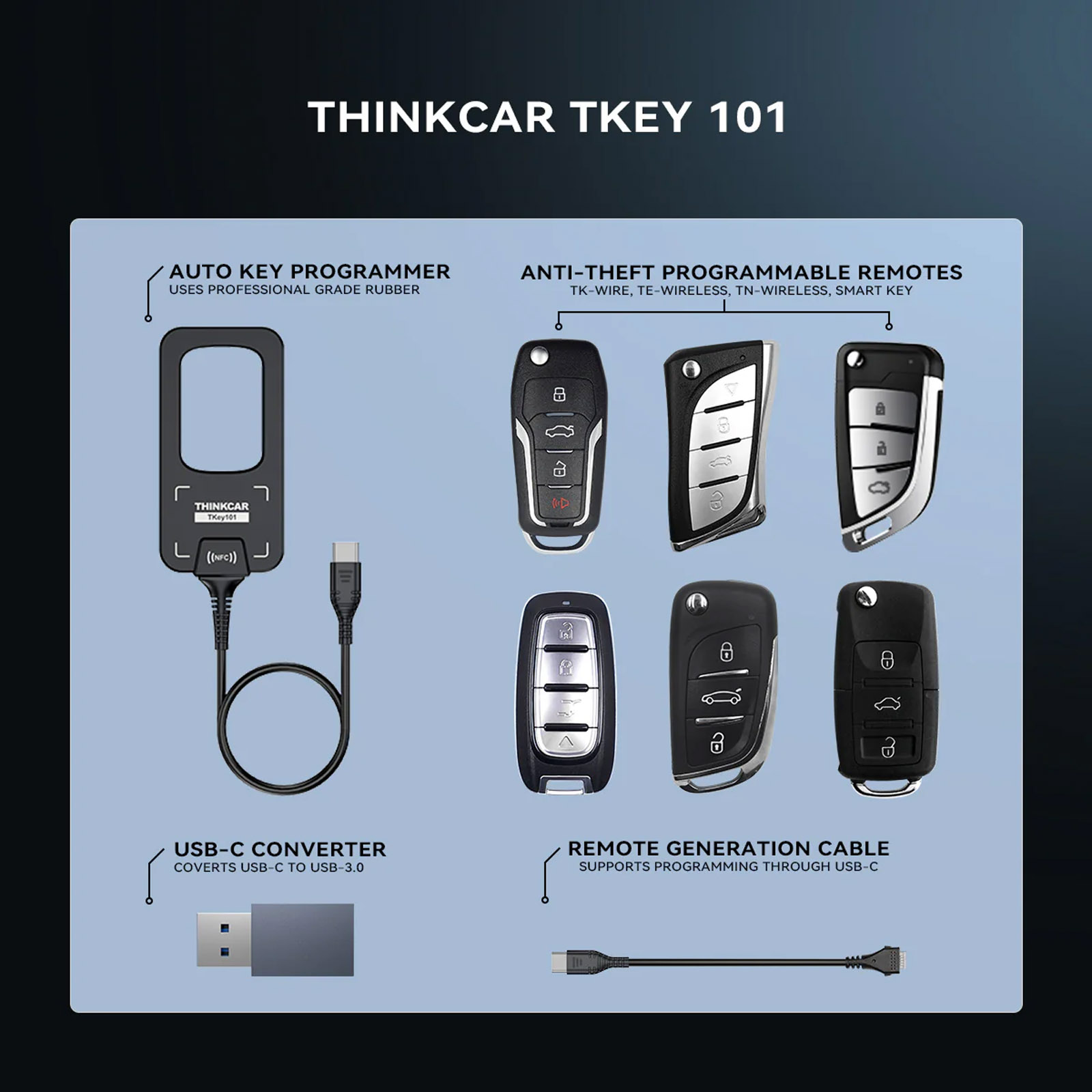

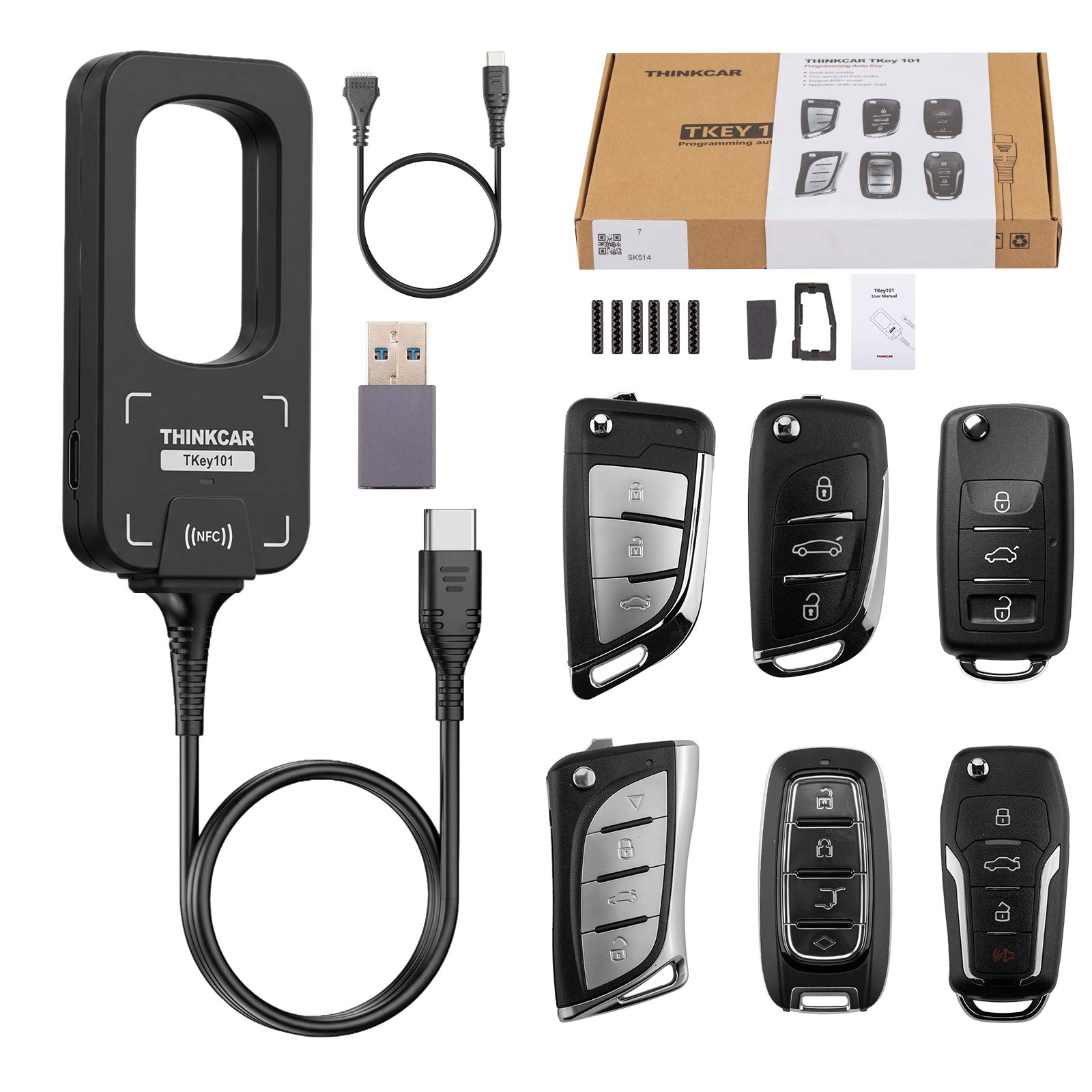

Package includes:



1pc x Tkey101 device

6pcs x Universal remotes

1pc x Remote generation cable

1pc x USB3.0 to TYPE-C converter

1pc x Tkey super chip
