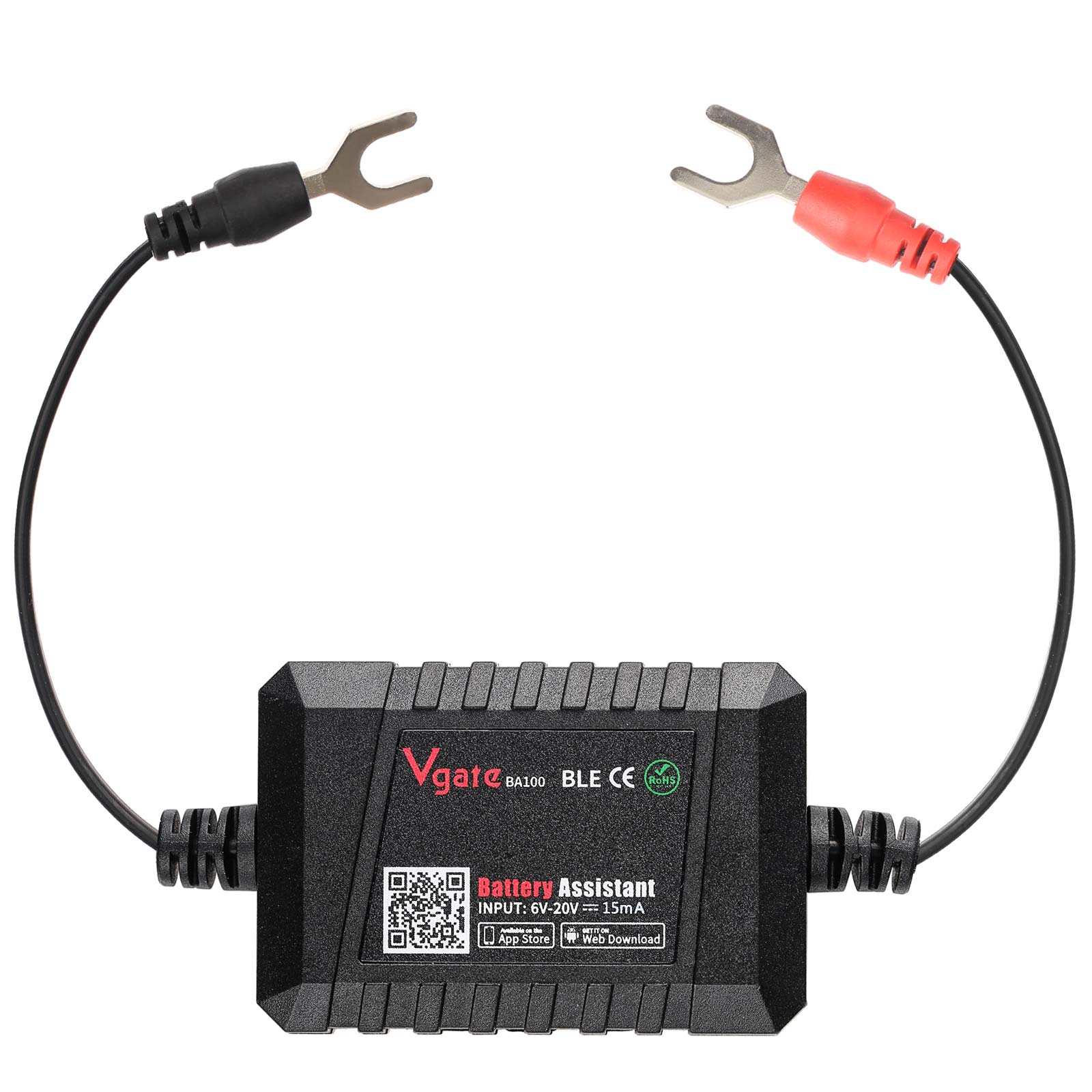

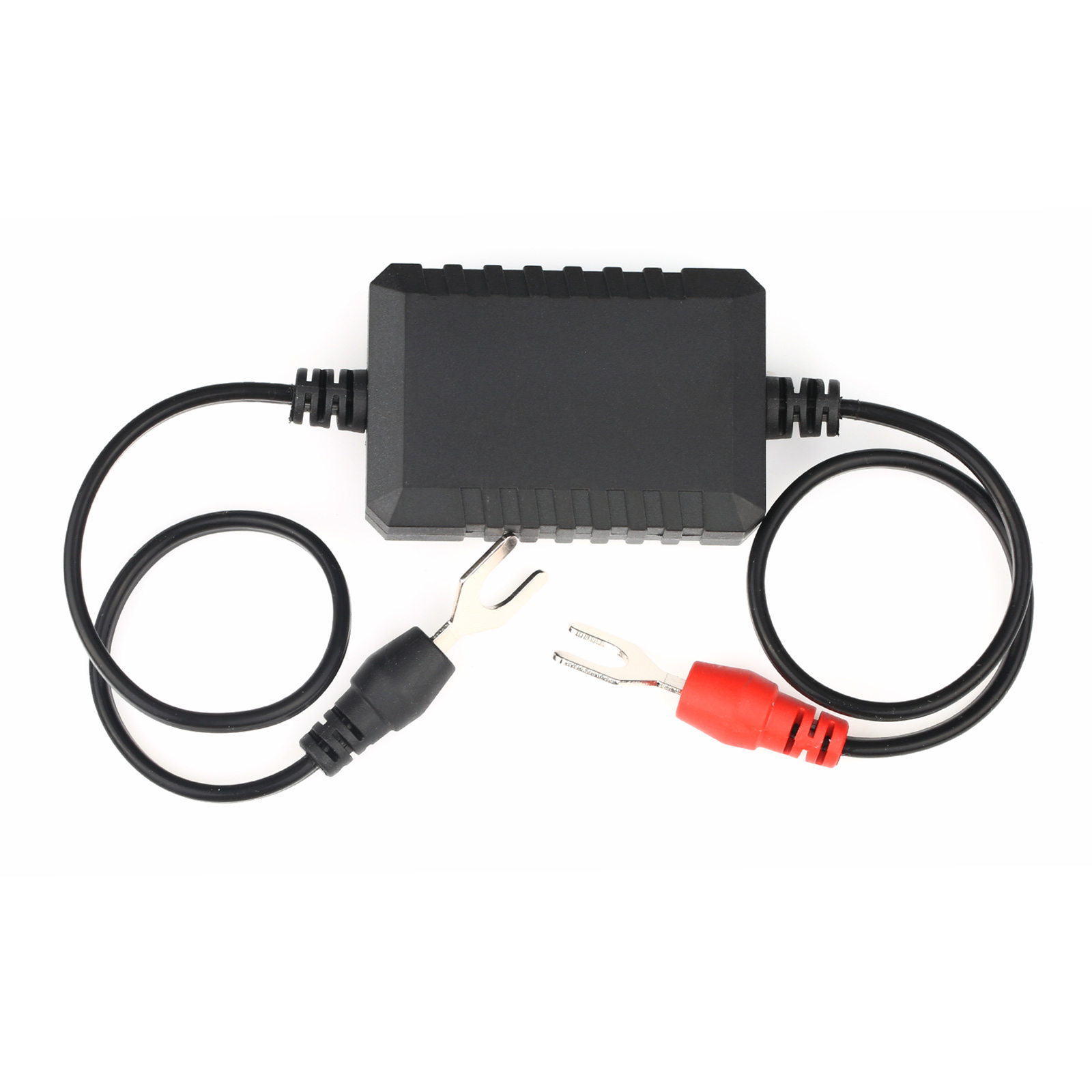

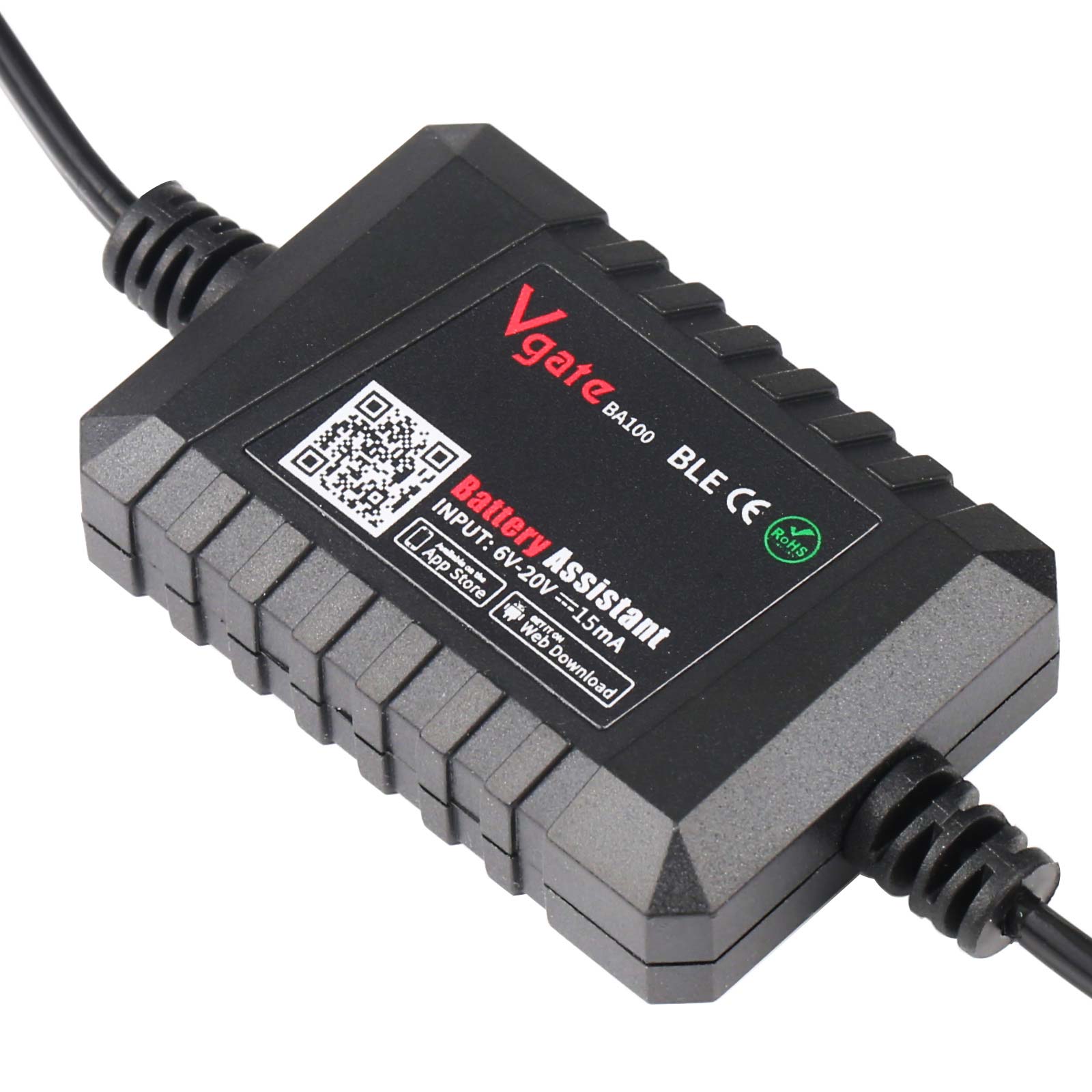

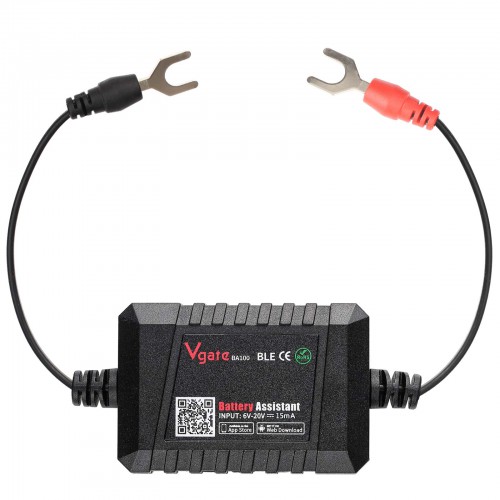

Vgate Battery Assistant BlueTooth 4.0 Wireless 6~20V Automotive Battery Load Tester Diagnositic Analyzer Monitor for Android & iOS

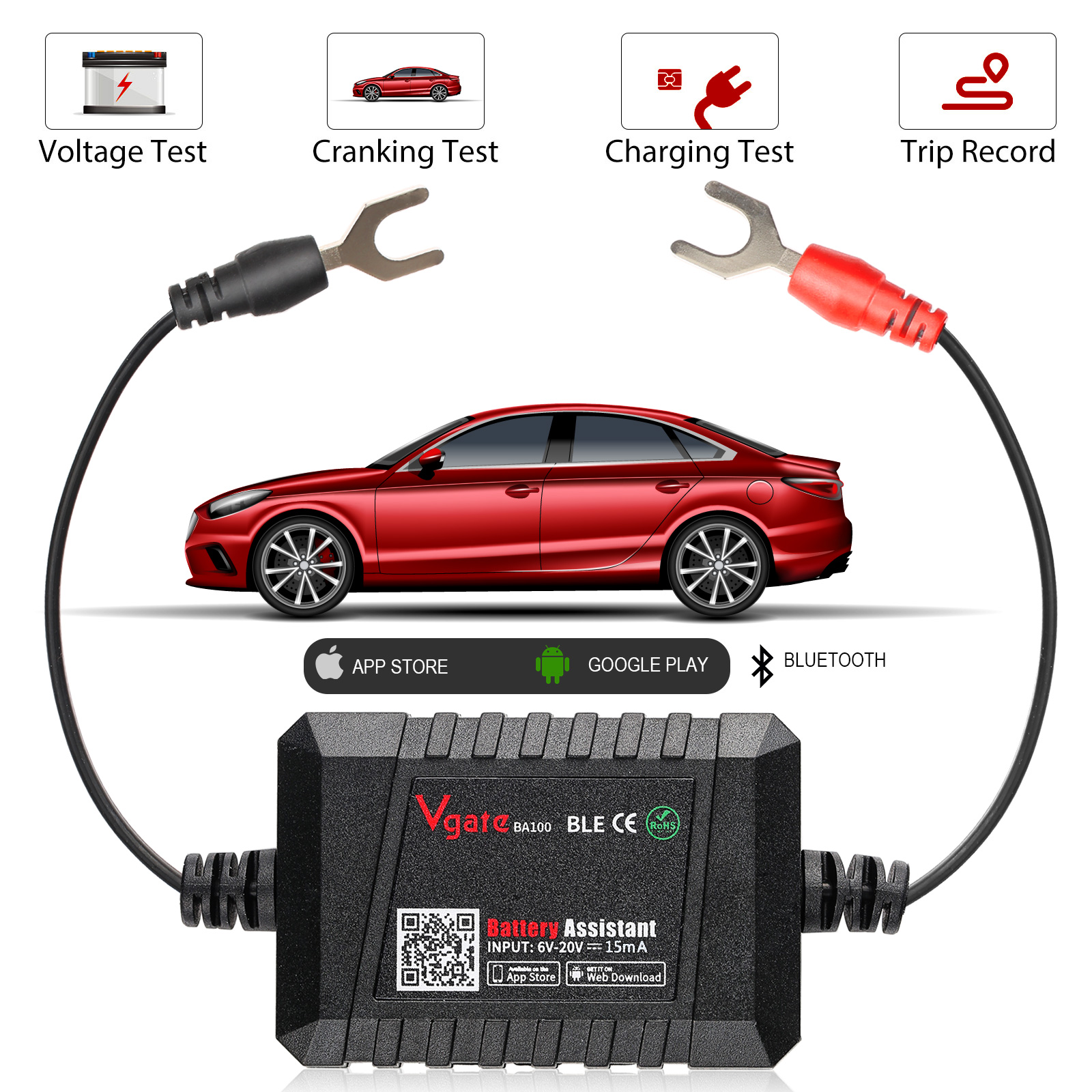

Vgate Battery Assistant Bluetooth 4.0 Wireless 6~20V Automotive Battery Tester

Introduction:

Vgate battery assistant is used to monitor the car battery, starting system and charging system. After being installed on the battery, the mobile phone can monitor the starting status and charging status of the battery in real time via the Bluetooth 4.0 connection.


Vgate Battery Tester Features:

● Easy to install on battery

● Real-time battery health monitor

● Tests vehicle cranking system

● Tests vehicle charging system

● Stores and displays historical data

● Save test records

● Automatic synchronization

● Free app (Android .IOS) download

● Monitor multiple device on your phone

● Alert notification


Bluetooth 4.0 Battery Assistant is Suitable for:

DIY users

Battery service station

Garage/workshop

Tool store

Vehicle/Battery manufacturer



Vgate Battery Tester BT 2.0 Functions:

Compatible with all 12V vehicle batteries and installed in the car battery Real-time monitoring via mobile phone app.

Check the starting system (cranking) at each engine start and check the starting voltage every hundredths of a second when the engine starts

Engine start is automatically detected and check the charging and starting systems (alternator)

Receive battery condition notification when you enter bluetooth range and notify mobile phone when some data is abnormal

View short circuit and reverse connection protection and voltage and charge information. When the user is close to the vehicle, the app does not need to be opened

Automatically syncs when entering Bluetooth range and data stored in battery monitor for up to 35 days if out of sync.

List the time of each trip and check historical data graphically.


How to Use It?

1.Open the car battery cover, find the battery positive and negative.

2.Screw the positive and negative, install the product's red and black connector to the positive and negative pole of the battery accordingly. Then tighten the screw.

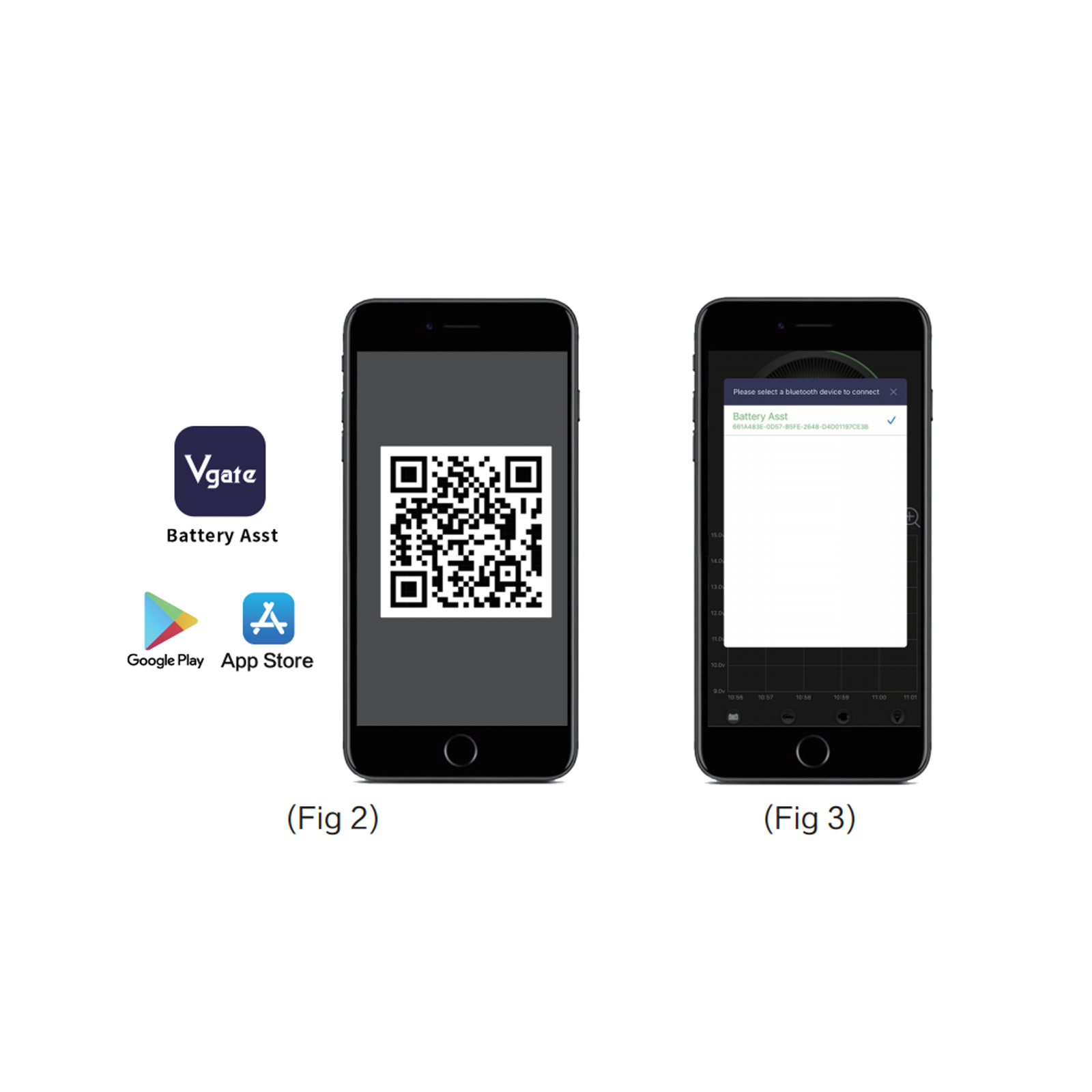

3.Press the app on your phone, it should connect to the device. As it is Bluetooth (4.0), it does not need to pair and connect the automatic battery monitor automatically.

4.Release all permissions while running the app(Battery-Asst)

5. Check the feature details

6. When a red letter appears on the top left, please press to reconnect the Ble 4.0.

7. System configuration

8. Notification bar message

Specifications:

Average Current	15mA
Input Voltage	6-20V
Operating Temperature	-40℃-90℃

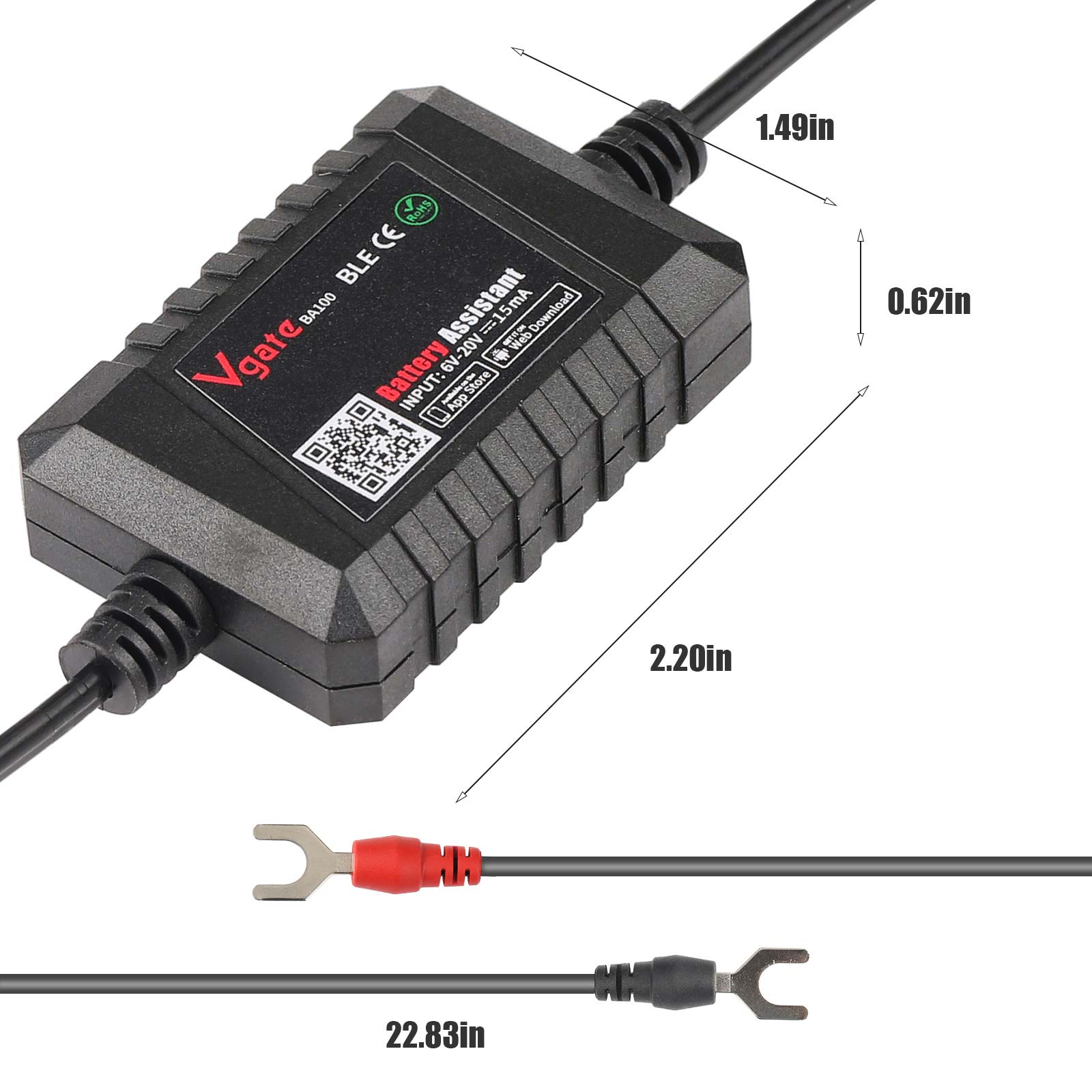

Dimensions	5.6*4*1.6cm
Voltage Accuracy(9~16V)	±0.03V
Bluetooth	4.0
Bluetooth Name	Battery Asst
App Name	Battery Asst
Supported Functions	Short-circuit  Protection   Reverse Connection Protection

Package Includes:

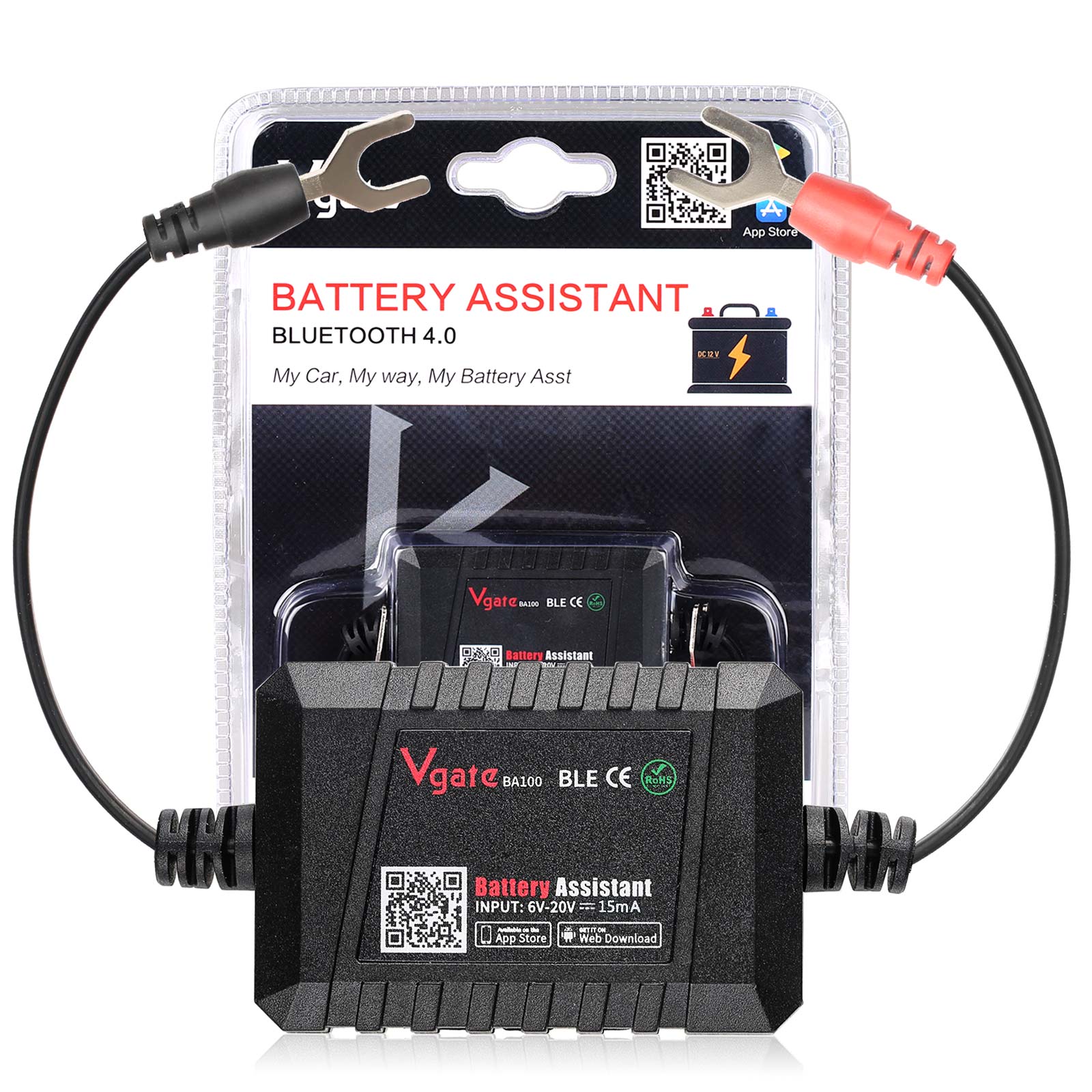

1pc x Vgate Battery Assistant Bluetooth 4.0
