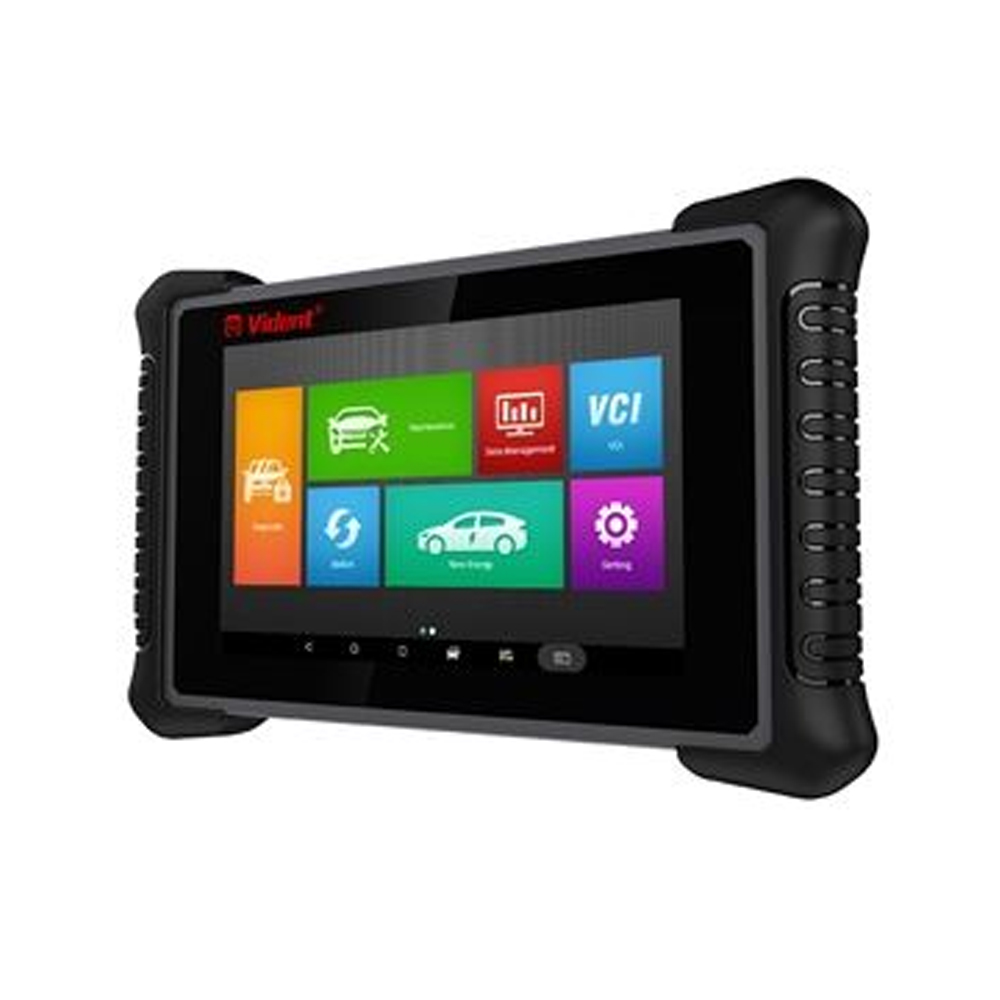

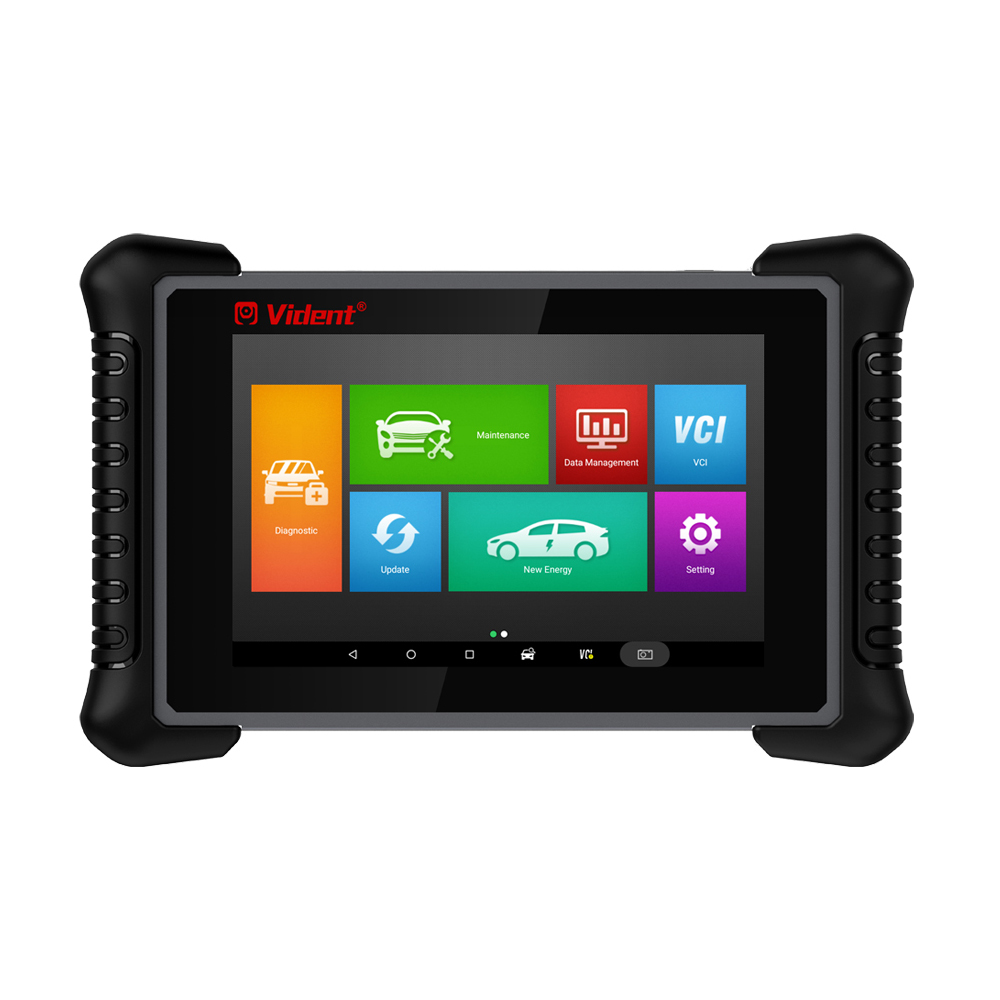

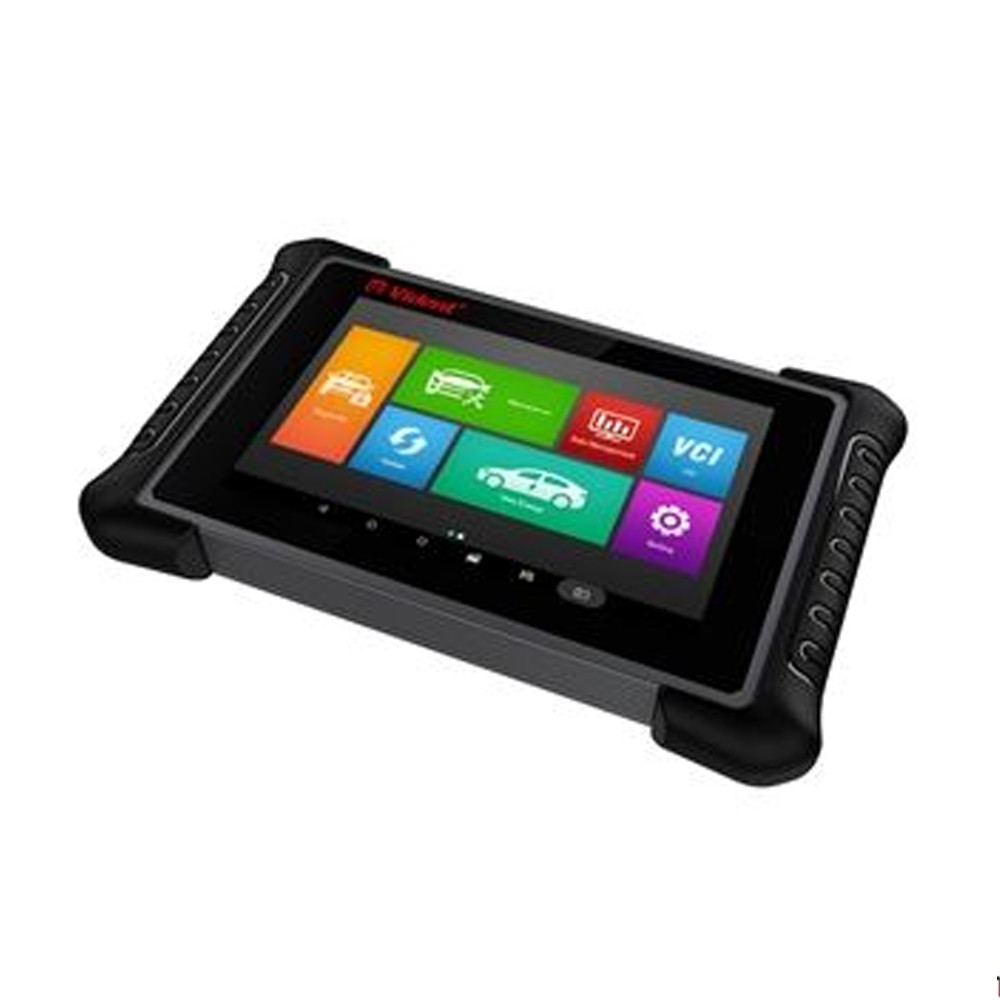

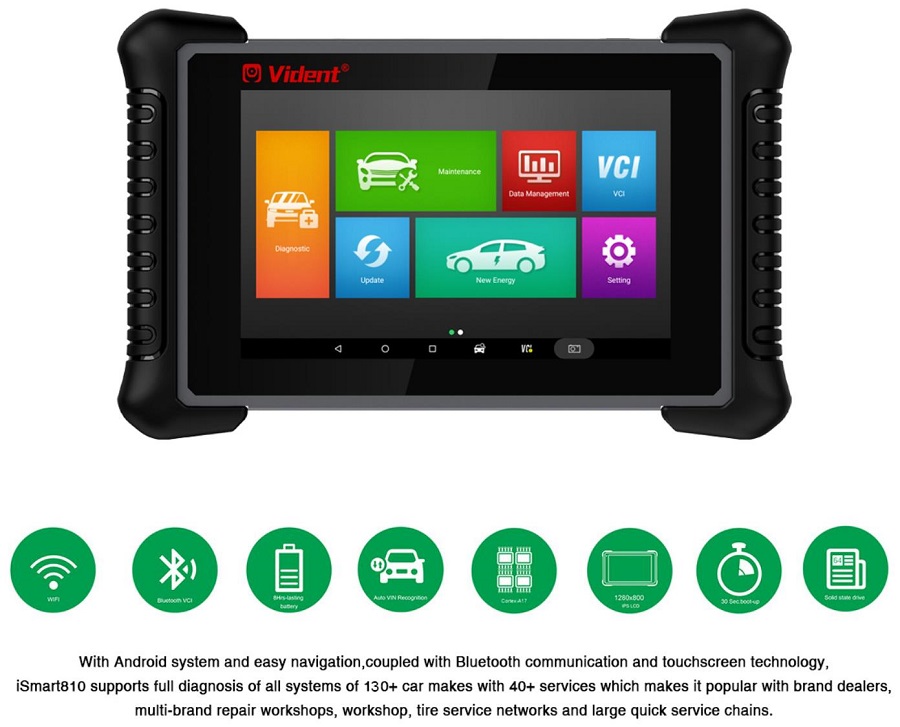

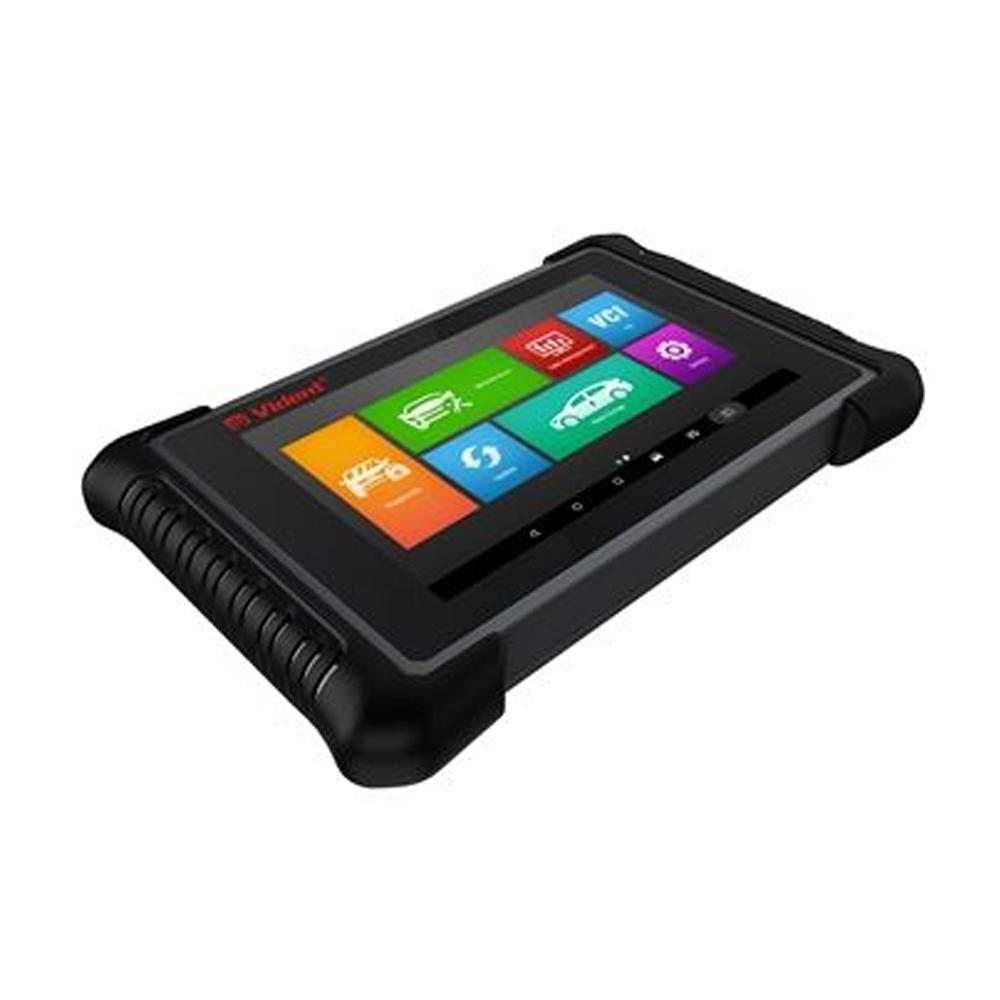

VIDENT iSmart810 Automotive Diagnostic & Analysis System Supports Full System Diagnosis, 3 Years Free Software Updates



8"high-resolution 1280x800 IPS LCD touch screen

USB, audio, HDMI and auxiliary port make it easy to connect accessories

Rear built-in camera to save and share photos for your repair records

Wireless Bluetooth communication with vehicles

Secure, solid-state 64GB hard drive and Cortex-A17 1. 8GHz processor

Dual band WIFI to access your favorite web resources

SDHC/SDXC 128G max slot for extensive memory

Built-in rechargeable Li-ion battery for up to 10 hours continous operation.



3 years free software update

Complete capabilties for codes, live data, freeze frame, functional tests, ECU information, adaptation, matching and coding for dozens of vehicle systems

OEM-specific coverage for 130+ American, European, Asian and Chinese makes from 1996 to 2023

Automatic VIN identification for easy vehicle communication

System Detection-detects only the systems that are specific to your vehicle and reads for errors, meaning you haven't got to spend time looking through data that might not be relevant

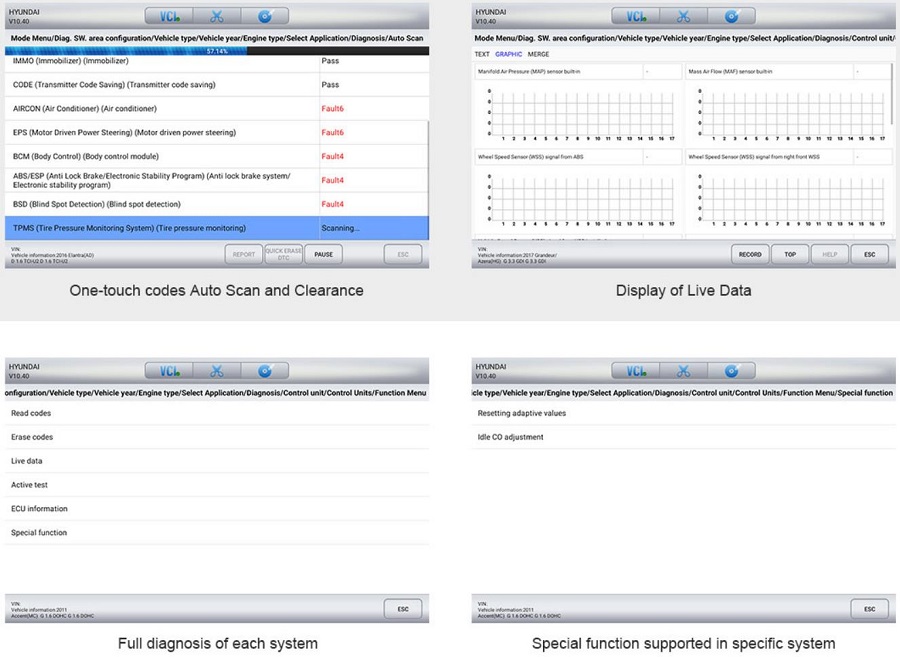

One-touch vehicle code Auto Scan and clear quickly checks and clears codes for all available modules on the vehicle

Ability to record all available live data-real-time data can be compared against known good measurements.

Comprehensive data manager that can store thousands of vehicle records, customer data, vehicle IDs, fault codes, repair notes and diagnostic results.

Interactive data logging sessions and remote control enable direct contact with Vident technical team

Support for first-hand bugs troubleshooting

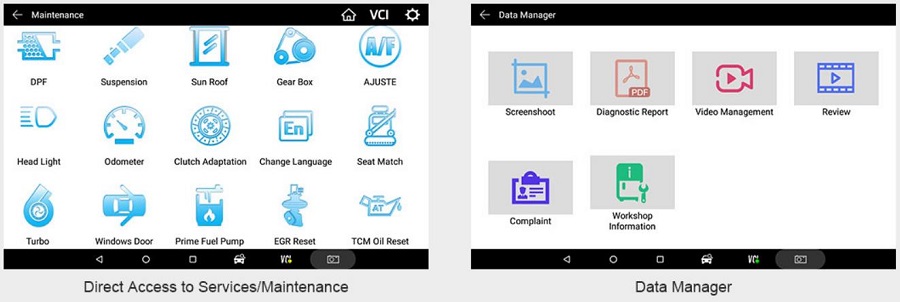

Direct access to 40+ services/common special functions/maintenances as follows:
Oil Light Service/Reset, EPB (Electronic Parking Brake), BRT (Battery Configuration), DPF (Regeneration of Diesel Particulate Filter), TBATPS (Throttle Body Alignment), Injector Coding, SAS (Steering Angle Sensor Reset), TPMS(Tire Pressure Sensor Reset), Gear Learning, ABS Bleed, Odometer, Replace Aibbag ECU, Dashboard Language Change, AFS(Adaptive Front Lighting System), Turbo Match, Clutch Adaptation, Seat Match, Prime Fuel Pump(PFP), Door Window Calibration, AT Adaption, Chang Tire Size, EVAP(SMOG) Test, TCMOIL, Ilmmobilizer Programming, Suspension Match, EGR(Exhaust-gas recirculation) Adaption, Gearbox Match, Sunroof Initialization, AF (Adjust fuel), Motor Angle Calibration, Engine Power Balance Monitoring, High Voltage Battery Diagnostics, GPF (Gas Particulate Filter Regeneration), ICCS (Intelligent Cruise Control System), AC System Relearn/nitialization), AdBlue Reset, Coolant Bleed, NOx Sensor Reset,Stop/Start Reset, Transport Mode.

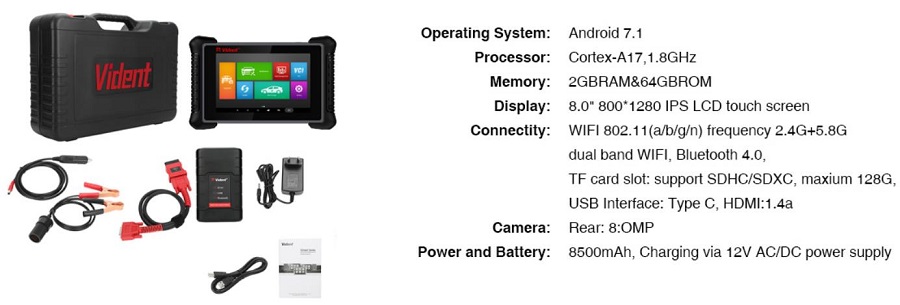

Operation System: Android 7.1

Processor : Cortex-A17, 1.8GHz

Memory: 2GB RAM & 64GB ROM

Display: 8" Touch Screen, 1280*800

Connectivity: USB 2.0, WiFi, HDMI, Type C, Micro SD Card

Input Voltage: 12V, 2A

Battery Capacity: 8500mAh

Operating Temp: 0 to 55°C (14 to 131°F)

Storage Temp: -20 to 60°C (-4 to 140°F)

Dimensions: 272mm x 178mm x 32mm
