[US Ship Only] [Second-Handed] 90% New VXDIAG VCX SE Hardware J2534 Passthru Only without Car License

Product Description

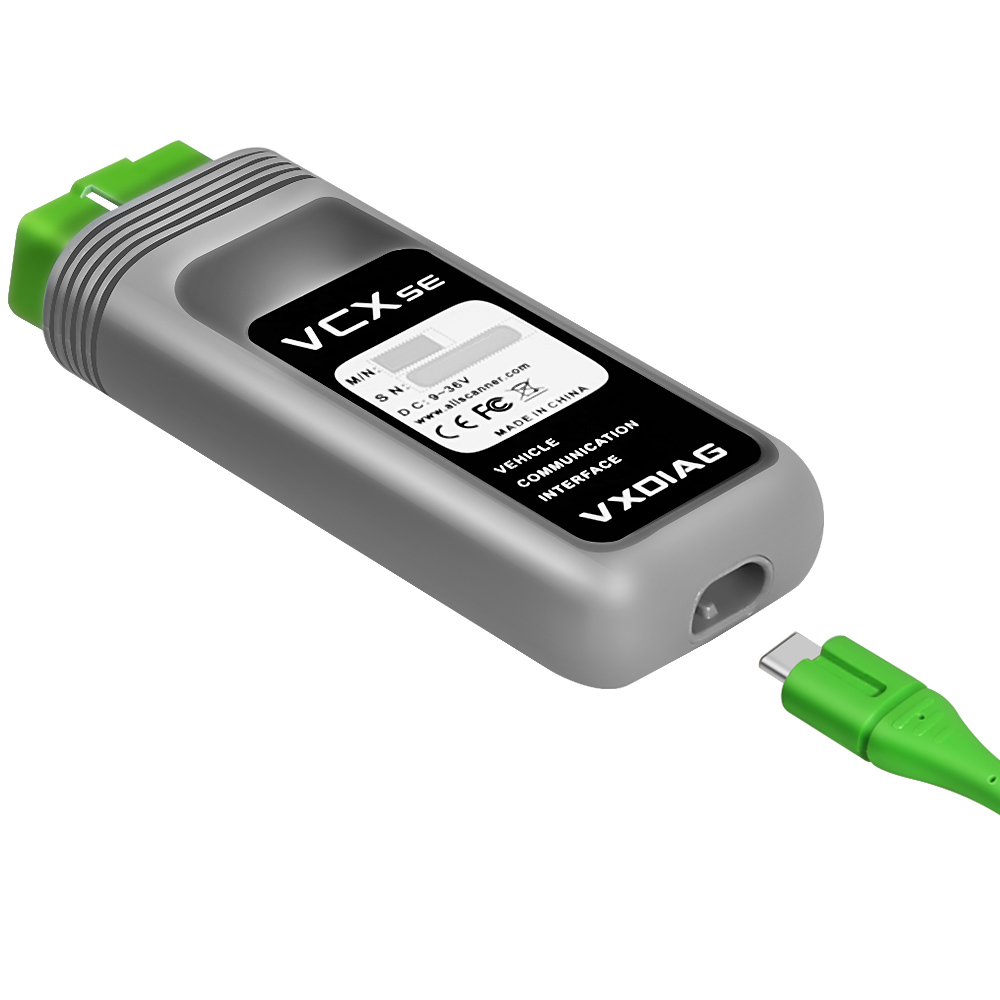

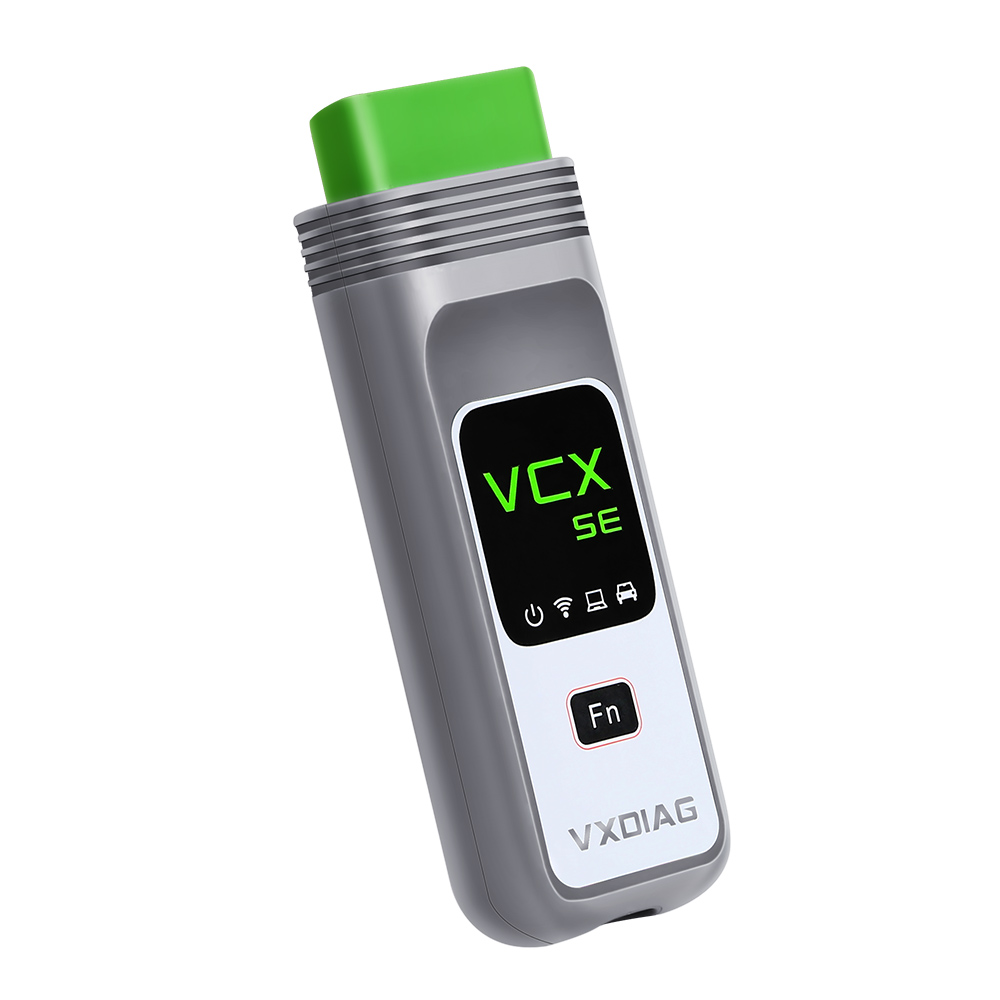

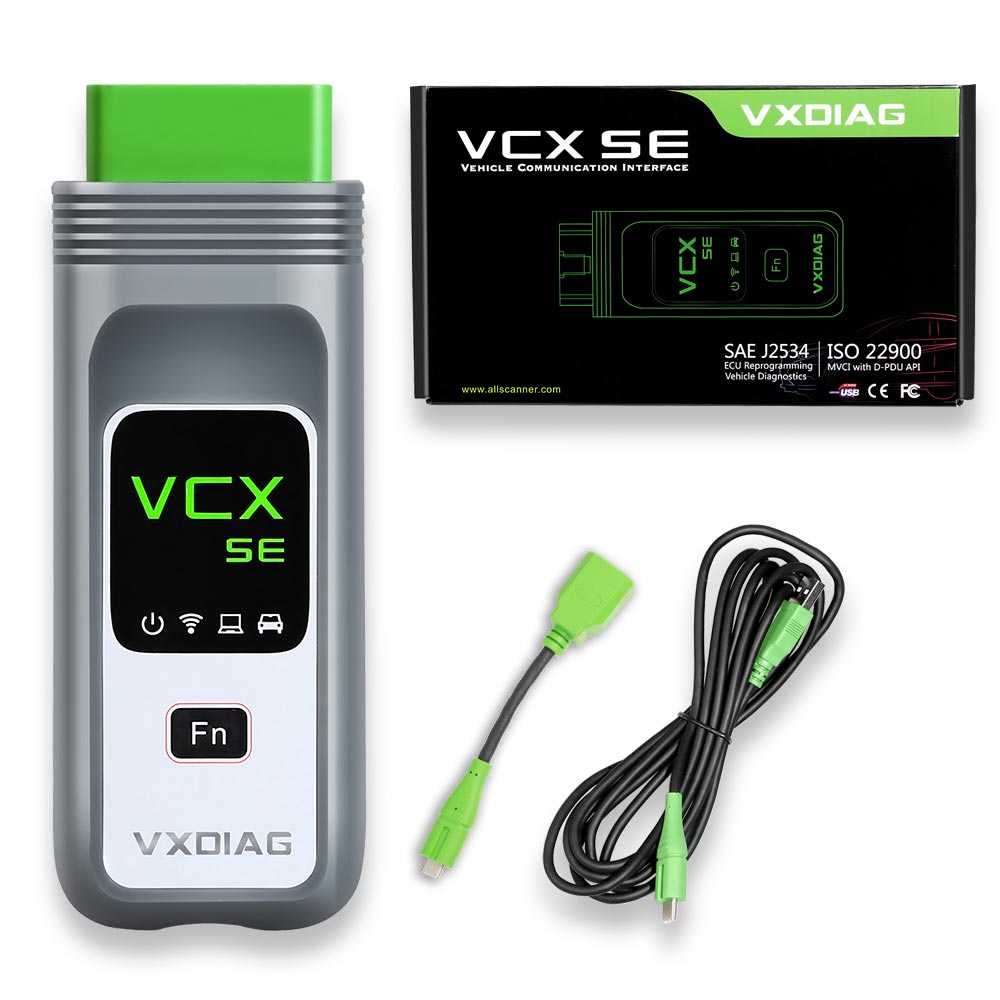

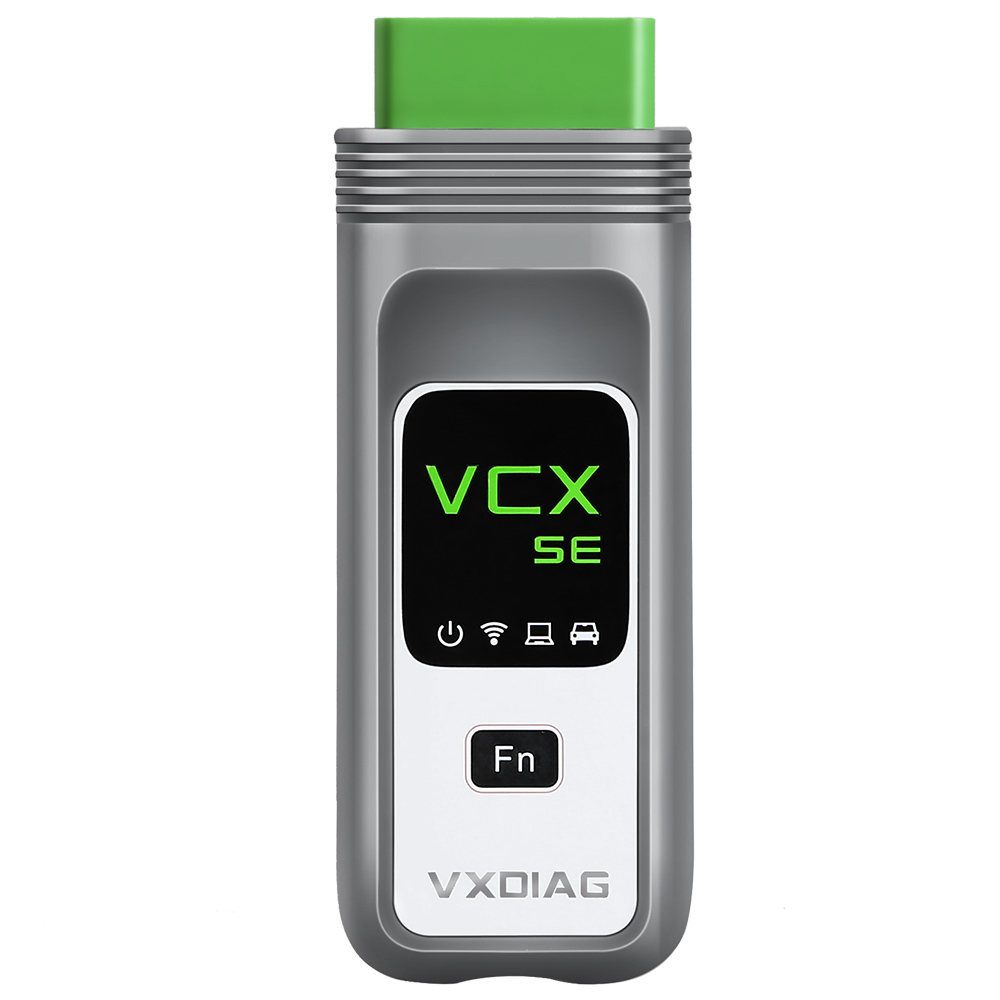

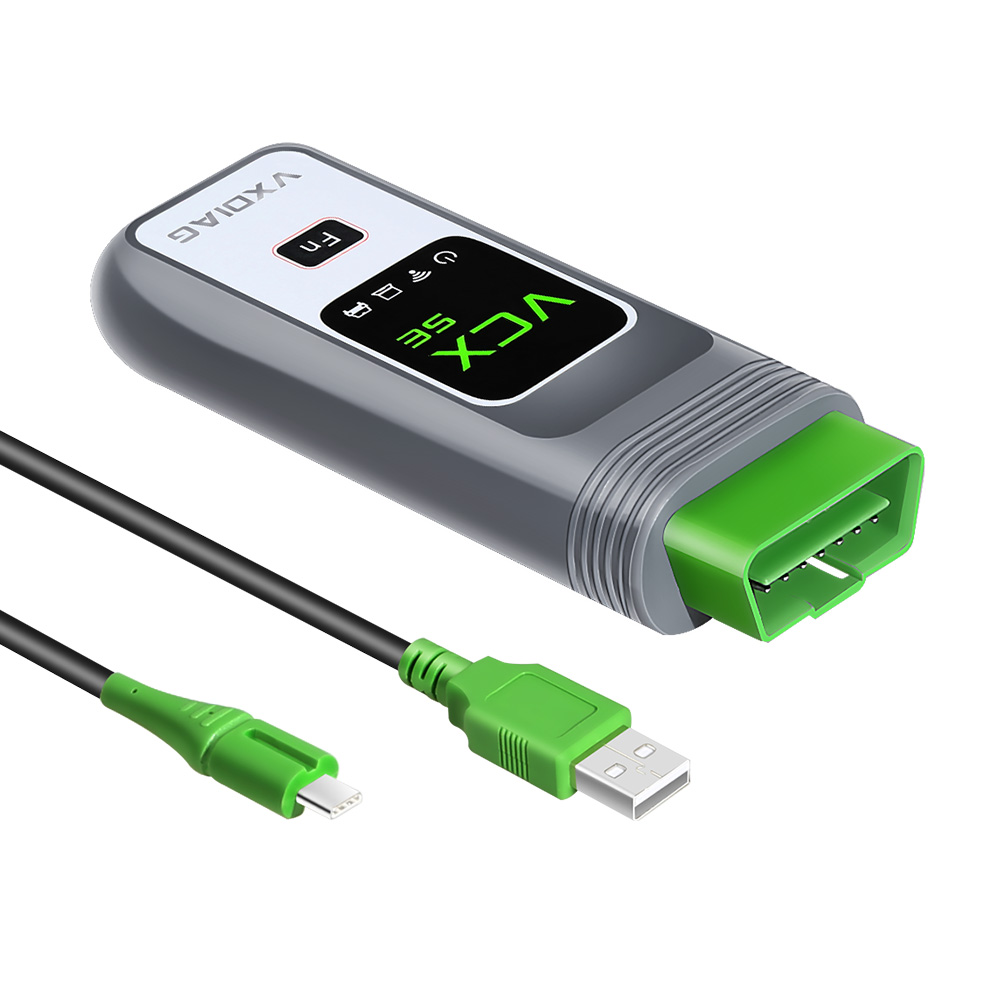

VXDIAG VCX SE J2534 Passthru Hardware Only without Car License

• Firmware/License: Free update
• USB, WiFi, USB Type C, LAN and DoNET optional connection
• Support DOIP
• Functions: Diagnostic/programming/coding
• Item type: obd2 scanner
• Support offlince coding, remote diagnosis
• Customize car license for the car brands to turn the vcx se to a powerful diagnostic tool for Ford Mazda, Jaguar, Land rover, Honda, Toyota, BMW, Benz, VW Audi, Volvo etc

• Model Name: VXDIAG VCX SE J2534
• Origin: CN (Original)
• External Testing Certification: CE
• Electronic: No
• Hardware Version: 2020

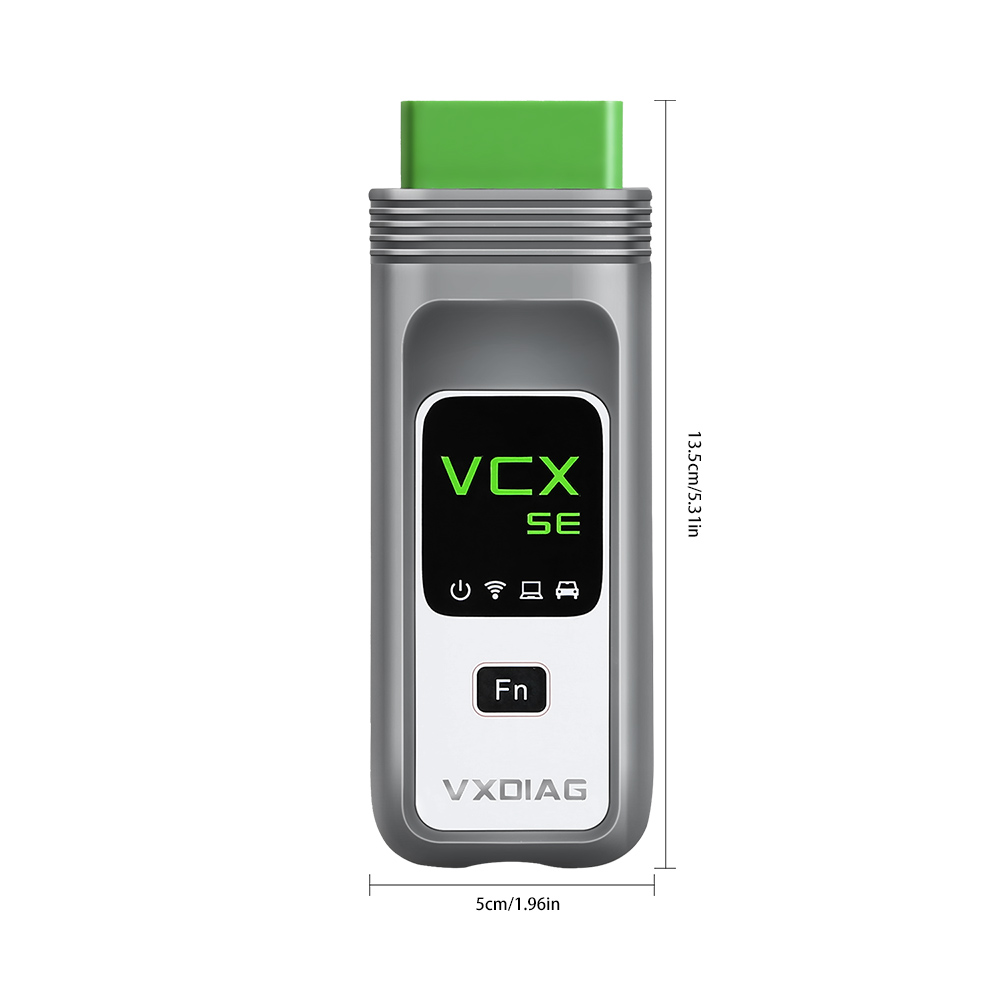

• Item Height: 5cm
• Item Length: 18.3cm
• Power: 1W-3W
• Material Type: Plastic
• Special Features: Wifi
• Special Features: USB
• Item Weight: 0.38kg
• Voltage: 9V-36V
• Item Width: 10cm
• The interface component, adopts quick pull-and-plug technology, is more stable. Because it is tested to be able to pull and plug 10,000 times.
• With the small size and strong structure, Doip VCX SE is easy to carry. It can update firmware and DOIP firmware, etc.

Vcx-se is the latest generation of diagnostic equipment launched by Allscanner for remote diagnosis platform. The ultra-high integrated hardware design can fully adapt to a variety of original diagnostic software, not only supporting local diagnosis but also realizing super remote diagnosis.

Supported vehicle bus protocols

• ISO-13400 DoIP

• ISO-9141 K-Line
• ISO-14230 K-Line
• ISO-17987 LIN BUS
• ISO-15765 CAN
• SAE-J1850-VPW (GM Class2)
• SAE-J1850-PWM (FORD SCP)
• ISO-11898-2 DWCAN
• ISO-11898-3 DWFTCAN
• SAE-J2411 SWCAN (GMLAN)
• VAG TP20 CAN (SAE-J2819)
• VAG TP16 CAN
• VAG KW81 (SAE J2818)
• SAE-J2610 SCI (Chrysler)
• SAE-J1567 CCD BUS (Chrysler)
• SAE-J2740 GM ALDL
• SAE-J2809 HONDA DIAG-H
• NISSAN DDL UART with CLOCK
• BMW DS2
• FORD UBP
• BENZ KWFB
• BENZ MB-ISO

VCX SE Series Features

Dual mode intelligent remote diagnosis

• Super remote diagnosis only needs equipment networking to realize on-line diagnosis of the original factory.

• Compatible with remote diagnosis, it can support remote diagnosis of various special function equipment.
• The equipment can quickly access to the remote diagnosis platform with one key.

One device supports many original vehicle diagnostic softwares

• The hardware is updated synchronously with the VCI of the major original factories, and it fully supports the new models and new original software based on doip Ethernet diagnosis.

• Realize the original factory level diagnosis function of the world’s major brands, one equipment can replace many expensive OEM equipments.
• All kinds of advanced diagnosis and programming functions are completely consistent with the original factories, and the performance even exceeds the original factories.
• One click installation, original support driver and online upgrade, easy to use.

Highly integrated vehicle diagnostic interface

• High performance dual core processor: a doip network processor and a vehicle bus processor.

• Support 4-way can bus, 2-way K-line / L-line, realize multi protocol high-speed concurrent communication.
• Innovative OBD-II multi-channel communication hardware supports intelligent switching between traditional bus and doip network.
• It supports mapping vehicle doip Ethernet to WLAN to realize wireless Ethernet diagnosis.
• Host communication interface supports USB / RJ45 / WLAN and other interfaces, which is flexible and easy to use.
• Portable design with integrated OBD-II interface, plug and play.
• The usb-type-c interface with reinforcement design can be plugged in and out stably.

Meet the automotive industry standard design

• SAE-J2534-1/2 Pass-Thru with EURO 5

• ISO-22900 MVCI & D-PDU
• ISO-13400 DoIP

J2534 original factory level ECU programming functions

• ECU software upgrade and calibration.

• ECU replacement, flashing and programming

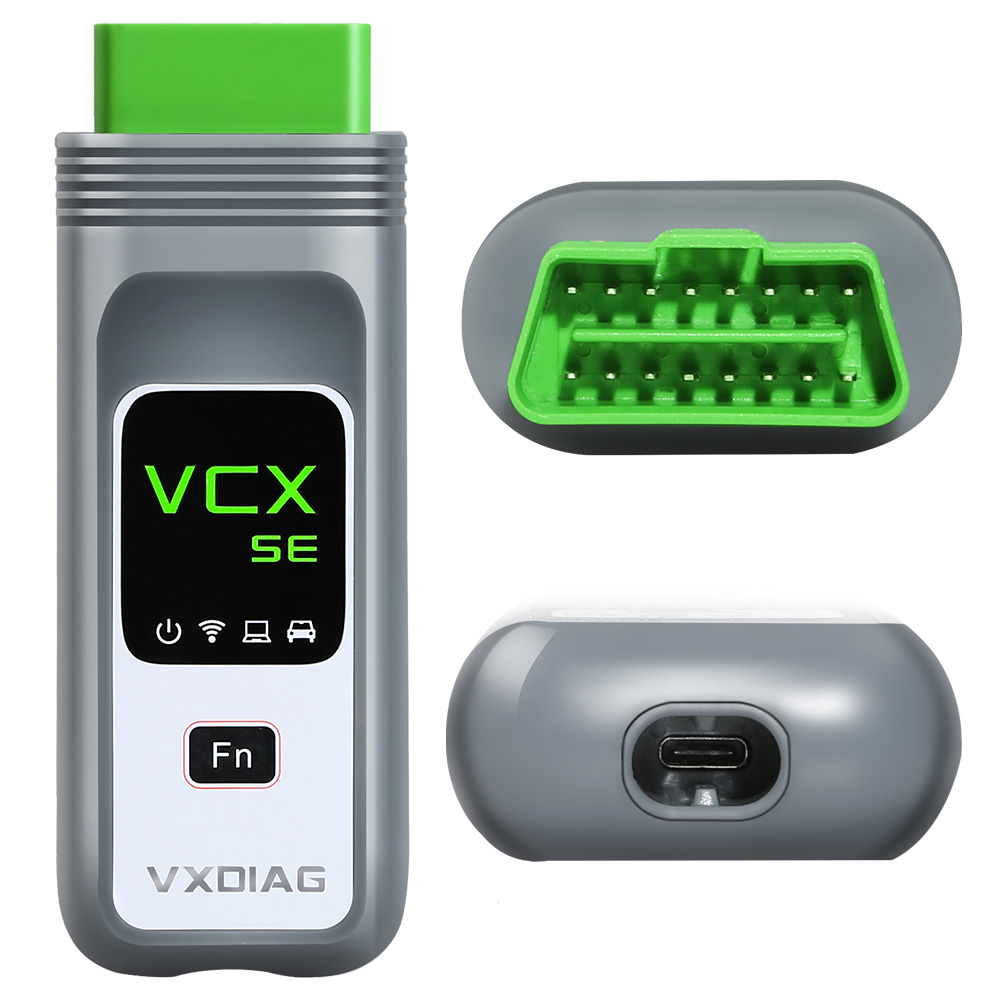

Multiple Connection Methods

• USB connection

• USB to Type C LAN connection
• WiFi connection

Indicator lights
