[US/EU/UK Ship] Xhorse Multi-PROG Multi Prog ECU TCU Programmer With GODIAG ECU GPT Boot AD and G-V ECU Cable For Read and write VAG Gearbox

Product Description

Xhorse Multi-PROG Multi Prog ECU TCU Programmer With GODIAG ECU GPT Boot AD and G-V ECU Cable For Read and write VAG Gearbox

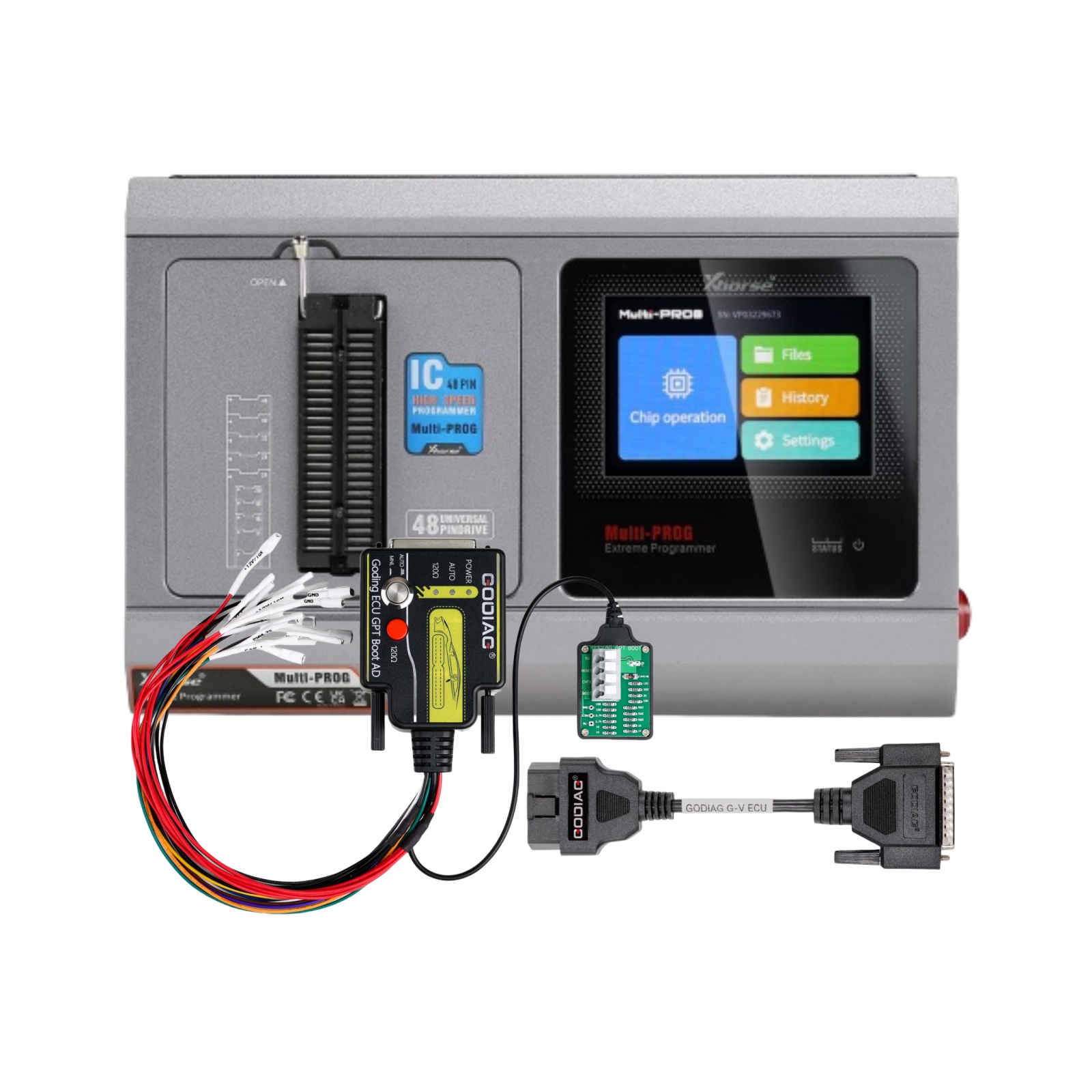

Bunding Package: Xhorse Multi-PROG Multi Prog ECU TCU Programmer + GODIAG ECU GPT Boot AD ECU Connector + GODIAG G-V ECU Cable

Highlights:

• GODIAG ECU GPT Adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GTP Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.
• Enabling ECU reading and writing via Bench/Boot modes.

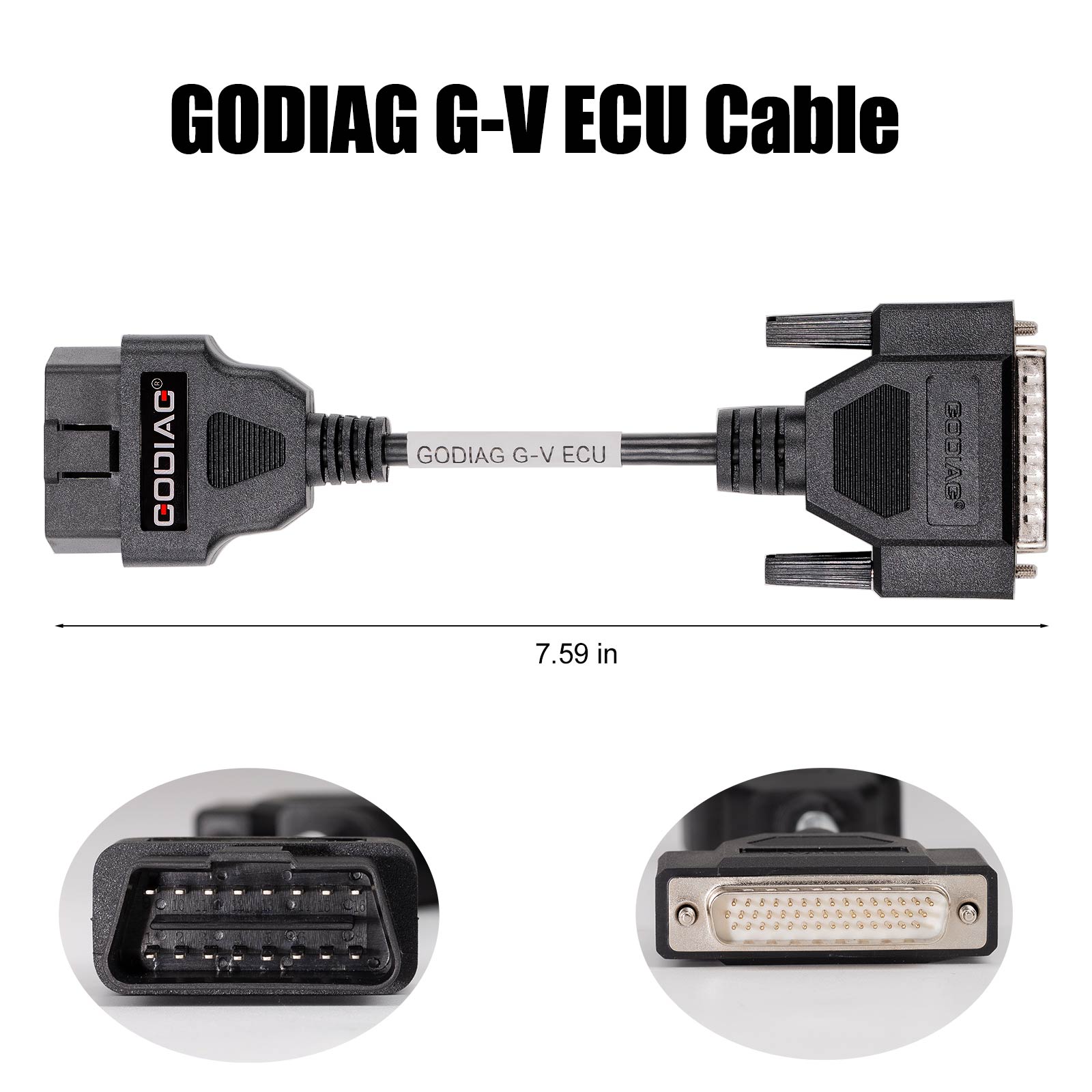

GODIAG G-V ECU Cable work with Xhorse MULTI PROG, GT107, GPT BENCH BOOT AD read and write Gearbox ECU

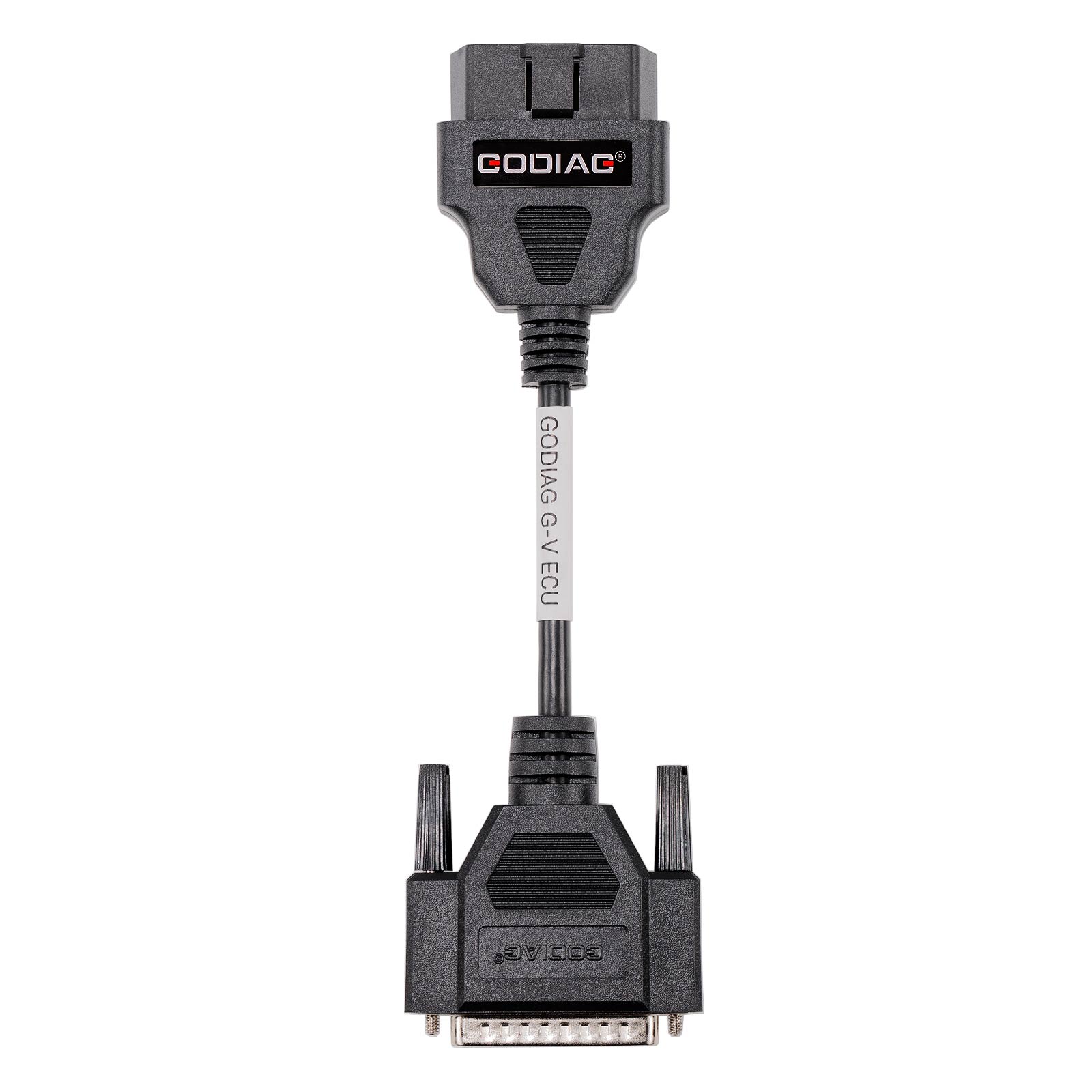

GODIAG G-V ECU Cable is used to connect  Xhorse MULTI PROG with GT107 or GT107+ GPT BENCH BOOT to read and write data on VAG gearbox ECU and engine ECU, clone ECU.

The Connection Diagram

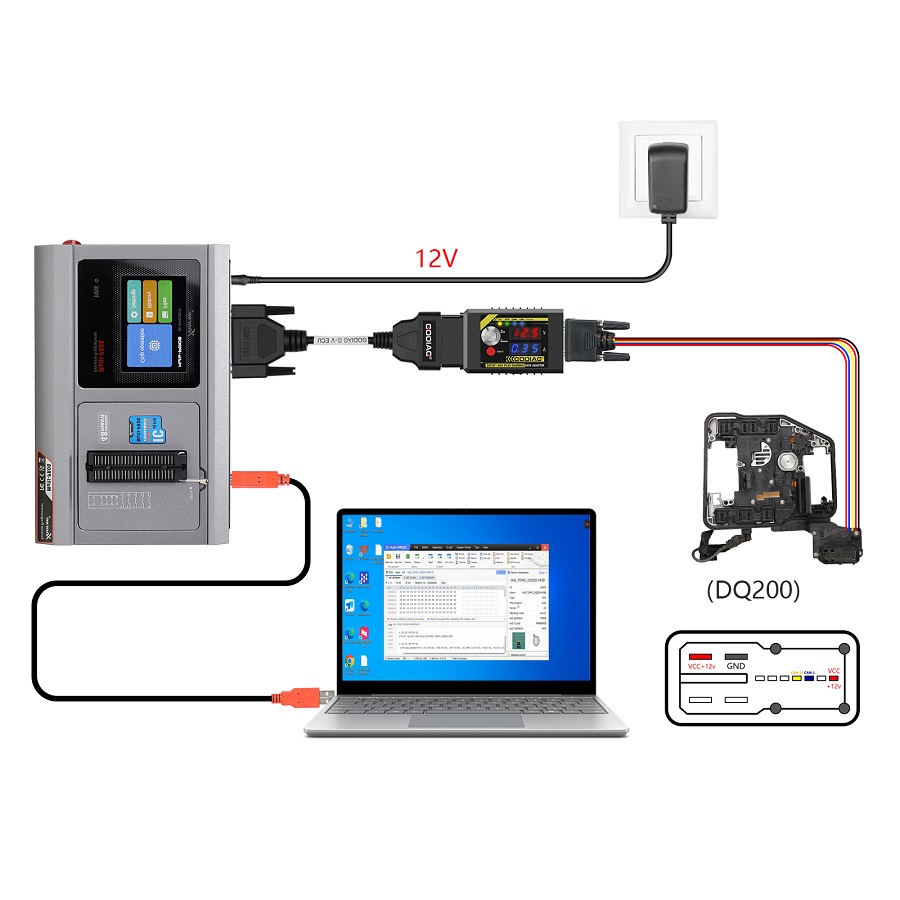

1. To read DQ200 with Xhorse MULTI PROG & GT107+

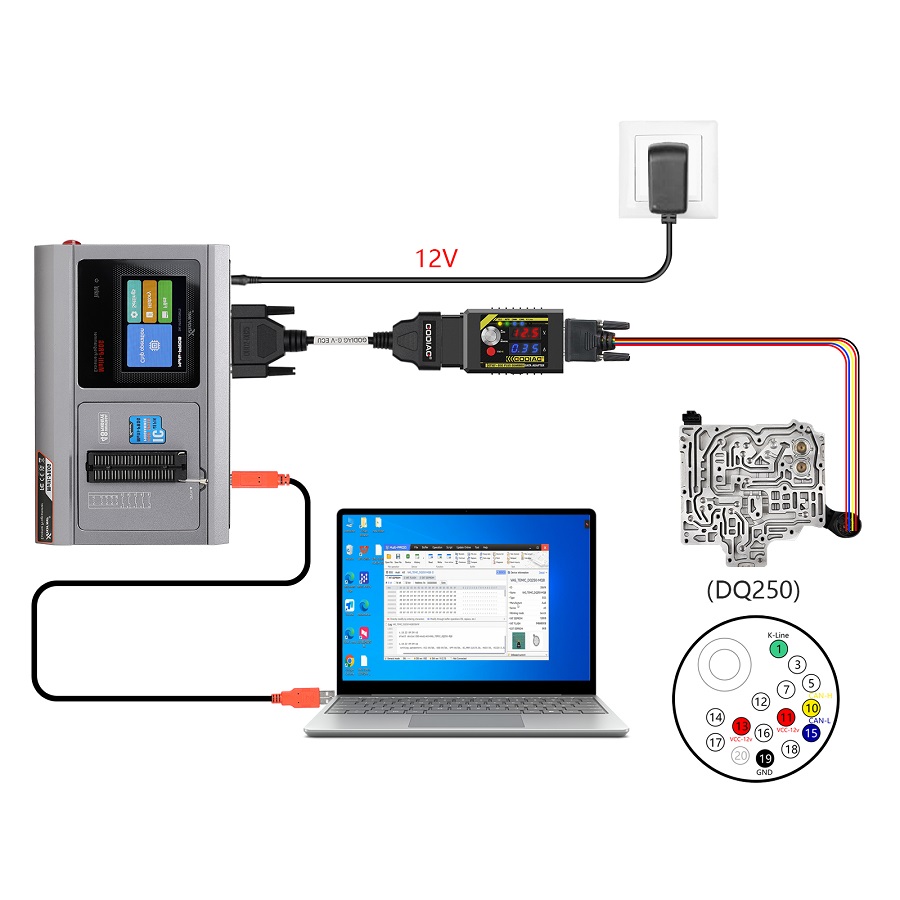

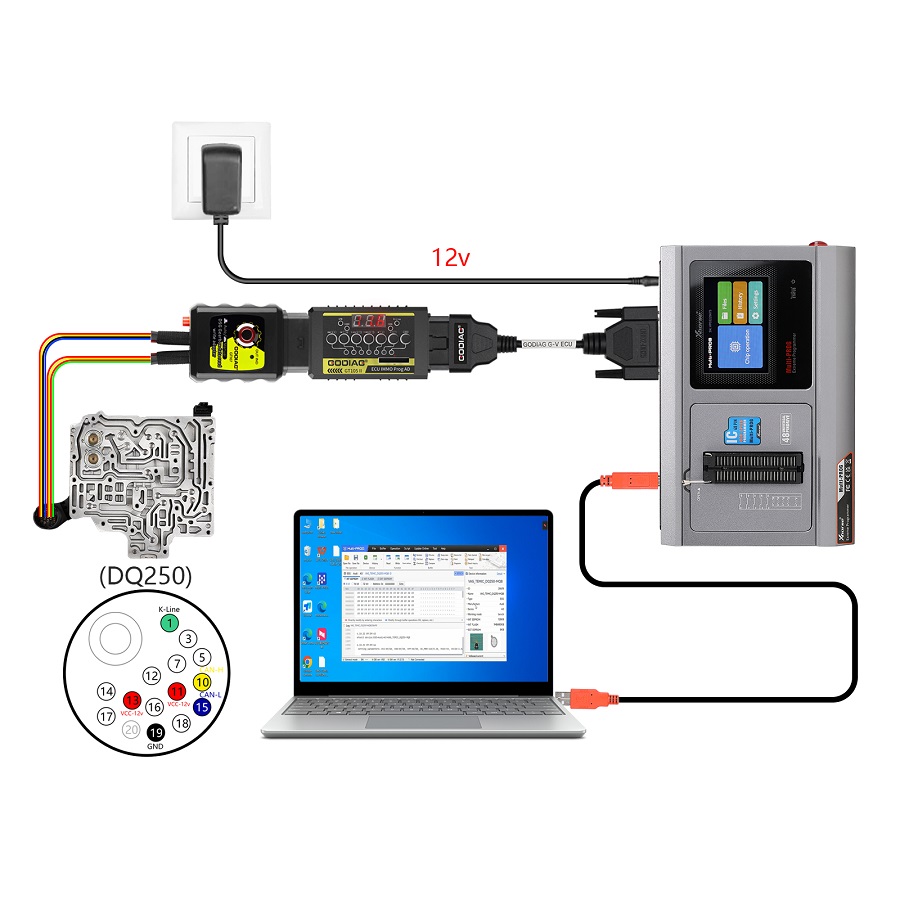

2. To read DQ250 with Xhorse MULTI PROG & GT107+

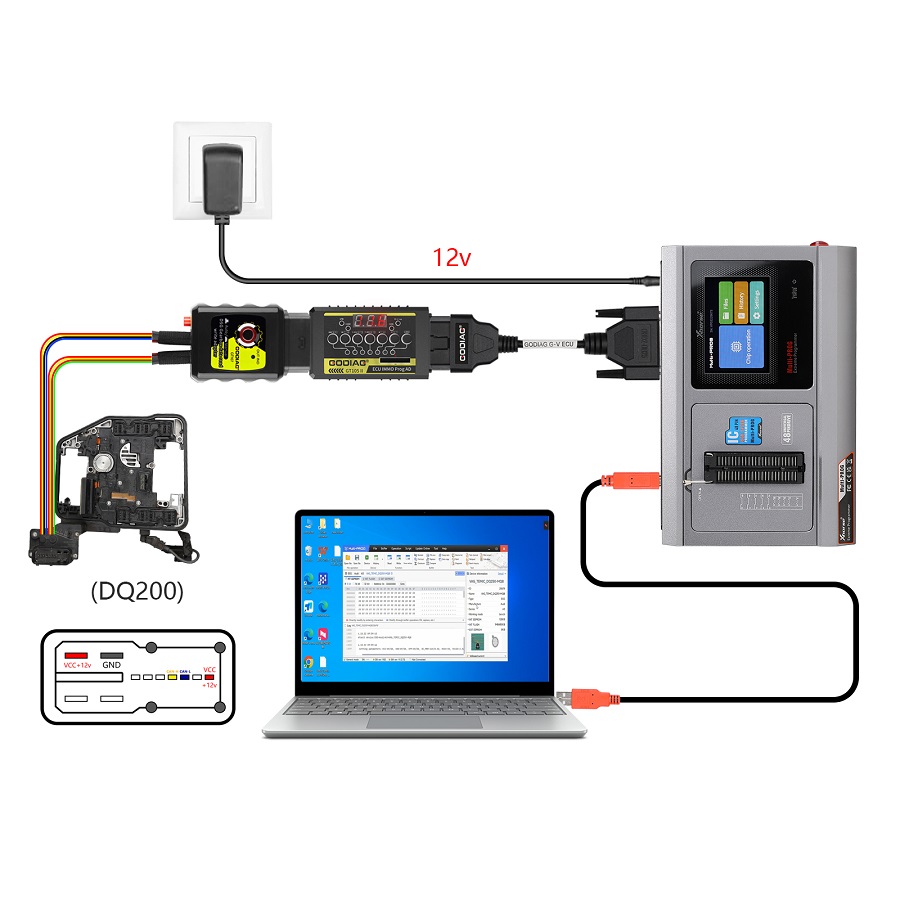

3. To read DQ200 with Xhorse MULTI PROG & GT107

4. To read DQ250 with Xhorse MULTI PROG & GT107

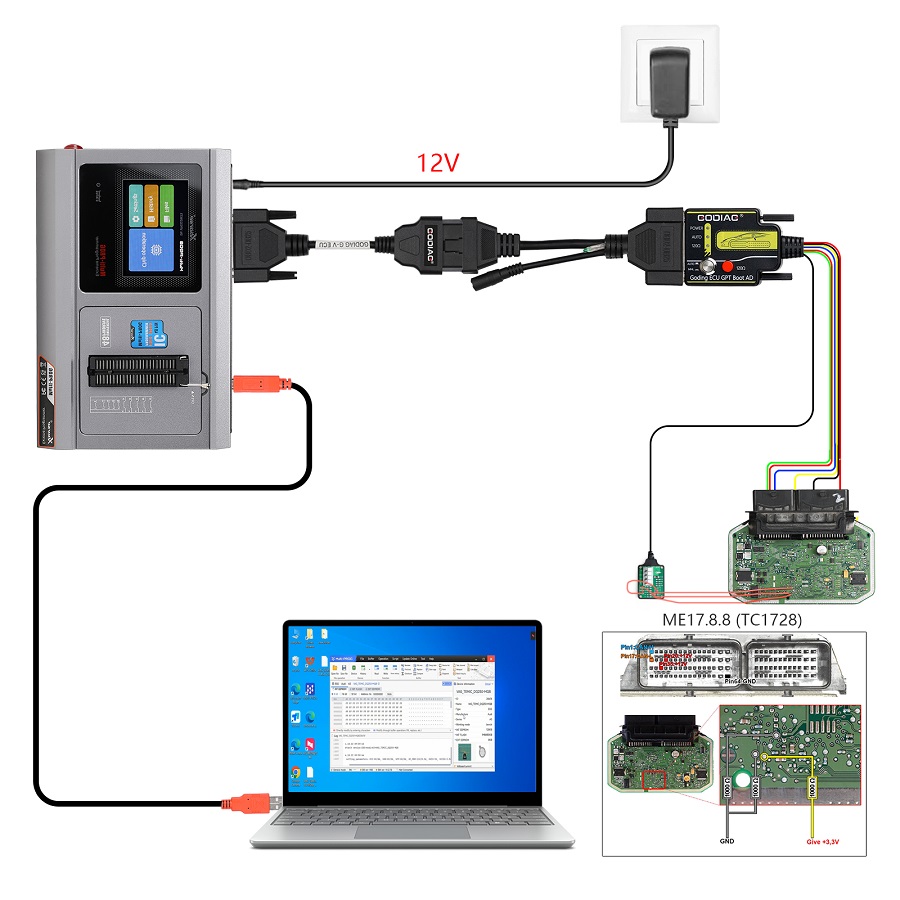

5. To read ME17.8.8 with Xhorse MULTI PROG & GODIAG ECU GPT Boot AD Programming Adapter

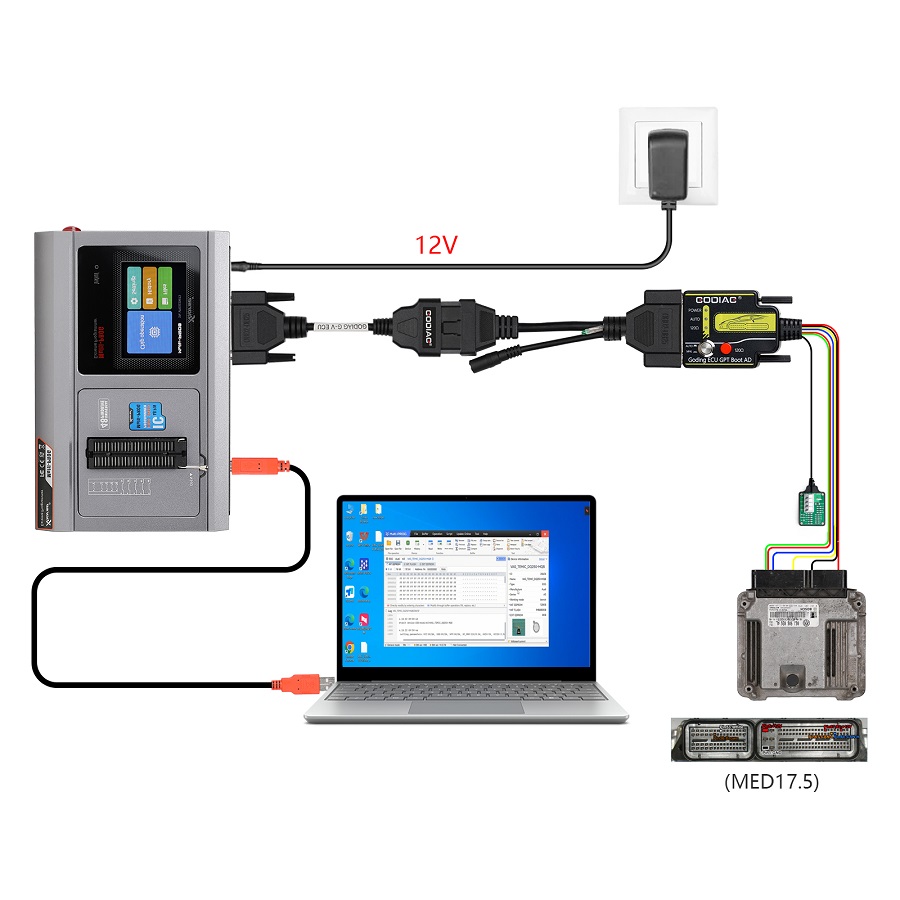

6. To read MED17.5 with Xhorse MULTI PROG & GODIAG ECU GPT Boot AD Programming Adapter

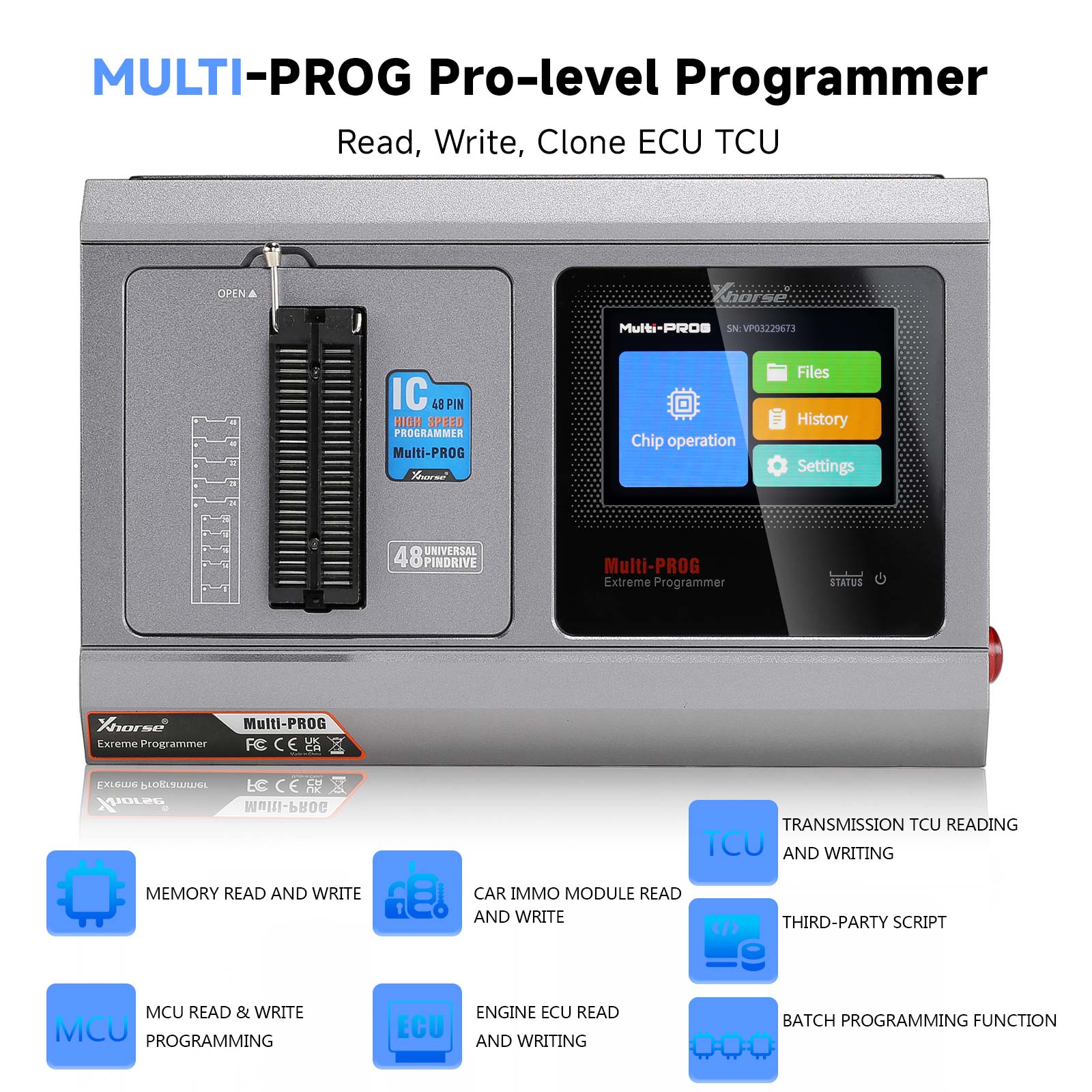

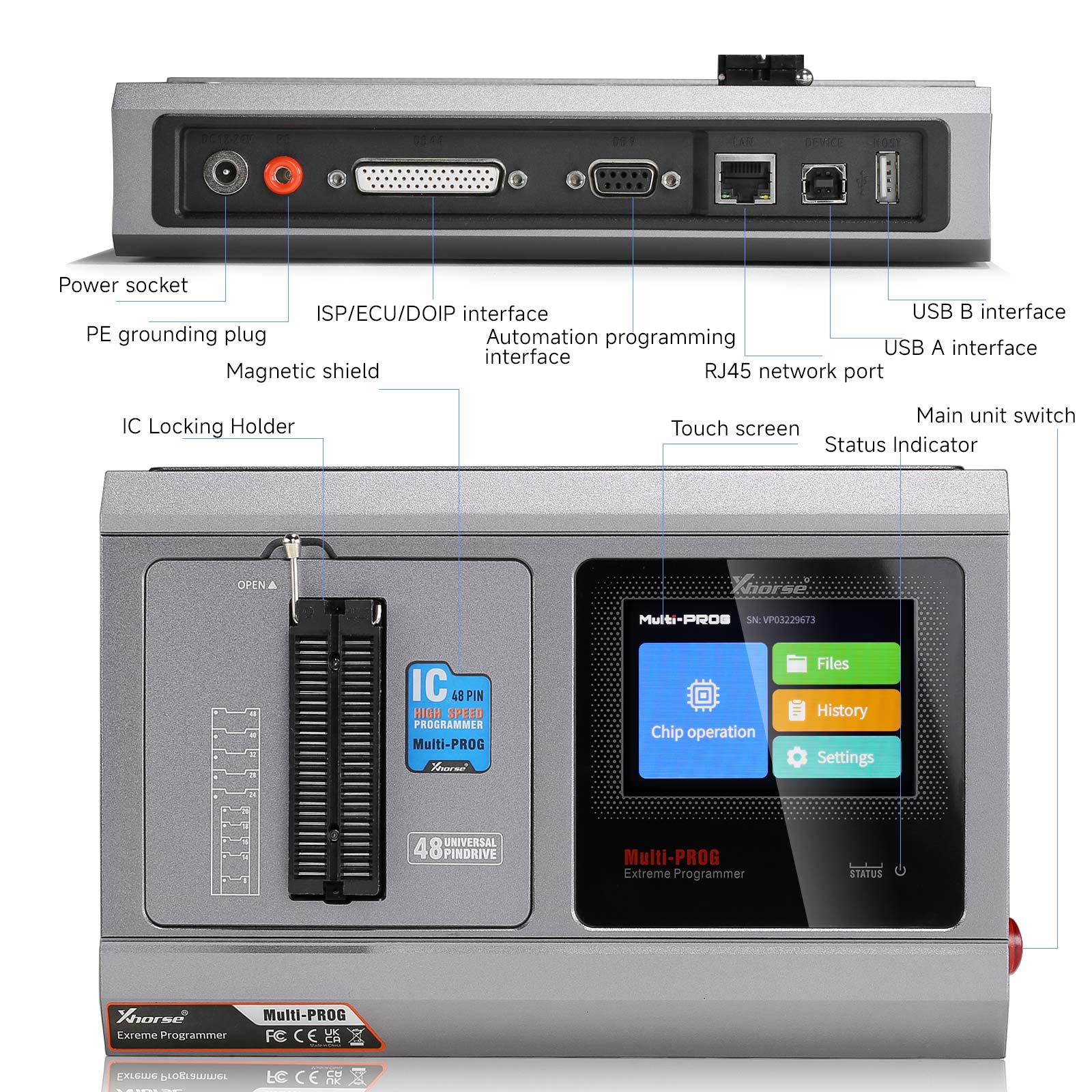

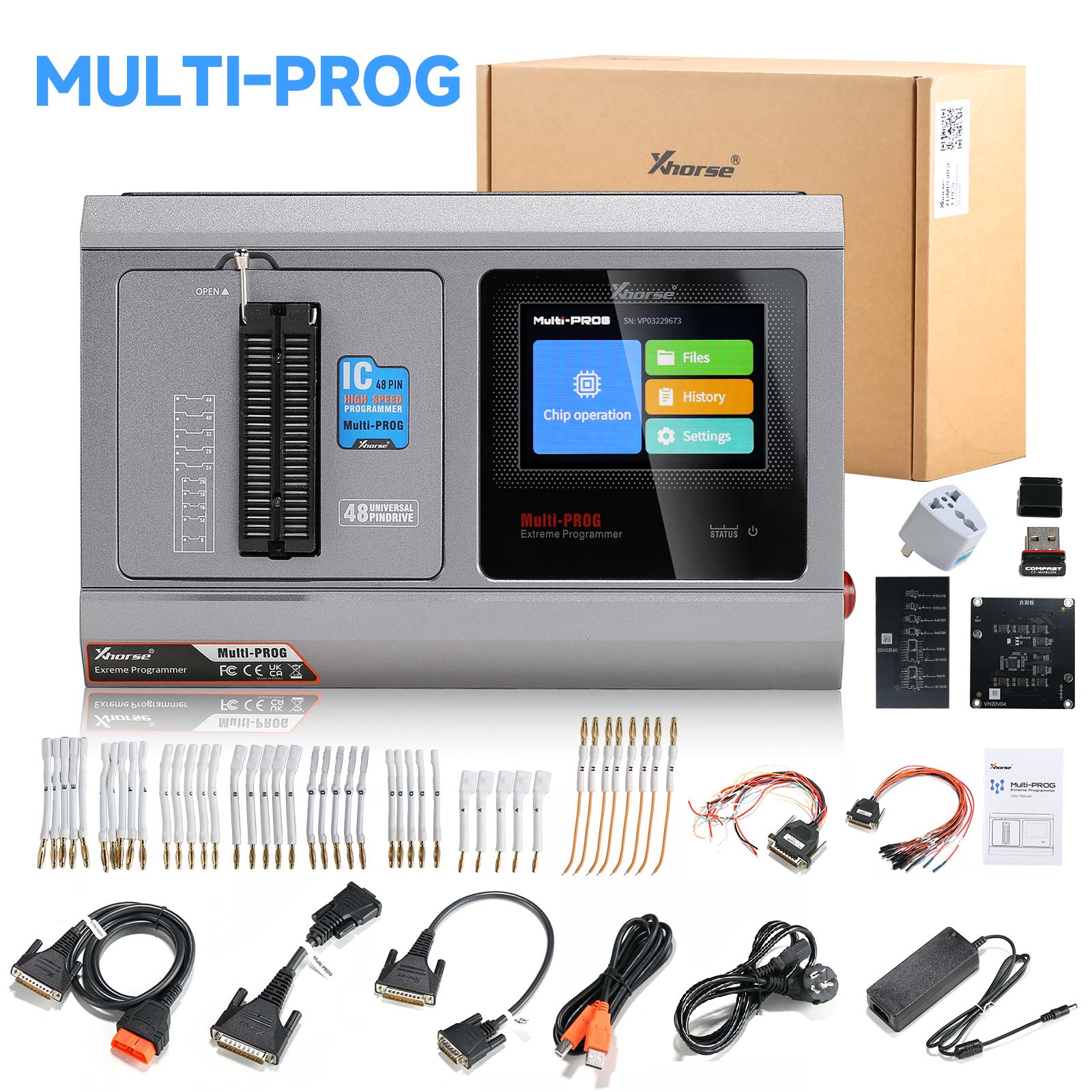

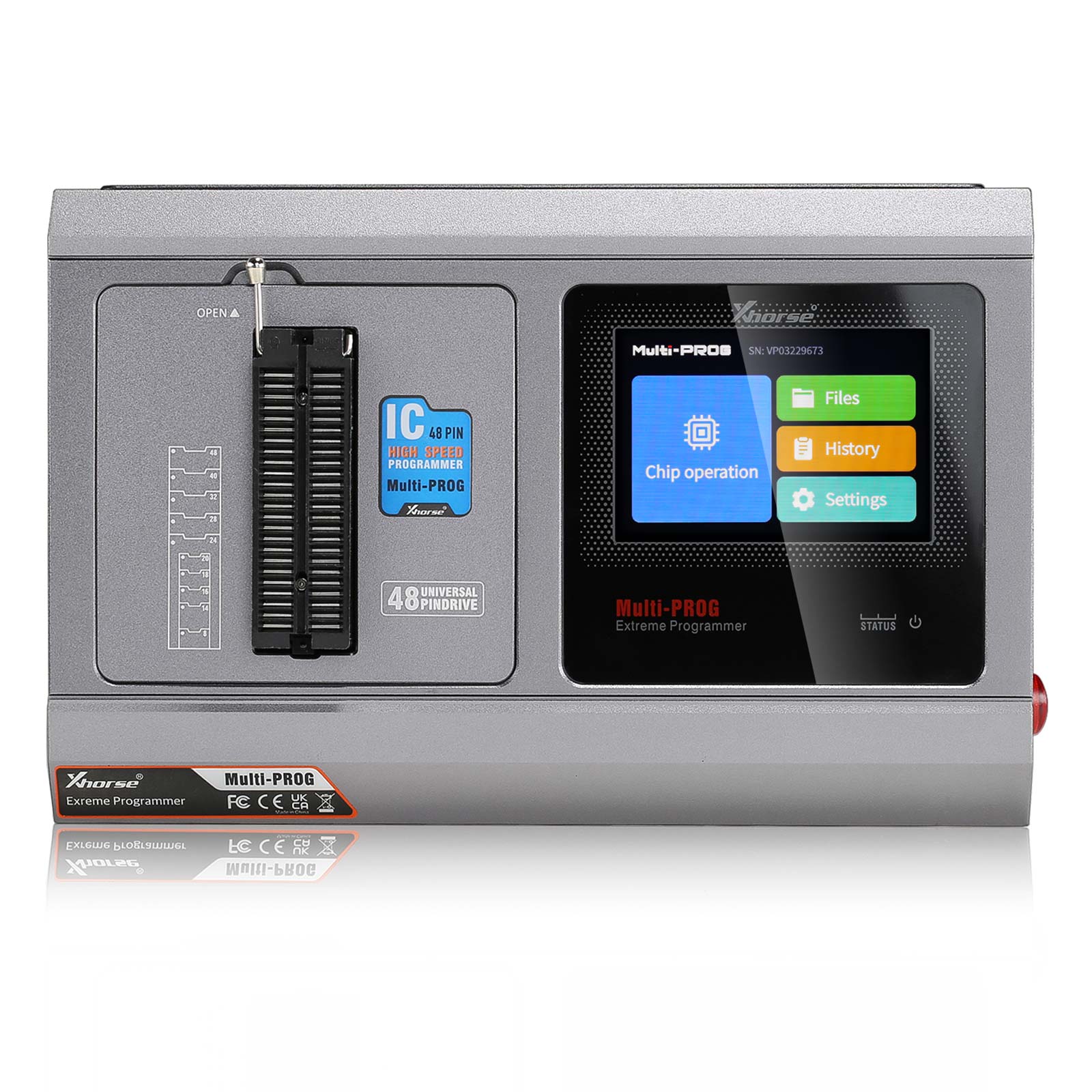

Xhorse Multi-Prog Programmer Pro-level ECU TCU Programmer

The XDMPG0GL Multi-Prog ECU Programmer is a versatile tool meticulously designed by Xhorse to access and modify crucial data stored in a vehicle's Engine Control Unit (ECU) and Transmission Control Unit (TCU). From engine maps to transmission parameters and immobilizer settings, the XDMPG0GL ECU Programmer empowers users with unprecedented control and customization.

1. Read, Write, and Clone ECU
2. Read, Write, and Clone Gearbox TCU
3. Read EEPROM, ECU, MCU
4. Get free BMW ISN read function and NEC, MPC, Infineon, etc chip continuously update service
5. Free software and firmware updates timely, Multi-Prog Software Download
6. Updated version of the VVDI Prog programmer
7. With free MQB48 license. Bind Multi-prog and VVDI2 (full version) or key tool plus to the same Xhorse app account to use MQB48 NEC35XX function. (But please note key tool plus not shows MQB48 NEC35XX license activated, it can use Multi Prog to read NEC35XX data, KTP load data to add new key, if you want to use key tool plus to read NEC35XX directly, still need to buy NEC35XX license to activate)
8. Support Checksum Function
9.Add Vehicle Engine Data Calculation and Processing (MED17, EDC17 etc)
10. Compatiable with Xhorse MQB Solder-free Adapters
11. NEW! Add VAG MQB RH850 dashboard processor (need seperate RH850 cable for multiprog)
12. Supports EDC17/MED17 data calculation (checksum correction) and IMMO OFF functions
13. Adds MQB ELV read/write, then decode ELV data with VVDI2.


Other Features:

Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series, MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and most eeprom chips etc .
Support chip data verify, checkblank function
Support data file compare function
Free Pin code calculation service by Dump for various models
Support Read and Write BMW N20, N55 ECU (show ISN directly)
Stable Read and Write MC9S12XE series chips (5M48H/ 1N35H/ 2M53J/ 3M25J etc.)
Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
Has the largest database of connection diagram
Reserve Ports: For future update
Supports Repair Porsche 12V lithium battery and BYD Lithium Battery (MC9S12XET256)
Supports EDC17/MED17 data calculation (checksum correction)
Support for third-party automatic HEX editing scripts
Supports Expert mode: batch write chips. vvdi prog only write a single chip at a time

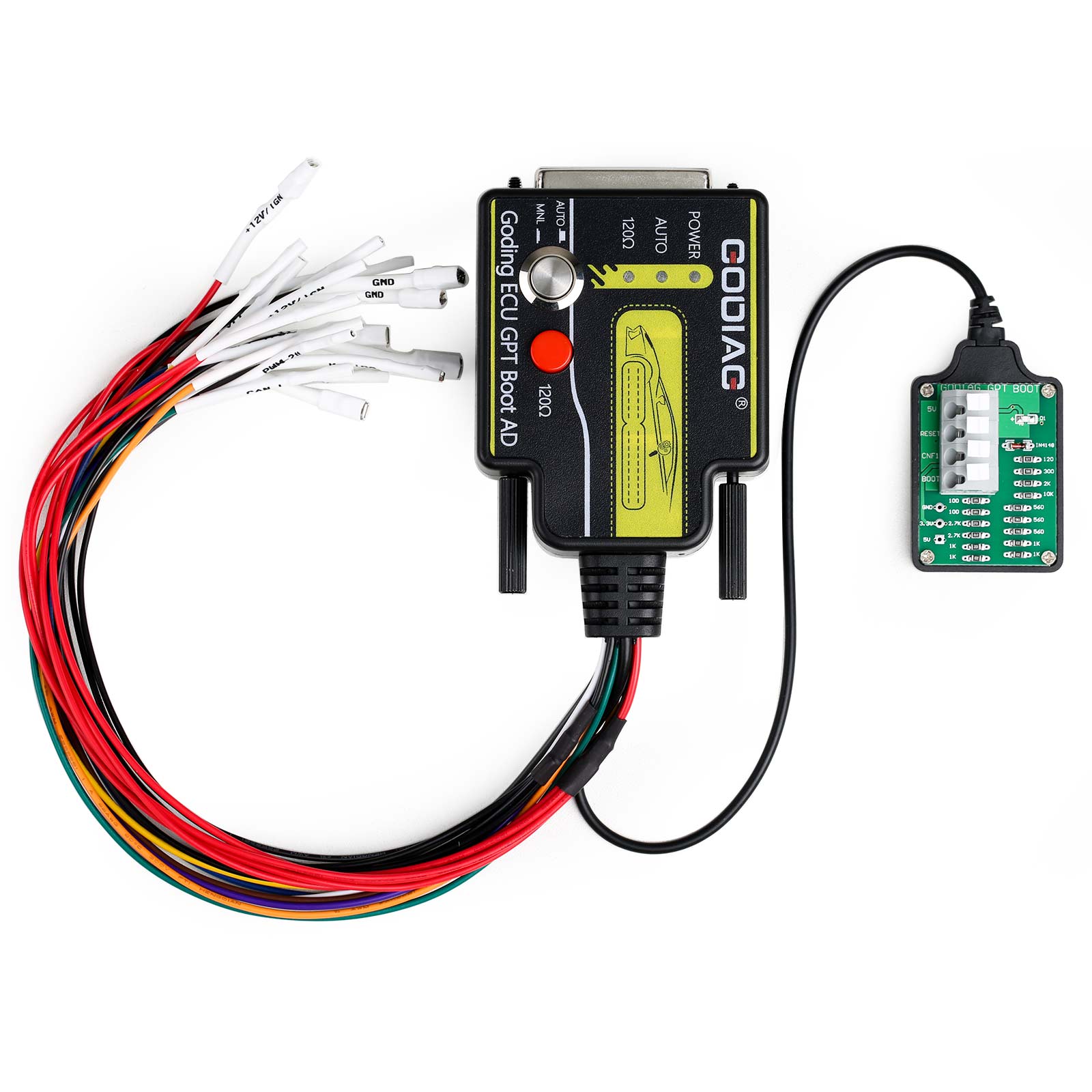

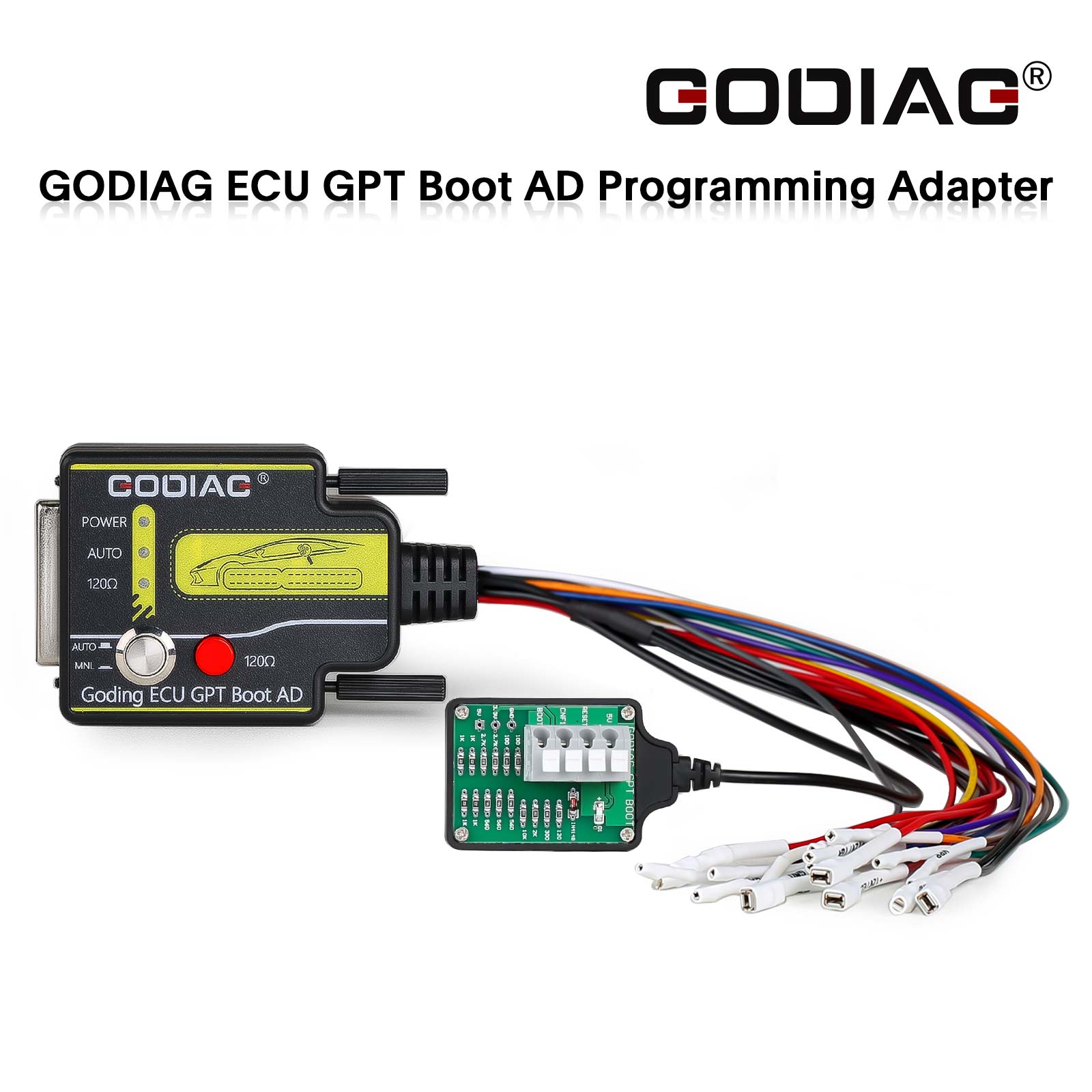

GODIAG ECU GPT Boot AD ECU Connector

GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GPT Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.

GODIAG ECU GPT Boot AD ECU Connector Features:

1. Support GPT to read and write data without disassembling the ECU.
2. Support ECU opening BOOT method to read and write data
3. Support ECU conversion to OBD2 mode to read and write data
4. Equipped with BOOT resistance board connecting cable [anti-lost resistor design]
5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
6. Support PCMFlash automatic control of ignition power supply
7. Support manual ignition power control
8. CANbus is equipped with a switch to freely select the 120Ω resistor
9. ECU dedicated connection terminal.
10. The ECU interface cable is labeled

Notice: GODIAG ECU GPT Boot AD cannot be used alone and needs to be used with ECU tools.

GODIAG ECU GPT Boot AD ECU Connector Functions:

• Diagnostic function supports standard OBD2 protocol equipment.
• Supports ECU reading and writing data, and supports J2534 devices.
• Only Scanmatik 2 PRO for PCMflash allows to form GPT1, GPT2 signals necessary to work with Module 71.
• Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,
• Teradyne GNA600 (VCM 1), Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data.

Package Includes:

1set x Multi-PROG

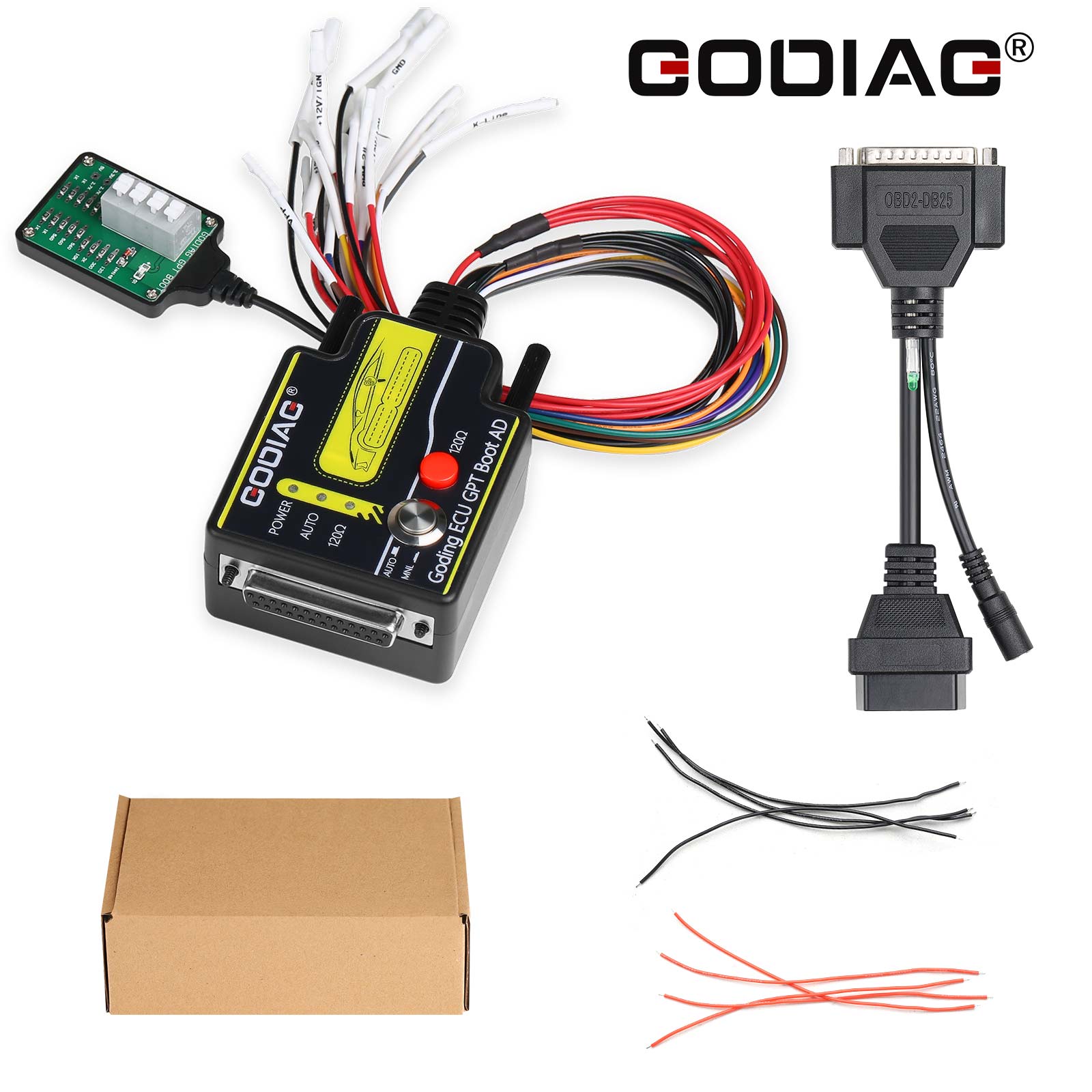

1set x GODIAG ECU GPT Boot AD ECU Connector
1set x GODIAG G-V ECU Cable
