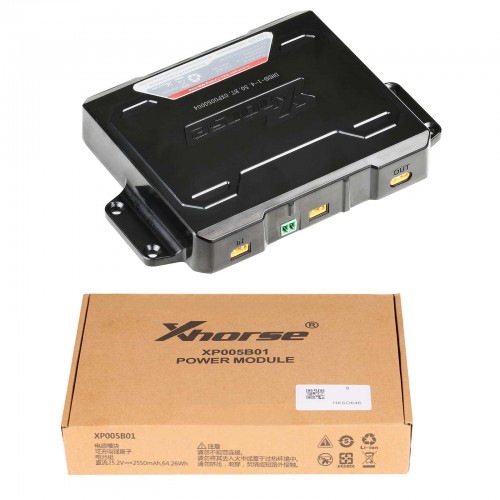

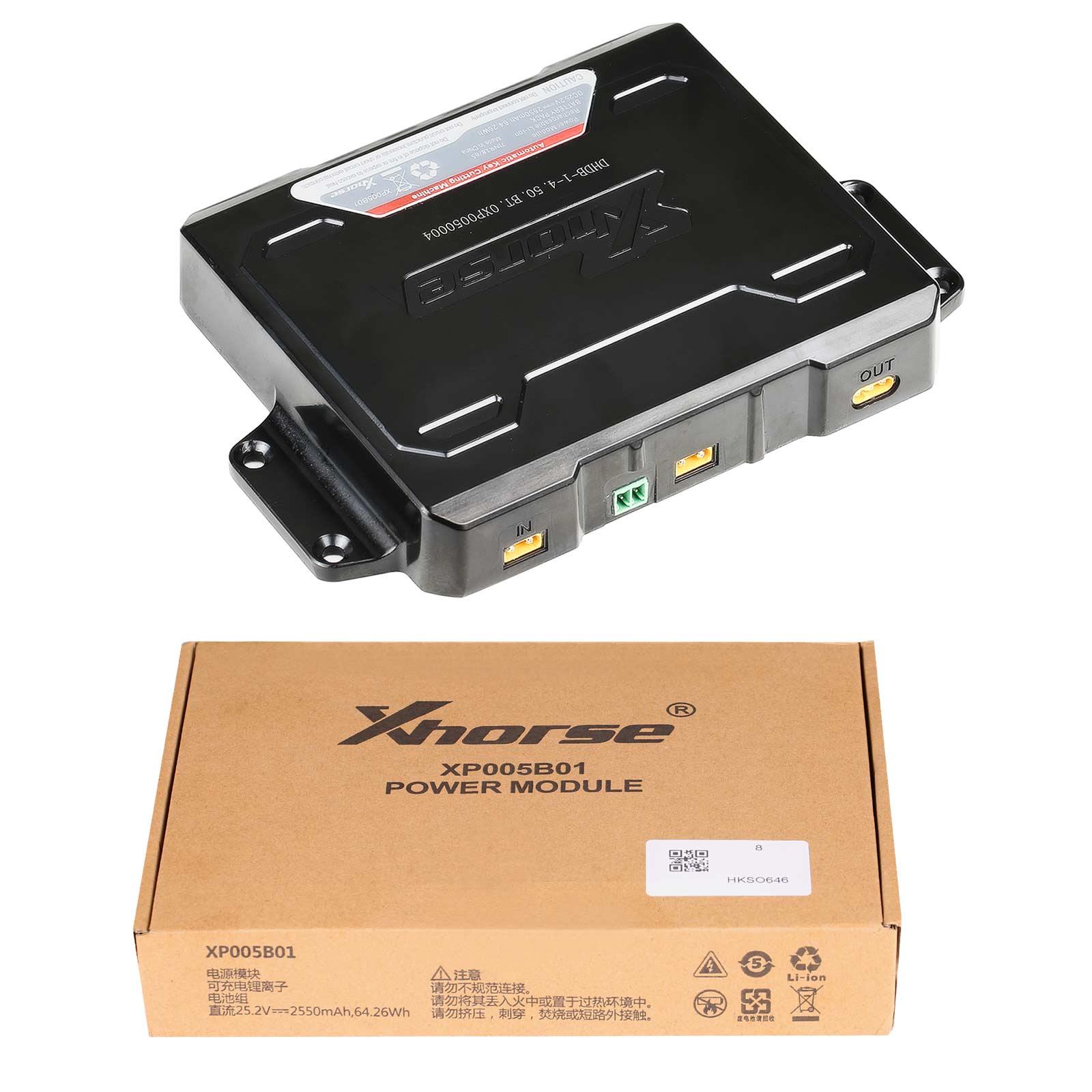

Xhorse Replacement Battery for Condor Dolphin XP-005 XP005L
DC25.2V ---2550mAh 64.26Wh
How to Replace Xhorse Dolphin XP005 Battery:
PS: usually, the battery life is long enough that the user doesn't need to replace it.

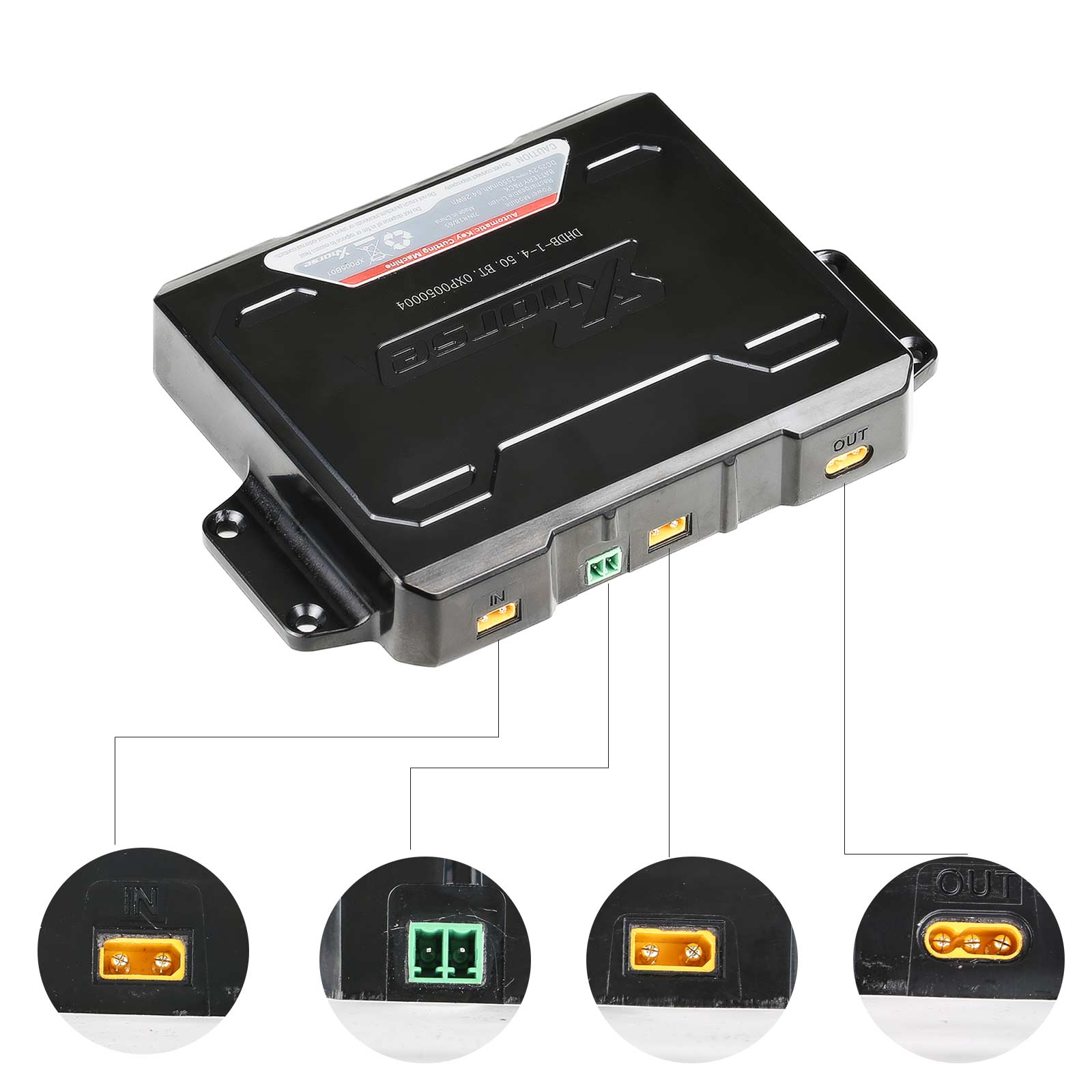

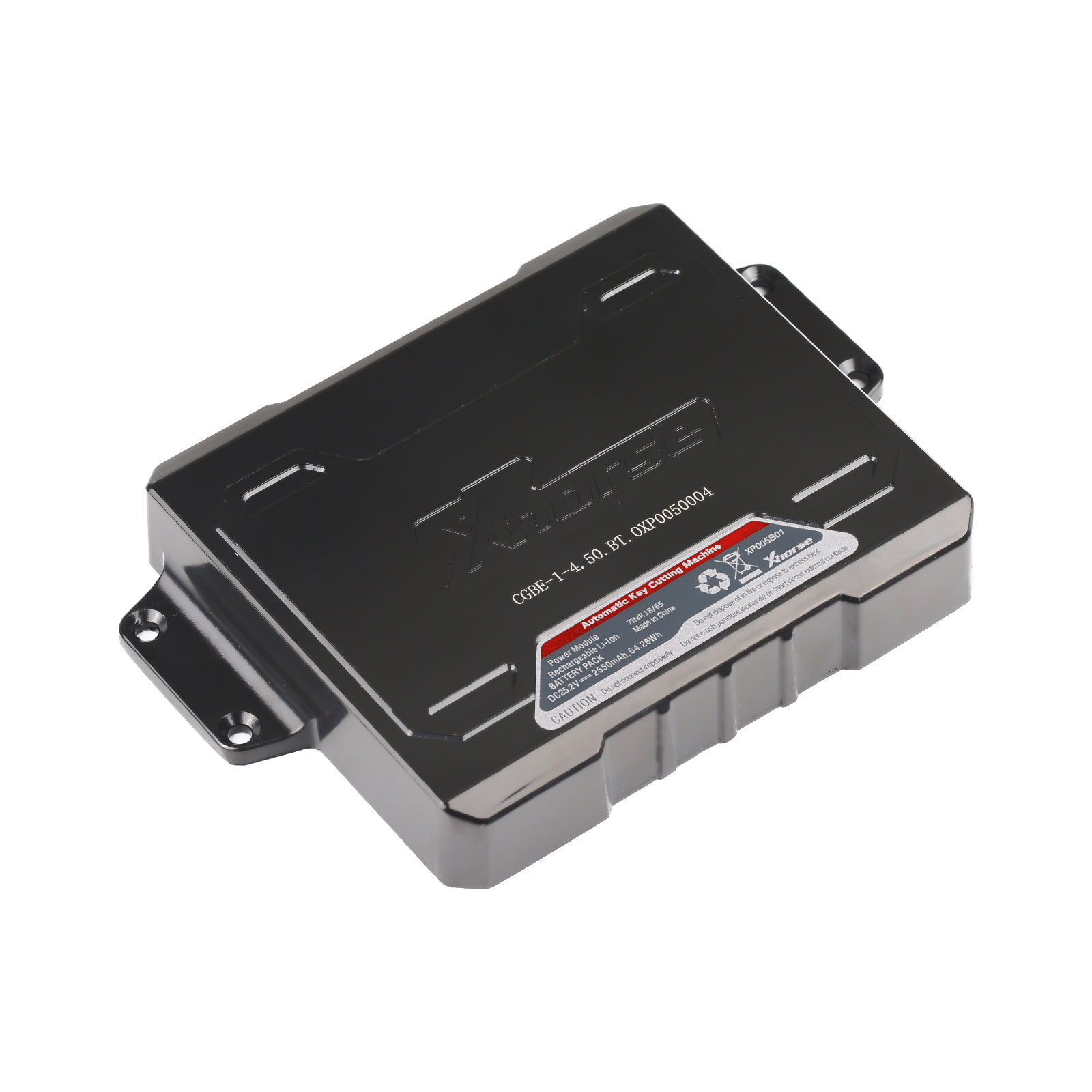

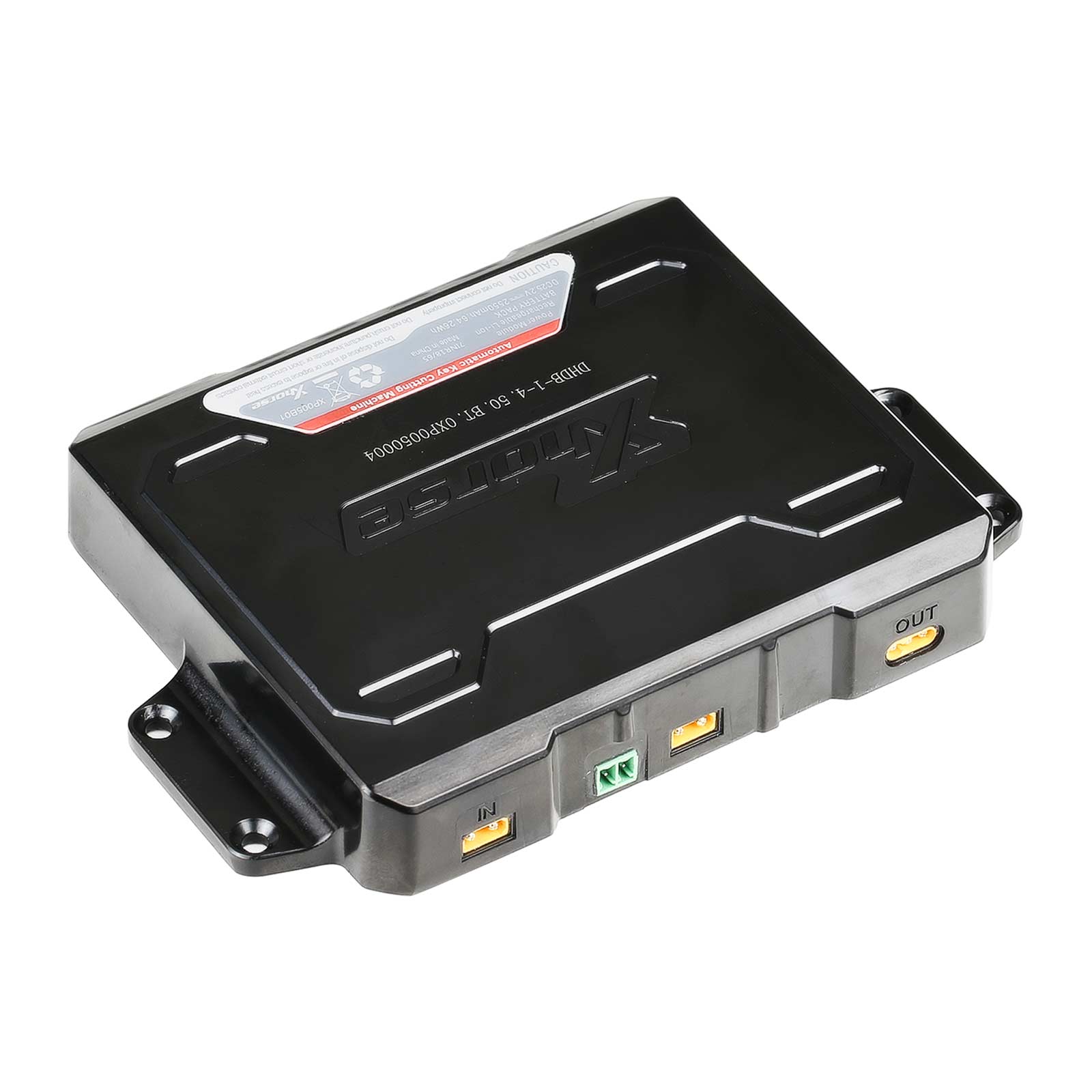

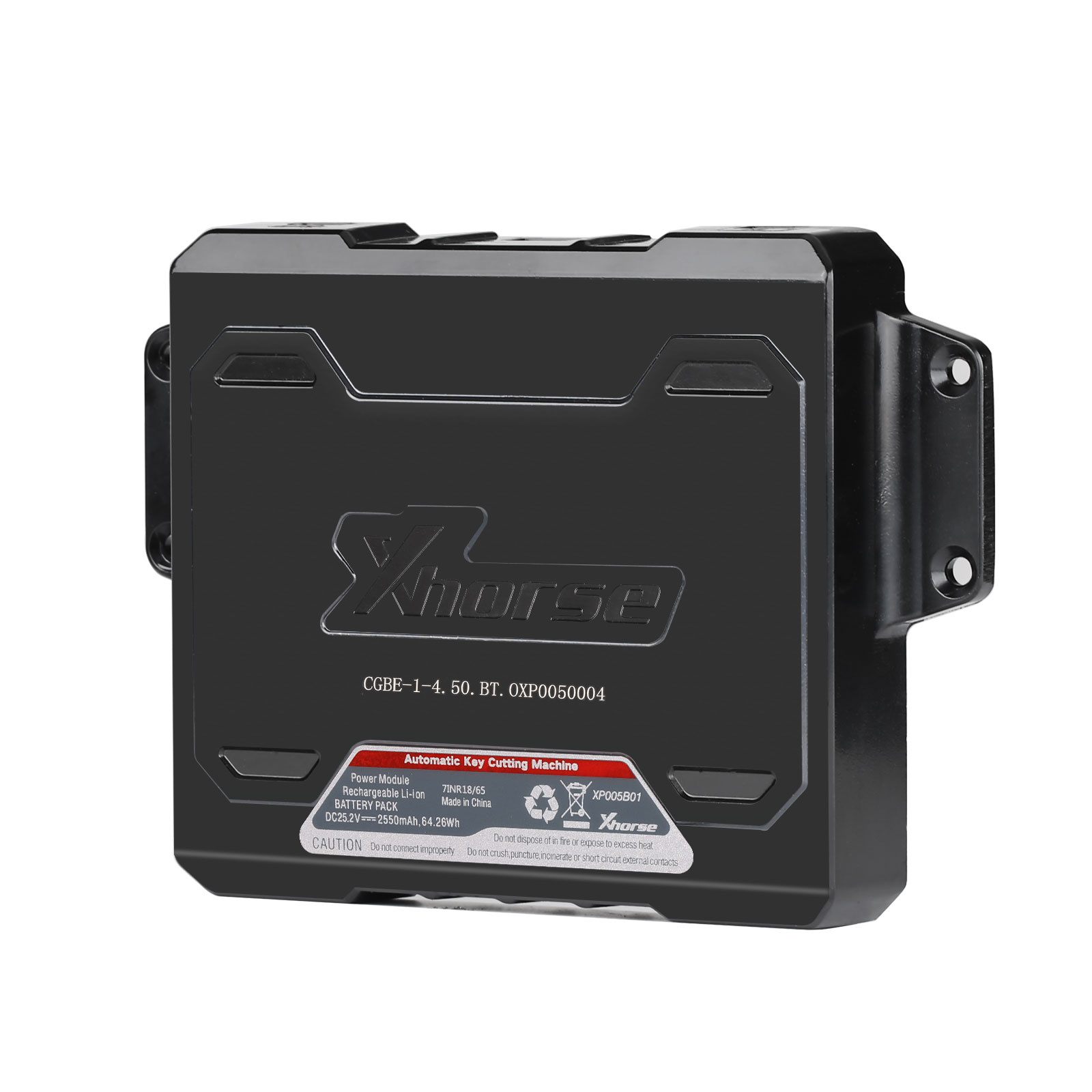

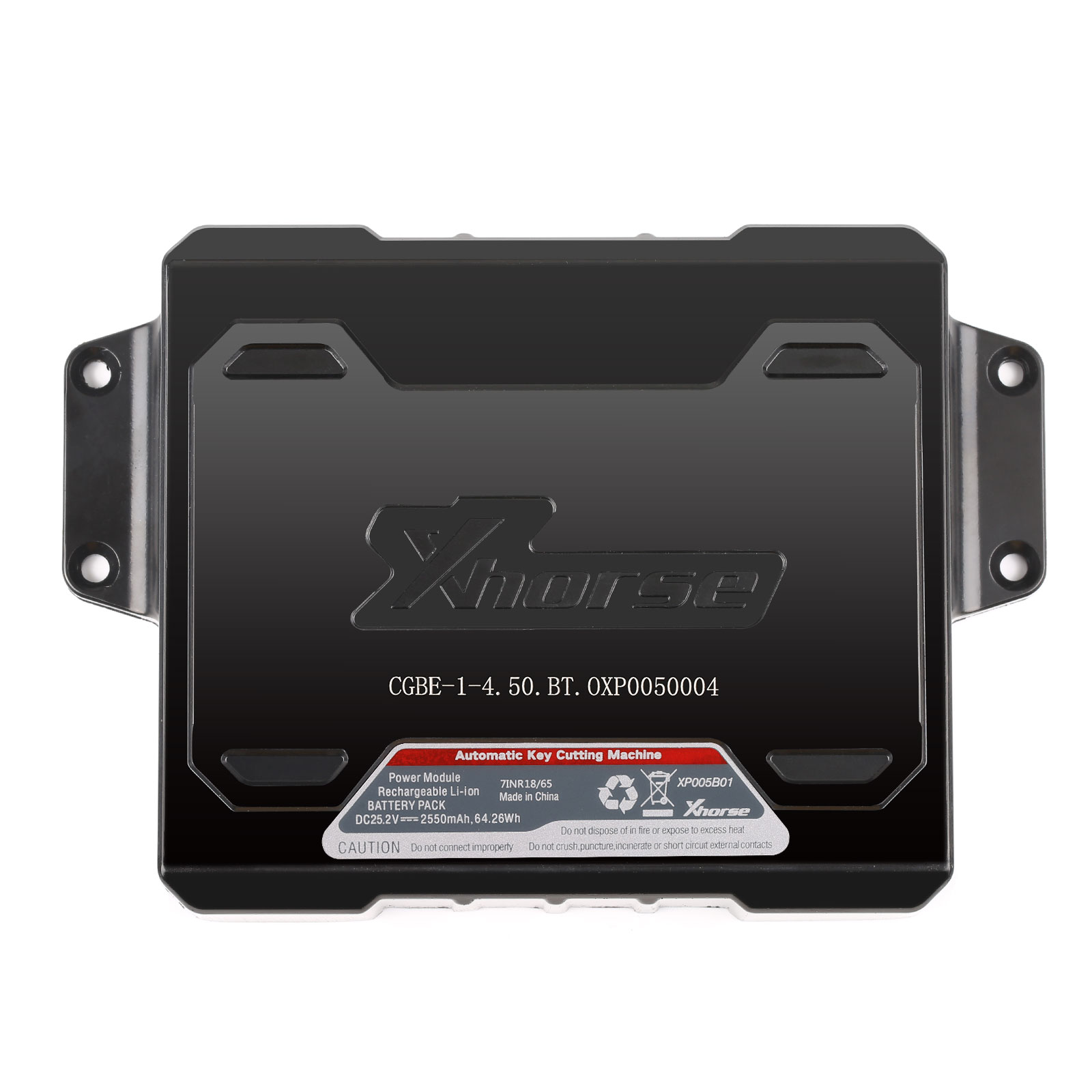

Look at the new battery of Xhorse Dolphin XP005 cutting machine.
1. Lay the machine, face its base.
2.Use a screwdriver to loosen its screws and feet.
You will see the black box, that’s battery which is connected to the machine with 3 wires
3. Unscrew all 8 screws on the two sides.
4. Remove the 4 screws on both sides of the battery.
Unplug the 3 wires to the battery.
5. The old battery is removed, ready to replace the new battery.
Please do from step 4 to step 1.
