[US/EU Ship] [Second-Handed] 90% New Xhorse VVDI PROG Programmer Multi-Language Read/Write ECU MCU IMMO EEPROM

Product Description

Original Xhorse VVDI-PROG VVDI PROG Programmer



Top reasons to get VVDI PROG Programmer

1. VVDI PROG Software: V5.3.7, Firmware: 2.0.0
2. High-speed USB communication interface: Make software automatically connect.
3. Smart operation mode: possible causes of error will be listed
4.VVDI PRO Multi-Language: English, Arabic, Czech, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish, Chinese
5. Self-test function: Check if the machine works well or not.

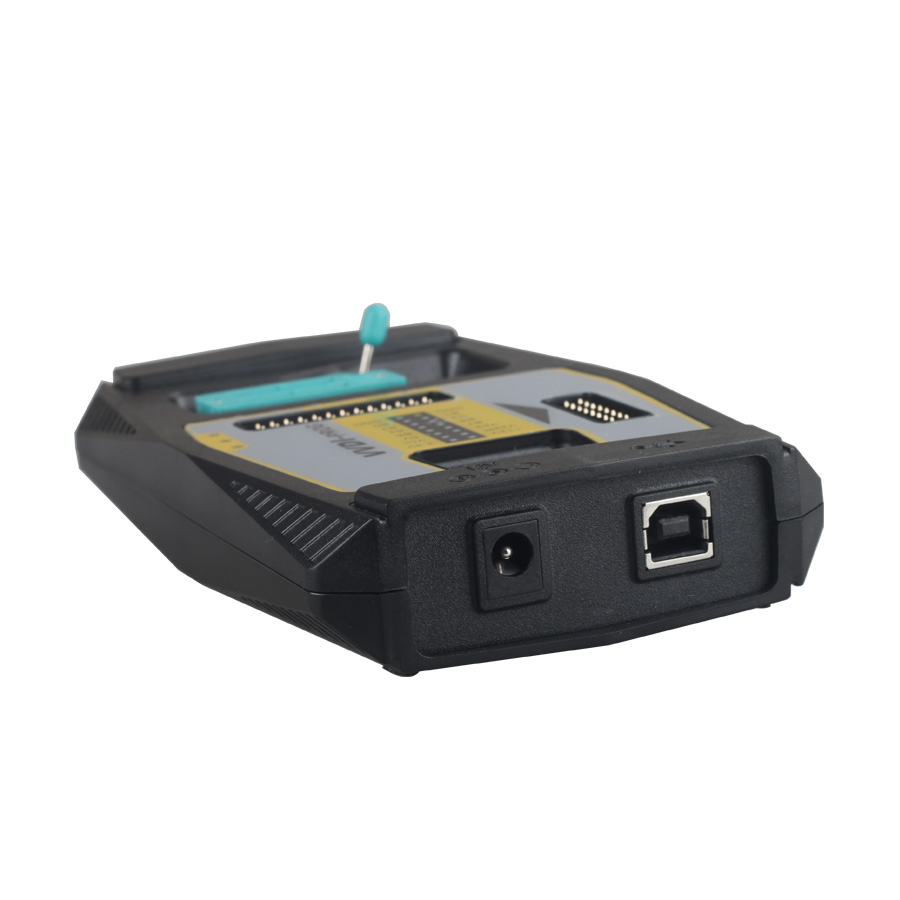

6. Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed
7.VVDI Prog support reading BMW ISN (but need to buy BOSH ECU Adapter)
8.Get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service
9.  VVDI Prog 5.3.7 Software Free Download Password:123456
10. VVDI Prog + XDPGSOGL DB15-DB25 Cable work with Xhorse Solder-Free Adapters for VVDI Key Tool Plus and Mini Prog.
11. Released the new repair function for Porsche 12V lithium battery. This function supports Porsche models from 2018 to 2020. (Add CAYENNE AC MOUDLE, LITHIUM BATTERY MODULE options in <8-OTHER>->)




VVDI PROG Main Function:

1) Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series,
2) MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and
3) Most eeprom chips etc .
4) Support chip data verify, checkblank function
5) Support data file compare function
6) Support R&W BMW N20, N55 ECU(show ISN directly)
7) Stable R&W MC9S12XE series chips(5M48H/1N35H/2M53J/3M25J etc.)
8) Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)

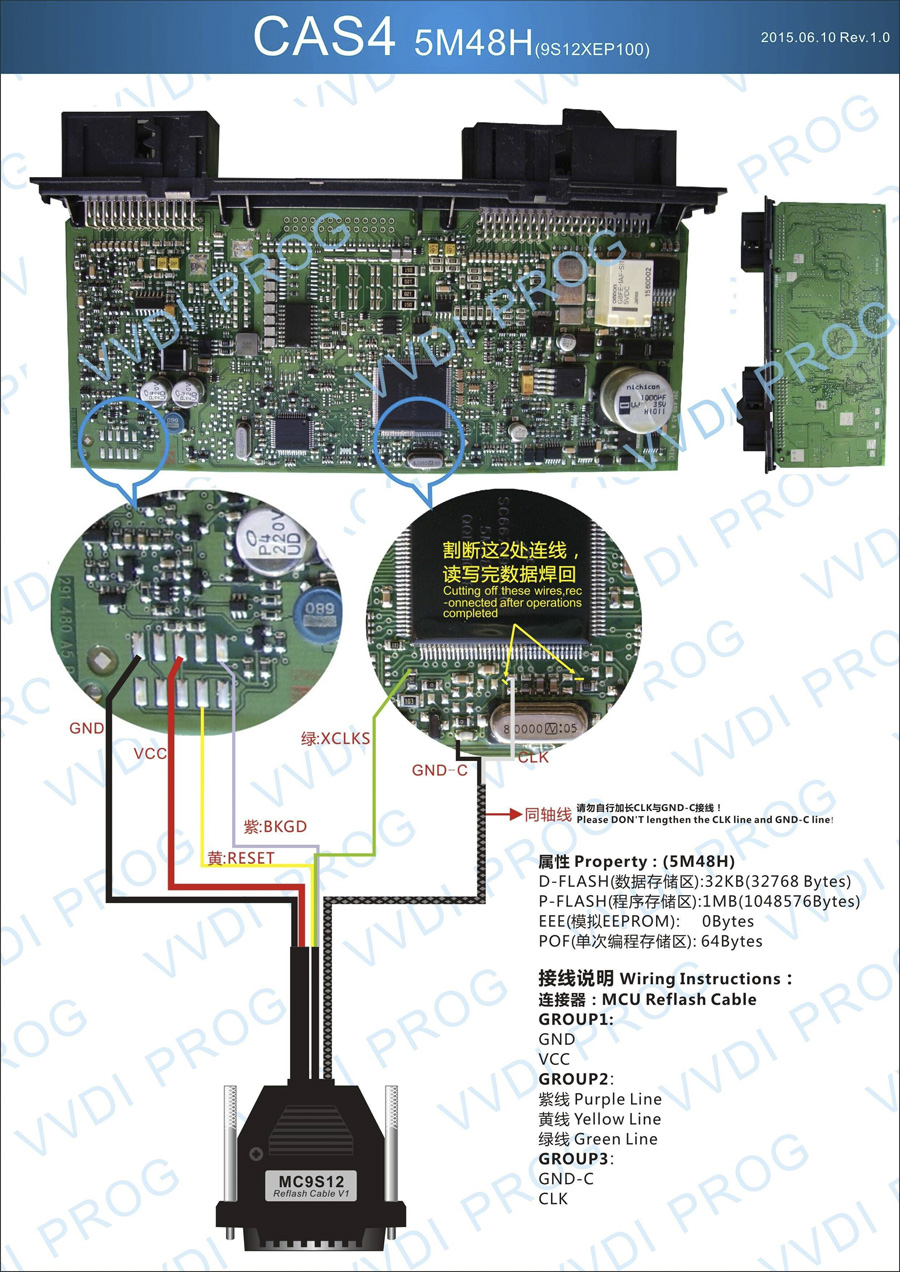

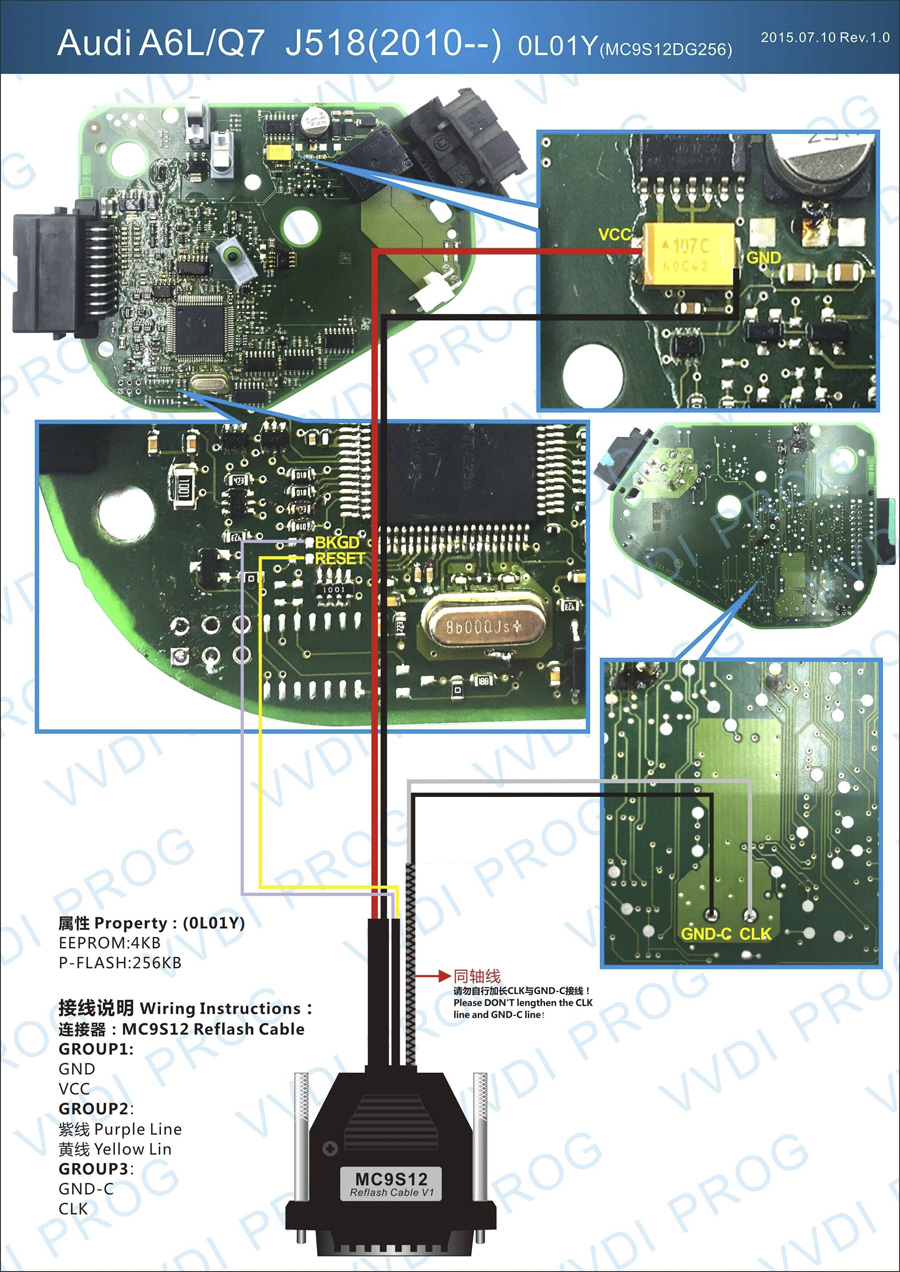

9) Lots of connection diagram






VVDI Prog Programmer Supported Type List:

Memory:
ATMEL,CATALYST,EXEL,FAIRCHILD,INTEL,MICROCHIP,MITSUBISHI,ST,
TOSHIBA,XICOR

MCU:
RENESAS V850,RENESAS H8X,RENESAS R8C,MOTOROLA MC68HC(9)08,MOTOROLA MC68HC(9)12
MOTOROLA MC9S08,MOTOROLA MC9S12,NXP PCF79XX,ST ST10F,INFINEON XC2XXX,ATMEL,ATMEGA XXXX,
INFINEON XC164CS,MICROCHIP PIC18F,

VVDI Prog Programmer Support Model List:

ECU List:
BMW E Series,BMW F Series,BOMBARDIER,CHANGAN,DELPHI,MAGNETI,MARELLI,RENAULT,OTHER

IMMOBILIZER List:
AUDI,BENZ,BMW,BUCIK,CHEVROLET,STEC,CHRYSLER,FIAT,FORD,
GREATWALL,INFINITI,LANDROVER,JAGUAR,NISSAN,OPEL,PORSCHE,
RENAULT,SAICMOTOR,VOLKSWAGEN,ZHONGHUA.

DASHBOARD List:
BUICK,CHANGAN,CHERY,CHEVROLET,DONGFENG,FAW,FORD,GEELY,
GREATWALL,HAFEI,TOYOTA,HANTENG,HAIMA,HONDA,JAC,JAGUAR,
JINBEI,JMC,LUXGEN,NISSAN,SGMW,VOLOVO,ZHONGHUA,ZOTYE

REMOTE List:
BMW E Series,BMW F Series

Supported chip list:

EEPROM

Manufactures	Types	Support	Remark
ATMEL	AT24CXX	R
	AT25XXX	R
	AT93CX6	R
BOSCH	B3XX	R
	B4XX	R
	B5XX	R
	B58XXX	R
CATALYST	CAT24CXX	R
	CAT24WXX	R
	CAT93CX6[A]	R
EXEL	XL[S]24CXX	R
	XL[S]93CX6	R
FAIRCHILD	FM24CXX	R
	NM24CXX	R
	NM93CX6	R
GRUNDIG	GRXX	R
HOLTEK	HT93CX6	R
MICROCHIP	24AAXX	R
	24[L]CXX	R
	93[L]CX6	R
	93AAX6	R
MITSUBISHI	M6M800X1	R
SEIKO	S-24CXX	R
	S-93CX6	R
ST	D80/D160	R	Can erase the first 32 bytes
	M35080	R	Can erase the first 32 bytes
NEC	M24CXX	R
ST	ST24CXX	R
	ST24EXX	R
	ST24WXX	R
	ST25CXX	R
	ST25EXX	R
	ST95P0X	R

Note: R means the type is supported, ￡ means the type will be supported in the future

MCU

Manufactures	Types	Support	Remark
MOTOROLA	MC9S12XEP	R	Can automatically determine D-FLASH/EEE space
	MC9S12XA	R
	MC9S12XB	R
	MC9S12XD	R
	MC9S12XDT	R
	MC9S12XDP	R
	MC9S12XDQ	R
	MC9S12DG	R
	MC9S12DT	R
	MC9S12P	R
	MC9S12H	R
	MC9S12HY	￡
	MC9S12HA	￡
	MC9S12HZ	￡
	MC9S12XHZ	￡
	MC9S12B	￡
	MC9S12GC	￡
	MC9S12XS	￡
	MC9S12K	￡
	MC9S12Q	￡
	MC9S12C	￡
	MC9S12P	￡
	MC9HC(9)08	￡
ATMEL	ATTINY	￡
	ATMEGEA	￡
NEC	uPD70F	￡
ST	TMS370	￡

Note: R means the type is supported ￡ means the type will be supported in the future.
ECU

Manufactures	Types	Support	Remark
VAG	MED17.1-TC1796	￡
	MED17.11-TC1796	￡
	VAG MEG17.5-TC1766	￡
	VAG MED17.5.1-TC1796	￡
	VAG MED17.5.2-TC1767	￡
	VAG MED17.5.5-TC1766	￡
	VAG MED17.5.20-TC1766	￡
	VAG EDC17 CP14/CP20-TC1796	￡
	VAG EDC17 CP04-TC1796	￡
	VAG EDC17 C46-TC1767	￡
	VAG EDC17 CP24-TC1796	￡
	VAG EDC17 CP44-TC1797	￡
	VAG EDC17 U01-TC1766	￡
	VAG EDC17 U05-TC1796	￡
	VAG/Porsche Siemens Continental SDI 3- TC1796	￡
BMW	MEVD172(N55)	R
	MEVD172P(N20)	R
	MEVD172G(N55)	R
	MEVD172S(N55)	R
	MEVD1724(N20)	R
	MEVD1725(N13)	R
	MEVD1726(N55)	R
	MEVD1729(N20)	R
	MEVD1728(N63/S63)	R

Note: R means the type is supported ￡ means the type will be supported in the future.

VVDI PROG Connection for Maybach:


VVDI Prog Connection for Sprinter:




VVDI Prog Latest Update Information:

V5.3.7 (2024-10-18)
* This version DON't need update firmware
* Fix reading ECU communication failure

V5.3.5 (2024-06-19)
* This version DON't need update firmware
* Fixed an issue with the MQB option reading the serial number abnormally
* Fixed an issue with the Porsche lithium battery module reading abnormally


V5.3.3 VVDI Prog Update (2024-1-24)
* This version DON't need update firmware
* Some ECU options process optimization
* Land Rover RFA Adapter options process optimization
* RH850 series Some options wiring diagram updated
* Modify LOCK_BCM2 options in <4-IMMOBILIZER>->[AUDI]: Erasing failure repair and prompt message modification
* Modify CAVALIER(2018) option in <7-AIRBAG>->[CHEVROLET]: Wiring diagram update
* Modify LITHIUM BATTERY MODULE option in <8-OTHER>->[Porsche]: Wiring diagram update

VVDI-PROG Programmer reading ISN:



2.DO NOT click firmware upgrade in VVDI Prog software, its firmware is always2.0 version, no need to update. Or it will get communication server error.
3.Please do wiring 100% same like the connection diagram in VVDIProg software, DO NOT lengthen the connection lines with other parts. Or will fail to read.
4. VVDI PROG User Manual Or you can check in VVDI Prog software folder.

VVDI Prog Features:

1. Built-in update software: Make VVDIProg update timely.
2. High-speed USB communication interface: Make software automatically connect.
3. Smart operation mode: possible causes of error will be listed
4. Reserve ports: For future update.
5. Self-test function: Check if the machine works well or not.
6. Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed

VVDI Prog Adapters Detailed Description

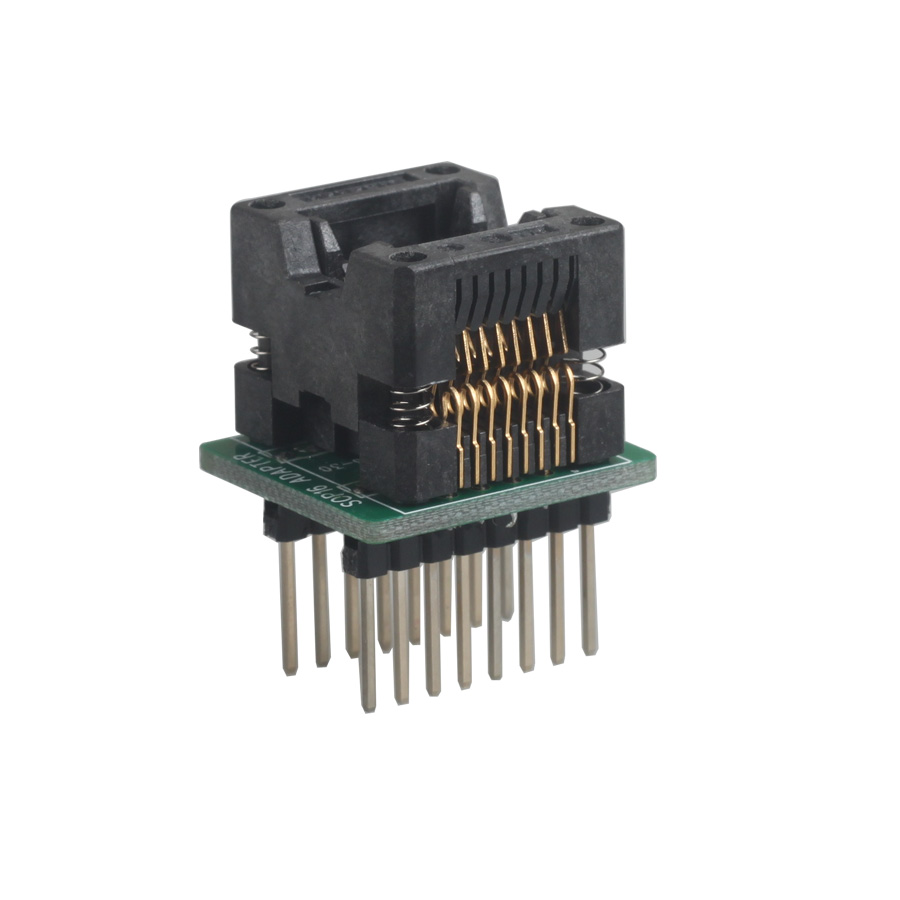

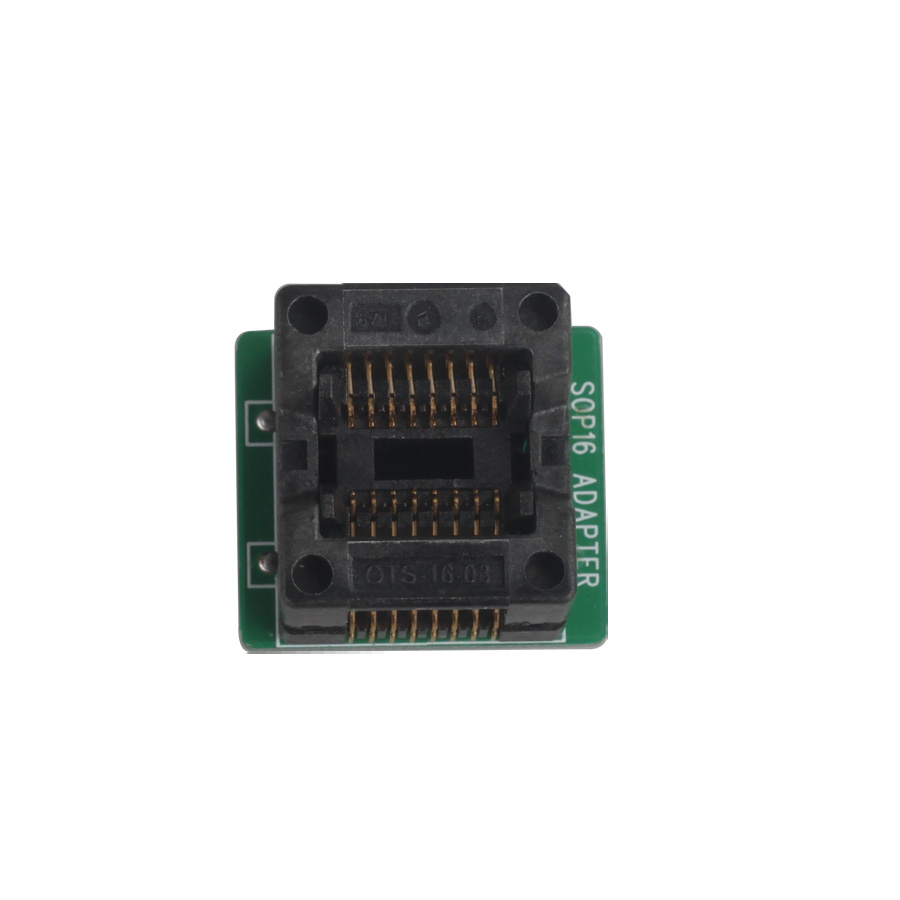

1.16pin locking socket
Function: Read EEPROM chips
Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture); SOP chip need soldering on 16Pin adapter first, then insert the chip follow the image direction:

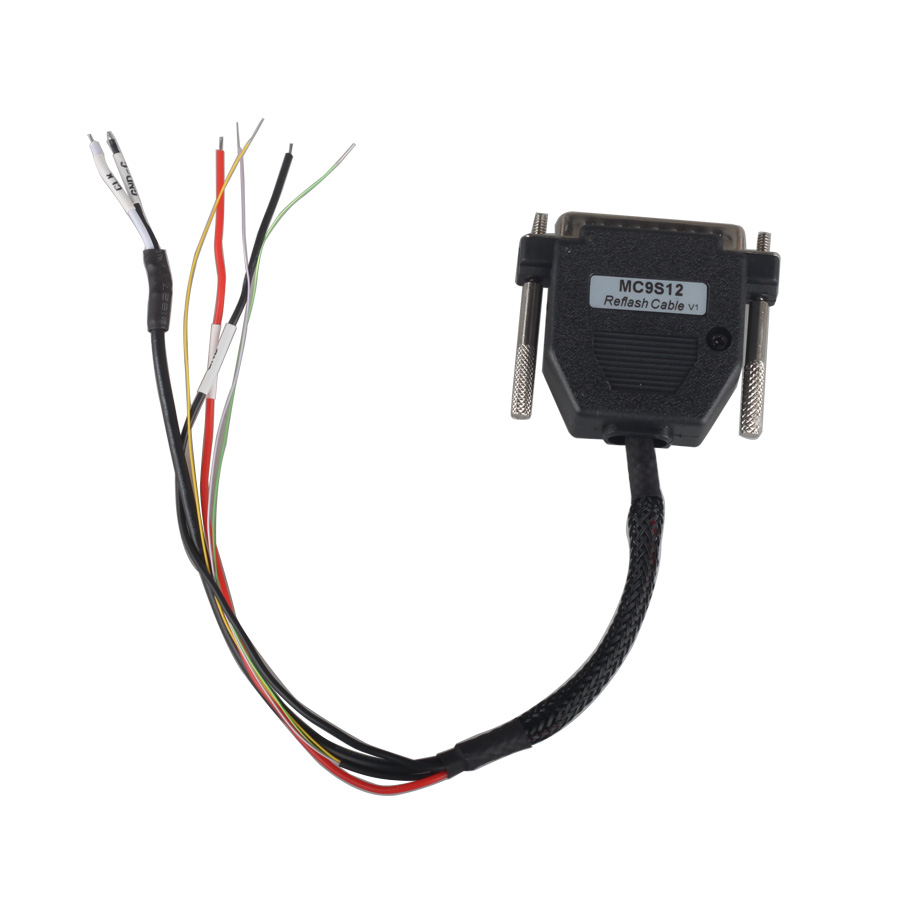

2 ．MC9S12 Reflash Cable V1
Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
Use method: Soldering the line on pin of chip before read & write

Notes:
(1) Please check all connection lines, ensure correct and reliable connection
(2) Please Don't lengthen CLK and GND-C line, may cause read data failed

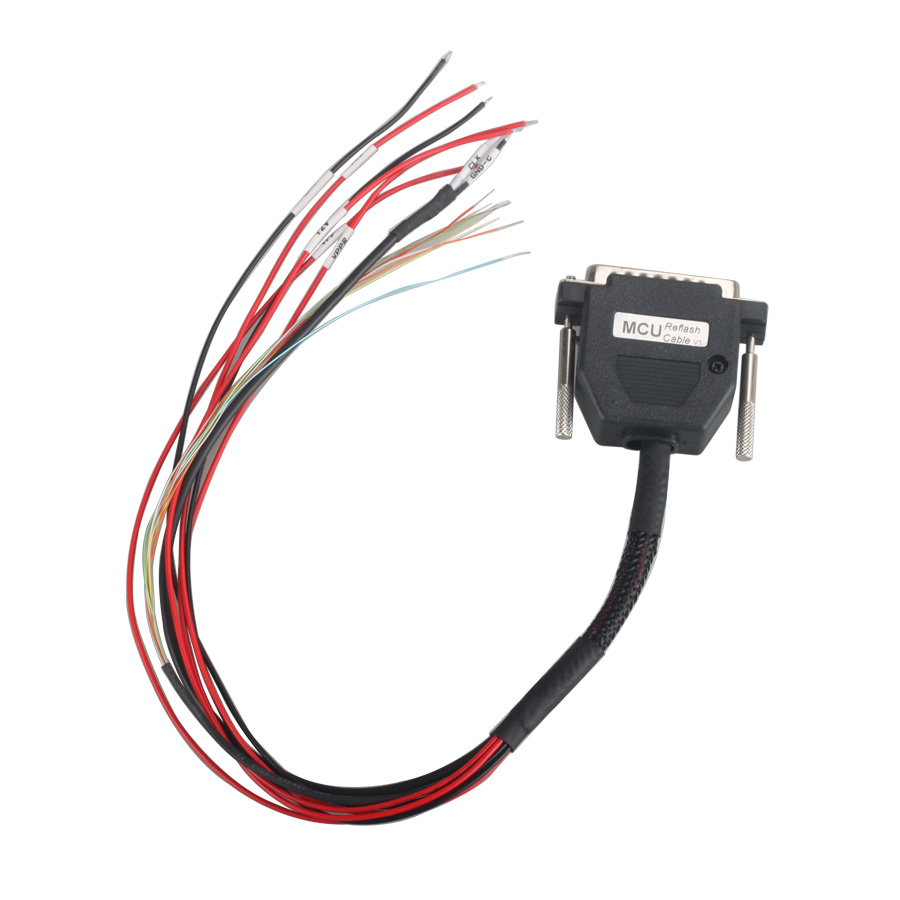

3. MCU Reflash Cable V3
Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips, current version is V3
Use method: Soldering the line on pin of chip before read & write

Notes:
(1) Please check all connection lines, ensure correct and reliable connection
(2) Please Don't lengthen CLK and GND-C line, may cause read data failed

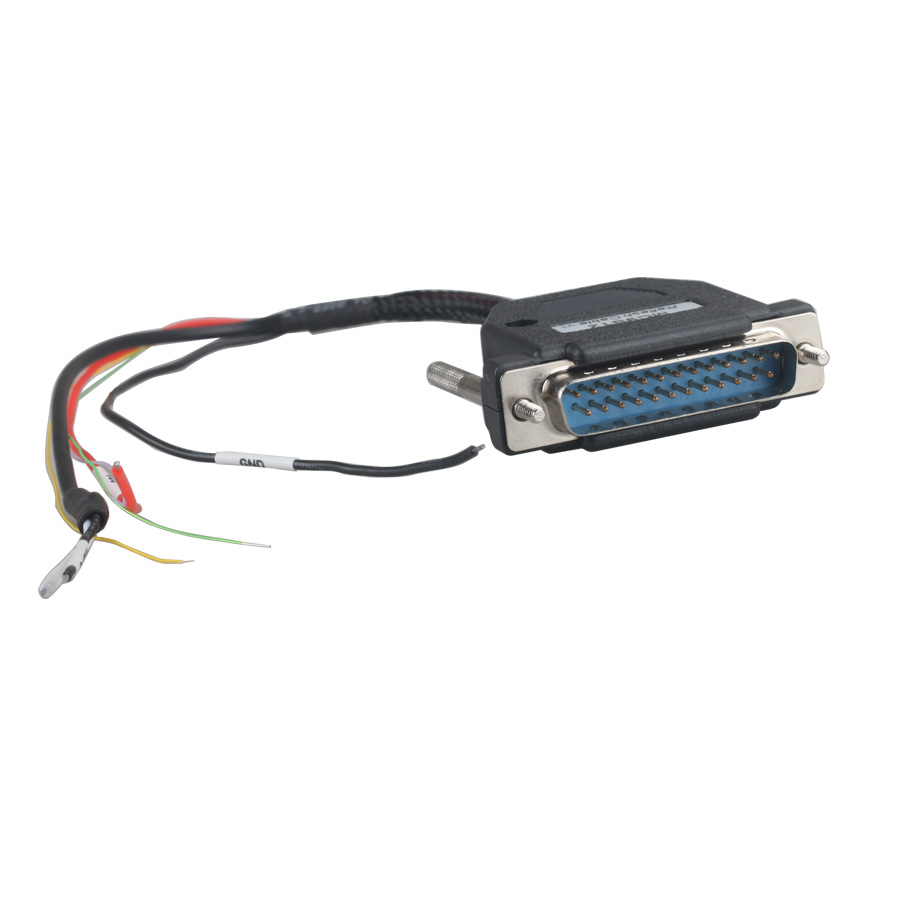

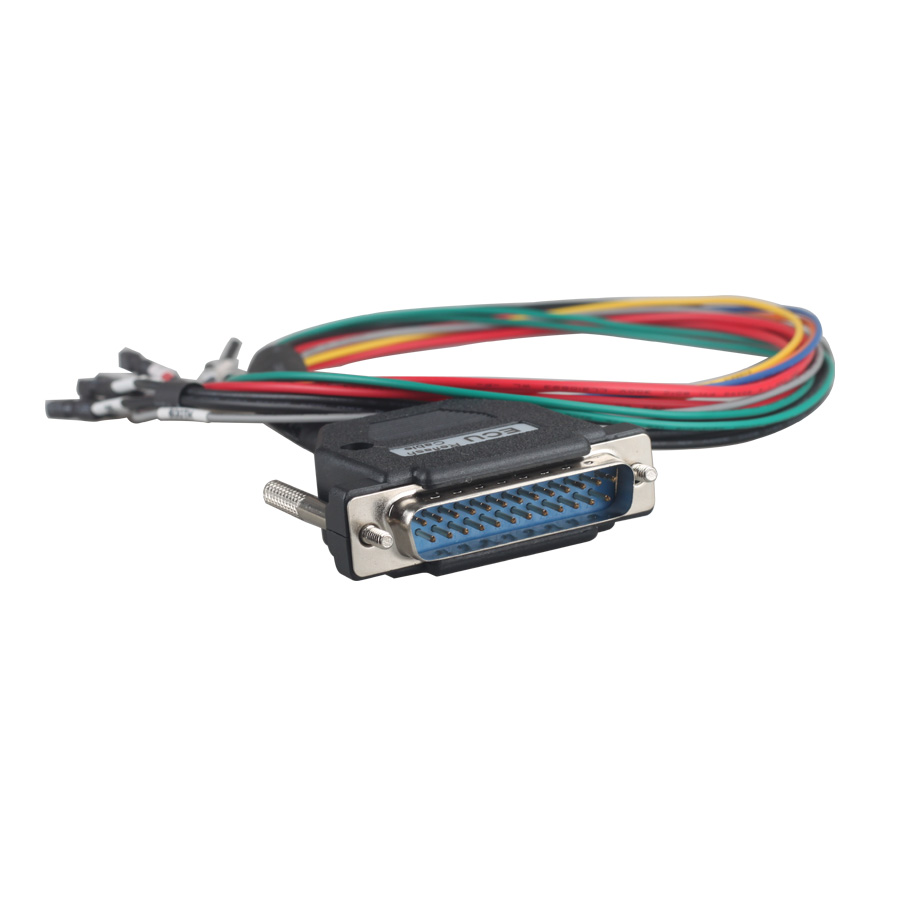

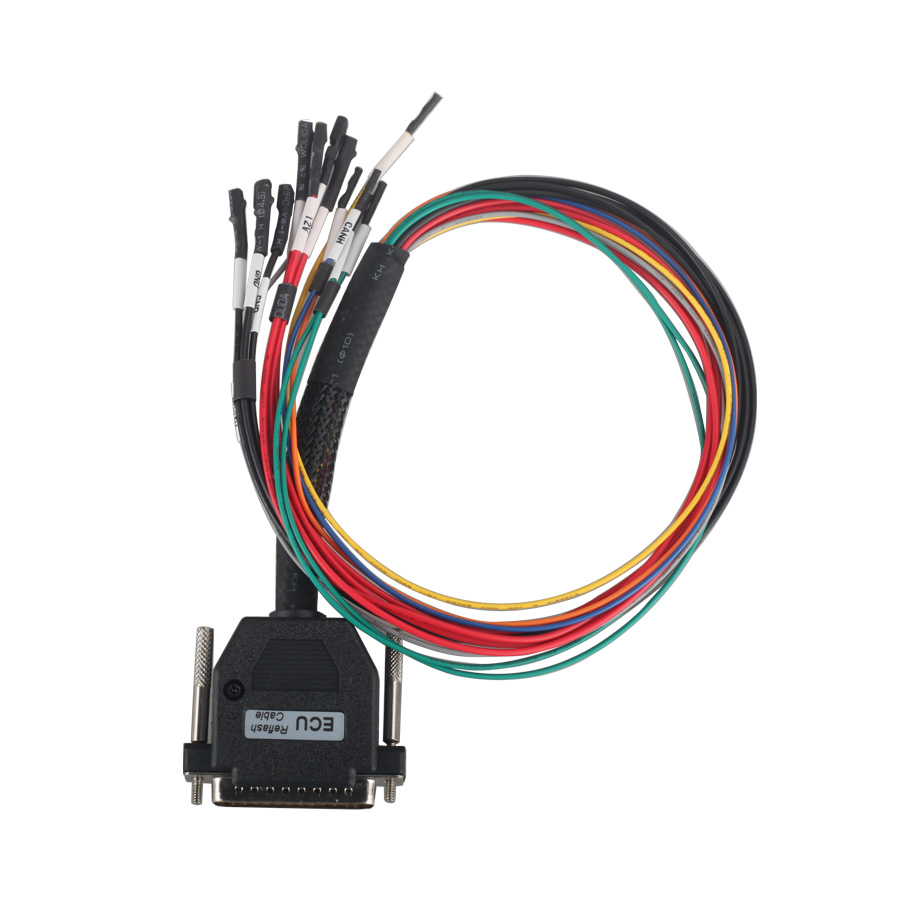

4. ECU Reflash Cable
Function: Read & Write engine ECU
Use method: Connect the ECU and R&W

Notes:
Please check all connection lines, ensure correct and reliable connection



How to use VVDI Prog Programmer?

1.VVDI Prog Software Interface:

1.1. Operation options

• File : Load data file
• Buffer : Support copy, paste, search, fill function
• Device : Support chip read, write, erase operation
• Window : Compare two data files
• Setting : Read&Verify, Write&Verify, Erase&Check Blank configuration
• Language : Change the language, current support English, Chinese,Polish, Arabic, Czech, Spanish, French, Italian, Portuguese, Russian,Turkish(You can change the language you want.)

1.2. General options: Provide General function buttons, simple and easy for operation, include: new, open, save, read, write, verify, check blank,erase,calculator & upgrade
1.3. Read range: Parts of chips include several data areas, for example EEPROM, FLASH and etc. click on the button select read range
1.4. Data display: Display the read data or load data, include hex and ASCII format
1.5. Power configuration: Display the status of power ( VCC, VPP, 12V), support change the voltage of VCC and VPP (The default voltage usually not need to change)
1.6. Special function options Provide chips special function, for example parts of chips have read chip ID, set security, reset security etc .
1.7. Chip option Select right option according to type,brand and chip
1.8. Option Information: Display parameter information of current option
1.9. Connection diagram button: Click on button, get the connection diagram of current chip
1.10. adapter Type:Display needed adapter of current option
1.11. Operation Information:Display operation information and saved in "log.bin" file

2.How to Update VVDI Prog Programmer?

2.1. Software Update
You can get from our "Download" page or in description,we always list out download link.

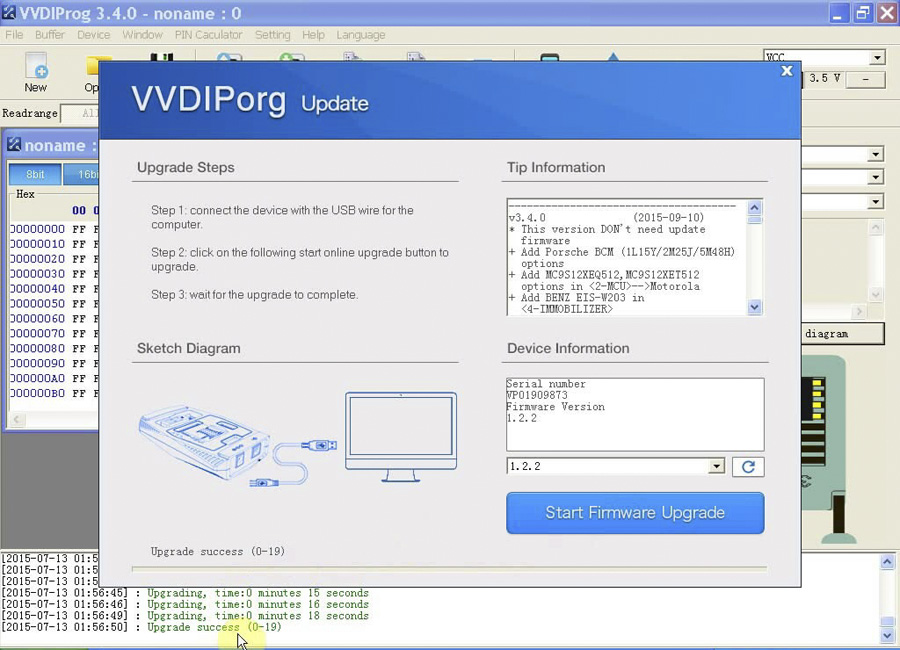

Get in VVDI prog software:Click the "Upgrade" button enter the upgrade interface, show as following

2.2. Firware:
Please note: do not click firmware upgrade in last photo, vvdi prog is firmware is 2.0 version, no need to update. Or it will get server error.

VVDI PROG Reviews:

1. Read MC9s12xdg128 2M42E tonight. Very smooth easy read and verify flash and eeprom.
2. I made pcf reseting with vvdi prog on allot of remotes. It does erase, no problem. It writes no problem.
Thumb's up for the tool. Working good.Only that you need a good dump for the pcf.
3. vvdi prog support R5F21548G, in the 2-MCU,RENESAS-R8C
4. vvdi prog is able to read volvo v50 keyless entry module. Chip is 9s12dg256 OLO1Y
5.VVDI Prog Programmer Test on Different Computer Feedback:
did a few tests today and this is what I found out.
It seems that VVDI prog reading speed is dependent on the processor speed of the computer.

CAS3 0L15Y flash read times
Centrino processor @ 1.6ghz Windows XP = 12mins
Core2 Duo processort @ 2.5ghz Windows 7 32 bit = 5 mins
i7 @ 4.4ghz Windows 7 64 bit = 2mins 30 seconds.
Other programmers do not seem to be affected by processor speed at all.
I also would of thought this was a fairly easy question to answer without me doing all the testing.

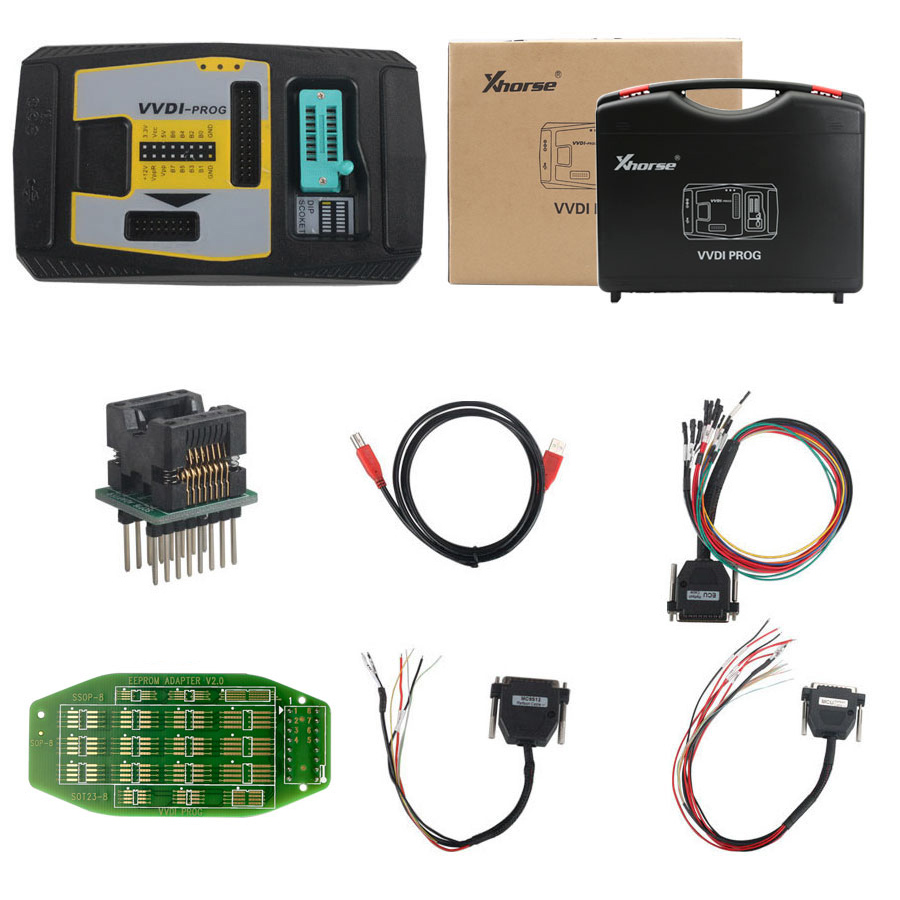

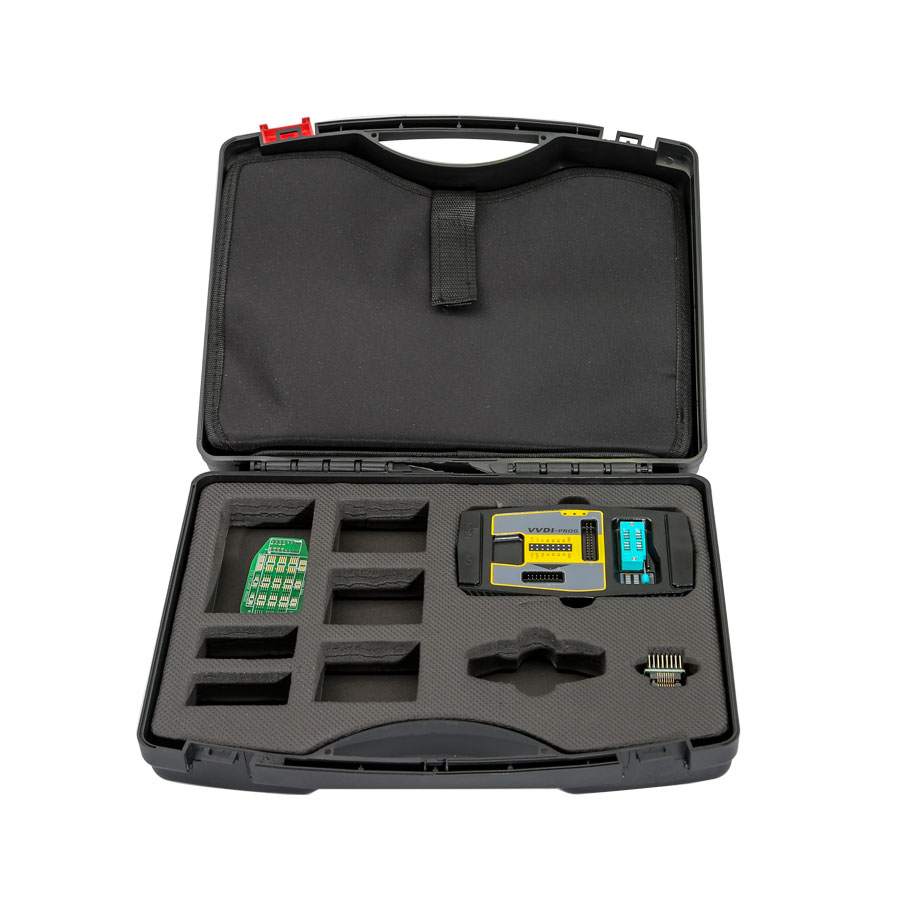

VVDI Prog Programmer Package List:

1. VVDI Prog device
2. EEPROM Socket

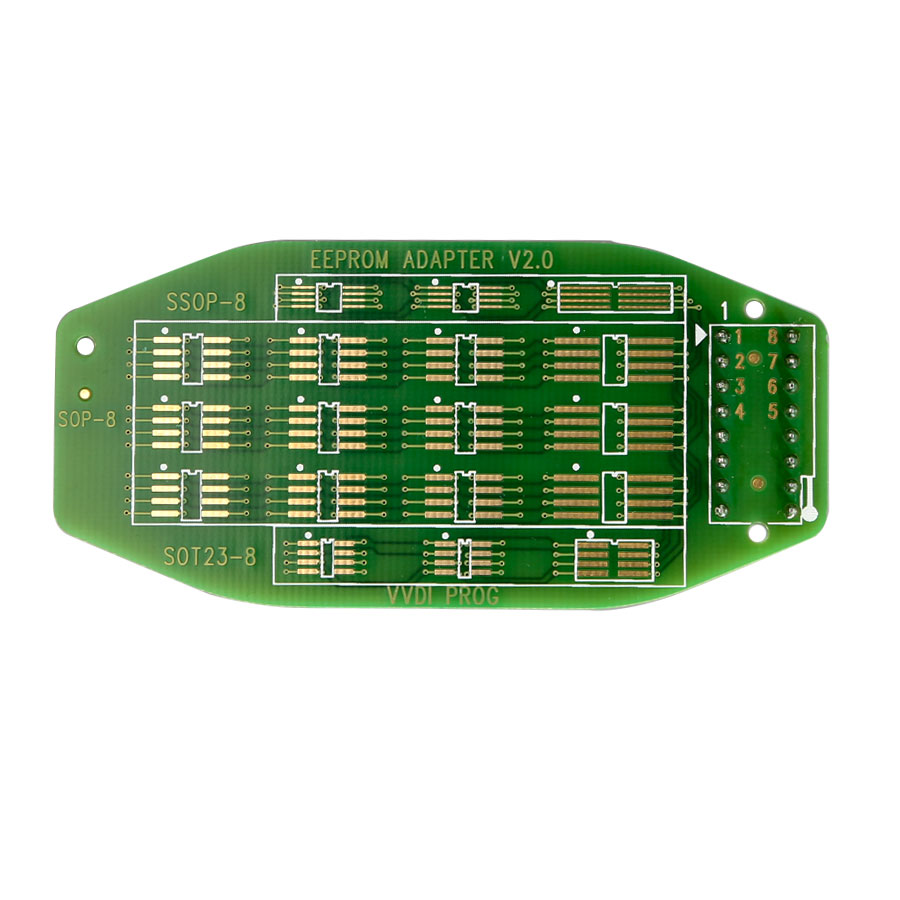

3. EEPROM Adapter
4. MC9S12 Reflash Cable V1
5. MCU Reflash Cable
6. ECU Reflash Cable

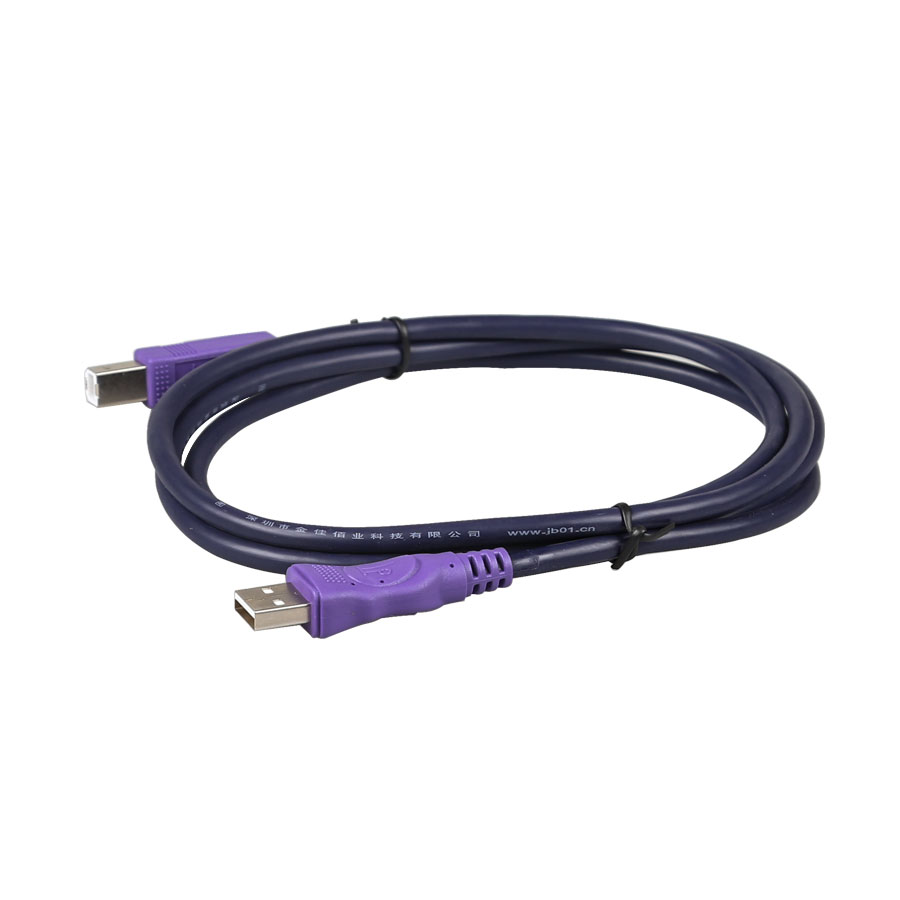

7. USB B-Tyte Cable
8. TB28FXXX Adapter (Optional)
9. PCF79XX Adapter (Optional)
10. New M35080/D80 Adapter (Optional)
11. New EWS3 Adapter (Optional)
12. New EEPROM CLIP Adapter (Optional)
13. New EWS4 Adapter (Optional)
