2025 XTOOL X100 PADS Auto Key Programmer and Full system diagnostic Built-in CAN FD DOIP 23 Services Update of X100 PAD & PAD PLUS

X100 PADS Key Programming Tool Support DoIP & CAN FD Better Than X100 PAD

Top Reasons to get the XTOOL X100 PADS:

1. Upgraded Ver. of X100 PAD & X100 PAD PLUS with New UI, Add 8MP Camera, Self test, Collapsible stand.
2. Support DoIP & CAN FD
3. Key Programming: Work with KC100/KC501. to add keys for Mercedes, for Toyota etc. Read PIN codes, program new keys/fobs, perform remote learning, disabIe the lost keys etc.
4. Built-in 5,000mAh battery larger than XTOOL D7 which includes 4,000mAh battery. long-time Working Battery.
5. Can work with XTOOL XV100: Help you better check the vehicle by viewing details via the endoscope.
6. 23+ Special Functions
7. Powerful quad-core 1.5GHz processor with faster 2GB and reliable 64GB On-board memory, Dual-band wifi
8. 2 Years Free Update
9. Support 15 Languages: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese. When you get the device, send us the seial number to change language for you.
10. check the mileage car list here

Device	X100 PADS	X100 Pad PLUS	X100 PAD
Operating system	Android 10	Android 10	Android 10
Processor	Quad-core 1.5GHz	Quad-core 1.5GHz	Quad-core 1.5GHz
Diagnostic	Full Systems	Full Systems	Full Systems
Instrument Cluster	Yes	Yes	Yes
Screen size	7 inch(1024*600)	7 inch(1024*600)	7 inch(1024*600)
Operation method	Tablet touch screen	Tablet touch screen	Tablet touch screen
Connection method	Cable connection (integratedcable,OB15-VAG)	Cable connection (integratedcable,OB15-VAG)	Cable connection (integratedcable,OB15-VAG)
Charging method	Adapter charging(three specifications)	Adapter charging(three specifications)	Adapter charging(three specifications)
Free Update	2 Years	2 Years	2 Years
Battery	5000mAh	4000mAh	4000mAh
Special Functions	23	23	13
CAN FD	built-in CAN FD	No	No
Doip	YES	No	No
USB interface	USB2.0 (Support KC100/KC501)	MICRO USB	MICRO USB
WIFI	2.4G/5G	2.4G	2.4G/5G
Camera Endoscope	YES	No	No
Bracket	YES	No	No
Lower navigation bar	movable	fixed	movable

XTOOL X100 PADS Functions:

✅IMMO Key Programming: Read PIN, Add Transponder/Smart Key, Disable Lost Keys, Remote Learning, Make Dealer Key/All-Key-Lost, IMMO CAR MO Reset/Coding,IMMO Data Backup, Key grammer, Key Learning/Key Matching, EEPROM Read & Write, etc.

✅All System Diagnostics: Access and scan on 80+ vehicles and all available models including ABS, SRS, TCM, Brakes, BCM, TPM and etc to read and clear codes, view live data, freeze frame, and retrieve CAR MO info.

✅23+ Special Functions: Oil Reset, EPB, BMS Reset, Immo/Key grammer, Throttle Relearn, SAS Adjustment, EEPROM Adapter, Refresh Hidden Function, Injector Coding, ABS Bleeding, Tyre Pressure Reset, Performance Tire Upgrade, Gearbox Match, Headlight, Air Suspension, etc.

✅ Support CAN FD/DoIP Protocols: With CAN FD protocol covers for GM MY2020+ models. No extra CAN FD adapter needed. With DoIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.

✅ Wide Coverage Vehicles + 2 Years Free Update: Designed for Auto Mechanics, Auto Repair Shops, Auto Dealers. 2 Years Free Update to get the latest software, which can support more functions and new car models coverage.

✅Important Note from Seller: X100PADS Key Programming function can not work for Benz/BMW/Audi/VW/Toyota smart key all key lost, for Chrysler Read Pin (Need XTOOL X100PAD3 +adapter). To save your time please come to Seller. come with your Car VIN to check compatibility before purchase.

Advanced IMMO/Key Programming/Key Coding(X100PADS + EEPROM Adapter)

The IMMO service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN code/pin code calculation,Check number of keys, Generate key, Add key, All key lost.

✅ Read Pincode
✅ Generate key, Key Refresh
✅ Make Dealer Key
✅ All Key Lost
✅ Immobilizer Data Reading & Writing
✅ Backup IMMO Data
✅ Remote Frequency Detection
✅ Immobilizer Module Replacement
✅ IMMO ECU Reset & Coding
✅ Mercedes lnfrared Key Read/Write

- And more...
Note: KC100 is Not Included, Needs to be Purchased Separately.

OE-Level Full Systems Diagnostic

XTOOL X100PADS automotive diagnostic scan tool enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information as trouble and event codes and live data for various vehicle control systems, such: ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.

Read/Clear Codes
View the Live Data stream
View the Freeze Frame of faults
Perform Active Tests
Read ECU Information

23+ MOST USEFUL SERVICE FUNCTIONS

Oil Reset: Reset service intervals after oil change and turn off the oil light.
EPB Reset: Reset brake pads after replacement of brake system.
BMS Reset: Register the new battery to the CAR MO after replacement.
Throttle Relearn: Enables you to make initial settings to throttle to adjust the amount of air intake.
EEPROM Adapter: Used to read, write and backup the EEPROM chip inside the immo~bilizer module.
Injector Coding: Coding injectors after replacement.
ABS Bleeding: Perform ABS Brake Bleed function to cycle ABS pump to bleed the air out of the ABS.
Gearbox Match: Reset the adaptive shifting points in your automatic Transmission Control Unit.
Headlight: Initialize the adaptive headlight system.
Air Suspension: Calibrate the suspension height.
Window Initialization: Match windows to restore initial memory of the CAR MO and restore the power window.
Airbag Repair: Allows you resets the airbag data to clear the airbag collision/crash data.

More Functions Include: TPMS Reset,Seat Calibration, Cylinder, Transport Mode, Tire Upgrade, Electronic Pump Activation, DPF/GPF, SAS, Gear Learning, EPS, etc.

Note: Please provide your specific car model and VIN number to check compatibility before purchasing.

MORE PROFESSIONAL FUNCTION TO IMPROVE YOUR EFFICIENCY

CAN FD PROTOCOL: Compatible More CAN FD Protocol Vehicles (For GM Vehicles After 2020).

DOIP PROTOCOL: With DoIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.

8 IN 1 LVE DATA DISPALY: Reads, graphs and combines 8 independent streams of sensor data. Real-time data export to CSV file and data recording, playback, viewing. Allows you to export live data to a csv file for storage and comparison over time, or to view its graphical changes and textual readouts later.

FAST AUTO VIN SCAN: X100PADS is based on the latest VIN auto-scan function, which can quickly identify the vehicle and scan all diagnosable ECUs and run diagnostics on the selected system. For vehicles that do not support the automatic VIN scan feature, you can manually enter the vehicle VIN.

Record & print report: Share Report to mobile phone, tablet or computer via Bluetooth Print Report via connecting Printer

X100PADS COMPATIBLE WITH VEHICLES AROUND THE WORLD

XTOOL X100PADS Key Programming Tool is specially customized for large Maintenance Shops, Workshops, Car Dealers, Auto Mechanic. Work for 12V Petrol Sedans, SUVs, Minivans and Light-Duty Trucks across the globe, including:

Asia: For Toyota, For Lexus, For Honda, For Acura, For Mazda, For Nissan, For Infiniti, For Mitsubishi, For Subaru, For Suzuki, For Kia,For Hyundai, For Daewoo, For SSANGYONG, For Proton, etc

Europe: for Audi, For VW, For Skoda, For Seat, For Porsche, For Opel, For Citroen, For Peugeot, For Jaguar, For Land Rover, For Lincoln, For Renault, etc

America: For GM, For Cadillac, For Buick, For Chrysler, For Ford etc

China: For Great Wall, For Chery, For Brilliance-auto, For Geely, For LIFAN, For HAFEI, For CHANGAN, For LANDWIND, For BYD , For JAC, etc.

Advance Hardware Configuration:

Product Name: X100PAD S
Operating System: Android 10
Processor: Quad Core 1.5Ghz
Memory: 2+64G
Screen Size: 7 Inches (1024*600)
Mode of Operation: Tablet Touch Screen
Connection Method: WIFI Connection
Battery Capacity: 5000 mAh
Upgrade Method: WIFI Online Upgrade
Upgrade Period: 2 Years
Charging Method: Adapter Charging
Support: CAN FD & DOIP Function
USB Interface: USB2.0 (Supports KC100/KC501)
WIFI: 2.4G/5G

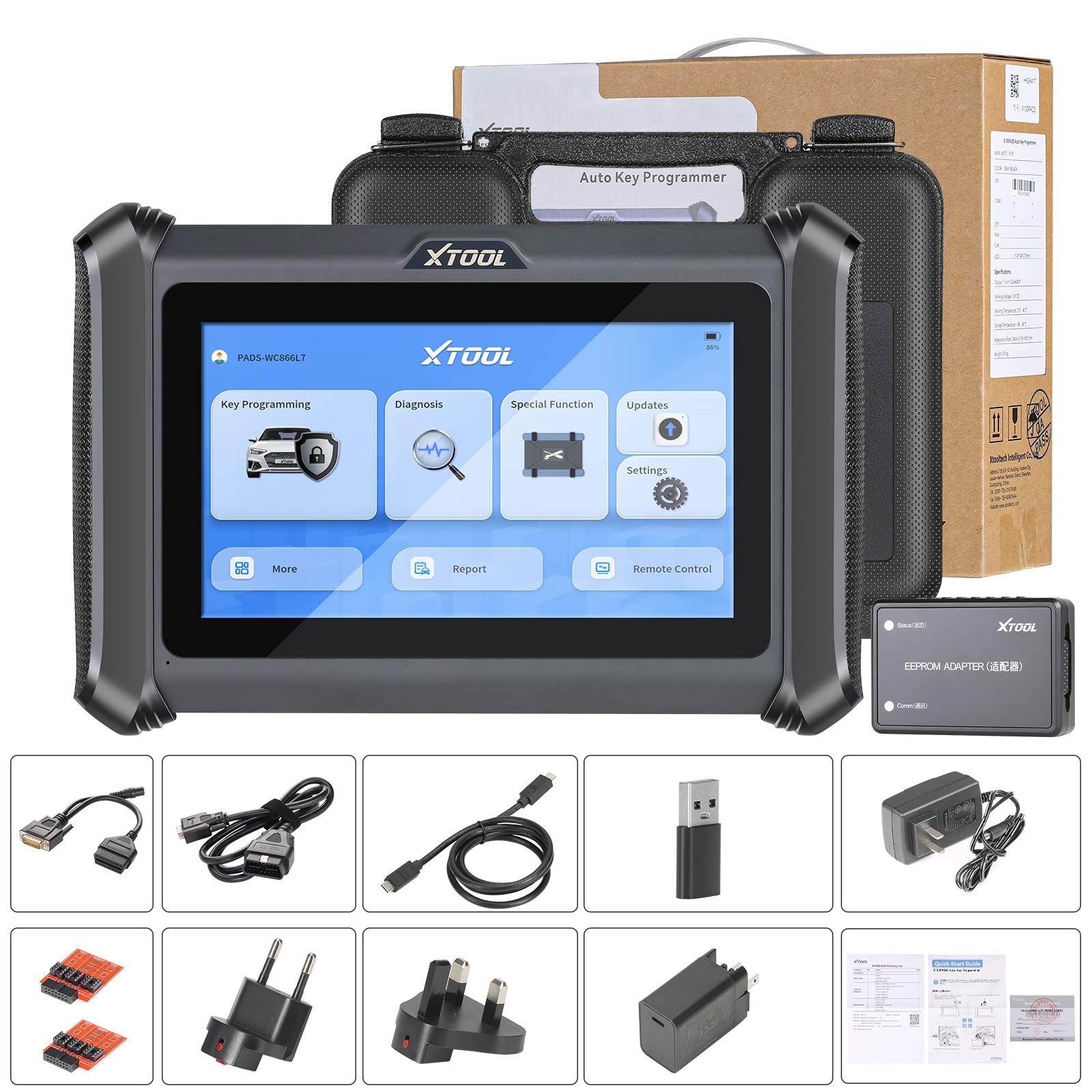

X100PADS Packing List:
