Product Description

Yanhua ACDP Module 33 Support MQB 48 add key / all-key-lost ( need to get Synchronous data from third party) / cluster mileage.
Yanhua ACDP Module 34 for VW MQB RH850 IMMO Add Keys & All Key Lost & Mileage Correction
YANHUA ACDP Module 33 + Module 34 Support MQB48 MQB49 Johnson Instruments

This package includes item SK247-33 ACDP Module 33 MQB-33 + SK247-34 ACDP Module 34 MQB-34.

Yanhua Mini ACDP Module 33 for MQB48 Key Programming Mileage Correction

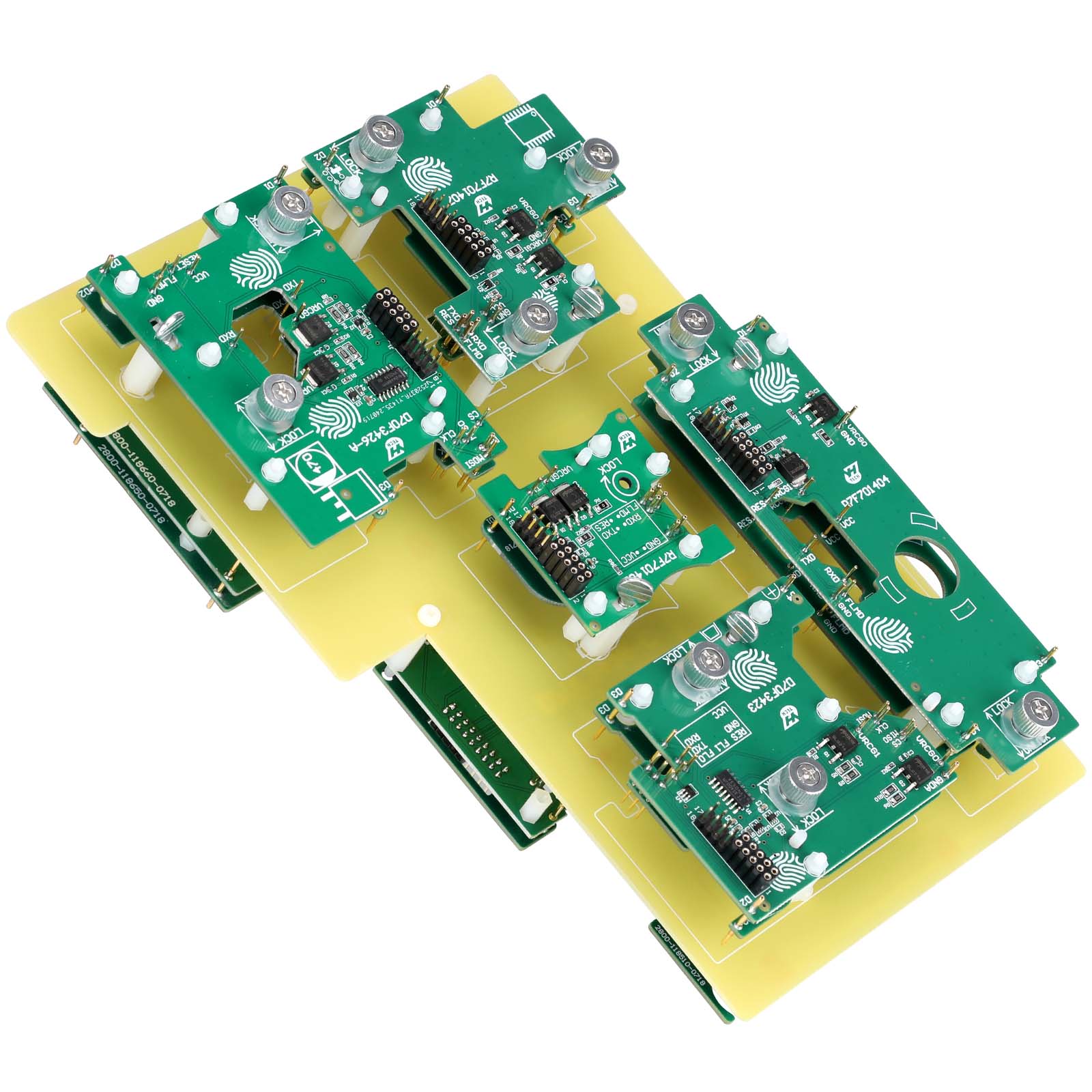

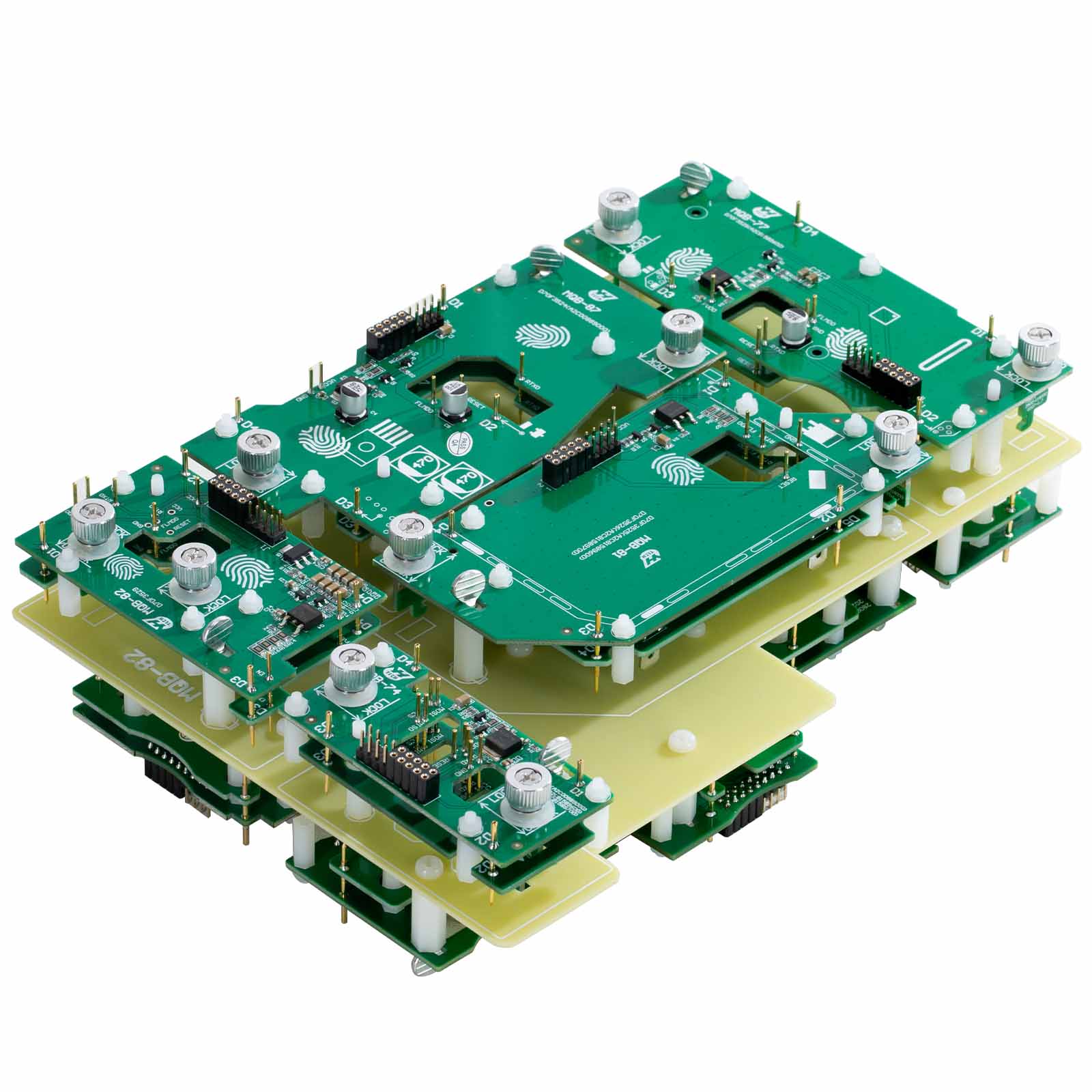

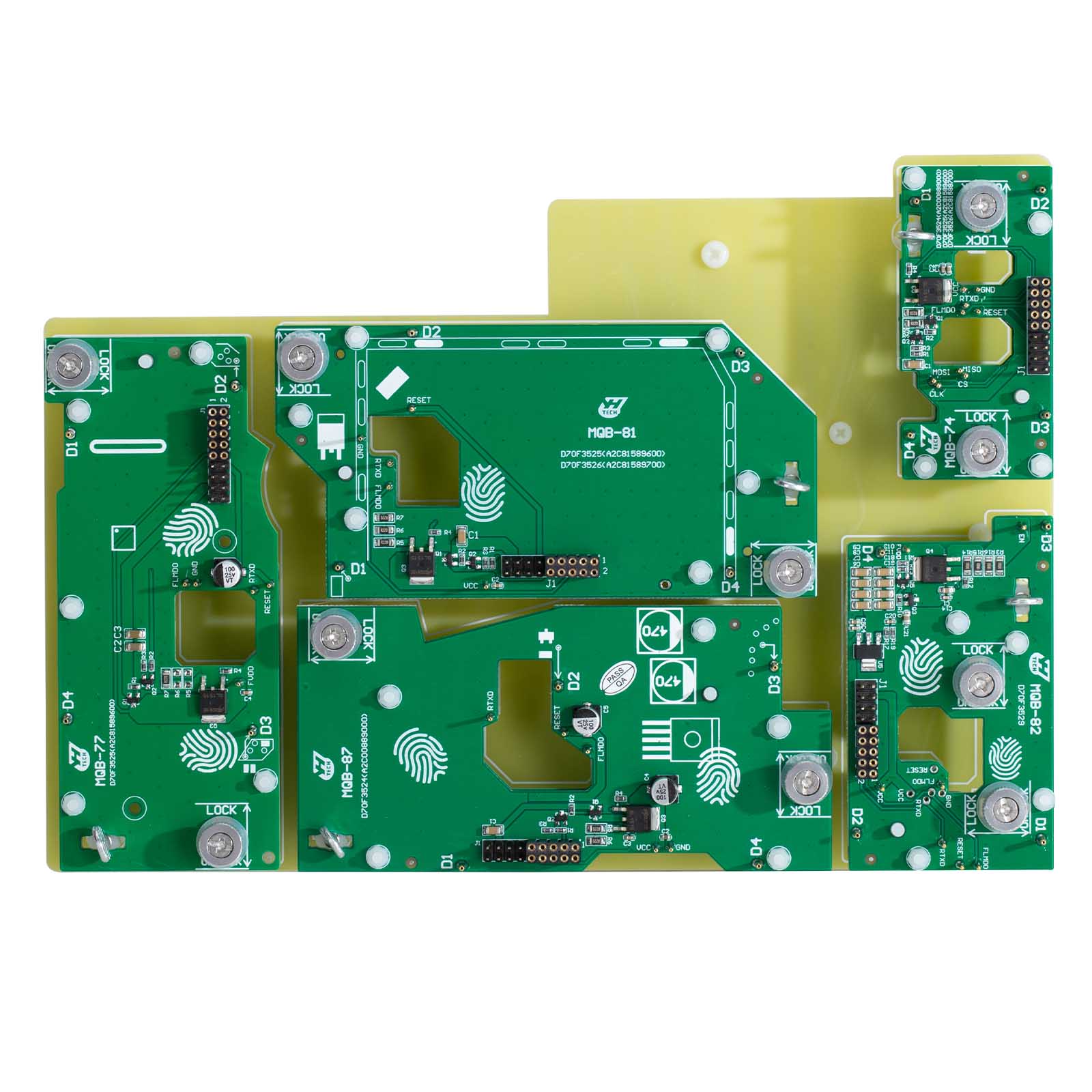

The newly designed interface board is compact in size, precise in positioning, simple to install, firm in contact, and safer to read and write data!

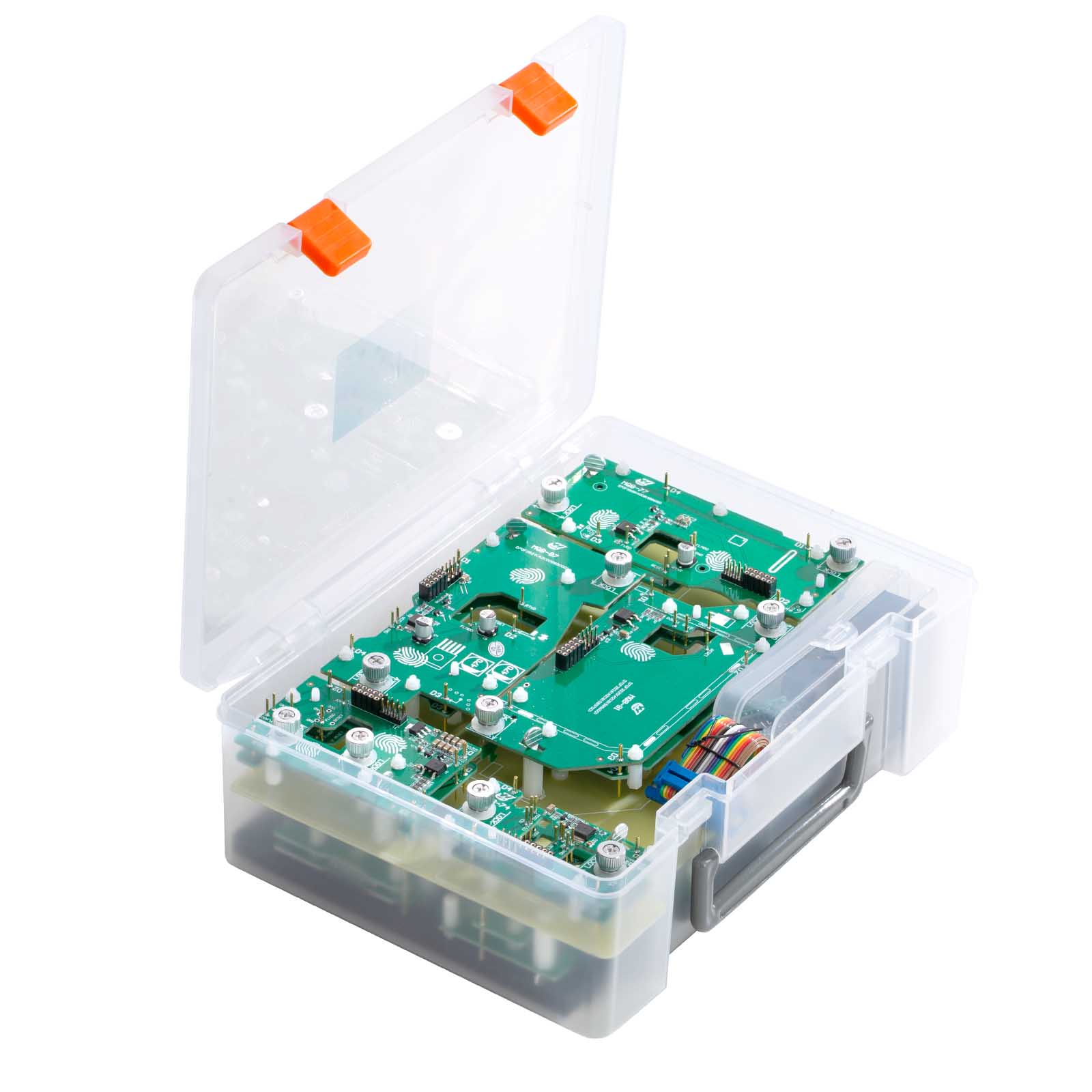

(Whole set compact size 13 solder-free interface board with License A608) for MQB48.

There are two kinds of interface boards:
- Lock Fastening Interface board
- Thumb Screw-Fastened Interface board

Module 33 work with both Mini ACDP and ACDP-2. ACDP hardware is not included.

Module function
Add keys and All key lost for Volkswagen MQB48  (AKL need to get Synchronous data from third party)
Correct the KM of Volkswagen MQB48 Instrument Cluster

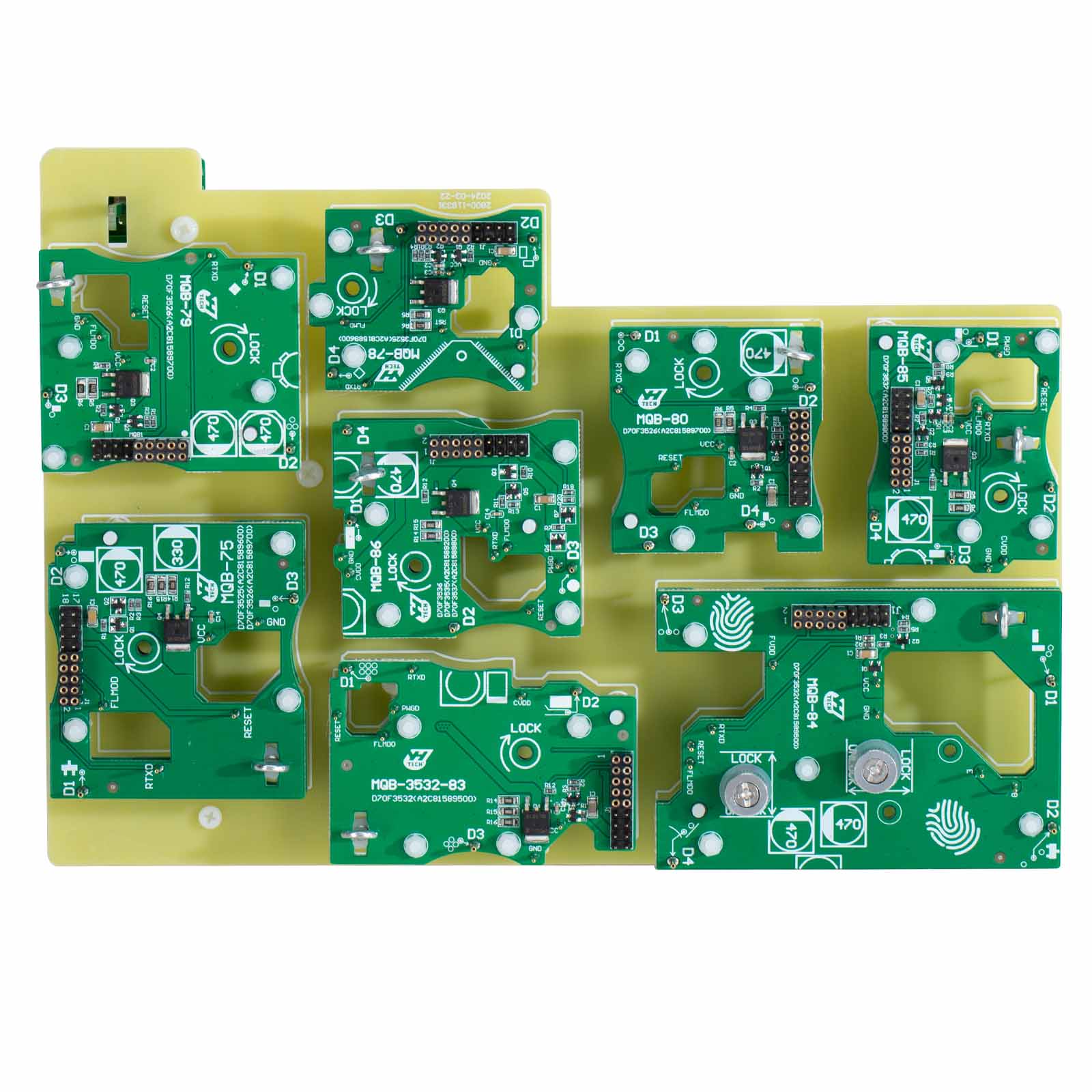

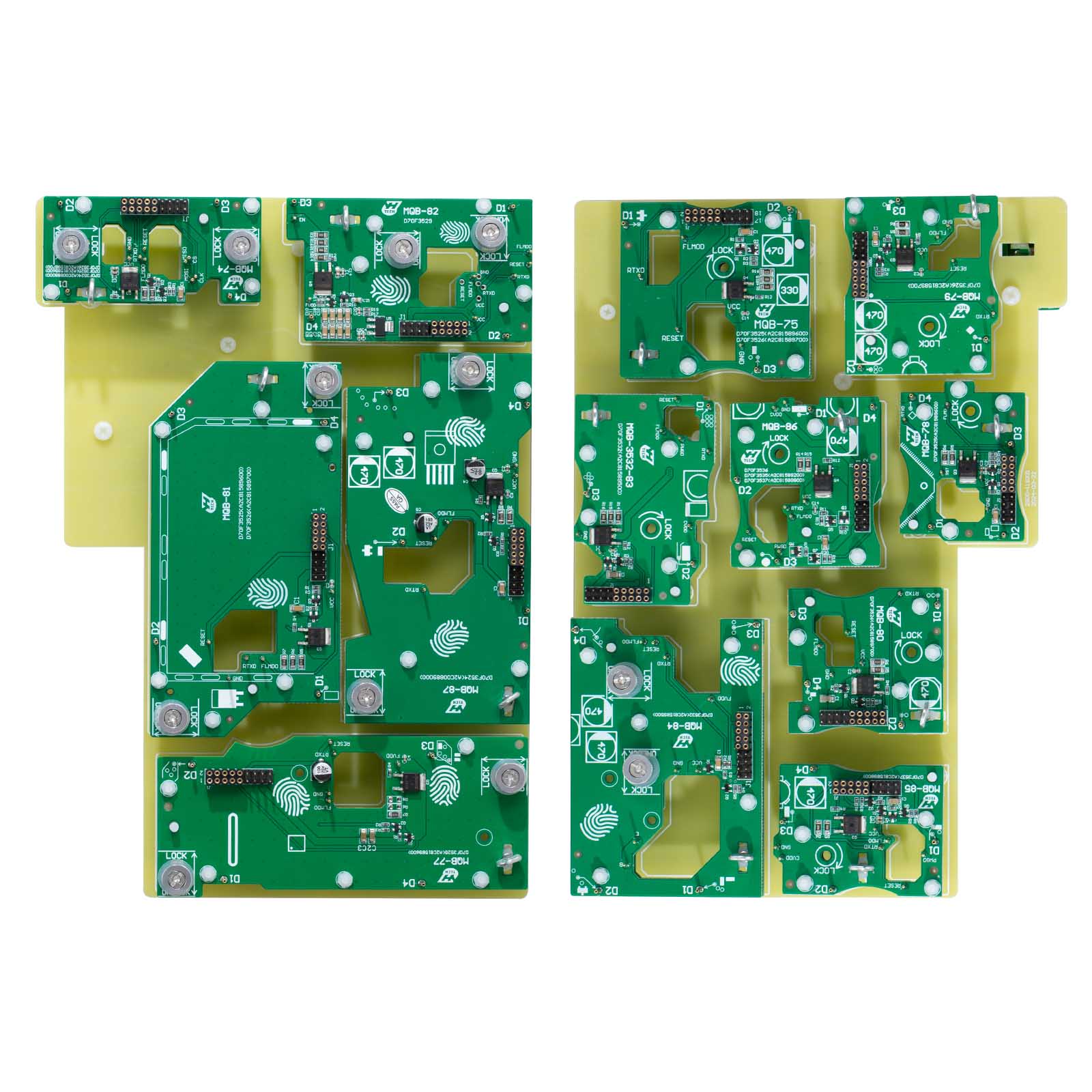

Module Support

MQB-74 interface board Supports type:

D70F3524 (A2C00889000)

D70F3525 (A2C81589600)

D70F3526 (A2C81589700)



MQB-75 interface board

D70F3525 (A2C81589600)

F70F3526 (A2C81589700)



MQB-77 interface board

D70F3525 (A2C81589600)



MQB-78 interface board

D70F3525 (A2C81589600)



MQB-79 interface board

D70F3526 (A2C81589700)



MQB-80 interface board

D70F3526 (A2C81589700)



MQB-82 interface board

D70F3529



MQB-81 interface board

D70F3525 (A2C81589600)

D70F3526 (A2C81589700)



MQB-83 interface board

D70F3532 (A2C81589500)



MQB-84 interface board

D70F3532 (A2C81589500)



MQB-85 interface board

D70F3537 (A2C81589800)



MQB-86 interface board

D70F3535 (A2C81589200)

D70F3537 (A2C81589800)

D70F3536



MQB-87 interface board

D70F3524 (A2C00889000)


Module 33 Features:
Precise pin positioning
Stable connection
Easy to set up
No welding
No warped feet
No cutting wire
Data read & write is safer

Yanhua Mini ACDP Module 34 for MQB RH850 Cluster IMMO Mileage on Bench

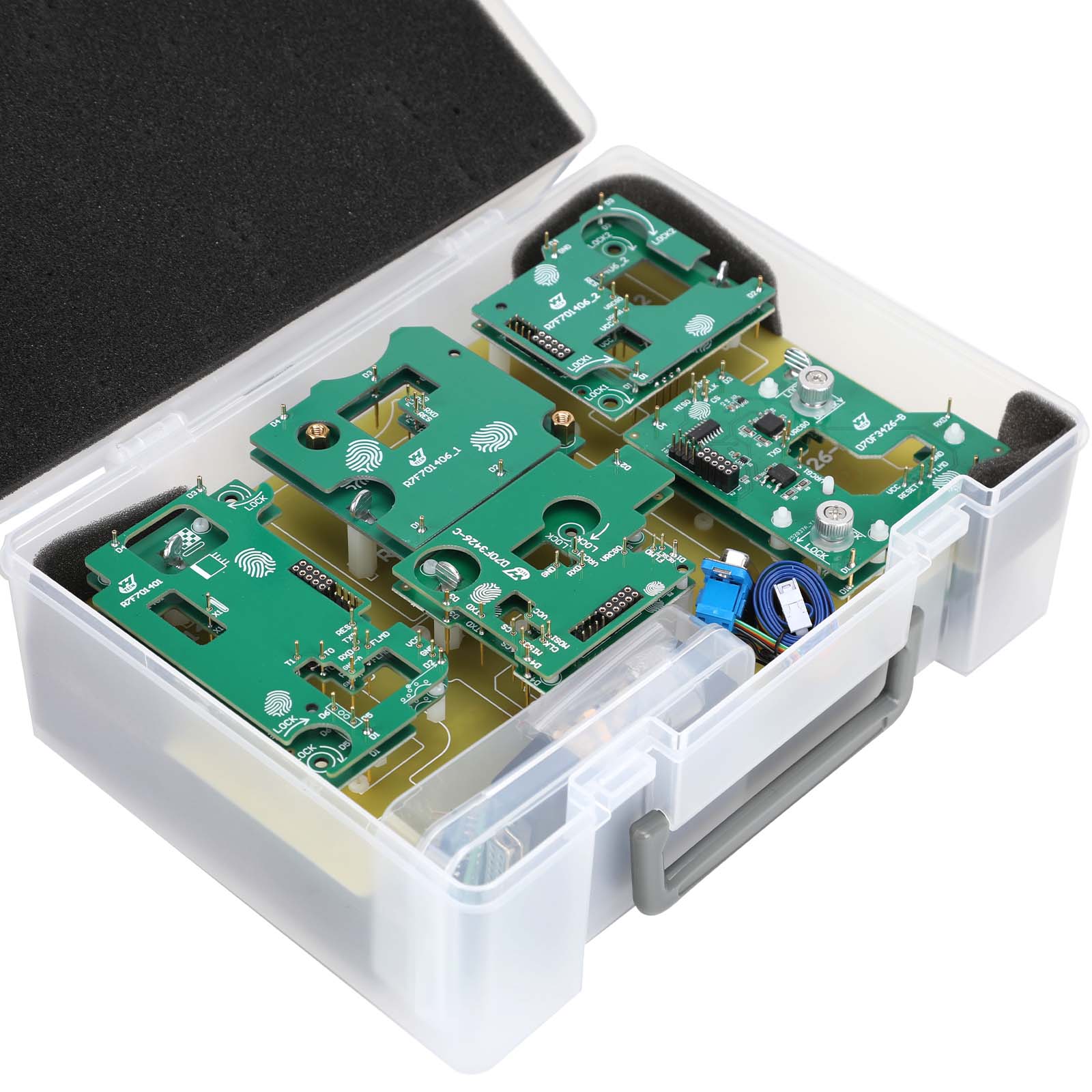

Module 34 included 9 piece bench interface board and License.
It can work both ACDP-1 and ACDP-2 Master.
If you have MQB-33 Module already, you are offered buy the new MQB RH850 module 34 alone.

No removing components.
No lifting pins.
No wring.
No hurt on cluster.

Module functions:
1： Support IMMO and mileage correction for the 4th generation instrument with D70F3423 +95320 chip model.
2： Supports IMMO and mileage correction for D70F3426 +95128 chip model MQB 5A instrument.
3： Supports IMMO and mileage correction for RH850 series R7F701401, R7F701402, R7F701407 chip model 5A instruments.
4： Support mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701406, R7F701407 chip model 5C instruments.

Supported odometer number (not limited to):
R7F701401/ R7F701402/ R7F701407 5A:
83A920700B, 83A920700, 8V0920740B, 81A920740L, 51G920640D, 55G920790, 2GD920790A, 5GD920790, 5NG920640C, 5NG920650C, 5ND920650C, 5NG920654, 2GG920640, 3GB920640, 3GB920790, 56G920790, 3VD920740B

R7F701401/ R7F701402/ R7F701404/ R7F701405/ R7F701406/ R7F701407 5C:

3GB920640A, 3GB920640B, 3GB920640C, 3GD920640D, 19G920640B, 19G920640C, 19D920640B, 19D920640C, 17G920640A, 2GD920640B, 2GD920640C ,5GD920640D, 5ED920860C, 19G920650B, 19G920650C, 55G920650A, 55G920650B ,55G920650C,5HG920340 ,5HG920340A ,5HG920340B, 5HG920340C, 5NG920640D, 5NG920650D, 2GG920640A, 51G920640E

D70F3423 +95320:
31G920850B, 18G920860B, 31G920850A, 18G920860A, 31G920850F, 34D920850C, 31G920850C,
34D920850E, 31G920860A, 34D920850G

D70F3426 +95128:
5GG920640, 5GG920860, 5GG920860A, 5G0920861A

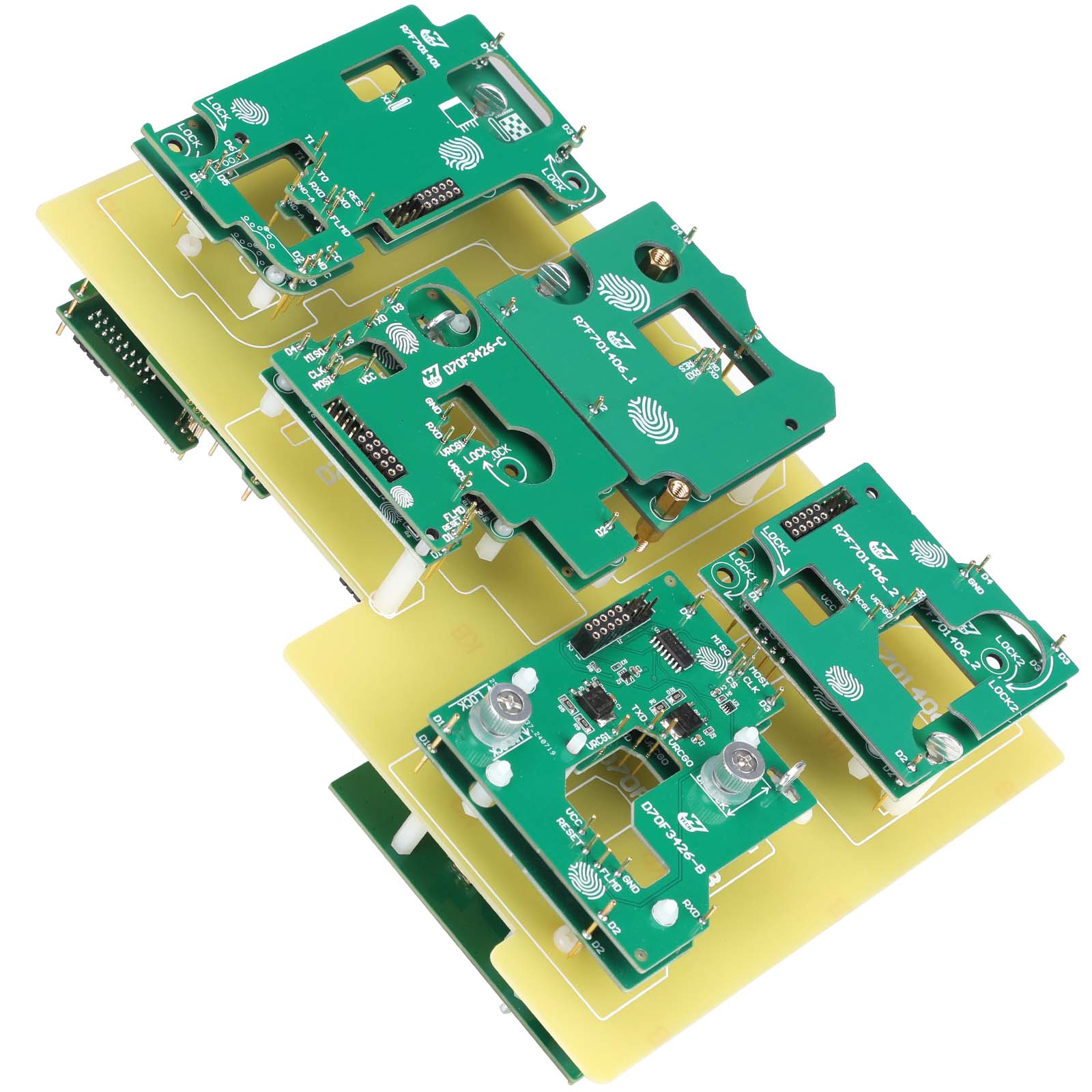

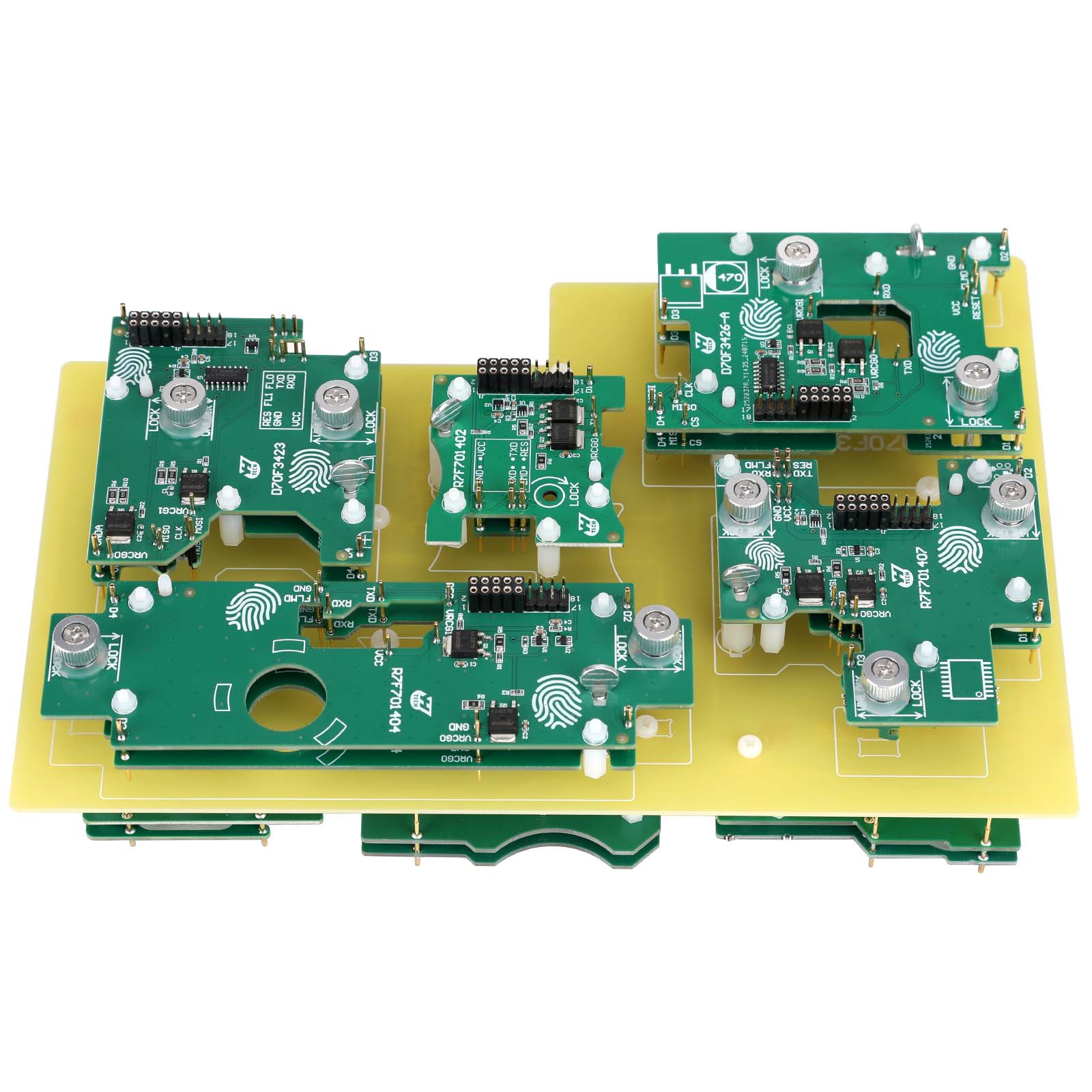

Packing List
Interface Board

D70F3423 1 piece
D70F3426 3 piece
R7F71401 1 piece
R7F71402 1 piece
R7F71404 1 piece
R7F71406 1 piece
R7F71407 1 piece

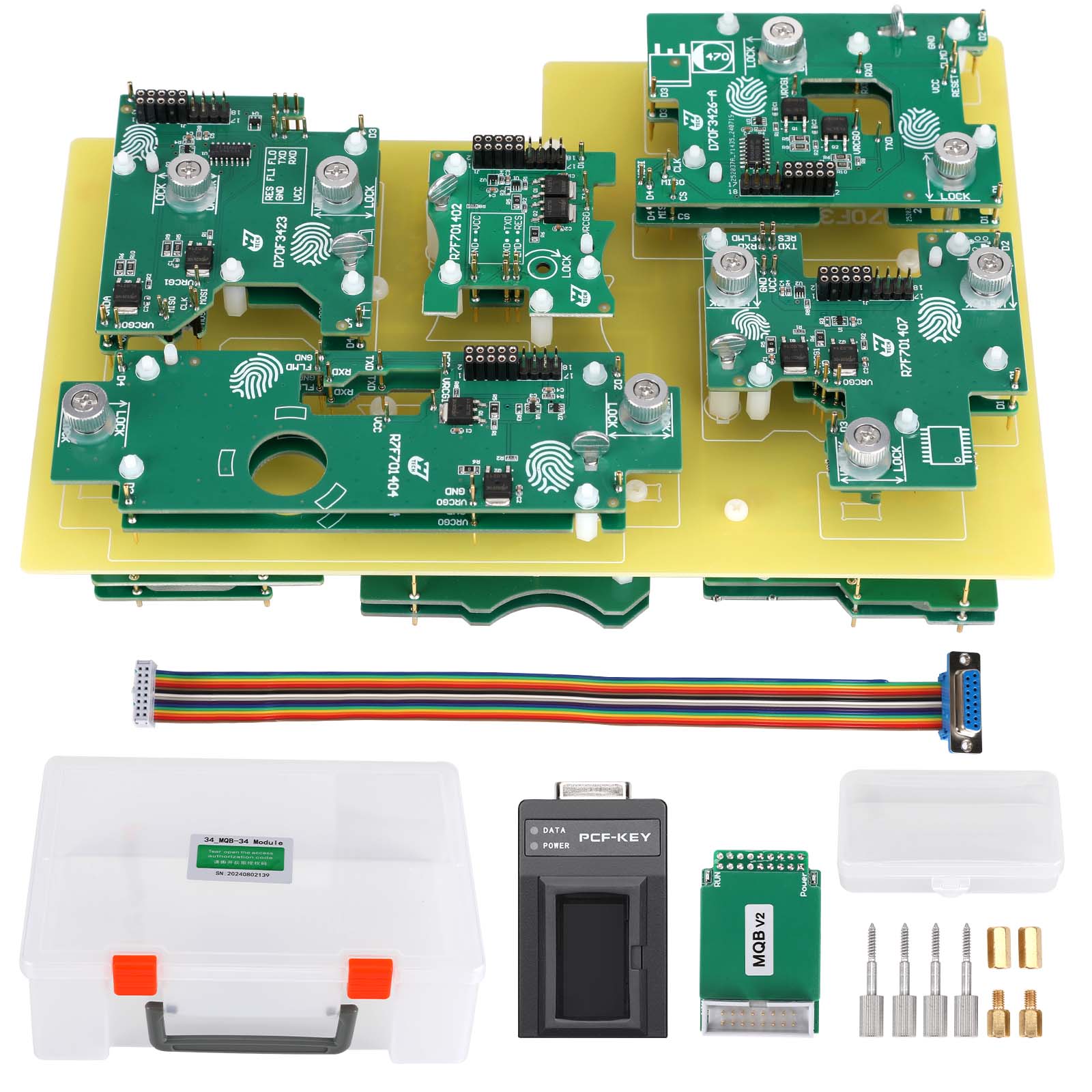

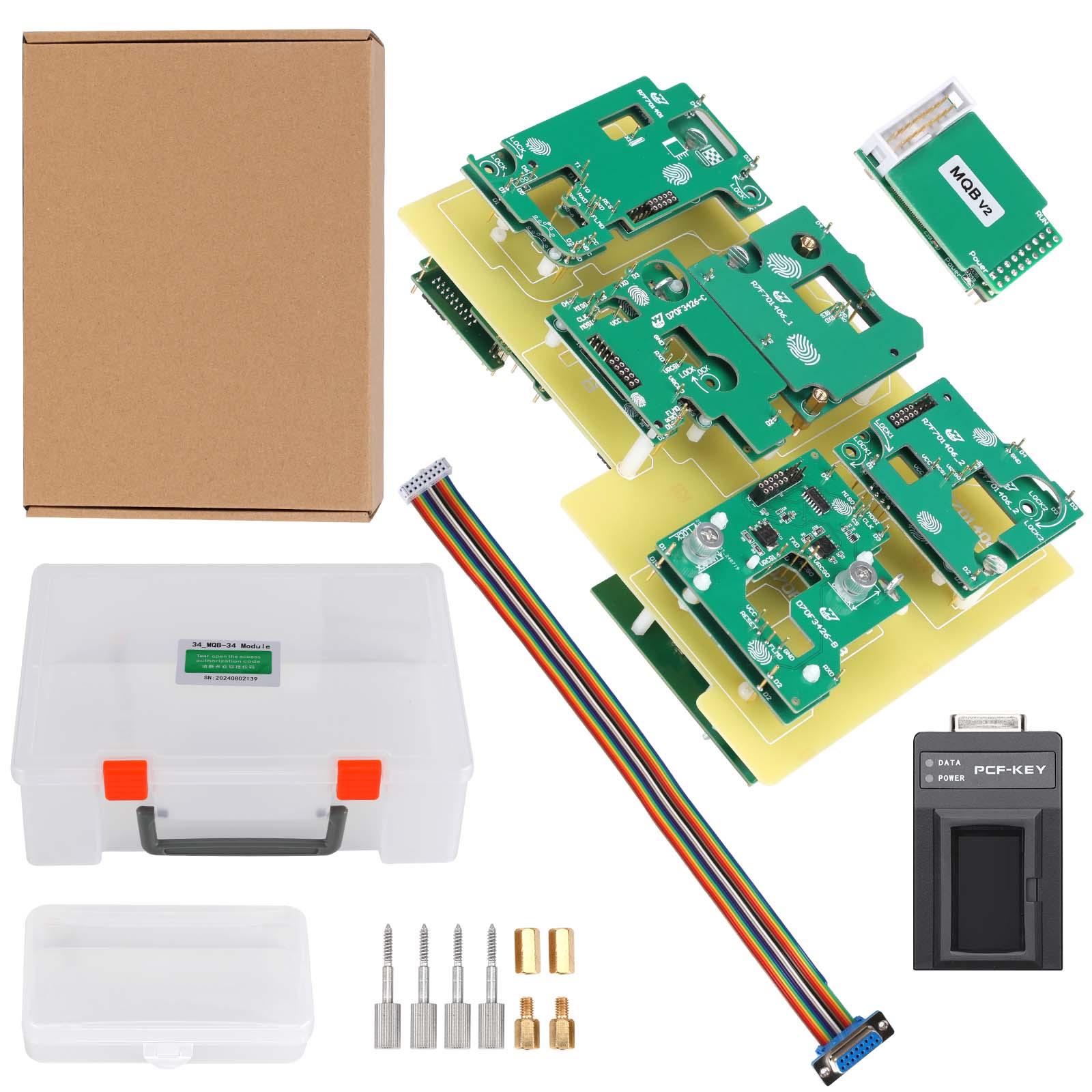

yanhua mini acdp module 34

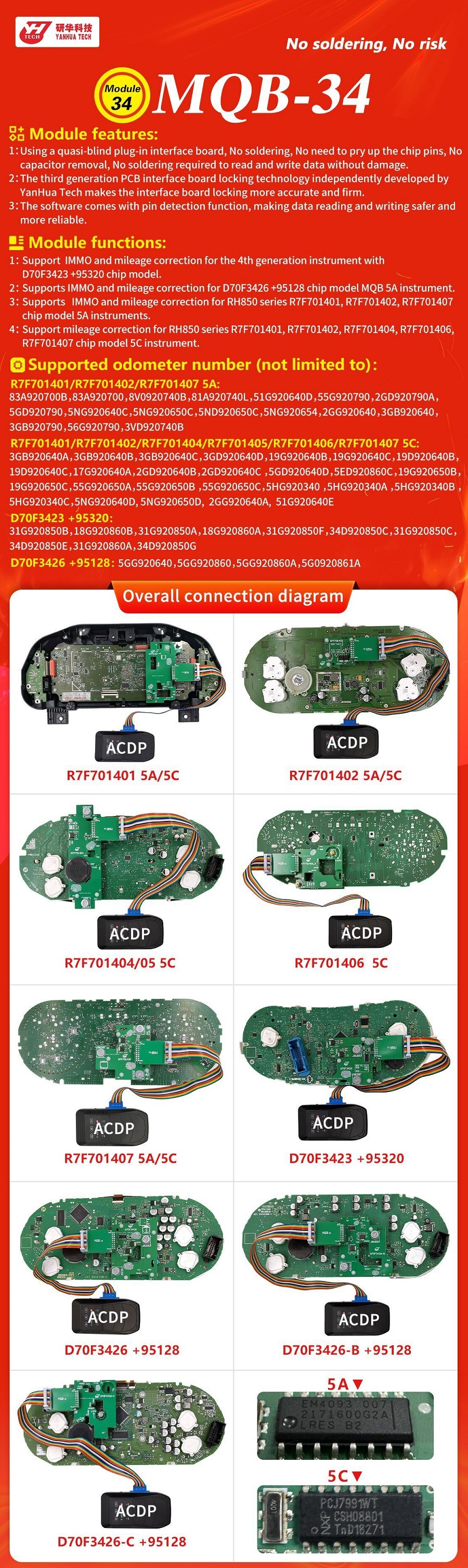

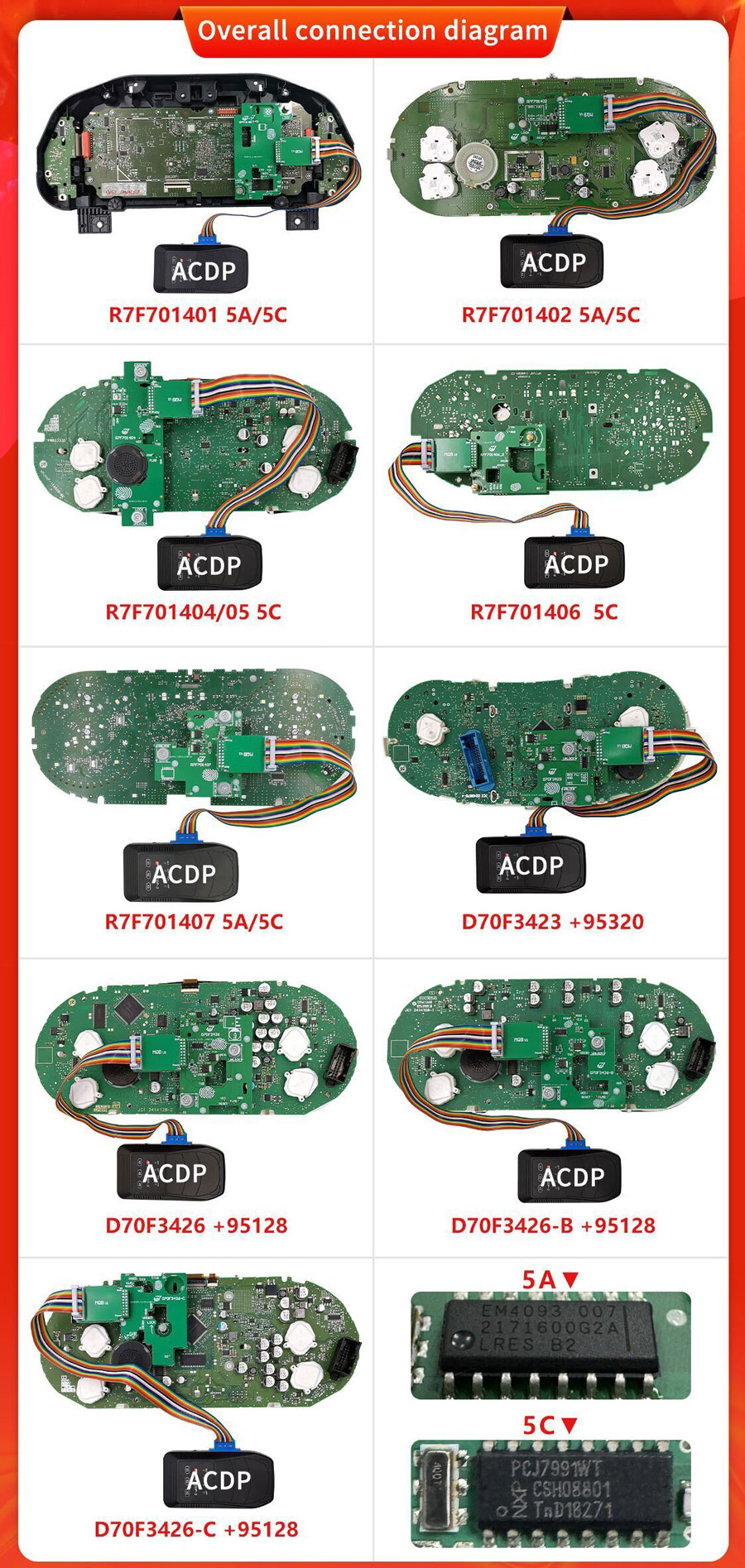

yanhua mini acdp module 34 wiring diagram

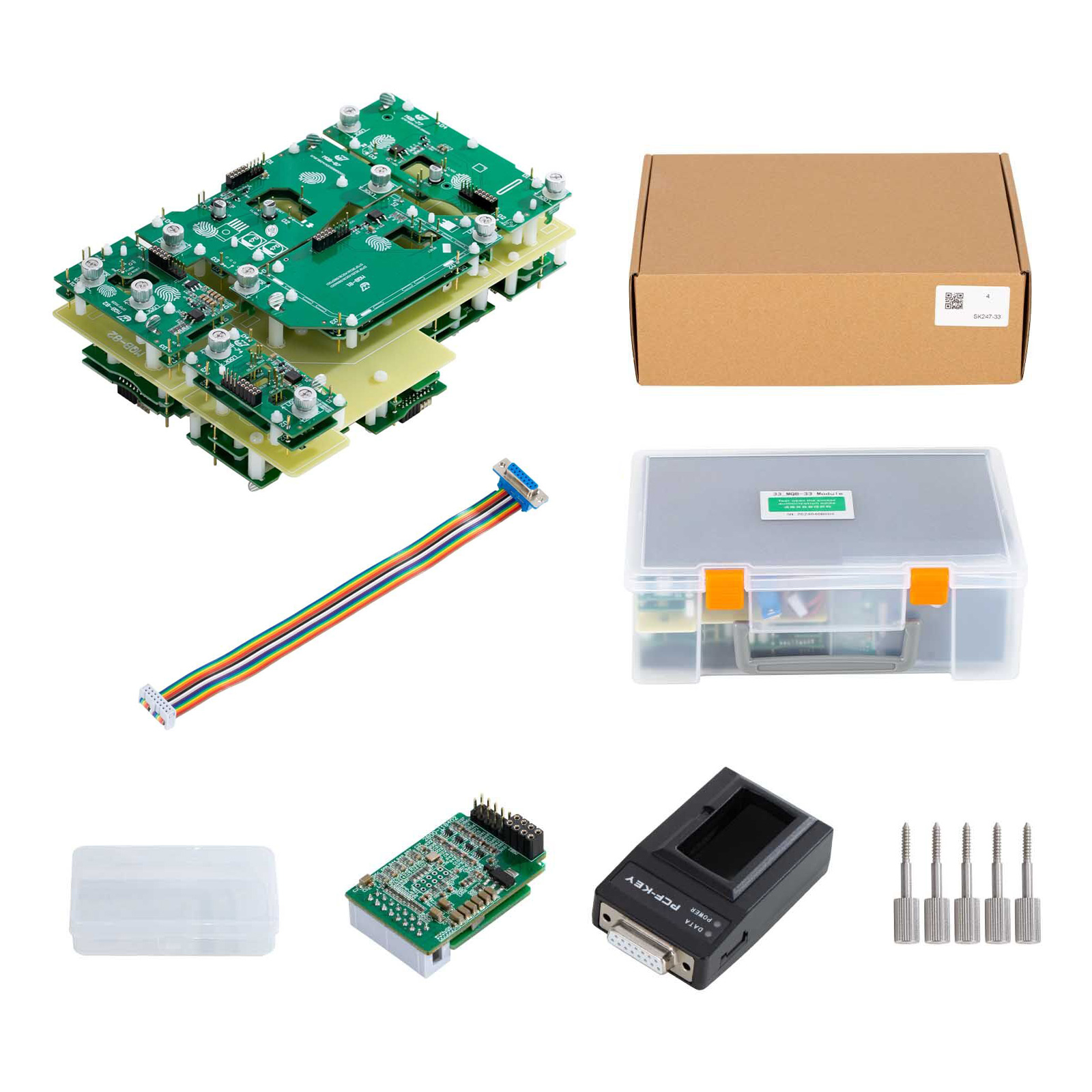

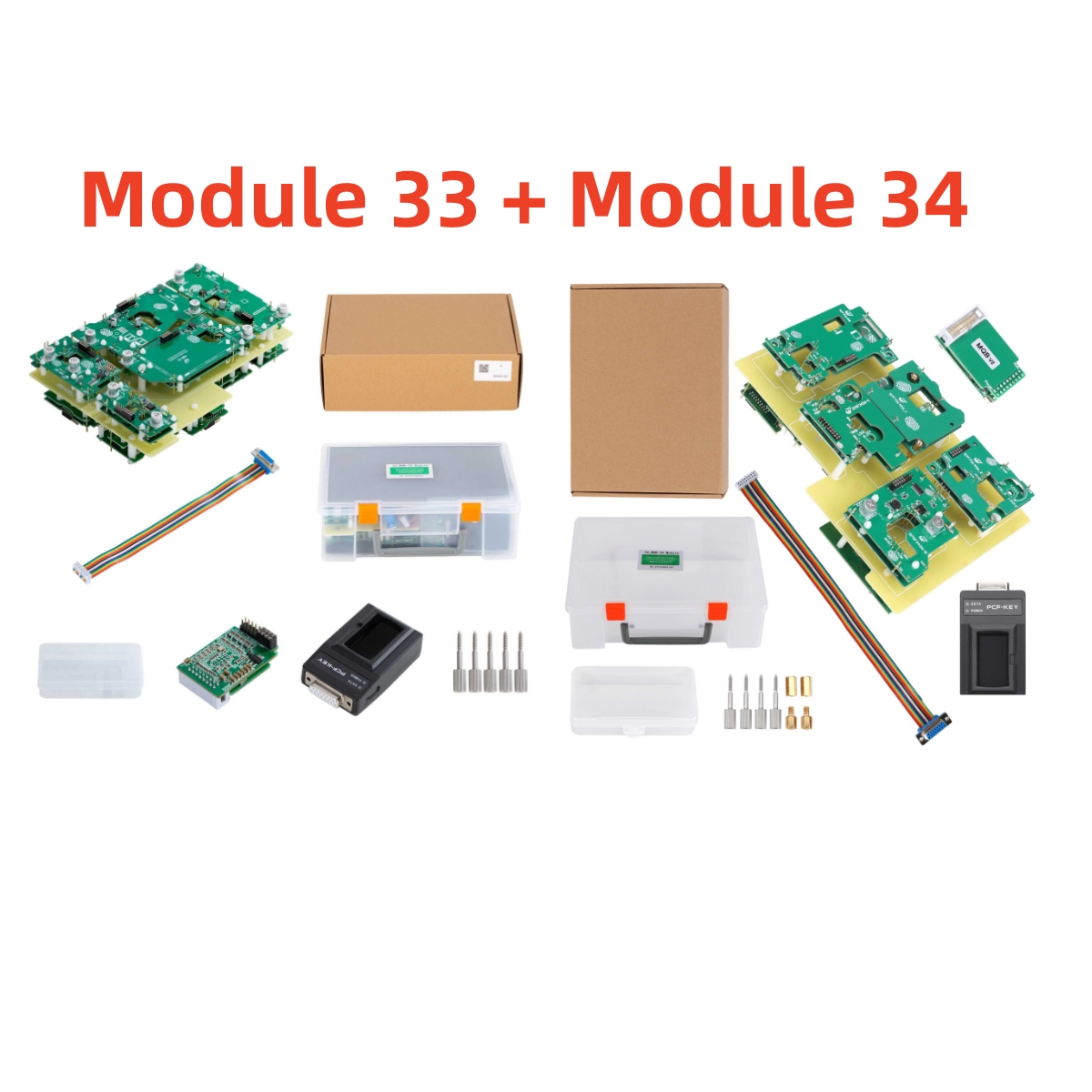

Package includes:

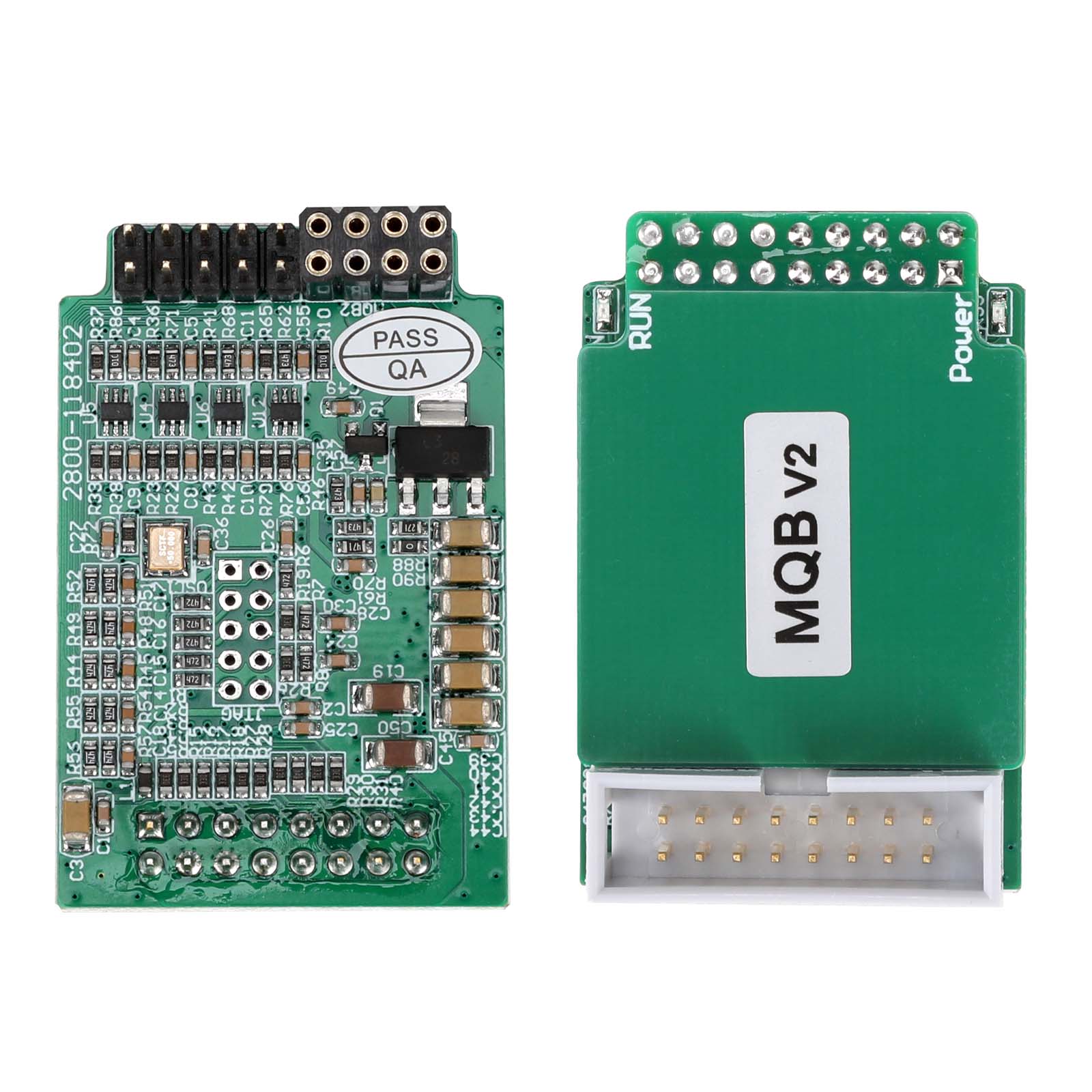

1pc x YANHUA ACDP Module 33: MQB-33 Adapter
1pc x YANHUA ACDP Module 34: MQB-34 Adapter
