YANHUA ACDP Module 41 for Toyota S6J3001 (2019-)/ R7F701401 (2021-)/ R7F701441 ODO OBD/CAN Mileage Correction
Latest price: US$249.00Buy Now: US$199.00
20% off
Mini ACDP Module 35: Module 41
6 Mini ACDP Module 35: Module 41
Shipping:
Free Shipping
Standard Flat Rate Shipping ServiceEstimated delivery time: 12-25 working days.See details »
Weight:
75g
Package:
13cm*8cm*3.5cm
( Inch: 5.12*3.15*1.38 )
Returns:
Return for refund within 7 days,buyer pays return shipping. Read details?
US$199.00
In Stock.
Free Shipping
Product Description
This is Yanhua Mini ACDP Module 41 supports Toyota S6J3001 (2019-)/ R7F701401 (2021-)/ R7F701441 encrypted chips instrument mileage correction via the OBD/CAN method.
it is for Users without Module 35, than you can buy this module
it is for Users without Module 35, than you can buy this module

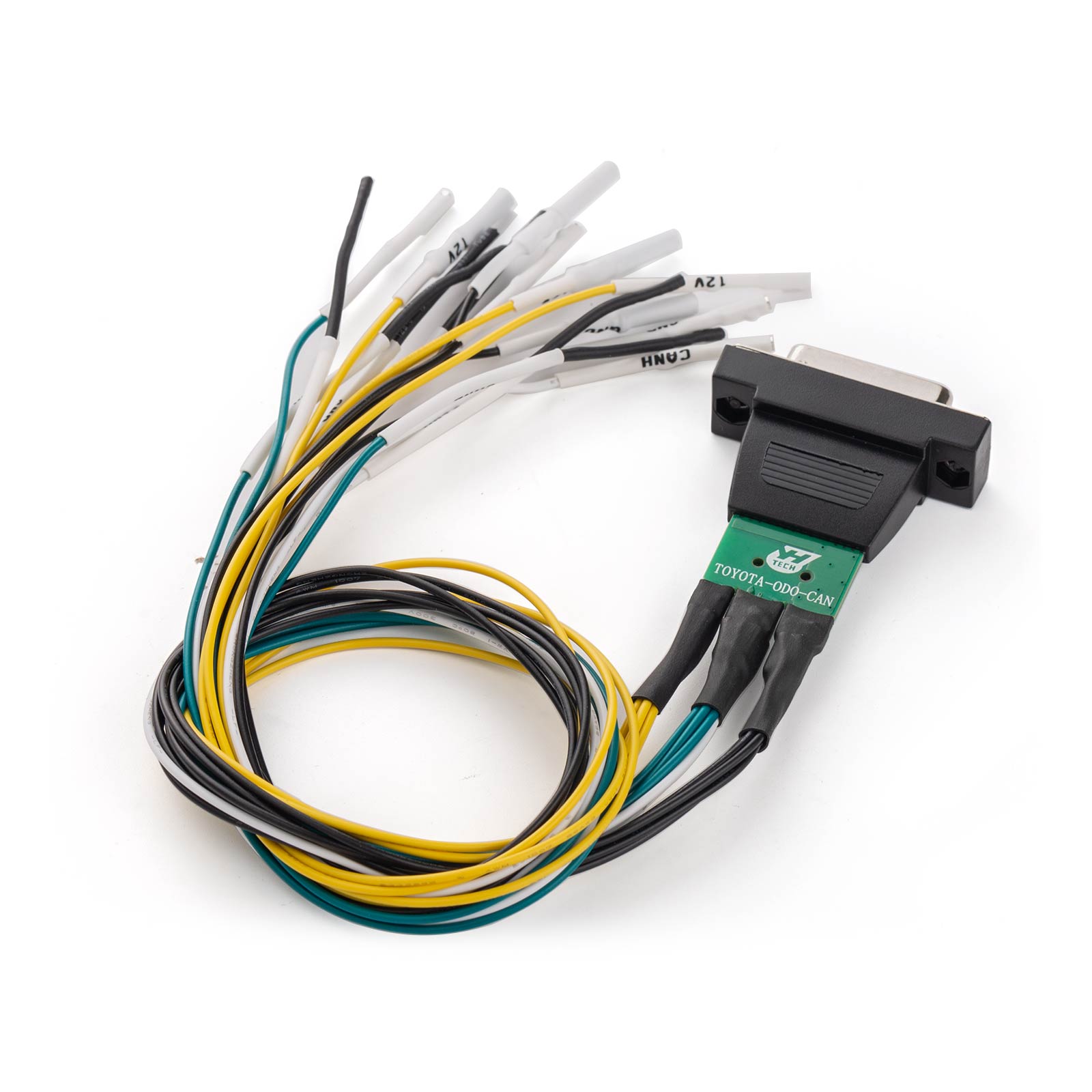

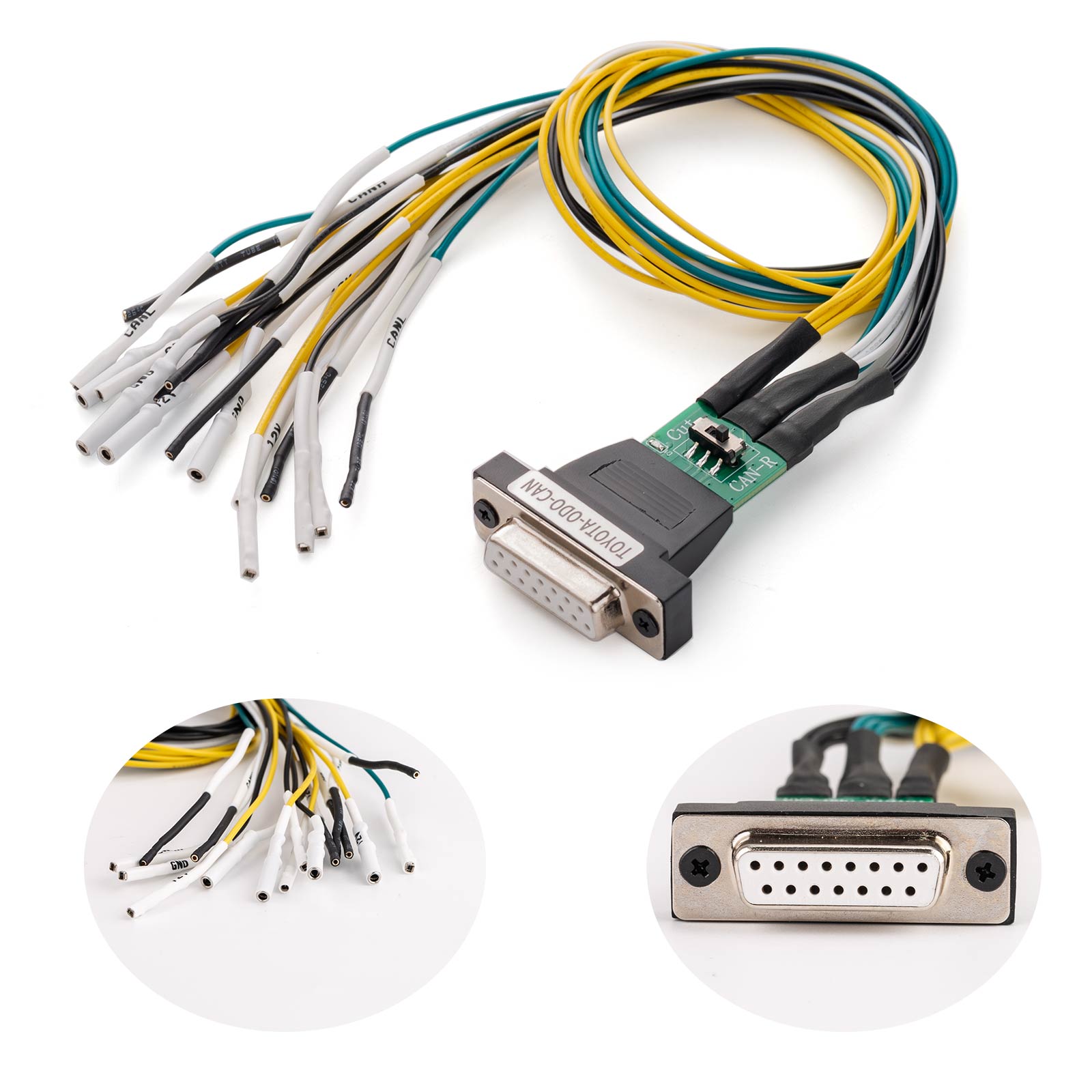

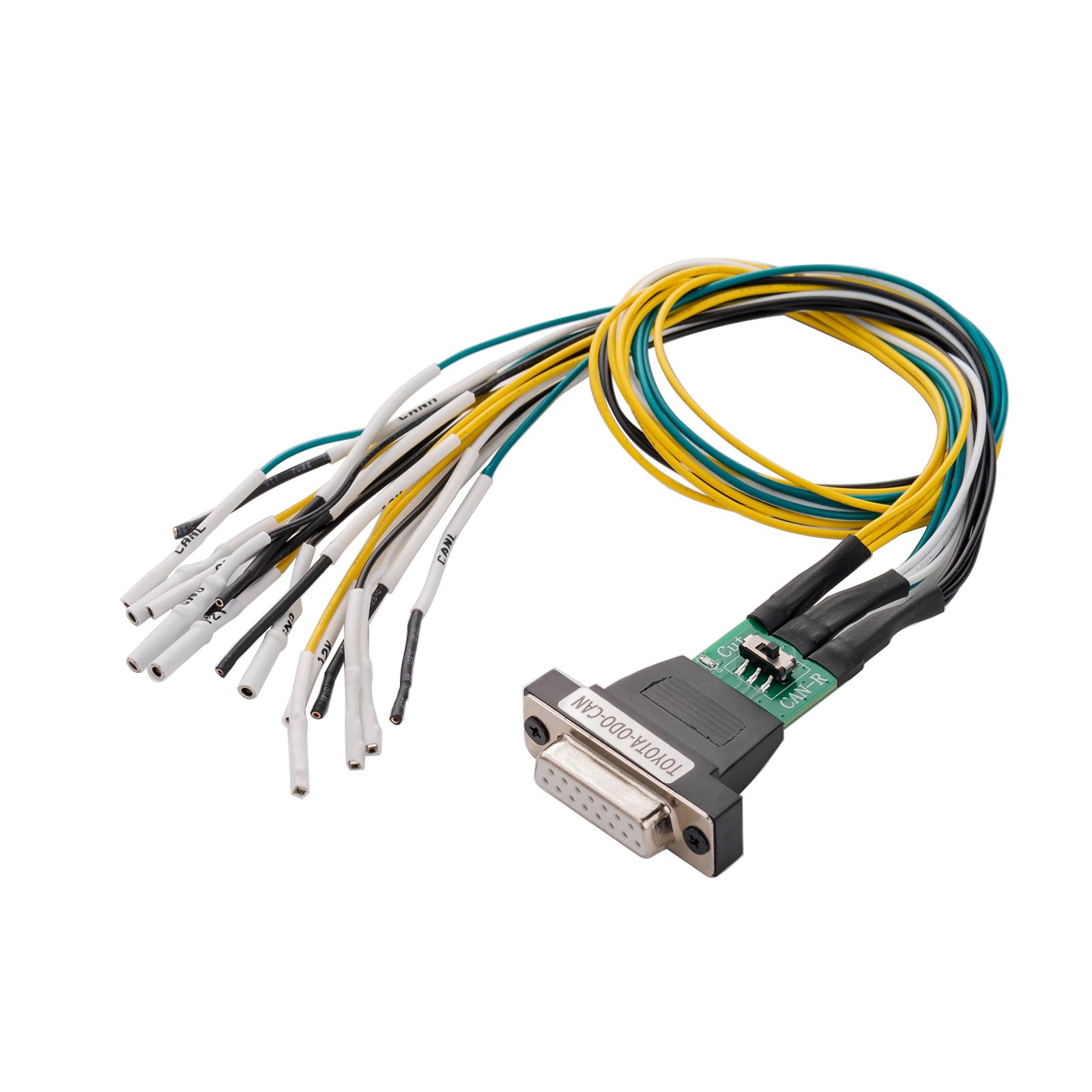

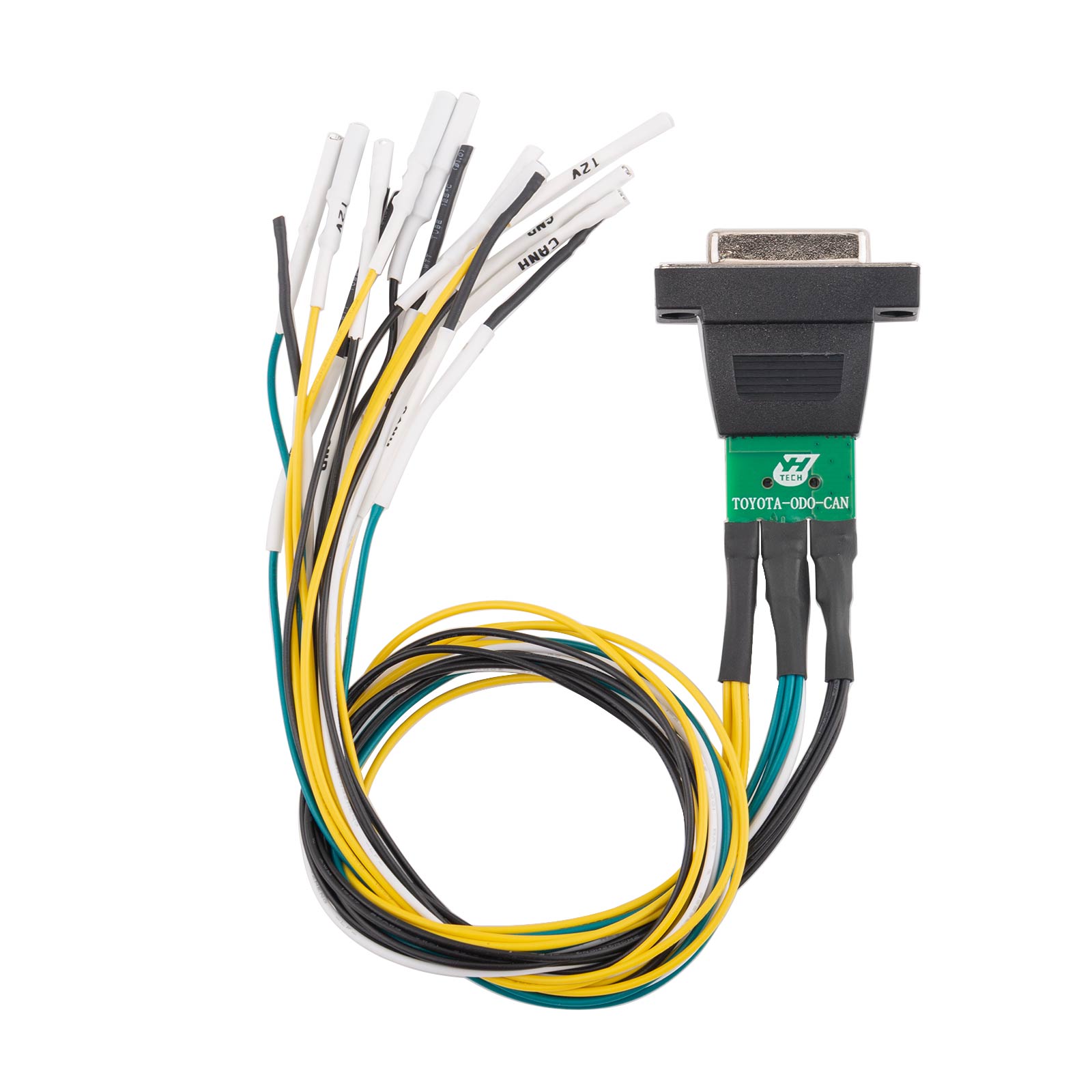

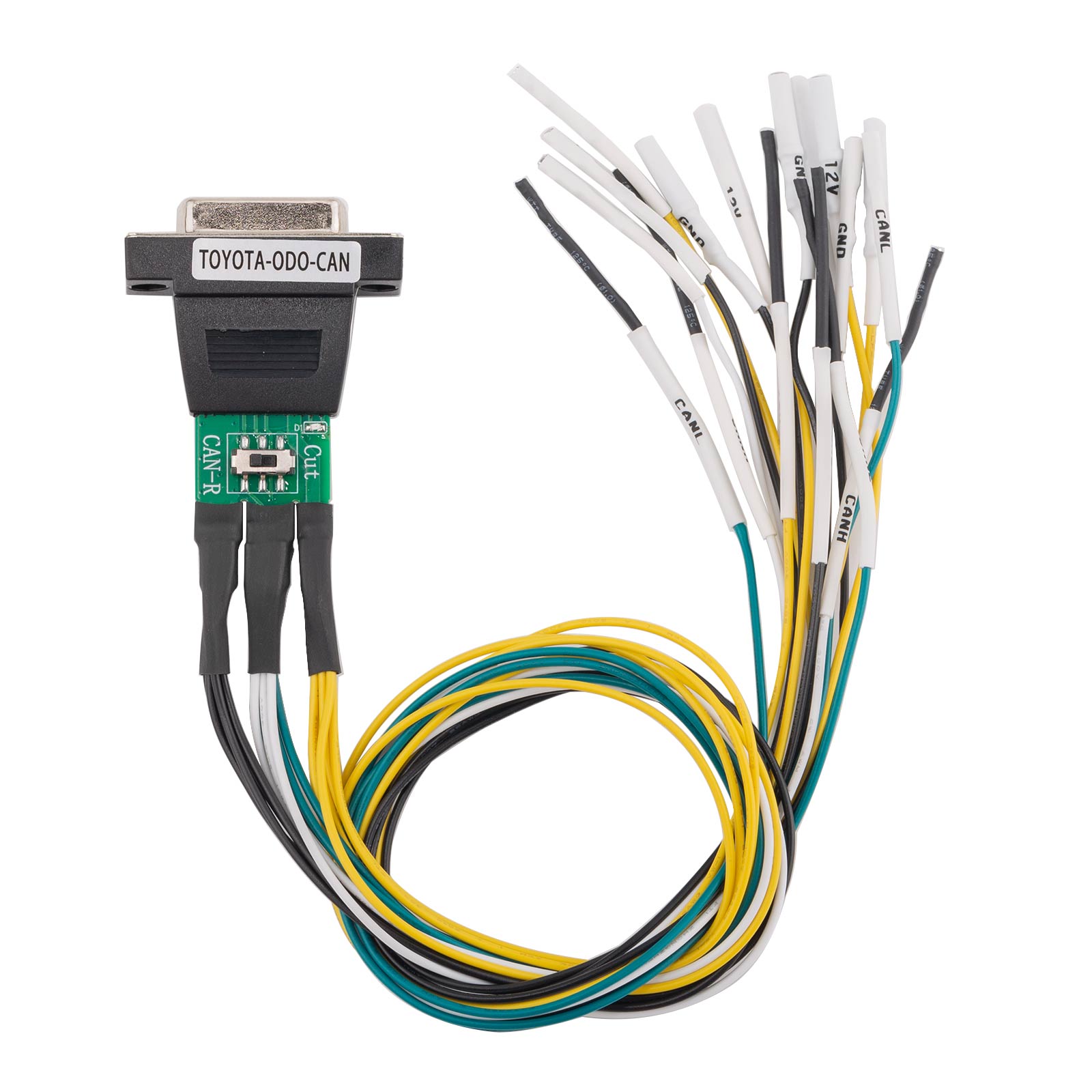

YANHUA ACDP Module 41 for Toyota R7F7014xx/S6J3xx ODO OBD/CAN Mileage Correction
Difference Between ACDP Module 35 and Module 41

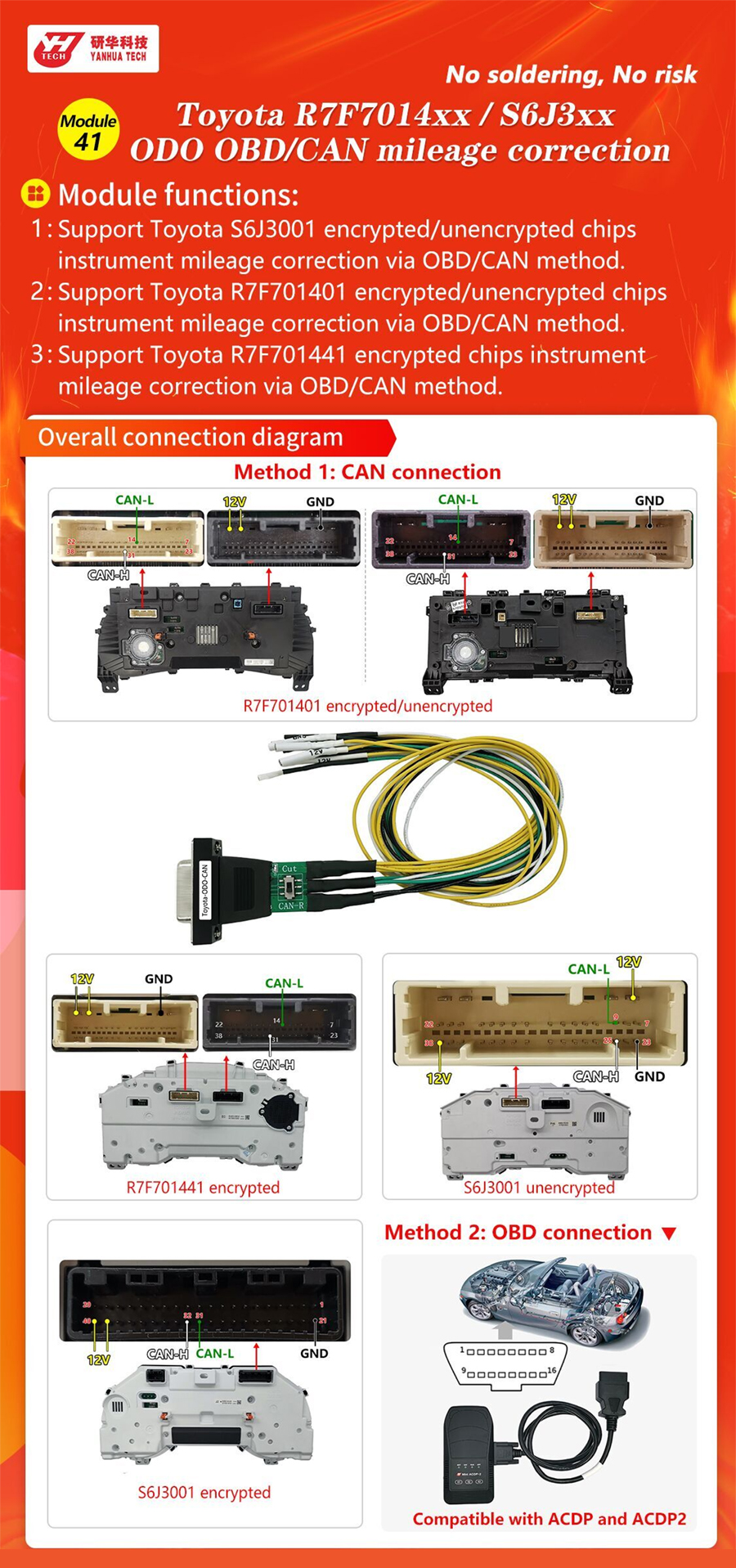

Module 35 is read by connecting directly to the instrument cluster after disassembly, whereas Module 41 is read via OBD or CAN wiring — though this method isn''t always successful. In cases where it fails, the instrument cluster must be disassembled and read using Module 35.
Module Functions:
Yanhua ACDP Toyota R7F7014xx and S7J3001 Car List
If R7F7014xx cluster cannot be done via OBD/CAN mode, you may need module 35 (need to disassemble cluster to change km).
Difference Between ACDP Module 35 and Module 41
Module 35 is read by connecting directly to the instrument cluster after disassembly, whereas Module 41 is read via OBD or CAN wiring — though this method isn''t always successful. In cases where it fails, the instrument cluster must be disassembled and read using Module 35.
The OBD-based approach of Module 41 is compatible with a wider range of devices, and the two modules complement each other functionally. If you already own Module 35, you qualify for a discount on Module 41. A bundle discount is also available if you purchase both modules together.
Module Functions:
- 1: Support Toyota S6J3001 encrypted/unencrypted chips instrument mileage correction via OBD/CAN method.
- 2: Support Toyota R7F701401 encrypted/unencrypted chips instrument mileage correction via OBD/CAN method.
- 3: Support Toyota R7F701441 encrypted chips instrument mileage correction via OBD/CAN method.
Yanhua ACDP Toyota R7F7014xx and S7J3001 Car List
If R7F7014xx cluster cannot be done via OBD/CAN mode, you may need module 35 (need to disassemble cluster to change km).
| Brand | Model | Type |
| Toyota | 4RUNNER | 2019 - S6J3001 DENSO |
| ALLION | 2019 - S6J3001 DENSO | |
| ALPHARD | 2023 - R7F701401 DENSO | |
| AVALON | 2018 - S6J3001 DENSO | |
| AVANZA | 2023 VELQ O S6J3001 DENSO | |
| BZ4X | 2023 - R7F701401 DENSO | |
| CAMRY | 2024 - R7F701401 DENSO(80) | |
| CAMRY | 2018 - S6J3001 DENSO | |
| CH - R | 2018 - S6J3001 DENSO | |
| COROLLA | 2023 - R7F701401 DENSO | |
| COROLLA | 2018 - S6J3001 DENSO | |
| COROLLA CROSS | 2023 - R7F701401 DENSO | |
| COROLLA CROSS | 2021 - S6J3001 DENSO | |
| CROWN | 2024 - R7F701401 DENSO | |
| CROWN KLUGER | 2018 - S6J3001 DENSO | |
| GRANACE | 2019 - S6J3001 DENSO | |
| GRANVIA | S6J3001 DENSO | |
| HARRIER | 2020 - R7F701401 DENSO | |
| HARRIER | 2016 - S6J3001 DENSO | |
| HIACE | 2019 - S6J3001 DENSO | |
| HIGHLANDER | 2023 - R7F701401 DENSO(70) | |
| HIGHLANDER | 2018 - S6J3001 DENSO | |
| KLUGER | 2018 - S6J3001 DENSO | |
| LEVIN | 2024 - R7F701401 DENSO | |
| LEVIN | 2019 - S6J3001 DENSO | |
| LINSHANG | 2019 - S6J3001 DENSO | |
| RAIZE | 2023 S6J3001 DENSO | |
| RAV4 | 2023 - R7F701401 DENSO | |
| RAV4 | 2019 - S6J3001 DENSO | |
| SIENNA | 2019 - S6J3001 DENSO | |
| TACOMA | 2018 - S6J3001 DENSO | |
| TACOMA IV | 2023 - R7F701401 DENSO | |
| TUNDRA | 2022 - R7F701401 DENSO | |
| VELLFIRE III | 2023 - R7F701401 DENSO | |
| VENZA | 2019 - S6J3001 DENSO | |
| VIOS | 2023 - S6J3001 DENSO | |
| WILDLANDER | 2020 - R7F701401 DENSO | |
| WILDLANDER | 2019 - S6J3001 DENSO | |
| YARIS CROSS | 2019 - S6J3001 DENSO | |
| YARIS IV | 2019 - S6J3001 DENSO | |
| Lexus | ES | 2019 - S6J3001 DENSO |
| GX550 | 2023 - R7F701401 DENSO | |
| LM350H | R7F701401 DENSO | |
| LS | 2019 - S6J3001 DENSO | |
| LS500 | 2023 - R7F701401 DENSO | |
| LX600 | 2022 - S6J3001 DENSO | |
| NX350 | R7F701401 DENSO | |
| RX350 | 2023 - R7F701401 DENSO | |
| RX450H | 2023 - R7F701401 DENSO | |
| RX500H | 2023 - R7F701401 DENSO | |
| UX | 2018 - S6J3001 DENSO |
Package includes:
1pc x YANHUA ACDP Module 41 for Toyota R7F7014xx/S6J3xx ODO OBD/CAN Mileage Correction
