Yanhua Mini ACDP BMW CAS1 CAS2 CAS3 CAS3+ CAS4 CAS4+ Key Programming and Odometer Reset Module 1 with License A500 A510 A515 A516

Product Description

Yanhua Mini ACDP CAS1- CAS4+ BMW IMMO & Odometer Module 1 with License A500

Highlights

• Workable OS:  IOS, Android, Windows
• Supports CAS1 – CAS3+ IMMO key programming by OBD or ICP mode, Mileage reset, Read/Write EEPROM and FLASH data.
• Supports CAS4/CAS4+ IMMO key programming in circuit programming (ICP), Mileage reset, Read/Write EEPROM and FLASH data.
• Key programming via OBD or EEPROM without soldering
• Read CAS EEPROM without soldering
• Add keys, All keys lost
• Reset mileage, Backup or recover CAS

ACDP BMW CAS Module 1 Main Features:

1. Support CAS1-CAS3+ IMMO key programming and mileage reset through OBD mode.
2. Support CAS3+/3++,CAS4/CAS+ key programming and mileage reset by ICP.
   Data reading and writeing without lifting the pin, No removing any components. Inteliligent detection
3. Support CAS1-CAS4 data resotre. It can modify vehicle frequency, VIN, ISN code, or replace CAS module by modifying EE data
4. Support OBD restore CAS3/CAS3+ problem casued by downgrade

Support BMW Key Programming for all series.

CAS1-CAS3+ Module:



Key Programming by OBD
Read CAS EEPROM
Add Keys
Reset Mileage
Back up or recover CAS
All keys Lost

CAS4/CAS4+ Module:



Read CAS4 EEPROM without soldering/welding
Add Keys without soldering/welding
Reset Mileage without soldering/welding
Back up or recover CAS without soldering/welding
All keys Lost without soldering/welding


BMW CAS1-CAS4+ Mileage Programming
No need to remove chip
No need soldering
No need to cut the line
No need to lift the pin

ACDP CAS Module 1 APP Menu:





CAS3/CAS3+Pins Intelligent Detection


CAS4/CAS4+Pins Intelligent Detection


Yanhua Mini ACDP Master Module Instruction:


Item No	Module Name	Supported car brands	Function
SK247	ACDP Programmer	BMW	Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP). This module is a necessary basic configuration for other modules.
SK247-1	CAS Module	BMW	(1) Support CAS1 – CAS3+ IMMO key programming by OBD or ICP mode, Mileage reset, Read/Write EEPROM and FLASH data. (2) Support CAS4/CAS4+ IMMO key programming in circuit programming (ICP), Mileage reset, Read/Write EEPROM and FLASH data.
SK247-2	FEM/BDC Module	BMW	Support FEM/BDC IMMO key programming by ICP or OBP mode, Mileage reset, Recover/Backup data.
SK247-3	ISN Module	BMW	Read/write N20/N55/N13 ISN code via OBD. Read/write MSV80/MSD85 ISN code without opening DME shell. Read/write other DME ISN code by opening DME shell.
SK247-4	35XX Module	BMW	Support erase/adjust mileage of 080DOWQ/T,160DOWQ/T EEPROM.
SK247-5	Fujitsu CPU MB91F Module	Honda/Hyundai/KIA	Support Fujitsu CPU MB91F (Honda Fit, KIA K3/K5, Sonata 9, etc.) Mileage adjustment.
SK247-6	MQB Module	VW	Support parts of VDO mileage adjustment/key programming of VW MQB platform via OBD, and Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode.
SK247-7	Refresh BMW key	BMW	Refresh BMW E chassis/F chassis (CAS) key to make BMW keys can be used repeatedly.
SK247-8	FRM module (FRM Footwell module)	BMW	Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data without coding.
SK247-9	Jaguar/Land Rover KVM Module	Jaguar/Land Rover	Support Adding key and all-key-lost for new Jaguar and land rover after year 2015.
SK247-10	Porsche BCM Module	Porsche	Support Adding key and all-key-lost for Porsche BCM.
SK247-11	EGS Module	BMW	Support clearing ISN of BMW 8HP (F/G Chassis)/6HP (F Chassis) Gearbox
SK247-12	Volvo ECM Module	Volvo	Adding Key & All Keys Lost from 2009-2018
SK247-13	VW/Audi Gearbox Clone Module	VW, Audi	Support VW, Audi DQ200(0AM/0CM), DQ250(02E/0D9), DL382(0CK) ,DL501(0B5) ,VL381(0AW) models and etc

Note: From SK247-1 to SK247-13, the package doesn't include the main unit. For the new user, you need to buy extra main unit (sk247), if you already have the main unit, just buy the authorization with adapter.

The comparison between ACDP and other devices for reading/writing CAS4

I. The oter devices to use the traditional way--soldering to read/write data
1. Cutting lines
Cutting these two lines on PCB as marked, and soldering them back after reading/writing data is completed. Please note the risk of cutting lines because it may cause the module damage


2. Removing components
Removing these 4 components as marked, and soldering them back after reading/writing data is complete. It is such a long time and complicated operation


3. Lifting pins
Lifting the chip piins for wiring, and soldering them back after reading/writing data is completed. But is if full of risk since the chip pins are easy to break when lifting


Disadvantages:
1. Requiring soldering, which with complicated and long time operation
2. Requiring cutting lines, lifting pins or removing components, which with the risk of module damage
3. Manual soldering is risky and unreliable. Any faulty solder amy cause the data lost.

II. ACDP reading/writing data by ICP

Advantages:
1. Interface board replaces the soldering to make operation simple and efficient.
2. No cutting lines, no lifting pins, no removing components and no soldering.
3. Pin intelligent detection to ensure data reading/writing safe and reliable.

What's new one ACDP BMW Module 1?

Enables / disable E Chassis CAS1- CAS2 CAS3 keys via OBD
OBD read/write BMW CAS4 / CAS4+
Support IMMO programming and mileage reset for all known versions via OBD.
Free update BMW CAS3/ CAS3+/ CAS3++ DME ISN read and write (replace DME)
Adds BMW CAS3, CAS3+, CAS3++ DME ISN read/write (replace DME)
Adds OBD read/write BMW CAS4 / CAS4+ IMMO programming and odometer correction
Enables / disable E Chassis CAS1- CAS2 CAS3 keys via OBD
Adds BMW CAS4/CAS4+ 9s12xdp512 / 9s12xep100 fast mode of OBD read / write
AddsBMW CAS1 to CAS4 data renew function

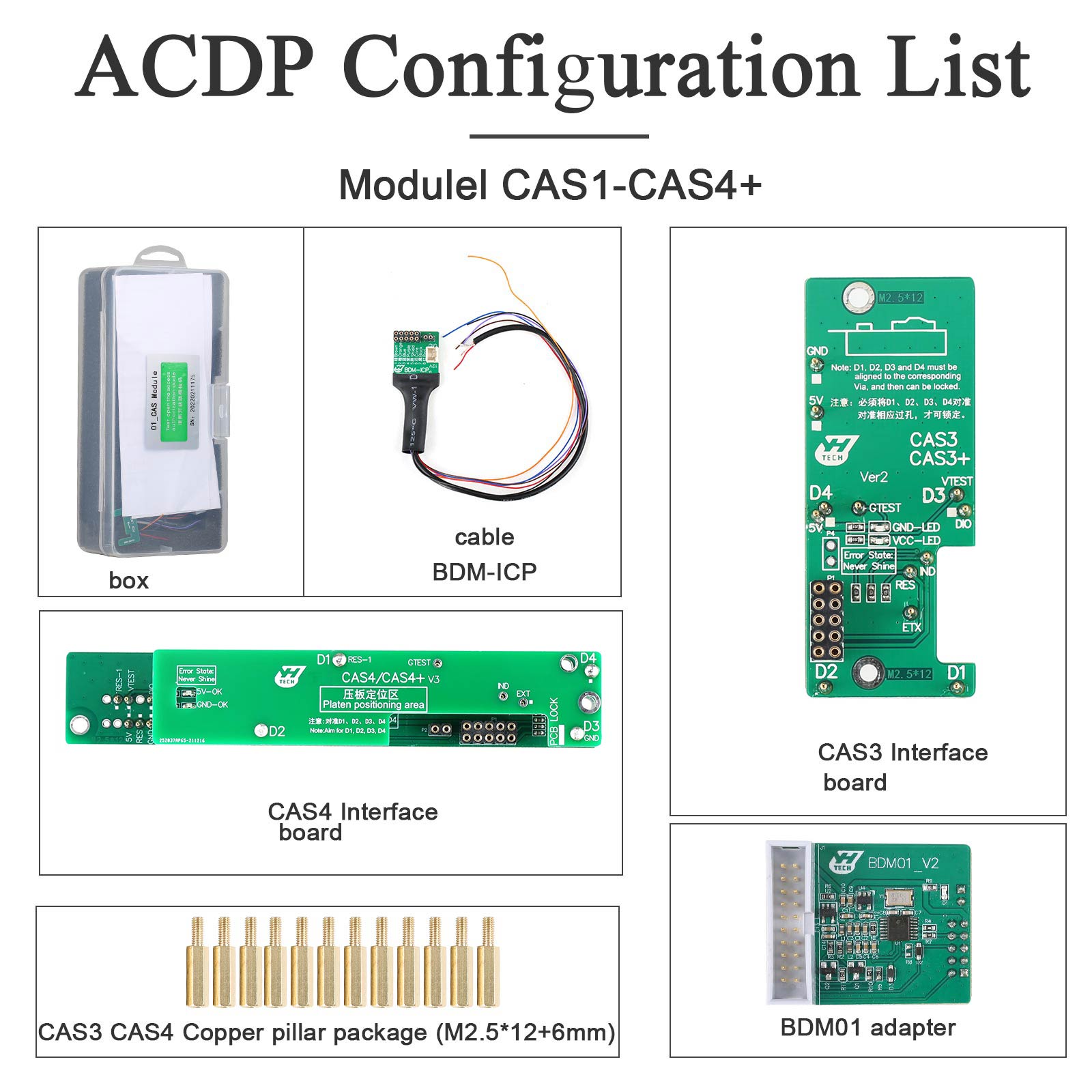

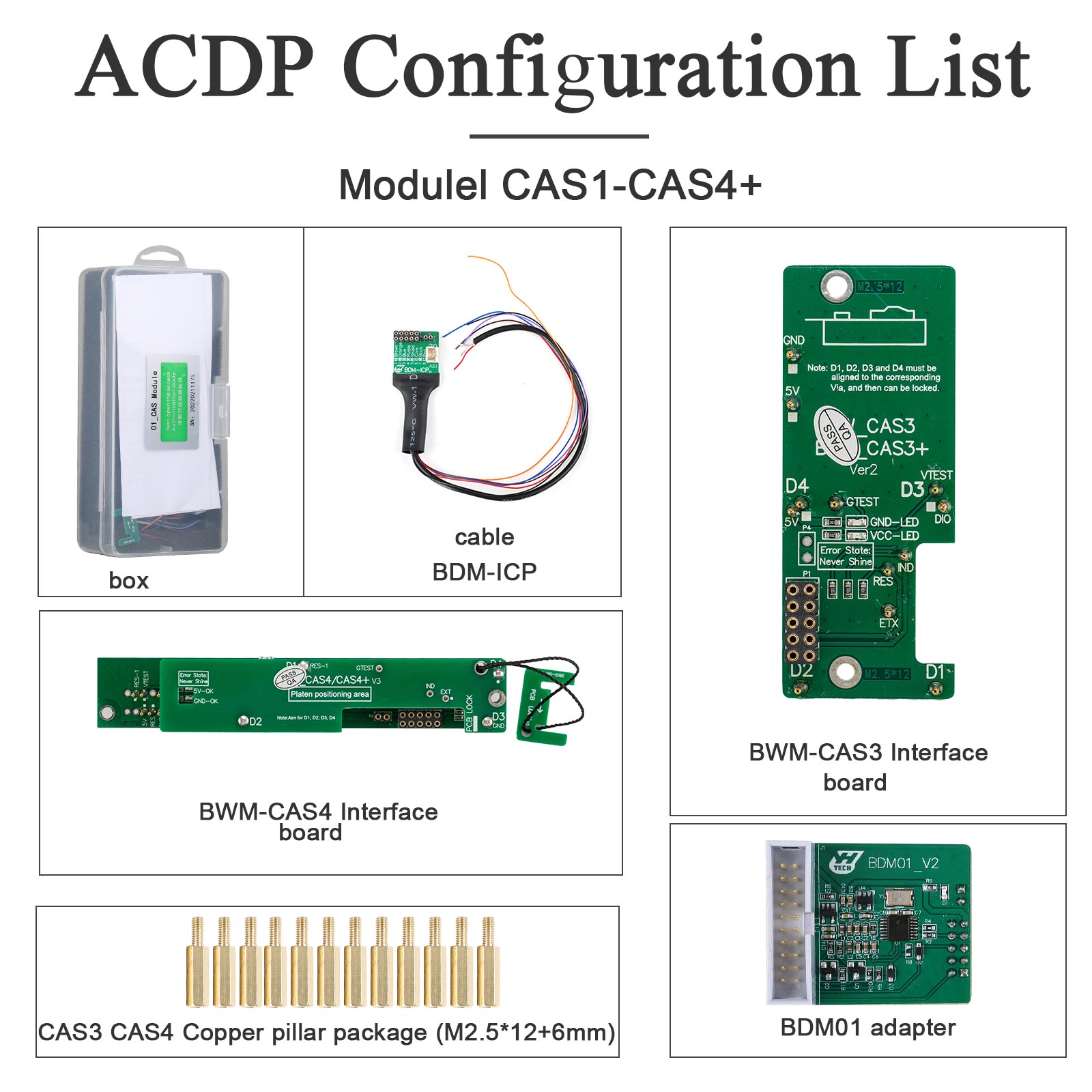

ACDP BMW CAS1-CAS4+ Configuration Package List:


Adapter Name	Quantity	Picture	Function

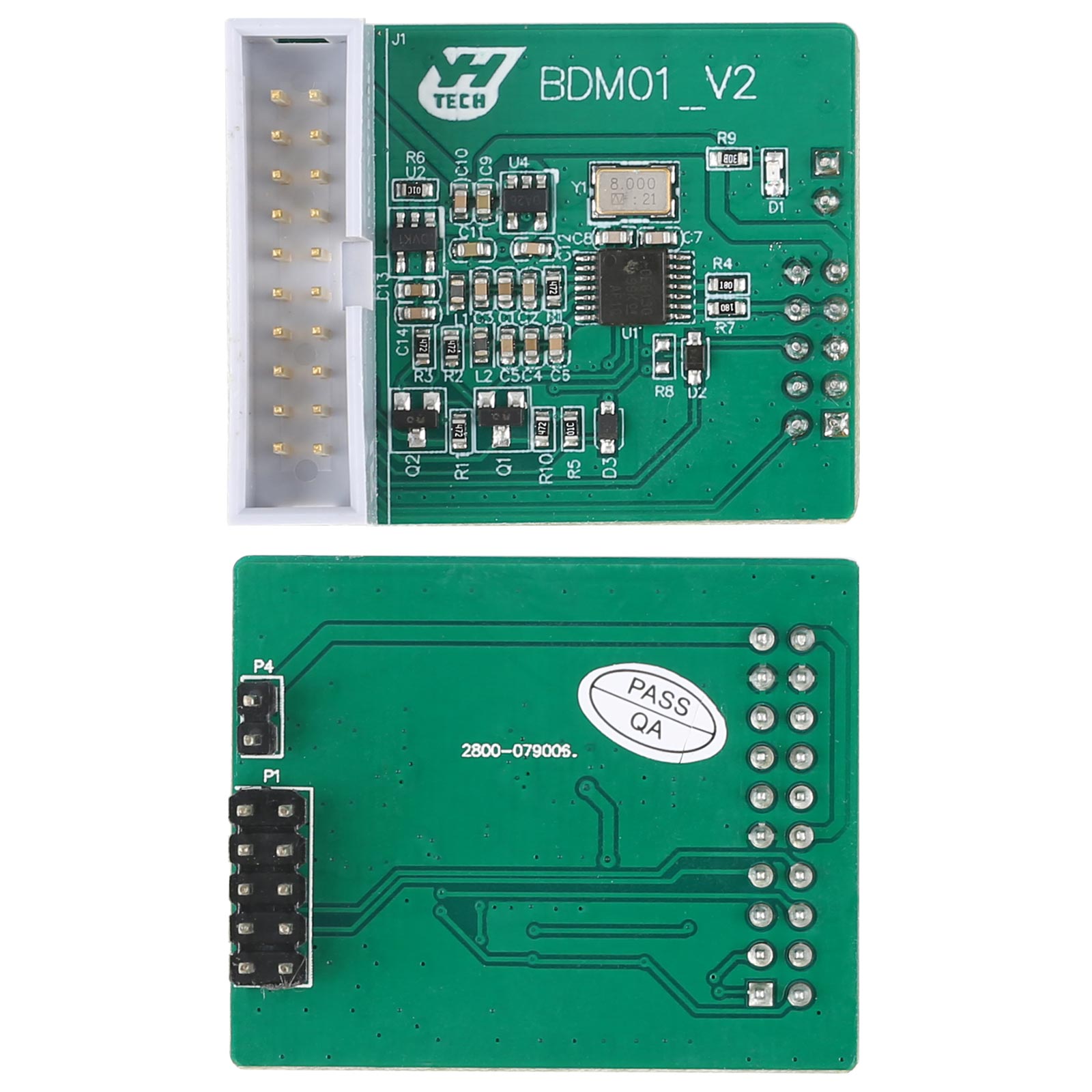

BDM01 adapter	1pc		Applicable to decrypt BMW CAS EEPROM.

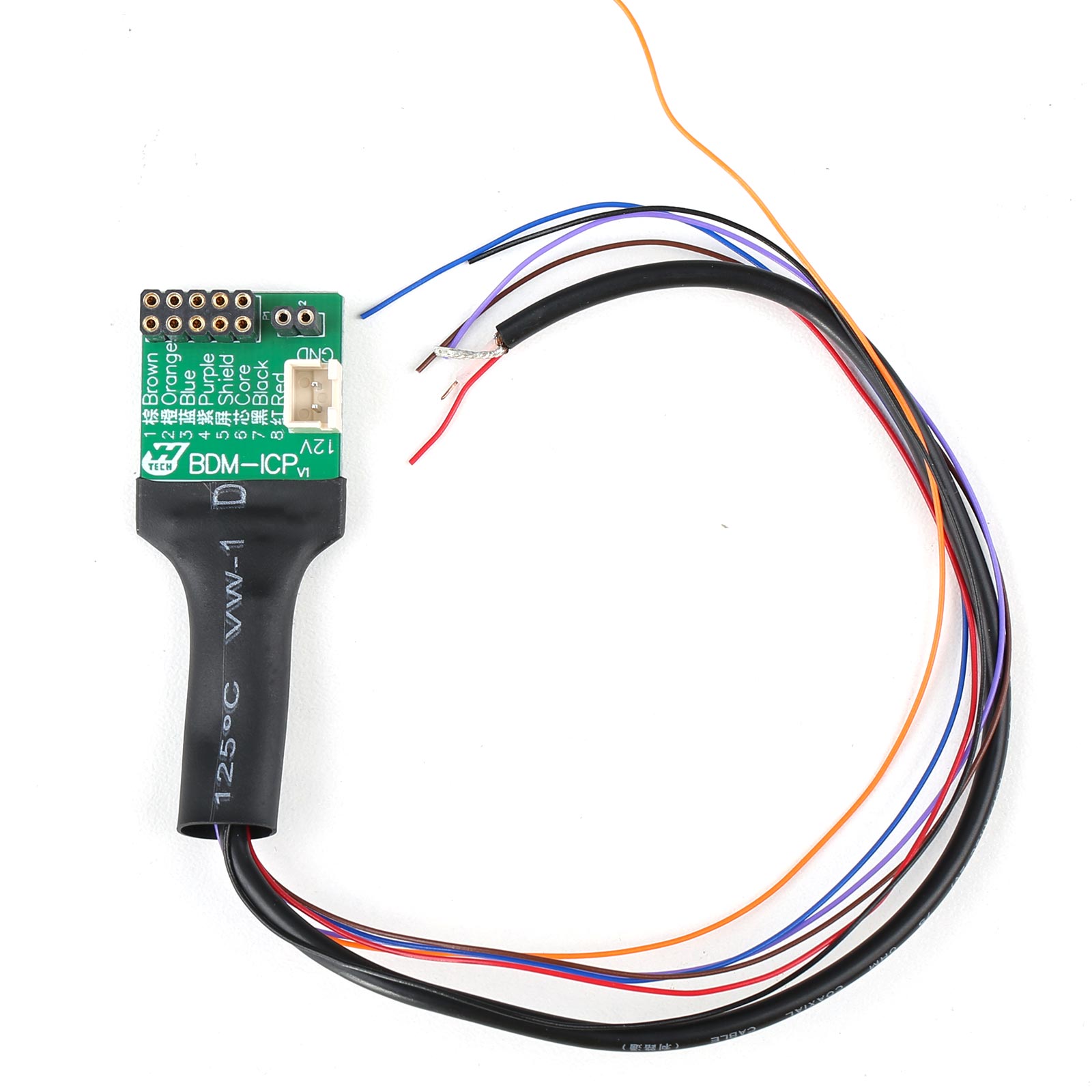

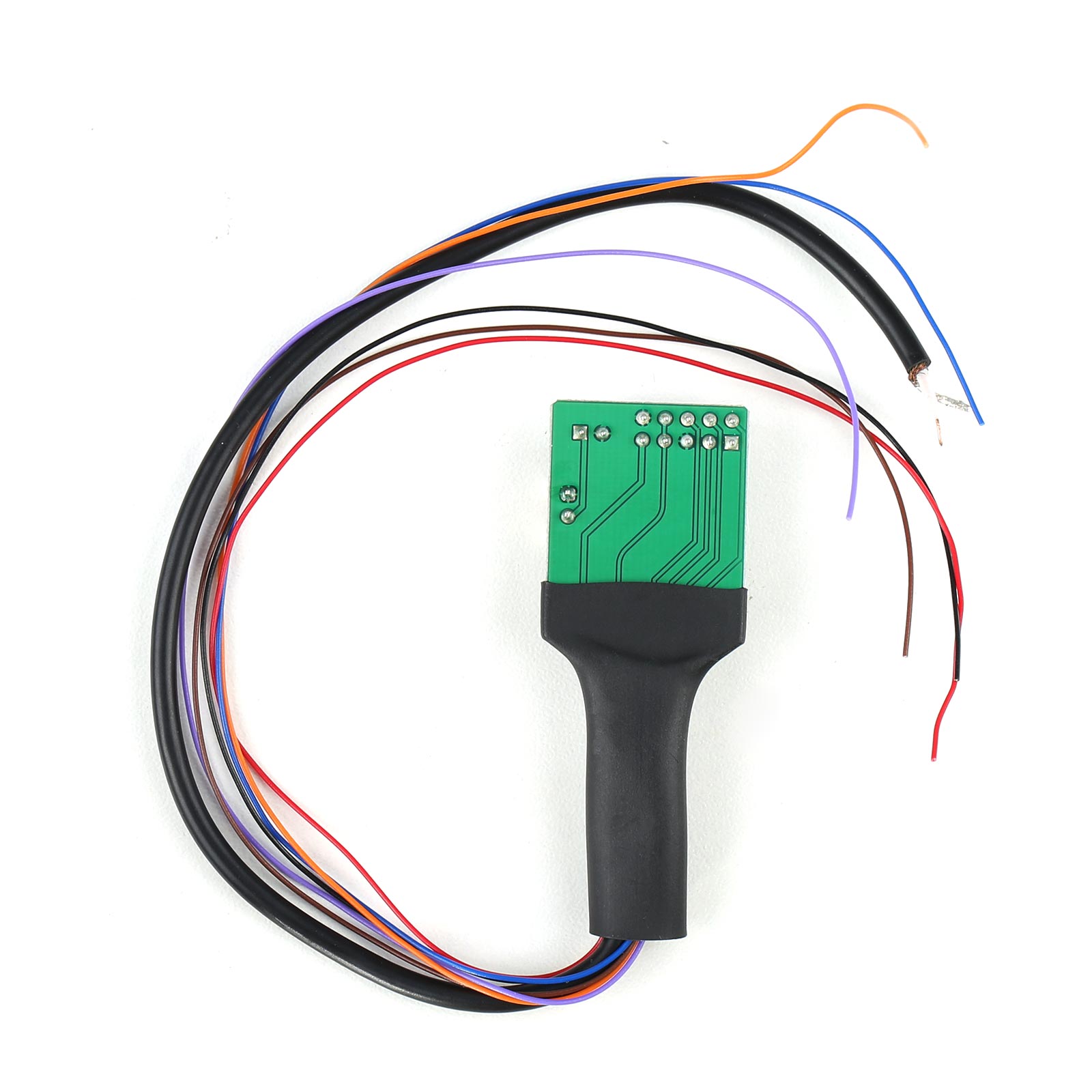

BDM-ICP cable	1pc		Applicable to read/write data by ICP with BDMO1 adapter.

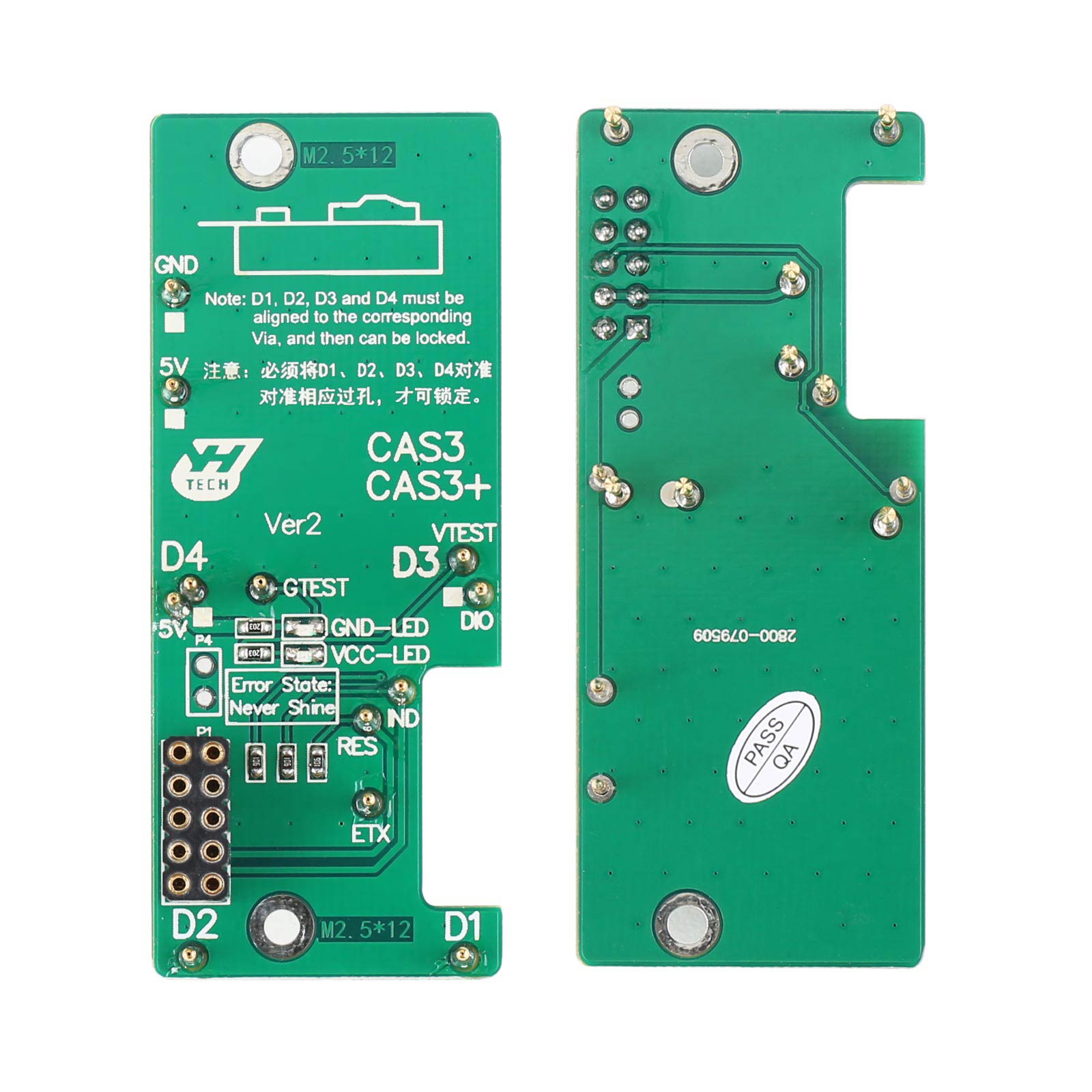

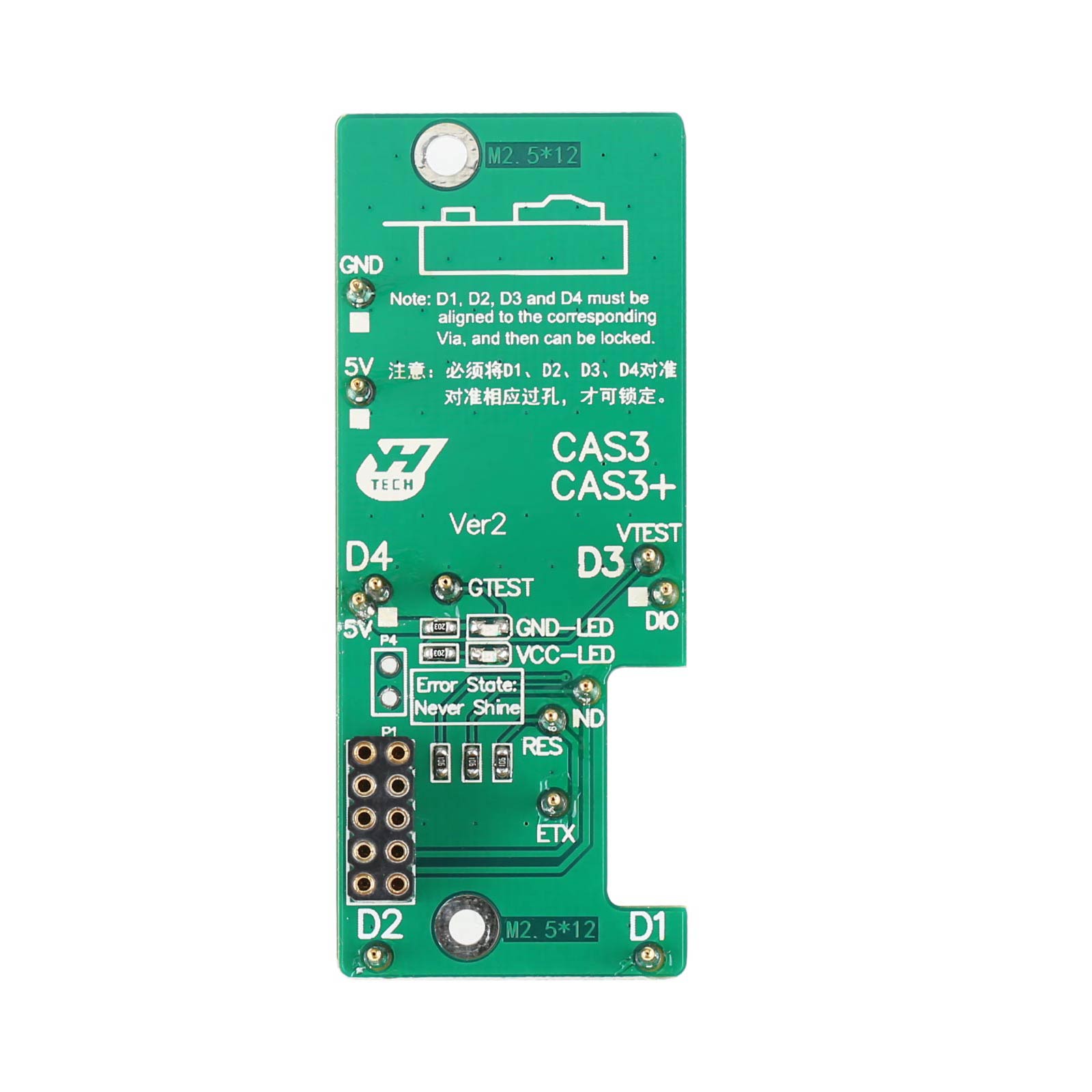

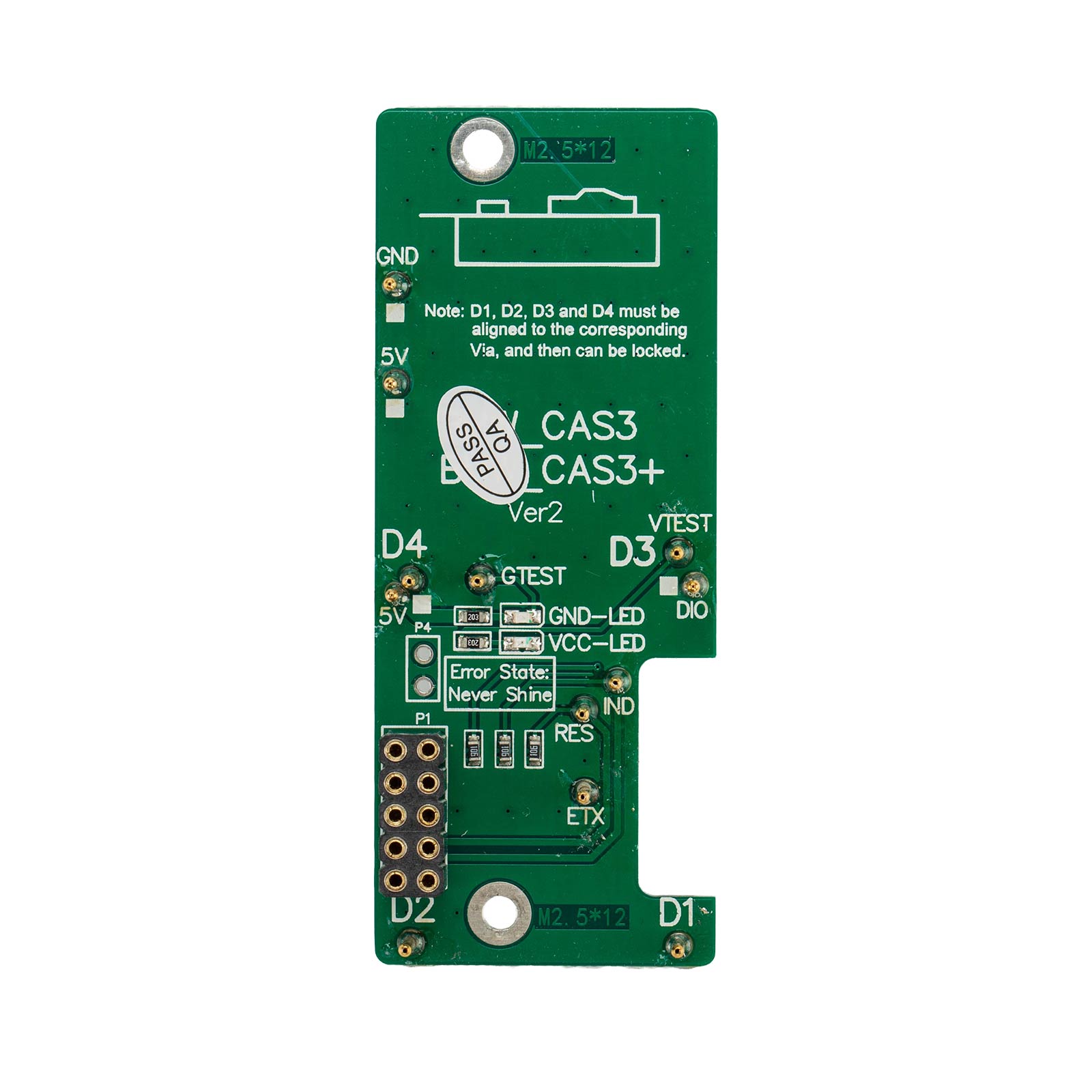

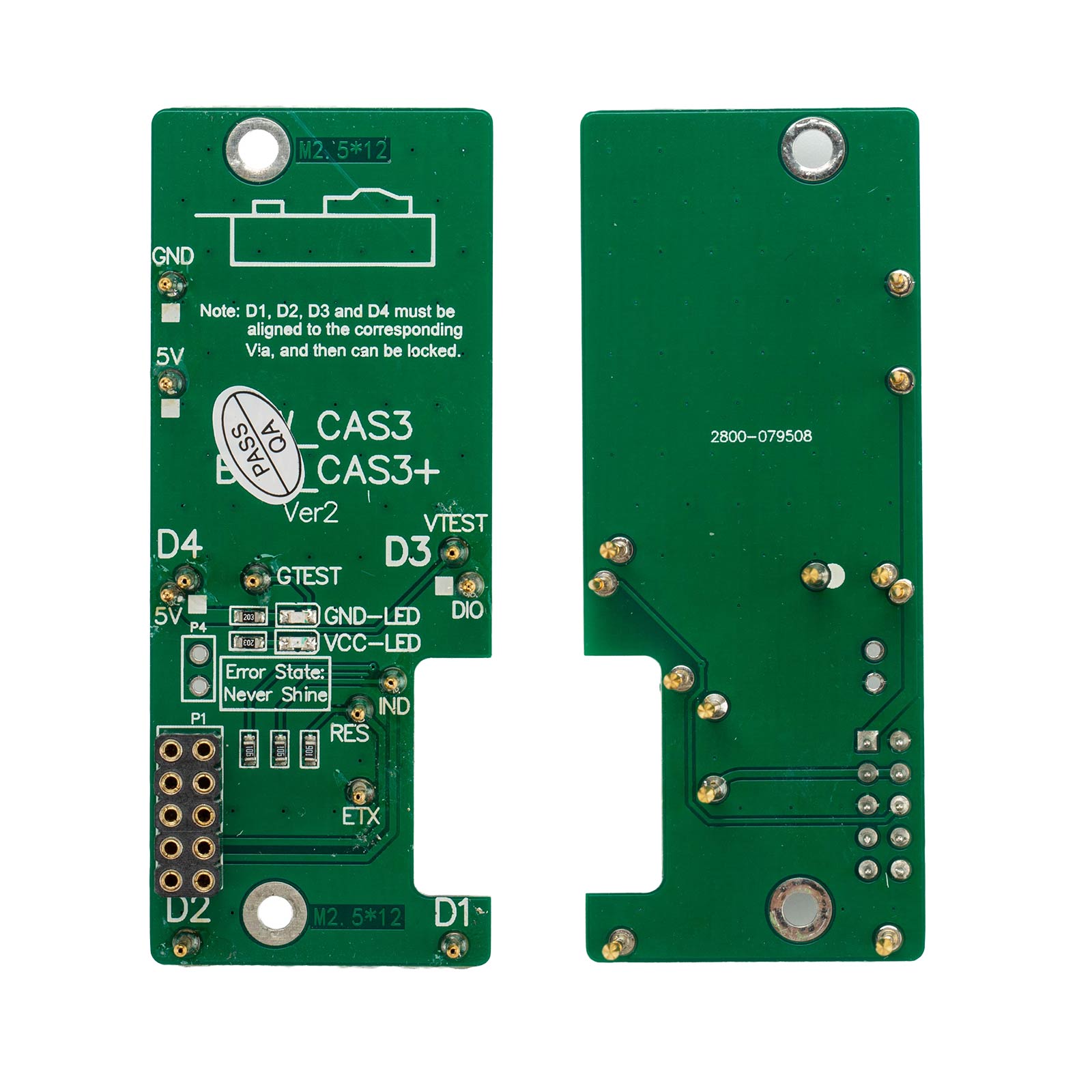

BMW-CAS3 board	1pc		Applicable to connectCAS3/CAS3+ test points. Used with BDM01 adapter.

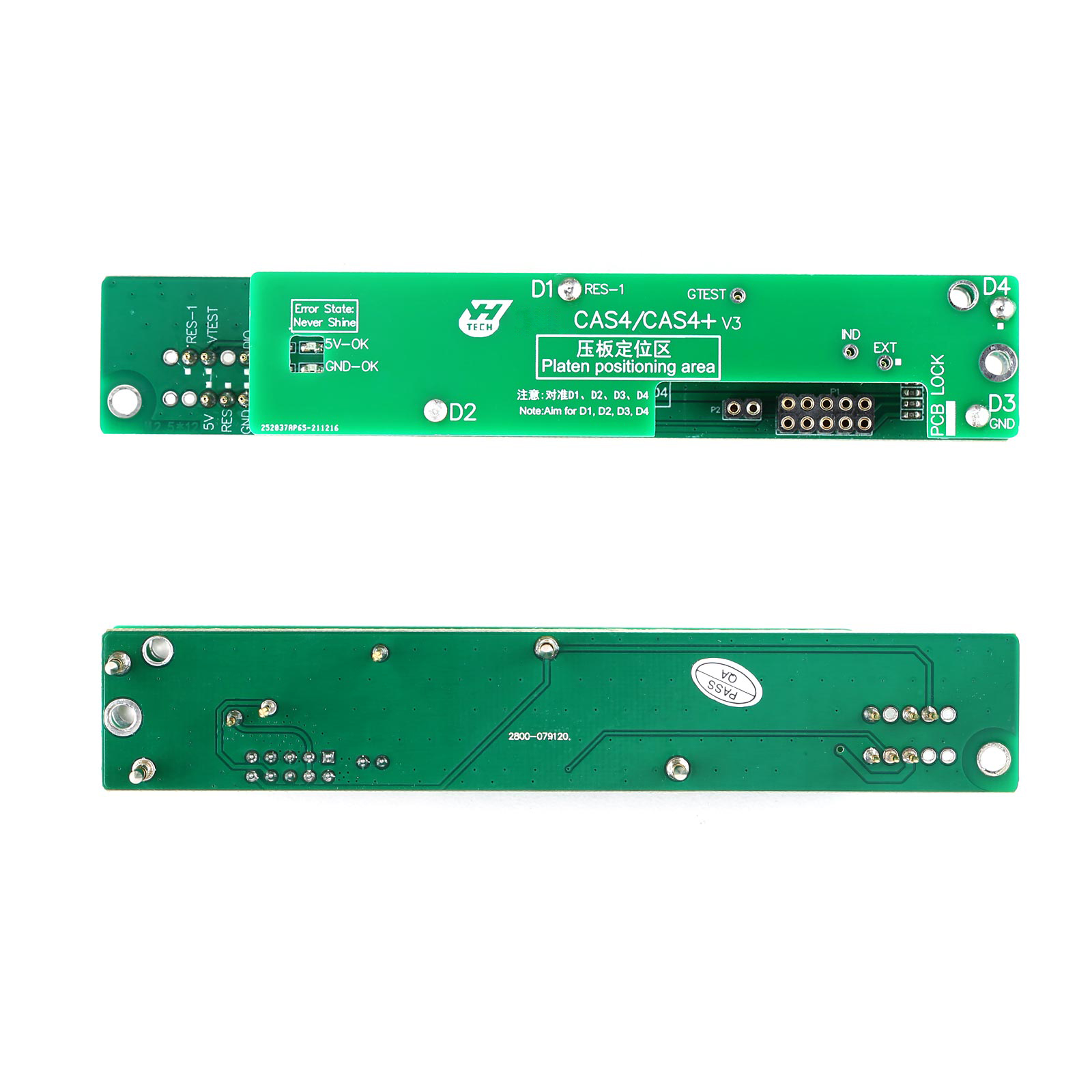

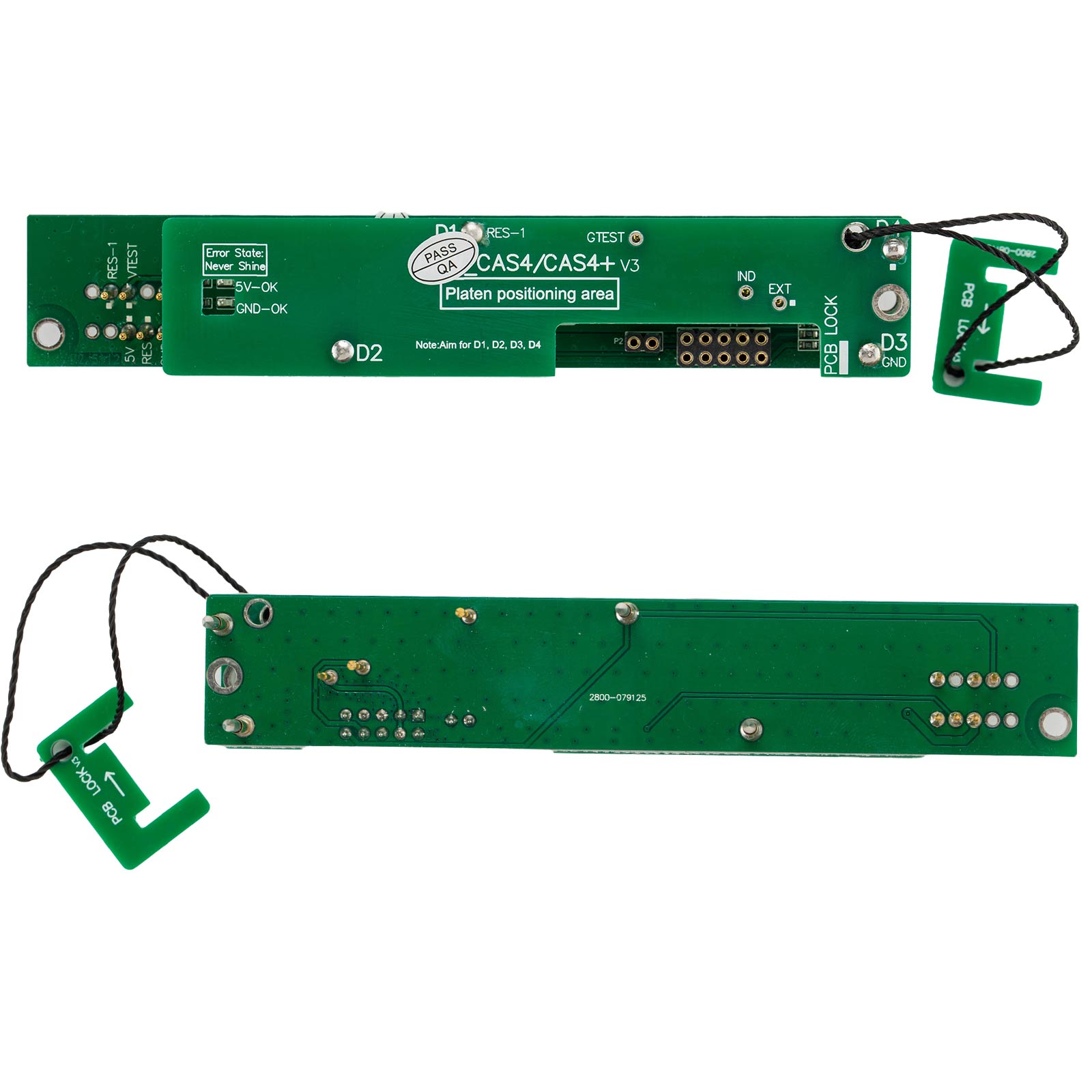

BMW-CAS4 board	1pc		Applicable to connectCAS4/CAS4+ test points. Used with BDM01 adapter.
BMW-CAS4 Interface board Buckle	1pc		Applicable to fix BMW-CAS4 interface board and CAS board.
CAS3 Copper pillar Package（M2.5*12+6mm）	6pc		Applicable to fix BMW-CAS3 interface board.
CAS4 Copper pillar Package（M2.5*12+6mm）	6pc		Applicable to fix BMW-CAS4 interface board

FAQ:

Q: acdp module 1 possible to record new key?
A: Yes, it can record new key

Q: If ACDP CAS module can clone CAS4?
A: Yes, it can clone CAS4

Q: I want to do all key lost for BMW F series cas 4 via obd, what modules i need?
A: If you have acdp master basic version already, you just need buy this cas module 1

Q: I want to ask about Mini ACDP Master (BMW F series cas 4 ). Can the device make key from into OBD and if all keys are lost or it need to dismantling CAS MODULE.
A: It can work via obd, but if all key lost, you need depart the engine computer to read isn, then operate via obd
