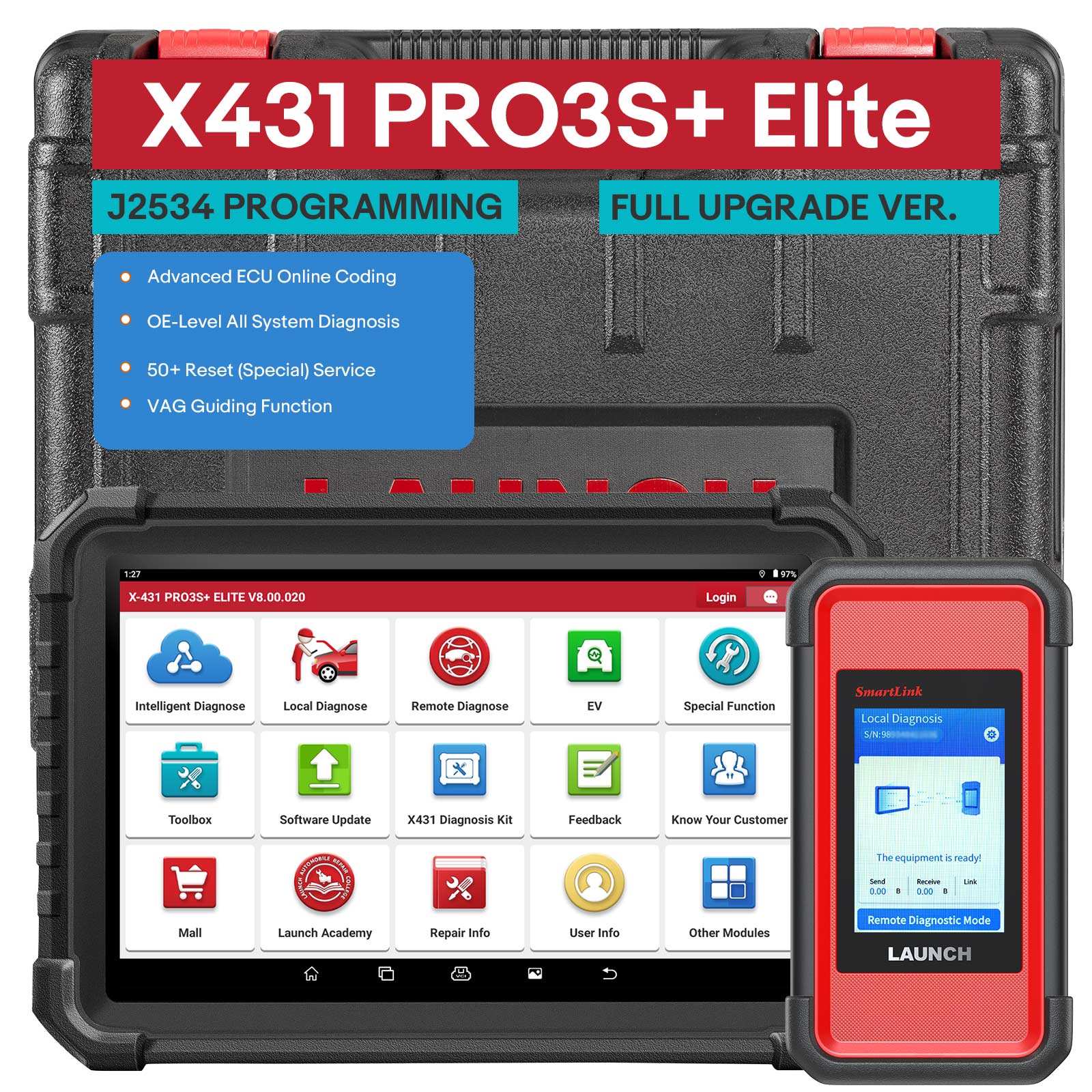

LAUNCH X431 PRO3S+ Elite Features:
TOP Software:

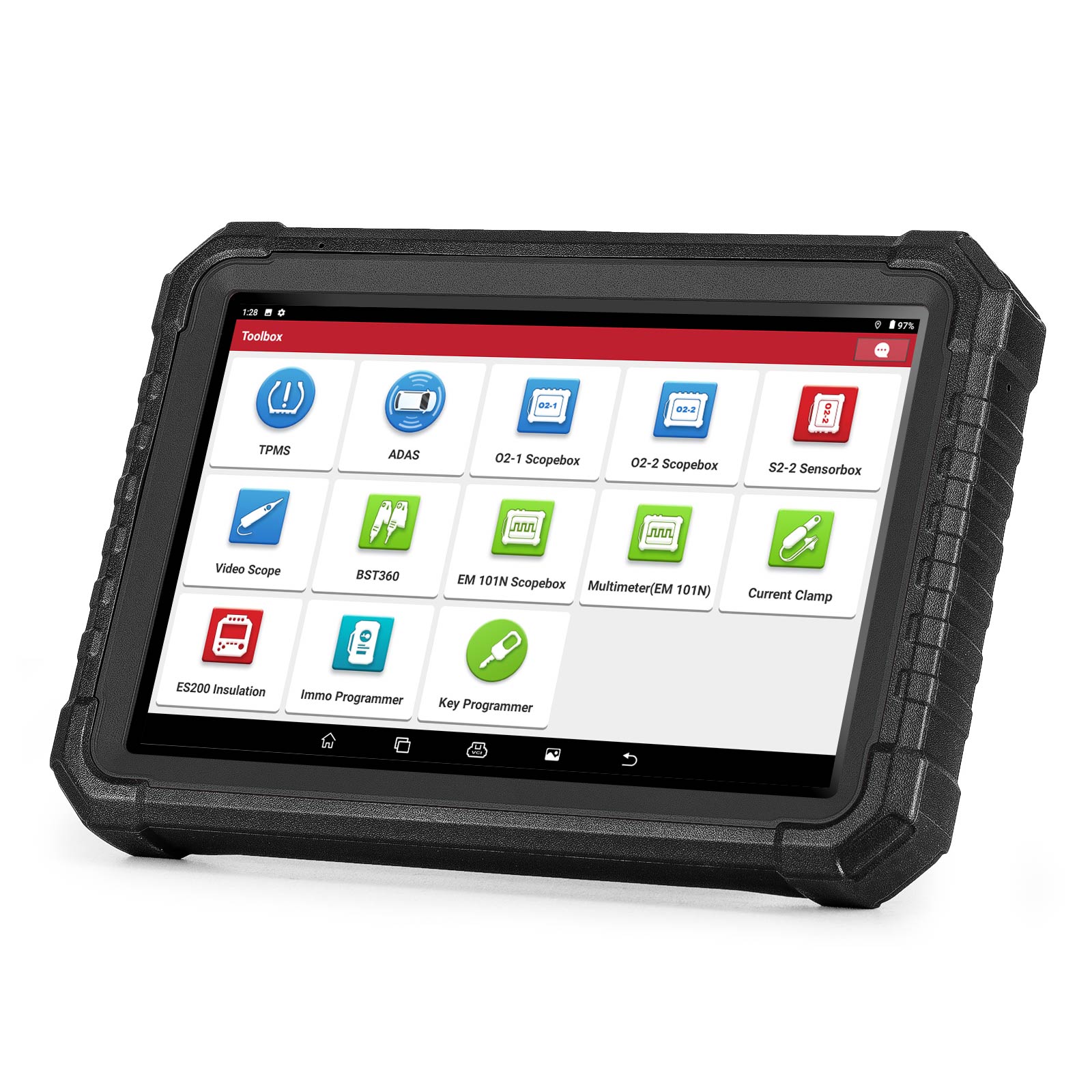

Extended Functions
1) ADAS Calibration Toolkit (ADAS Moblie/ ADAS PRO): Calibrate a wide range of camera-based & radar-based driver assistance systems
2) VSP60 Videoscope: inspect areas inaccessible;
3) X431 TSGUN/i-TPMS: full-capacity TPMS functions;
4) BST360 Battery Tester Bluetooth Battery Tester: test battery in-vehicle or out-of-vehicle;
5) X431 PROG3: key programming & ECU TCU cloning.
6) WiFi Printer: print out diagnostic data and information
7). X431 Heavy Duty Module: LAUNCH SmartLink C v2.0 Add-on Module is an essential truck module which can turn your X431 scan tools into full function heavy-duty truck diagnostic tools, working on both heavy-duty (Class 4 through 8) and medium-duty trucks (Such as heavy trucks, city buses, bulldozers, excavators, etc.)
8). IMMO Software Package: advanced key programming & IMMO service. (function is available with the new Smartlink, must use with X431 XPROG-3 GIII Key Matching will expand the anti-theft function just like IMMO PLUS)
9). Launch X431 key programmer: generate/copy remote transponder functions. (Direct connection, don't need OTG converter).
10) O2-2 Scopebox: detects high level faults on various electrical components, such as sensors, acturators and circuits.
11). S2-2 Sensorbox: diagnosing/testing/simulating most vehicle sensor faults
12). EV diagnostic kit for new new Energy Battery Vehicles
All System Diagnostic: It can read/clear fault codes, read live data/freeze frame, read control module information, actuation tests and reset functions for TPMS,ECM,BCM,ABS,SRS,TCM,BMS,SAS,A/C & RTM system etc. Read Vehicle Information(Mileage,Development Code,Series,Sales Designation,Gearbox type, Steering type ,etc )Read Module Information: ECU IDENTIFY, Diagnosis Index, Supplier, Production Date(Day,Month,Year).
Pin Detection : This function analyzes voltage levels, data transmission rates, and supported protocols across the OBDII diagnostic socket pins to help technicians assess the integrity of the vehicle's communication interface. Detection results inconsistent with the vehicle’s factory specifications may indicate potential faults in the corresponding pin(s).
Auto VIN & Auto Scan: 5 Ways for quick diagnose included 1.AUTO VIN SCAN 2. CAMERA VIN 3. Manually Input VIN 4. Select Area and Vehicle- Automatic Detection 5. Select Area and Vehicle Manual Selection
X431 Diagnosis Kit: The exclusive features of Launch x431 series help you complete diagnostic analysis more quickly. Such as Vehicle Coverage, CAN Bus Pin Detection, CANScope, Diagnostic Software Clear, Fix Connector Firmware/System, Data Stream Sample, DLC Voltage Check, 8 Reset MSVIN, Diagnostic History etc.
Online Repair Resources : Provide more than 200000+ vehicle service and repair data, LAUNCH Facebook ,LAUNCH Official Website, I/M Messaging, PIN Detect, TPMS Database, Training video, LAUNCH Academy, Handbook, Repair Case and Operation Skill, Dtc Help, How to Videos etc.
12-in-1 Live Data Stream: You can use Launch X431 PRO3S+ELITE escaner automotriz professional to view and capture realtime Live Data, get to know the current operating status for parameters, and provide insight into overall vehicle performance. There are three display modes available for data viewing: Graph, Value, and Combine. And you can display 12 data streams at the same time, providing great convenience for comparing data.
Diagnotic Report Print & Share: After completing the diagnostic, you can generate reports from the stored diagnostic data, which will help you further analyze faults and better manage your repair orders. You can share the diagnostics reports QR code quick sharing and print the reports you need.
Fit for Audi /Fit for VW firmware Protection Cancel Features :This feature helps mechanics replace car parts. Carry out car modifications.
Tons of Maintenance Information:There are some practical operation cases uploaded by LAUNCH to help you better understand how to carry out the next step. There are wiring diagrams of specific brands of vehicles in the maintenance materials for reference.
More Advanced & Convenient than Expectation
ADAS Calibration:
This ADAS calibration is crucial to ensure that all systems are performing as designed and maintaining optimal safety standards.
Compatible with LAUNCH X431 ADAS Mobile to calibrate advanced driver assistance systems, such as ACC, AEB, and more. ADAS Calibrate a wide range of camera based & radar-based driver assistance systems, Operate ADAS calibration to vehicle cameras, LKA system, ACC system, LDW system, and AVM system. ADAS is designed to improve driver, passenger and pedestrian safety by reducing both the severity and overall number of motor vehicle accidents. ADAS can warn drivers of potential dangers, intervene to help the driver remain in control in order to prevent an accident and, if necessary, reduce the severity of an accident if it can’t be avoided.
ADAS Calibration is needed during the following situations:
1.Windshield replacement.
2.Replacement change in tires or ride height.
3.ADAS l.ights are on or flashing.
V.A.G Guided Function: Compatible with Volkswagen / Fit for Audi / Fit for Skoda / Fit for Seat etc.
Having the boot function means that you have an expert who is ideal for your repairs. It frees you from the hassle of finding automatic channel numbers and login codes. It consists of a detailed operating guide and operating instructions. For different car models, the X431 PRO3S+ELITE scanner will provide you with specific instructions on auto login, matching, setup.
D-DPU Protocol Cost-effective solution Vectors D-PDU API is a cost-effective solution especially for OEMs and suppliers who already use the Vector network interfaces and who are additionally use or develop ISO 22900-2-based applications. Therefore, the Vector bus interfaces can also be used for customer-specific diag nostic and flash applications. An additional VCI hardware is no longer required.
X431 Fix X431 FIX is a repair and diagnostic database, driven by Motor.com, that provides full technical service bulletins, flowcharts, wiring diagrams and other manufacturer documents needed to help the technician efficiently complete the job.
60+ Special Services
Explore More than 100+ Special Services
LAUNCH X431 pro3s+elite bidirectional tool gives you the ability to use professional level relearn procedures to complete repairs or maintenance, to meet your need in the most degree. Not only you can find 60+ Hot Special Reset in "Service Function" application on home page, but you can also find more Special Reset on "Local Diagnose" > "Choose brand & year" > "Automatically Search" > "System Selection> "Special Function", you will find more than 100+ hidden advanced functions for specific models under vehicle menu.
How to Use SmartlinkC V2.0 as a J2534 Protocol Tool?
Download and install the drivers for Smartlink V2.0 at the LAUNCH official site. Below is the link. After you enter the website, please click "Tool download", then you will find it. If you can not visit the website, we can send it to you directly
Online Coding: this LAUNCH scan tool can directly access the online vehicle repair data to do high-level repairs.
Offline Coding: read the code from the original module, and then write the code for the new module,for example ,write a VIN to new ECU.
Component Matching: Matching,relearn ,Calibration, or initialization adaptive data for certain components after repair or replacements,such as: suspension calibration ,seat matching ,sunroof initialization,gearbox matching,injector calibration, transmission adaption.Delete Adaptation Data, Tank Calibration,Height sensor system calibration,PSM Sensor Calibration ,etc.
Retrofit/Modification, for example, retrofit battery with different type, Upgrading the headlights, taillights, and interior lighting to L.ED l.ights,etc.
PMI Function: LAUNCH X431 PRO3S+ Elite diagnostic scanner support PMI function, Compatible with Ford /Lincoin/ Mazda etc.This function is used when you need to replace a module (replace ECU) or initialize a module.
Support New CAN FD/ DOIP Protocol.CAN-FD Protocol Compatible with GM models (2019 and later).DoIP Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later) .
Rebrush Hidden Functions: You will use this function when replacing modules such as audio, radar, windows, etc. It can refresh the car to achieve the effect of recognition module. Different cars support different module functions.
Power Balance Test: Cylinder power balance testing can help uncover hidden engine issues related to engine misfires, lack of power or just a poor running engine, which is commonly missed with other tests. So, cylinder power balance testing, is one of the best and easiest ways to find the source of a engine misfire. Furthermore, cylinder power balance testing is often used along with a cylinder compression and cylinder leakage tests to further pinpoint the problem. Cylinder Balance test/Cylinder leakage test/Cylinder Pressure variations/Relative Compression Test.
Vehicle Coverage
1. When as a VCI (Vehicle Communication Interface), it needs to work in conjunction with the Diagnose module of the tablet, which is used to obtain vehicle data, and then send it to the tablet for analysis wirelessly or via data cable.
2. When as a SmartLink C (Customer) dongle, it does not communicate with the tablet, but it needs to work together with the SmartLink module of the tablet. The tablet is mainly used to issue remote diagnostic requests, and the SmartLink C dongle is networked to receive and execute commands from the remote SmartLink B (Engineer).
3. When as a local J2534 PassThru device, it can be used in conjunction with the PC installed with OEM diagnostic software.
4. SmartLink C compatible with J2534/DOIP/CANFD protocols and serves as a wireless VCI allowing the vehicle to transmit data to the diagnostic tablet.
Extensive HD COMMERCIAL、NEW ENERGY、PASSENGER Vehicle Coverage - 20000+ Cars Supported1. HD COMMERCIAL (Class 4 & 8 Heavy-Duty Trucks.):FOR CUMMINS, FOR BREMACH, FOR CATERPILLAR, FOR FREIGHTLINER, FOR INTERNATIONAL, FOR DETROIT, FOR KENWORTH, FOR PETERBILT, FOR STERLING, FOR WESTERN_STAR, FOR MACK, FOR DS_USAFORD, FOR ALLISON, HD_ASTRA、HD_BENZ、HD_BONLUCK、HD_BOSCH、HD_BREMACH、HD_CATERPILLAR、HD_CHAOCHAI、HD_CREDO、HD_DEMO、HD_DETROIT、HD_ERF、HD_FREIGHTLINER、HD_FUSO、HD_GOLDENDRAGON、HD_HIGER、HD_HINO、HD_HYUNDAI、HD_INTERNATIONAL、HD_IRISBUS、HD_IRIZAR、HD_ISUZU、HD_IVECO、HD_JMC、HD_KENWORTH、HD_MACHINERY、HD_MAN、HD_NEOPLAN、HD_OBD、HD_QUANCHAITY、HD_RENAULT、HD_SCR、HD_SETRA、HD_SITCAR、HD_STERLING、HD_SUNLONG、HD_SUNWIN、HD_TATA、HD_VOLVO、HD_WESTERN_STAR、HD_XICHAI、HD_YANGCHAI、HD_YUFENG、HD_ZHONGTONG、HD_DOOSAN、HD_PETERBILT、HD_WABCO_ABS
2. NEW ENERGY VEHICLES : FOR TESLA_EV、FOR MODEL S、FOR MODEL X、FOR CHEVROLET_EV、FOR NISSAN_EV etc.
3. PASSENGER VEHICLES: AISA: FIT FOR CHANGCHENG, FIT FOR DAEWOO, FIT FOR HUACHEN, FIT FOR ZHONGXING, FIT FOR INDIAN TATA, FIT FOR JAC, FIT FOR MARUTI, FIT FOR PERODUA, FIT FOR CHERY, FIT FOR ISUZU, FIT FOR JINLONG, FIT FOR SUZUKI, FIT FOR SAIPA, FIT FOR HM, FIT FOR HMAZDA, FIT FOR IKCO, FIT FOR MALAYSIA PROTON, FIT FOR LUXGEN, FIT FOR TOYOTA, FIT FOR CHANGAN, FIT FOR FUTIAN, FIT FOR HONDA, FIT FOR WULING, FIT FOR VCLASS, FIT FOR JPISUZU, FIT FOR KIA, FIT FOR INDIAN MARUTI, FIT FOR INDIAN MAHINDRA, FIT FOR MALAYSIA PERODUA, FIT FOR HAFEI, FIT FOR LIFAN, FIT FOR MAHINDRA, FIT FOR NISSAN, FIT FOR XIALI, FIT FOR ZHONGSHUN, FIT FOR TATA, FIT FOR CHANGHE, FIT FOR CHINA GM, FIT FOR SAICMG, FIT FOR MAZDA, FIT FOR ZHONGTAI, FIT FOR DAIHATSU, FIT FOR BYD FLYER, FIT FOR HYUNDAI, FIT FOR PROTON, FIT FOR SUBARU, FIT FOR SSANGYONG, FIT FOR JOYLONG, FIT FOR MITSUBISHI, FIT FOR GONOW, FIT FOR QOROS, FIT FOR MAXUS, FIT FOR MVM. EUROPE: FIT FOR VAZ, FIT FOR PORSCHE, FIT FOR MASERATI, FIT FOR BMW , FIT FOR VW, FIT FOR AUDI, FIT FOR CITROEN, FIT FOR LANDROVER, FIT FOR SMART, FIT FOR RENAULT, FIT FOR SPRINTER, FIT FOR LAND ROVER, FIT FOR BENZ, FIT FOR FIAT, FIT FOR OPEL, FIT FOR VOLVO, FIT FOR PEUGEOT, FIT FOR FERRARI, FIT FOR SAAB, FIT FOR GAZ, FIT FOR DR. USA: FIT FOR GM, FIT FOR USA FORD, FIT FOR CHRYSLER, FIT FOR WILLY. AUSTRALIA: FIT FOR AUSTFORD, FIT FOR HOLDEN. BRAZIL: FIT FOR FIAT, GM.
Just buy the software for the specific heavy-duty truck models you need, and there's no need to buy additional equipment.

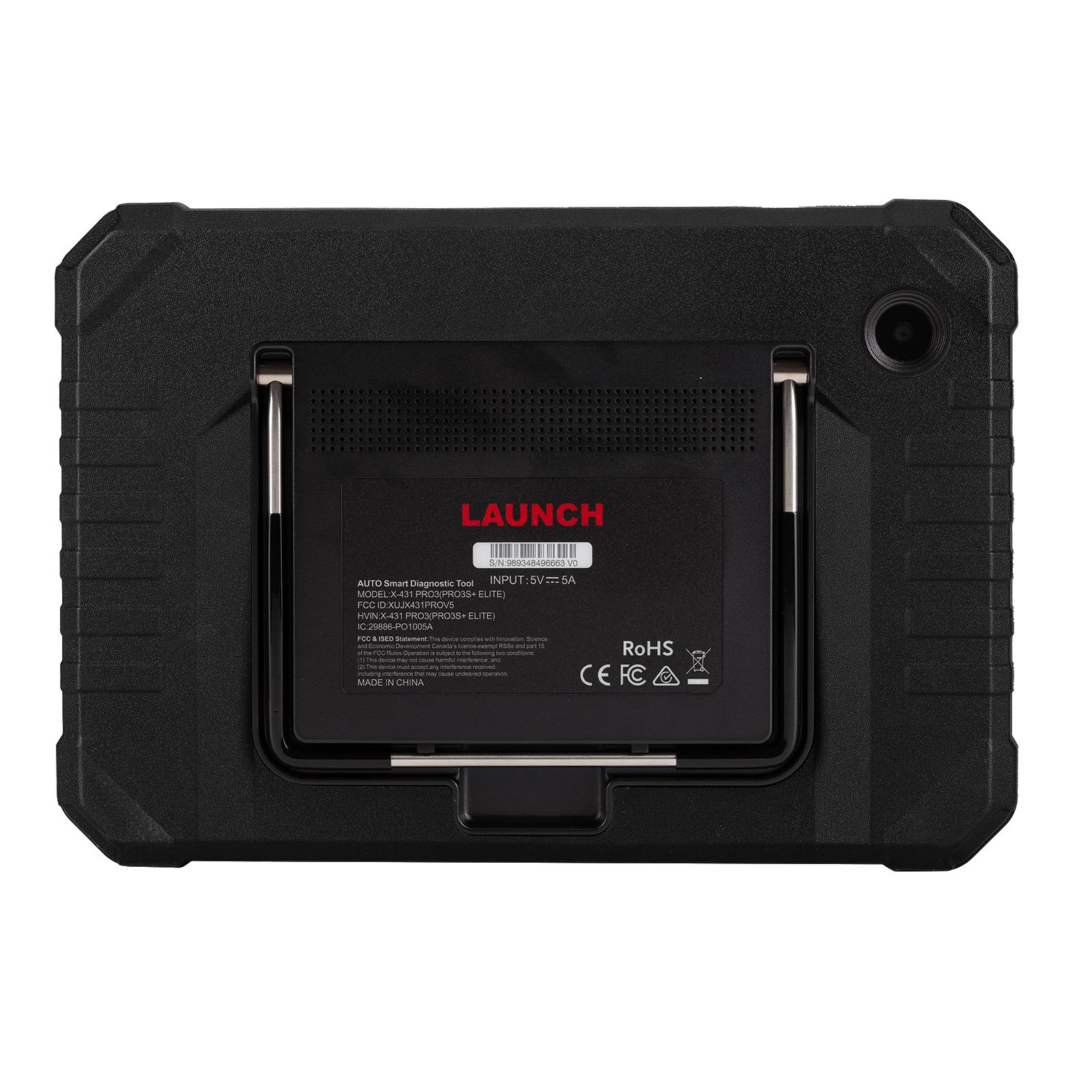

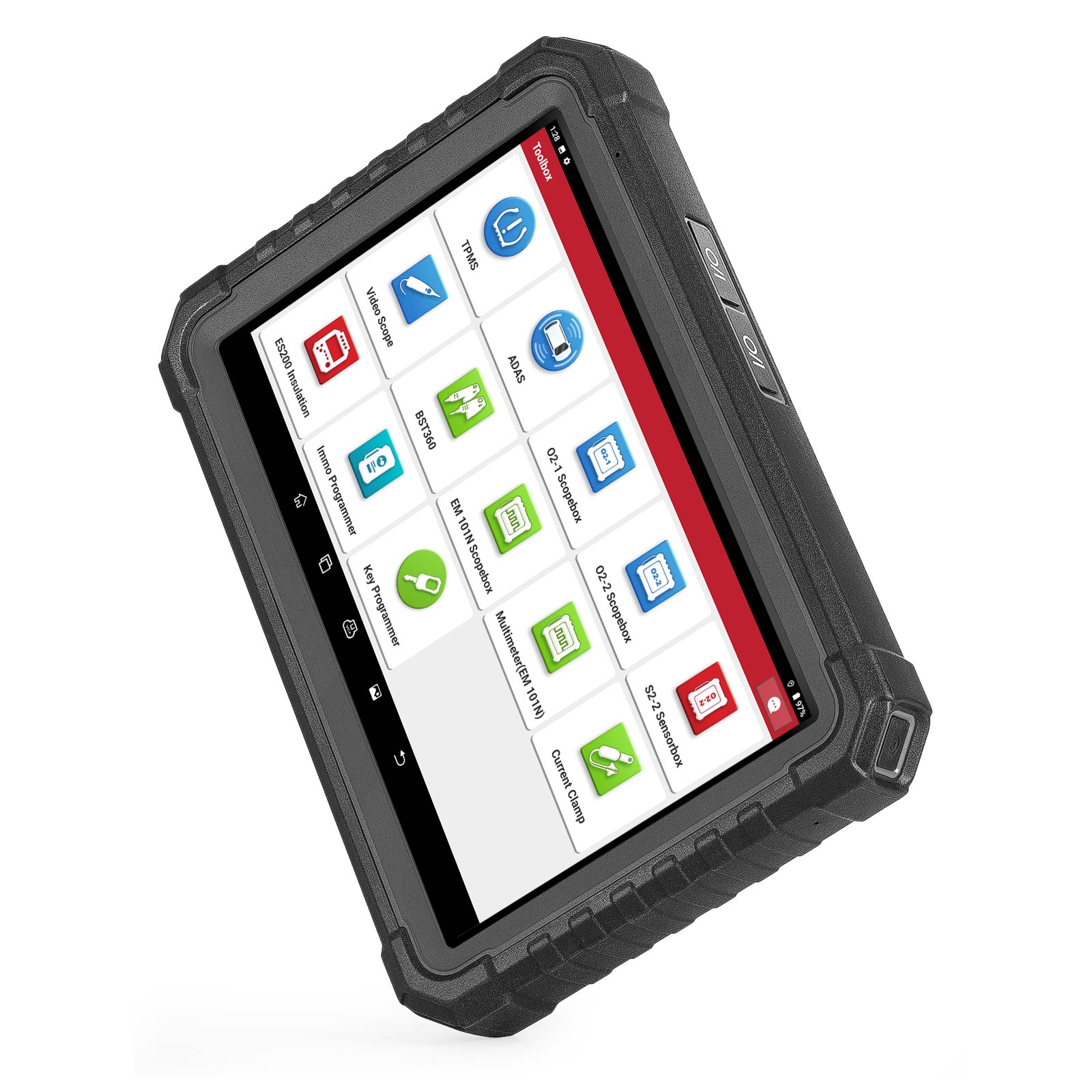

LAUNCH X431 PRO3S+ Elite parameter:
Tablet size: 10.1 inches, 1280*800
System version: Android 10
CPU version: 2.0GHz 4 cores
Running memory: 4GB
Storage memory: 64GB
Battery capacity: 6300mAH 7.6V
Camera: rear 800W
Wifi network: 2.4GHz/5Ghz dual-band

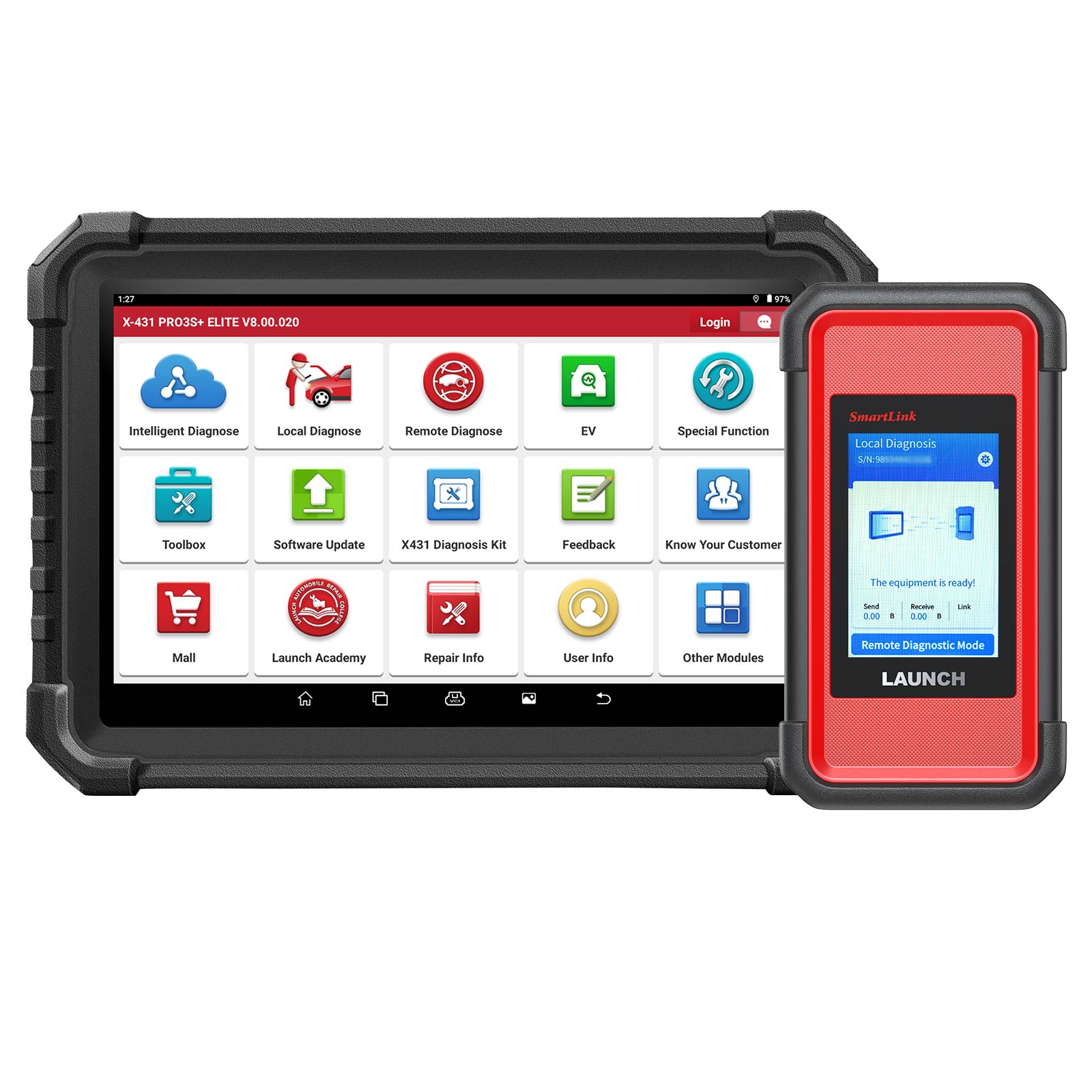

SmartLink C Model Parameter :
Power consumption: <6W
Memory: 256M
ROM: 8GB
WIFI: 2.4/5.0GHZ
Operating temperature: 0-50℃
Display: 3.97-inch TFT screen
Resolution: 320x480 TFT screen
External interface: USB Type B/RJ45/DB15/DC-IN
Operating voltage: DC 9~36V

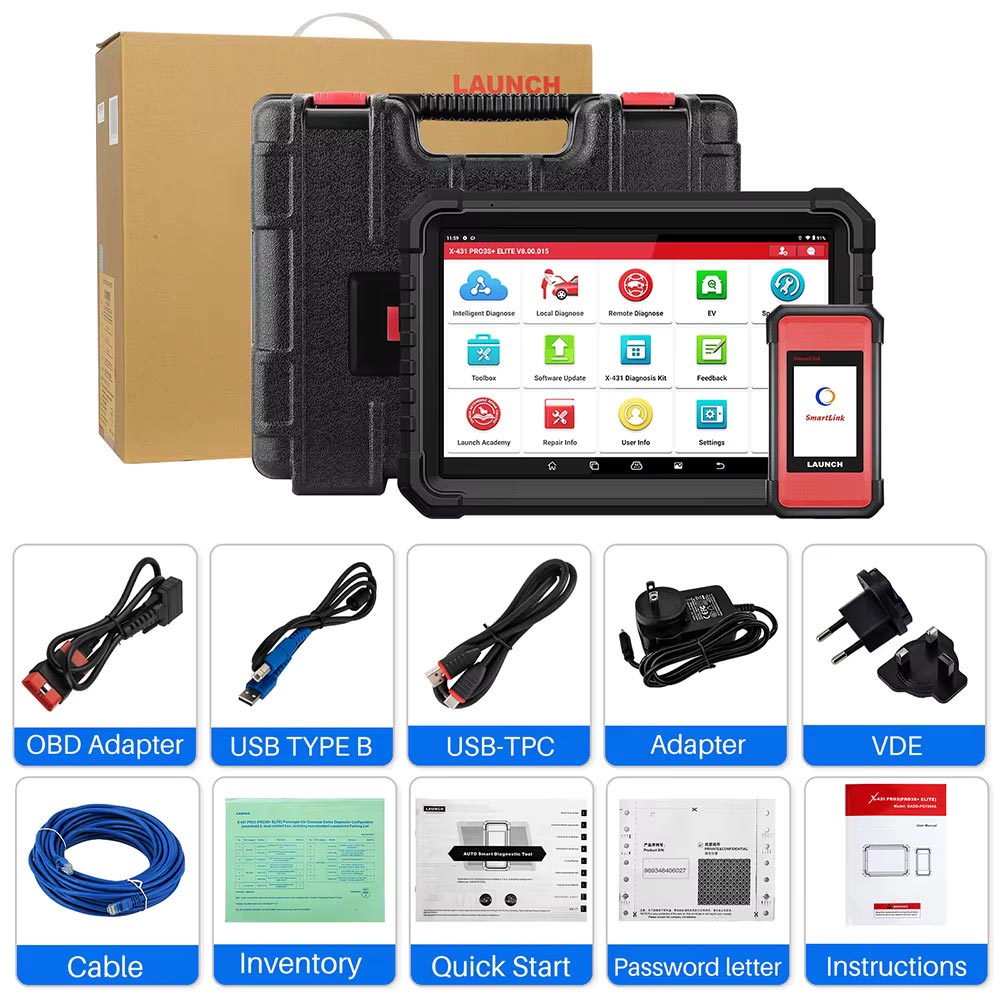

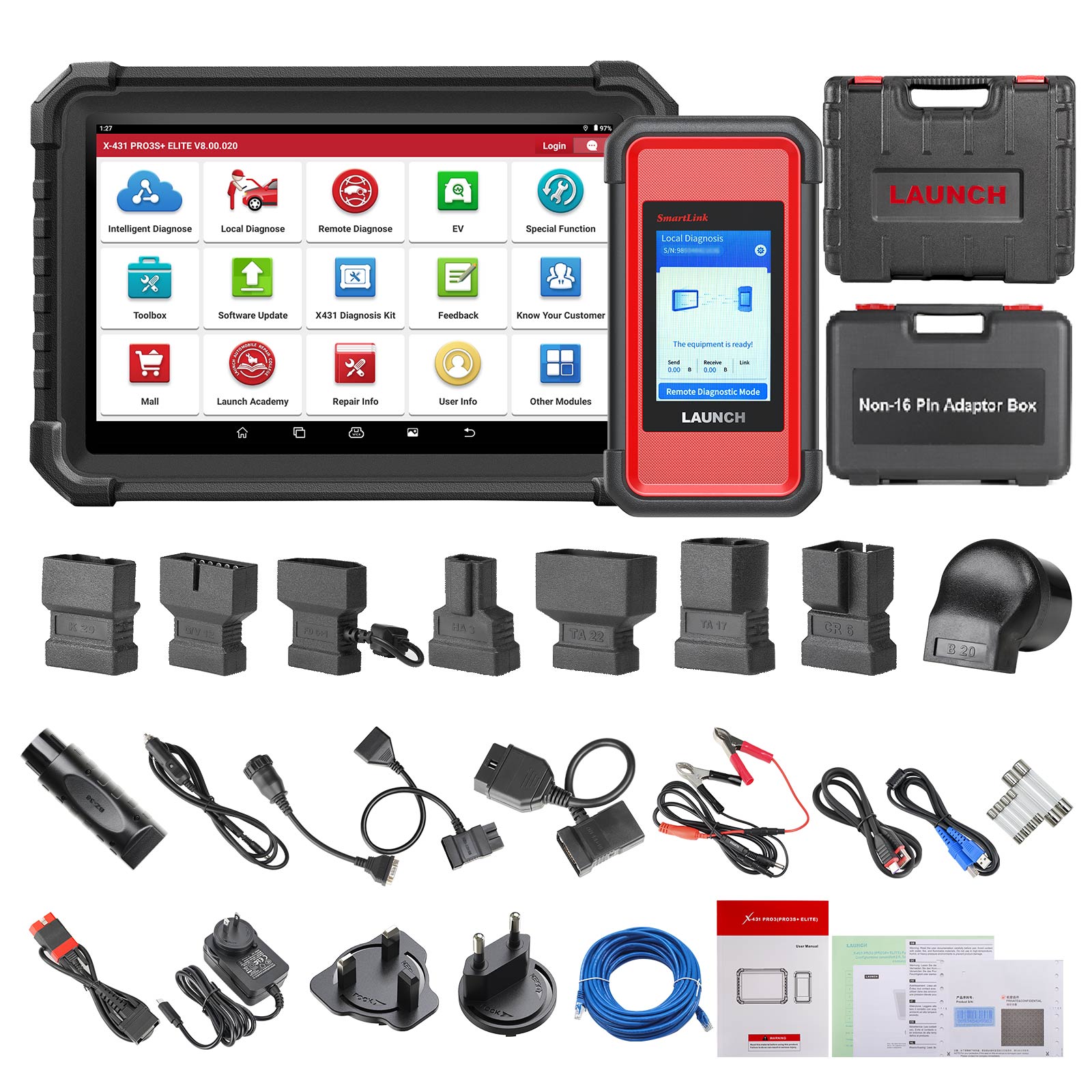

Package List:
1pc x tablet
1pc x diagnostic box V2.0
1pc x HD15F to OBDII male connector
1pc x DB15F to HD15F main line
1pc x type-A to type-B cable
1pc x Gigabit network cable 15m (blue)
1pc x British standard conversion head
1pc x European gauge conversion head
1pc x power adapter with American standard conversion head
1pc x universal PIN envelope
1pc x English manual
1pc x quick start
1pc x type-A to type-C cable

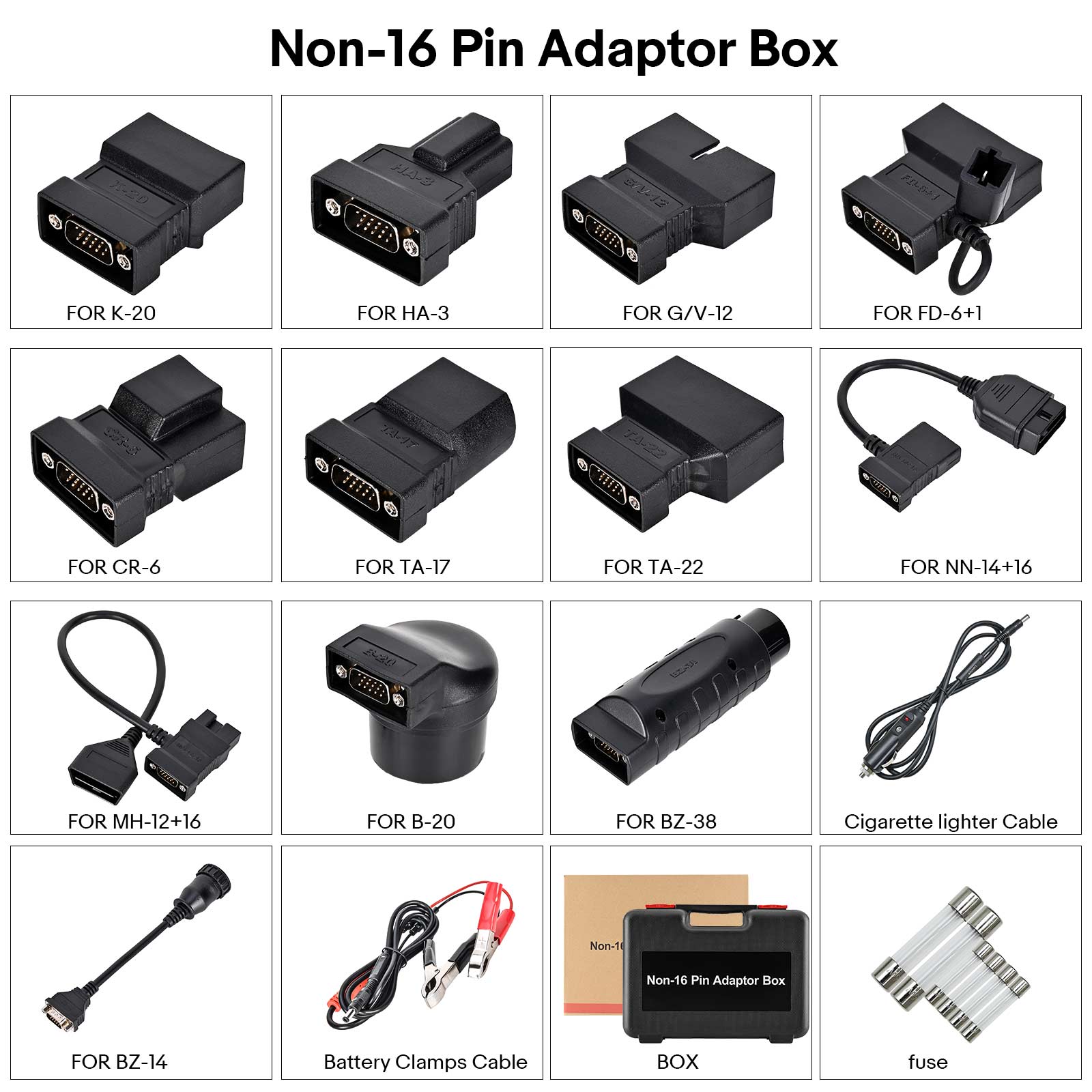

1pc x for K-20 adapter
1pc x for HA-3
1pc x for G/V-12
1pc x for FD-6+1
1pc x for CR-6
1pc x for TA-17
1pc x for TA-22
1pc x for NN-14+16
1pc x for MH-12+16
1pc x for B-20
1pc x for BZ-38
1pc x for BZ-14
1pc x Battery clamps cable
6pcs x fuses
1pc x cigarette lighter cable
