[US/UK/EU Ship] Launch CRP123E V3.0 OBD2 Code Reader Support Engine/ ABS Airbag/ SRS/ Transmission Test Free Update Lifetime

Product Description

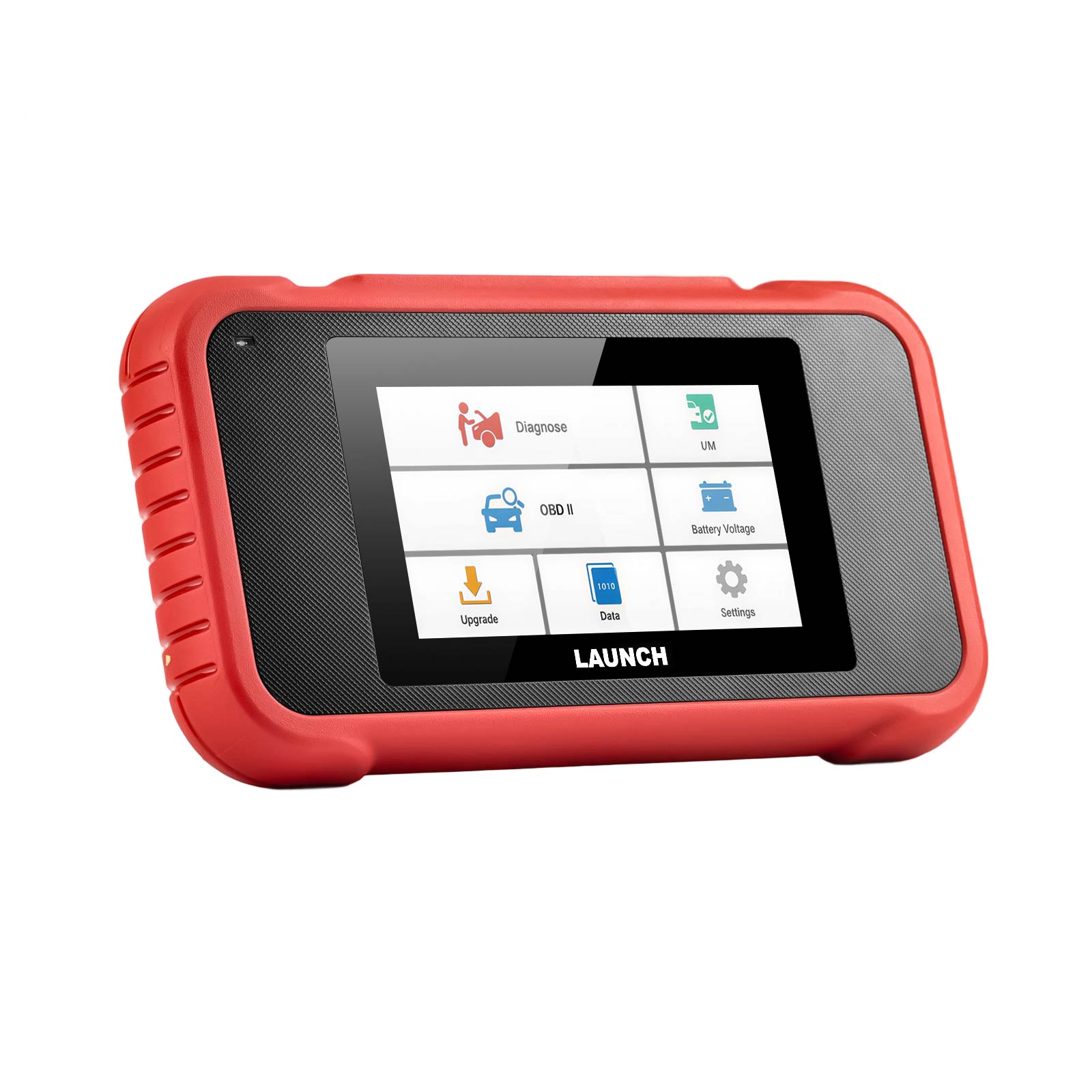

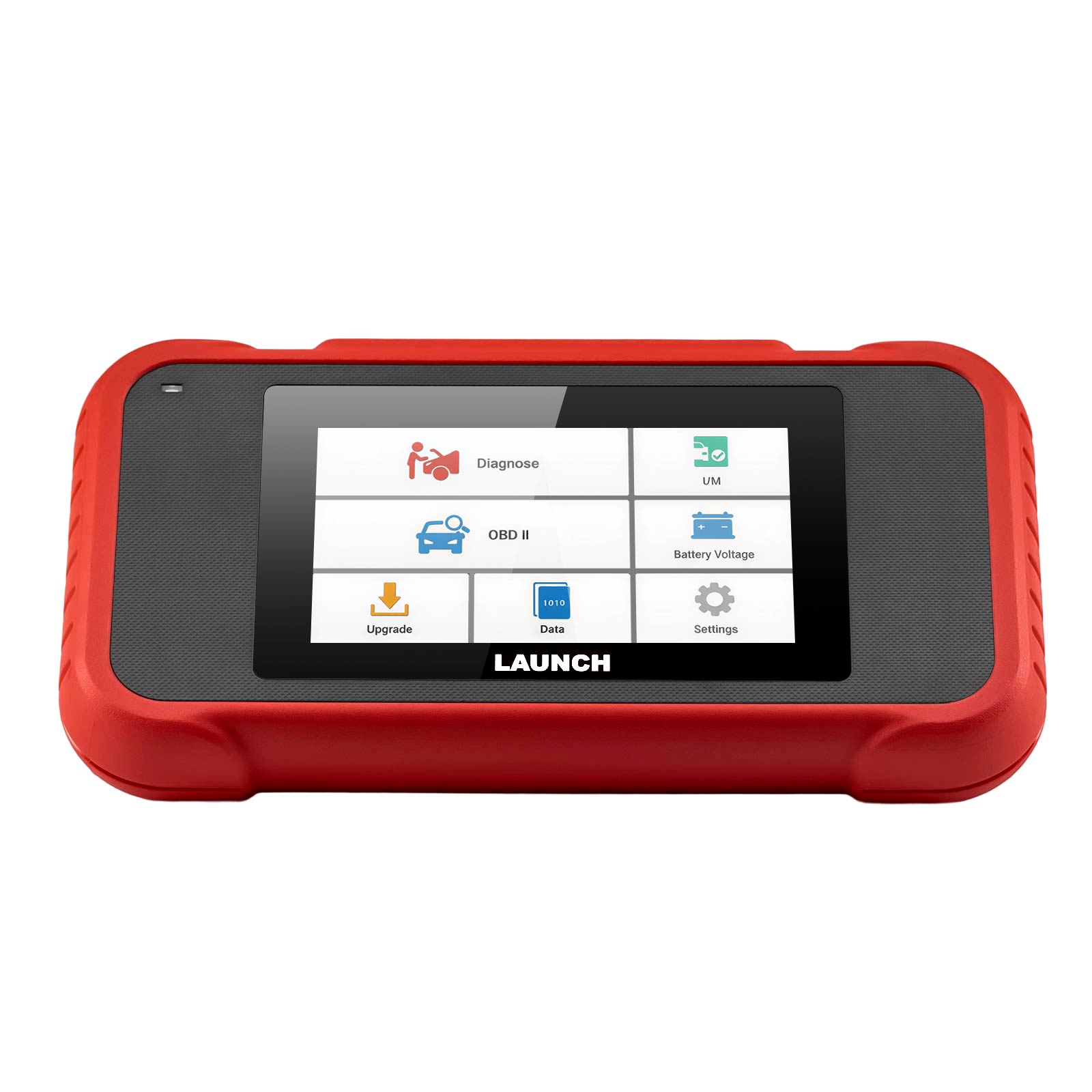

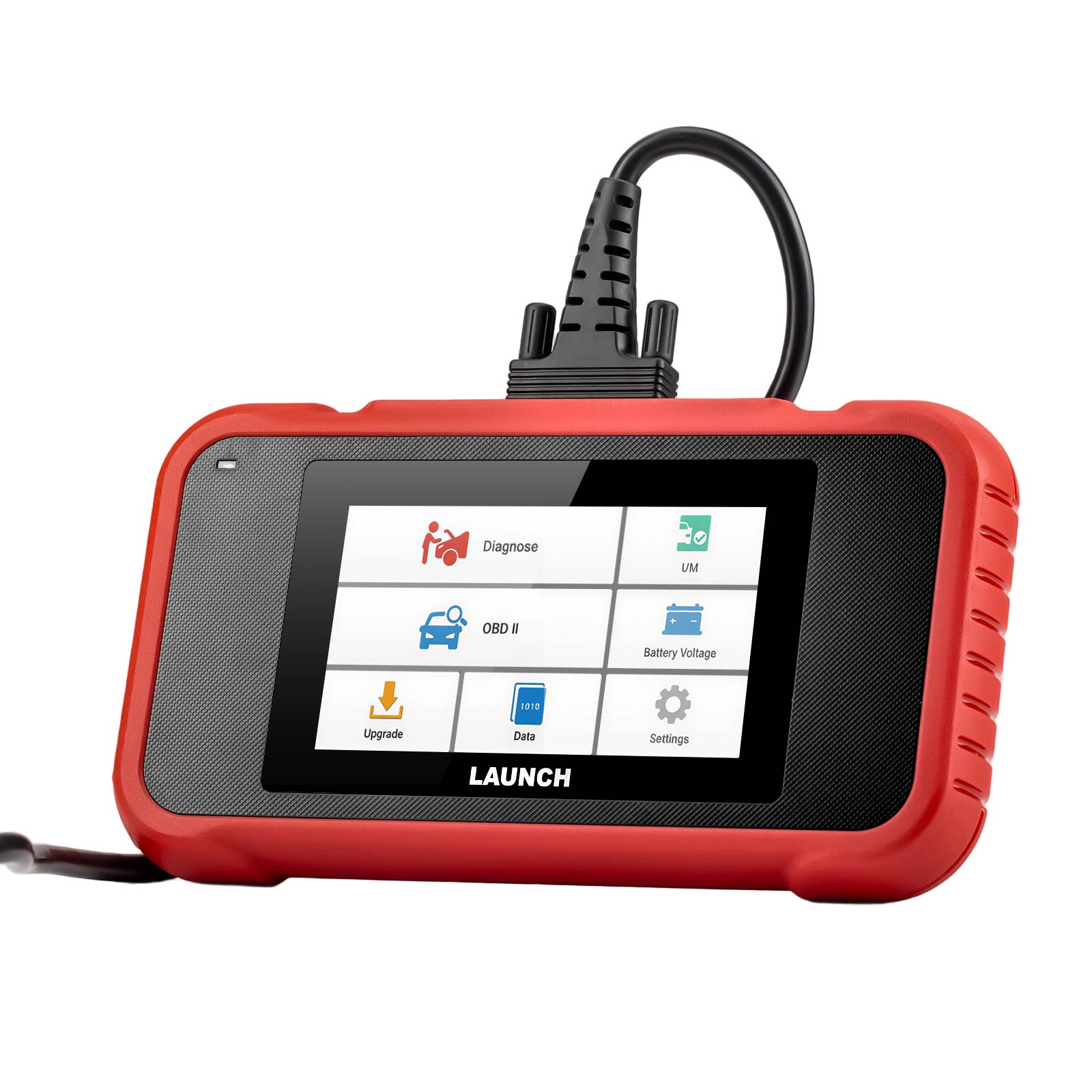

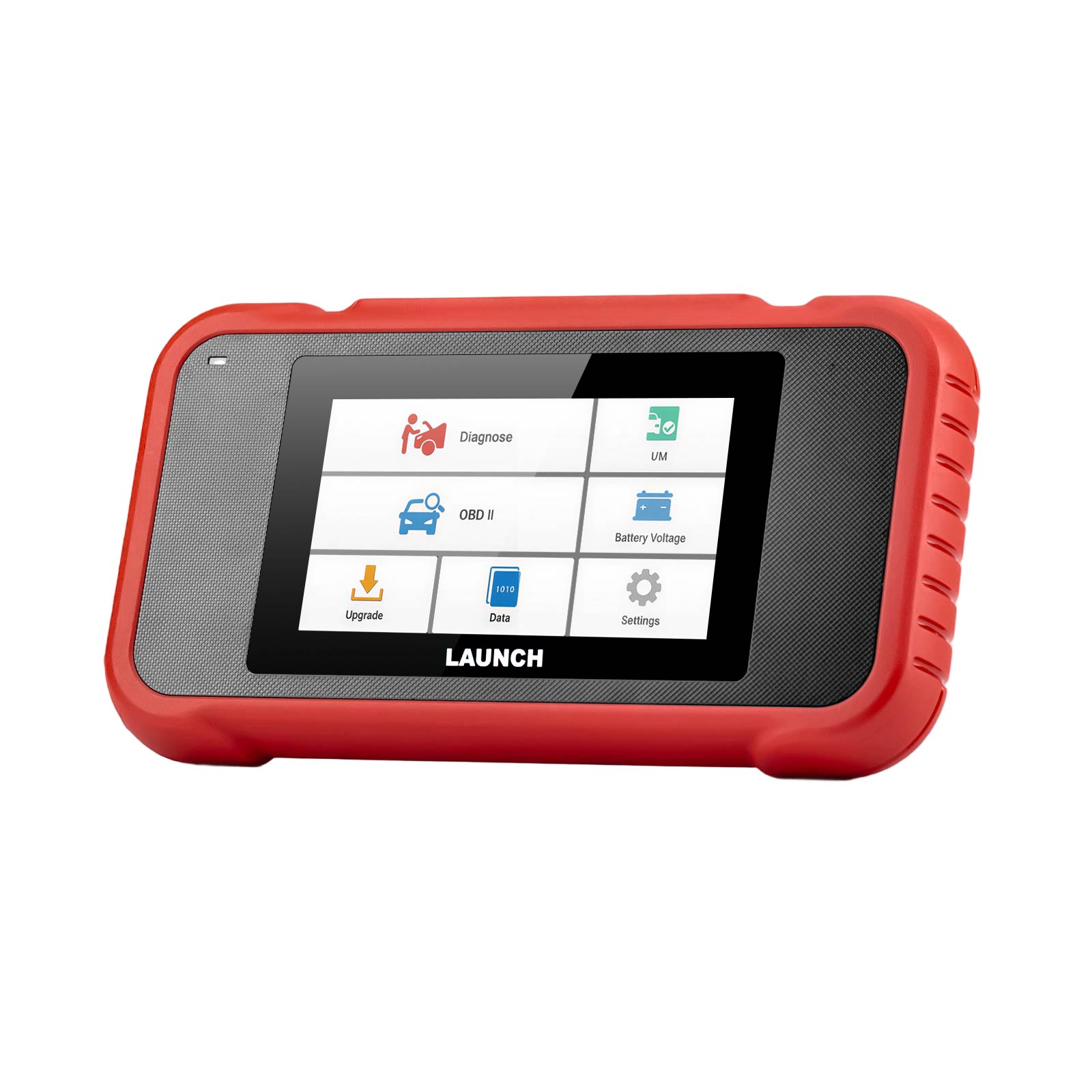

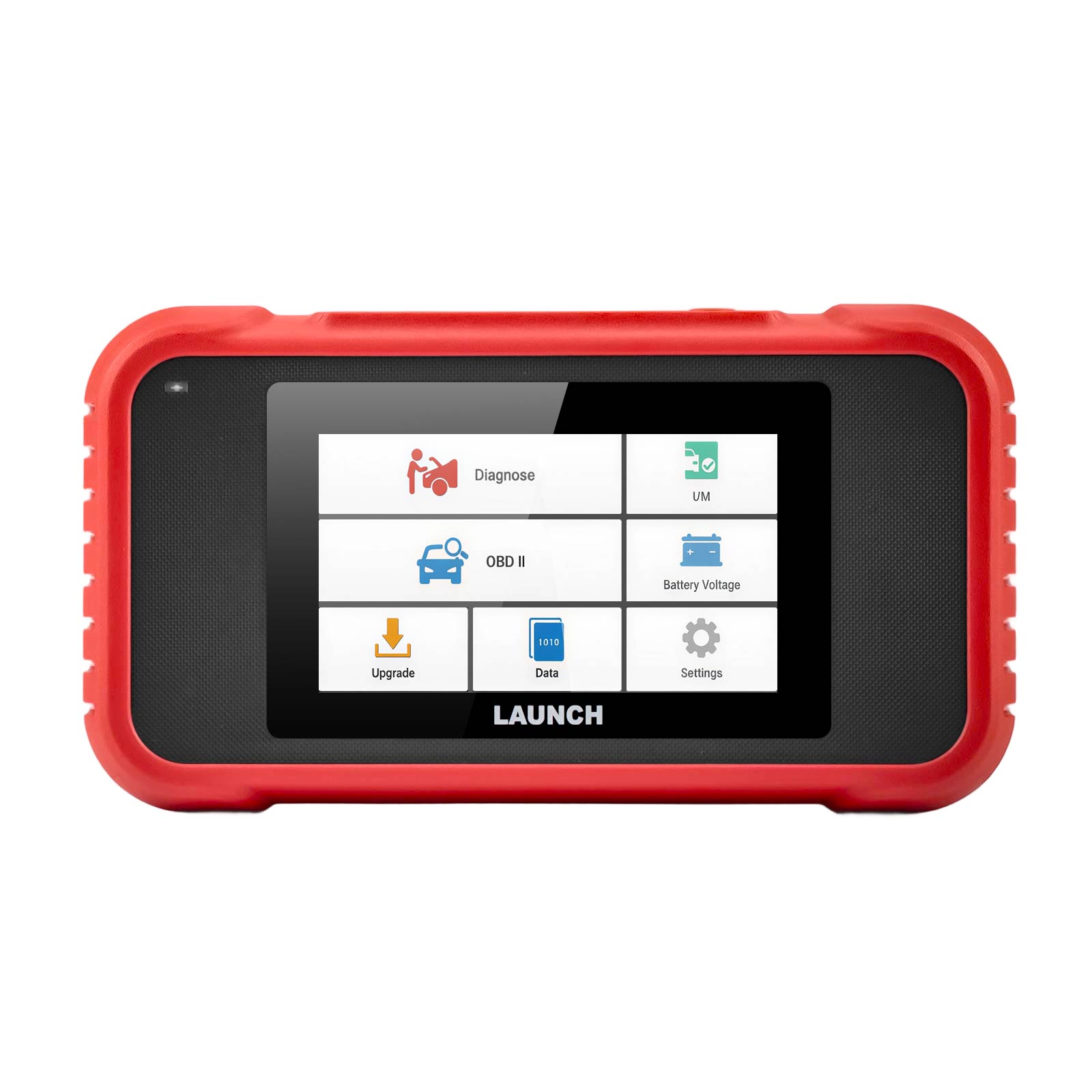

Launch CRP123E V3.0 OBD2 Code Reader

Added dual-band Wi-Fi, changed the charging port to TYPE C, and supported the extended CANFD.DOIP protocol

Top 7 Reason To Choose Launch CRP123E V3.0:

1. 100% Original Launch Machine, we guarantee it is genuine Launch X431,not copy machine
2. CRP123E V3.0 is an upgraded Version of CRP123 and Creader VII+, Support more car
3. Fast VIN autodetect, CRP123E V3.0 will read VIN information when you connect Car
4. Lifetime Free Update, Support One-Click Update via Wifi
5. Automatically generate and upload diagnostic reports
6. Support Multi-Protocols: OBDII, EOBD, JOBD, KOBD,5'inch Android Touch Screen, Easy to operate
7. Support Multi-language: English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese

Launch CRP123E V3.0 Introduction:

Creader Professional 123E is an evolutionary smart solution for passenger car diagnosis. It inherits from LAUNCHrsquos advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
CRP123E V3.0 support Multi-protocols (including OBDII, EOBD, JOBD, KOBD), CRP 123E also supports the system diagnosis of Engine , ABS Airbag , SRS and Transmission  system.




Launch Creader CRP123E V3.0 Functions:

Access to Full OBD2 Function:
Read fault, Delete Fault code, Live Data, Read Vehicle information, O2 Sensor Test, EVAP System Test, On-board mintor Test , DTC Code lookup, IML Fault indicator, View Freeze frame, I/M Readiness and add Real-Time graphing vehicles Battery Satus...



Diagnostic Report:
CRP123E V3.0 support one click diagnotic record, diagnostic report, you can share it via email, one-click feedback your problem, Use this option to submit the vehicle issue to us for analysis and troubleshooting.

Diagnostic History:
This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch

Diagnostic Feedback:
Use this option to submit the vehicle issue to us for analysis and troubleshooting

TC Library:
Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.



Smart(Auto-Detect) Diagnosis:
Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound)

Manual Diagnosis:
If Auto-Detect failure occurs, manual diagnosis is also available.
Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged).



Launch CRP123E supported car list:




Creader CRP123E V3.0 Specification:

Screen: 5'inch Touch Screen
RAM: 1G
ROM: 8GB
Battery: 4000mAh rechargeable Li-battery
OBD II input voltage range: 9~18V
Charging via: DC 5V charging cable or Diagnostic cable through connection to vehiclersquos DLC
Dimension: 228mm x 125mm x 34.5mm
Working temperature: -10 to 50degC (14 to 122 Fdeg)
Storage temperature: -20 to 70degC (-4 to 158 Fdeg)


Launch CRP123E V3.0 Code reader FAQs:

Q1: System halts when reading the data stream. What is the reason?
A1: It may be caused by a slackened connector. Please turn this tool off, firmly connect the connector, and switch it on again.

Q2: Screen of the main unit flashes at engine ignition start.
A2: Caused by electromagnetic disturbing, and this is a normal phenomenon.

Q3: There is no response when communicating with on-board computer.
A3: Please confirm the proper voltage of power supply and check if the throttle has been closed, the transmission is in the neutral position, and the water is in proper temperature.

Q4: What to do if the system fails to start auto VIN detection?
A4: Please check the following possible reasons: bull Whether the tool is properly connected to the vehiclersquos DLC. bull Whether the ldquoAutomatic detection on Connectrdquo switch is OFF. If yes, slide it to ON.

Q5: Why are there so many fault codes?
A5: Usually, itrsquos caused by poor connection or fault circuit grounding.

Q6: How to upgrade the system software?
A6: 1. Switch the tool on and ensure a stable internet connection.
2. Tap ldquoSettingrdquo on the Job Menu, select ldquoAboutrdquo -> ldquoVersionrdquo, and tap ldquoDetect the System Versionrdquo to enter the system upgrading page.
3. Follow the on-screen instructions step by step to finish the process. It may take several minutes depending on the internet speed, please be patient. After the upgrade is successfully finished, the tool will automatically restart and enters the Job menu.


Launch CRP123E V3.0 VS CRP123:


Item name	CRP123E V3.0	CRP123
Size	5'inch	3.5'inch
Screen	Android Touch Screen	Color Screen
Support Protocols	OBD2 EOBD	OBD2 EOBD
	JOBD KOBD
Support Systems	Engine/ABS /SRS/AT	Engine/ABS /SRS/AT
Reset Function	NO	NO
Support Car Brands	57 Car Brands	41 Car Brands
Fast VIN Autodetect	Yes	NO
Battery	4000mAh	NO
Battery Voltage test	Yes	NO
Recording and Playback	Yes	Yes
DTC Lookup	Yes	Yes
Diagnostic Feedback	Yes	No
Multi-Language	English, Spanish, French, German, Italian, Russian, Japanese, Portuguese, Korean	English, Spanish, French, German, Italian, Russian, Japanese, Portuguese
Print	Print via email share	Print via PC
Update Way	One-Click Update	Update via PC
Update Period	Lifetime free Update	Lifetime free Update

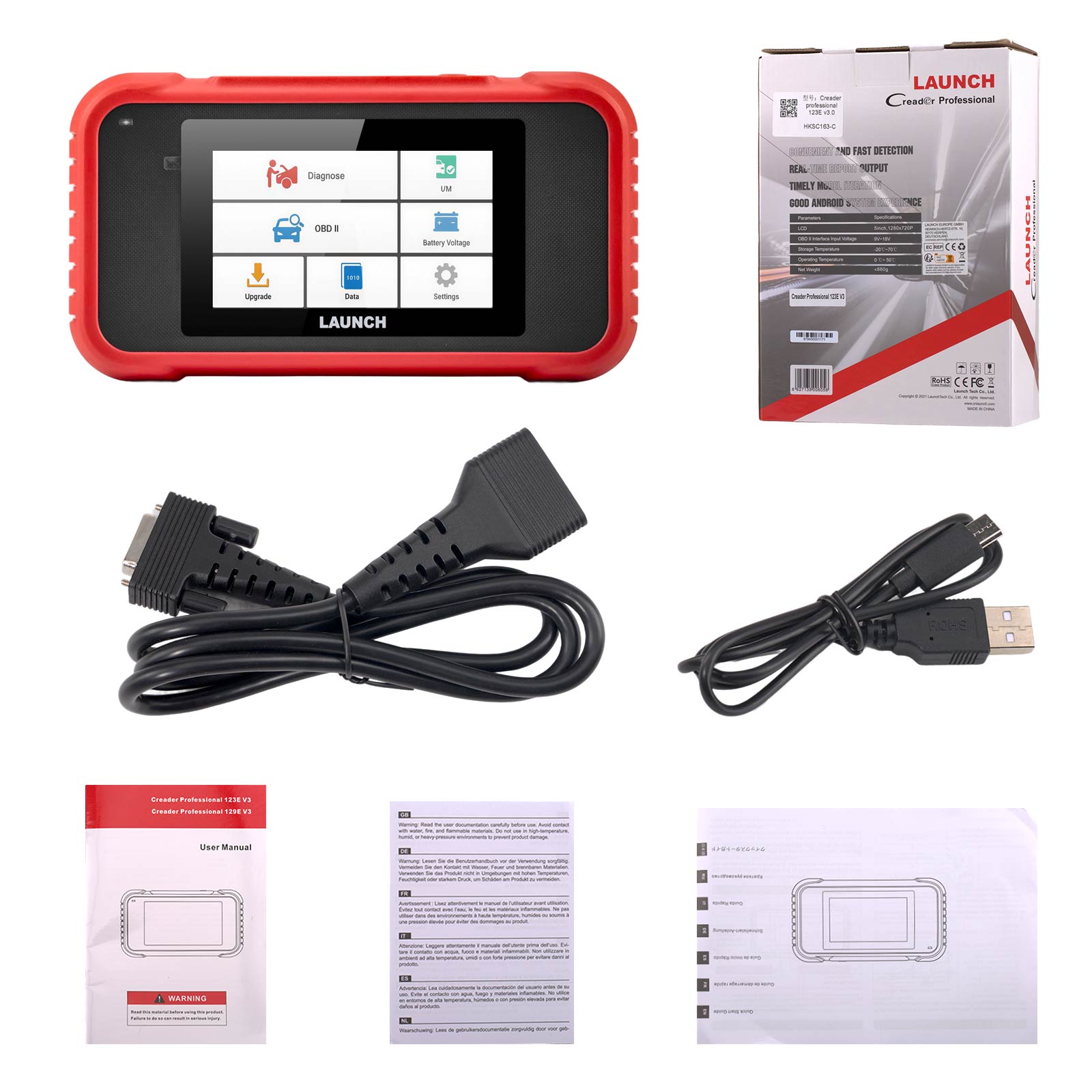

CRP123E V3.0 Package includes:

1pc x Creader Professional 123E handset
1pc xOBD II diagnostic cable
1pc xDC 5V charging cable
1pc x. User manual
1pc x Carrying bag
