XTOOL X100 PAD 3 Functions:
1. Key programming (immobilization)
* New keys programming
* PIN Code reading with EEPROM
* Hexadcimal editor(Win Hex)
* Reads keys from immobilizer's memory
* New immobilizer programming
* Vehicle Identification Number programming
* Reset ECM & reset immobilizer
* New remote controller programming
* With full and strong database for the most important vehicle makes
Immobilization Vehicle Coverage:
Asia: for Toyota, for Lexus, for Honda, for Acura, for Mazda, forNissan, for Infiniti, for Mitsubishi, for Subaru, for Suzuki, for Kia, for Hyundai, for Daewoo, for SSANGYONG, for Proton, etc
Europe: for Audi, for VW, for Skoda, for Seat, for Porsche, for Opel, for Citroen, for Peugeot, for Jaguar, for Land Rover, for Lincoln, for Renault, etc
America: for GM, for Cadillac, for Buick, for Chrysler, for Ford etc
China: for Great Wall, for Chery, for Brilliance-auto, for Geely, for LIFAN, for HAFEI, for CHANGAN, for LANDWIND, for BYD,for BYD , for JAC, etc.
2. Odometer Adjustment:
for VW /for AUDI/for SEAT/for SKODA, for BUICK, for CADILLAC, for CHEVROLET, for CHRYSLER, forFORD, for MAZDA, forNISSAN, for SUZUKI, for KIA, for HYUNDAI, for JAGUAR, for LAND ROVER, for PORSCHE and more…
3. Common OBDII Diagnosis
Notice: Does not support the function of reading data stream), choose PS90 instead
4. Special Service Functions
Oil Reset Functions:
Innovative one-click oil reset for for VW, for Audi, for BMW, for Mercedes for Seat, for Skoda, for Volvo, etc.
Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported for BMW models are F01/ F02/ F03/ F04/ F07/ F10/ F11/ F12/ F13/ F18/ F20/ F30, etc.
Support for Mercedes for Benz new C Class, E Class models and for Mercedes Benz VITO/for VIANO/for SPINTER.
Support the lifespan percentage resetting of engine oil for Buick, for Cadillac etc.
Support for Porsche Cayenne, for Panamera till 2012
Support for maintenance light reset for Volvo, for Land Rover.
Oil Service Light Reset Coverage:
America: for Buick, for Cadillac,for Chevrolet, for Chrysler, for Chevrolet/forG MC, forFord/for Mercury/for Lincoln, for Oldsmobile, for Pontiac, for Saturn, forGM, for Jeep and more…
European: for VW, for Audi, for Porsche, for BMW, for Mercedes-Benz, for Volvo,for Land Rover, for Peugeot, for Citroen, for SAAB, for Seat, for Skoda and more…
Asia:for Toyota/for Lexus, forNissan/for Infiniti,for Honda, forAcura,for Isuzu, for Chery, forFord Transit, for Roewe, for MG and more…
EPB Electrical Parking Brake Adaptation:
for VW ( R36, CC, Magotan etc.), for Audi ( A4L, A6L, Q5 etc.), for Seat, for Skoda and more…
Tire Pressure Warning Light Reset (Manual Operation):
for Mercedes-Benz, forGM,for VW, for BMW, for Toyota and more…
Timing Belt Light Reset (Manual Operation)
5.PIN Code reading with EEPROM
XTool X100 Pad3 EEPROM Adapter Connection:
The KC100 programmer functions:
Support for Volkswagen for Audi for Skoda 4th generation, 5th generation, MQB key matching
Support for Volkswagen for Audi for Skoda 4-generation 96-bit online, 5-generation online, MQB online key matching
Support for BMW CAS1-CAS3 + key matching
Support for Land Rover's smart key write start function after 2015
Support for Fiat, for Fischer, 500, for Palio and other models
Support for Toyota for Lexus all lost and disassembly-free, can realize 94, 98, 88, A8, A9, 39 simulation key generation
How to Use KC100 with X100 PAD3 for 4th and 5th immobilizer:
KC100 works with VW/Audi/Skoda/Seat 4th and 5th immobilizer software and BMW CAS1-3 and BMW CAS4 immobilizer software. Lets take VW as an example. Since VW 4th and 5th Immo programming needs online programming, please make sure X100 PAD3 connect Internet before doing programming.
Please find operation steps as below:
1. Please use main cable and OBDII connector (or other relative connector) to connect between X100PAD3 and your car's OBD port.
2. Please use USB to mini USB cable to connect between X100PAD3 and KC100.
3. Please switch ignition on position, then enter software as following steps:
Immobilization - VW - 4th/5th Immobilizer System
4.If your car is 4th immobilizer system, please click 4th immobilizer system. If your car is 5th immobilizer system, please click 5th immobilizer system. It will detect your meter type automatically, if it does not detect successfully, you can choose your meter type manually.
5.Then follow the instructions that software reminds you to copy new keys
KS-1 functions: Buy Separately SK298
KS-1 Toyota / Lexus all keys lost-free disassembly, Five-in-one simulation card for generating emergency simulation keys.
Once all the Toyota / Lexus keys are lost, the smart box and other modules in the car need to be disassembled,then turn on the ignition switch, so that the smart key can be removed and added, and the operation is tedious.
KS-1 The five-in-one simulation card can eliminate the need to disassemble the smart box and other modules. As long as the original car data is read from the OBD to generate the simulation card, the ignition switch can be turned on to realize the function of clearing and adding the smart key.
The free disassembly for all keys lost requires an original car key. By reading and decrypting the original car anti-theft data, writing the data to the simulation card is equivalent to generating an original car key. Then you can follow the key addition process.
Support Toyota 94 / D4, 98, 39, 88 / A8, A9 type smart key all-key-lost matching.
The simulation card can be reused. After matching the key, turn off the power or remove the battery to restore the initial state.
Support generation, copy and simulation of key chip
XTool X100 Pad3 Vehicle Diagnosis Connection:
a. Turn on X100 PAD3 tablet
b. Connect cables and X100PAD3 in following order: ①→②→③→④
c. Switch on the ignition and tap on X100PAD3 application to test vehicles. (Shown as
① X100PAD3 Tablet
② Main cable
③ OBDII-16 Adapter (Select other adapters if needed)
④ Measured vehicle
Xtool X100 PAD3 Update:
X100PAD3 updates directly via the Internet using WiFi or wired connection. To access the update application open the X100PAD3 application and click UPDATE, shown below.
Xtool X100 PAD3 Specifications:
2GB RAM，64GB Flash
Quad Core, 1.8 GHz
8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Gravity Sensor, Light Sensor
Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port
-20 to 50℃(-4 to 126℉)
|Function||Xtool A80 Pro||Xtool A80||Xtool X100 PAD3|
|Read ECU Information||√||√||X|
|Read Trouble Code||√||√||√|
|Clear Trouble Code||√||√||√|
|Read Freeze Frame||√||√||X|
|Key Programming Vehicles||67 Models||70 Models||83 Models|
|Oil Service Reset||√||√||√|
|Electronica Pump Activation||X||X||√|
|Performance Tire Upgrade||X||X||√|
Xtool PAD3 Feedback:
Hi I wanted to tell you that I made bmw x3 key2015 cas4 online works great
Reads errors very quickly, a bunch of car brands are activated. On the school tried the odometer adjustment, everything went super, just after adjustment, there was a record in the block of the engine and pillows, respectively, they were removed and no longer appeared. Machines are many different, so in the next month I will test, I hope that the device will please. Definitely, I can advise, my money is
The item is in accordance with the description, excellent quality. Came very quickly. Seller Support at a high level. Responded quickly to all emerging questions. I recommend the seller as good and responsible. Thank you! Very pleased

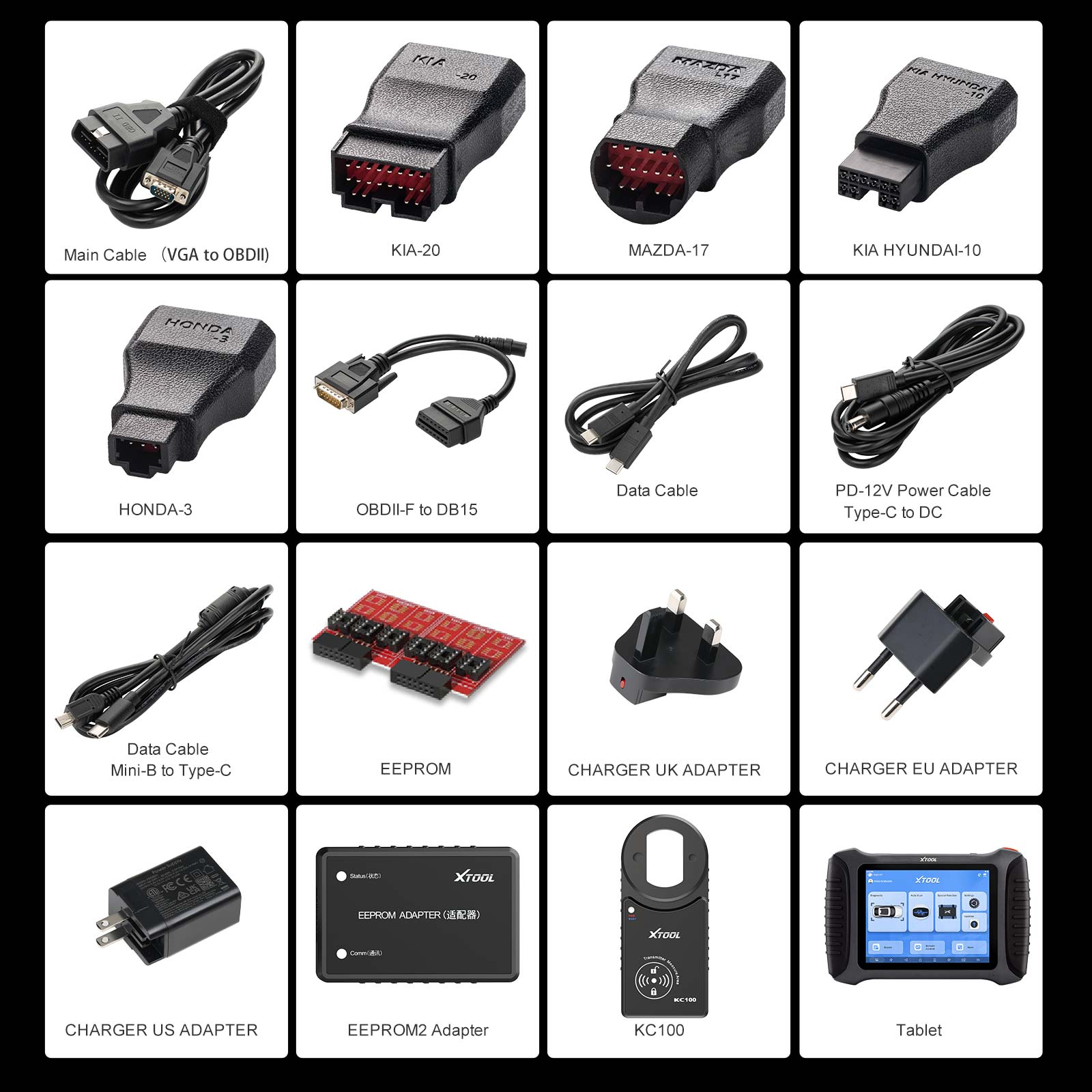

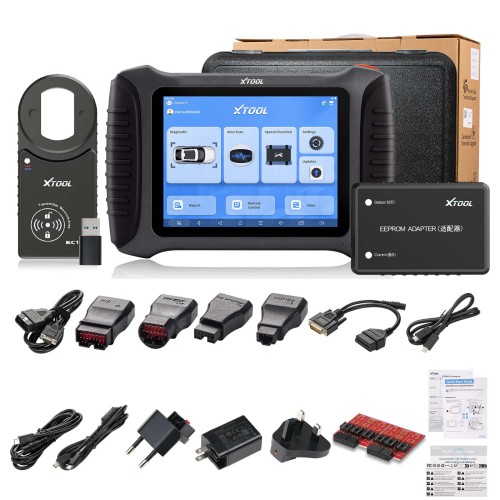

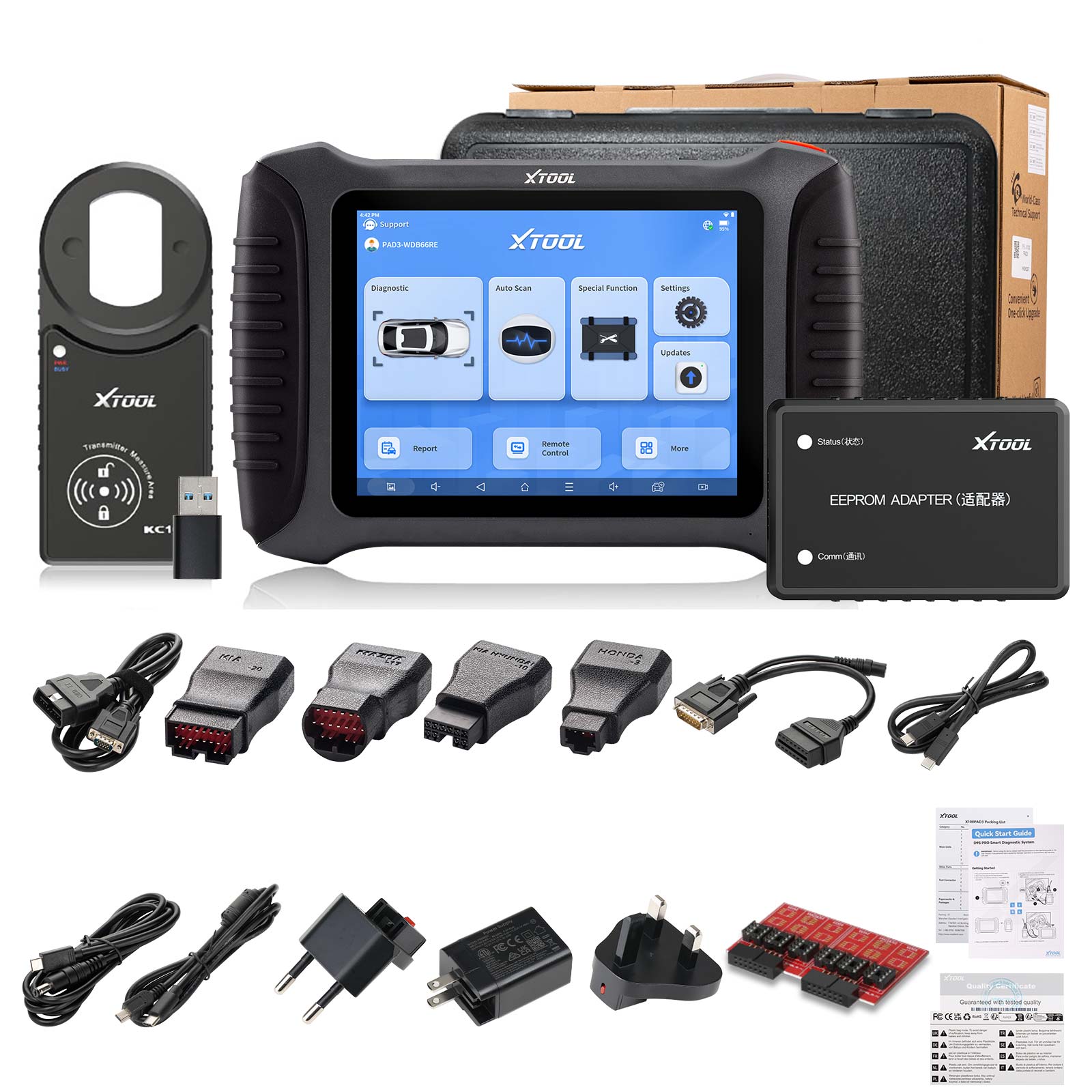

Xtool X100 PAD3 Package includes:
Mini B to USB 3.0 Type C Cable,X100 PAD3 Tablet,KC100,EEPROM 2 Adapter, Charger For tablet, Charger US Adapter, Charger EU Adapter
OBDII-16, HONDA-3,MAZADA-17,KIA20,HYUNDAI/KIA-10, DB15 Main Cable, USB3.0 Main Cable (1m)
Certificate of quality,Packling List,User Manual,Tool Case,Carton
|Item||Xtool X100 PAD3||Xtool X100 PAD2 Pro|
|Release year||2020 year||2016 year|
|Hardware||Operating system: Android
Processor: quad core processor 1.8GHz
Memory: 2G RAM, 64G ROM
Display / touch screen: 1024 • 768 resolution, 8 inch LED Compatible touch screen
Camera: rear camera, 8 million pixels, with flash autofocus.
Sensor: gravity sensor
Audio input / output: microphone, 4 band 3.5 millimeter stereo.
Interface: USB3.0, DC charging port, MINI HDMI, DB15 interface.
Battery: 10000mAh 3.7V lithium polymer battery
Input voltage: +9 ~ + 36VDC, compatible with 12V and 24V voltage system
|Wi-Fi : WIFI 2.4Ghz
Memory : 2GB RAM, 32GB Flash
Sensors : Gravity Sensor, Light Sensor
Power Consumption : 29.6W
CPU : Quad Core, 1.6 GHz
Operating System : Android 4.4.4
Bluetooth : 100 Meters
Display : 8.0 Inch IPS 5-Point Multi-touch Screen with 1024 × 600P Resolution
Battery : 4000mAh, 7.4V
Dimension : (L * W * H): 240 * 177 * 30mm
Power Voltage : 12V
|Communication||USB 3.0, WIFI 2.4Ghz||USB, WIFI 2.4Ghz|
|Immobilization||Asia: Toyota, Lexus, Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, etc
Europe: Audi, VW, Skoda, Seat, Porsche, Opel, Citroen, Peugeot, Jaguar, Land Rover, Lincoln, Renault, etc
America: GM, Cadillac, Buick, Chrysler, Ford etc
China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD , JAC, etc.
|America: Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford
Asia:Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota
China : BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery
Europe: Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault, Romeo, Seat, Skoda, Smart, VW
|VAG 4th 5th IMMO||yes, when working together with KC100 adapter that comes in the package.||yes, when working together with KC100 adapter that comes in the package.|
|Toyota Smart Key All Keys Lost||Yes, requires KS-01 emulator (need to buy additionally)||Yes, requires KS-01 emulator (need to buy additionally)|
|Odometer adjustment||VW Audi Seat Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And More…||VW Audi Seat Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And More…|
|Common diagnosis||Yes, cover models from Europe, Asia, America||Yes, cover models from Europe, Asia, America|
|Special Service||ABS Bleeding
Steering angle sensor adjustment
Throttle relearn DPF
Airbag fix up
Electric parking brake
Steering angle sensor adjustment DPF
Service / Maintenance light
Tyre pressure reset
|Update||X100PAD3 updates directly via the Internet using WiFi or wired connection. To access the update application open the X100PAD3 application and click UPDATE||One-click update via WIFI.|
|Language||Persian, Arabic, Indonesian, Greek||English, Spanish, French, Turkish, Indonesian, Thai, Portuguese|
Mini B to USB 3.0 Type C Cable
X100 PAD3 Cable
EEPROM 2 Adapter
Charger For tablet
Charger US Adapter
Charger EU Adapter
DB15 Main Cable
USB3.0 Main Cable (1m)
Certificate of quality
USBTYPE-C and Mini_USB shift cable
Charger for Tablet
US Power Adapter
EU Power Adapter
DB15Male To VGA_Male
Certificate of Quality
More major differences:
1). Car logos
X100 PAD2 Pro display car brand logos in white text on a black background
X100 Pad3 display car brand logos in in white text on a blue background
2). Diagnosis function
X100 PAD3 has more diagnostic functions, i.e in VW Engine menu
X100 PAD2 shows Read Trouble Code and Clear Trouble Code menus only
X100 pad 3 has more functions, including coding, adaptation, actuation test etc
3). Special Functions
X100 pad2 supports 10 special functions
X100pad3 supports 16 special functions
