US/UK/EU Ship No Tax Autel MaxiCOM MK808BT Full System Diagnostic Tool Newly Adds AutoAuth for FCA SGW, Active Test and Battery Testing

Product Description

Autel MaxiCOM MK808BT Newly Adds AutoAuth for FCA SGW, Active Test and Battery Testing

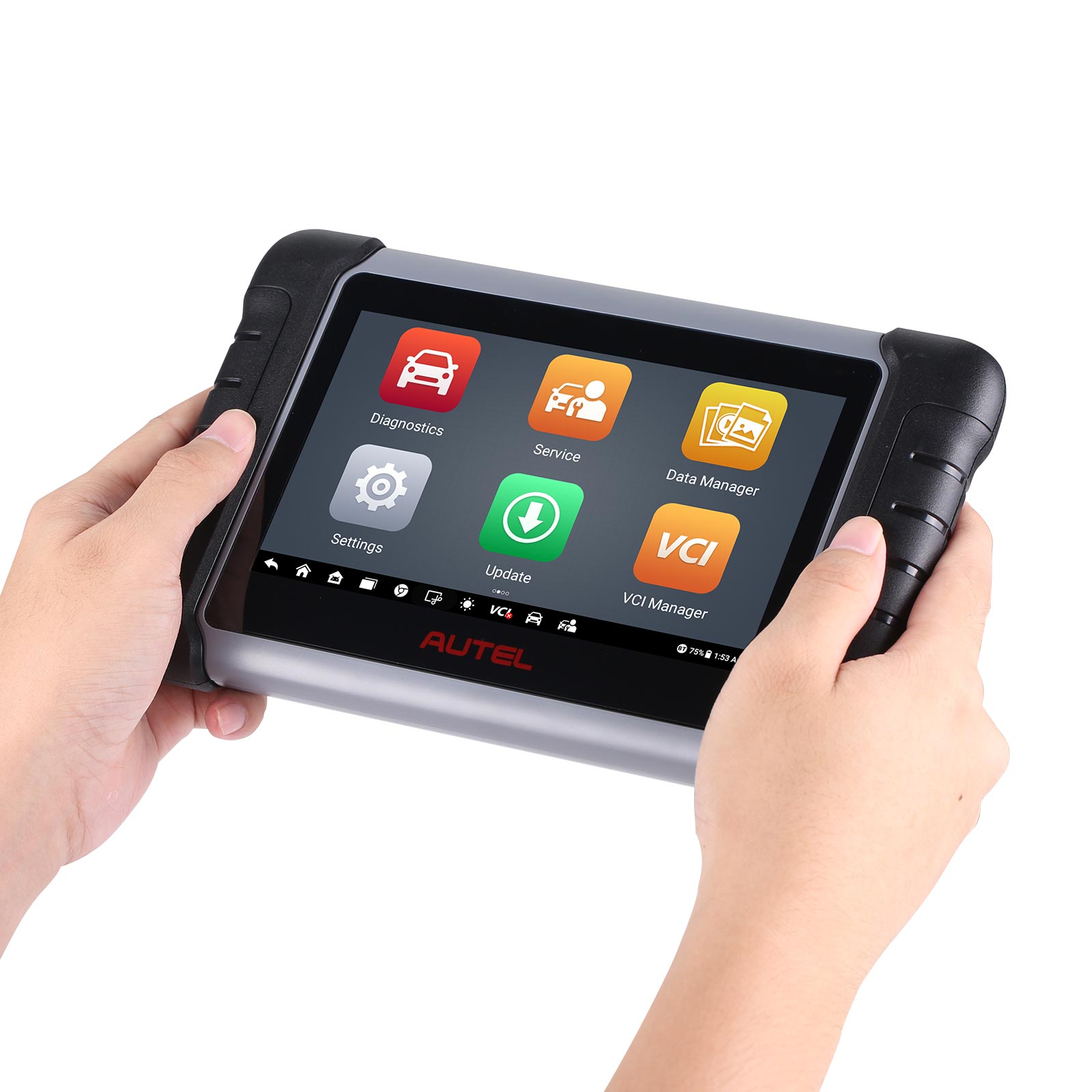

Featuring the powerful Cortex-A9 processor, and a 7.0 inch LCD capacitive touchscreen, based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM MK808BT is your ideal auto diagnostic and service tool. Autel MK808BT professional auto scan tool comes with unparalleled vehicle coverage of more than 80 American, Asian and European vehicle makes. With complete OBD2 capabilities, MK808BT OBD2 scanner is capable of performing all 10 modes of OBD2 tests and thus complete OBD2 coverage of American vehicles post-1996



Top Reasons to get MK808BT:

1. One Year Free Update Online on Autel Official Website

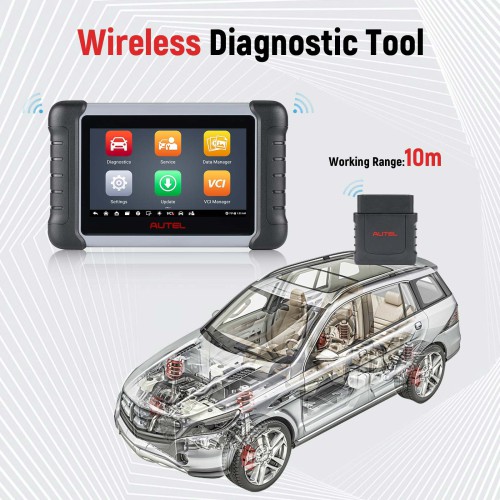

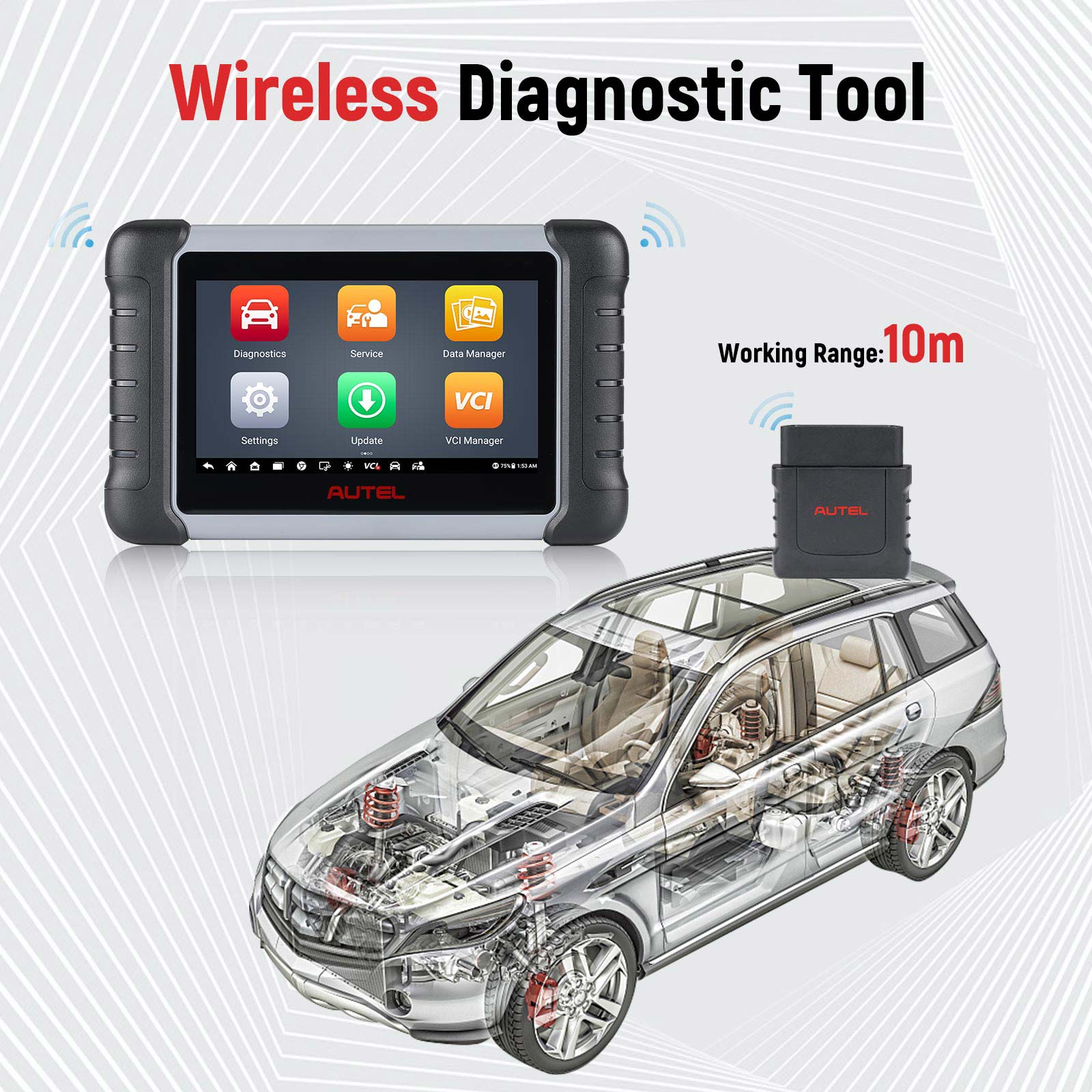

2. Bluetooth Connectivity and Wireless All System OE-Level Diagnostic
3. Vehicle Coverage: Extensive vehicle coverage for more than 80 US, Asian and European car
4. Indispensable Auto VIN Check: Auto VIN technology can automatically identify the vehicle’s make, model, and year information
5. Upgrade Bluetooth Version of Autel MK808/ MX808, with Bluetooth Connection
6. Multi-Language Supported: English, Polish, Korea, German, Italian, Russian, Dutch, Portuguese, Spanish, Swedish, French (Note: The standard default is English, if you need other languages, Only send the S/N serial number to us when you receive the item, We will change for you.)

Autel MaxiCOM MK808BT New Added Functions

1. Adds Bidirectional Control/Active Test: Users can send commands to the vehicle's ECU with MK808BT to control actuator for test, such as fuel pump, fuel injectors, A/C, reset control unit, and other bi-directional tests.
2. Expand Special Reset Functions: Expand special functions like initial adaptation, self-learning, or some auto-detection function to 36, It's a big help in performing resets after significant repairs.
3. Compatible with MaxiVideo MV108 Inspection Camera: Connect with MV108 borescope to enable up-close visual inspections in confined areas, such as engine cylinders
4. Compatible with BT506 Battery Tester: Together with the BT506, the MK808BT scanner can complete battery & starting and charging system tests and display the test results.
5. Adds FCA AutoAuth: Unlock SGW module on 2017+ Chrysler and Fiat Vehicles



Notice:

1. Please Charge the Battery First If You Can't Power Up The Scan Tool
2. Service and Special Functions are NOT Universally Compatible. Please send VIN number to check compatibility before purchase.
3. TPMS Service Couldn't Support TPMS Relearn/ Programming, If You Need It, Please Check Autel MaxiCom MK808TS or Autel TS508
4. The Key Fob Programming is Designed for Asian Vehicles That Have Low-Grade Anti-Theft Systems and NOT Intended for AUDI, Benz, BMW, VW which Have Advanced IMMO Systems. If you need IMMO function, please check Autel IM508/ AUTEL IM608 Professional Key Programming Tool.
5. There is a Protective Film on The Screen. Please be reminded that scratches on the protective film is normal and will not affect the screen underneath it. It's NOT used product. Please email to get a new protective film
6. Plug The MaxiVCI Behind the Scan Tool Into The DLC Port (Usually Under the Dash) and Then Connect the Scan Tool to The MaxiVCI Wirelessly to Access the Vehicle. (MaxiVCI Bluetooth Could Bought Separately if Yours Get Borken)

Features:

1. Extraordinarily powerful Cortex-A9 processor (1.6 GHz) processor

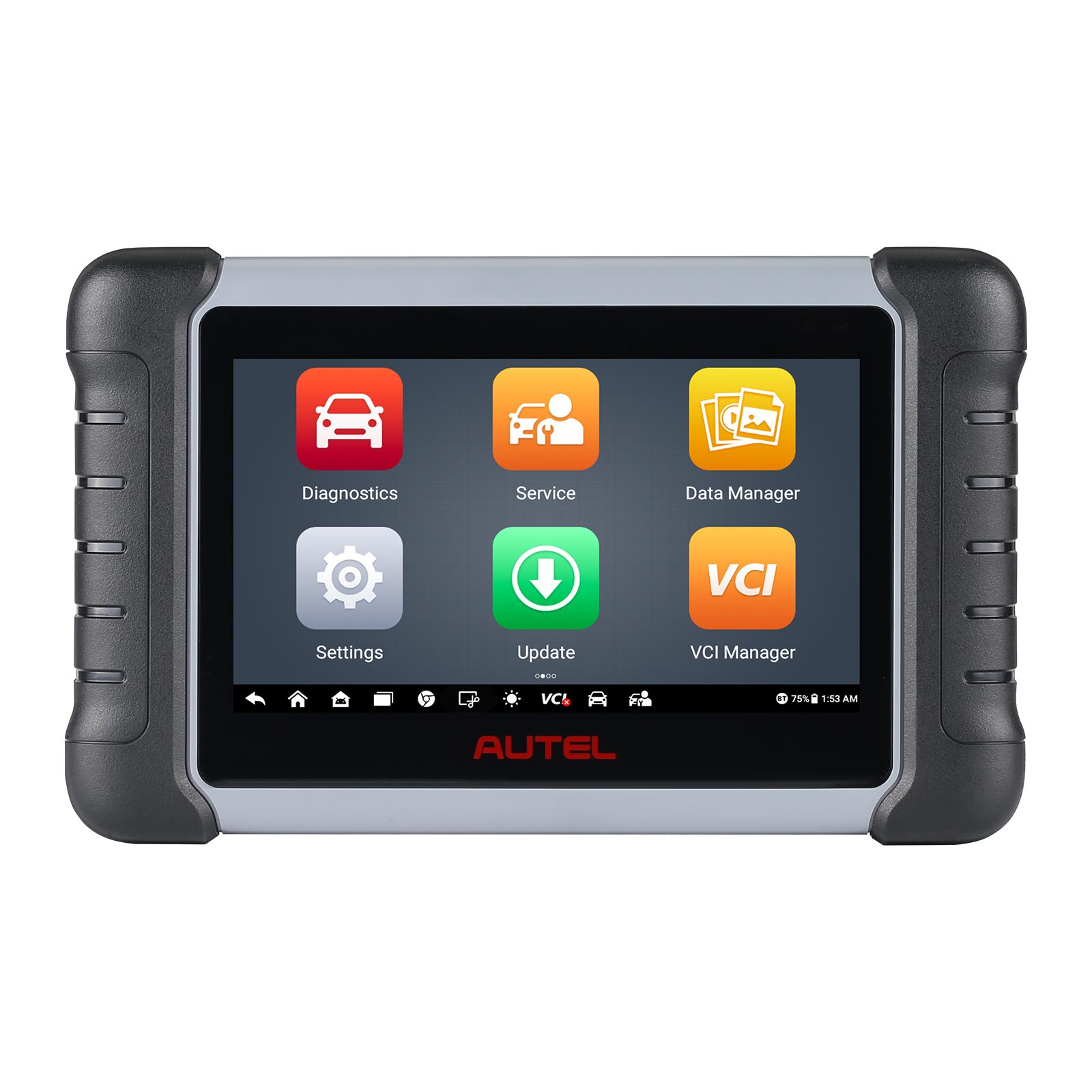

2. 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
3. Internal reliable 64GB On-board Memory for better performance
4. Unique ergonomic design with rubberized outer protection and a rugged internal housing
5. Android 4.4.2 KitKat Operating System for fast boot-up and multitasking
6. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
7. Complete capabilities for codes, live data, electronic control unit (ECU) information, and vehicle control systems, etc
8. Data Manager saves customer and vehicle records, scanner data and technician notes for future review
9. Read/clear codes functions
10. NEW! Support active test and complete special functions
11. Display live data in text, graph & analog for easy data review
12. Auto VIN technology can automatically identify the vehicle’s make, model, and year information
13. Reset Steering Angle Sensor (SAS)
14. Support forced DPF regeneration
15. NEW! Compatible with Videoscope and MaxiBAS BT506 to perform Battery Analysis

Functions:

1. Comprehensive Diagnostic Functions:
1) Read and erase codes for all available systems using the supported protocols. The tablet type MaxiCOM diagnostic tool is the best way to display live data in text, graph & analog for easy data review
2) It can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
3) It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.
4) Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.
5) SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.




2. Special Functions:

Supports a wide range of special functions, including Oil Reset, EPB, SAS, BMS, DPF, TPMS, and many more
1) Oil reset service: It allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2) EPB: The service is important in the maintenance of electronic braking system's safety and efficiency.
3) BMS: The service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4) DPF: The service specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5) SAS: The service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6) TPMS: The service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7) ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.

3. MK808BT Support Full OBDII Functions

1) Full OBD II Functions
2) Read/clear codes functions
3) Live Data Stream
4) I/M Readiness Status
5) Freeze Frame Data
6) O2 Sensor Test
7) On-Board Monitor Test
8) Component Test
9) Vehicle Informations: VIN, CID and CVN ect



4. Supports Four Methods for Vehicle Identification.

1) Auto VIN Scan: The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.
2) Manual VIN Input: For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.
3) Automatic Selection:  The Auto VIN Scan can be selected after selecting the test vehicle manufacturer.
4) Manual Selection: When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.



5. Autel MK808BT Battery Test Function

Battery Test function is a battery and electrical system analysis function that uses adaptive conductance, an advanced battery analysis method to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determining a battery’s true health. It enables technicians to view the health status of the vehicle's battery and electrical system. Together with the BT506, this application can complete battery & starting and charging system tests and display the test results.

Battery Test function includes In Vehicle Test and Out of Vehicle Test Function.

* In-vehicle Test is used for testing batteries that are installed in a vehicle. An in-vehicle test includes battery test, starter test, and generator test. These tests help determine the health status of the battery, the starter, and the generator, respectively.
* Out-vehicle Test is used to test the condition of batteries that are not connected to a vehicle. This function aims to check the health status of the battery only.
Note: You need MaxiBAS BT506 to perform the battery test function (Need purchasing separately)



6. Digital Inspection

The Digital Inspection application configures the MaxiSys Diagnostics Device to operate as a digital video scope by simply connecting the tablet to a Digital Inspection Camera. This function allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
Note: You need Digital Inspection Camera MV105/108 and its fittings to perform the Digital Inspection (Need purchasing separately).

5. Additional Features:

In addition to the MaxiCOM standard features and special functions, there are also a host of enhanced features that are specifically designed for common repair shop work, including; Relearn parking brake pad position after replacement, Force fuel injector regeneration and adjustment, Battery registration and reset, Sensor relearning after repair or replacement

1) SHOP MANAGER – You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.
2) DATA MANAGER – The best solution for the data related operations, you can store, print, and review the saved files in Image, PDF, Review Data, Apps Uninstall or Data Logging.
3) REMOTE DESK – you can directly get ad-hoc remote support from Autel via Team Viewer software.

How to Change Language For Your MK808BT?

This option allows you to adjust the display language for the MaxiCOM system.
To adjust the language setting
1. Tap the Settings application on the MaxiCOM Job Menu.
2. Tap the Language option on the left column
3. Select the appropriate language. A check will display to the right of the selected language
4. Tap the Home button on the top left corner to return to the MaxiCOM Job Menu, or tap another setting to adjust

Autel 808 Series Tablet Comparison

	MaxiDAS DS808	MaxiCOM MK808	MaxiCOM MK808BT	MaxiCOM MK808TS
Read Codes	√	√	√	√
Erase Codes	√	√	√	√
Live Data	√	√	√	√
ECU Information	√	√	√	√
Active Test	√	√	√	√
Service Functions	√	√	√	√
Complete OBD Diagnostics	√	√	√	√
Oil Service Reset	√	√	√	√
Parking Brake Pad Relearn After   Replacement	√	√	√	√
Steering Angle Sensor Relearn	√	√	√	√
Battery Registration and Reset	√	√	√	√
Diesel Particulate Filter Regeneration	√	√	√	√
Tire Pressure Monitoring System	Basic	Basic	Basic	Complete
Immobilizer Function	Basic	Basic	Basic	Basic
Advanced TPMS Diagnostics for Complete TPMS Health Check	--	--	--	√
Activate 98% of All Known TPMS Sensors	--	--	--	√
Program AUTEL MX-Sensors	--	--	--	√
Comprehensive OBD relearn coverage	--	--	--	√
On-screen Relearn Procedure	--	--	--	√
Battery Analysis	--	--	√	√
Videoscope	√	√	√	√
Processor	Quad-core 1.6GHz	Quad-core 1.6GHz	Quad-core 1.6GHz	Quad-core 1.6GHz
OS	Android 4.4.4	Android 4.4.4	Android 4.4.4	Android 4.4.4
Memory	1G + 64G	1G + 64G	1G + 64G	1G + 64G
Display	7" LCD	7" LCD	7" LCD	7" LCD
Battery	5000 mAh	5000 mAh	5000 mAh	5000 mAh
Internet Updatable	WiFi	WiFi	WiFi	WiFi
Multilingual Support	√	√	√	√
Historical Test Records	√	√	√	√
Save and Playback Data	√	√	√	√
Print Data via Windows PC	√	√	√	√
Vehicle communication method	Wired	Wired	Wireless (bluetooth)	Wireless (bluetooth)

Autel MK808BT vs Autel MK808:

MK808BT: Wireless Diagnosis (Connect to Car via Bluetooth VCI)
MK808:  Wired Diagnosis (Connect to Car via OBD2 Cable)
MK808BT has the same look and function as MK808, but MK808BT has more Bluetooth connection than MK808 (Wireless connection makes diagnosis easier)



Vehicle Coverage:

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996
Chrysler, Dodge, GM, JEEP, FORD, Abarth, Alfa, Audi, Bentley, Sprinter, Bugatti, Citroen, Dacia, Fiat, Ford(EU), Jaguar, Lamborghini, Lancia, LandRover, LT3, Maybach, MINI, Opel, Porsche, Renault, Saab, Seat, Skoda, Smart, Vauxhall, Volvo, VW CV, Toyota, Benz, BMW, VW, Peugeot, Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Scion, Subaru, Suzuki...

Supported Protocols:

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.

Specification:


Recommended Use	Indoor
Operating System	Android™ 4.4.4, KitKat
Processor	Cortex-A9 processor(1.5GHz)
Memory	32GB
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution

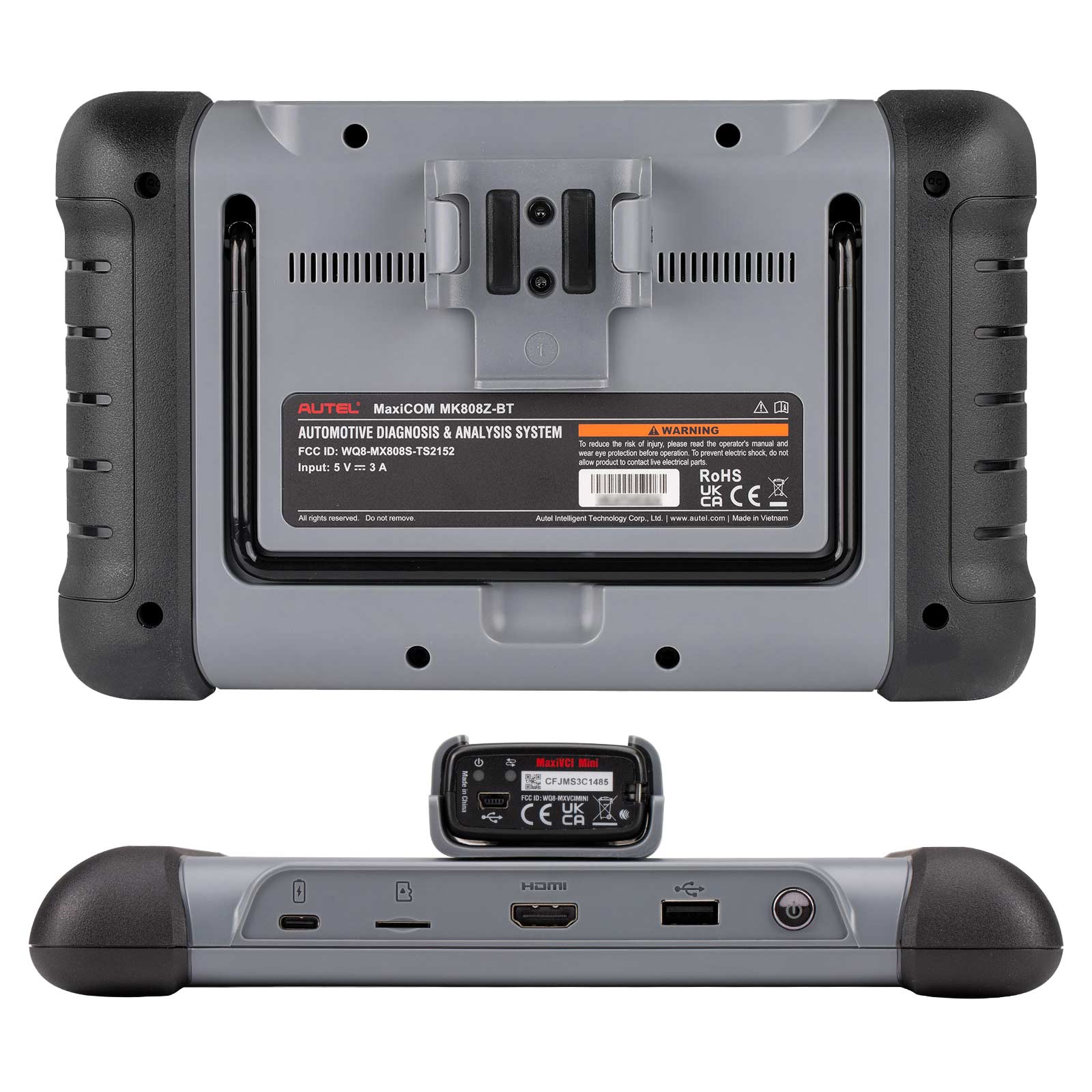

Connectivity	Mini USB 2.0 USB2.0 Wi-Fi HDMI Type A Micro SD card slot(supports up to 32GB)
Sensors	Light sensor for brightness auto changing
Audio input/output	Input: N/A Output: buzzer
Power adn Battery	3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life	Around 7 hours of continuous use
Battery Charging Input	5V/1.5A
Power Consumption	600 mA (LCD on with default brightness,Wi-Fi on) @3.7 V
Operating Temp	0 to 55°C (32 to 131°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Operating Humidity	5%-95% non-condensing
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

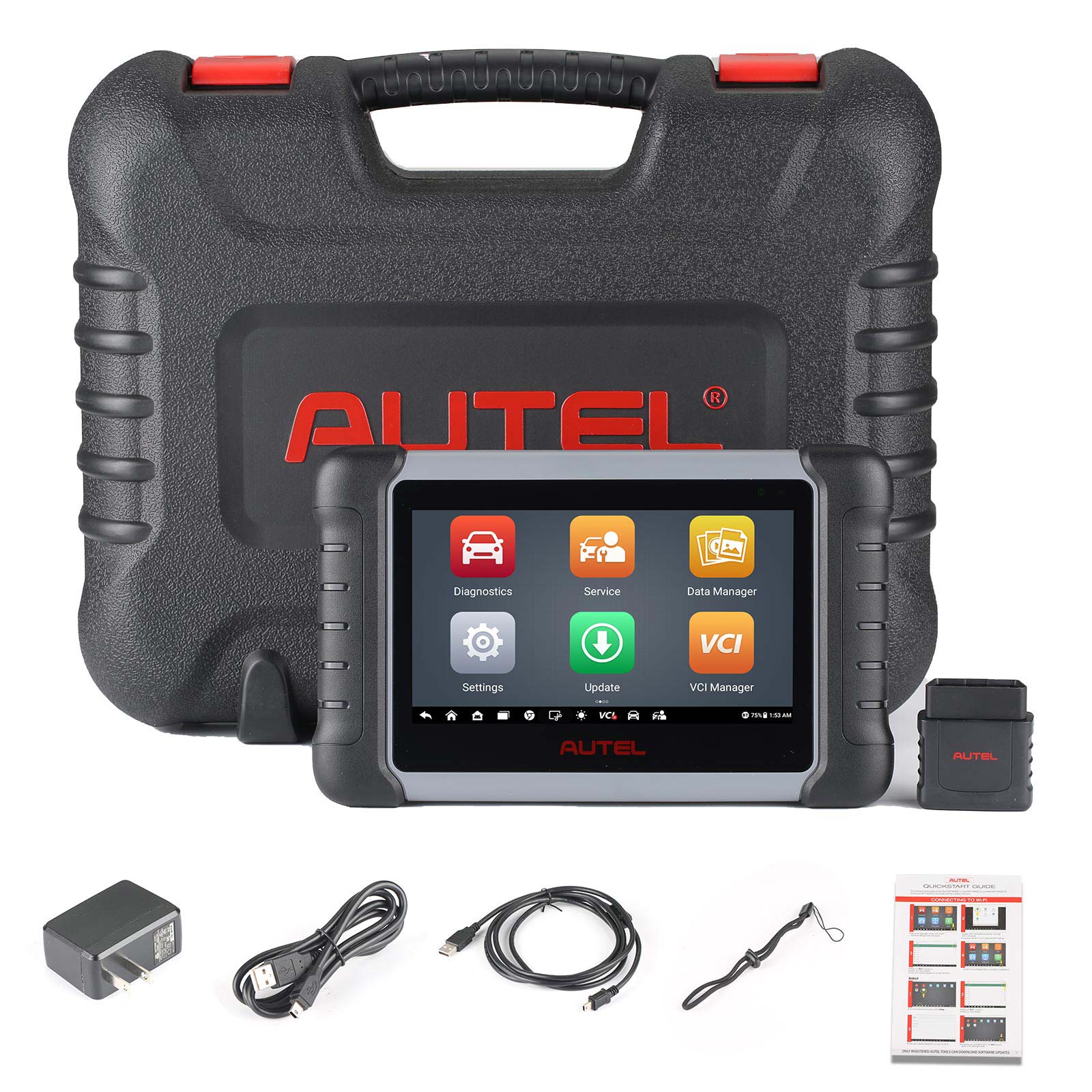

Package List:

1pc x MK808BT Tablet
1pc x USB External Power Adapter
1pc x USB Cable (for testing)
1pc x USB Cable (for charging)
