US/UK/EU Ship No Tax [US Ship] [Second-Handed] 90% New Autel MaxiCOM MK808Z Scanner Android 11 Bidirectional Scan Tool 28+ Service Active Testing Scanner FCA Auto Auth

Product Description

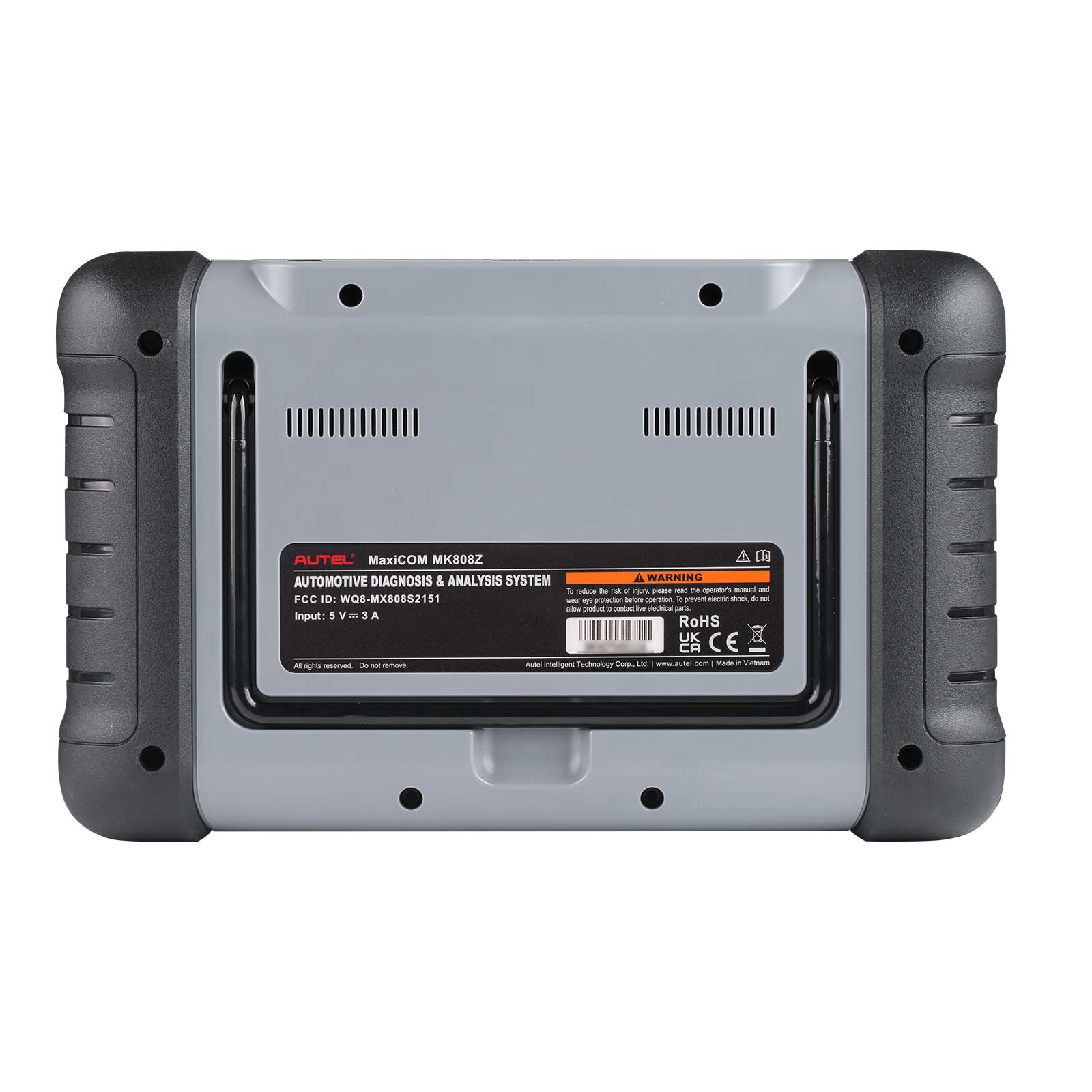

Autel MaxiCOM MK808Z MK808S Automotive Diagnostic Tablet

Promotion: Use coupon code: Autel to get 5% off.

Autel MaxiCOM MK808Z is the most cost-worthy Autel scanner up to date, integrates Bi-directional Control, Complete Special Functions, 28+ Services, All system Diagnostics, Digital Inspection, Auto Auth, IMMO Functions, Battery Registration and Reset and etc. Along with intuitive user interface & ultra-portability, MK808Z is the perfect companion for DIYers & reparir workshop.



Note: Autel MK808Z is the upgraded version of MK808 and MX808. This scanner has been fully upgraded in terms of hardware configuration and functions almost the same with MK808BT Pro and MX900.

Highlights:

• Operating system move on to Android 11 from Android 4.4.
• Upgraded 8-core ROCKCHIP RK3566 Processor replacing old ROCKCHIP RK3188 Processor.
• 4GB/64GB Expanded Storage.
• Dual Frequency 2.4/5.0GHZ Wi-Fi.
• Optimazed newest Software version. No need to upgrade to get new added functions such as bi-directional control, Digital Inspection, special functions and FCA Auto Auth.
• One Year Free Update Online
• Global Version, No Area Restriction
• Multi-Language: 15 languages: English, Spanish, French, German, Russian, Italian, Portuguese, Japanese, Korean, Chinese, Swedish, Dutch, Polish and etc.
• Work with Inspection Camera (MaxiVideo MV108): With MV108, You can use the MK808S to examine difficult-to-reach areas normally bidden from sight, such as engine cylinders, and small part inspections like spark plug holes, and record digital still images and videos.



Conclusion: Thanks to these upgrade, Autel MK808Z fix running latency problem, low response, network unstable problem and other problems that frequently happened in the old MK808/MX808/MP808. Autel MK808Z not only offers more intuitive naviagtion interface, but aslo enhanced the running & response speed by 3 times.

Autel MK808Z Bi-Directional Control: Same As MK808BT Pro/MX900/MP808S!

Autel MK808Z now support “Active test” (BI-Directional Control) on various module actuators for more instant & accurate diagnosis, which is now in the same level as Autel Scanner DS808S-BT/MP808S/MP808BT, but cost you 300 bucks less. This functions is now accssible out of box and does not require any extra updates.



Autel MK808Z 2024 Version: More Functions to Explore !

AutoAuth Access: Bypass SGM in FCA Vehicles

Autel MaxiCOM MK808Z allow direct access to the security gateway module on 2018 and later Fiat Chrysler vehicles, so that the diagnostic tool can perform easier full diagnostics, run bi-directional active tests, actuations, relearns or even IMMO key programming (pulls PIN & write), ADAS calibration assistance etc.

Digital Inspection: Work with MV108

The Digital Inspection application configures the MaxiCOM Diagnostics Device to operate as a digital video scope by simply connecting the tablet to a Digital Inspection Camera. This function allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way

Special Function : Autel Scanner MaxiCOM MK808(Z) supports initial adaptation, self-learning or some auto detection function with many procedures that the vehicle is performed after maintenance or reset is done or some related component in electronic control system is replaced, such as Crankshaft Position Sensor Learn. These function are not universal and vary by vehicle brand, models and years.

New 7 Added Functions in BMW 4.0 Software:

transport mode, high-voltage battery, cruise calibration, air conditioning learning, rain light sensor, EGR self-learning, and FRM reset; Adds basic functions and special functions for models with 4 types of chassis including G22 and G82.



Autel MaxiCOM MK808Z: 28+ Services Functions for One-stop Car Care

Autel Scanner MK808Z offers over 28 services function and is the most cost-effective diagnostic scan tool in the market. Here below is some of the most popular services:



• Oil Reset: Reset the new calculation of Engine Oil Life System for an accurate reading of the next oil change.
• EPB Reset: Reset the calipers, brake discs or pads after the electronic parking brake system is repaired.
• BMS Reset: Reset after replacing the battery to clear the low battery fault information of the original battery and protect the new battery.
• DPF Regeneration: Clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.
• IMMO / Key Programming: Disable a lost vehicle key to protect the vehicle from being stolen and add the new key. (work only on Asian cars that feature low-grade IMMO system
• Injector Coding: Code a new injector to better identify injectors to accurately control fuel injection.
• ABS Bleeding: Perform to bleed the brake system to restore ABS braking sensitivity and obtain a firm brake pedal .
• SAS Adjustment: Clear the fault steering angle sensor memories, perform reset steering angle sensor, and turn off steering wheel warning light.
• Throttle Relearn: Reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.
• Headlight Matching: initialize the adaptive headlight system



More Can be Done After Maintenance / Reset or Component Replacement: initial adaptation, Auto-learning, relearn, auto detection. For example：Crankshaft Sensor Learn and etc.

Note: The above mentioned is just a small portion of all supported services and more are not listed. Please also know that Not All service & Special functions are universally compatible. Please send VIN number and the functions you need to us to check compatibility.

Autel MaxiCOM MK808Z: OE-level All System Diagnose for 99% OBDII Vehicles

Autel MK808Z auto diagnostic scanner adopts the latest VIN-based Auto VIN Technology that enables auto technicians or home mechanics to identify vehicle information, like brand, year, make, model and etc, at a single touch. As the upgrade Version of Autel scanner Maixhcek MX808, Autel MaxiCOM MK808Z can reach more modules and car systems to perform deeper comprehensive diagnose, such as Engine, Transmission, SRS(Airbag), ABS, TPMS, BCM, BODY, A/C, Steering, Suspension, Airbag and etc, retrieve ECU info, get freeze frame data and graphic & text live data for accurate efficient solution.

Support 4 methods for Vehicle Identification:

• Auto VIN and Auto Scan;
• Manual VIN Input;
• Automatic Selection;
• Manual Selection.



Specification:


Recommended Use	Indoor
Operating System	AndroidTM 11
Processor	Rockchip RK3566 Quad Core Processor 4x1.8GHz(A55)
Memory	64GB
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0
	USB 2.0
	Wi-Fi
	Micro SD card (supports up to 64GB)
Sensors	Ambient light sensor for brightness auto adjust
Audio Input/Output	Input: N/A
	Output: Beep
Power and Battery	3.7 V/3200 mAh lithium-polymer battery
	Charges via 5 VDC power supply
Tested Battery Life	Around 4.5 hours of continuous use
Battery Charging Input	5 V/1.5 A
Power Consumption	500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.	0 to 55°C(14 to 131°F)
Storage Temp.	-20 to 60°C (-4 to 140°F)
Operating Humidity	5% - 95% non-condensing
Supported Automotive Protocols	ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Package List:

1pc x main unit
1pc x main cable
1pc x USB Type-C cable
1pc x Power adapter
1pc x quick reference guide
1pc x packing list
1pc x soft cloth
