Product Description

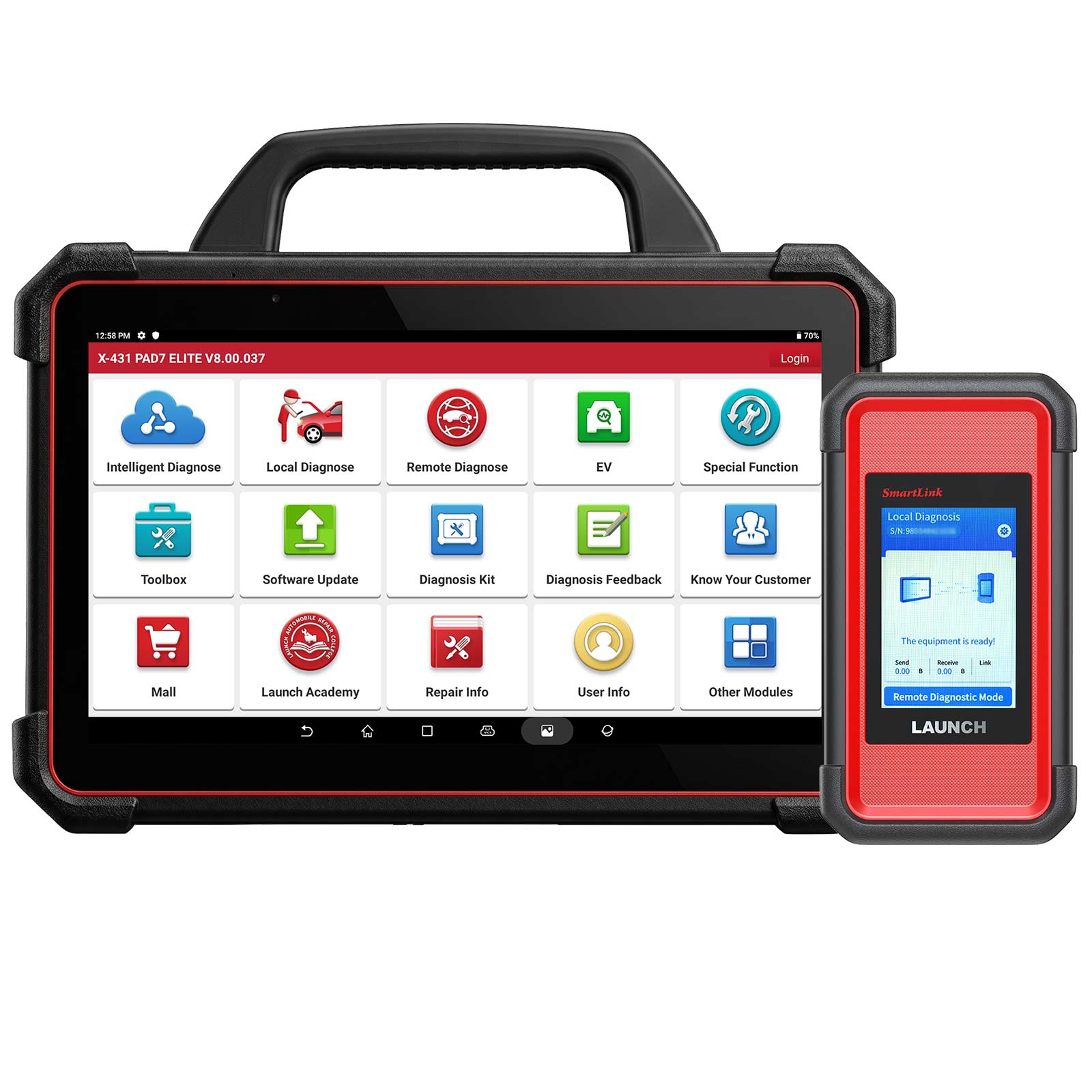

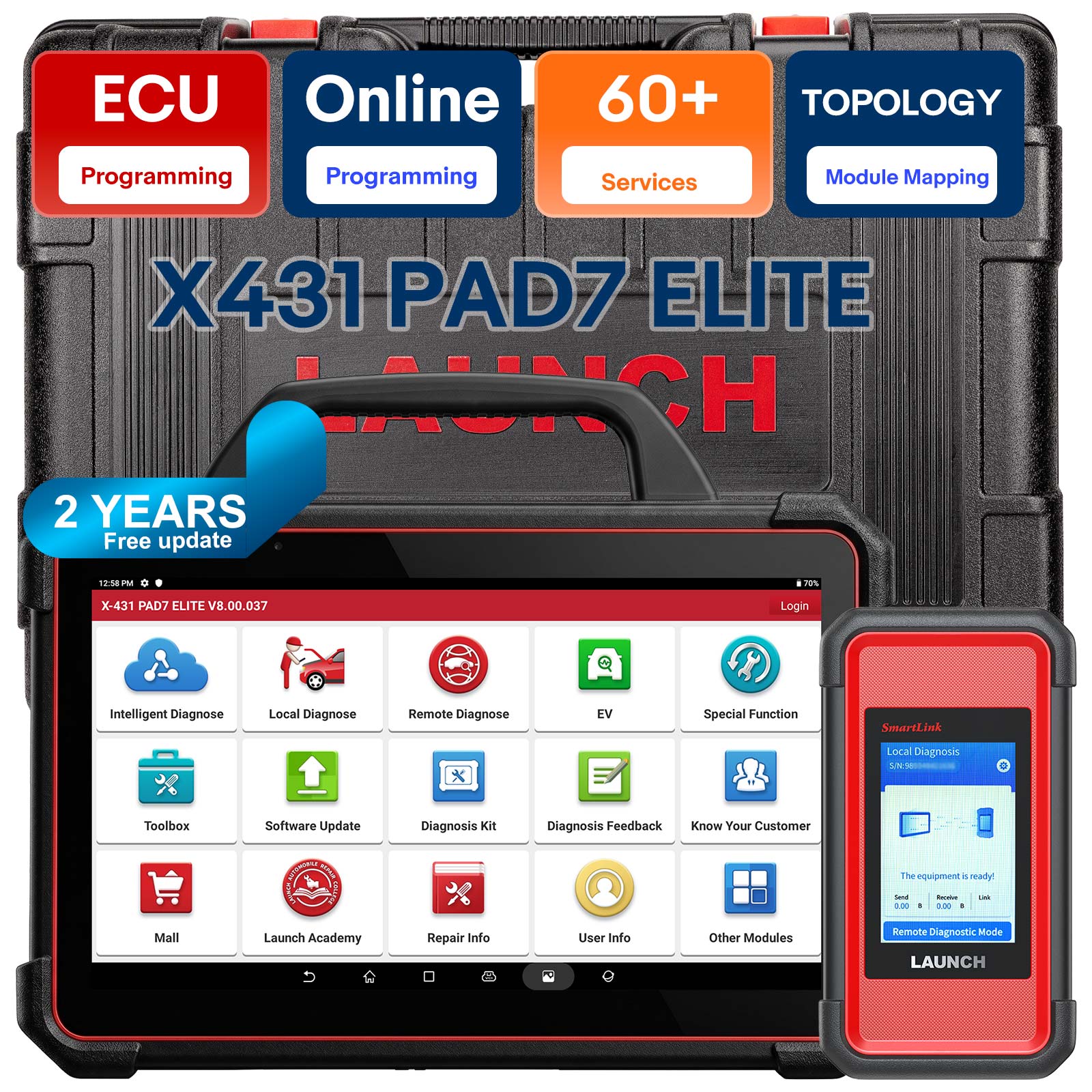

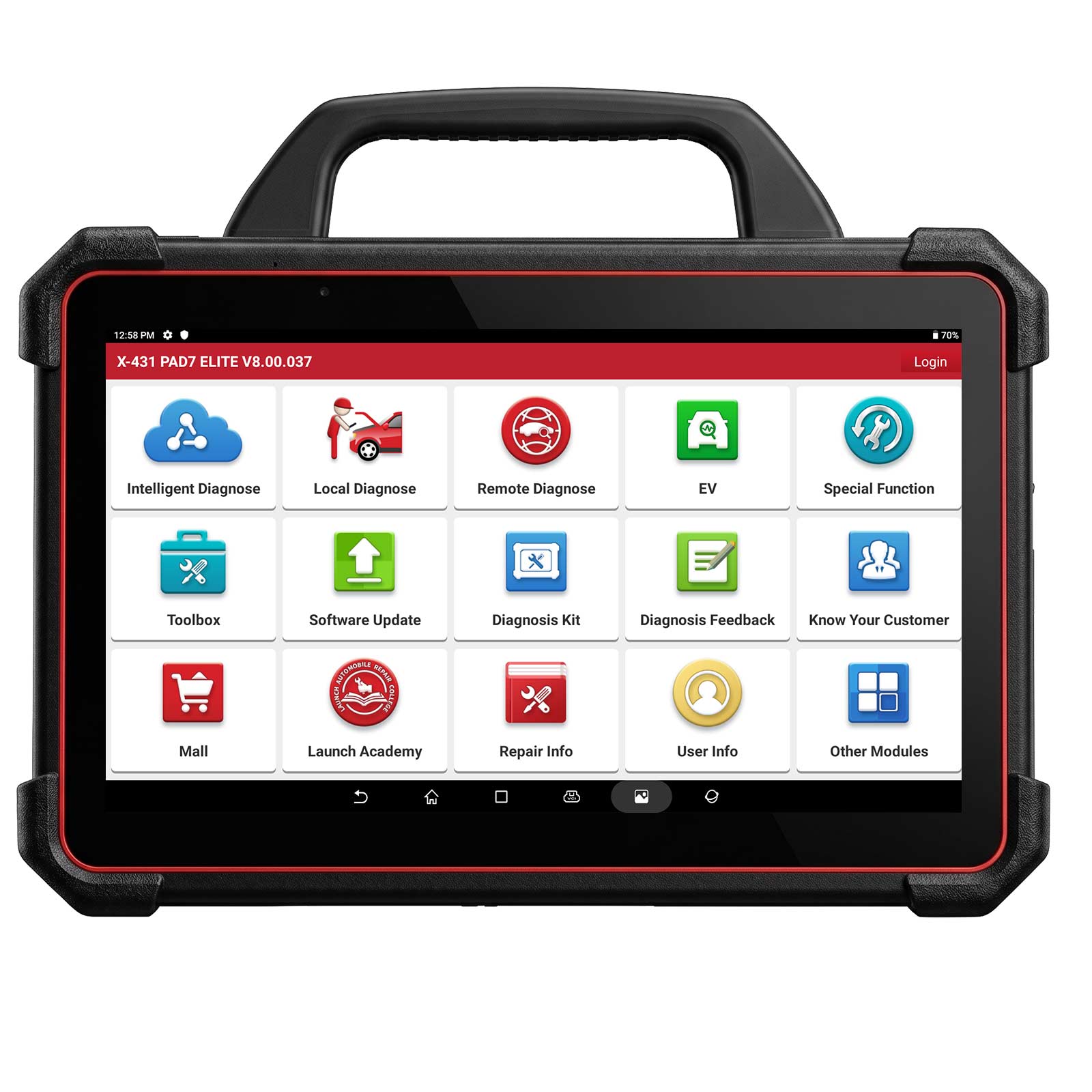

Launch X431 PAD VII Elite Full System Diagnostic Tool Send free SmartLink C J2534



X431 PAD VII Elite Highlights

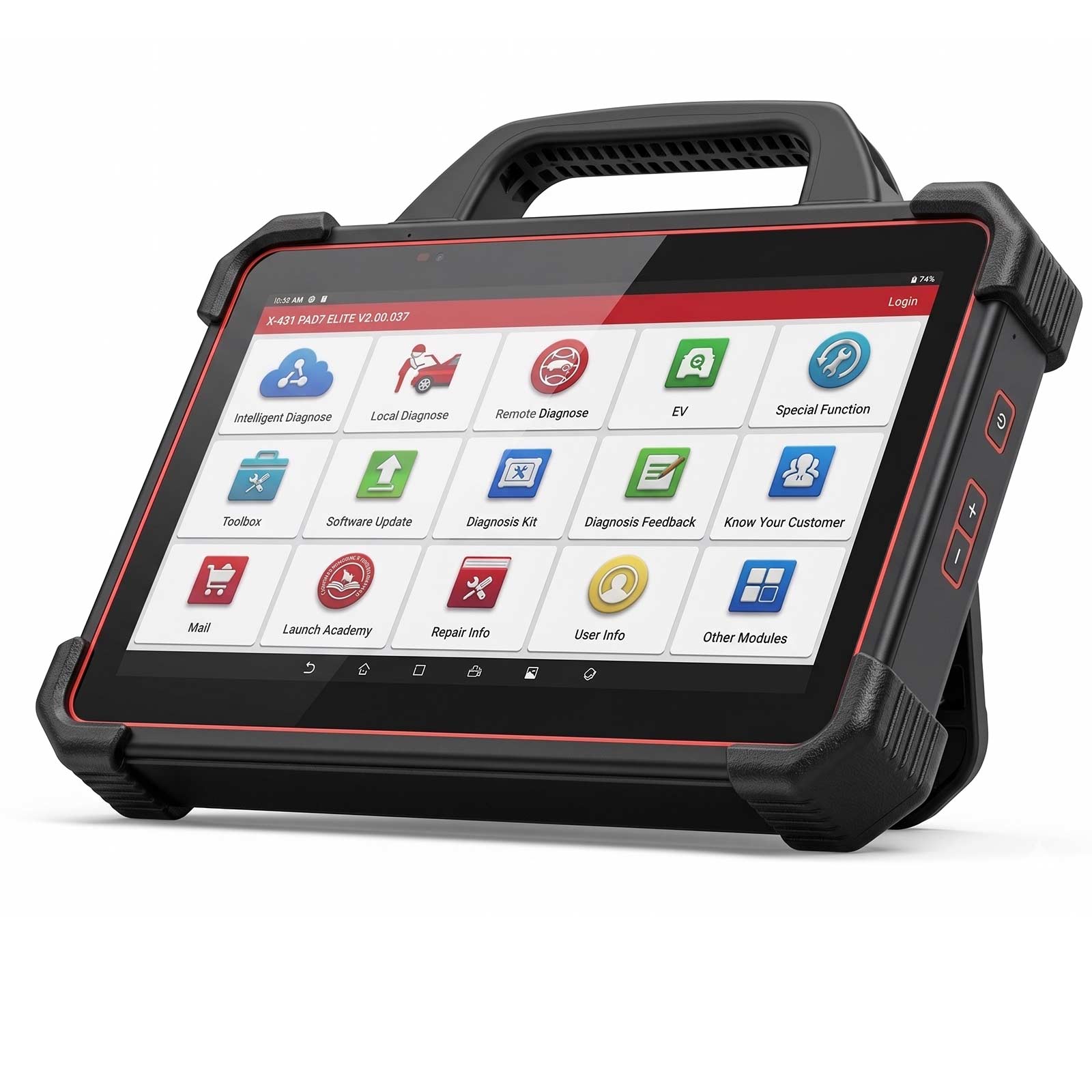

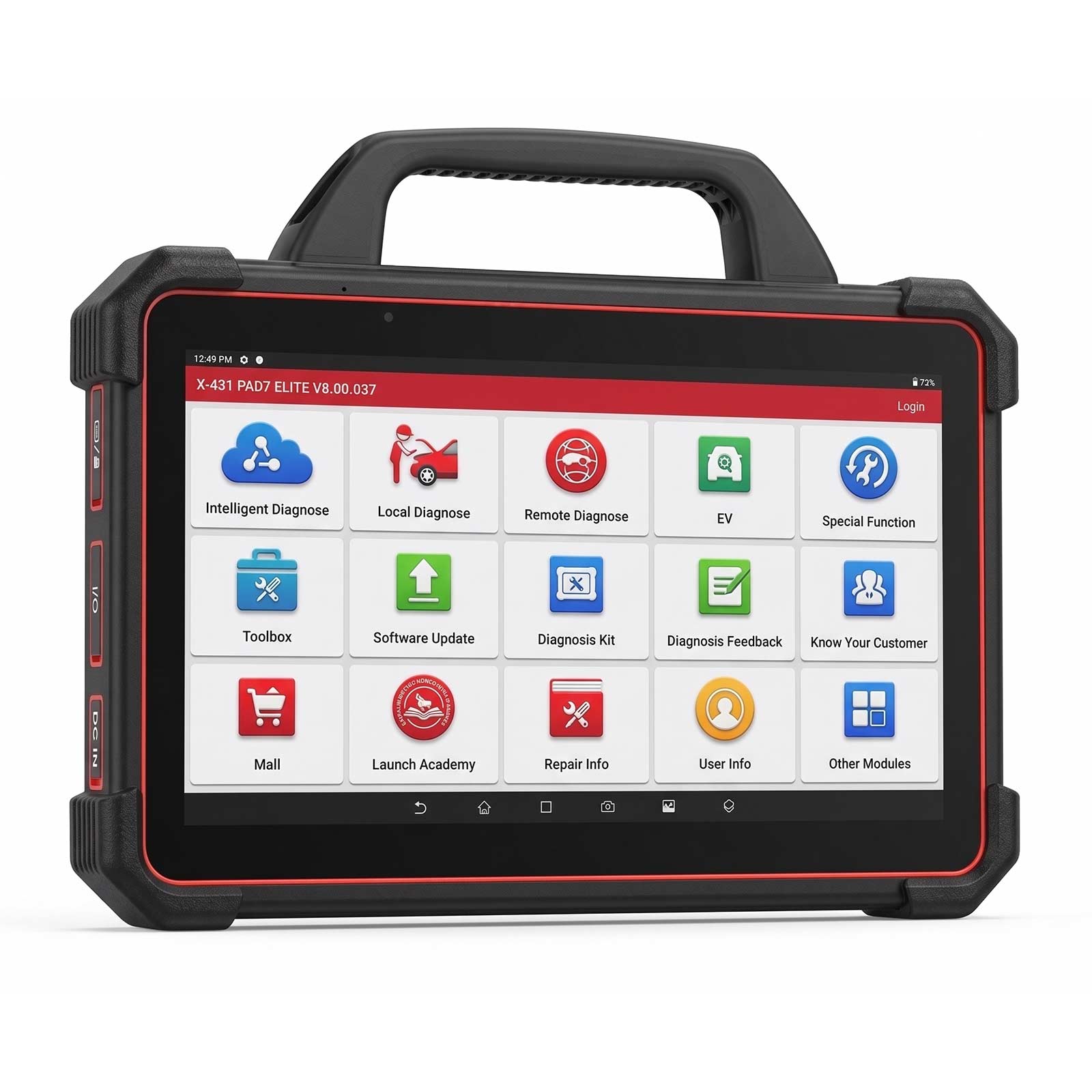

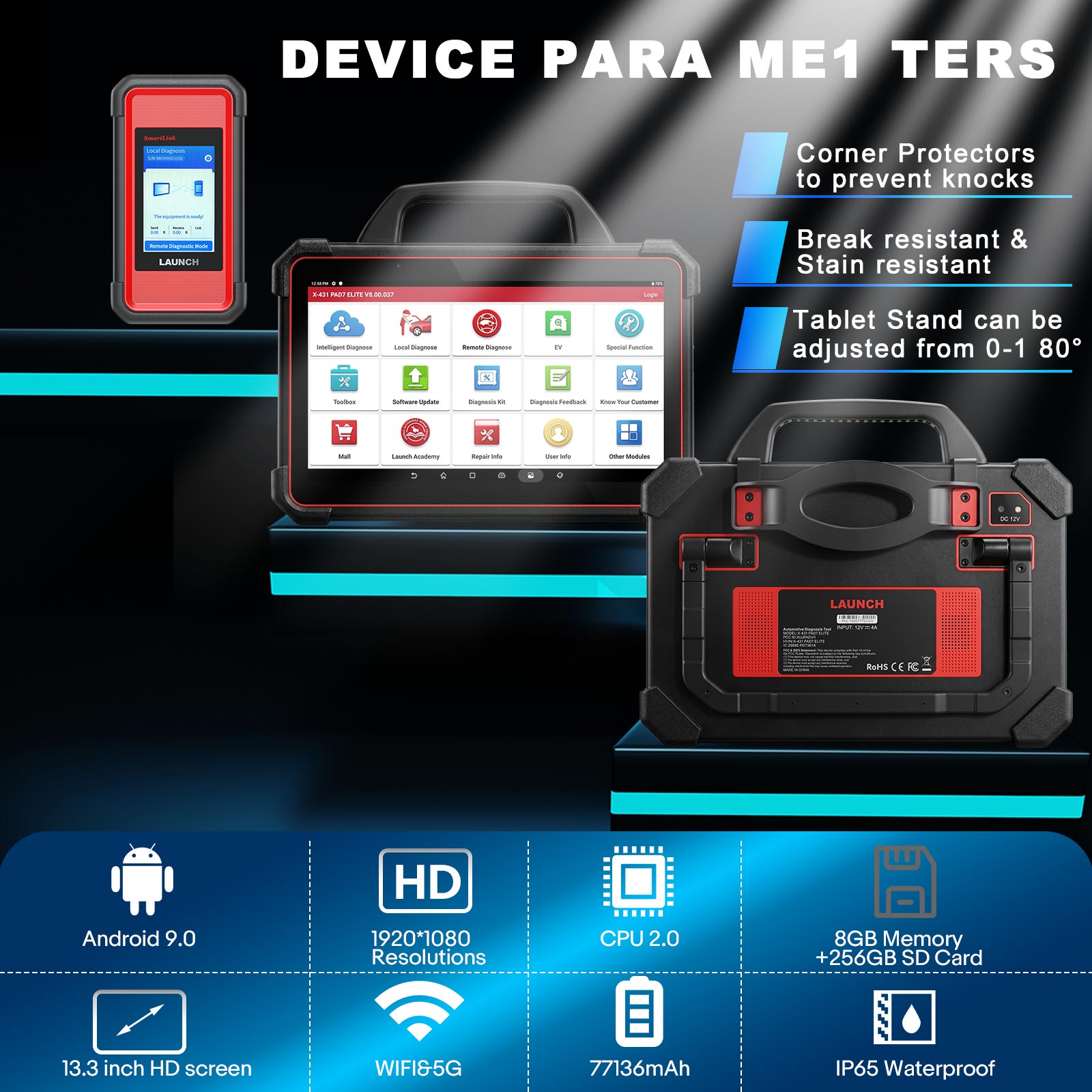

• 13.3" (1920*1080) Touchscreen, Android 9.0 , IP65 Rating effectively withstands , 8GB+256GB, 8-core Cortex-A53 Processor (2GHz) , Wireless and dual 2.4&5GHz Wi-Fi connection, rechargeable lithium-polymer battery 18,720Ah
•  Launch “ Mall ” Newly released European Professional Software License: FCA, Mercedes, Renault,Haynes pro/X431 FIX/CarSET PRO
• Support Online Programming for More brands: Mercedes Benz, BMW, Mini Cooper, VW, Audi, Skoda, Seat, Ford, Mazda, Jaguar, Land rover, Nissan, Porsche, Subaru, Hyundai, Kia, Great wall etc..
• support  DoIP, CAN-FD, D-PDU, J2534, RP1210.
• According to function, Launch tool sequence: X431 PAD7 Elite> PAD5 >PAD3 >PRO5 >X431 V+> PROS V>PROS MIN
• 2 years Free update, €669 for 2 year later；If you need Diesel Heavy Duty Software 1 year update service for PAD VII , pls buy item NO. XNR-SS222, It will not be locked after 2 years, except for some online functions, local diagnostic software will work for a lifetime.
• [Support 110+ car brands] with 99.99% worldwide car coverage. Coverage for U.S., Asian and European Markets Include Australian Ford and Holden, Brazilian, Indian and Malaysian cars
• [Multi-Language Supported] English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Czech, Turkish, Greek, Arabic, Danish, Romanian, Serbian, Swedish, Traditional Chinese, Thai, Persian, Simplified Chinese,Hebrew, Croatian, Indonesian and ect.
• [All-in-One Tool for Diagnoses and Inspections ] High-end ECU programming backup/restore for  ECU/SCN coding, topology mapping, 60+ service functions, guided functions,  read and clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.

Note:
1.Now online programming function is available in the North American region
2. Online coding and programming functdions can't perform at all in Spain and Portugal.
3. Supports BMW, VW, Audi, Benz online coding till 2021. Adds Nissan Renault offline programming in June 2022.
4. PAD VII ADAS Calibration, you need to buy the ADAS Devices Kit. Can Not Do ADAS Calibration by PAD VII Only .
5. SmartLINK VCI remote OEM diagnosis needs purchase to activate.

PAD VII Elite Main Functions

• Support EPB function
• VAG Guided Function
• Adds "X-431 FIX" function
• Clone Mercedes Benz ECU 2015 upwards with X431 XPROG III.
• Intelligent diagnostic enable identify VIN automatically and access system quickly
• Build-in repair information and training video modules help to track and fix issue fast.
• NEW !  Supports ID48 96bit cloning with X431 key programmer, super chip and tokens
• Supports gasoline cars and diesel heavy-duty trucks DC9-36V ( purchase truck software separately)
• Gain Renault SGW diagnostic access by using optional unlocking software and device.
• FCA AutoAuth Access Need AutoAuth subscriptions
• Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
• Supports ADAS calibration and eight extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer, and battery tester.
• With Smarlink C Empower technician to diagnose light, medium and heavy duty vehicles; SmartLink C VCI (also as J2534-1 & -2 Pass-thru device) allows you to refresh ECU and upgrade OE software.
• [60+ advanced Services] LAUNCH X431 PAD VII ELITE bidirectional scan tool has 60+ service functions, like Oil Reset/ABS Bleeding/Injector Coding/calibration of the Vehicle Dynamic Suspension Temperature… to win more business.
• [Intelligent Diagnose & Guided Functions ] LAUNCH X431 PAD VII ELITE scan tool has Intelligent Diagnose to free you from tedious works: easily get VIN data, guide you to vehicle information page without menu selection, and display all diagnostic records. Guided Function (for V.A.G) allows on-screen prompts for proper diagnostics, simple & convenient. Pin Detection allows detecting DLC pins voltage and accessing protocol types to troubleshoot your DLC port.
• [High-end ECU Programming & Coding] Beyond the reach of most competitors, LAUNCH X431 PAD VII ELITE features ECU Programming working on upmost 30+ car brands: 1) Backup/Restore data from original ECUs, you won't find this in any other tools; 2) Programming offline or online, manual or automatic to meet more needs; 3) R-etrofit, e.g. replace halogen lamp. 4) ECU Upgrade, e.g for Fuel quality d efect firmware. Coding features: Recode ECU Data, Personalization, and loads of more.
• [Topology mapping] checks DTCs and all-system communication status visually in LAUNCH X431 PAD VII ELITE top scanner. The actuation test detects problems 5X faster than tearing autoparts apart. Topology mapping checks DTCs and all-system communication status visually in LAUNCH X431 PAD VII ELITE top scanner. The actuation test detects problems 5X faster than tearing autoparts apart. Multiple protocols: J2534, RP1210/D-PDU (for HD cars), Do-IP (BMWs E/F, Land Rover/Jaguar), CANFD (new GM).
• Supports Benz, Porsche, Skoda, Seat, Sprinter, Nissan infiniti, Hyundai, Kia, Chery, Geely online programming till 2023. Part of Renault till 2021, Subaru till 2022, Ford/Mazda till 2019, Audi, VW, BMW, Smart till 2025

Newly Added Functions:

• NEW! Adds CAN Analyzer
• NEW! Adds "X-431 FIX" function (Need to purchase from Mall)
• NEW Remote Diagnosis asking for expert help even thousands of miles away.
• Diagnostic Plan: Provides a plan to guide you on how to repair based on the currently detected fault codes.
• User Information: A large amount of diagnostic data is well stored in this module, including Reports, Order, Live Data Stream, etc.
• OBD PIN Detection: Detect the vehicle protocols and OBDII pin voltage status to help technicians judge the OBD2 interface.
• 3-in-1 SmartLink C Device: Work as VCI to obtain vehicle data; Provide dual diagnostic modes; Act as a J2534 programming device.
• PAD VII Can Support ADAS Calibration, But Clients Need To Buy the ADAS Devices To Make It. Without ADAS Devices, Can Not Do ADAS Calibration by PAD VII Only
• Launch "Mall" Newly released European Professional Software License & European SGW Function License: FCA & & Maserati, Mercedes-Benz, Renault & Dacia, Haynes pro/X431 FIX/CarSET PRO
• Launch "Mall" Newly released European SGW Function License and X-431 FIX (HaynesPro) European Database License.
• Group chat function is added to IM.
• The special function of ODO CHECK is added to read the mileage information in each system of the vehicle.
• The special function of RESETSVIN is added to read the VIN information in each system of the vehicle.
• Online download of configuration files is added to ADAS.EM 101N Oscilloscope, EM 101N Multimeter, Current Clamp and Key Programmer extension modules are added to the toolbox.
• Optimized the topology diagram, and more than one line of function buttons above can be displayed in a drop-down way.
• Optimized the Google translation problems.
• Optimized the tire pressure diagnosis.
• Optimize the prompts for contacting customer service on the passwordretrieval page.



Supports Extended Function Modules:

• Use With X-431 Wi-Fi Printer:  Print out diagnostic data & reports.

• Use With Truck software authorization and adapters: Supports gasoline cars and diesel heavy-duty trucks
• Use With S2-2 SensorBox:  test and simulate most vehicle sensors. quickly troubleshooting the ECU
• Use With O2-2 ScopeBox:  analyzes data for all kinds of the testing applications on the automotive parts to resolve complex electrical faults.
• Use With Authorization of IMMO package: Advanced IMMO key programming with X-prog3 For advanced key programming
• Use With LAUNCH X431 X-PROG3: Enables Anti-theft type identification, Remote control matching, Key chip reading & matching, anti-theft password reading and anti-theft component replacement;
• Buy  Launch X431 X-PROG 3+ IMMO Function Service, X431 PAD VII Elite will have the same immobilizer function as X431 IMMO Plus or IMMO Elite.
• Use With VSP-600 VideoScope: helps technicians to check issues on unreachable area in a vehicle So they can view, record and save images and videos.
• Use With Launch X431X-PROG3 PC Adaptor Can work with XProg3 ECU Programmer Support Read/Write ECUs Data And Engine Data Validation
• Use With Launch motorcycle connector kit: Support to diagnose Harley Ducati Indian Polaris Victory Honda Yamaha Kawasaki Suzuki BMW Motorcycles.
• Use With LAUNCH Non-16 Pin Adaptor Box: Support  specific vehicles produced between 1996 and 2002 without the standard OBD2 pin configuration.
• Use With X-431 TSGUN:  Support to activate TPMS sensors, Read sensor data, TPMS diagnose, Read/clear TPMS DTCs; Scan TPMS sensor ID, program tpms sensor.
• Use With BTS360 Bluetooth Battery Tester:  Measuring the actual Cold Cranking Ampere(CCA) of the car starter battery, analyzing the battery health, and detecting the starting system and the charging system of the car.
• Use With Launch X431 Key Remote Maker Able to read Transponder, Generate Launch super chip and universal remote keys, Transponder, Detect Frequency, Detect Ignition switch coil signal, Generate Launch super chip and universal remote key
• Use With ADAS software Calibration: Advanced driver assistance systems, or ADAS is designed to improve driver, passenger and pedestrian safety by reducing both the severity and overall number of motor vehicle accidents. ADAS can warn drivers of potential dangers, intervene to help the driver remain in control in order to prevent an accident and, if necessary, reduce the severity of an accident if it can’t be avoided.
• Use With Smartlink C supports remote diagnosis (needs activation card) 3-in-1 SmartLink C Device: Work as VCI to obtain vehicle data; Provide dual diagnostic modes; Act as a J2534 programming device.
• Use With Launch X431 EV Diagnostic Upgrade Kit : Supports New Energy Battery Diagnostics.  Includes activation card and adapters for specific electric vehicles to perform battery pack analysis. Can diagnose battery pack State of Charge and State of Health on Tesla, BYD and many other electric vehicles

LAUNCH X431 PADVII Remote Diagnosis Technical Assistance

• You won't have to face any tricky issues while using this diagnostic scanner.
• Simply share your access code with your mechanic for remote expert help. And then he can perform one-for-one remote diagnostics using a web browser (platform: remoteddiag.x431 .com), or via an X431 scanner.
• Unlike using TeamViewer that may involve connectivity issues or disruptions, this option is faster, simpler, more stable, and doesn't require a subscription. It allows mechanics to reliably diagnose vehicles that are even thousands of miles away.
• Alternatively, you can send us a detailed diagnostic report to help us understand your current issues better. We're available 24/7 to provide assistance.

How to Activate HaynesPro,X-431 FIX,SGW,FCA,CarSET PRO Functions For Launch X431PAD VII  ?

LAUNCH European SGW Function License:
1.Mercedes Benz gateway license (1 year)
The license will unlock gateway on Mercedes models produced after 2020.
2.FCA & Maserati gateway license (1 year)
3.Renault & Dacia 50 connections

LAUNCH X-431 FIX (HaynesPro) European Database License:
1.CarSET Pro (Car) 1 Year Subscription


Why is the LAUNCH X431 PAD VII Is more powerful

• Saving More Time: The LAUNCH PAD Ⅶ scan tool could quickly and accurately identify problems stored in the car’s onboard memory, greatly lessening time in the garage.
• Spending Less Cost: With the Smartlink C device, LAUNCH X431 PAD Ⅶ can download OEM software to address problems such as the engine, ignition, fuel injection performance, and rpm levels, effectively preventing a small problem from developing into a more serious and more costly fault.
• Serve More Vehicles: Compatible with 30+ worldwide vehicle brands.
• Online programming tool X431PAD VII does not require an expensive online account, just connect to WIFI, saving maintenance costs.
• The smart box adopts dual WIFI communication to improve programming speed, thereby reducing the possibility of programming errors
• When using the J2534 tool, in addition to the connector, it is also necessary to consider issues such as adapting the computer, installation costs, and complete functions, which are not cost-effective.



Launch X431 PAD VII Elite Function

Programming Online
*LAUNCH stores massive programming data in the cloud, rather than relying solely on a hard drive, so you won't lose access if something happens to your hard drive.

*More, LAUNCH PADVII saves time to guide your programming directly. Unlike any scan tools before, it practically anticipates your next move by guiding you through every step you need to find the solution patch while avoiding the steps you don't, within a highly intuitive user interface that's simple to learn and operate.

*With this automatic Online Programming, you'll have the confidence to tackle more challenges than ever before. The only requirements are a stable & solid internet connection, and an external battery charger for your successful operation.

Reliable ECU Data Backup, Faster Recovery & Less Downtime

*When customizing your vehicle, there is always a question: will it be able to revert the changes in case of human error, system failure, or data loss that bricks the vehicle computer?
This is where the “Backup/Recovery ECU Data” function can prove to be very useful.

*Unlike traditional car scanner backup methods that can be labor intensive and inconsistent, LAUNCH X431 PADVII provides a simple mechanism to back up all your ECU programming & coding data.

*It allows you to make a copy of your current Coding, Adaptations, and other info (such as Advanced ID and Live Data) of a selected control module, and save them as a file into your scan tool as a backup.

*To restore coding or programming values, just select the backup file you need and you'll effortlessly get reverted back to the old settings/coding in a control module.

*For now this function is compatible with Mercedes Benz all series, and BMW F/G/I chassis.

**NOT universally compatible. Function menus may depend on vehicle's make, model and year.

>> What happens if I don't program a new ECU after installing it on my car?

1. Answer: Nothing will happen, because the system doesn't know how to react, since the PROM that governs the circuits of ECU “what to do” is blank.
2. It cannot command the injectors to open or the coil(s) to fire. It cannot command the fuel pump to send fuel. It cannot read the external temperature, or even the temperature of the coolant, because there are no instructions defining what is hooked to the ECU, and there is no information to tell the system when to open the injectors, or for how long.

X431 PAD VII Exclusive software update for Lotus Cars!
Exciting news! The latest and exclusive software update for Lotus Cars is here! Try it out on your X-431 PAD VII and PAD V devices or purchase the software first for other X-431 scan tools.  Check out the functions for details.

The new version of the software supports diagnostics for theLotus Cars Elise, Exige, Evora, and Eleven 2004-2025 models.covering various electronic control systems, includingEngine, Anti-lock Braking, Airbag, Instrument Panel.

FUNCTION SUPPORTED
Functions for EMS engine system include viewing versioninformation, reading DTC, clearing DTC,reading data streams.actuation tests and special functions of fuel pump control, exhaustflap control, vehicle configuration and vehicle configuration writingfor EMS (Engine System).
Functions for ABS Anti-lock Braking system include viewingversion information, reading DTC,clearing DTC,reading datastreams, actuation tests and special functions of ESP Lampactuation, brake light switch (BLS), brake bleed, steering anglesensor calibration, vehicle configuration for ABS (Anti-lock BrakingSystem).
Functions for SRS Airbag system include viewing versioninformation, reading DTC, clearing DTC, reading data streams.vehicle configuration function for SRS (Airbag System).
Functions for TPMS include viewing version information, readingDTC,clearing DTC,reading data streams, special functions ofsetting thresholds for TPMS (Tire Pressure Monitor System).
Functions for IP Instrument Panel system include speedometeroutput control and vehicle configuration for IP (Instrument Pack).

ECU Programming of LAUNCH PADⅦ VS. Other -Covering More Programming

• Online Programming: Mercedes Benz and BMW. Downloading the newer data from the online server and reprogramming it to the ECUs.Updating data and upgrading ECU software version.
• J2534 Programming: Working together with SmartLink VCI (J2534 pass-thru device) to perform J2534 programming.
• Offline Programming: Renault, Nissan, Subaru, Hyundai, Kia, Chery, Jaguar, Land rover, Porsche Program adaptive data for certain ECU modules after repair.

ECU Programming & Coding

Online ECU Programming: For Benz & BMW All Chassis/Series

LAUNCH PAD VII stores the extensive programming data of Ben.z and B.M.W in the cloud server, in case of interrupted access if your hard drive has issues.

Unlike any regular scan tools on the market, this car diagnostic tool intelligently guides you through each necessary ECU programming procedure to find the solution patch, avoiding unnecessary steps, and all are presented in a user-friendly interface that is easy to learn and navigate.

• And the "Programming Backup/Restoration" function is an evolutionary smart solution designed to help you safeguard and restore the original programming data:
• It reverts the ECU data changes back to the previous state, in case of human error, system failure, or data loss that could brick the vehicle computer.
• It allows you to create a backup of your current Values, Adaptations, and other information (such as Advanced ID and Live Data) for a specific control module, and save them into your scan tool as a backup.
• Simply select the saved historical backup record, and you’ll effortlessly get reverted back to the old programming values in a control module.
• Currently this function is compatible with all series of Ben.z vehicles & B.M.W F/G/I chassis models.
• Reminder: Message us to get the “How to Open Online ECU Programming” guidance documents.

J2534 ECU Programming: For More J2534-Compliant Cars

With the SmartLink C VCI Box serving as J2534-1 & -2 pass-thru device (valued at over 2000 bucks), you can easily expand your ECU programming abilities for over 30 car brands (compatible with For.d, V-W, Aud.i, Skoda, Sitter, Land Rover, Jaguar, Porsche, Renault etc.). You don’t need to buy separate OE scan tools for each brand. Reminder: message us to get the “J2534 Operating Manual” for more information.

Highlights of LAUNCH PRO5’s ECU Coding

What separates the LAUNCH PAD VII as a high-end diagnostic scanner from most standard OBD2 scan tools is its advanced ECU Coding. It allows you to connect to the car’s ECU system, set up new car modules, and adjust the original car settings.

• Recode elements of a car’s CPU. This is particularly useful if you need to setup new actuators and wants to make sure that they work in harmony with the rest of the subsystem.
• Personalized Car Settings. Open the hidden car features that are not available in ordinary settings. For example: seat belt alarm, automatic sta.rt/st.op, hidden menu, daytime running lights, cruise control, comfortable windscreen washer, welcome light, and others.

Reminder: Available coding operations vary by the test vehicle. ONLY the available operations display in the menu.

Newly Upgrades for ECU Programming/Coding

• For BMW: expand ECU programming/coding, open hidden functions, modifications … options, up to 2025.
• For Benz: expand offline coding features (open hidden functions) up to 2025; supports manual programming/coding operating options to handle more repair scenarios.
• For VW/Audi: more comprehensive online calibration coding data; support subsystem mode.
• For Nissan/Infiniti: more detailed annotations for coding, e.g. the BCM of the 2018 Nissan Sentra.
• And more. Reach us to get the complete list.

ALL System Diagnosis

Powerful all system diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
Local diagnose:When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
Intelligent diagnostic enable identify VIN automatically and access system quickly

You can expect the LAUNCH X431 PADVII to provide you with extensive knowledge every time you use it. It offers over 10,000GB of a repair database, covering more than 1,600 vehicle models. This is a tremendous aid for those who want expert assistance in fixing car issues:

• 12-in-1 Graphic Live Data Stream: The LAUNCH X431 scanner displays a multi-PID live data stream in dynamic graphics, showing up to 12 PIDs on one screen! This allows you to effortlessly analyze the correlations between different sensors, actuators, and calculated values at a single glance. Every detail, from engine speed to temperature and mass airflow, is presented. Also, you can record/playback the readout or graph, capture screenshots and easily share them.
• DTC Help & Fault Guidance: When reading DTCs, this scan tool also provides a vehicle-specific list of possible causes, and can even provide a list of the most common fixes. Also, it will help you find the fault through step-by-step guidance based on the trouble code.
• Operation Tips: Give you the information needed to clear the faults, simplifying the analysis and repair process. You’ll have a mind-blowing experience like following an expert to fix every hassle you’d meet while repairing.
• Technology Handbook: This car scanner offers an extensive range of valuable information specifically included, such as wiring diagrams, control unit locations, and other repair materials necessary to efficiently accomplish your tasks.
• Training Videos: Here you can check the repair process relevant to specific vehicles in the real world, in videos, to learn new skills, understand complex concepts, and even master specific tasks.

At-A-Glance Topology Mapping: See More, Operate Less

If you have a busy garage with multiple cars awaiting repairs, topology mapping is essential. LAUNCH PAD VII can quickly display faults in a color-coded format, allowing you to locate the issue within minutes. Just click on a module to identify the underlying cause:

• Show All Available Control Units: get a quick scan on all available onboard car systems, and show you the scan results (DTCs) at a glance.
• Color-coded Communication Structure: Red – faulty systems; Green – healthy systems; Grey – unavailable systems; making it much easier for you to understand the layout and structure of the car's electrical system.
• View Diagram Tree in Detail: if a fault code points to a specific sensor issue, you can efficiently pinpoint the sensor and uncover any related components connected to it.
• Click to Identify Underlying Cause: this quick identification of the root cause of a problem can help you instantly determine the underlying issue, saving time and effort.
• Easy to Locate System Faulty Parts: this reduces the chances of misdiagnosis and the risk of replacing unnecessary parts, making sure you’ll have an effective solution.

Revolutionary Topology Module Mapping

• It is the first application of topology module mapping in the field of automotive diagnostics. In terms of visual aspect, LAUNCH X431 PAD VII ELITE shows different health statuses in different colors and shows the structure of communication between modules. In the aspect of ease of use, it enables you to press the system module to access the system and display the relevant DTCs.

BI-Directional Control [Active Test]

LAUNCH X431 PAD VII ELITE performs the active test, which bypasses the onboard control systems to send commands to modules to perform specific tests. By monitoring their responses, you can precisely locate the faults, and shorten the troubleshooting time without tearing the vehicle apart. It can:

• Rolling up / down a window;
• Turning the fuel pump on and off;
• Cycling the a/c clutch on and off;
• …

99% Daily Maintenances: 60+ Basics & Advanced Special Services Included

To save the hassle to search for the most used services in car software, PAD VII thoughtfully integrates the hottest services into the independent “Special Function” module to serve necessary resets/relearns for 99% car models on the road, which include:



Check the DTCs and all systems communication status visually by topology module mapping function

FCA Secure Gateway

LAUNCH X431 PAD VII ELITE automotive diagnostic scanner provides a trustworthy authority for technicians, car dealers, automotive engineers, and service shops to undo the SGW and perform all the necessary repair procedures.

Accurate ADAS Calibration functions

Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW),lane keeping assist, blind spot elimination, night vision camera and Adaptive lighting. (NOTE: Need to be purchased separately)

Pin Detection

This module allows you to detect the voltage of the vehicle OBD II diagnostic socket pins and the supported protocol types to help technicians judge the OBD II diagnostic interface.

A new module ‘MALL’ is now available for all users to expand and upgrade their X-431 PAD VII with more diagnosis software.

60+ Advanced Maintenance Services:

• Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and basic settings for VW / Audi / Skoda / Seat; **NO extra costs.
• Component Matching: Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
• Online Parameterization: Reset all adaptive data in target systems after ECU module replacement; compatible with VW / Audi / Skoda / Seat.
• Online Calibration: For some car systems’ calibration; compatible with VW / Audi / Skoda / Seat.
• Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.
• Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.
• Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.
• Personalization: Compatible with BMW / Porsche / Toyota / Subaru.
• And many more are coming soon.

Cover the majority of makes and models worldwide up to 2025 for Oil Reset, Injector Coding, Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, Gear Learning, AFS Reset, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration, Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change, and more.



How to Use SmartLink C as J2534 Passthru?

Smart Link C Box
Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.

* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade

In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.

Download the OEM diagnostic software in Automakers’ Service Webs to your computer. You can reach us to get web sites.
Connect the Smartlink C to your computer with the included USB cable, or via the stable and solid 5G Wi-Fi network.
Connect the Smartlink C to your vehicle’s DLC port with/without the included extended OBDII cable.
Download and install the LAUNCH’s J2534 tool at the LAUNCH official site.
Run the “ J2534 tool ” and there you go.

Smartlink remote diagnosis introduction

SmartLink Remote Diagnostics is a brand new remote diagnostic technology that better links remote assistance demanders with professional technicians through the bridge role of SmartLink remote diagnostic service open platform. Professional technicians can carry out remote diagnostic operations on PCs (with J2534 driver and OEM software installed) to assist in the completion of remote diagnostics after users use SmartLink C connector as a J2534 Pass Thru device and connect it to the Ethernet.

Launch X431 PAD VII Vehicle Coverage:

99% Worldwide Cars Coverage: One Tool to Cover Almost All Cars

If you’re working in a busy workshop taking care of different car models daily, you won't disappoint with this LAUNCH scanner. It works with as many vehicles and car manufacturer companies as possible.

• No IP Restriction, Use Worldwide: the LAUNCH X431 PAD VII is fully-capable to use across the world without the restrictions of using features or programs in a certain region.
• For D-PDU/J2534/RP1210 Compliant Cars: this LAUNCH X431 scanner can get more efficient communication with D-PDU & RP1210 compliant cars, covering Land Rover, Jaguar, Volvo, Toyota, GM, Honda, Nissan, BM.W, Ben.z, V-W, Hyundai, Kia, Mazda, Mitsubishi, Chrysler …
• For Commercial Vehicles with DC9-36V: after you purchase the HD software and the non-16pin HD adaptor, you can get turn this scan tool into a 12V/24V HD diagnostic scanner.
• For CAN-FD Compliant Cars: this LAUNCH X431 scanner can get access to CAN-FD (upgraded version of CAN) compliant cars: compatible with GM Models including Onix 2020-Latest, Tracker 2020-Latest, Suburban 2021-Latest, Tahoe 2021-Latest, Montana 2023-Latest, Silverado 2025, Electra E5 2025, Escalade 2021-2025, Escalade ESV 2021-2025, Sierra 2025, Yukon 2021-2025 Yukon XL 2021-2025, and Chrysler Models including Grand Cherokee(WL) 2021-2025, Grand Wagoneer till 2025
• For DoIP Compliant Cars: this car scanner can also work on cars adopting DoIP protocol (a new type of protocol allowing fast & reliable communicating even over long distances). Compliant cars include Volvo, Land Rover/Jaguar, BMW F/G Chassis …
• For 2018+ FCA SGW Cars: The LAUNCH scanner can serve as the officially licensed diagnostic tool to get diagnostic access to FCA SGW-equipped cars (including but not limited to 2018-2025 Fiat, Chrysler, Alfa Romeo, Dodge …). You’ll have the same level of control as you would with non-SGW-equipped vehicles, allowing you to perform diagnostic tasks such as code clearing, bi-directional functions, etc. Simply register with AutoAuth Services to open these capabilities.
• For 2015+ Renault SGW Cars: Once you have the Renault unlo.cking software & device, you can skip the security module and gain unrestricted access to the ECMs of 2015+ Renault RGW-equipped vehicles (including Kadjar, Megane IV, Scenic IV, Talisman, Espace V, Koleos II, Captur II …). With this access, you can carry out advanced diagnostics such as fault code reading and clearing, k.ey programming, and module replacements.

Reminder: This LAUNCH scanner comes with a built-in vehicle compatibility checking module, to help you quickly determine if a certain vehicle model is supported. You can also log in to LAUNCH website to check.

Passenger Vehicles:

1. Australian:  AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo

Heavy-Duty Vehicles (Optional)(Need to Pay Heavy Duty License and Adpater Set):
Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

Powerful special functions:
Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
Communicates with ABS & Transmissions from Bendix, Wabco and Allison
Tech to Tech remote communication function


Launch X431 PAD VII Online & Offline Programming Car and Region List

Launch X431 PAD VII supports online, offline and J2534 programming. Here comes the online & offline programming car and region list.

• Online Programming: Downloading the newer data from the online server and reprogramming it to the ECUs.Updating data and upgrading ECU software version.
• J2534 Programming: Working together with SmartLink VCI (J2534 pass-thru device) to perform J2534 programming.
• Offline Programming: Program adaptive data for certain ECU modules after repair.

Number	Brand	Region	Programming Function
1	Mercedes	Europe	China + Aboard
2	BMW	Europe	China + Aboard
3	BMW Brilliance	Europe	China + Aboard
4	Mini Cooper	Europe	China + Aboard
5	VW	Europe	China + Aboard
6	Audi	Europe	China + Aboard
7	Jaguar	Europe	China + Aboard
8	Land rover	Europe	China + Aboard
9	Porsche	Europe	China + Aboard
10	FAW-Volkswagen	Europe	China + Aboard
11	Shanghai Volkswagen	Europe	China + Aboard
12	Skoda	Europe	China + Aboard
13	Seat	Europe	China + Aboard
14	Renault	Europe	China + Aboard
15	Nissan	Asia	China + Aboard
16	Subaru	Asia	China + Aboard
17	Hyundai	Asia	China + Aboard
18	Kia	Asia	China + Aboard
19	Trumpchi	Asia	China + Aboard
20	Chery	Asia	China + Aboard
21	EXEED	Asia	China + Aboard

1. Programming function has not been authorized in Portugal and Spain.

2.PAD VII supports BMW and Mercedes online programming and offline programming for other car brands listed above.

3. Now online programming function is available in the North American region (US, Canada and Mexico).

4. To enable online programming you need to activate programming feature

5. PAD VII SmartLink C can also be used as J2534 passthru for OEM programming, HDS, Xentry, ISTA, Techstream, GDS etc

LAUNCH X431 PAD VII PAD7 TABLET SPECIFICATION

Operation System	Android 9.0
CPU	2.0GHz Octa cores
Memory	8GB RAM & 256GB
Display	13.3 inch capacitive screen，1920*1080
Connectivity	Bluetooth/Wi-Fi
Camera(rear)	Front 8mp, Rear 13mp
Interface	DC IN/Micro USB/USB 2.0 Type A/RJ45/HIMI
Power Consumption	≤ 2W
Test Voltage	DC 9～18V
Working Temp	0℃~50℃
Dimensions(W*H*D)	353x236x71(mm)
Smartlink
Display	3.5' touch screen 320*480
Memory	256M
Storage	8GB
Diagnostic Communication	WiFi & BT & USB

Package List:

1pc x PADVII tablet
1pc x SmartLink C
1pc x B-20 adapter
1pc x BZ-14 adapter
1pc x BZ-38 adapter
1pc x CR-6 adapter
1pc x FD-6+1 adapter
1pc x GV-12 adapter
1pc x HA-3 adapter
1pc x K-20 adapter
1pc x MH-12+16 adapter
1pc x NN-14+16 adapter
1pc x TA-17 adapter
1pc x TA-22 adapter
1pc x Battery clamps cable
1pc x Cigarette lighter cable
1pc x OBD adapter
1pc x OBD I adapter
1pc x USB-B cable
1pc x USB-C cable
1pc x Network cable
1pc x HDMI cable
1pc x Power adapter
1pc x Australia standard AC wire rod
1pc x Britain standard AC wire rod
1pc x European standard AC wire rod
6pcs x lighter fuses
1pc x Packing list
1pc x Quick start guide
1pc x Universal PIN envelope
1pc x User manual
1pc x Suitcase
1pc x Carton
  Email: sales@ChinaCarDiags.com
Whatsapp: +8618223445829
WeChat: seven424424

Whatsapp Group:

LLnn0gcToGG2UjpHuZmcpG
