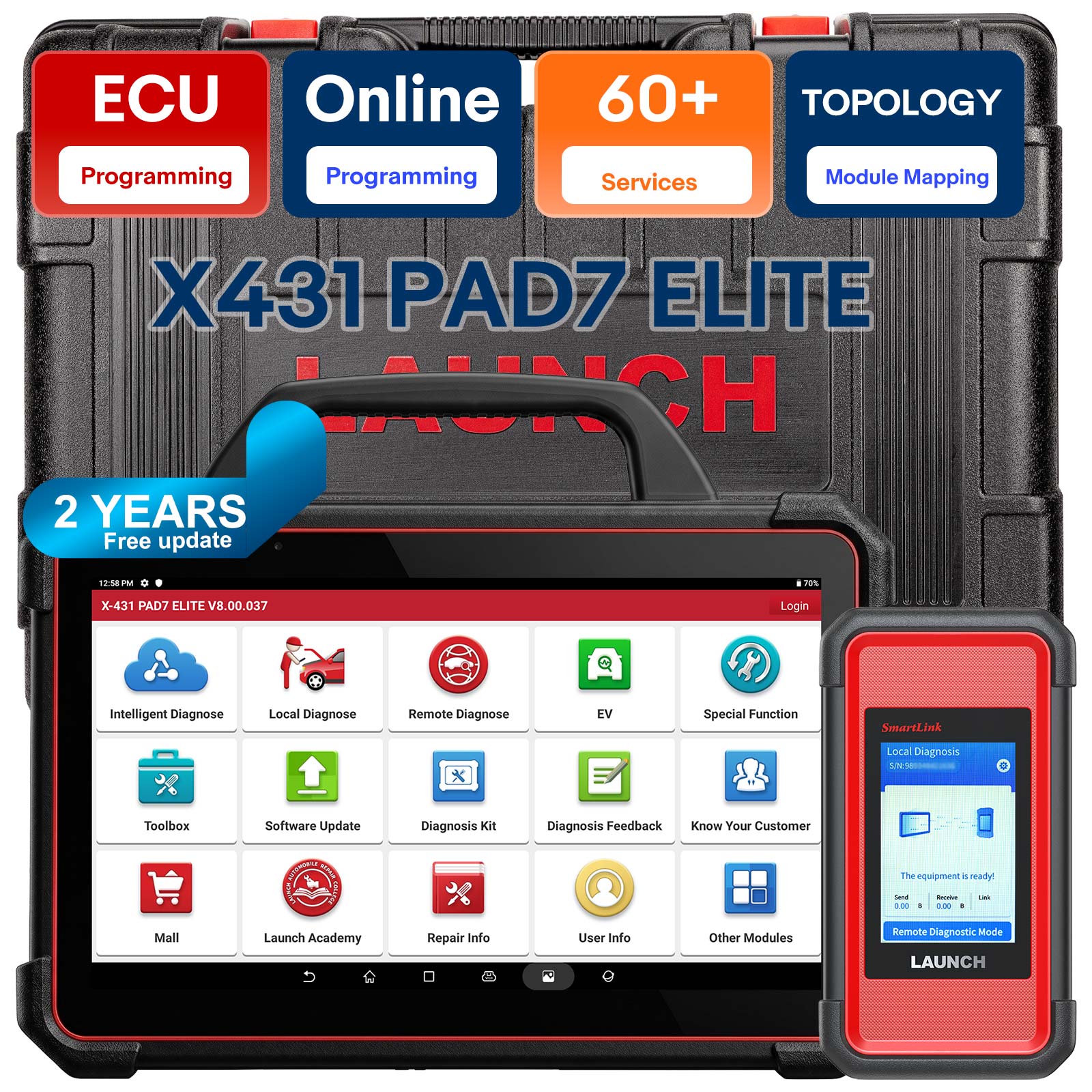

2 Years Free Update US/UK/EU Ship No Tax 2025 Launch X-431 PAD VII Pad 7 Elite Advanced Diagnostic Tool Support ADAS Calibration Online Coding and Programming Topology Map Get Free CRP123X

Product Description

Launch X431 Pad VII Pad 7 Elite Support ADAS calibration Support Online Coding and Programming

Get Free Creader CRP123X

Top Advantages for X431 Pad 7 Elite

1. 2 Years Free Update, $599 per/year later, $850 for 2 yeas update
2. Global Version, No IP Limitation
4. Support Commercial Vehicle and Passenger Car Diagnose, Support DoIP, CAN-FD, D-PDU, J2534, RP1210.
5. Full System Vehicle Coverage for U.S, Asian and European markets over 110 brands, which is continually updated
6. More Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Online Programming: BMW, Benz, VW, Offline Programming: Audi, Seat, Skoda, Renault, Nissan, Subaru, Hyundai, Kia, Chery, Jaguar, Land rover, Porsche
8. Upgrade and expand the X-431 PAD VII Elite with more software and service via the new module 'MALL' as demanded
9. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
10. Optional ADAS Calibration Functions (Need to pay)
11. Clone Mercedes Benz ECU 2015 upwards with X431 XPROG III.
12. Supports gasoline cars and diesel heavy-duty trucks DC9-36V (need to purchase truck software separately)
13. VAG Guided Function+ FCA AutoAuth Access
14. Supports Australian Ford and Holden, Brazilian, Indian and Malaysian cars
15. SmartLink 3.0 Box (also as J2534-1 & -2 Pass-thru device) allows you to refresh ECU and upgrade OE software.

Note:
1.Online Programming function has not been authorized in the Spain, Portugal (Autel Ultra is recommended).
2. Now online programming function is available in the North American region
3. Launch X-431 PAD VII Elite can't support remote diagnosis

Optimized advantages:


• - Optimized 2.0 GHz Octa-core chipset, Android 9.0 OS, 8GB memory & 256GB storage
• - Dual WiFi connectivity for maintaining faster and stable connection
• - IP65 waterproof & dustproof
• - Real-time voltage display for voltage condition monitoring
• - Quick access ADAS calibration features
• - Expand & upgrade your scanner via new module ‘MALL’
• - Numbers of built-in repair guidance & training videos
• - 8 add-on modules
• - 32 service functions

Launch X431 Pad VII Elite Features:


• 1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated
• 2. Upgrade and expand the X-431 PAD VII with more software and service via the new module 'MALL' as demanded
• 3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
• 4. Topology mapping gives a visual checking on DTCs and all systems communication status
• 5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
• 6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
• 7. Advanced diagnostic enable identify VIN automatically and access system quickly
• 8. Guided function for VW and AUDI
• 9. Optional ADAS calibration function increases more revenue
• 10. Advanced coding and programming function
• 11. An extended solutio to support TPMS service
• 12. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
• 13. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C
• 14. The basic functions include read & clear DTC, Bi-directional control, live data graph, wireless software update etc.
• 15. Build-in repair information and training video modules help to track and fix issue fastOptimized advantages
• NEW! Adds CAN Analyzer
• NEW! Adds "X-431 FIX" function (Need to purchase from Mall)

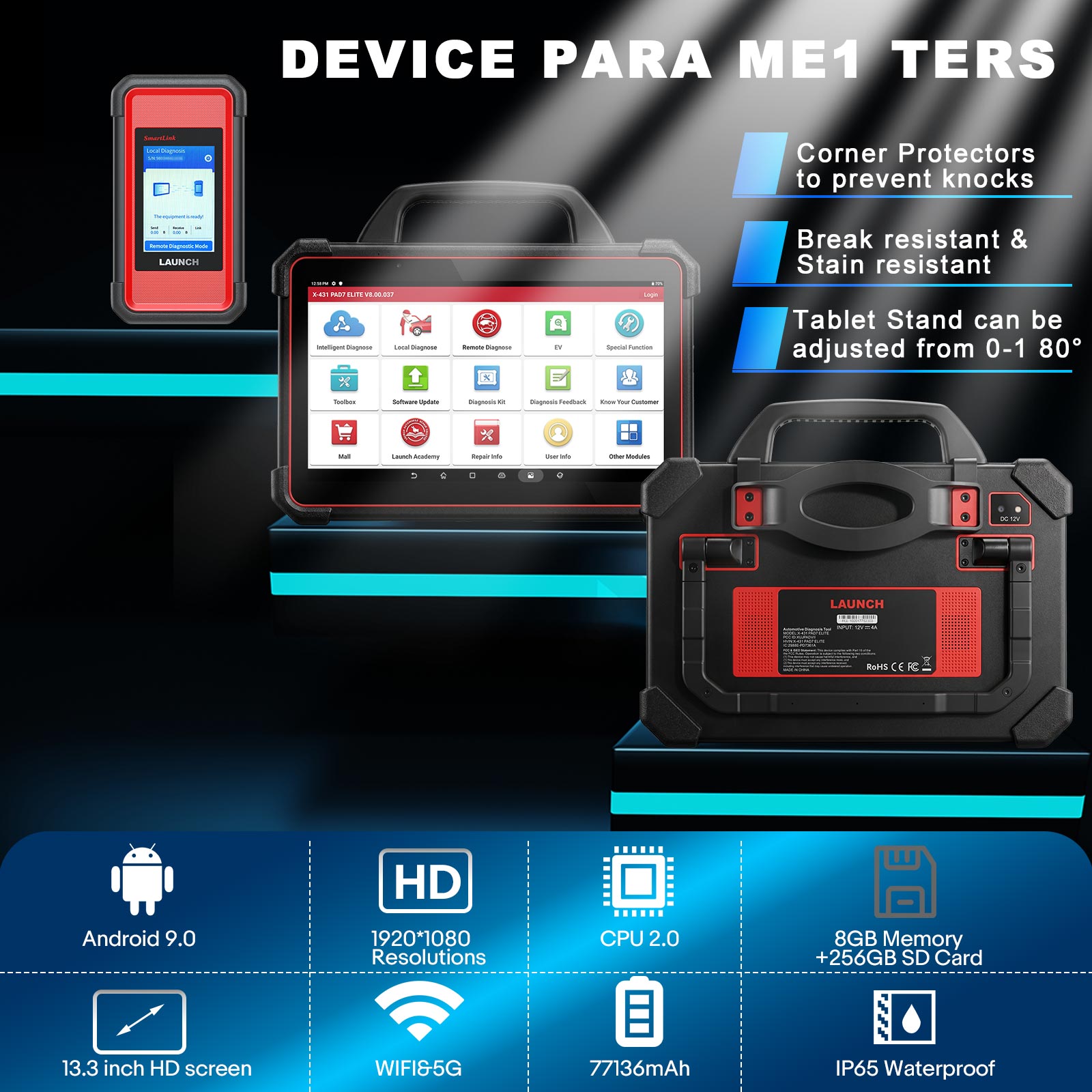

Super Hardware Configuration: Level-Up Configurations: Fast, Accurate, and Results No Delay

• 5G WiFi Communication automatically connects within 20 meters, far better than traditional BT connection in transmission rate, diagnostic
• The remarkably powerful 8-core Cortex-A53 Processor (2GHz) enhances the speed of your programming and diagnostics.
• Experience a visually stunning view with the large and Ultra-sharp 13.3" (1920*1080) Touchscreen, while the Gorilla Glass provides outstanding scratch resistance.
• Benefit from the internal 4G+64G (expandable up to 256G) onboard memory, ideal for storing materials.
• The rechargeable lithium-polymer battery with an impressive capacity of 18,720Ah enables continuous operation for up to 20 hours.
• Connect effortlessly and work from any location in the service bay, thanks to the wireless scanning capability and dual 2.4&5GHz Wi-Fi connection.
• The finely-tuned Android 9.0 KitKat ensures rapid boot-up in just seconds and smooth multitasking.
• IP65 Rating effectively withstands low-pressure jets of water from all directions without any harmful effects.

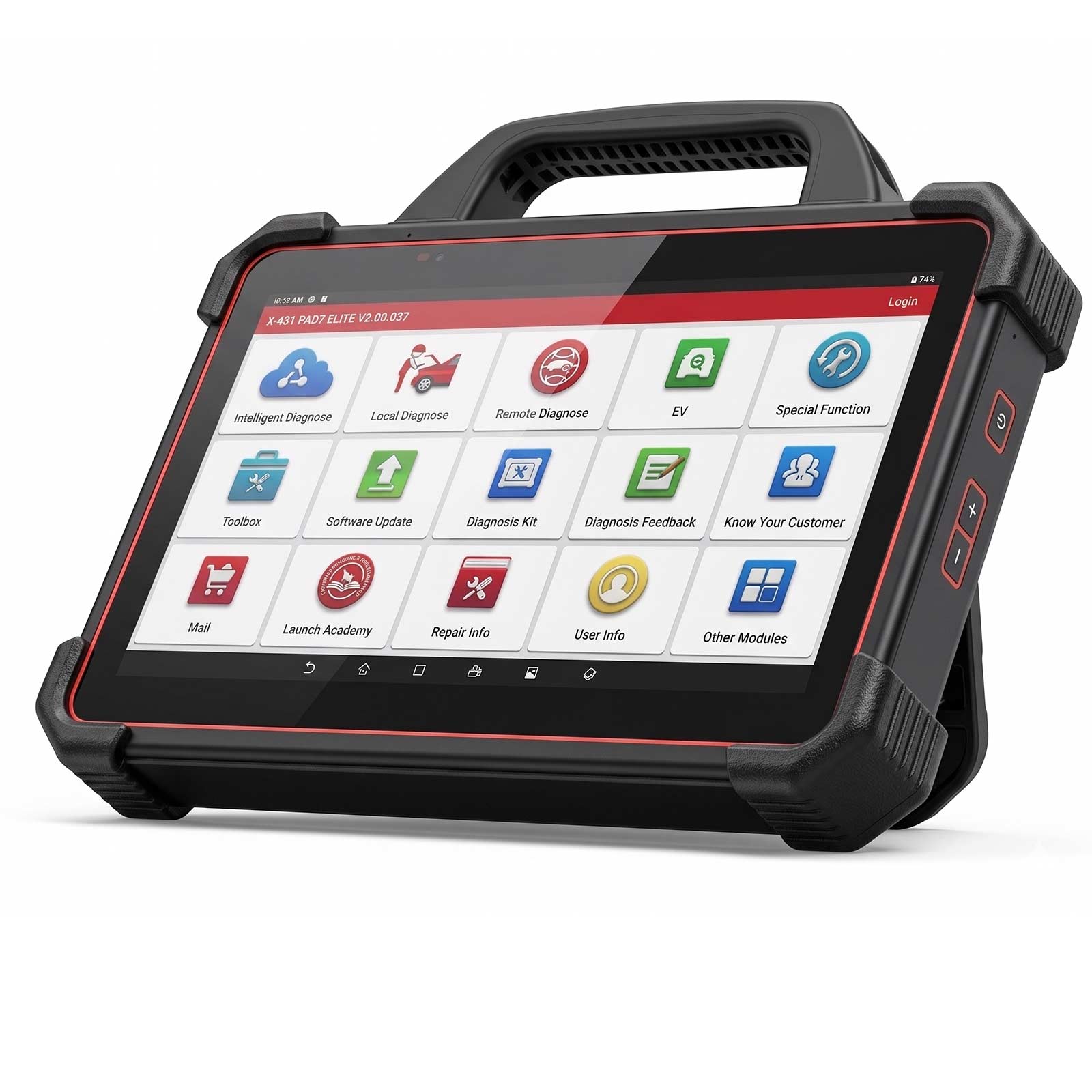

• 180° Adjustable Kickstand allows for more convenient viewing angles, hands-free operation, and space-saving. It also prevents the diagnostic tool from tipping over or sliding on smooth surfaces.
• Its Sleek & Lightweight Tablet-style design features a capacitive touchscreen that responds to your every gesture.



Supports Extended Function Modules:

• Launch motorcycle connector kit: For diagnose motorcycles
• X431 Wi-Fi Printer: print out diagnostic data & reports.
• VSP-600 VideoScope: for up-close visual inspections in confined areas.
• X-431 TSGUN: activate all sensors, relearn & program LAUNCH sensors.
• BST360 Bluetooth Battery Tester: get a thorough test of the vehicle battery.
• Truck software: Supports gasoline cars and diesel heavy-duty trucks DC9-36V (need to purchase truck software separately)
• S2-2 SensorBox: diagnose and simulate vehicle sensor faults quickly.
• O2-2 ScopeBox, Oscilloscope: quickly acquire the circuit signal, and slowly display the waveform to observe and analyze.
• X-PROG & X-PROG3 Immobilizer: for key programming & IMMO service.  Clone Mercedes Benz ECU 2015 upwardss
• Buy  Launch X431 X-PROG 3+ IMMO Function Service, X431 PAD VII Elite will have the same immobilizer function as X431 IMMO Plus or IMMO Elite.
• Launch X431 EV Diagnostic Upgrade Kit : Supports New Energy Battery Diagnostics.  Includes activation card and adapters for specific electric vehicles to perform battery pack analysis. Can diagnose battery pack State of Charge and State of Health on Tesla, BYD and many other electric vehicles.
• Launch X431 Key Remote Maker Able to read Transponder, Generate Launch super chip and universal remote keys, Transponder, Detect Frequency, Detect Ignition switch coil signal, Generate Launch super chip and universal remote key
• ADAS software Calibration: Advanced driver assistance systems, or ADAS is designed to improve driver, passenger and pedestrian safety by reducing both the severity and overall number of motor vehicle accidents. ADAS can warn drivers of potential dangers, intervene to help the driver remain in control in order to prevent an accident and, if necessary, reduce the severity of an accident if it can’t be avoided.
• Smartlink C supports remote diagnosis (needs activation card) 3-in-1 SmartLink C Device: Work as VCI to obtain vehicle data; Provide dual diagnostic modes; Act as a J2534 programming device.



X431 Pad VII Elite come with 32 Service Function:

1. Service Lamp Reset
2. Electronic Throttle
3. Brake Reset
4. Immobilizer Reset
5. Battery Reset
6. Injector Coding
7. SAS Reset
8. TPMS Reset
9. ABS Bleeding
10. Gear Learning
11. DPF Regeneration
12. Gearbox Reset
13. Headlamp Reset
14. Sunroof Initialization
15. SUS Reset
16. EGR Adaption
17. A/F Reset
18. AdBlue Reset
19. Nox Sensor Reset
20. Stop/Start settings
21. Transport Mode
22. Coolant Bleed
23. Windows Calibrations
24. Seat Calibrations
25. Tyre Reset
26. Language Change
27. AC System Relearn
28. ACC Calibration
29. Engine Power Balance Monitoring
30. GPF Regeneration
31. Rotation Angle Sensor Calibration
32. High-Voltage Battery Health Detection

More...


Smartlink Remote Diagnosis Introduction

Smartlink C is a new generation Advanced diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.

* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade

In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:





Software Coverage:

Passenger vehicles:

• 1. Australian: AUST Holden, AUST Ford
• 2. Asian: Toyota/Lexus, Honda/Acura, Mazda, Subaru, Nissan/Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
• 3. European: Audi, Mercedes/Maybach, BMW/MINI/Rolls Royce, VW/Bentley/Bugatti, Opel/Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/Dacia, Fiat/Romeo/Abarth/Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
• 4. USA: USA Ford/Lincoln, GM/Buick/Cadillac/Chevrolet, Chrysler/Dodge/Jeep
• 5. Chinese: Changcheng(Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
• 6. Special: Immobilizer/Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
• 7. Others: EOBD, Demo

Heavy Duty Vehicles (Optional): (Need to Pay Heavy Duty License and Adpater Set):

Software Coverage:

Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine


Powerful special functions:

F Regeneration
Communicates with ABS & Transmissions from Bendix, Wabco and Allison
Tech to Tech remote communication function

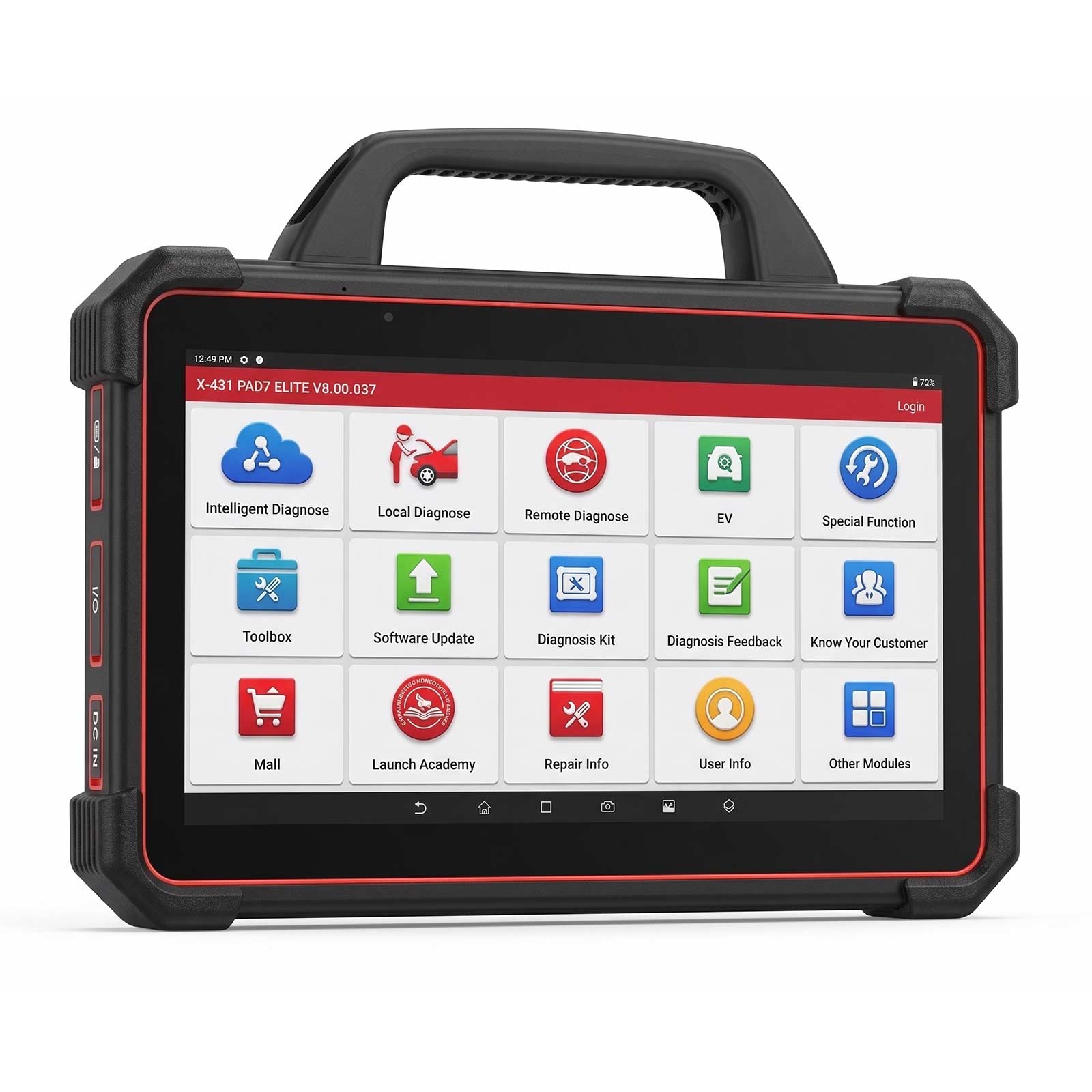

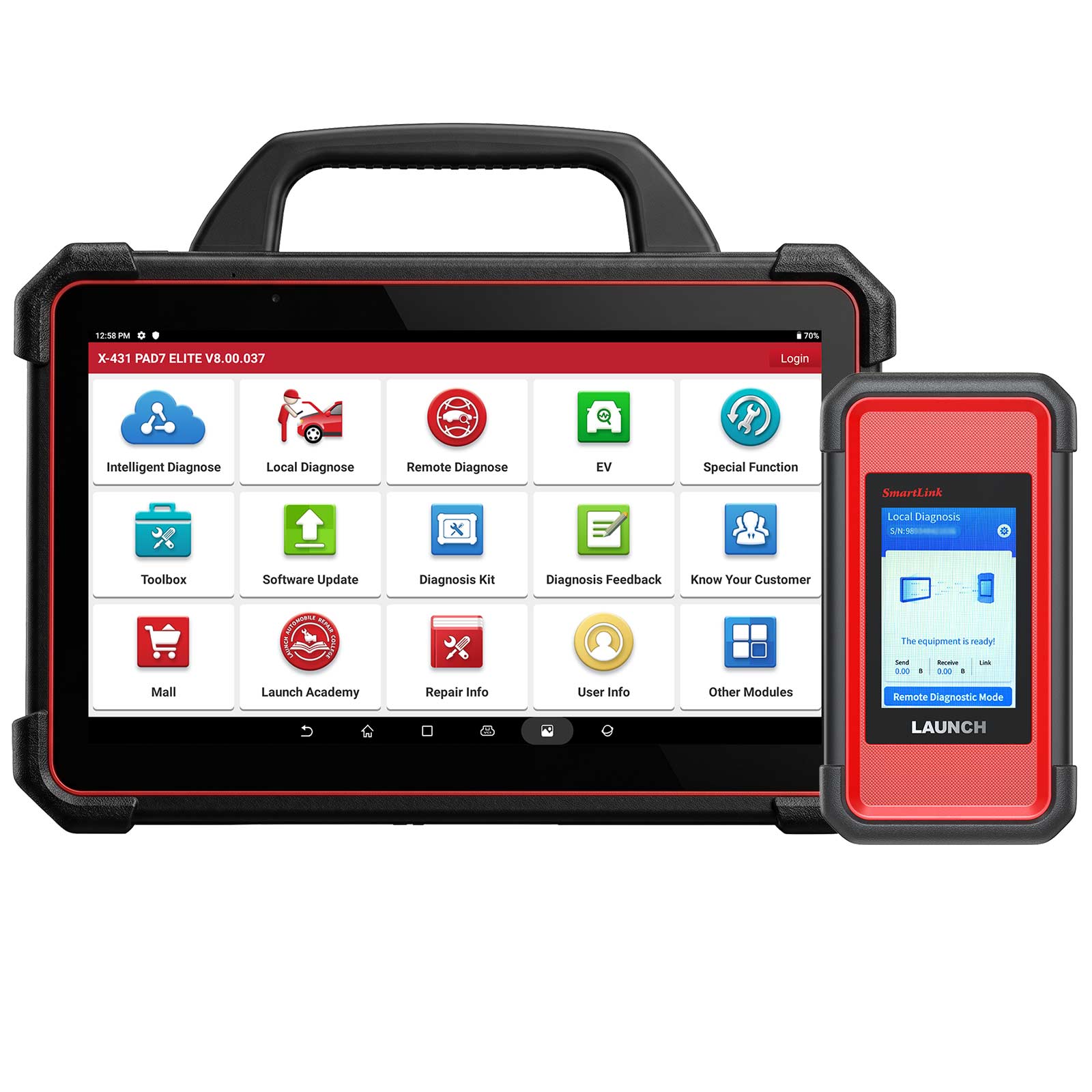

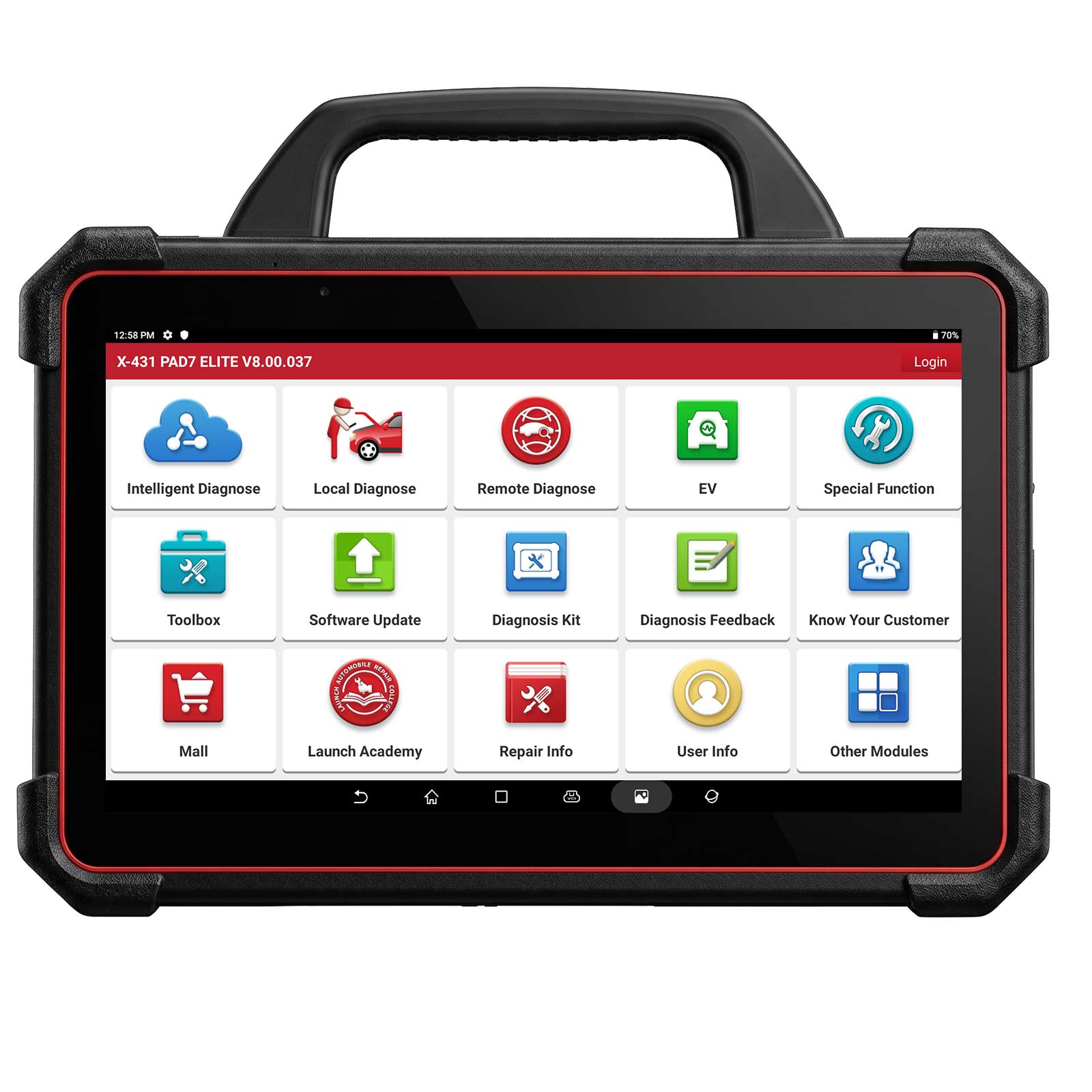

Launch X431 PAD VII Elite Display:

Launch X-431 PAD III 2.0 vs. X-431 PAD V vs. X-431 PAD VII Elite


		Launch PAD III V2.0	Launch PAD V	Launch PAD VII
Configuration
Display		10.1'' / IPS 1920*1200	10.1'' / IPS 1920*1200	13.3''  / 1920 x 1080 IPS
CPU		2.0GHz Octa-core	2.0GHz Octa-core	2.0GHz Octa-core
Memory		2 GB	4 GB	8 GB
Storage		64 GB	64 GB	256 GB
Camera		8MP Rear + 2MB Front	13MP Rear + 8MB Front	13MP Rear + 8MB Front
VCI Connector		DBScar IV	Smartbox 3.0	Smartlink C
VCI Connection		Bluetooth	2.4GHz & 5GHz dual WiFi	2.4GHz & 5GHz dual WiFi
Battery		15000mAh	9360mAh	71.1Wh (≈19000mAh)
Adjustable Supporting Holder		●	●	●
IP65 Waterproof & Dustproof			●	●
Quick Charge Technology			●	●
Charging Station			●
PUSH PUSH Design
Size (mm)		317 * 202 * 53	320 * 211 * 46	353 * 236 * 71
FEATURES
Operating System		Android™ 5.1.1	Android™ 7.1	Android™ 9.0
Full System Diagnosis		●	●	●
OBD II Full Function		●	●	●
Tech-to-Tech Remote Diangosis		●	●	●
Smartlink Remote Diagnosis				●
Auto VIN Identification		●	●	●
Bi-Directional Control		●	●	●
Advanced Coding		●	●	●
VW & AUDI Guided Function		●	●	●
J2534			●	●
DoIP			●	●
RP1210/D-PDU			●	●
Advanced Programming		●	●	●
Complete TPMS Service		with X-431 TSGUN	with X-431 TSGUN	with X-431 TSGUN
Advanced Key Programming		with X-PROG 3	with X-PROG 3	with X-PROG 3
ADAS Calibration		Optional	Optional	Optional
Software Upgrade		WiFi	WiFi	WiFi
Vehicle Coverage		Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)	Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)	Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)
Service Functions		21	26	32 by local diagnosis Get More by Smartlink Remote Diagnosis
SERVICE FUNCTIONS
Brake Reset		●	●	●
Oil Reset		●	●	●
SAS Reset		●	●	●
Battery Match		●	●	●
ABS Bleeding		●	●	●
Elec. Throttle RLRN		●	●	●
TPMS Reset		●	●	●
DPF Regeneration		●	●	●
Gear Learning		●	●	●
Immobilizer		●	●	●
Injector Coding		●	●	●
Sunroof Initialization		●	●	●
SUS Reset		●	●	●
AFS Reset		●	●	●
Gearbox Learning		●	●	●
Adblue Reset		●	●	●
Coolant Bleeding		●	●	●
EGR Adaption		●	●	●
Nox Sensor Reset		●	●	●
Seats Call Bration		●	●	●
Tyre Reset		●	●	●
Windows Calibration			●	●
A/F Reset			●	●
Stop/Start Reset			●	●
Transport Mode			●	●
Language Change			●	●
AC System Relearn				●
ACC Calibration				●
Engine Power Balance Monitoring				●
GPF Regeneration				●
Rotation Angle Sensor Calibration				●
High-Voltage Battery Health Detection				●
More Reset Services				Via Smartlink Remote Diagnosis
Compatible Modules
X-431 ADAS PRO		●	●	●
X-431 ADAS Mobile		●	●	●
X-PROG 3  Immobilizer		●	●	●
X-PROG  Immobilizer		●	●	●
BST360 Battery Tester		●	●	●
WiFi Printer		●	●	●
X-431 TSGUN TPMS device		●	●	●
VSP600 Videoscope		●	●	●
X-431 O2-1 Osciloscope		●	●	●
X-431 S2-2 Sensorbox		●	●	●
HD III Module		●
Remote Diagnosis: Diagnose vehicles without being on-site with Launch scan tools Smartlink Remote Diagnosis: Diagnose vehicles without being on-site with Launch scan tools, OEM tools or other diagnostic tools of different brands.

Launch X-431 PAD VII Elite Specification:

	X-431 PAD VII Elite	Smartlink
Operation System	Andorid 9.0	N/A
CPU	2.0GHz Octa-core	N/A
Display	13.3' touch screen 1920*1080	3.5' touch screen  320*480
Memory	8GB	256M
Storage	256GB	8GB
Camera	Rear 13MP, Front 8MP	N/A
WiFi	Dual Band 2.4 & 5GHz	Dual Band 2.4 & 5GHz
Diagnostic Communication	WiFi	WiFi & BT & USB
Working Temperature	0℃~50℃	0℃~50℃
Dimension	353*236*71 mm	204*110*45 mm

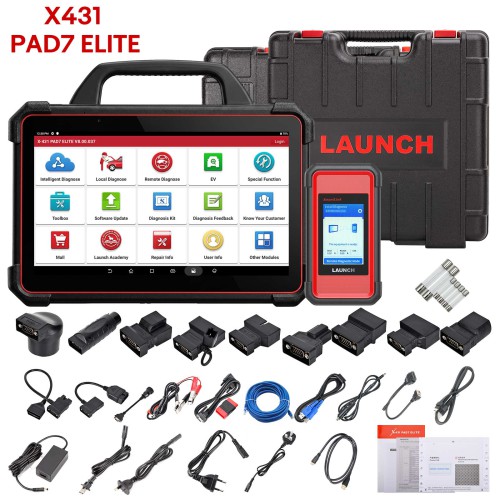

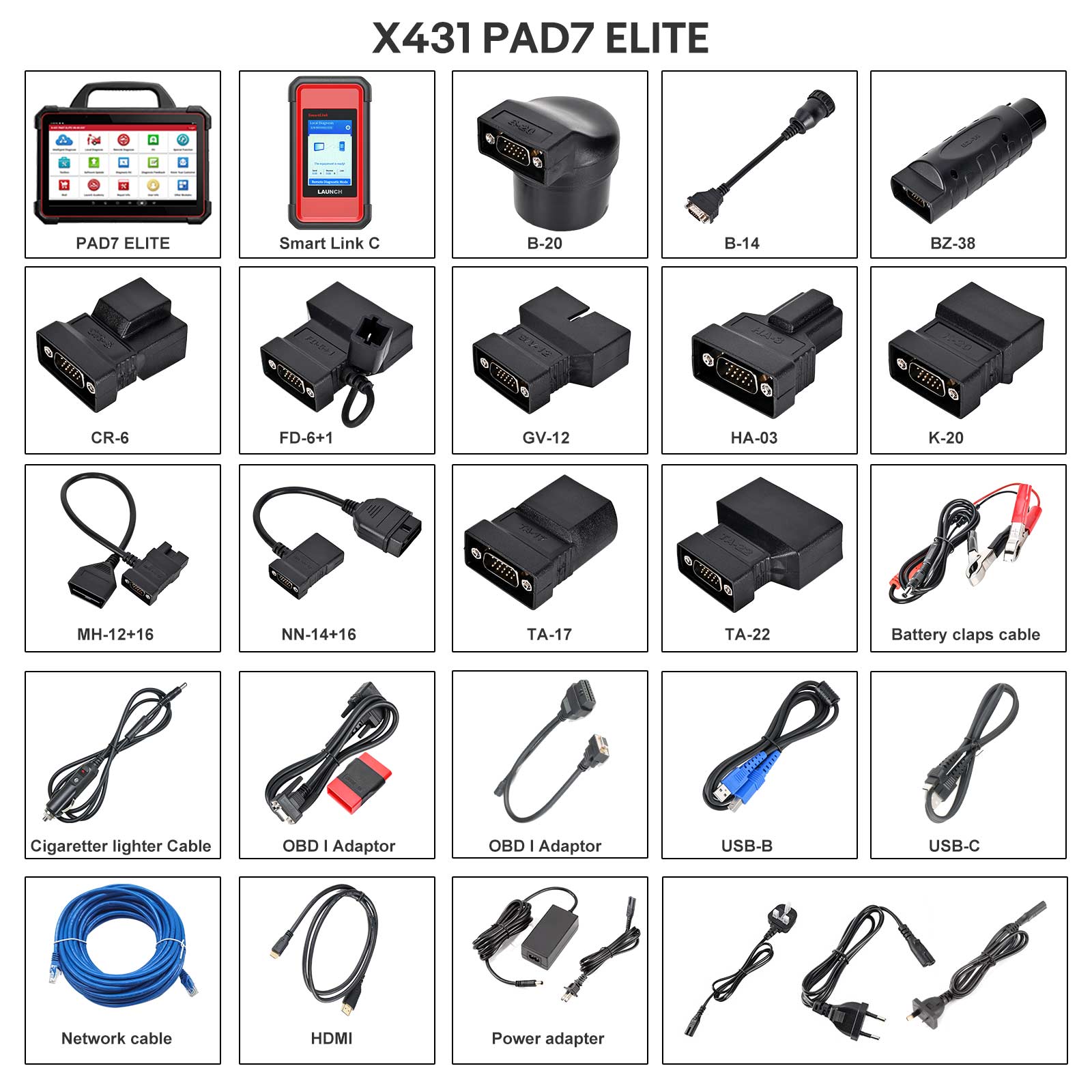

Package List:


1pc x carton
1pc x plastic box
1pc x PAD Ⅶ elite
1pc x smartlink
1pc x main cable
1pc x HDMI
1pc x USB-C
1pc x US power adapter
1pc x OBD2 16-pin adapter
1pc x UK power adapter
1pc x Australia power adapter
1pc x net cable
1pc x USB printer cable
1pc x quick start guide
1pc x product S/N
1pc x packing list
3pcs x software list
1pc x manual
