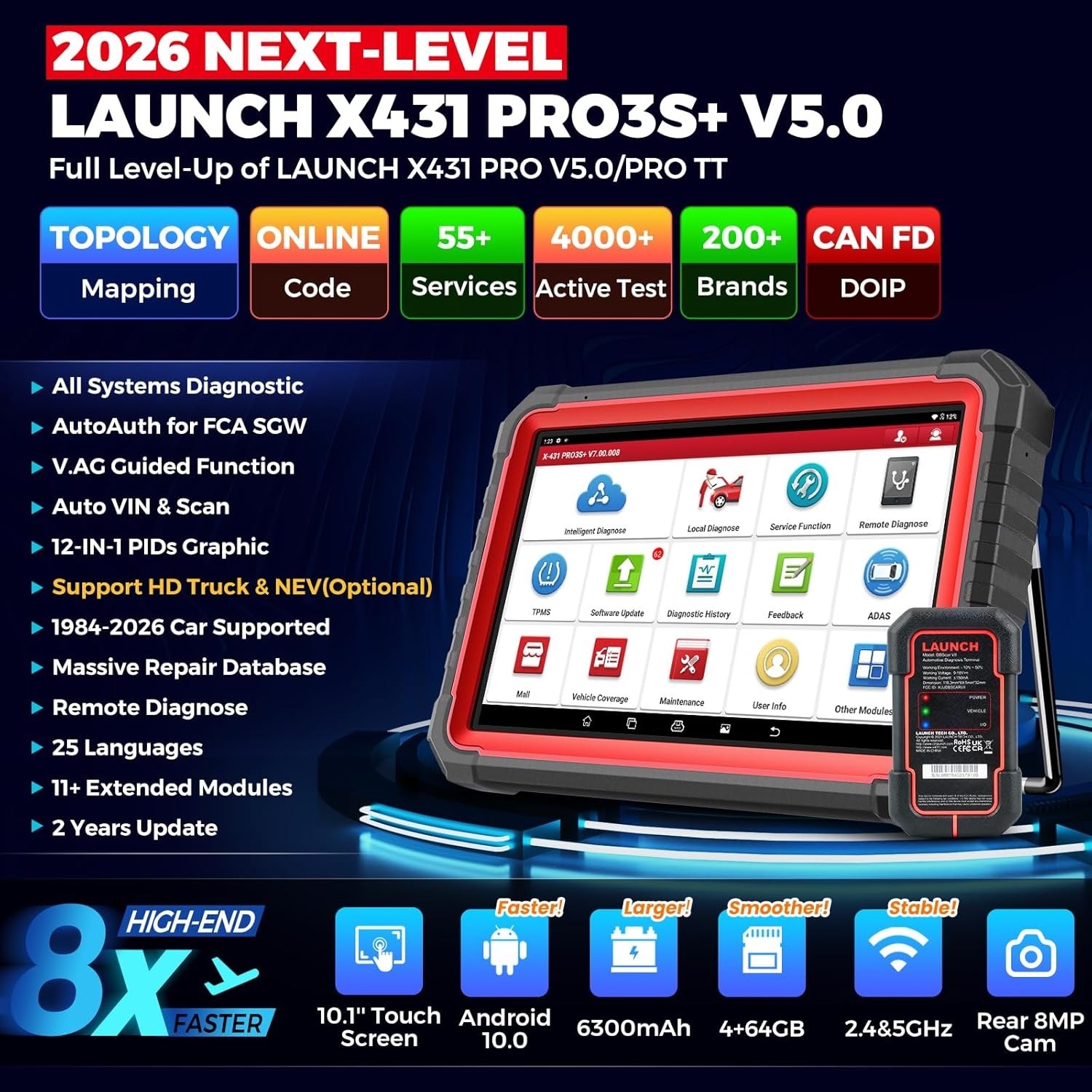

LAUNCH X431 PRO3 S+ V5.0 Scanner With DBSCAR VII Supports CANFD, Topology Map, Online Coding, AutoAuth FCA SGW, VAG Guided, 41+ Reset Service

X-431 PRO3 (PRO3S+ V5.0) is a 10.1-inch advanced smart car diagnostic device developed based on Android 10.0 system. It uses a 2.0Ghz 4-core high-efficiency processor, 4GB RAM + 64GB ROM large storage, and is equipped with a high-endurance battery. It runs faster, more stably and lasts longer. It not only supports passenger car diagnosis but also supports commercial vehicle expansion modules, making the diagnostic function more powerful.

Launch X431 Pro3S+ V5.0 Feature

From Software:

• Global Version, No IP Limitation.
• Update Version of X431 PRO3S+, fully replace
• 2 Years Free Software Subscription.
• Multi-PID Live Data Graphing IN 1 Screen: One screen can display 12 data stream (Graphic and textual), which is easy to navigate.
• 25 language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Simplified Chinese, Traditional Chinese.
• DBScar VII diagnostic connector, supports CANFD and DoIP
• 37+ Service
• Support VAG Guided Function

From Hardware:

• Equipped with a high-endurance battery
• With 9.0 Android-based with large 10.1 HD IPS(1920 * 1200), 7000mAh rechargeable battery(up to 20+ hours battery),
• Updated Hardware than V2.0: Larger Memory Storage, Faster CPU, Upgraded tablet with high pixel and high image quality, Larger Battery Capacity
• 2.4GHz&5GHz dual-band Wi-Fi, 4GRAM+64G ROM(128G expandable storage) to save more vehicle documents and customer data. CPU processor updated from 1.8GHz to 2GHz(4-core) to perform diagnostics quickly and efficiently.

Launch X431 PRO3S+ V5.0 Features:

• Upgraded to DBSCAR VII diagnostic connector, supports CANFD and DoIP (DOIP need the DOIP cable)
• Supports Topology Mapping diagnosis
• Supports Volkswagen Audi guidance function
• Supports 37 special functions such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, etc.
• Wide car model coverage, strong diagnostic function, supports full system diagnosis of all supported car models
• Support VIN code automatic identification function to quickly enter diagnosis
• Supports reading version information, code reading, code clearing, reading data stream, action testing, coding, matching, etc.
• Supports tire pressure activation, programming, learning and detection functions with X-431 TSGUN
• 10.1 inch+Android 10+2.0Ghz 4-core+4GB RAM + 64GB ROM, higher version system, larger storage, and longer battery life, making diagnosis faster, more stable, and more durable.
• Multiple expansion modules support:
  • Launch Wi-Fi Printer: WIFI printers to print out diagnostic data or reports.
  • LAUNCH X431 X-PROG3: Supports functions such as anti-theft programming with X-PROG 3.
  • VSP600 Videoscope: Make X431 PRO ELITE a perfect tool for viewing and capturing video and still images of hard-to-reach areas.
  • TSGUN and RF-Sensor to To activate, program, learn, and detect tire pressure.
  • BST360 Battery Tester: Connecting with this battery tester.
  • X431 SmartLink C 2.0 Truck Module (for gasoline vehicles & 24V Diesel Trucks)
  • ADAS mobile / PRO: perform ADAS calibration operations
  • X431 Key Progmrammer Read Transponder, Generate Transponder, Detect Frequency, Detect Ignition switch coil signal, Generate Remote (Launch X431 remote), and Unlock Toyota smart key, etc functions.
  • O2-2 Scopebox: detects high level faults on various electrical components, such as sensors, acturators and circuits.
  • S2-2 Sensorbox: diagnosing/testing/simulating most vehicle sensor faults
  • Launch X431 DoIP 16Pin Cable  DBScar VII could work with Doip protocols

What is the new feature of X431 PRO3S+ V5.0 compared with PRO3S+?
X431 PRO3S+ V5.0 is with DBScar VII, PRO3S+ with DBScar IV


Launch X-431 PRO3S+ V5.0) Functions:
1. ALL-System ALL-Function Diagnostics
2. Full Bi-directional Control ((Active Test))
3. ECU Coding & Online Coding & Key Programming
4. Support OBD I & OBD II Vehicels
6. 31+ OE-LEVEL Relearn Reset Service
7. ADAS Calibration(optional)
8. Health Report Generate & Share & Print
9. Guided Function for compatible with VW, AUDI, SKODA, SEAT (Step-by-Step Guide)
10. Stable WIFI Connection
11. Anti-Theft IMMO Service
12. Refresh Hidden Features
13. Cover 10,000+ models
14. Full Set Car Connector and Cable Kit
15. Work with SmartLink c 2.0 to Test 24V Truck. (Need extra-buy)
16. Multi-language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Simplified Chinese, Traditional Chinese.

X431 PRO3S+ V5.0 Functions:

1) ECU Coding

LAUNCH X431 PRO3S+ V5.0 scanner is a bi-directional scan tool that can control various sub-systems or components to perform active tests (also known as component tests) like turn fuel pump on/off, cycling the A/C Clutch on/off, EVAP test, windows, doors, sunroofs, wipers and more, to determine the integrity, monitor the operations to check whether they are functioning properly or not and quickly locate the fault causes.

• Online/Offline Coding: LAUNCH X431 PRO3S+ V5.0 diagnostic scan tool has the capability of ECU coding to change preprogrammed options in the software, helping you customize your car faster as needed. Optimally code your car by changing some settings to fit your needs, such as setting alarms, doors locking, etc.
• Reflash Hidden: Access the ECU to make full use of the hidden features or disable the car’s annoying functions, like activating the auto side mirrors folding function, disabling the automatic engine Start or End function, etc. Provide excellent solutions for issues of drivability, power loss, fuel efficiency, etc. to improve the car’s performance.
• Matching: Reprogramming the adaptive data, matching and synchronizing the components for certain components after repairs or replaces the modules.

Please Note: ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU coding is not universally compatible and varies for different vehicles.

ECU Coding Compatibility

• Online Coding: BMW, VW, Audi, Skoda, SEAT, Porsche, etc.
• Offline Programming (Variant Coding): BENZ, Ford, Mazda, Vauxhall, Opel, etc.
• Flash Hidden Functions: Benz, BMW, VW, Audi, Skoda, SEAT, Porsche, Jeep, Dodge, Chrysler, Toyota, Honda, etc.

Power Balance Test: Cylinder power balance testing can help uncover hidden engine issues related to engine misfires, lack of power or just a poor running engine, which is commonly missed with other tests. It's one of the best and easiest ways to find the source of a engine misfire. Furthermore, cylinder power balance testing is often used along with a cylinder compression and cylinder leakage tests to further pinpoint the problem.

• PMI(Proarammable Module Installation): LAUNCH X431 PRO3S+ V5.0 Support PMI function, Compatible with Ford /Lincoin/ Mazda etc. This function is used when you need to replace a module (replace ECU) or initialize a module.No need using the J2534 or buying a subscription.
• Guided Function for VAG vehicles: LAUNCH X431 PRO3S+ V5.0 car scan tool provides step-by-step repair guidance for technicians.the function of guiding the use of the product to prevent the car setting caused by wrong operation.Compatible with VAG series vehicles(Volkswagen / Audi / Skoda / Seat etc.)

AutoAuth for FCA/ SGW: Use the latest software update function AutoAuth to provide OBDII diagnosis, active testing, calibration, etc. for modern FCA/SGW vehicles, making the diagnostics more secure.Applicable to FCA vehicles equipped with a security gateway module (SGW) in 2017 and later (NOTE: FCA Americas can be registered and used)


2) Actuation Test (BI-Directional Control )

LAUNCH X431 PRO3S+ V5.0 car scanner diagnostic tool features full bi-directional control ability, to send commands to vehicle’s systems/components, to verify system input/output without using the vehicle's controls, e.g. turn on the radiator fan, modulate the throttle, open/close windows, operate mirrors, Injector Buz Test, turn on interior & exterior lights, sound horn, test door lock actuators and such.

3) OE-LEVEL Advanced Functions:

Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.
AutoAuth for FCA/ SGW,:Use the latest software update function AutoAuth to provide OBDII diagnosis, active testing, calibration, etc. for modern FCA/SGW vehicles, making the diagnostics more secure. Applicable to FCA vehicles equipped with a security gateway module (SGW) in 2017 and later (NOTE: FCA Americas can be registered and used for free)
Cylinder Balance Test/Cylinder leakage test/Cylinder Pressure variations.
Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.
Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Anti-theft IMMO Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Power Balance: Compatible with Chrysler / GM / Ford etc.
Programmable Module Installation: Compatible with Ford / Mazda etc.
Flash Hidden Functions: Compatible with BMW / Porsche / Toyota / Subaru etc.
Key Programming : Add, Delete & Reprogram Keys, Rewrite smart keys, Replace smart key ECU, Replace KNOB IGNITION; Reset Key: Relearn a key.


4) 37+ Professional Special Functions

LAUNCH X431 PRO3S+ V5.0 provides many powerful special functions for precise test of the vehicle's health status.

Note: You can find 21 kinds of commonly used reset functions in the reset menu, and other special functions in the car brand diagnostic software menu.

1. OIL RESET–Reset the oil life systems every time the oil and oil filter are changed;
2. FUEL INJECTOR CODING–Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
3. BRAKE RESET–Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
4. SAS RESET–Perform steering angle sensor calibration and clear records;
5. BAT RESET–Evaluate the battery charge state, monitor the closed-circuit current, register the battery replacement, etc.;
6. ABS BLEEDING–When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
7. ELEC.THROTTLE RLRN–Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state;
8. TPMS RESET–Tire pressure resetting is required to be performed after maintenance is performed;
9 .Key CODING: Help ECU to recognize the new keys when you need to add new keys.
10. DPF REG–Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;
11. GEAR(Crank Position Sensor Adaptive) LEARN–Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced. (Available in the system menu and free.Depending on the specific car models, not for all cars, ). and more and more function will be improved and optimized.
12. EPB RESET–Help replace and reset the brake pad.
13. AFS HEADLAMP RESET–Initialize the adaptive headlamp system.
14. SUNROOF INITIALIZATION–The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
15. SUSPENSION RESET–Adjust the vehicle body height sensor for level calibration.
16. GEARBOX RESET–Help complete the gearbox self-learning to improve gear shifting quality.
17. TIRE RESET–Set the size parameters of the modified or replaced tire.
18. A/F RESET–Set or learn Air/Fuel ratio parameters.
19. ADBLUE RESET(Diesel Engine Exhaust Gas Filter)–Reset urea after the diesel exhaust treatment fluid is replaced or filled up.
20. COOLANT BLEEDING - Activate the electronic water pump.
21. NOX SENSOR RESET - Reset catalytic converter learned value stored in ECU.
22. STOP/START RESET - Set up the automatic start-stop function in ECU.
23. SEAT CALIBRATION - Calibrate the memory in replaced or repaired seats.
24. TRANSPORT MODE - Deactivate the transport mode.
25. WINDOWS CALIBRATION - Perform door window matching to recover ECU initial memory.
26. AC SYSTEM RELEARN/INITIALIZATION.
27. EGR RESET.
28. RESET FUEL ALCOHOL LEVEL.
29. RESET FUEL TRIM.
30. HIGH VOLTAGE BATTERY DIAGNOSTICS.
31. GPF REGENERATION.
32. LANGUAGE CHANGE - Change vehicle system language, etc.

(Available in the system menu and free. Depending on the specific car models, NOT for all cars. ) More and more function will be improved and optimized.


5). Functions New Added:

1. For ASTONMARTIN diagnostic software is downloadable.

2. For HONDA: Added Integrated Driver Assistance System (ADASTYPE) and OTAMG system. Optimized camera calibration function for vehicle models such as CIVIC and HR_V etc.

3. For PORSCHE: Optimized the part numbers for MACAN,991,981,Cayenne,Panamera,992,Taycan, etc. Synchronously supported system-wide diagnostic functions to the models up to 2022.

4. For SUZUKI: For 2021-2022 systems such as ECM, TCM, ABS, and BCM, added identification codes and the corresponding DTCs, data streams, actuation test, and special functions.

5. Added or completed special functions including Manual Logistic Mode Procedure Enable, Heated Steering Wheel Calibration Update, Diesel Particulate Filter functions, Reset driven distance with water in fuel lamp ON, Zero Fuel quantity Calibration function reset, Program Nominal Tire Pressure Values, Range Position Sensor Reset (2 Speed Transfercase Only), Max Vehicle Speed Adjustment, PLGM Power Learn Calibration Test for vehicle model 2018 Renegade, 2019 Cherokee, 2019 Compass, 2019 Grand Commander, 2020 Renegade, 2021 Compass, 2021 Durango, 2021 Gladiator, 2021 Ram 1500, 2021 Renegade, 2021 Wrangler, 2022 Compass.

6). More Functions:

Easy Data Printing and Sharing

LAUNCH X431 PRO3S + V5.0 automatic diagnostic scanning tool enables diagnostic technicians to generate diagnostic reports before and after car diagnosis and repair service, so that the diagnostic reports can be printed out or sent to customers through the Internet and compared or shared with customers.

Report printing and upload

After successful completion of the diagnosis, this diagnosis tool can automatically generate a diagnosis report. The generated diagnostic report will be saved and sent to e-mail. You can print a diagnostic report to ask others for help or record historical fault information. With the help of a Wi-Fi connection, you can even upload a diagnostic report and find a solution with people who are familiar with car repairs or who have encountered the same problem.

One-Click Generate Health Report

Health Report will scan all vehicle modules and give you a status list for each modules condition. Also known as "Global Test" or "Full Scan" .This diagnostic tool can automatically generate a diagnostic report when diagnostic work is successfully finished.The reports are saved to the internal memory for later review. The reports are able to be saved in PDF format, and as the tablet is equipped with WIFI, these can be sent to the office or directly to the customer.

How to choose Launch X431 V V5.0, V+ V5.0, PRO3S+ V5.0?

Item	X431 V V5.0 (Pro V5.0)	Launch X431 V+ V5.0 (Pro3 V5.0)	X431 Pro3S+ V5.0
Item Number	SP183	SP184	SP415-B
Update	2 Years Free Update	2 Years Free Update	2 Years Free Update
Screen	8 inch, 1280*800 pixels	10.1 inch, 1280*800 pixels	10.1 inch, 1280*800 pixels
System	Android 10.0	Android 10.0	Android 10.0
Processor	Quad-core 2.0GHz	2.0Ghz 4-core	2.0Ghz 4-core
Memory	4GB	4GB	4GB
Storage	8GB	64GB	64GB
Battery	7.6V, 6300mAh	7.6V, 6300mAh	7.6V, 6300mAh
Camera	Front 5Megapixels Rear 8 Megapixel	Rear 8 Megapixel	Rear 8 Megapixel
WiFi	2.4GHZ/5GHz dual frequency	2.4GHZ/5GHz dual frequency	2.4GHZ/5GHz dual frequency
Port	Type A and Type C	Type A and Type C	Type A and Type C
VCI	DBScar VII	DBScar VII	DBScar VII
Connection Ways	WiFi, Bluetooth	WiFi, Bluetooth	WiFi, Bluetooth
CAN FD	Yes	Yes	Yes
DoIP (Need buy DOIP Cable)	Yes	Yes	Yes
Full System Diagnosis	Yes	Yes	Yes
ECU Coding	Yes	Yes	Yes
AutoVIN	Yes	Yes	Yes
Special functions	Yes, 37+	Yes,  37+	Yes,  37+
VAG guided function	Yes	Yes	Yes
FCA Autoauth	Yes	Yes	Yes
Topology Mapping	No	Yes	Yes
Expansion Modules
Truck module	Not work with SmartLink c2.0	Yes, need buy Smartlink C2.0 Module	Yes, need buy Smartlink C2.0 Module
TPMS Module	Yes (Launch i-TPMS or TSGUN)	Yes (Launch i-TPMS or TSGUN)	Yes (Launch i-TPMS or TSGUN)
X-prog3 IMMO	Yes	Yes	Yes
BST-360 Battery Tester	Yes	Yes	Yes
VSP-600 endoscope	Yes	Yes	Yes
Wifi printer	Yes	Yes	Yes
ADAS	Yes	Yes	Yes
X431 EV diagnostic Kit	Yes	Yes	Yes

X431 PRO3S+ V5.0 Technical Parameters
Display Tablet
Operating system Android
Memory 4GB
Storage 64GB
Screen 10.1 inch capacitive touch screen with a resolution of 1280 x 800 pixels
Camera Rear-facing 8.0MP camera
Communication Bluetooth/USB
Working temperature 0℃ ~ 50℃
Storage temperature -20℃ ~ 70℃

VCI Connector
Working voltage 9 ~18V
Power consumption ≤2.0W
Working temperature -10℃ ~ 50℃
Relative humidity 20% ~ 90%

Package Includes:

1pc x Display tablet
1pc x VCI connector
1pc x HDB15F to HD15F data cable
1pc x HD15M to OBD II 16 adaptor
1pc x Password envelope
1pc x Power adaptor kit (1 + 2 switching adaptors)
1pc x Type-A to Type-C USB cable
1pc x Multilingual quick start guide
1pc x User manual
1pc x Non-16 pin adaptor kit
