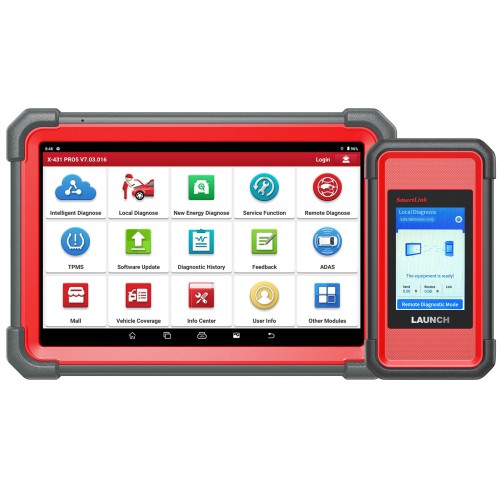

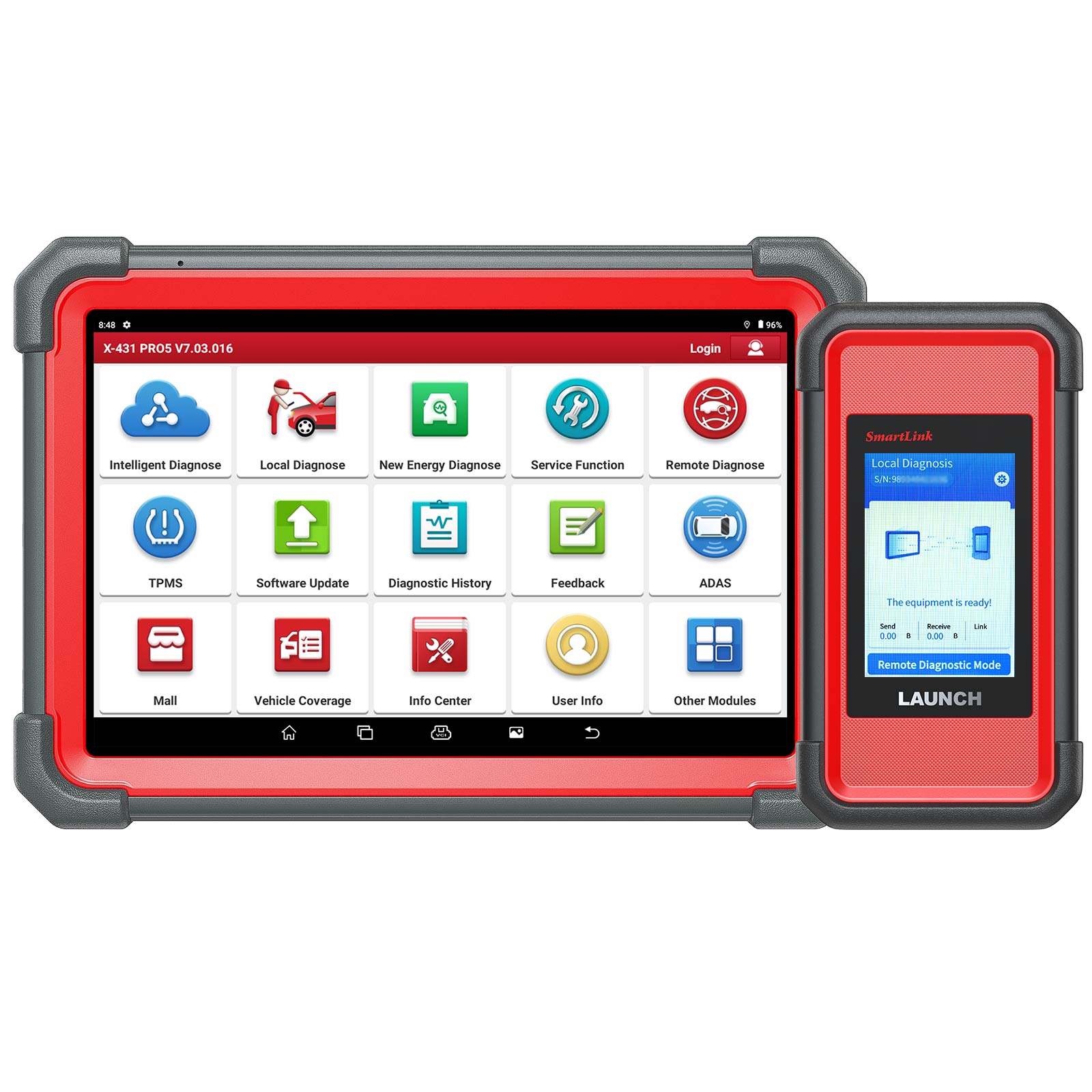

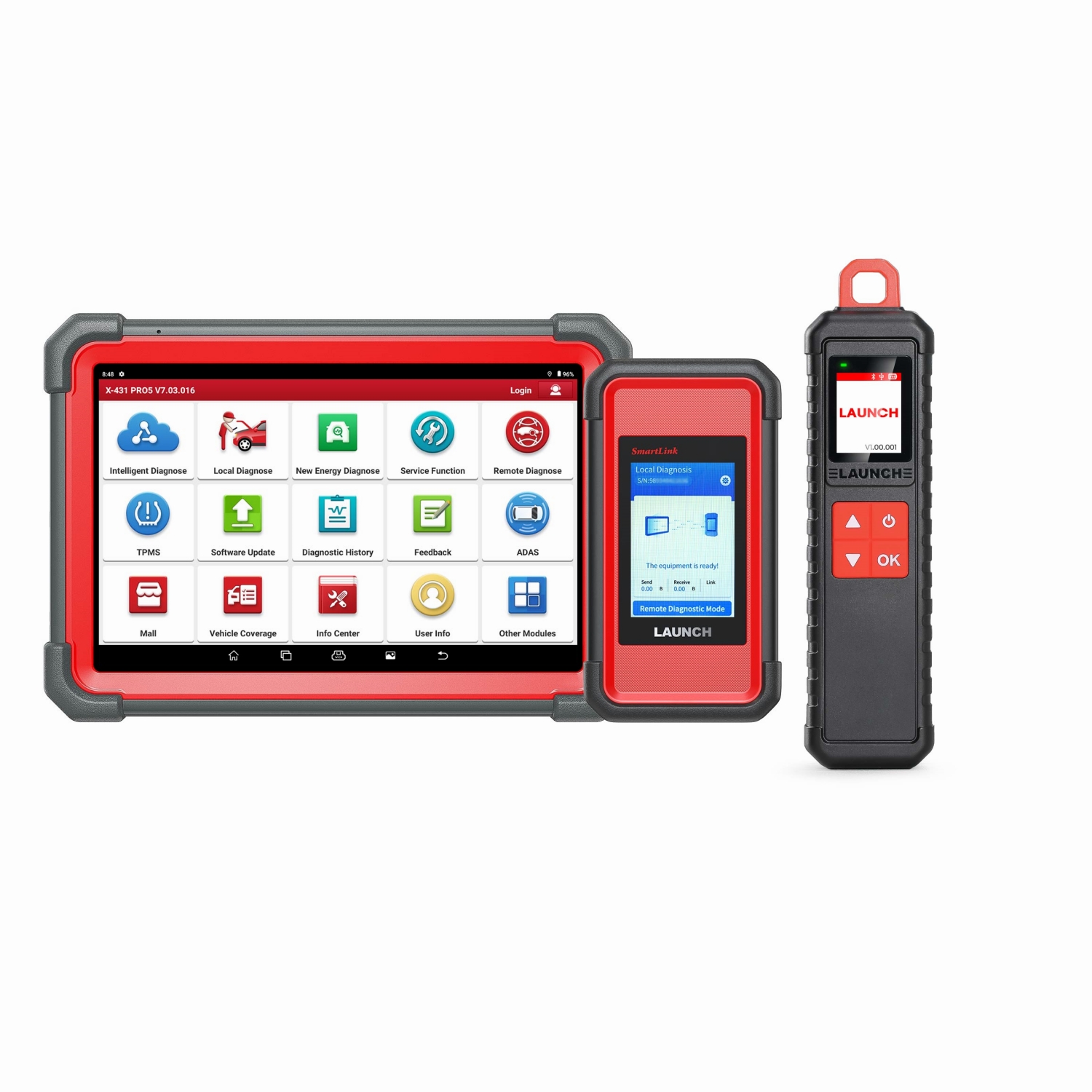

US/UK/EU Ship No Tax Launch X431 PRO5 PRO 5 with SmartLink C2.0 Full System Diagnose J2534 ECU Programming + Launch i-TPMS Handheld TPMS Service Tool

Product Description

• New Arrivals ！NEWEST X431 PRO5 with Smartlink C2.0 !
• Super-remote service support is available (requires additional purchase of remote service). license comes with 3 times, if times run out, you need to buy extra.
• Dual diagnosis mode (local diagnosis and super remote diagnosis)
• Online Programming for BMW & Benz.
• Adds Topology Mapping function
• No IP limitation, 2 Years Free Update Online, 1 Year subscription is $350/year./ 2 years subscription $399
• Multilingual Support: Chinese Simplified, English, Traditional Chinese, Japanese, Korean, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian, Finnish, Hungarian, Swedish, Turkish, Serbian, Croatian
• J2534 Reprogramming Tool LAUNCH X431 Smartlink C2.0 – 1) Fix the most vehicles’ problems with broad vehicle coverage; meet SAE standards for J2534-1 & -2, CANFD, DOIP and support DC9-36V (Operating voltage) for HD Vehicles (need the extra purchase of HD software, non-16pin HD adaptors); 2) also serves as a wireless VCI.
• Advanced Intelligent Diagnostics – AutoVIN & AutoScan accelerates all-systems DTC scans that clock in at an average of < 3 minutes.
• Send Commands with Bi-directional Controls – Effectively test car components on demand.
• FCA AutoAuth Access – Bypass SGM in FCA vehicles seamlessly and within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. *Need AutoAuth subscriptions.
• VAG Guided Function – Skip the routine procedure of entering the security access code & channel number for VW, Audi, Skoda, Seat vehicles.
• Non-16pin Connectors & Cables Kit: Enable to work on varied vehicles across the world.
• User-Oriented - One-touch software updates
• Great Combination: Android 9.0 OS, 8-core 1.8GHz processor, 4GB RAM & 64GB ROM (128G expandable), 10.1” HD 1920*1200 touchscreen, 8MP rear & 5MP front camera, 7000 mAh battery, etc.
• Add Modules to Expand Features

X431 ADAS Moblie/ ADAS PRO: Calibrate a wide range of camera-based & radar-based driver assistance systems
PROG-3 Key Matching: IMMO For VAG Group Above 3.5, Vehicles that require cloning are not compatible with this accessory
WIFI Printer (Print out diagnostic data/ reports.)
BST360 battery test.(For Battery Cranking system Test, Battery Charging system Test, Battery Health Test)
Launch VSP-600 Video Scope: Check unseen parts and give you a direct image of the engine, gears, compressors, headers and valves, and body components.
TSGUN (Not only can you use it to activate the sensor's ID, tire pressure, sensor frequency, tire temperature, and battery status.)
Heavy Duty Module: Working on both heavy-duty (Class 4 through 8) and medium-duty trucks (Such as heavy trucks, city buses, bulldozers, excavators, etc.)
O2-2 Scopebox: detects high level faults on various electrical components, such as sensors, acturators and circuits.
S2-2 Sensorbox: diagnosing/testing/simulating most vehicle sensor faults



Newly Add Online Programming for BMW & Benz(need configuration, check how to setting X431 PRO 5 online programming)

LAUNCH X431 PRO5 scanner programming tool allows you directly download OEM programming software and program data into vehicle ECUs (for BMW & Mercedes-Benz series). It takes better care of all the situations that need ECU programming and achieves dual programming (Automatic+Manual) modes to save failed programming. Whenever you need it, it will be there.

• Replace New Blank Modules: Some parts or modules physically need to be replaced. LAUNCH X431 PRO5 can help you to program adaptive data to make the new modules communicate with other modules.
• Repair ECU with Data Loss: Suit for insufficient car battery voltage resulting in module data loss.
• Upgrade ECU Software Version: Require upgrade to fix bugs in module software and get more new functions.
• Reprogramming Operation (Exclusive!): Restore original software data when module programming failed.
• Note: You need to message our post-sale for get the operation access of “Online Programming Function” for BMW & Benz. and the online programming Can't perform in Portugual, Canada and Spain

Launch X-431 PR05 Descriuption:

X-431 PR05, the innovative revolution of intelligent diagnosis. It opens the era of dual diagnostic modes . X-431 PRO5 not only inherits the powerful diagnostic strength of the PRO series but also supports SmartLink remote diagnosis and requests support from SmartLink B of the third-party diagnostic devices that support Launch's diagnostic tools, J2534 and specialized detection equipment, with features not limited to the diagnostic functions of the device under control.

LAUNCH X431 PRO5 Functions:

1. J2534 ECU Programming
Serve as J2534-Compliant VCI - compatible with Toyota, Honda, Volvo, VW, GM, Chrysler, Benz, Jaguar, Land Rover; offering cost-effective access to data and OE programming downloads from vehicle manufacturers.


2. ECU Coding: Alter the Car on Your Demand
From manufacturer-specific reprogramming to full diagnostic capability, this LAUNCH diagnostic scanner also has the magic power “ECU Coding” to keep you on the cutting edge:
1)You can match, relearn, and code the newly installed ECU module after making repairs or replacements.
2) You can change the market-specific settings to activate higher-level car functions and disable unneeded features, breaking limitations.



3. Active Test: Enhance Your Experience.
This X431 scan tool also functions as a bi-directional car scanner to perform specific tests and functions without using the vehicle’s own controls to save time. For example: using the diagnostic tool to command the fuel pump. If the fuel pressure gauge shows proper fuel pressure, you’d know the fuel pump circuit and pump are functioning properly. The process just takes < 5 minutes. If testing manually? Three times as long!



4. Guided Functions
Guiding you to be an expert in automotive diagnostic.
Compatible with Volkswagen / Audi / Skoda / Seat etc.

5. Advanced ALL Systems Diagnoses
This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
1) Retrieve ECU information including unit type, version numbers, and other specifications, etc.
2) Read & erase DTCs to locate problem areas and clear the codes.
3) View Live Data of each parameter item.
4) This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance performance, save energy, reduce emissions, and everything else.



6. 50+ Hot Reset & Relearn Maintenance Services
You can easily choose multiple commonly-used service functions, follow their clear and precise instructions to complete complex projects much faster, including but not limited to the following:

• Oil Maintenance Light Reset: reset the oil service lamp; re-calculate the optimal oil life change interval.
• Steering Angle Reset: reset the steering angle to zero to keep the car running straight.
• Injector Coding: write the new injector code into the system to correct cylinder injection quantity.
• Electronic Parking Brake Reset: help replace and reset the brake pad.
• ABS Bleeding: help exhaust the air in ABS system in an easy way.
• Throttle Matching: initialize the throttle actuators to the default state.
• Battery Matching: register the battery after replacement.
• DPF Regeneration: help remove the particulate matter to keep the trap stable.
• Anti-theft Matching (IMMO Service): disable lost keys to prevent the car from being stolen, and add new keys. *Limited in default; can be fully upgraded with X-PROG & X-PROG3.
• Tire Pressure Reset: reset the tire pressure.
• Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.
• Headlight Matching: initialize the adaptive headlamp system.
• Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.
• Sunroof Initialization: initialize the sunroof when to be locked off, or closed.
• Tooth Learning: help to finish tooth learning after changing crankshaft in the car engine.
• NOTE: Explore more service functions by accessing menus of Vehicle Brand -> System Diagnostics -> Special Function.

And many more with expanding. Function menus vary by manufacturer, year, and model. Reach us for compatibility check.
NOTE: *Explore more service functions by accessing menus of “Vehicle Brand -> System Diagnostics -> Special Function”.




7. TPMS Programming
Activate all sensors, TPMS relearn, Program

8. AUTO VIN: Maximize Your Intelligence
This intelligent scanner will automatically identify the make, model, and manufacture year in one touch; help you match the right software so the diagnosis will be carried out fast and efficiently. You will also enjoy how smart it would be to record the test results as Inspection Report, being done by itself, letting you maintain vehicle health logs and share the information easily.

9. Remote Diagnosis
Users can carry out the remote diagnosis to ask for the remote control from other LAUNCH diagnostic tools (including but not limited to V+ 4.0), which are equipped with the remote diagnosis module as well, or from a PC client technician. This has realized the reality that a mechanic can diagnose an abnormal vehicle, which is even thousands of miles away.

10. Health Report Generate and Share
With LAUNCH X431 Pro 5, you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.

11. Print Diagnostic Result
You can share car diagnostic data via email, then print it via PC or optional wifi, and you can order Launch x431 mini wifi printer, then one-key printing.

12. Boost Your Efficiency
See what your car is doing in real-time; get car performance, sensor data, and more at one glance!
This diagnostic scanner presents the live data stream in 3 modes:
a. Numbers and lists (default);
b. Wave patterns (max. 12 channels on one screen);
c. Merged graph (max. 4 data can be merged) for you to quickly identify if the data are in normal conditions, ranges, or not.

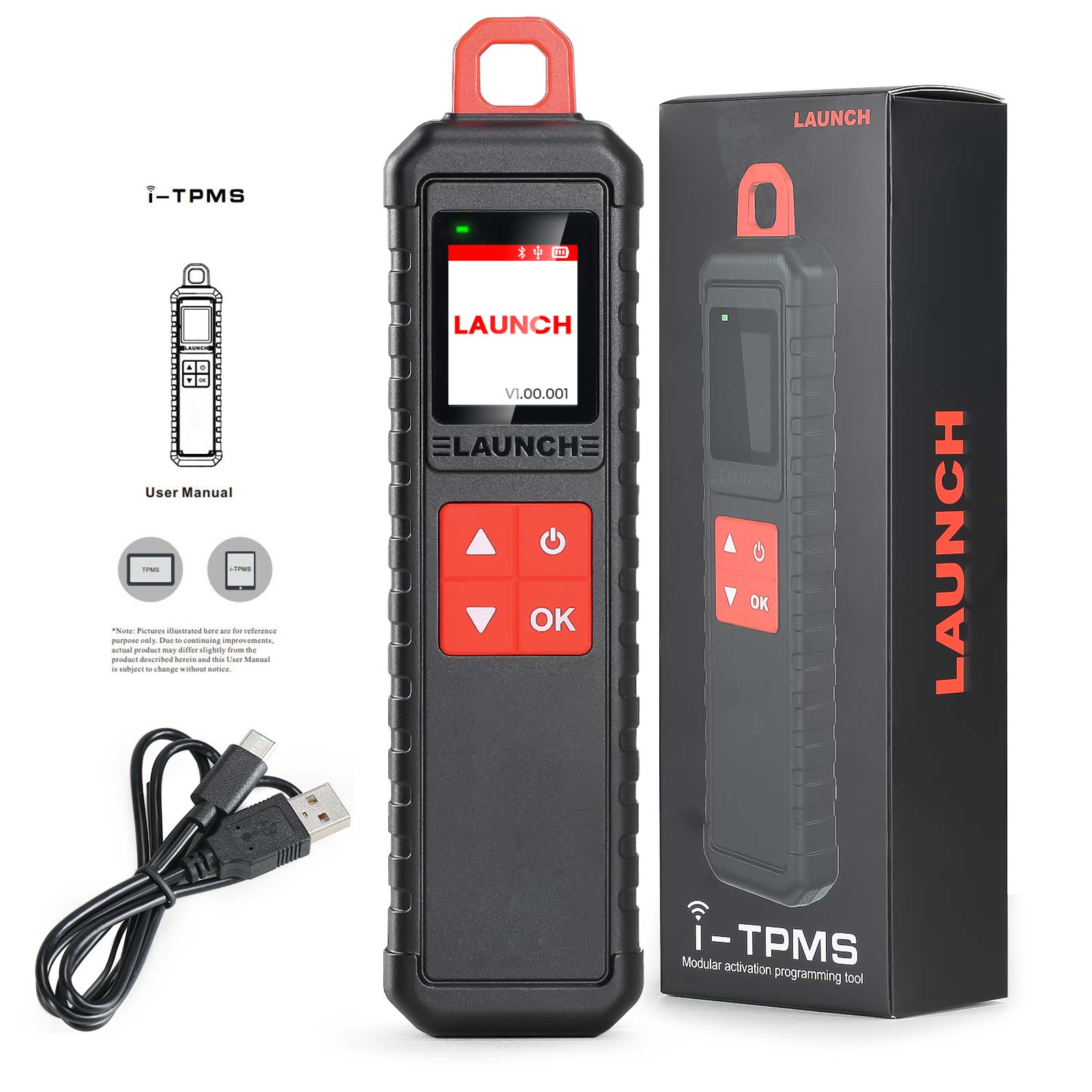

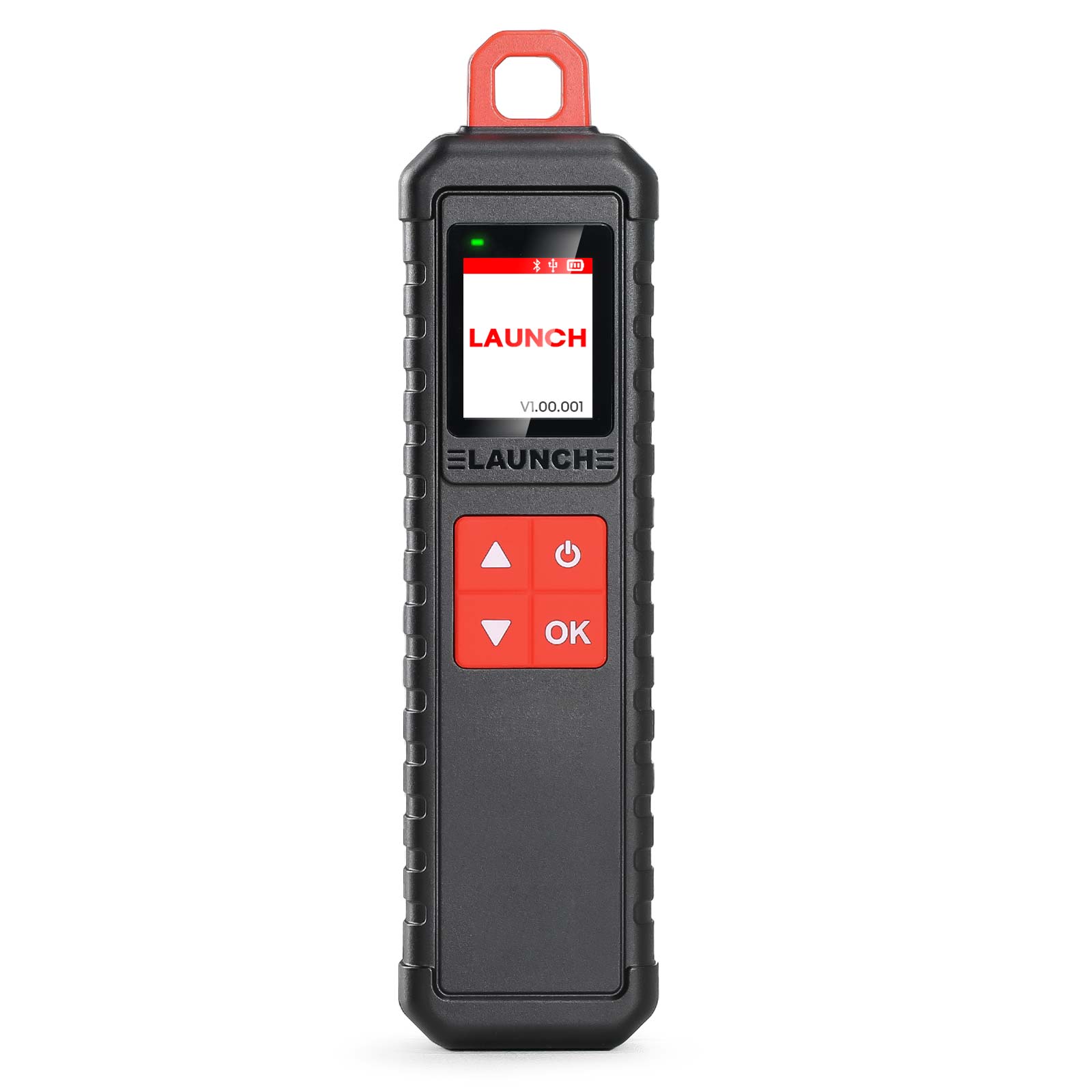

X-431 i-TPMS Advantages


• The i-TPMS serves over 98% of mainstream vehicles with a TPMS-equipped system available on the market.
• Experience TPMS service by binding it with an X-431 scanner or using it standalone with the i-TPMS APP.
• Supports all 315/433MHz sensors.
• It works with X431 Series such as Launch X431 V, Launch X431 V+, Launch X431 Pros, X431 PRO 5, X431 PRO3 S+, X431 Pro Elite,  X431 PROS Elite, X431 PRO3 APEX, Launch X431 PAD VII. Activation, Programming, Relearn and Diagnosing for sensors.
• The standalone mode working with the i-TPMS app: Activation and Programming for sensors.
• Supports unlimited programming for LAUNCH sensors to replace OE sensors.
• Check Launch X431 i-TPMS user manual

Introduction:

Launch i-TPMS provides professional and comprehensive TPMS services for repair shops to develop their TPMS business. It can program LAUNCH LTR RF sensors for unlimited times to replace OE sensors. The sensor data can be read instantly and accurately, including sensor ID, tire pressure, tire temperature, battery status, etc


i-TPMS mobile APP Function:

Brand new mode, combined with i-TPMS mobile APP can
Replace the tire pressure sensor
Activate sensor
Program sensor ID
Query sensor OE part number
Generate tire pressure detection reports, etc.


 i-TPMS App Download (Only for Android Smartphone users)

For Android system smartphone user, scan the following QR code or the QR code on the back of the i-TPMS device to download and install the i-TPMS app on the phone.



Product Specifications:

Tablet Parameters( X-431 PRO5)

CPU: 2.0GHz 4-core
OS: Android 10.0
RAM: 4GB
ROM: 64GB
Display: 10.1 inch
Resolution: 1280*800
Camera: 5MP(Front), 8MP(Rear)
Wi-Fi: 2.4GHz/5GHz （Dual frequency）
Working Temperature: 0~50℃
Size: 274 *190.5 *39.5(mm)

VCI Parameters(SmartLink C)

Processor: Cortex-A7+Cortex-M7
OS: Linux
RAM: 256M
ROM: 8GB
Display: 3.5 inch touch screen
Wi-Fi: 2.4GHz/5GHz dual-band
Diagnostic Communication: WiFi&BT&USB
Test Voltage: DC 9~36V
Working Temperature: 0~50℃
Size: 204*110*45 (mm)

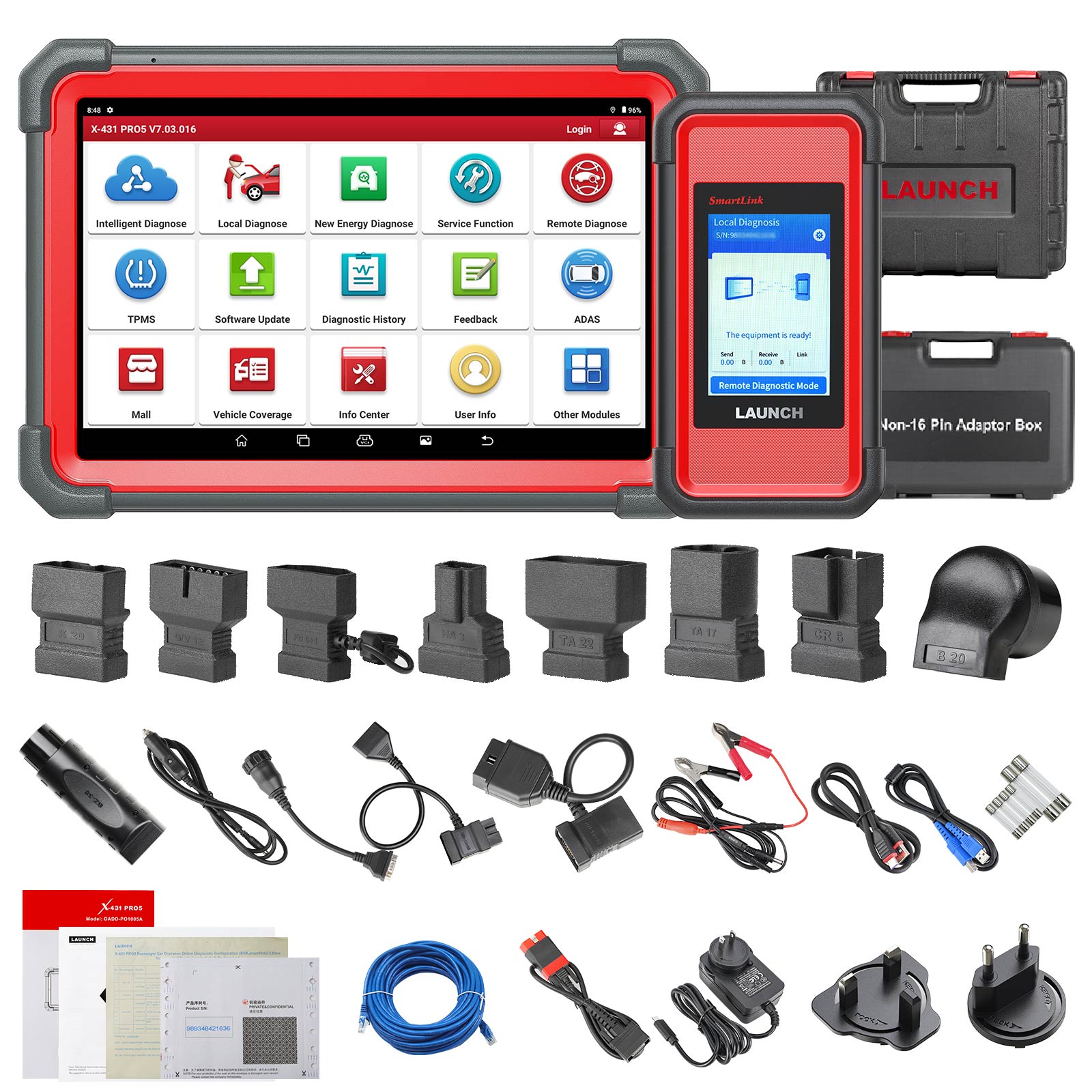

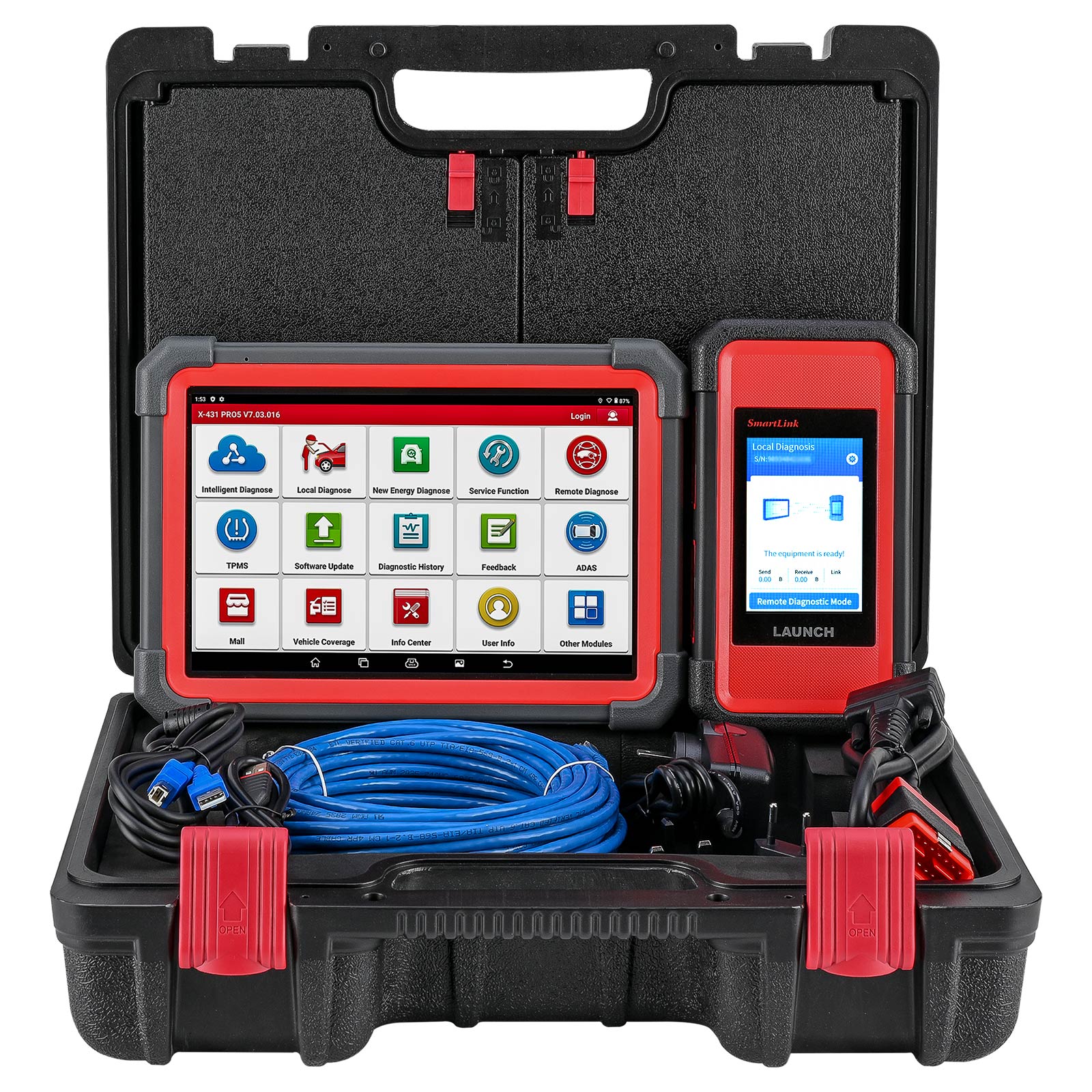

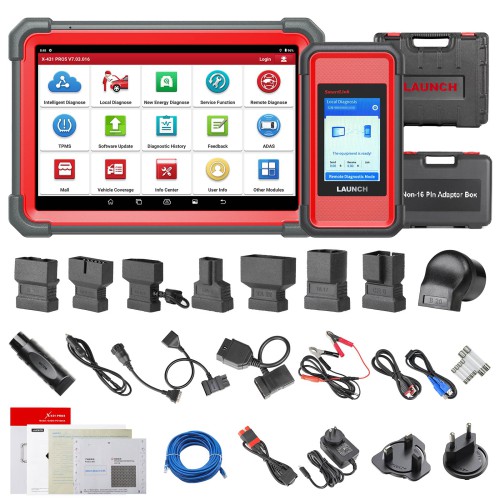

X431 Pro 5 Package Includes:

1pc x main unit
1pc x SmartLink C V2.0
1pc x US plug
1pc x EU plug
1pc x UK plug
1pc x OBD adapter
1pc x Type-C cable
1pc x USB-B cable
1pc x Ethernet cable
1pc x quick start guide
1pc x PIN envelope
1pc x user manual
1pc x i-TPMS device
1pc x charging cable
1pc x manual






Shipping method and delivery time:

US, UK ,RU Warehouse: 2-4 working days. We have stocked up hot sale items in US, UK ,RU Warehouse, Fast Delivery No Tax. But if overseas warehouse is sold out,we will send from Hongkong.
Ship From UK, No Tax
Ship From US, No Tax
Ship From EU, No Tax
DHL Shipping: 2-4 working days. Usually we declare lower value on DHL invoice. If your address is remote area for DHL, customer will need to pay remote cost about 35USD or ship by EMS or YANWEN. Please leave message if you have any special requirement.
Yanwen Express: 5-10 working days. No Tax or remote cost for European Countries.
