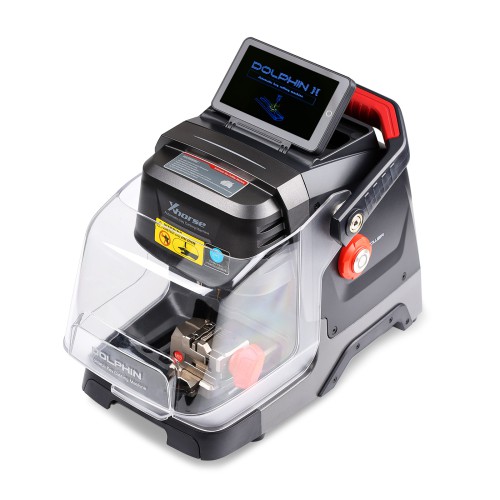

Xmas Sale US/UK/EU Ship No Tax 2024 Xhorse Dolphin II XP-005L XP005L Key Cutting Machine for All Key Lost with M5 Clamp Adjustable Screen Add 5-inch high-definition smart display

Product Description

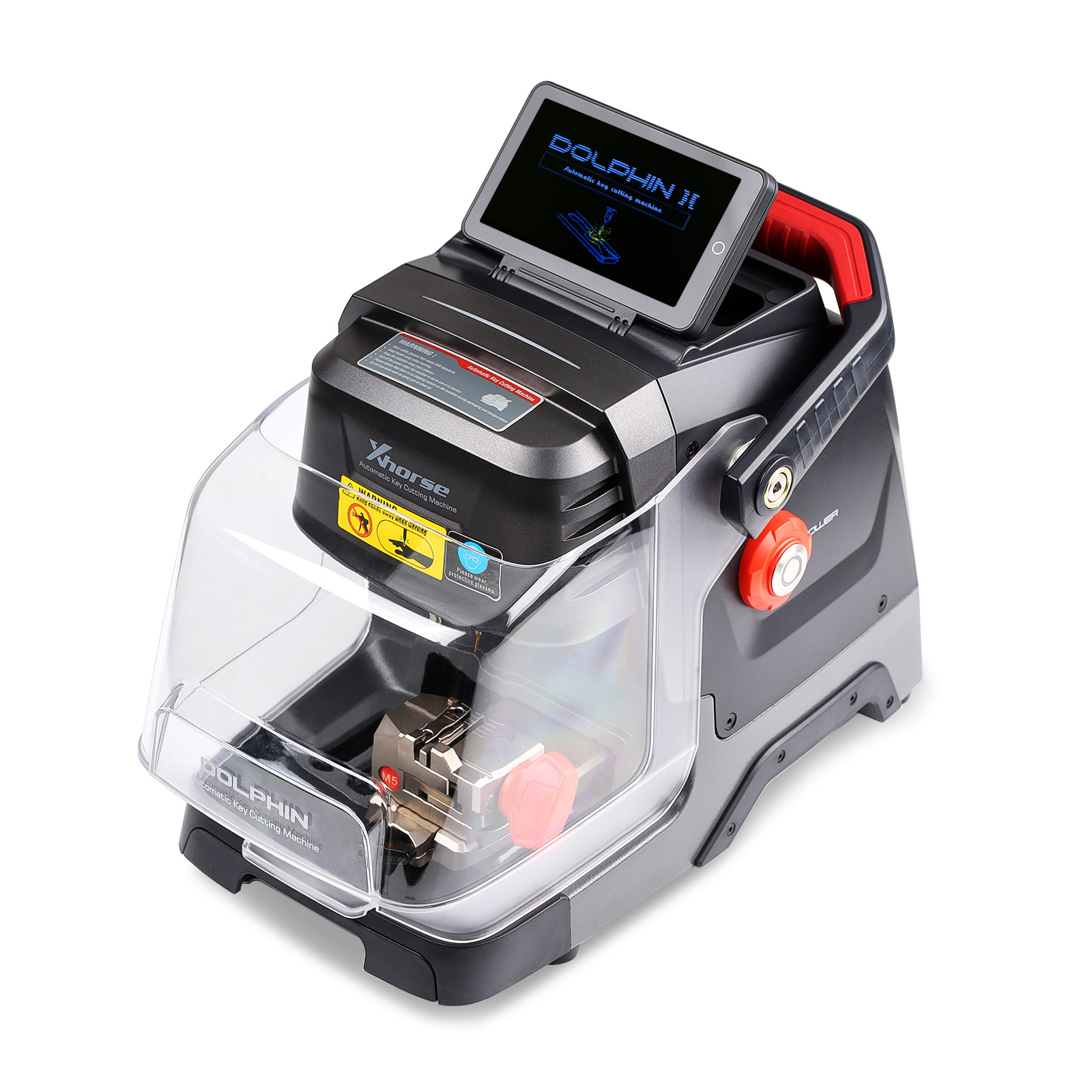

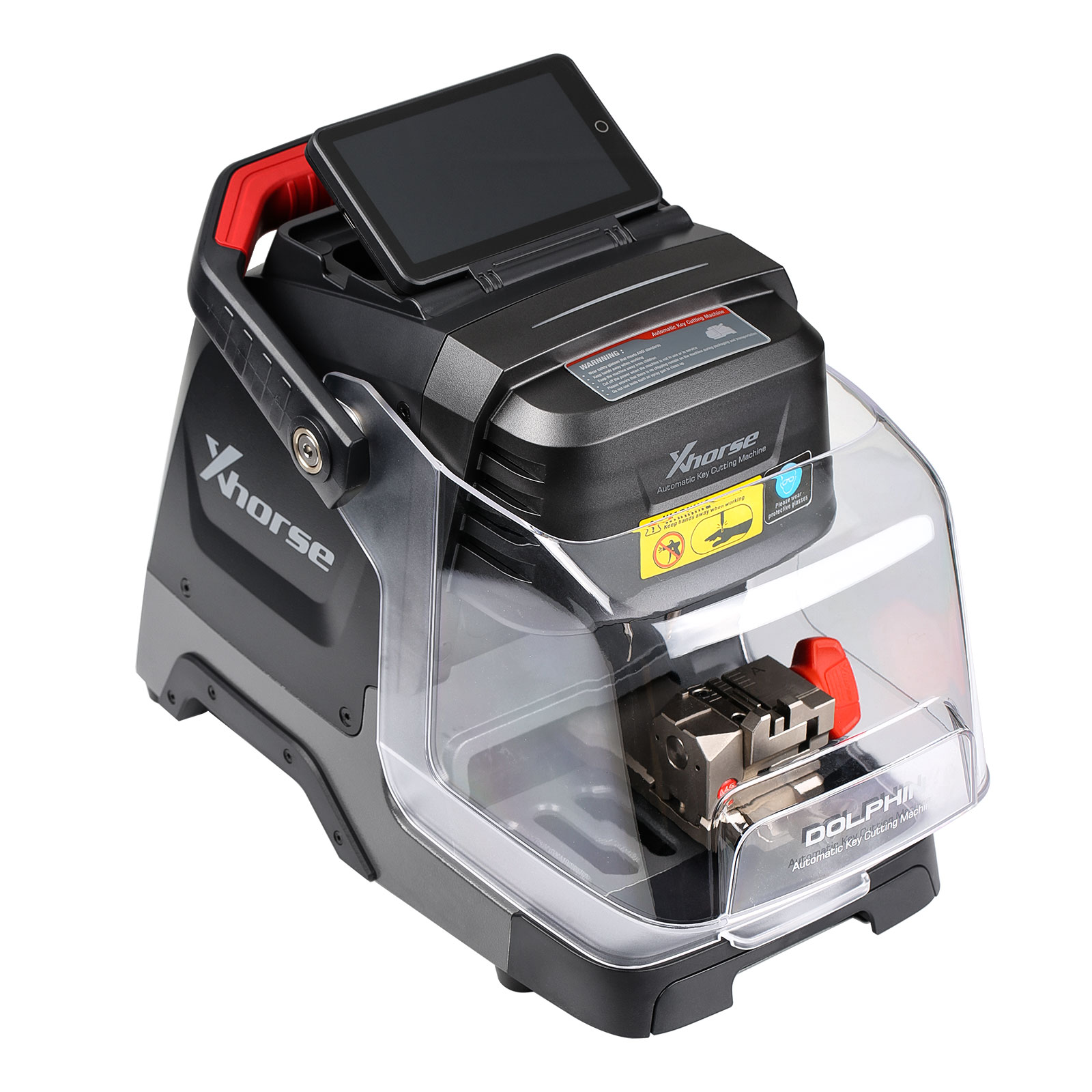

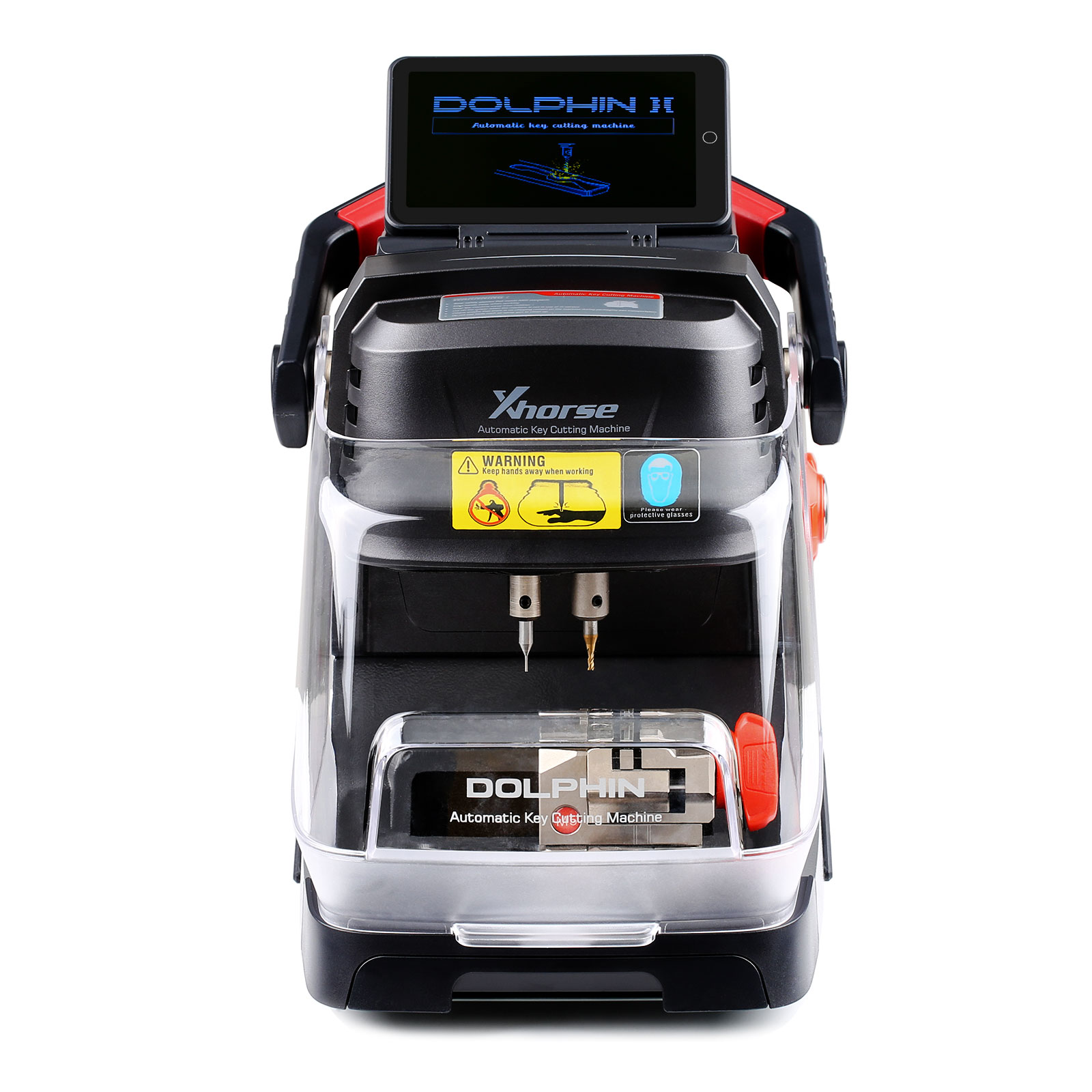

Xhorse Dolphin XP-005L Dolphin 2 Key Cutting Machine All Key Lost with Adjustable Touch Screen

What is new added on Dolphin XP-005L?

• Newly add Angle-adjustable LCD touch screen and Protective Shield
• M5 Clamp (replace M1 and M2 clamps）
• Update online directly: Machine firmware and database upgrade via WiFl, no need use xhorse update kit software
• The indicator light changes colors with the change of real-time working status.

Top reasons to get Xhorse Dolphin XP-005L

1.New Angle Adjustable 5-lnch HD Touch Screen,Transparent Protective Shield
2.Innovative Colorful Indicator Lights,Built-in Lithium Battery
3.Support Both WiFi and Bluetooth,Smart APP Control,Free Online Update
4.Support Multi-Purpose Clamps, Buit-in Massive Vehicle Database
5.More Portable
6.Multi-Functions: Optical key bitting recognition, ALL key lost, key duplication, cut by bitting, find bitting
7.Lifetime Free Update Online: Supporting Online Update via Xhorse APP
8.Dolphin XP-005L Device Language: English Only
Xhorse APP Language: English, German, Spanish, French, Thai, Polish, Italian, Portuguese, Hindi, Hebrew, Korean, Indonesian, Chinese
9.Bind with VVDI MB Tool or VVDI Key Tool Plus, you will get 1 Free MB Token Everyday

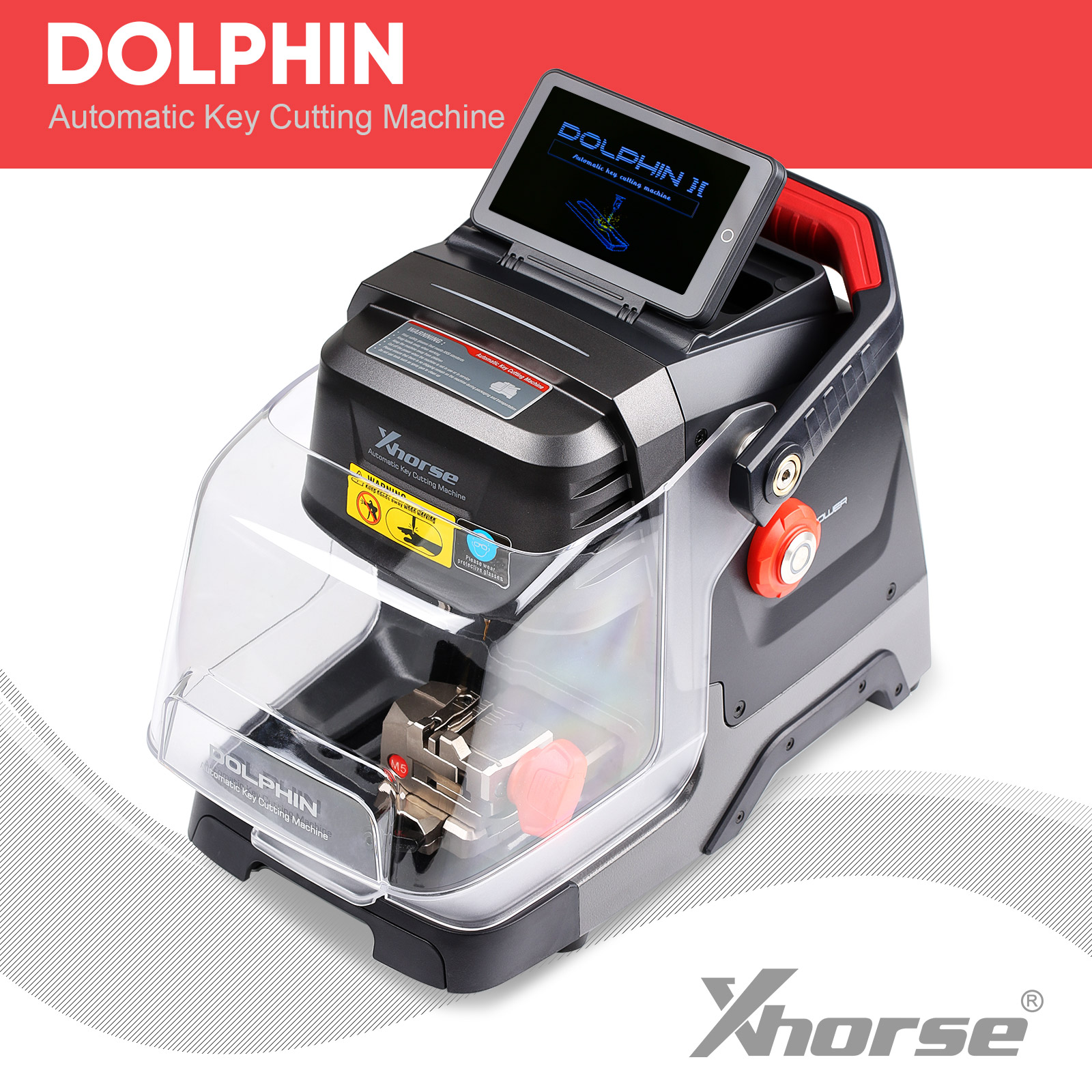

Dolphin XP-005L is a portable automatic key cutting machine with a small volume and light weight. It is an ideal product for locksmiths worldwide. Xhorse Dolphin XP-005L is a perfect tool for making keys when all your keys are lost. It can duplicate bitting and cut car keys or even some household door keys.

Thanks to its compact design, lightweight, it is much easier to take outside to provide users outdoor and roadside services. Built-in well-known lithium battery, stable and reliable, support cutting works without power supply access.



Dolphin XP-005L made by German DMG CNC machine has all- aluminum body structure to guarantee high precision key cutting results. Above all, the machine has a brushless high-speed motor which ensures a long motor life. Moreover, Dolphin XP-005L has a smart APP control for users’ convenience, and it works with key reader.

 Key Features of Dolphin XP-005L:

1. All Key Lost
2. Key Duplication
3. Built-in Lithium Battery Easy to Carry
4. Customize Key Data
5. Optical Key Bitting
6. Multi-purpose M5 Clamp（No need to frequently replace M1 and M2 clamps）
7. Cut by Bitting
8. Find Bitting
9. Take Photos to Recognize Bitting
10. Recognition (Work with KEY READER)
11. Massive Vehicle Key Database Built- in powerful database covers over 100 car brands, 2,000 car models and 20,000 key data.
12. Protection Shield
13. Smart APP Control HD Touch Screen
14. Support Bluetooth and Wifi

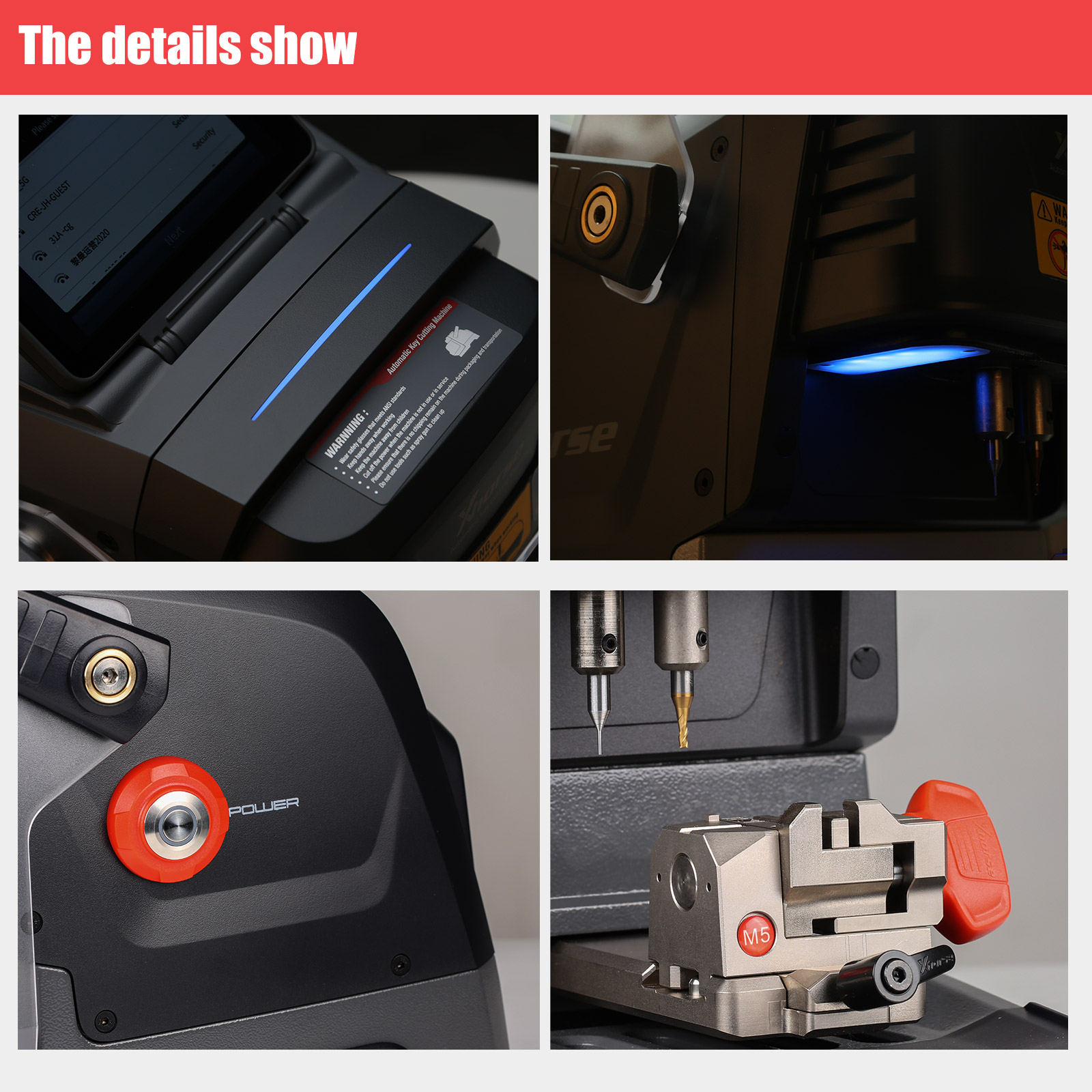

15. The indicator light changes colors with the change of real-time working status.
16. Free Upgrade Service



Transparent Protective Shield

The transparent shield enables users to check the real- time working status while preventing metal debris from spattering.




HD Touch Screen

The machine adopts a 5-inch angle- adjustable capacitive touch screen.
You can set the angle of the screen based on your actual needs.

Users can directly complete the whole operation on the screen.


High definition screen minimizes eye fatigue.


Massive Vehicle Database

The indicator light changes colors with the change of real-time working status.

Built- in powerful database covers over 100 car brands, 2,000 car models and 20,000 key data.


Accurate key data, detailed parameters,and clear key graphics.


We provide a lifelong database upgrade service.

Xhorse Dolphin XP-005L Clamp:
1. M5 Clamp (replace M1 and M2 clamps）

M5 clamp with two sides of A and B. Users can turn the clamp surface to cut according to cutting needs, it's no need to repeated install and uninstall to replace clamps. Here are the method of using the M5 clamp.
1) Loosen the "key lock knob" counter clockwise to make the right slider of the clamp the right limit
2) Turn the movable module clockwise, and turn the clamp from side a to side B. Tighten the key lock knob" clockwise to lock the clamp.

2. Optional M3, M4 Clamp (You need buy separately)



Dolphin 2 XP005L Optional cutters and Probes:
1) 1.0mm Tracer Probe
2) 1.5mm Milling Cutter
3) 2.0mm Milling Cutter
4) 2.5mm Milling Cutter


Support Bluetooth and WiFi

Support directly upgrade online via WiFi connection.


Control the machine by the Xhorse APP on your smartphone or other intelligent devices via Bluetooth.

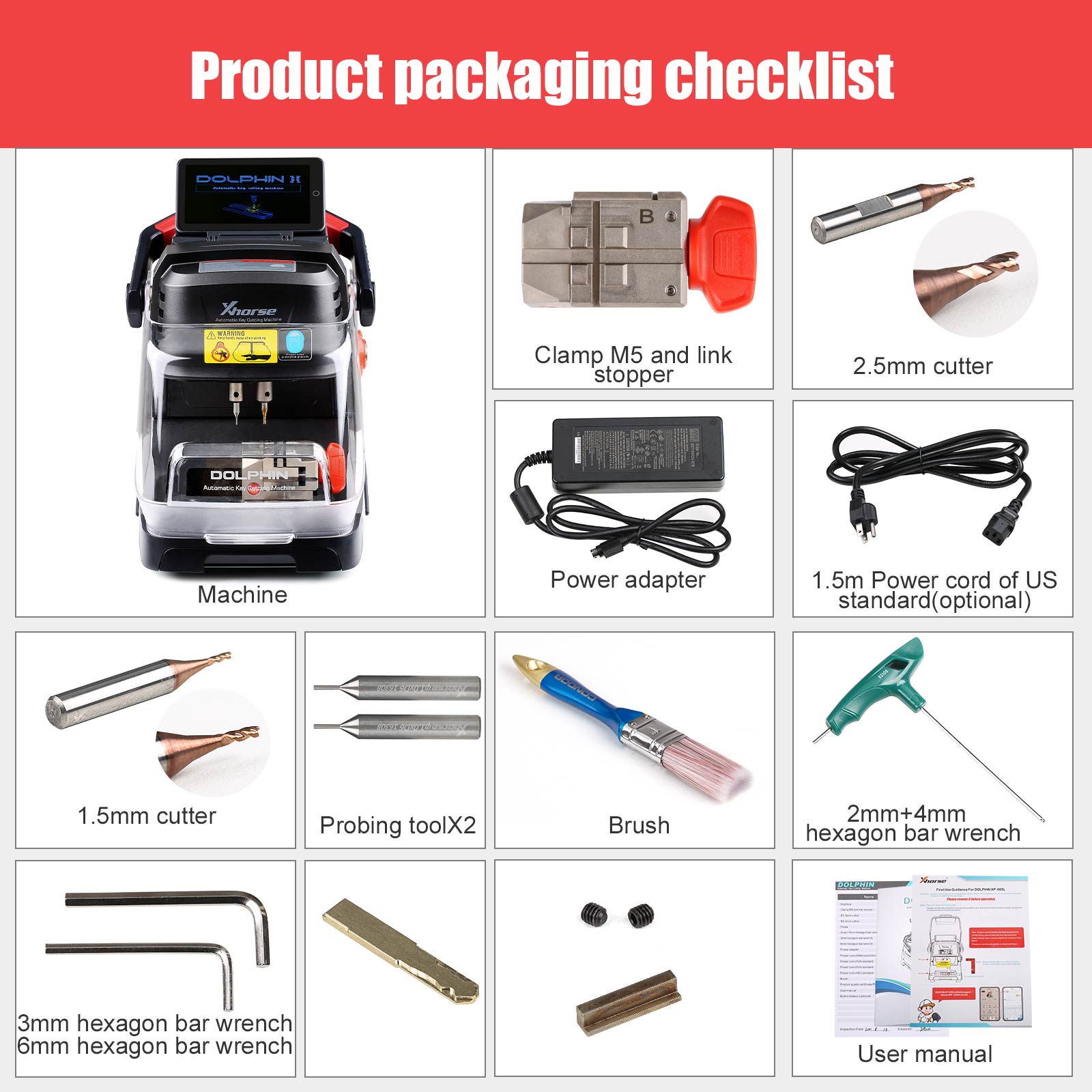

Product Packaging Checklist

A full package of XP-005L should include accessories listed in the following table. Please check when you get this product and contact your distributor if anything in the table is missing.






Sepcification:

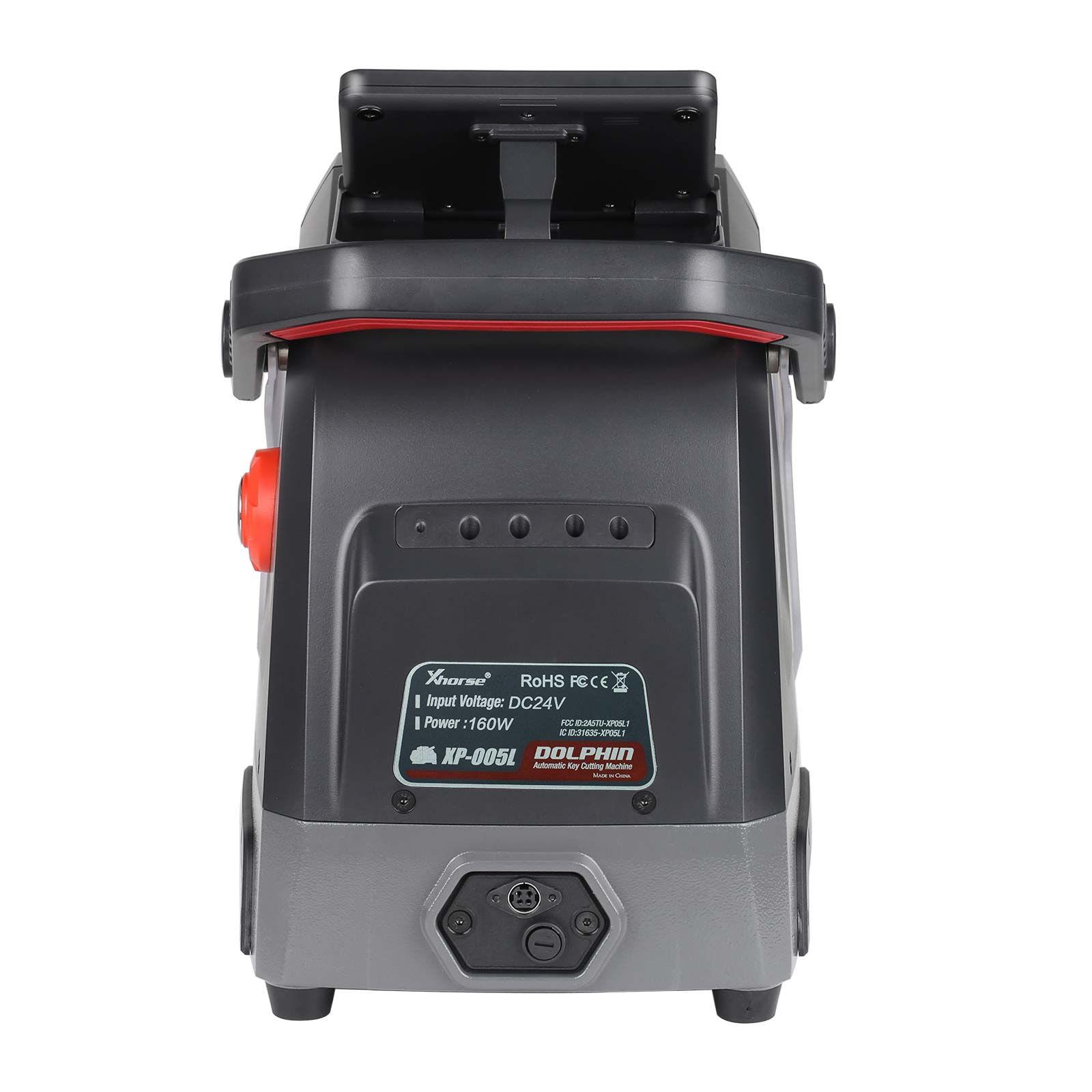

Input voltage	24V DC
Power	160W
Principal axis rotation speed	12500rpm
Motor Torque	0.15N.m
LCD resolution	1280*720
Working temperature	-10-50℃
Humidity	10-90%

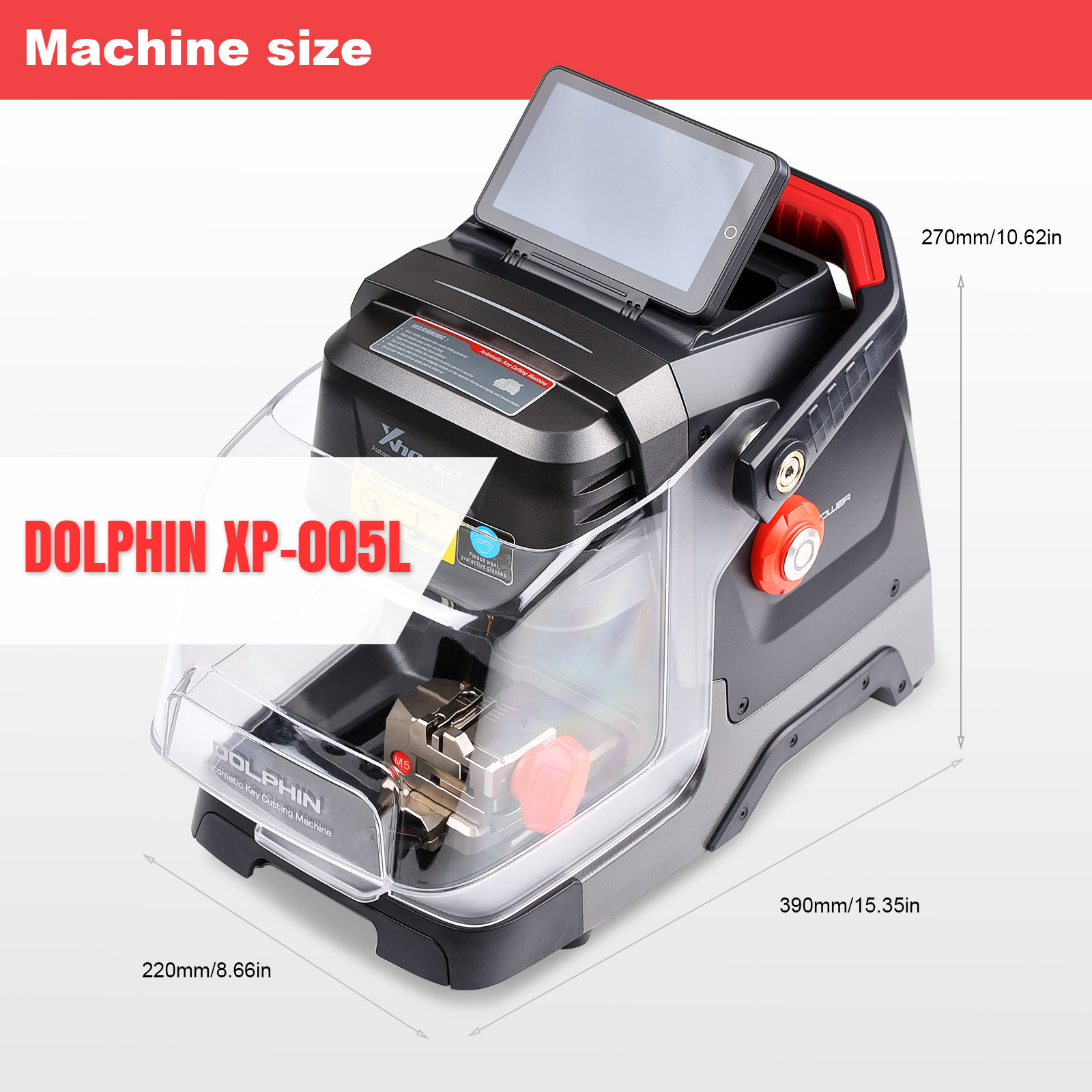

Machine size	390mm*220mm*270mm
Package size	495mm*400mm*360mm
Net weight	13kg
Gross weight	18.5kg

Xhorse Dolphin XP005L vs. Xhorse Dolphin XP-005


Item	Xhorse Dolphin XP005L	Xhorse Dolphin XP-005
Screen	An angle-adjustable 5-inch capacitive touch screen, and users can directly complete operation on the screen.LCD resolution 1280*720.	Null
Bluetooth	Yes. Control the machine by the Xhorse app on your smart phone or other intelligent terminals via bluetooth	Yes,use smart cellphone or tablett to download APP via Bluetooth.
Wifi	Yes, directly upgrade online via wifi connection	Null
Protecting mask	Yes, prevent metal debris from spattering.	Null
Smart status indicator	Yes (in blue, yellow, red color)	Null
Multiple Clamps	Standard equipped M5 clamp (Contains M1 and M2 Functions), optional M3 Clamp, M4 Clamp.	Support clamps M1, M2, M3(optional) and M4 (optional)
Hexagon bar wrench	2mm+4mm 3mm hexagon bar wrench, 3mm hexagon bar wrench,6mm hexagon bar wrench	2mm hexagon bar wrench,  4mm hexagon bar wrench
Weight	Net weight 13KG, Gross weight 18.5KG	Net weight 15KG, Gross weight 18KG
Language	English, Spanish, French, Polish, Italian, Portuguese, etc	English, Spanish, French, Polish, Italian, Portuguese, etc
Update online	Machine firmware and database upgrade via Wifi directly	Online software update on APP, update through Xhorse"Upgrade Kit".
Key database	Yes, same as XP005	Yes
Function	Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types.	Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types.

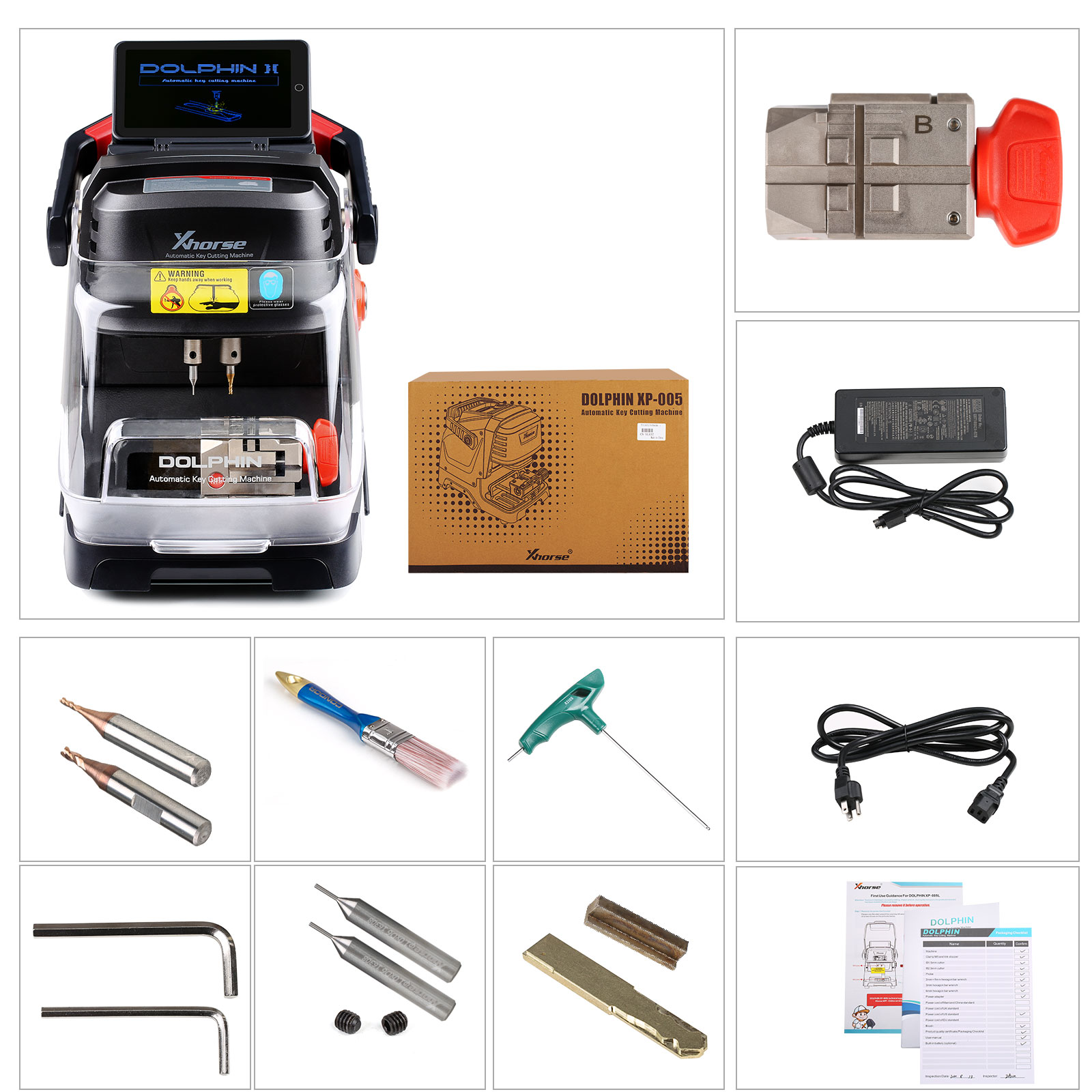

Package Includes:

1pc x Machine
1pc x Clamp M5 and link stopper
1pc x Clamp M3 ( optional )
1pc x Clamp M4 ( optional )
1pc x 1.5mm cutter
1pc x 2.5mm cutter
1pc x Probe
1pc x 2mm+4mm 3mm hexagon bar wrench
1pc x 3mm hexagon bar wrench
1pc x 6mm hexagon bar wrench

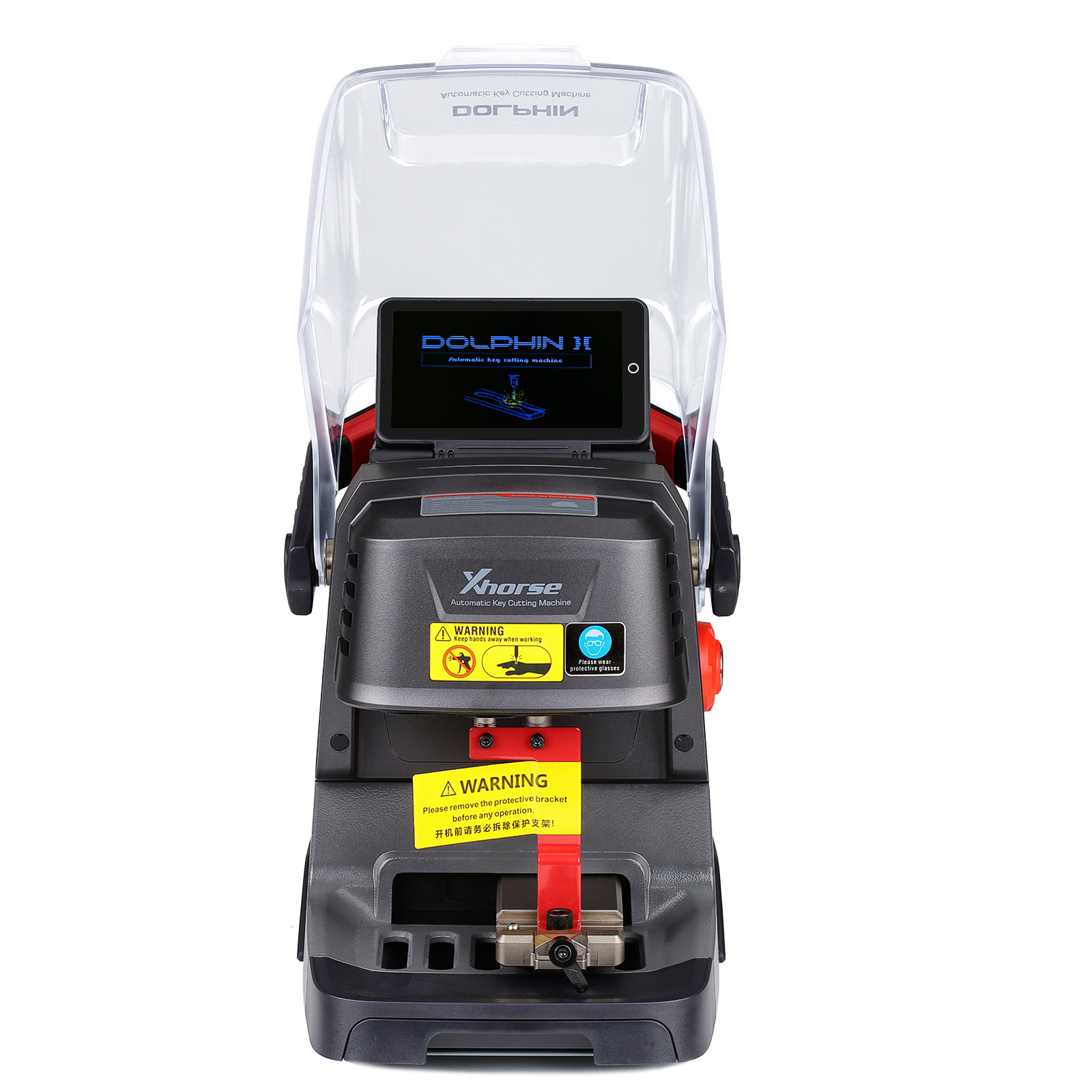

1pc x Protective bracket
1pc x Power adapter
1pc x 1.5m Power cord of Mainland China standard
1pc x 1.5 Power cord of UK standard (optional)
1pc x 1.5 Power cord of US standard (optional)
1pc x 1.5 Power cord of EU standard (optional)
1pc x Built-in battery (optional)
1pc x Brush
1pc x Product qualitty certificate
1pc x User manual
