New Year Sale US/UK/EU Ship No Tax 2025 New XTOOL D7 Bidirectional Scanner Android 10 ECU Coding Full System, 36+ Resets, Crank Sensor Relearn, FCA Autoauth, CAN FD&DoIP

Product Description

XTOOL D7 Bidirectional Scanner ECU Coding, 36+ Resets, FCA Autoauth, CAN FD&DoIP

Top Reasons to get the Xtool D7

• 2025 New Adds FCA AUTOAUTH and CAN FD & DoIP protocols
• Advanced ECU Coding: Re-flash the Hidden Functions for personalization, Components Matching after making repairs or replacements, Reinforce Vehicle Performance, etc. Please be reminded that D7 does not have ECU programming capabilities to perform the new/used ECUs Programming.
• 36+ SERVICES & RESETS: Comes with common and advanced service functions, including ABS Bleeding, Maintenance Light Reset, EPB Reset, SAS Adjustment, Throttle Position Reset, Idle Relearn, etc. reduce your family vehicle's maintenance costs per year.
• FULL BI-DIRECTIONAL CONTROLS/ACTIVE TESTS: Allows you to check the actuator from the outside or without control of the vehicle to locate the fault parts on the spot, speed up the diagnostic and repair time.
• OE Level All Systems Diagnostic: Enables you to read or clear fault codes, read ECU information, real-time data in graphing/text, freeze frame and perform the actuation test in your car's all available systems, subsystems and modules, to perform OE-level diagnosis with one click.
• Powerful Key Programming Capabilities: Reads Pin codes, Add New Keys (Fob/Smart)+ Remote Learning + Key Matching, etc, works on most vehicle brands, eg for Honda, for Ford, for GM, for Nissan, for Toyota, etc.
• Extensive Vehicle Coverage Supports 150+ car brands across worldwide markets and can diagnose 12V Cars up to the year 2024
• 8-IN-1 Graphing, Individual Display or Merge, Live Data Export as CSV File, Data View in Graphing and Text: Helps you further check potential problems of the vehicle.
• Android 10.0 OS + 2.4Ghz and 5Ghz Dual-Band WIFI Frequency, runs faster than other mid-range devices on the market.
• Long-Lasting Battery Work: Features multiple charging ports (including USB type-C), to keep your device powered. And it also capable of charging directly from the car's battery when connected to the OBD port. This ensures you'll never face a situation where you can't scan a car due to a depleted scan tool battery.
• Work with XV200 Endoscope
• 3 Years Free Update and 2 Year Warranty, after 3 years it is 90GBP/per year.
• Support 15 Languages: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese.
• Check the supported mileage list here
• check the supported car list here

2025 XTOOL D7 has updated a new UI outfit.
Version 2.0 adds FCA AUTOAUTH and CAN FD & DoIP protocols. You no longer need other adapters to work for Chrysler brand vehicles after 2018, for BMW, etc after 2018, for GM brand vehicles after 2020.



Newest Adding Functions of ECU CODING

XTOOL scanner D7 New Update with ECU Coding(for VW/AUDI/SKODA ONLY) and custom configurations are designed to unleash the hidden functions for BMW, for Ford, for Mazda, for VW/Audi/Skoda, for Toyota/Lexus/Scion, for Lincoln. You can activate the higher-level car functions and disable any annoying features like disable the seat belt buzzer, customize extra options such as winding the windows down with the remote fob

Want a Full-System scanner ?

The upgraded V2.0 Diagnostic Report feature lets auto repair shops add logos, customer information, and attachments, making this already cost-effective tool even more indispensable!

As an OE level automotive diagnostic tool, XTOOL D7 can access most car ECUs to read, clear codes, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
Include : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ，Air Conditioning System，Transmission System, etc...





Brief introduction of its capabilities in full systems diagnostic as follows:

1. For Engine System: Diagnostic tool XTOOL D7 can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

2. For Transmission: It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

3. For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.

4. For SRS System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.

5. To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;

6. To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;

7. To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;

8. To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;

9. To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;

10:To diagnose Light System if you see rapid signal blinking or dimming lights. And many more ....




What is Bidirectional Control / Active test?

Bi-Directional Control capability means it can perform Active Tests to access vehicle-specific subsystems and component tests. The tester outputs the command to the E.C-U to drive the actuators to determine the integrity of the system or parts by reading the E.C -U data, or by monitoring the operation of the actuators. It is necessary when you want to activate and control an onboard system remotely

This 7” automotive diagnostic tablet comes with full bi-directional control over various vehicle sub-systems, and parts to test the integrity of various components like A/C Clutch, Fuel Injectors, ABS Pump Motor, Solenoid Valves, Relays, Interior Lighting, Window, Door, Sunroof, Car Wipers, and etc.

• Switch On/Off fuel injectors to locate faulty injector
• Cycling A/C clutch on/off
• Cycling ABS motor pump
• EVAP test
• Switch on/off car wipers
• Rolling up/down car windows/doors/sunroof
• Cooling fan motor command
• Interior lighting test
• High beam test

Note: The menu of active tests available vary across vehicle make, model, year.

Auto VIN & Auto Scan

XTOOL D7 features with Auto Vin function to easily read the vehicle identification number.

Once this diagnostic tool and the given car are properly connected, D7 perform a comprehensive scan of all available systems of your vehicle. With only one click, you can scan your car’s detailed version information, also all diagnostic trouble codes and live data stream of full electrical control units. If needed, you can only view the diagnostic information of the selected systems in the forms of checks.

Live Data Stream

XTOOL D7 display live data stream in text or graph like misfire data, engine rpm, transmission oil temperature, mass air flow sensor data, cylinder balance rates, fuel pressure, actual fuel temperature vs desired fuel temperature and etc

 36+ COMMONLY-USED MAINTENANCE FUNCTIONS [CONTINUOUSLY GROWING WITH UPDATES]



• Oil Reset: Reset the new calculation of Engine Oil Life System for an accurate reading of the next oil change.
• EPB Reset: Reset the calipers, brake discs or pads after the electronic parking brake system is repaired.
• BMS Reset: Reset after replacing the battery to clear the low battery fault information of the original battery and protect the new battery.
• DPF Regeneration: Clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.
• Key Programming(Top Popular): Disable a lost vehicle key to protect the vehicle from being stolen and add the new key.
• Injector Coding Code a new injector to better identify injectors to accurately control fuel injection.
• ABS Bleeding Perform to bleed the brake system to restore ABS braking sensitivity and obtain a firm brake pedal .
• SAS Adjustment: Clear the fault steering angle sensor memories, perform reset steering angle sensor, and turn off steering wheel warning light.
• Throttle Relearn: Reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.
• Airbag Repair: After replacing the Airbag, reset the Airbag data and clear the collision data.
• Also including TPMS Reset, Air Suspension, Gear Learning(Crankshaft Relearn), Gearbox Match, Headlight Adjustment, Window Initialization, Seat Configurations, Disable Transportation, Tire Upgrade, Electronic Pump Activation, Power Balance, A/F Reset, Start/Stop Reset, Language Change etc are all available and continuously growing.



>> D7 also provides quick access to the vehicle systems for various advanced functions for specific vehicle models, such as Transmission Service Fast Relearn, Fuel Injector Balance, Crankshaft Sensors Relearn, Idle Learn, Zero- Point Calibration, Fuel Alcohol Composition Reset, HVAC Actuator Calibration Test, WCS Reset, VIN Registration (Write), SWS Initialization, QuickLearn, Injector Fuel Rate Programming, etc are all available.

D7 has added special functions. At present, D7 has more than 36 services. The added functions mainly include: Reset Control Unit, Rain/Light Sensor, A/C Relearn, HV Battery, VGT Relearn, FRM Reset, EGR Relearn, SRS, Clutch Adaptation, Speed Limit - Please make sure all software is updated - October 13

>> NOTE: Service Functions vary by vehicle, does NOT work on all vehicles. Please come to us with the vehicle Make/Model/Year/Vin to check compatibility before purchase.



3-Year Software Free Update (Value $300) & Lifetime Perfessional Technical Service

Most scanner in the market within same price range comes only 1 year update, XTOOL D7 scanner comes 3 years free software update. You can added car models coverage, improve performance and capabilities within its fold for 3 years. You can still use the scanner normally even when the free updates period expires.


PDF Diagnostic Report & Remote Suppport

D7 auto diagnostic scan tool enables diagnostic tech or mechanics to generate history diagnostic reports for sharing with customers by printing it out or sending it to customers via PDF.If you encounter problems and are not able to solve them, you could come to us to reserve remote assistance from XTOOL TECH TEAM.

Up to 8 PIDs Live Data Graphing

Individual Display or Merge, Live Data Export as CSV File, Data View in Graphing and Text: Visually displays the sensor data, and helps you further check potential problems of the vehicle eg intermittent issues or when real-time viewing is not practical.



Diagnostic History:

Once a vehicle diagnosis is performed, XTOOL D7 will record the every detail of the diagnostic process.you can record/review/playback live data anytime .The History function provides quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch

Diagnostic Feedback:

allows you to submit any issues you can’t immediately fix. With the support of professional experts, XTOOL will make great efforts to provide you with the best solutions as soon as possible.

Remote diagnose:

Configures XTOOL D7 as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.

Vehicle Health Report Share and Print:

With XTOOL D7 ,you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card .




Upgraded Android 10.0 OS,7-inch LED capacitive screen with 1024×600 resolution

new version of D7 has been upgraded the Android 10 operating system from Android 5, bringing you a faster, smoother and more consistent experience.

Extensive Vehicle Coverage

XTOOL D7 car diagnostic tablet works on 80+ Makes, 140+ Brands, and 10,000+ Models, US domestic and abroad up to 2021, 2020 to perform OE level diagnostics……XTOOL technical team is still adding new models

Europe Cars:

for DEMO,for VW,for MINI,for LANDROVER,for SEAT,for FERRARI,for FORD,for OPEL,for ALFA for ROMEO,for VOLVO,for ABARTH,for SMART,for BMW,for FIAT,for LANCIA,for RENAULT,for ASTONMARTIN,for GAZ,for MASERATI,for MEREDES,for UAZ,for SKODA,for CITROEN,for DACIA,for AUDI,for JAGUAR,for PORSCHE,for PEUGEOT

Russian Cars:

For ZAZ,IZH,PAZ,UAZ,VAZ,GAZ,Lada....

America Cars:

for DEMO,for GM,for FORD,for CADILLAC,for CHEVROLET, for GMC,for HUMMER,for JEEP,for SATURN,for PONTIAC,for LINCOLN,for DODGE,for CHRYSLER,for BUICK

Asia Cars:

for Demo,for TOYOTA -LEXUS ,for ISUZU,for MAZDA,for KIA,for INFINITI,for ACURA,for NISSAN,for RENAILTSAM,for HYUNDAICY,for HYUNDAI,for HONDA,for SUBARU,for SUZUKI,for MITSUBISHI,for SSANGYONG

Australia Cars:

For Demo ,for Ford ,For Hondo

China Cars:

for DEMO,fro JAC,for CHERY,for GEELY,for GREAT WALL ,for BYD,for LIFAN


XTOOL D7 vs XTOOL D8 vs XTOOL D8 BT vs XTOOL D9 vs XTOOL D9 Pro

	XTOOL D7	XTOOL D8	XTOOL D8 BT	XTOOL D9	XTOOL D9 Pro
Connection Method	Cable Connection	Cable Connection	BT Connection	BT Connection/USB Cable	BT Connection/USB Cable
CAN FD/DoIP	CAN FD & DoIP	CAN FD	CAN FD	CAN FD & DoIP	CAN FD & DoIP
Battery Capacity	4000 mAh	10,000 mAh	10,000 mAh	10,000 mAh	10,000 mAh
Storage	2G+32G	2G+64G	2G+64G	2G+64G	2G+64G
Display	7" Display	8" Display	8" Display	9.7" Display	9.7" Display
OS	Android 10	Android 5.1.1	Android 5.1.1	Android 10	Android 10
All Systems Diagnostics, Full Bi-Directional Control	✓	✓	✓	✓	✓
Services	36+	38+	38+	42+	42+
Advanced Special Functions	Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset etc	Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset, ADAS Calibration, etc	Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset, ADAS Calibration, etc	Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset, ADAS Calibration, etc	Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset, ADAS Calibration, etc
Flash Hidden Functions/ECU Coding/ECU Programming	ECU Coding for VW, Audi, Skoda	Flash Hidden Functions, ECU Coding for VW, Audi, Skoda	Flash Hidden Functions, ECU Coding for VW, Audi, Skoda	Flash Hidden Functions, ECU Coding for VW, Audi, Skoda	Flash Hidden Functions, ECU Coding for VW, Audi, Skoda, ECU Programming for BMW, Benz, VW
Topology Map	N/A	✓	✓	✓	✓
Free Software Updates	3 Years	3 Years	3 Years	3 Years	3 Years
Work with KC100	Y	Y	Y	Y	Y
Work with KC501	N	Y	Y	Y	Y

XTOOL D7 Parameters

• Operating Systems: Android 10.0
• Storage: 2G RAM 32G ROM
• Connection: USB and WIFI (2.4GHz and 5GHz)
• Processor: Quad care processor 1.6GHz
• Sensor: Gravity sensor and Light sensor
• Audio input & output: Microphone & Speaker
• Battery: 4000mAh,3.7V lithium polymer battery
• Power Voltage: 5V
• working Temp: -20 to 60℃(-4 to 140℉)
• Relative humidity <90%
• Tablet Size: 218*150*29mm

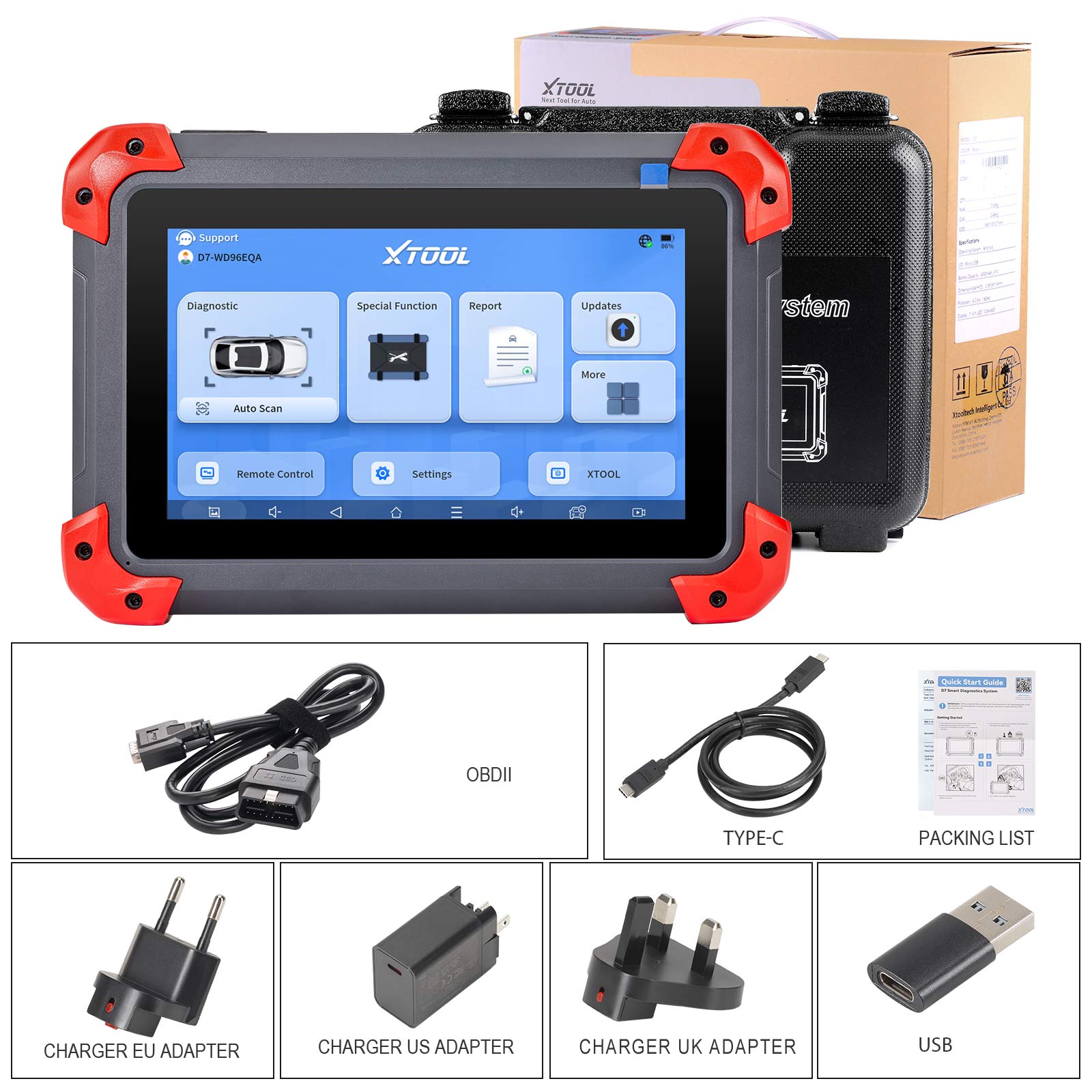

Xtool D7 Package Includes:

1pc x OBDII-16 ADAPTER
1pc x DB15 TOVGA MAIN CABLE
1pc x USB to Type-C ADAPTER
1pc x Type-C CABIE
1pc x US Standard Plug
1pc x EU Standard Plug
1pc x UK Standard Plug
1pc x USER MANUAL
1pc x PACKING LIST
1pc x CERTIFICATE OF QUALITY
