Top 13 Reasons to get the XTOOL D7S:
1. Upgraded Ver. of D7 with New UI, Add 8MP Camera, Self test, Collapsible stand.
2. Support DoIP & CAN FD, D7 support only CAN FD
3. Key Programming: Work with KC100/KC501. Unlike D7, XTOOL D7S Can work with KC100/KC501 to add keys for Mercedes, for Toyota etc. Read PIN codes, program new keys/fobs, perform remote learning, disabIe the lost keys etc.
4. Built-in 5,000mAh battery larger than XTOOL D7 which includes 4,000mAh battery. long-time Working Battery.
5. Can work with XTOOL XV100: Help you better check the vehicle by viewing details via the endoscope.
6. AutoVin & Auto Scan+ Active Test (Bi-Directional Control)
7. ECU CODING & KEY PROGRAMMING, perform ECU Coding for VW, for Audi, for Skoda.
8. 36+ MAINTENANCE SERVICES
9. 8-IN-I Graphing: Graph up to 8 live data streams into 1 chart or display up to 8 individual graphs on one screen.
10. Powerful quad-core 1.6GHz processor with faster 2GB and reliable 64GB On-board memory, Dual-band wifi
11. 3 Years Free Update If you don't update it, you can still use it.
11. Support 15 Languages: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese. Send us the seial number to free change.
12. check the supported car list here
13. Check the supported mileage list here
Upgraded of XTOOL D7: New UI, Larger Storage, Larger Battery, Features Added, Kickstand Added, and more!!!
👍 OE-Level Full Systems Diagnostics: D7S auto scanner with complete capabilities for read & clean codes, live data, active test, ECU information, adaptation, matching, etc. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models.
👍 36+ Advanced Maintenance Services: Oil Reset, ABS Bleeding, Injector coding, Fuel Trim Learn, Transmisson Reset, Language Change, A/F Settings, Stop/Start Reset, SAS Reset, TPMS Reset, etc.
👍 ECU Coding: For customize your car, unfold the hidden features, or disable the annoying functions(turn off the back up beep, turn the seat belt buzzer off); Re-identify the adaptive data for certain components after repairs or replacements Works For VW/AUDI/SKODA
👍 Key Programming Function(Every Workshop Needed): Disable a lost vehicle key and program the replacement key fob for specific vehicles.Note: Check the key type with us before buying.
👍 Enhanced Bi-directional Control(Active Test): Perform various active tests to check the integrity of systems or components and the operating conditions of various car systems or sub-systems without using the vehicle controls to test ABS motor, window, door, solenoids, relay, switch, valves, sunroof, headlamps and etc to check its functionality.
👍 8-In-1 Graphing,More Comprehensive Live Data: The original 4-in-1 graph is changed into 8-in-1 graph,Allow you to customize specific PID, and merge graphs for up to 8 data PIDs combined at one time in one graph.
👍 D7S now support for the can fd and Doip
👍 PDF Diagnostic Report & Remote Suppport: D7S auto diagnostic scan tool enables diagnostic tech or mechanics to generate history diagnostic reports for sharing with customers by printing it out or sending it to customers via PDF.If you encounter problems and are not able to solve them, you could come to us to reserve remote assistance from XTOOL TECH TEAM.
👍 Upgraded Android 10.0 OS, 7-inch LED capacitive screen with 1024×600 resolution.
👍 Wider Coverage for More Vehicles (still expanding): Add more models in 2021 and 2022, expand to 140+Brands, and 10000+Models for EU, ASIA, US domestic cars to perform OE level diagnostics,Active test... XTOOL technical team is still adding new models.
👍 3-Year Software Free Update & Lifetime Perfessional Technical Service: Most scanner in the market within same price range comes only 1 year update, XTOOL D7S scanner comes 3 years free software update. You can added car models coverage, improve performance and capabilities within its fold for 3 years. You can still use the scanner normally even when the free updates period expires.
OE-LEVEL Full System Diagnostic Scanner Tool
XTOOL D7S is an full system diagnostic scanner as it can scan all available systems of car to read and clear codes, view live data stream of various sensors and graph it, retrieves freeze frame, perform active tests to check the work status of modules, providing you with a Dealership-Level only diagnosis, getting the accurate and in-depth diagnosis across all automotive systems.
Include: ABS System, Engine System, SAS System, TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System, Air Conditioning System, Transmission System, etc...
Active Test / Bi-directional Scan Tool
XTOOL D7S is a bi-directional scan tool, allow you to request information or command a module to perform specific tests and functions, while observing the resulting data to troubleshoot and fast repair. Bi-directional Control (also referred to as Active Tests/Component Tests) function can save the mechanic/workshop loads of time and help them get through more jobs every day.
D7S can perfrom EVAP Test, Fuel Trim Reset, Fuel Composition Reset, Injector Buzz Test, Fuel Pump, Window/Mirror/Door Lock Test, Pump and Value Tests, etc.
Advanced ECU Coding
✔️ Advanced ECU Coding:
ECU coding capability for VW/AUDI/SKODA ONLY which performs online Coding, Component Matching, Adaptive Data Reset, Flash Hidden Functions, etc to optimize vehicle performance and customize car settings.
✔️ Flash Hidden Functions(ECU Configuration):
for BMW/ VW/ AUDI/ SKODA/ TOYOTA/ LEXUS/ SCION/ MAZDA/ FORD/ LINCOLN, help refresh hidden functions to reprogram adaptive data for certain components after making repairs or replacements. You can activate the higher-level car functions and disable any annoying features. Modify personalization/customize some extra options such as disabled the seat belt buzzer, wind the windows down with the remote fob, etc.
36+ Hot Service Functions
✅ Oil/Service/Maintenance Light Reset: Close the oil service light and reset service mileage & service interval after replacing the engine oil.
✅ EPB Reset: Reset the new electronic parking brake for braking wheels safely again.
✅ Throttle Relearn: Allows to reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.
✅ TPMS Reset: Relearn TPMS sensors so that new sensors can be recognized by ECU.
✅ ABS Bleeding: Get a firm brake pad after air exhaustion.
✅ Immobilizer: Allows to disable a lost vehicle key to protect the vehicle from being stolen and add the new key.
✅ DPF Regeneration: Allows to clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.
✅ Injector Coding: Code the new injectors after replacement for accurate fuel injecting control and improve fuel efficiency.
✅ SAS Calibration: Erase the fault steering angle sensor memories and make calibration for the Steering Angle Sensor.
✅ BMS Reset: Register the newly replaced car battery into the ECU.
More: Window Initialization, Gearbox Match, Instrument Cluster, Headlight, Air Suspension, Gear Learning, EEPROM Adapter, Airbag Repair, Cylinder, Seat Configurations, Electronic Pump Activation, Disabled Transportation, Performance Tire Upgrade, A/F Setting, Stop/Start Reset, Language Change and Reset Control Unit, Rain/Light Sensor, A/C Relearn, HV Battery, VGT Relearn, FRM Reset, EGR Relearn, SRS, Clutch Adaptation, Speed Limit etc…
More Enhanced Functions
💪IMMO Key Programming Functions:
The IMMO service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN code/pin code calculation,Check number of keys, Generate key, Add key, All key lost
Read PIN Code
Check Number of Keys
Generate Dealer Key
All Key Lost
Add Key
💪FULL 10 OBD2/EOBD FUNCTIONS
1. Read Trouble Codes
2. Clear Trouble Codes
3. Live Data
4. Read Freeze Frame
5. Read ECU Information
6. Component Test
7. On-Board Monitor Test
8. O2 Sensor Monitoring Test
9. I/M Readiness
10. Read Vehicle Information
💪Auto VIN SCAN for Quick Diagnosis:
D7S diagnostic tool will start auto-detected process and you can scan your car’s detailed version information with one click. You can always navigate your vehicle manually to perform diagnostics if the AuoVIN do not work in some cases.
💪8 IN 1 Live Data Graphing Functions:
D7S can diagnostic all trouble codes and live data stream of full electrical control units and view Freeze Frame.Display live data stream in text or graphs like cylinder misfires data, transmission fluid/Oil temperature, fuel trim, ATF temperature, cylinder balance rates, engine rpm, O2 sensors, mass air flow sensor data, fuel pressure, actual fuel temperature vs desired fuel temperature and etc;
-- Export Live Data as CSV: Exporting live data as CSV file to track vehicle performance over time.
-- 8-In-1 Graphing: Allow you to customize specific PID, and merge graphs for up to 8 data PIDs combined at one time in one graph.
-- Graph up to 8 sensors individually on the same screen.
💪One-click Online Update:
Just connect to the network, you can enjoy updates anytime and anywhere throughout the year, download the latest models, update the latest functions, and avoid the complex update mode of USB connection!
Extensive Vehicle Coverage
XTOOL D7 car diagnostic tablet works on 80+ Makes, 140+ Brands, and 10,000+ Models, US domestic and abroad up to 2021, 2020 to perform OE level diagnostics…… XTOOL technical team is still adding new models
🚘Europe Cars:
for DEMO, for VW, for MINI, for LANDROVER, for SEAT, for FERRARI, for FORD, for OPEL, for ALFA, for ROMEO, for VOLVO, for ABARTH, for SMART, for BMW, for FIAT, for LANCIA, for RENAULT, for ASTONMARTIN, for GAZ, for MASERATI, for MEREDES, for UAZ, for SKODA, for CITROEN, for DACIA, for AUDI, for JAGUAR, for PORSCHE, for PEUGEOT
🚘America Cars:
for DEMO, for GM, for FORD, for CADILLAC, for CHEVROLET, for GMC, for HUMMER, for JEEP, for SATURN, for PONTIAC, for LINCOLN, for DODGE, for CHRYSLER, for BUICK
🚘Asia Cars:
for Demo, for TOYOTA -LEXUS, for ISUZU, for MAZDA, for KIA, for INFINITI, for ACURA, for NISSAN ,for RENAILTSAM, for HYUNDAICY, for HYUNDAI, for HONDA, for SUBARU, for SUZUKI, for MITSUBISHI, for SSANGYONG
🚘Australia Cars:
For Demo, for Ford
🚘China Cars:
for DEMO, fro JAC, for CHERY, for GEELY, for GREAT WALL, for BYD, for LIFAN
Xtool D7S Parameter
Operating System:Android 10.0 O.S.
Display:7.0 inch touch screen with 1024 X 600 resolution
Power and Battery:5000mAh, 3.7V
Memory:2GB+64GB
Power Consumption:8W
Power Voltage:5V
Processor:Quad-core 1.5GHz Processor
Connectivity:Micro USB+WIFI(2.4Ghz & 5Ghz)
Dimension (L*W*H):218*150*29mm
Sensors:Gravity sensor, light sensor

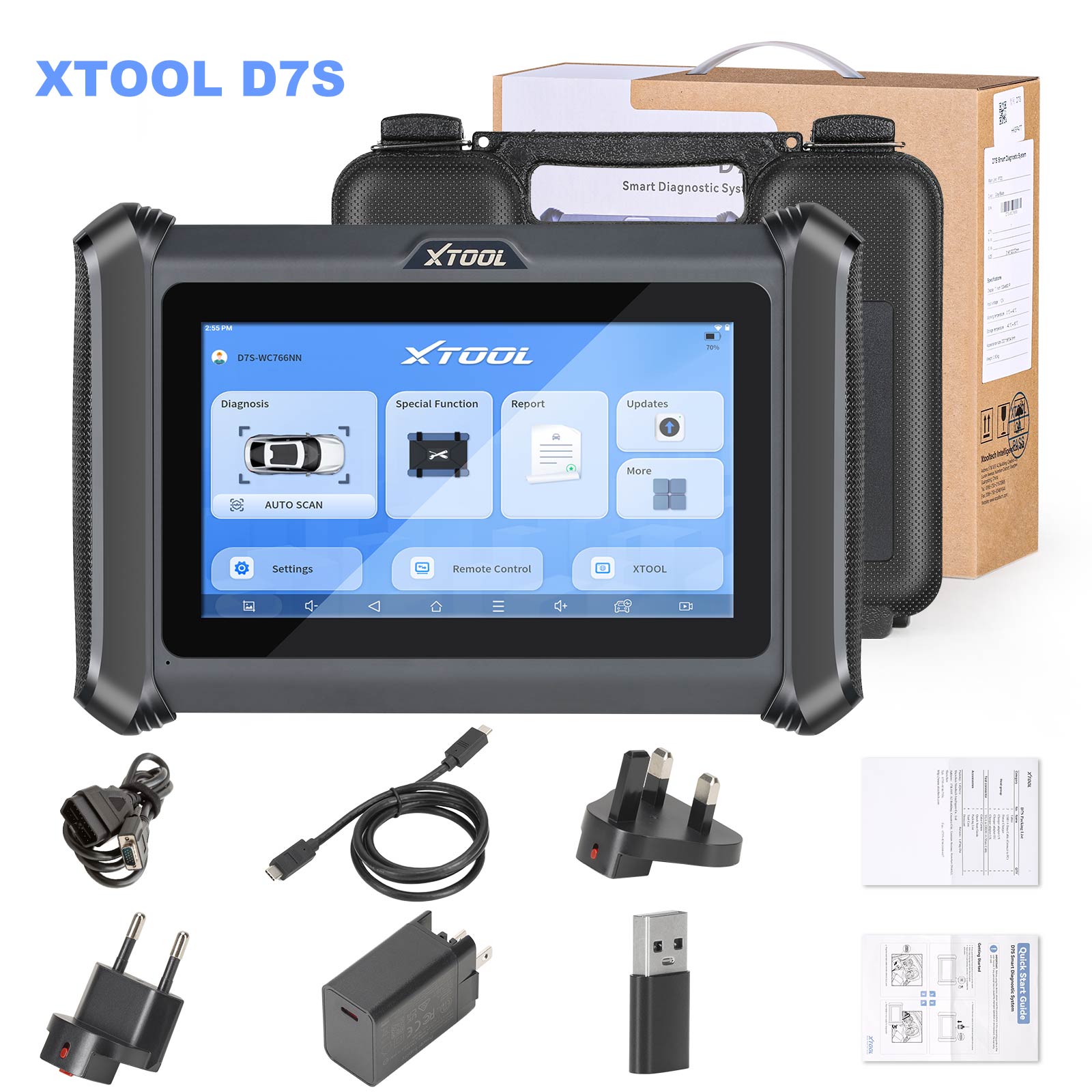

Packing List
1*D7S Smart Diagnostic Tablet
1*Quick Start Guide
1*Packing List
1*Tool Kit
1*Carton
1*DB15 to OBD2-16 Main Cable
1*Power Charger
1*USB 3.0 Data Cable
1*Charger US
1*Charger UE
1*Charger UK
XTOOL D7 vs XTOOL D7S vs XTOOL D8 vs XTOOL D8 BT vs XTOOL D9 vs XTOOL D9 Pro
XTOOL D7 | Xtool D7S | XTOOL D8 | XTOOL D8 BT | XTOOL D9 | XTOOL D9 Pro | |
Connection Method | Cable Connection(NO BT Transmitter) | Cable Connection | Cable Connection | BT Connection | BT Connection/USB Cable | BT Connection/USB Cable |
CAN FD/DoIP | N/A | CAN FD & DoIP | CAN FD | CAN FD | CAN FD & DoIP | CAN FD & DoIP |
Battery Capacity | 4000 mAh | 5000 mAh | 10,000 mAh | 10,000 mAh | 10,000 mAh | 10,000 mAh |
Storage | 1G+32G | 2G+64G | 2G+64G | 2G+64G | 2G+64G | 2G+64G |
Display | 7" Display | 7" Display | 8" Display | 8" Display | 9.7" Display | 9.7" Display |
Built-in Camera | ✘ | ✔ | ✔ | ✔ | ✔ | ✔ |
OS | Android 10 | Android 10 | Android 5.1.1 | Android 5.1.1 | Android 10 | Android 10 |
All Systems Diagnostics, Full Bi-Directional Control | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Services | 36+ | 36+ | 38+ | 38+ | 42+ | 42+ |
Advanced Special Functions | Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset etc | Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset etc | Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset, ADAS Calibration, etc | Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset, ADAS Calibration, etc | Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset, ADAS Calibration, etc | Idle Relearn, Fuel Trim Reset, Alcohol Content Reset, VIN Relearn, CAM Crank Relearn, Crankshaft Relearn, SWS Calibration, Yaw Rate Sensor Calibration, HVAC Calibration, Pilot Quantity Learning, Transmission Oil Counter Reset, ADAS Calibration, etc |
Flash Hidden Functions/ECU Coding/ECU Programming | ECU Coding for VW, Audi, Skoda | ECU Coding for VW, Audi, Skoda | Flash Hidden Functions, ECU Coding for VW, Audi, Skoda | Flash Hidden Functions, ECU Coding for VW, Audi, Skoda | Flash Hidden Functions, ECU Coding for VW, Audi, Skoda | Flash Hidden Functions, ECU Coding for VW, Audi, Skoda, ECU Programming for BMW, Benz, VW |
PMI | No | No | PMI for Ford/Lincoln/Mazda | PMI for Ford/Lincoln/Mazda | PMI for Ford/Lincoln/Mazda | PMI for Ford/Lincoln/Mazda |
Topology Map | N/A | N/A | ✓ | ✓ | ✓ | ✓ |
Free Software Updates | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
Work with KC100/KC501 | N | Y | Y | Y | Y | Y |
